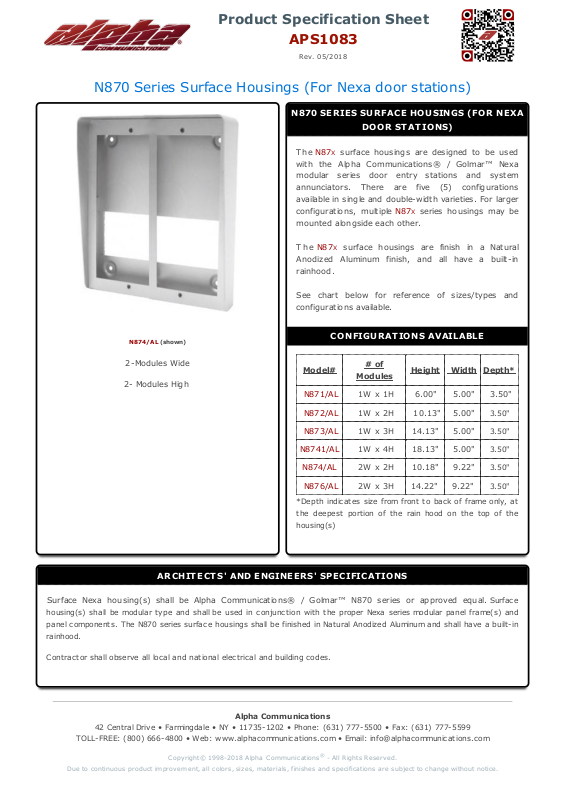

Alpha N8741-AL Specsheet

N870 Series Surface Housings (For Nexa door stations)

Product Specification Sheet

APS1083

Rev. 05/2018

N874/A L (shown)

2-Modules W ide

2- Modules High

N870 SER IE S SURFACE HOUSING S (FOR NEXA

DO O R ST AT IONS)

The N87X surface housings are designed to be used
with the Alpha Communications® / Golmar™ Nexa
modular series door entry stations and system
annunciators. There are five (5) configurations
available in single and double-width varieties. For larger
configurations, multiple N87X series housings may be
mounted alongside each other.

T h e N87X surface housings are finish in a Natural
Anodized Aluminum finish, and all have a built-in
rainhood.

See chart below for reference of sizes/types and
configurations available.

CONFIGUR ATIONS AVAILABLE

Model#

# of

Modules

Height Width Depth*

N871/AL 1W x 1H 6.00" 5.00" 3.50"

N872/AL 1W x 2H 10.13" 5.00" 3.50"

N873/AL 1W x 3H 14.13" 5.00" 3.50"

N8741/AL 1W x 4H 18.13" 5.00" 3.50"

N874/AL 2W x 2H 10.18" 9.22" 3.50"

N876/AL 2W x 3H 14.22" 9.22" 3.50"

*Depth indicat es size from front to bac k of frame only, at
the deepest portion of the rain hood on the top of t he
housing(s)

AR C HIT ECT S' AND ENGINEER S' SP ECIFIC ATIONS

Surface Nexa housing(s) shall be Alpha Communications® / Golmar™ N870 series or approved equal. Surface

housing(s) shall be modular type and shall be used in conjunct ion with the proper Nexa series modular panel frame(s) and
panel components. The N870 series surface housings shall be finished in Natural Anodized Aluminum and shall have a built-in
rainhood.

Contractor shall observe all local and nat ional electrical and building codes.
