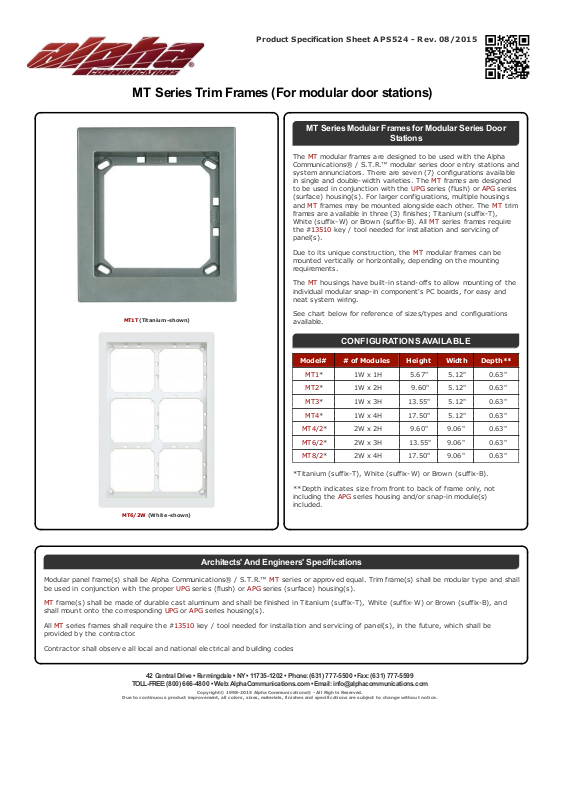

Alpha MT8-2B, MT6-2W, MT6-2T, MT6-2B, MT4W Specsheet

Product Specification Sheet A PS524 - Rev. 08/2015

MT Series Trim Frames (For modular door stations)

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright© 1998-201 5 Alpha Communications® - All Rights Reserved.

Due to co ntinuous pro duct improvement, all colo rs, sizes, materials, finishes and specification s are subject to ch ange without n otice.

MT1T (Titan ium-shown)

MT6/2W (White- shown)

MT Series Modular Frames for Modular Series Door

Stations

The MT modular frames are designed to be used with the Alpha
Communications® / S.T.R.™ modular series door entry stat ions and
system annunciators. There are seven (7) c onfigurations available
in single and double-width varieties. T he MT frames are designed
to be used in conjunction with t he UPG series (flush) or APG series
(surface) housing(s). For larger configurations, multiple housings
and MT frames may be mounted alongside each ot her. The MT trim
frames are available in three (3) finishes; Titanium (suffix-T),
White (suffix-W) or Brown (suffix- B). All MT series frames require
the #13510 key / tool needed for installation and servicing of
panel(s).

Due t o its unique c onstruction, the MT modular frames can be
mounted vertically or horizontally, depending on the mounting
requirements.

The MT housings have built-in stand-offs t o allow mounting of t he
individual modular snap-in c omponent's PC boards, for easy and
neat system wiring.

See c hart below for reference of sizes/types and configurations
available.

CONFIGURATIONS AVAILABLE

Model# # of Modules Height Width Depth**

MT1* 1W x 1H 5.67" 5.12" 0.63"

MT2* 1W x 2H 9.60" 5.12" 0.63"

MT3* 1W x 3H 13.55" 5.12" 0.63"

MT4* 1W x 4H 17.50" 5.12" 0.63"

MT4/2* 2W x 2H 9.60" 9.06" 0.63"

MT6/2* 2W x 3H 13.55" 9.06" 0.63"

MT8/2* 2W x 4H 17.50" 9.06" 0.63"

*Titanium (suffix-T), White (suffix-W) or Brown (suffix- B).

**Depth indicates size from front to bac k of frame only, not
including the APG series housing and/or snap-in module(s)
included.

Architects' And Engineers' Specifications

Modular panel frame(s) shall be Alpha Communications® / S.T.R.™ MT series or approved equal. Trim frame(s) shall be modular t ype and shall
be used in c onjunction with t he proper UPG series (flush) or APG series (surfac e) housing(s).

MT frame(s) shall be made of durable c ast aluminum and shall be finished in T itanium (suffix-T), White (suffix-W) or Brown (suffix-B), and

shall mount onto t he c orresponding UPG or APG series housing(s).

All MT series frames shall require the #13510 key / tool needed for installation and servicing of panel(s), in the future, which shall be
provided by the c ontractor.

Contract or shall observe all local and national electrical and building codes
