AlphaNet™ DSM3 Series DOCSIS® Status Monitor for the XM2 CableUPS

Technical Manual

Effective: March 2014

Page 2

Safety Information

Alpha considers customer safety and satisfaction its most important priority. To reduce the risk of injury or death and to ensure continual safe operation of this product, certain information is presented differently in this manual. Alpha tries to adhere to ANSI Z535, and encourages special attention and care to information presented in the following manner.

The following symbols describe how that information is presented in this document:

WARNING! HAZARD

WARNING provides safety information to reduce the risk of INJURY OR DEATH to the technician or user and CATASTROPHIC PROPERTY DAMAGE. The nature of the hazard will be indicated by one or more of the following three icons.

WARNING! ELECTRICAL HAZARD

ELECTRICAL HAZARD WARNING provides electrical safety information to PREVENT INJURY OR DEATH to the technician or user.

WARNING! FUMES HAZARD

FUMES HAZARD WARNING provides fumes safety information to PREVENT INJURY OR DEATH to the technician or user.

WARNING! FIRE HAZARD

FIRE HAZARD WARNING provides ammability safety information to PREVENT INJURY OR

DEATH to the technician or user.

There may be multiple warnings associated with the call out. Example:

WARNING! ELECTRICAL & FIRE HAZARD

This WARNING provides safety information for both Electrical AND Fire Hazards

CAUTION!

CAUTION provides safety information intended to PREVENT DAMAGE to material or equipment.

NOTE:

NOTE provides additional information to help complete a specic task or procedure.

ATTENTION:

ATTENTION provides specic regulatory/code requirements that may affect the placement of equipment, installation

procedures, or maintenance guidelines.

Read the entire manual and review all the drawings and illustrations contained in this manual before proceeding. If there is any question regarding the safe installation or operation of the product or its components, contact Alpha Technologies or the nearest Alpha representative. Save this document for future reference.

Page 3

AlphaNet

DOCSIS® Status Monitor for XM2 CableUPS

DSM3 Series

745-814-B8-001, Rev. C

Effective Date: March 2014

2014 by Alpha Technologies, Inc.

Disclaimer

Images contained in this manual are for illustrative purposes only. These images may not match your installation.

Operator is cautioned to review the drawings and illustrations contained in this manual before proceeding. If there are questions regarding the safe operation of this powering system, please contact Alpha Technologies or your nearest Alpha representative.

Alpha shall not be held liable for any damage or injury involving its enclosures, power supplies, generators, batteries or other hardware if used or operated in any manner or subject to any condition not consistent with its intended purpose or is installed or operated in an unapproved manner or improperly maintained.

Contact Information

Sales information and customer service in USA

(7AM to 5PM, Pacic Time):

Complete technical support in USA

(7AM to 5PM, Pacic Time or 24/7 emergency support):

Sales information and technical support in Canada:

Website: www.alpha.com

Page 4

Table of Contents

1.0 Introduction ......................................................................................................................................................................8

2.0 Overview ........................................................................................................................................................................10

2.1 System Diagram .....................................................................................................................................................10

2.2 Network Connectivity ..............................................................................................................................................11

2.3 System Conguration and Installation ....................................................................................................................11

2.4 DSM3 Series Start-up and Reboot Routine ............................................................................................................12

3.0 Network Conguration ...................................................................................................................................................13

3.1 Provisioning the DHCP Server with the MAC addresses .......................................................................................13

3.2 Establishing IP Connectivity ...................................................................................................................................14

3.3 The DOCSIS Conguration File .............................................................................................................................15

3.3.1 Setting Modem Community Strings — DOCSIS 2.0 (IPv4) Method ................................................................15

3.3.2 Setting Modem Community Strings — DOCSIS 2.0+IPv6 Method ..................................................................16

3.3.3 Setting SNMP Trap Destination Addresses — DOCSIS 2.0 (IPv4) Method .....................................................16

3.3.4 Setting SNMP Trap Destination Addresses — DOCSIS 2.0+IPv6 Method ......................................................17

3.3.5 Sample DOCSIS Conguration File Entries — DOCSIS 2.0 (IPv4) .................................................................18

3.3.6 Sample DOCSIS Conguration File Entries — DOCSIS 2.0+IPv6 ..................................................................19

3.3.7 Proprietary Conguration File ‘atidoc03.cfg’ ....................................................................................................20

3.3.8 Changing Default atidoc03.cfg Download Settings ..........................................................................................20

3.4 Setting Communication Options .............................................................................................................................21

4.0 Web Interface ................................................................................................................................................................22

Overview .......................................................................................................................................................................22

4.1 Local Web Server Access .......................................................................................................................................22

4.2 Remote Web Server Access ...................................................................................................................................25

4.3 Navigating the Web Page .......................................................................................................................................26

4.3 Navigating the Web Page, continued ......................................................................................................................27

4.3.1 Web Interface Security Levels .........................................................................................................................27

4.4 Verifying Communication Parameters .....................................................................................................................28

4.5 Verifying Power Supply and Battery Parameters ....................................................................................................29

4.6 Remote Self Tests via the Web Page .....................................................................................................................29

4.7 Viewing HMS Alarm Status via the Web Page .......................................................................................................30

4.8 Setting the I/O Controller via the Web Page ...........................................................................................................31

4.9 Viewing Power Supply Settings via the Web Page ................................................................................................32

4.10 Viewing Generator Settings via the Web Page ......................................................................................................34

4.11 Tools Menu – Constellation and Microreections ...................................................................................................34

4.11.1 QAM Constellation Tool ..................................................................................................................................35

4.11.2 QAM Constellation Common Impairments .....................................................................................................36

4.11.3 Microreections Tool .......................................................................................................................................40

5.0 Upgrading Firmware ......................................................................................................................................................41

5.1 Upgrading DSM3 Series Modem Firmware ............................................................................................................41

5.1.1 Identifying the Modem and Obtaining Firmware Files ......................................................................................41

5.1.2 Modem Firmware Upgrade SNMP Parameters ...............................................................................................41

5.1.3 Upgrading Manually by Setting SNMP Parameters .........................................................................................42

5.1.4 Upgrading via the DOCSIS Conguration File .................................................................................................42

6.0 Data Management .........................................................................................................................................................43

6.1 SCTE-HMS MIBs ...................................................................................................................................................43

6.2 SCTE-HMS MIB Alarms .........................................................................................................................................44

6.2.1 SCTE-HMS Congurable Alarms .....................................................................................................................44

6.2.2 SNMP Traps .....................................................................................................................................................49

6.2.3 General Power Supply Alarms .........................................................................................................................51

6.3 The Alpha MIBs ......................................................................................................................................................52

6.3.1 The Alpha MIB Structure ..................................................................................................................................54

4 745-814-B8-001, Rev. C (03/2014)

Page 5

Table of Contents, continued

7.0 Installation .....................................................................................................................................................................55

7.1 Verifying Power Supply Device Address ................................................................................................................55

7.2 Installation / Replacement Procedure in XM2 Power Supplies ..............................................................................56

7.3 DPM Installation / Replacement Procedure ............................................................................................................58

7.4 DSM3x LEDs and Connections ..............................................................................................................................60

7.5 DSM3 LEDs and Connections ................................................................................................................................61

7.6 DPM Connections ...................................................................................................................................................62

7.7 Connecting the RF Drop .........................................................................................................................................63

7.8 Front Panel Connections ........................................................................................................................................63

7.9 I/O Connections (TPR, ENV) ..................................................................................................................................64

7.9.1 Tamper (TPR) Switch Interface ........................................................................................................................64

7.9.2 I/O Port Interface ..............................................................................................................................................65

7.9.3 Conguring I/O Port Connections ....................................................................................................................65

7.9.3 Conguring I/O Port Connections, continued ...................................................................................................66

7.9.4 I/O Port: Generic Device ..................................................................................................................................66

7.9.5 Connecting a Generic I/O Device ....................................................................................................................67

7.9.6 Conguring and Monitoring a Generic I/O Device ...........................................................................................67

7.9.7 I/O Port: Lightning Arrestor (LA-P-SM) ............................................................................................................67

7.9.8 Lightning Arrestor (LA-P-SM) Installation .........................................................................................................68

7.9.9 Conguring the LA-P-SM .................................................................................................................................68

7.9.10 I/O Port: Heater Mat Control ..........................................................................................................................69

7.9.11 Connecting the Battery Heater Mat Controller ...............................................................................................69

7.9.12 Conguring the Battery Heater Mat Controller ...............................................................................................70

7.9.13 I/O Port: Emergency DC Generator (GEN) ....................................................................................................71

7.9.14 Conguring and Monitoring the DC Emergency Generator ...........................................................................71

8.0 Battery Sense Wire Kits .................................................................................................................................................72

8.1 36V Single and Dual Strings ...................................................................................................................................72

8.2 48V Single and Dual Strings ...................................................................................................................................73

9.0 Start Up and Verication ................................................................................................................................................74

9.1 Initial Startup and Local Verication ........................................................................................................................74

9.2 Verifying Correct Hardware Interconnection ...........................................................................................................75

9.3 System Status Indicators and Reset button ............................................................................................................76

9.3.1 Detailed LED Descriptions ...............................................................................................................................76

9.3.2 Resetting the Communications Module ...........................................................................................................78

9.4 Verifying Communications via the Headend ...........................................................................................................78

10.0 Alpha MIB Parameters .................................................................................................................................................79

10.1 Denitions and Settings ........................................................................................................................................79

11.0 Specications ...............................................................................................................................................................84

12.0 Glossary ......................................................................................................................................................................86

13.0 Dual IP Mode (Addendum) ..........................................................................................................................................87

13.1 Overview ...............................................................................................................................................................87

13.2 Web Comparison, Single IP Mode/Dual IP mode .................................................................................................88

13.3 Conguring Dual IP Mode .....................................................................................................................................89

13.3.1 atidoc03.cfg in Dual-IP Mode .........................................................................................................................91

13.3.2 Changing Default atidoc03.cfg Download Settings in Dual-IP Mode .............................................................91

13.3.3 Specifying atidoc03.cfg name and location via DHCP Tags ..........................................................................91

13.4 Dual IP SNMP Community Strings ........................................................................................................................92

13.5 Security in Dual IP Mode .......................................................................................................................................92

5745-814-B8-001, Rev. C (03/2014)

Page 6

Figures & Tables

Fig. 1-1, AlphaNet DSM3x .....................................................................................................................................................8

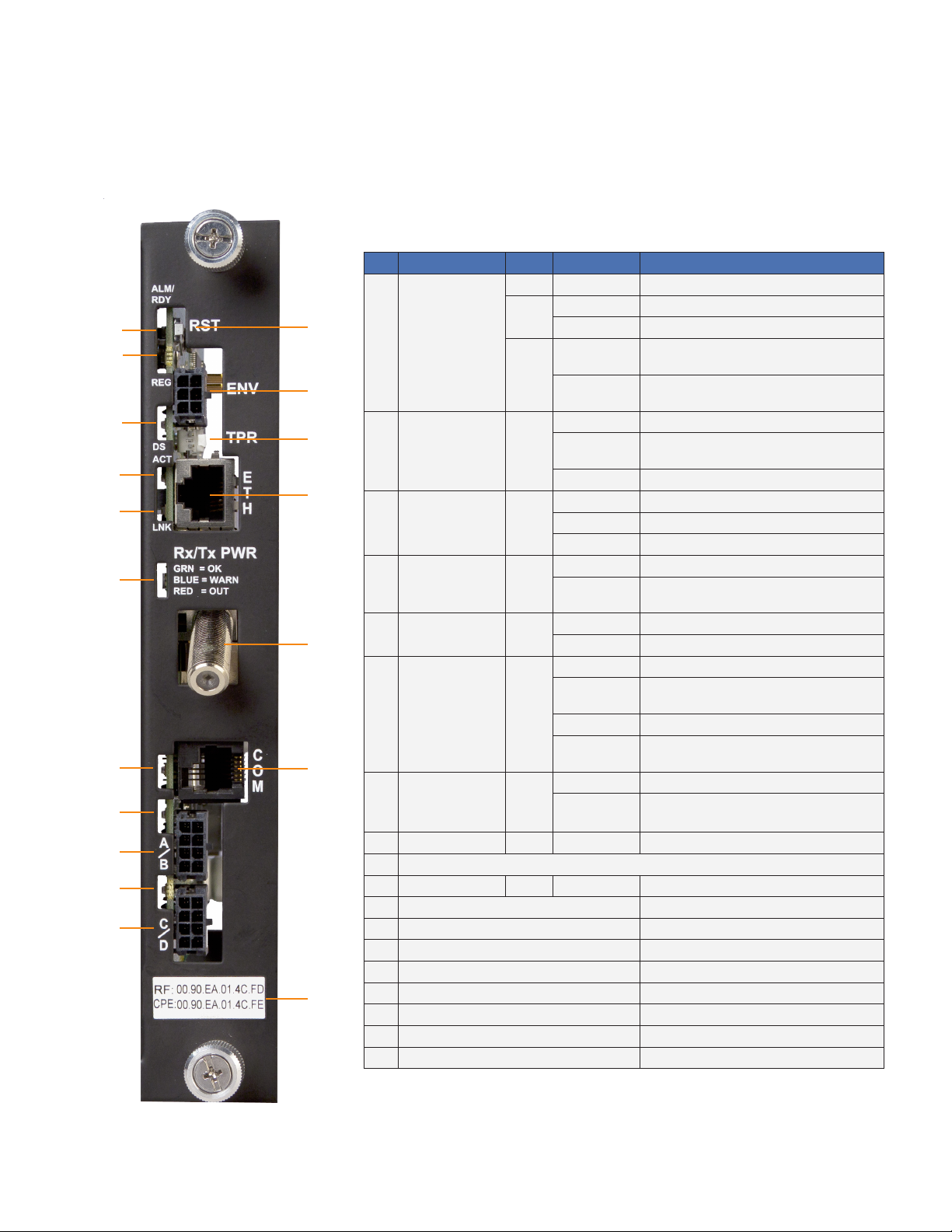

Fig. 1-2, AlphaNet DSM3 .......................................................................................................................................................8

Fig. 1-3, AlphaNet DPM .........................................................................................................................................................8

Fig. 1-4, Side view, AlphaNet DSM3 Series ..........................................................................................................................9

Fig. 2-1, Representative System Arrangement ....................................................................................................................10

Fig. 3-1, Locations of MAC Address labels ..........................................................................................................................13

Fig. 3-2, Sample DOCSIS Conguration File — DOCSIS 2.0 (IPv4) ..................................................................................18

Fig. 3-3, Sample DOCSIS Conguration File — DOCSIS 2.0+IPv6 ...................................................................................19

Fig. 4-1, DSM3 Series Web Page .......................................................................................................................................22

Fig. 4-2, Local Area Connection Properties Screen, Windows XP ......................................................................................23

Fig. 4-3, Internet Protocol (TCP/IP) Properties Screen, Windows XP .................................................................................23

Fig. 4-4, Local Area Connection Properties Screen, Windows 7 .........................................................................................24

Fig. 4-5, Internet Protocol (TCP/IP) Properties Screen, Windows 7 ....................................................................................24

Fig. 4-6, Web Server Home Page .......................................................................................................................................25

Fig. 4-7, DSM3 Series Navigation Bar Items .......................................................................................................................26

Fig. 4-8, DSM3 Series Communications Module Security Levels .......................................................................................27

Fig. 4-9, Communication Parameters ..................................................................................................................................28

Fig. 4-10, Advanced Communication Parameters ...............................................................................................................28

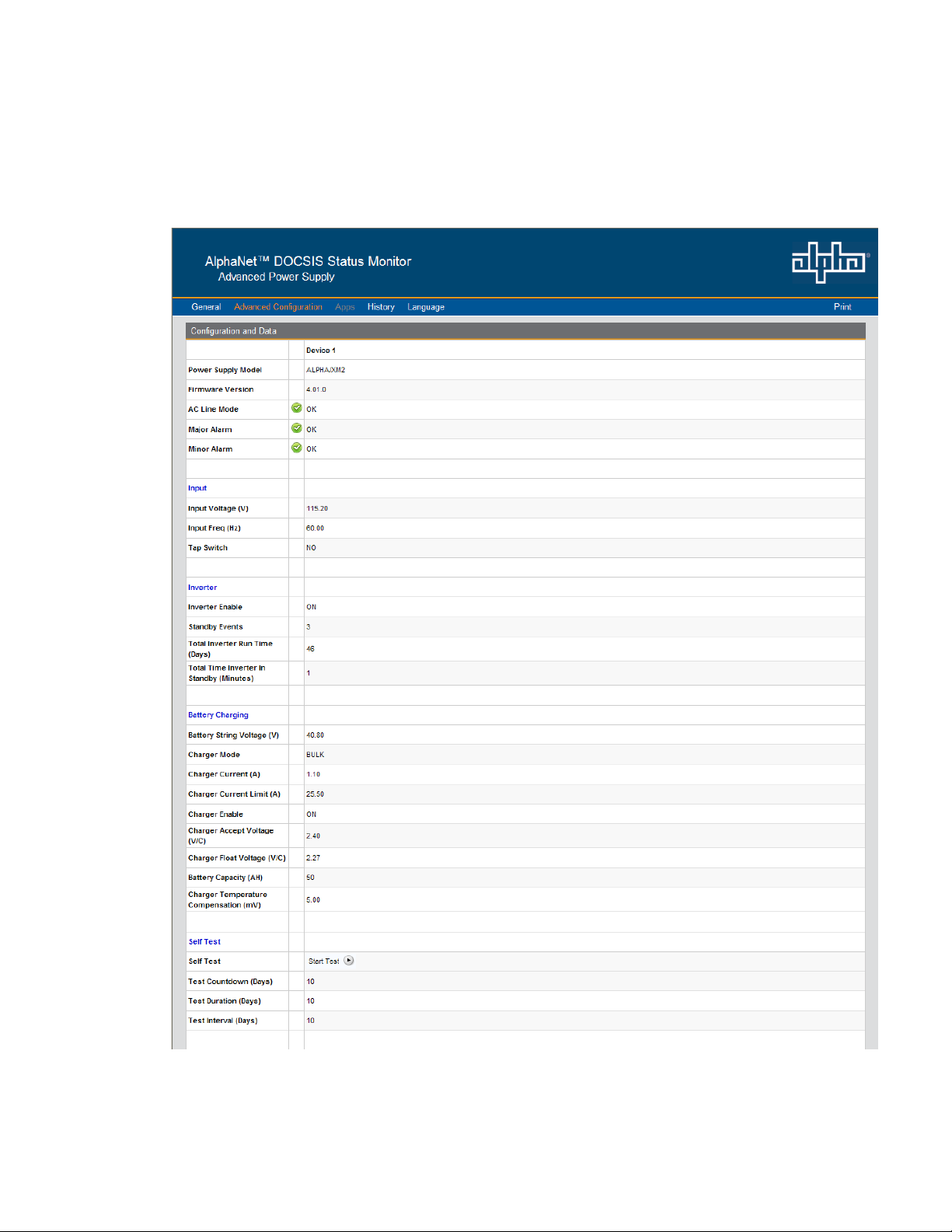

Fig. 4-11, Power Supply and Battery Parameters ...............................................................................................................29

Fig. 4-12, Location of Start Test Button for Self Test ..........................................................................................................29

Fig. 4-13, HMS Alarm Conguration ....................................................................................................................................30

Fig. 4-14, Advanced I/O Controller Status Screen ...............................................................................................................31

Fig. 4-15, Advanced Power Supply Settings Screen ..........................................................................................................32

Fig. 4-16, Advanced Generator Status Screen ...................................................................................................................34

Fig. 4-17, QAM Constellation Tool .......................................................................................................................................35

Fig. 4-18, Normal - (Good Quality) and Individual Cell Characteristics ...............................................................................36

Fig. 4-19, Fuzzy (Low CNR and/or Low MER) and Individual Cell Characteristics .............................................................37

Fig. 4-20, Doughnuts (Coherent Interference) and Individual Cell Characteristics .............................................................37

Fig. 4-21, Gaussian Noise and Individual Cell Characteristics ............................................................................................38

Fig. 4-22, Rectangular vs. Square (I-Q Imbalance) and Entire Constellation Shape ..........................................................38

Fig. 4-23, Corners Squeezed to Center (Gain Compression) and Entire Constellation Shape ...........................................39

Fig. 4-24, Circular Smear (Phase Noise) and Entire Constellation Shape .........................................................................39

Fig. 4-25, Twisted or Skewed (Quadrature Distortion) and Entire Constellation Shape ......................................................40

Fig. 4-26, Microreections Tool ............................................................................................................................................40

Fig. 6-1, Sample Raw SNMP Alarm Trap ............................................................................................................................49

Fig. 6-2, Sample Translated SNMP Alarm Trap ...................................................................................................................49

Fig. 7-1, Removing the Inverter Module from the Power Supply ........................................................................................56

Fig. 7-2, Transponder Captive Screw Locations...................................................................................................................56

Fig. 7-3, The 18-pin jumper .................................................................................................................................................57

Fig. 7-4, The 18-pin jumper installed ...................................................................................................................................57

Fig. 7-5, Connecting the Communications Module to the Inverter Module .........................................................................57

Fig. 7-6, Removing the Inverter Module from the Power Supply ........................................................................................58

Fig. 7-7, Removing the DPM sheet metal from the Inverter Module ...................................................................................58

Fig. 7-8, The 18-pin jumper installed ...................................................................................................................................59

Fig. 7-9, DPM 18-pin header ...............................................................................................................................................59

Fig. 7-10, DPM attached to sheet metal ..............................................................................................................................59

Fig. 7-11, DPM / IM connection ...........................................................................................................................................59

Fig. 7-12, Completed assembly ...........................................................................................................................................59

Fig. 7-13, DSM3x LEDs and Connectors ...........................................................................................................................60

Fig. 7-14, DSM3 LEDs and Connectors ..............................................................................................................................61

Fig. 7-15, DPM LEDs and Connectors ................................................................................................................................62

Fig. 7-16, Connecting the RF Drop ......................................................................................................................................63

Fig. 7-17, System Interconnection Diagram ........................................................................................................................63

Fig. 7-18, I/O (ENV) and Tamper Switch Interface (TPR) Connection Locations ................................................................64

Fig. 8-1, 36V System, Single String .....................................................................................................................................72

Fig. 8-2, 36V System, Dual String .......................................................................................................................................72

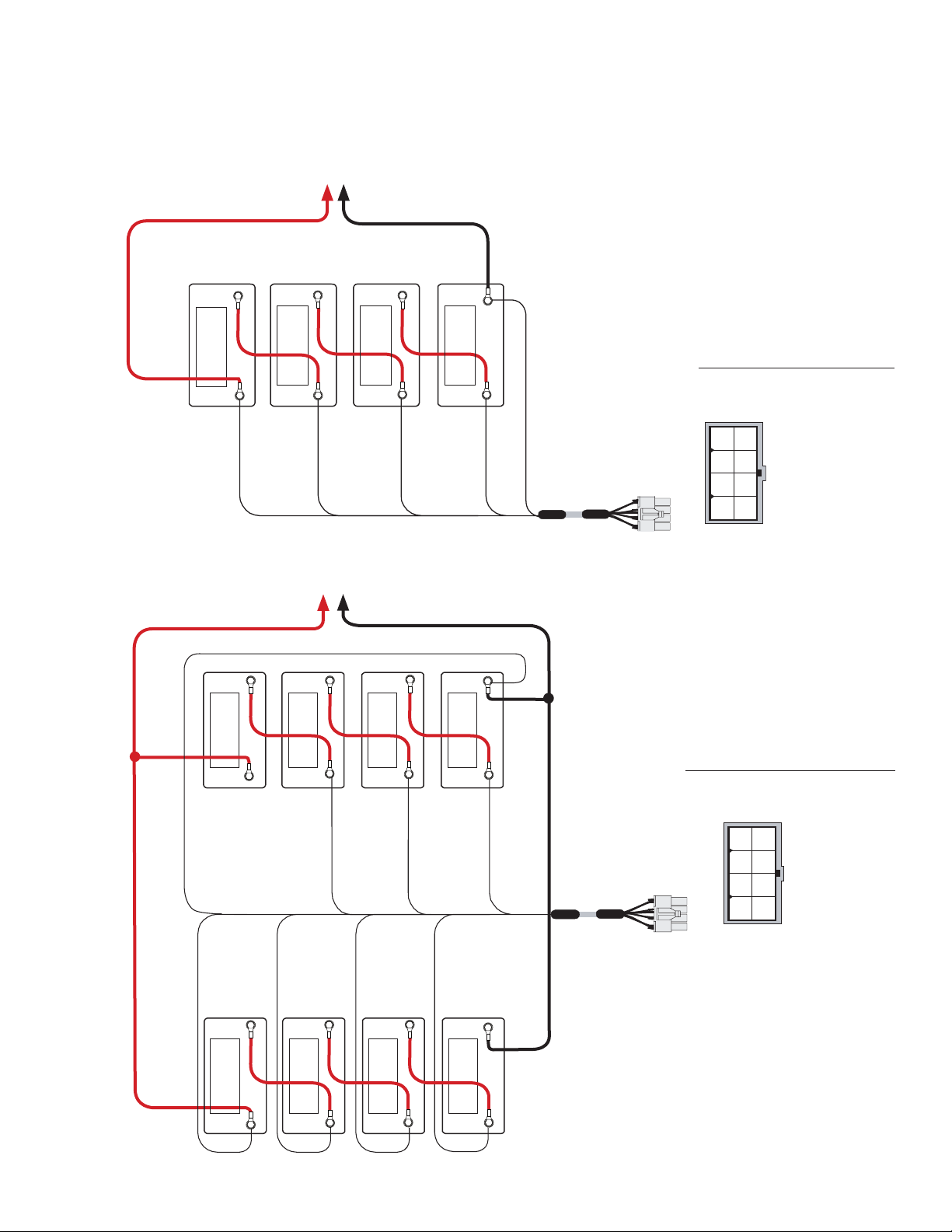

Fig. 8-3, 48V, Single String ..................................................................................................................................................73

6 745-814-B8-001, Rev. C (03/2014)

Page 7

Figures & Tables, continued

Fig. 8-4, 48V, Dual String ....................................................................................................................................................73

Fig. 9-1, Communications Section - General Page .............................................................................................................74

Fig. 9-2, Power Supply Section - General Page .................................................................................................................75

Fig. 9-3, LED Functionality and Indications .........................................................................................................................76

Fig. 9-4, DSM3 Series Web Page, RF Power Level Indicators ...........................................................................................78

Fig. 13-1, Simplied Block Diagram Single IP Mode ...........................................................................................................87

Fig. 13-2, Simplied Block Diagram Dual IP Mode ..............................................................................................................87

Fig. 13-3, Single IP DSM3 Series Web Page ......................................................................................................................88

Fig. 13-4, Dual IP DSM3 Series Web Page .........................................................................................................................88

Fig. 13-5, Dual IP Conguration Settings on Communications page of DSM3 Web Server ...............................................90

Fig. 13-6, Dual IP Parameters on the General page of DSM3 Web Server ........................................................................90

Table 1-1, DSM3 Series Model Specications ......................................................................................................................8

Table 2-1, LEDs and Indications ..........................................................................................................................................12

Table 3-1, Modem Community String Parameters — DOCSIS 2.0 (IPv4) Method ..............................................................15

Table 3-2, Modem Community String Parameters — DOCSIS 2.0+IPv6 Method ...............................................................16

Table 3-3, Trap Destination Addresses — DOCSIS 2.0 (IPv4) Method ...............................................................................16

Table 3-4, Trap Destination Addresses — DOCSIS 2.0+IPv6 Method ................................................................................17

Table 3-5, Default atidoc.cfg Download Settings .................................................................................................................20

Table 3-6, Communications Module Communications Parameters .....................................................................................21

Table 4-1, DSM3 Series Communications Module Security Levels......................................................................................27

Table 5-1, Modem Firmware Upgrade SNMP Parameters ..................................................................................................41

Table 6-1, SCTE-HMS MIB Files .........................................................................................................................................43

Table 6-2, Binary to Hex Conversions for Alarm Settings ....................................................................................................44

Table 6-3, Recommended Settings for DSM3 Series Analog Alarms .................................................................................45

Table 6-4, Recommended Settings for DPM Analog Alarms ..............................................................................................45

Table 6-5, Recommended Settings for Discrete Alarms .....................................................................................................46

Table 6-5, Recommended Settings for Discrete Alarms, continued ...................................................................................47

Table 6-6, DSM Alarm Setting Distribution Parameters Examples ......................................................................................48

Table 6-7, Alarm Monitoring Parameters .............................................................................................................................48

Table 6-8, SNMP Alarm Trap Varbinds and Explanations ...................................................................................................50

Table 6-9, XM2 Major and Minor Alarms .............................................................................................................................51

Table 6-10, Alpha MIB Hierarchy .........................................................................................................................................53

Table 6-11, Alpha MIB Parameter Examples .......................................................................................................................54

Table 7-1, Tamper (TPR) Switch Specications ..................................................................................................................64

Table 7-2, ENV Connector and Pin Descriptions .................................................................................................................65

Table 7-3, I/O Port Specications ........................................................................................................................................66

Table 7-4, I/O Port: Generic Device Specications ..............................................................................................................66

Table 7-5, LA-P-SM Monitoring Values ................................................................................................................................68

Table 7-6, I/O Port: Heater Mat Control Specications ........................................................................................................69

Table 7-7, Heater Mat OIDs and Functionality .....................................................................................................................70

Table 7-8, Heater Mat MIB Reports .....................................................................................................................................70

Table 7-9, Generator Monitoring Values ..............................................................................................................................71

Table 13-1, Single IP Mode versus Dual IP Mode ...............................................................................................................87

Table 13-2, Enabling Dual IP mode .....................................................................................................................................89

Table 13-3, CPE Communications Module IP Settings .......................................................................................................89

Table 13-4, Data Access Key Parameters ...........................................................................................................................92

Table 13-5, Data Access Key Parameters ...........................................................................................................................92

Table 13-6, Secure Access Table Parameters .....................................................................................................................93

7745-814-B8-001, Rev. C (03/2014)

Page 8

1.0 Introduction

The AlphaNet DSM3 Series Embedded DOCSIS Communications Module allows monitoring of Alpha power supplies through existing cable network infrastructure. Advanced networking services provide quick reporting and access to critical powering information.

The DSM3 Series utilizes Simple Network Management Protocol (SNMP) and standard Management Information Bases (MIBs) to provide network status monitoring and diagnostics. A Web interface enables authorized

personnel direct access to advanced diagnostics using a common Web browser. No custom software is required. This manual addresses the three models of the DSM3 Series. The table below compares the differences between the Communications Module models.

Model DSM3x (E) DSM3 (E) DPM (E)

Part Number 746-097-20 (746-097-23) 746-097-21 (746-097-24) 746-097-22 (746-097-25)

Supported Power Supplies XM2, XM2-HP, XM2-VP, GMX, VMX XM2, XM2-HP, XM2-VP, GMX, VMX XM2-300HP

Capacity 5 power supplies (plus generator) 1 power supply 1 power supply

1 & 2 Battery Strings Yes Yes 1 battery (2 for added runtime)

3 & 4 Battery Strings Yes No No

Tamper Switch Yes Yes Yes

External I/O Monitoring and Control Yes No Yes

COM Port (AlphaBus) Yes No No

Ethernet Port Yes Yes Yes

2 x 9 Interconnection Header Alpha p/n 540-286-19 Alpha p/n 540-286-19 Alpha p/n 540-581-19

Table 1-1, DSM3 Series Model Specications

DSM3x 2 x 9 header

(Alpha p/n 540-286-19)

Fig. 1-1, AlphaNet DSM3x

Fig. 1-2, AlphaNet DSM3 Fig. 1-3, AlphaNet DPM

DSM3 2 x 9 header

(Alpha p/n 540-286-19)

DPM 2 x 9 header

(Alpha p/n 540-581-19)

Primary Features:

• 10/100 Mbps auto-negotiating standard Ethernet interface

• Supports SNMPv1, v2c

• Extensive power supply diagnostic MIBs

• Embedded Web server for direct diagnostics

• Environmentally hardened DOCSIS cable modem and Communications Module

• Local Ethernet port provides technician on-site access to extensive power supply diagnostics*

• Angled RF port reduces cable bend radius

• Diagnostic LEDs

• North American or Euro DOCSIS available (Euro models in parentheses)

* Ethernet port also available for connecting external CPE devices

8 745-814-B8-001, Rev. C (03/2014)

Page 9

1.0 Introduction

Environmental IO Connector (DSM3x and DPM only)

Tamper Connector

Intelligent CableUPS Interface (located on other side of the board)

Single Microcontroller Cable Modem Design

Ethernet Port for Local Diagnostics

RF Connector

COM Port (DSM3x only)

Battery Monitoring Connection A/B (DSM3 and DSM3x only)

Battery Monitoring Connection C/D (DSM3x only)

Power Supply Interface (GMX, VMX

Models)

Fig. 1-4, Side view, AlphaNet DSM3 Series

9745-814-B8-001, Rev. C (03/2014)

Page 10

2.0 Overview

2.1 System Diagram

Power Supply

DSM3 Series

Coax/HFC Network

Local Computer

SNMP-based Network Management System

CMTS

TCP/IP Network

External Generator

DHCP Server

TFTP Server TOD Server

Web Browser

Fig. 2-1, Representative System Arrangement

All power supply data is stored in the power supply inverter module's class information base (CIB) tables in the power supply. This data is accessible directly via the power supply’s smart display (see the power supply’s technical manual for details).

The CIB tables are the source of the Communications Module’s data.

The DSM Series contains both SCTE-HMS Management Information Base (MIBs) and the proprietary Alpha MIB tables. The

SCTE-HMS MIBs are industry standard MIB tables that store power supply, battery and generator data from the CIB tables

(See Section 6.0, Data Management). The Alpha MIB contains all the data of the SCTE-HMS MIBs plus additional power supply settings and values as well as DSM3 Series conguration values.

An external generator or additional power supplies may be connected through the COM (AlphaBus) port permitting

monitoring locally through the Ethernet connector or remotely via the Web page or SNMP-based Network Management

System.

Power supply and Communications Module parameters can be monitored and set locally using a personal computer and a

standard Ethernet cable.

The DSM3 Series transmits data via its cable modem directly over the Coax or Hybrid Fiber Coax network.

The Cable Modem Termination System (CMTS) is the bridge between the cable network and the TCP/IP network. The DSM3

Series’ cable modem communicates directly with the CMTS.

The Dynamic Host Control Protocol (DHCP) server needs to be provisioned with the DSM3’s cable modem RF MAC Address

and the MAC Address needs to be assigned a DOCSIS Conguration File.

The DOCSIS Conguration File and rmware les should be available in the Root Directory of the Trivial File Transfer

Protocol (TFTP) Server.

The Time of Day (TOD) Server provides the cable modem with the current date and time via the SNTP protocol.

A Network Management System (NMS) or MIB Browser allows remote monitoring of parameter values and changing of

settings in SNMP MIB tables. SCTE-HMS and Alpha MIBs must be installed in the browser. Alarms and traps can be set and monitored.

The power supply and generator may be accessed remotely through the Communications Module's Web page by placing its

IP address into a standard Internet Web browser.

10 745-814-B8-001, Rev. C (03/2014)

Page 11

2.0 Overview

2.2 Network Connectivity

The DSM3 Series cable modem must be recognized by the CMTS as a valid device to be assigned an IP address from the DHCP server, to locate the TFTP and TOD servers and to communicate with the SNMP

management server (trap receiver).

Data from both the cable modem and power supply are accessed and managed through the modem’s IP

address on the secure private modem network. The Communications Module is not accessible from the

public Customer Premises Equipment (CPE) network. Consequently, the Network Management System (NMS) that monitors the power supplies must have access to the same private modem network.

CMTS and system vendors use different security methods to insure network integrity, but common considerations are:

• MAC ltering may have to be modied to allow RF MAC registration of addresses starting with

• For SNMP access, UDP ports 161 and 162 must not be blocked.

• For TFTP access, port 69 must not be blocked.

• For HTTP access, port 80 must not be blocked.

• For SNTP access, port 37 must not be blocked.

00:90:EA - North American or 00:03:08 - Euro models.

• Firewalls must allow TFTP, DHCP, SNMP and TOD communication to the cable modem.

• If the address of the TFTP or TOD server is different than the DHCP server, the response from the

DHCP server must contain the TFTP and TOD addresses.

2.3 System Conguration and Installation

NOTE:

Before installation, read all of the “System Overview” sections.

DSM3 Series installation and setup is comprised of three basic steps:

1. Conguring the Network: Provisioning the DHCP Server with the Communications Module’s MAC Address and assigning it a DOCSIS Conguration File.

2. Setting Options: The DSM3 Series is designed for out-of-the-box, "plug and play" operation, but non-default settings such as SNMP trap destination addresses may be required for the Network

Management System (NMS). SNMP trap addresses can be set automatically via the DOCSIS Conguration File per RFC 4639, while DSM3 Series proprietary options may be set through type-11

TLV entries. The SCTE-HMS and Alpha MIBs may need to be compiled into a MIB browser before it can be used to monitor or set Communications Module and power supply parameters.

3. Field Installation of the DSM3 Series into the power supply, connecting the battery sense wire harnesses and verifying operation.

These steps can be performed independently of one another. However, conguring the network prior to eld installation will allow the installation to be veried while personnel are still on-site. Performing eld installation before network conguration and before the installation can be veried, might result in additional eld service calls to correct mistakes.

Carefully read the following section in order to understand the dependencies within the system before

performing system conguration or hardware installation.

11745-814-B8-001, Rev. C (03/2014)

Page 12

2.0 Overview

2.4 DSM3 Series Start-up and Reboot Routine

TFTP Server

TOD Server

DHCP Server

TCP/IP NetworkHFC Network

Switches

Routers

Firewalls

Network Management System

MIB Browser

Web Browser

CMTS

DSM3 Series

Power Supply

Local Laptop

The above diagram, read left to right, indicates the order of operations as the Communications Module comes online. There are certain conditions that must exist for each step to occur, resulting in successful data monitoring and management. The numbers below correspond to the numbered arrows above.

LEDs and Indications

Ref #

3 5

Communications

State

Communications Module Initializing/Searching for Downstream DOCSIS channel

DOCSIS channel locked Completing upstream and network registration

Online - registration complete

DSM3 Series fully functional

Laptop connected

ALM/RDY Downdstream (DS) Registration (REG)

Flashing

(Green)

Flashing

(Green)

Flashing

(Green)

Flashing

(Green)

Flashing

(Green)

Flashing OFF OFF OFF OFF

ON Flashing ON (Green) OFF OFF

ON ON ON (Green) OFF and ON OFF

ON ON ON (Green)

ON ON ON (Green) Bursts

Rx/Tx

Power

Communications (COM) Ethernet (ETH)

Bursts when communicating to

multiple power supplies

OFF

LNK - ON

ACT - Bursts

• Blue Rx/Tx Power LED indicates Rx/Tx Power at a warning level. Make the necessary RF level adjustments.

• Red Rx/Tx Power LED indicates Rx/Tx Power at an alert level. Make the necessary RF level adjustments.

Table 2-1, LEDs and Indications

12 745-814-B8-001, Rev. C (03/2014)

Page 13

3.0 Network Conguration

3.1 Provisioning the DHCP Server with the MAC addresses

On the DHCP server, assign the cable modem’s RF MAC address with a DOCSIS Conguration File

to set modem communication options. (See Section 3.3 for instructions on how to create a DOCSIS

Conguration File).

The RF and CPE MAC addresses are located in two places on the DSM3 Series and on the packing slip, see below.

Identier label

Fig. 3-1, Locations of MAC Address labels

Cable Modem and CPE MAC address label

13745-814-B8-001, Rev. C (03/2014)

Page 14

3.0 Network Conguration, continued

3.2 Establishing IP Connectivity

The DSM3 Series supports the CableLabs DOCSIS 2.0+IPv6 implementation. The main benet of IPv6 is

its expanded addressing capability, increasing the address space from 32 to 128 bits, providing virtually unlimited number of networks and systems. The DSM3 Series determines the IP provisioning mode via the CableLabs SNMP MIB parameter docsIf3CmMdCfgIpProvMode (SNMP OID: 1.3.6.1.4.1.4491.2.1

.20.1.31.1.1). The DSM3 Series will support the following congurable IP Provisioning Mode Override

policies:

• Honor MDD: The cable modem of the DSM3 Series unit will acquire an IPv6 or IPv4 address as directed by the MAC Domain Descriptor (MDD) message for provisioning and operation.

• IPv4 only: The cable modem of the DSM3 Series unit will acquire a single IPv4 address for the CM

management stack, overriding the TLVs in the MDD message.

• IPv6 only: The cable modem of the DSM3 Series unit will acquire a single IPv6 address for the CM management stack, overriding the TLVs in the MDD message.

14 745-814-B8-001, Rev. C (03/2014)

Page 15

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File

A cable modem’s DOCSIS Conguration File is a type-length-value (TLV) le that contains important operational parameters as dened by the DOCSIS standards. It provides certain settings for the cable modem. In addition to standard entries, settings in the DOCSIS Conguration File should include the modem’s community strings and if an upgrade is necessary, rmware upgrade parameters. Place the Conguration File in the TFTP root directory.

The DSM3 Series cable modem interface can support both IPv4 and IPv6 addressing schemes. The

required DOCSIS Conguration File operational parameters will differ depending on company policies, cable modem rmware versions and IP addressing schemes. The following DOCSIS Conguration File details listed in this manual are general guidelines. Please consult the published DOCSIS Specication resources (CableLabs) for additional DOCSIS Conguration File details and guidelines.

To build a DOCSIS Conguration File, use a DOCSIS TLV editor program. See the example Conguration Files in Sections 3.3.5 and 3.3.6.

NOTE:

The modem community strings should be set in the DOCSIS Conguration File. Failure to set community strings will result in a less secure system. For automatically updating modem rmware with the DOCSIS Conguration File, see Section 5.1, Upgrading DSM3 Series Modem Firmware.

3.3.1 Setting Modem Community Strings — DOCSIS 2.0 (IPv4) Method

Set the modem community strings with the DOCSIS Conguration File by including the following

SNMP parameters:

MIB Parameter Object ID Description Value

docsDevNmAccessIp 1.3.6.1.2.1.69.1.2.1.2.x The IP address (or subnet) of the network

management station

docsDevNmAccessIpMask 1.3.6.1.2.1.69.1.2.1.3.x The IP subnet mask of the network

management stations

docsDevNmAccessCommunity 1.3.6.1.2.1.69.1.2.1.4.x The community string matched to this IP

address net mask entry

docsDevNmAccessControl 1.3.6.1.2.1.69.1.2.1.5.x The level of access granted 1= none

docsDevNmAccessInterfaces 1.3.6.1.2.1.69.1.2.1.6.x Species the set of interfaces from which

requests from this NMS will be accepted

docsDevNmAccessStatus 1.3.6.1.2.1.69.1.2.1.7.x Controls and reects the status of rows in

this table

Note: X denotes the index of the SNMP entry

Table 3-1, Modem Community String Parameters — DOCSIS 2.0 (IPv4) Method

e.g. 10.20.30.0

e.g. 255.255.255.0

alphanumeric string

2= read only 3= read/write

0x40 : Cable interface (typical) 0x80 : Ethernet interface 0xC0 or 0x00 : Both interfaces

15745-814-B8-001, Rev. C (03/2014)

Page 16

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File, continued

3.3.2 Setting Modem Community Strings — DOCSIS 2.0+IPv6 Method

Set the modem community strings with the DOCSIS Conguration File for a IPv6 network by

including the following SNMP parameters:

TLV Type TLV Parameter Description Value

53 SNMPv1v2c Coexistence Conguration This object species the SNMPv1v2c Coexistence Access

53.1 SNMPv1v2c Community Name This sub-TLV species the Community Name (community

53.2 SNMPv1v2c Transport Address Access This sub-TLV species the Transport Address and Transport

53.2.1 SNMPv1v2c Transport Address Species the Transport Address to use in conjunction with

53.2.2 SNMPv1v2c Transport Address Mask Species the Transport Address Mask to use in conjunction

53.3 SNMPv1v2c Access View Type Species the type of access to grant to the community name

53.4 SNMPv1v2c Access View Name Species the name of the view that provides the access

Control conguration of the CM. This TLV creates entries in SNMPv3 tables as specied in [DOCSIS OSSIv3.0]

string) used in SNMP requests to the CM.

Address Mask pair used by the CM to grant access to the SNMP entity querying the CM.

the Transport Address Mask used by the CM to grant access to the SNMP entity querying the CM. Length is 6 bytes for IPv4 and 18 bytes for IPv6. Two additional bytes are added to the IP address length for the port number.

with the Transport Address used by the CM to grant access to the SNMP entity querying the CM. Length is 6 bytes for IPv4 and 18 bytes for IPv6. Two additional bytes are added to the IP address length for the port number.

of this TLV. If not specied, default read-only is used.

indicated in sub-TLV SNMPv1v2c Access View Type.

Composite

Text e.g. AlphaRead

Variable

Transport Address

0.0.0.0/0 or 0:0:0:0:0:0:0:0/0

Transport Address Mask

0.0.0.0/0 or 0:0:0:0:0:0:0:0/0

1=Read-only 2=Read-write

String e.g.docsisManagerView

Table 3-2, Modem Community String Parameters — DOCSIS 2.0+IPv6 Method

3.3.3 Setting SNMP Trap Destination Addresses — DOCSIS 2.0 (IPv4) Method

Set the SNMP Trap Destination Addresses via the DOCSIS Conguration File by including the

following SNMP parameters:

MIB Parameter Object ID Description Value

docsDevNmAccessIP 1.3.6.1.2.1.69.1.2.1.2.x IP address of trap destination, e.g. NMS

server

docsDevNmAccessIpMask 1.3.6.1.2.1.69.1.2.1.3.x Must be set to 255.255.255.255 per RFC 4639 255.255.255.255

docsDevNmAccessCommunity 1.3.6.1.2.1.69.1.2.1.4.x Community string used by NMS to query

Communications Module

docsDevNmAccessControl 1.3.6.1.2.1.69.1.2.1.5.x Level of SNMP access to DSM3 Series from

IP address specied in

docsDevNmAccessIpMask

docsDevNmAccessInterfaces 1.3.6.1.2.1.69.1.2.1.6.x Species the set of interfaces from which

requests from this NMS will be accepted

docsDevNmAccessStatus 1.3.6.1.2.1.69.1.2.1.7.x Controls and reects the status of rows in

this table

Note: X denotes the index of the SNMP entry

e.g. 10.20.30.40

alphanumeric string

4=Read/Only plus Trap 5=Read/Write plus Trap 6=Trap only, no SNMP access

0x40 : Cable interface (typical) 0x80 : Ethernet interface 0xC0 or 0x00 : Both interfaces

Table 3-3, Trap Destination Addresses — DOCSIS 2.0 (IPv4) Method

16 745-814-B8-001, Rev. C (03/2014)

Page 17

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File, continued

3.3.4 Setting SNMP Trap Destination Addresses — DOCSIS 2.0+IPv6 Method

Set the SNMP Trap Destination Addresses via the DOCSIS Conguration File by including the

following SNMP parameters:

TLV Type TLV Parameter Description Value

38 SNMPv3 Notication Receiver This cong le element species a

38.1 SNMPv3 Notication Receiver IP

Address

38.2 SNMPv3 Notication Receiver UDP Port

Number

38.3 SNMPv3 Notication Receiver Trap

Type

38.4 SNMPv3 Notication Receiver Timeout This sub-TLV species the timeout value to

38.5 SNMPv3 Notication Receiver Retries This sub-TLV species the number of times

38.6 SNMPv3 Notication Receiver Filtering

Parameters

Network Management Station that will receive

notications from the modem when it is in

Coexistence mode. Up to 10 of these elements

may be included in the conguration le.

This sub-TLV species the IP address of the notication receiver.

This sub-TLV species the UDP port number of the notication receiver. If this sub-TLV is not

present, the default value of 162 should be used.

This sub-TLV species the type of trap to send. The trap type may take values:

use when sending an Inform message to the

notication receiver.

to retry sending an Inform message if an acknowledgement is not received.

Object Identier of the snmpTrapOID value that identies the notications to be sent to the notication receiver. This notication and all

below it will be sent.

Composite

0:0:0:0:0:0:0:0 e.g.fc00:168:1:0:0:0:0:32

0.0.0.0 e.g. 10.11.0.1

UDP port number e.g. 162

1 = SNMP v1 trap in an SNMP v1 packet 2 = SNMP v2c trap in an SNMP v2c packet 3 = SNMP inform in an SNMP v2c packet 4 = SNMP v2c trap in an SNMP v3 packet 5 = SNMP inform in an SNMP v3 packet

Time in milliseconds e.g. 15000

Number of retries e.g. 3

Filter OID e.g. 1.3.6

Table 3-4, Trap Destination Addresses — DOCSIS 2.0+IPv6 Method

NOTE:

As an alternative to the docsDevNmAccessTable or SNMPv3 trap parameters, SNMP Trap Destination Addresses may be set through the DSM3 proprietary MIB atiMgmtSnmpTrapTable (OID:

1.3.6.1.4.1.926.1.3.1.1) using a SNMP MIB Browser or as an entry in the Proprietary Conguration File ‘atidoc03.cfg’ in Section 3.3.6, Sample DOCSIS Conguration File Entries — DOCSIS 2.0+IPv6.

17745-814-B8-001, Rev. C (03/2014)

Page 18

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File, continued

3.3.5 Sample DOCSIS Conguration File Entries — DOCSIS 2.0 (IPv4)

SNMP MIB Object (11) [Len=21]:docsDevNmAccessStatus.1/4 SNMP MIB Object (11) [Len=21]:docsDevNmAccesslp.1/10.56.21.0

SNMP MIB Object (11) [Len=21]:docsDevNmAccesslpMask.1/255.255.255.0 SNMP MIB Object (11) [Len=25]:docsDevNmAccessCommunity.1/"RW STRING" SNMP MIB Object (11) [Len=25]:docsDevNmAccessInterfaces.1/"@" SNMP MIB Object (11) [Len=21]:docsDevNmAccessControl.1/3

SNMP MIB Object (11) [Len=21]:docsDevNmAccessStatus.2/4 SNMP MIB Object (11) [Len=21]:docsDevNmAccesslp.2/10.20.30.40 SNMP MIB Object (11) [Len=21]:docsDevNmAccesslpMask.2/255.255.255.255 SNMP MIB Object (11) [Len=25]:docsDevNmAccessCommunity.2/"RW Trap string" SNMP MIB Object (11) [Len=25]:docsDevNmAccessInterfaces.2/"@" SNMP MIB Object (11) [Len=21]:docsDevNmAccessControl.2/5

Legend:

Software Upgrade Filename(9) [Len=24]:"ModemFirmwareFile.bin" SNMP MIB Object (11) [Len=20]:docsDevSwAdminStatus.0/2

Software Upgrade TFTP Server (21) [Len=4]:10.56.48.15

Manufacturer Code Verication Certicate (32) [Len=254]: 30 82 03 1A 30 82... Manufacturer Code Verication Certicate (32) [Len=254]: 04 0A 13 11 41 4D... Manufacturer Code Verication Certicate (32) [Len=254]: 04 0C 30 0A 06 01...

Manufacturer Code Verication Certicate (32) [Len=36]: 11 A3 41 A6 A7 D9....

Sets Read-Write community string. Set the IP address, netmask and community string to t your system.

Sets the IP address of where the SNMP traps will be sent. This is typically set to match the IP address of the Network Managements System Server.

Sets rmware download parameters.

Species the IP address of the TFTP server used for upgrading rmware.

Sets Code Verication Certicate (CVC) for rmware upgrade security per the DOCSIS specication.

Fig. 3-2, Sample DOCSIS Conguration File — DOCSIS 2.0 (IPv4)

18 745-814-B8-001, Rev. C (03/2014)

Page 19

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File, continued

3.3.6 Sample DOCSIS Conguration File Entries — DOCSIS 2.0+IPv6

SNMPv1v2c Coexistence Conguration

SNMPv1v2c Community Name:ReadWrite SNMPv1v2c Transport Address Access

SNMPv1v2c Transport Address:0.0.0.0/0 SNMPv1v2c Transport Address Mask:0.0.0.0/0 SNMPv1v2c Transport Address Access SNMPv1v2c Transport Address:0:0:0:0:0:0:0:0/0 SNMPv1v2c Transport Address Mask:0:0:0:0:0:0:0:0/0 SNMPv1v2c Access View Type:read-write SNMPv1v2c Access View Name:docsisManagerView

Docsis V3 Notication Receiver

UDP Port number of trap receiver:162

Type of trap:SNMP v1 trap in an SNMP v1 packet Timeout for sending inform:15000 Number of retries:3 Filtering Parameters:1.3.6 IPv6 Address of trap receiver:fc00:168:1:0:0:0:0:32

Docsis V3 Notication Receiver

IP Address of trap receiver:192.168.1.51 UDP Port number of trap receiver:162 Type of trap:SNMP v1 trap in an SNMP v1 packet Timeout for sending inform:15000 Number of retries:3 Filtering Parameters:1.3.6

Software Upgrade Filename:ModemFirmwareFile.bin

Software Upgrade IPv6 TFTP Server:fc00:168:1:0:0:0:0:51

Manufacturer Code Verication Certicate:3082031B30820…

Manufacturer Code Verication Certicate:040A1312414C5… Manufacturer Code Verication Certicate:FF040C300A060… Manufacturer Code Verication Certicate:257939C848CE0…

Legend:

Sets Read-Write community string. Set the IP address, netmask and community string to t your system.

Sets the IP address of where the SNMP traps will be sent. This is typically set to match the IP address of the Network

Managements System Server.

Sets rmware download parameters.

Species the IP address of the TFTP server used for upgrading rmware.

Sets Code Verication Certicate (CVC) for rmware upgrade security per the DOCSIS specication.

Fig. 3-3, Sample DOCSIS Conguration File — DOCSIS 2.0+IPv6

NOTE:

DOCSIS conguration les vary from system to system. Take into consideration your company's policies, and test the le on a local system prior to widescale deployment.

In previous versions of the DSM product line, an additional conguration le (also known as a Setup File)

could be used for distributing custom Alpha MIB settings to all DSMs on a network. This is still the case,

with the only difference being the name of the le, which for the DSM3 Series is atidoc03.cfg. It may be

used if preferred, but is not required.

19745-814-B8-001, Rev. C (03/2014)

Page 20

3.0 Network Conguration, continued

3.3 The DOCSIS Conguration File, continued

3.3.7 Proprietary Conguration File ‘atidoc03.cfg’

The DSM3 Series will attempt to download a TLV-formatted le ‘atidoc03.cfg’ from the modem’s

provisioning TFTP server at startup and every 24 hours thereafter. The atidoc03.cfg proprietary

conguration le is optional and provides an alternative method to the modem’s DOCSIS conguration le for deploying Alpha proprietary SNMP MIB parameters to eld-installed DSM3 Series

Communications Modules.

The atidoc03.cfg le should be used if the following conditions are true:

1. Non-default settings, such as SNMP Trap Destination Addresses need to be distributed to all DSM3 Series Communications Modules.

2. The operator does not desire to place Alpha-proprietary parameters into the modem’s DOCSIS conguration le.

NOTE:

The recommended method for setting the SNMP trap address(es) is through the modem DOCSIS conguration le (See Section 3.3, The DOCSIS Conguration File). Alpha-proprietary parameters may also be set through the modem’s DOCSIS conguration le, eliminating the need for the atidoc03.cfg proprietary conguration le.

To build the atidoc03.cfg le, enter the desired SNMP OIDs and values from the Alpha MIB into a TLV le as TLV type-11 entries using a TLV editor, refer below for sample atidoc03.cfg entries. The DSM3 Series proprietary conguration Setup le must be named “atidoc03.cfg” and placed in the root directory of the TFTP server. DSM3 settings are updated according to values dened in this le at

startup and after every 24 hours of operation.

Sample atidoc03.cfg Entries:

SNMP MIB Object (11) [Len = 24]: atiMgmtSnmpTrapAddress.1 / 10.20.30.40 SNMP MIB Object (11) [Len = 24]: atiMgmtSnmpTrapAddress.2 / 10.20.30.50 SNMP MIB Object (11) [Len = 23]: atiMgmtSysTamperPolarity.0 / 1

3.3.8 Changing Default atidoc03.cfg Download Settings

By default the DSM3 Series will download the atidoc03.cfg le from the provisioning TFTP server

every 24 hours, but these settings can be adjusted per the tables below by placing the respective

SNMP varbinds into the modem’s DOCSIS conguration le.

Parameter Type Description Value

atiMgmtSysDownloadCongName

1.3.6.1.4.1.926.1.3.2.1.9.0

atiMgmtSysDownloadReCfgTime

1.3.6.1.4.1.926.1.3.2.1.13.0

Order

Parameter Type Description Value

atiMgmtSysDownloadCongAddress

OID 1.3.6.1.4.1.926.1.3.2.1.10.0

docsDevServerCongTftpAddress

1.3.6.1.2.1.69.1.4.11.0

Alphanumeric String

Integer

IP Address

Name of proprietary

conguration le

Download interval for

atidoc03.cfg (hours)

Overrides Default Location

Default location (No

change necessary)

"atidoc03.cfg"

(Default)

24 (Default)

0.0.0.0 (Default)

CM's TFTP Server Address

docsDevSwServerAddress

1.3.6.1.2.1.69.1.3.7.0

4 Software Upgrade Server IP Address

IP Address

Set via DOCSIS

conguration le

Set via DOCSIS

conguration le

Congurable

Table 3-5, Default atidoc.cfg Download Settings

20 745-814-B8-001, Rev. C (03/2014)

Page 21

3.0 Network Conguration, continued

3.4 Setting Communication Options

Communications Settings may be changed through the Alpha MIB remotely using an SNMP MIB browser or automatically by placing the SNMP parameters into the DOCSIS cong le. See Section 6, Data Management for an explanation of the Alpha MIB.

NOTE:

Before setting options, verify UDP ports 37, 69, 161, 162 and TCP port 80 are not blocked.

SNMP Parameter Type Description Value

atiMgmtSnmpTrapOnNormal OID: 1.3.6.1.4.1.926.1.3.1.5.1.0

atiMgmtSysDownloadReCfgTime OID: 1.3.6.1.4.1.926.1.3.2.1.13.0

atiMgmtSysSnmpTimeout OID: 1.3.6.1.4.1.926.1.3.1.5.3.0

atiMgmtSysHttpAccess OID: 1.3.6.1.4.1.926.1.3.2.2.4.1.0

See Section 10.0 for complete parameter denitions.

Integer Send SNMP trap when alarmed

Integer Download interval for DSM3 Series-

Integer

condition returns to normal state

specic items in modem cong le

(hours)

Time DSM3 Series will wait before reset

if SNMP trafc is not detected (minutes)

HTTP Web Server

1 = Disabled 2 = Enabled (Default)

24 (Default)

240 (Default)

Note: if set to zero, watchdog will be disabled.

1 = Disabled 2 = Enabled (default)

Table 3-6, Communications Module Communications Parameters

NOTE:

The DSM3 Series will inherit the cable modem community string settings provided by the DOCSIS

Conguration File.

21745-814-B8-001, Rev. C (03/2014)

Page 22

4.0 Web Interface

Overview

The DSM3 Series Communications Module provides an embedded Web server interface to allow operations

personnel the ability to connect locally or remotely via TCP/IP over Ethernet with a laptop/computer to verify the status of common data points and to congure various operating parameters.

4.1 Local Web Server Access

The DSM3 Series Communications Module’s Ethernet port (comparable to the Craft port on some Communications Module models) will typically be used as a local connection point allowing the user to connect directly to the DSM3 Series Web server interface to verify/congure common communication

parameters and view power supply status and battery values. The Ethernet port on the DSM3 Series is a fully functional standard Ethernet port, capable of providing all the functionality of any standard Ethernet connection.

To access the DSM3 Series Communications Module Web server locally utilizing a Web browser, use the following procedure:

NOTE:

The following Web Browser settings should be

‘enabled’ for proper rendering/download of the

web pages:

• Java Script

• Cookies

• ActiveX Controls

• Downloads

• Active Scripting

• Show Pictures

These settings are typically enabled in the Web Browser by default.

1. Connect a standard Ethernet cable (CAT5) between the DSM3 Series Communications

Module Ethernet port (ETH) and a laptop or computer’s network interface port.

2. Launch a Web browser.

3. Enter the Communications Module's default IP address (192.168.100.1) or the DHCP assigned

IP address into the Web browser’s address eld.

4. The Communications Module’s Web server home page will appear (Fig. 4-1). Note: For the

DSM3 Series, this may take up to 45 seconds when the Communications Module is initially powered up with no RF connection.

5. Click the Language menu to select a desired language for the text information on the Web page. The language choices are English

(default), Spanish, Portuguese, French &

German.

Fig. 4-1, DSM3 Series Web Page

(data values shown for illustration purposes only)

22 745-814-B8-001, Rev. C (03/2014)

Page 23

4.0 Web Interface

4.1 Local Web Server Access, continued

NOTE:

If you are unable to view the home page of the DSM3 Series using IP address 192.168.100.1, the network

conguration on the computer that is being used to connect to the DSM3 Series Communications Module may require a temporary static IP address (192.168.100.2) to be congured.

Use the following procedure to congure a static IP

address on a laptop or computer with the Windows XP operating system:

1. Click the Start button (lower left button on most Windows® computers).

2. When the window pops up, click Control Panel (usually about half the way down the second

column).

3. Click Network Connections.

4. Right-Click Local Area Connection link to open menu box.

5. Click the bottom option Properties.

6. You will see a dialog box much like Fig. 4-2; select

Internet Protocol (TCP/IP) and then click the Properties button.

7. The Internet Protocol (TCP/IP) Properties dialog box will open (Fig. 4-3). Select "Use

the following IP address". Enter the values as shown (i.e. IP address 192.168.100.2, or DHCP assigned IP address, and Subnet

mask 255.255.255.0). Record the existing IP

address and Subnet mask in order to later return the computer to its original state.

8. Click the OK button and try to connect to the DSM3 Series Communications Module once again using 192.168.100.1 in the Web browser.

9. To restore network settings, repeat Steps 1 through 6.

Fig. 4-2, Local Area Connection

Properties Screen, Windows XP

Fig. 4-3, Internet Protocol (TCP/IP)

Properties Screen, Windows XP

23745-814-B8-001, Rev. C (03/2014)

Page 24

4.0 Web Interface, continued

4.1 Local Web Server Access, continued

Use the following procedure to congure a static IP

address on a laptop or computer with the Windows 7 operating system:

1. Click the Start button (lower left button on most Windows® computers).

2. When the window pops up, click Control Panel (usually about half the way down the second

column).

3. Click Network and Sharing Center.

4. Click Local Area Connection.

5. Click the Properties button.

6. You will see a dialog box much like Fig. 4-4; click Internet Protocol (TCP/IPv4) and then click the Properties button.

7. The Internet Protocol (TCP/IP) Properties dialog box will open (Fig. 4-5). Select "Use

the following IP address". Enter the values as shown (i.e. IP address 192.168.100.2

and Subnet mask 255.255.255.0). Record

the existing IP address and Subnet mask in order to later return the computer to its original state.

8. Click the OK button and try to connect to the DSM3 Series Communications Module once again using 192.168.100.1 in the Web browser.

9. To restore network settings, repeat Steps 1 through 6.

Fig. 4-4, Local Area Connection

Properties Screen, Windows 7

Fig. 4-5, Internet Protocol (TCP/IP)

Properties Screen, Windows 7

24 745-814-B8-001, Rev. C (03/2014)

Page 25

4.0 Web Interface, continued

4.2 Remote Web Server Access

To remotely access the DSM3 Series Communications Module Web server utilizing a Web browser, use the following procedure:

NOTE:

For Web server (HTTP) access, port 80 must not be blocked.

1. Connect the laptop or computer’s network interface port to the company’s Ethernet network.

2. Open a Web browser.

3. Enter the DSM3 Series' DHCP designated IP address (e.g., 192.168.1.124) into the Web browser’s

address eld. Use square brackets when entering IPv6 IP addresses (e.g. [FC00:168:40::124]) into the Web browser's address eld.

4. The DSM3 Series Communications Module’s Web server home page will appear (Fig. 4-6).

5. Click on the Language menu to select a desired language for the text information on the Web page.

The language choices are English (default), Spanish, Portuguese, French and German.

Fig. 4-6, Web Server Home Page

(data values shown for illustration purposes only)

25745-814-B8-001, Rev. C (03/2014)

Page 26

4.0 Web Interface, continued

4.3 Navigating the Web Page

Once the Web page has been successfully accessed, the operator is able to select a link on the header

bar and the page specic to the topic will open enabling real-time data to be observed.

See Fig. 4-7 for DSM3 Series navigation bar items.

AlphaNet

General Conguration

General Advanced Conguration Too ls Apps History Language Print

Commonly used parameters for quick diagnostics of Power Supply, Communications, Batteries and Generator.

Communications: Comprehensive communications diagnostic parameters

Power Supply: Comprehensive Power

Supply conguration and congurable

parameters

Generator: Comprehensive Generator

conguration and diagnostic parameters

IO - Environment: Status and conguration of Tamper polarity and external I/O devices

HMS Alarms: Status of SCTE-HMS active alarms, alarm history and alarm threshold settings.

Constellation: Provides a constellation view of the DOCSIS channel for troubleshooting impairments.

Microreections: Provides details about impairments on the

network and the approximate distance(s) of those impairment(s).

Requires the Adaptive equalization feature to be enabled on the CMTS.

DOCSIS Status Monitor

The Web page content will be displayed in the selected language

System Logs (requires AlphaApp card): Log

overview page provides snapshot of rst 5 entries

from each of the system logs.

Power Supply Events (requires AlphaApp card):

Records daily Power Supply system events.

Power Supply Conguration (requires

AlphaApp card): Records power supply system

conguration events, many of which are set during

the initial installation.

Battery Events (requires AlphaApp card):

Records battery conductance measurements and manufacturing dates.

Cable Modem Log: Web page representation of the DOCSIS modem event log.

(Requires AlphaApp card)

Overview: Provides AlphaApp card version and status, plus Utility power health information.

Battery Management: Congure technician ID, battery conductance measurements, battery model and battery manufacturing dates for runtime and battery life calculations.

Sends the contents of the selected Web page to the

computer’s default

printer.

Fig. 4-7, DSM3 Series Navigation Bar Items

26 745-814-B8-001, Rev. C (03/2014)

Page 27

4.0 Web Interface, continued

4.3 Navigating the Web Page, continued

4.3.1 Web Interface Security Levels

The DSM3 Series Communications Module has two levels of function-specic security. General operations are Level 1. Conguration-related functions are Level 2. Refer to Figure 4-8 for default

User Name and Security Passwords.

DSM3 Series Web Page Security

OID Function Value

1.3.6.1.4.1.4413.2.2.2.1.1.3.3.0 Level 1 User Name Alpha

1.3.6.1.4.1.4413.2.2.2.1.1.3.4.0 Level 1 Security Password AlphaGet

1.3.6.1.4.1.4413.2.2.2.1.1.3.1.0 Level 2 User Name Alpha

1.3.6.1.4.1.4413.2.2.2.1.1.3.2.0 Level 2 Security Password AlphaSet

Web Page Function Security Level

General

Advanced Communications

Advanced Power Supply Power Supply Self Test 1

Advanced Generator

Modem Log [Event Log] Reset Log 1

Advanced I/O

HMS Alarms Export Alarm Cloning File 2

System Name, System Contact, System Location, Common Logical ID

Power Supply Self Test 1

Generator Self Test 1

Reset Communications Module 1

Provisioning Mode - Single IP or Dual IP 2

Congure Static IP Address 2

Congure Proprietary Trap Addresses 2

Generator Self Test 1

Reset Latched Alarms 1

Tamper Switch Polarity 1

Enclosure Heater/Cooler Installed 1

Table 4-1, DSM3 Series Communications Module Security Levels

27745-814-B8-001, Rev. C (03/2014)

Page 28

4.0 Web Interface, continued

4.4 Verifying Communication Parameters

Click the General menu of the web page to display common communication settings and values. Click the Advanced Conguration drop down menu to view additional communication parameters.

Fig. 4-9, Communication Parameters

(data values shown for illustration purposes only)

Fig. 4-10, Advanced Communication Parameters

(data values shown for illustration purposes only)

28 745-814-B8-001, Rev. C (03/2014)

Page 29

4.0 Web Interface, continued

4.5 Verifying Power Supply and Battery Parameters

Click the General menu to access Power Supply and individual battery voltage values. Important

parameters such as current alarm status, inverter status and tamper status can be quickly veried on this page. Additional power supply parameters can be viewed and congured on the Power Supply page

located in the Advanced Conguration menu.

Fig. 4-11, Power Supply and Battery Parameters

(data values shown for illustration purposes only)

4.6 Remote Self Tests via the Web Page

Remote Self Tests on power supplies may be started and stopped via the DSM3 Series Web page. This requires a Level 1 login. Refer to Section 4.3.1, Web Interface Security Levels for User Name and Security Password.

To launch a remote Self Test, click the Start Test button.

To stop a remote Self Test before the predened test duration, click the Stop Test button.

Fig. 4-12, Location of Start Test Button for Self Test

(data values shown for illustration purposes only)

29745-814-B8-001, Rev. C (03/2014)

Page 30

4.0 Web Interface, continued

4.7 Viewing HMS Alarm Status via the Web Page

HMS alarms levels and current states may be viewed by clicking on the HMS Alarms link on the

Advanced Conguration menu (see Figure 4-13). Parameter values cannot be edited on this Web page.

An SNMP MIB browser or status monitoring software may be used for such edits.

Alarms settings may be exported by selecting the Export button at the bottom of the page. Alarms settings may be distributed to other DSM3 Series units. For more details, refer to the DSM3 Alarm Cloning and Distribution section under Section 6.2.1, SCTE-HMS Congurable Alarms.

Refer to Table 6-3 Recommended Settings for DSM3 Series Analog Alarms for information regarding the scaling applied to the indicated values.

Fig. 4-13, HMS Alarm Conguration

(data values shown for illustration purposes only)

30 745-814-B8-001, Rev. C (03/2014)

Page 31

4.0 Web Interface, continued

4.8 Setting the I/O Controller via the Web Page

Access the I/O Environment page in the Advanced Conguration menu to adjust the settings for the Tamper Switch and I/O Controller (DSM3X and DPM only). The Tamper Switch polarity may be changed by clicking on the preferred tamper switch polarity button. The I/O Controller section provides a user

interface to select the type of device that will be connected and monitored via the ENV connector of the Communications Module. An example of such a device would be a battery heater mat controller.

Fig. 4-14, Advanced I/O Controller Status Screen

(data values shown for illustration purposes only)

31745-814-B8-001, Rev. C (03/2014)

Page 32

4.0 Web Interface, continued

4.9 Viewing Power Supply Settings via the Web Page

Click the Advanced Conguration menu and select Power Supplies to view connected power supply parameters. Click the Start Test button to remotely initiate power supply tests. When prompted, refer to Section 4.3.1, Web Interface Security Levels for the applicable User Name and Security Password.

Fig. 4-15, Advanced Power Supply Settings Screen

(data values shown for illustration purposes only)

32 745-814-B8-001, Rev. C (03/2014)

Page 33

4.0 Web Interface, continued

4.9 Viewing Power Supply Settings via the Web Page, continued

Fig. 4-15, Advanced Power Supply Settings Screen, continued

(data values shown for illustration purposes only)

NOTE:

When the Battery Model is set to "Other", the battery charging parameters such as charger voltages, battery capacity, and temperature compensation can be customized, otherwise default values are populated for Alpha supported batteries. For systems with more than one power supply, the master unit will override the charger parameter settings.

33745-814-B8-001, Rev. C (03/2014)

Page 34

4.0 Web Interface, continued

4.10 Viewing Generator Settings via the Web Page

When a generator is connected to a DSM3x, the generator page listed in the Advanced Conguration

menu will populate a list of the various parameters and alarm statuses. Generator Self Tests may be remotely started by clicking on the Start Test button. When prompted, refer to Section 4.3.1, Web Interface Security Levels for User Name and Security Password.

Fig. 4-16, Advanced Generator Status Screen

(data values shown for illustration purposes only)

34 745-814-B8-001, Rev. C (03/2014)

Page 35

4.0 Web Interface

4.11 Tools Menu – Constellation and Microreections

The Web Page of the DSM3 Series Communications Modules provides some basic tools for analyzing impairments on the DOCSIS network. The “Tools” menu selection on the Web page provides access to

both the Constellation and Microreections pages.

Note: The Constellation and Microreections tools provided on the DSM3 Series Web page are for basic identication of common network impairments. Additional analysis may be required with industry standard

analyzers and tools to verify and resolve the cause of the impairment.

4.11.1 QAM Constellation Tool

The Constellation page provides a constellation view of the DOCSIS channel that may assist in identifying and troubleshooting common network impairments.

Navigate the mouse pointer to the Tools menu item and select “Constellation” in the drop down menu to open and start the Constellation page. The page will automatically refresh until the samples remaining counter reaches 0. Clicking the Restart button refreshes the constellation tool, and clicking the Stop button halts the analysis.

The number of samples can be changed from 100 (default) on the sampling control to either 150

or 50 for more or less sample rates. For User Name and Password refer to Section 4.3.1, Web Interface Security Levels.

Fig. 4-17, QAM Constellation Tool

(data values shown for illustration purposes only)

35745-814-B8-001, Rev. C (03/2014)

Page 36

4.0 Web Interface

4.11.1 QAM Constellation Tool, continued

4.11.2 QAM Constellation Common Impairments

The tables on the right hand side of the screen provide a summary of common parameters

associated with QAM Constellation analysis. Here’s a breakdown of the parameters listed:

• Frequency – Downstream frequency given in MHz.

• Power – Downstream power given in dBmV.

• Modulation – Modulation type associated with the downstream channel.

• Lock Status – Current cable modem connectivity state.

• Channel ID – CMTS identication of the downstream channel within this particular MAC interface.

• SNR / (RxMER) – Downstream signal quality. Modulation Error Ratio (SNR)

• EVM – Error Vector Magnitude (from hardware MER (Modulation Error Ratio) / software MER).

• Symbol Rate – Msym/sec

• CER Interval – Codeword Error Rate (CER) refresh rate.

• Pre FEC CER – Codeword Error rate (CER) BEFORE forward error correction is applied.

• Post FEC CER – Codeword Error rate (CER) AFTER forward error correction is applied.

Several common impairments tend to reveal themselves on the constellation display which can help determine the cause of the reduced MER levels. Below are examples of several of these common impairments and their footprints.

Individual cells and entire QAM constellation

Fig. 4-18, Normal - (Good Quality) and Individual Cell Characteristics

36 745-814-B8-001, Rev. C (03/2014)

Page 37

4.0 Web Interface

4.11.2 QAM Constellation Common Impairments, continued

Individual cells and entire QAM constellation

Fig. 4-19, Fuzzy (Low CNR and/or Low MER) and Individual Cell Characteristics

Individual cells and entire QAM constellation

Fig. 4-20, Doughnuts (Coherent Interference) and Individual Cell Characteristics

37745-814-B8-001, Rev. C (03/2014)

Page 38

4.0 Web Interface

4.11.2 QAM Constellation Common Impairments, continued

Individual cells and entire QAM constellation

Fig. 4-21, Gaussian Noise and Individual Cell Characteristics

Entire QAM constellation

Fig. 4-22, Rectangular vs. Square (I-Q Imbalance) and Entire Constellation Shape

38 745-814-B8-001, Rev. C (03/2014)

Page 39

4.0 Web Interface

4.11.2 QAM Constellation Common Impairments, continued

Entire QAM constellation

Fig. 4-23, Corners Squeezed to Center (Gain Compression) and Entire Constellation Shape

Entire QAM constellation

Fig. 4-24, Circular Smear (Phase Noise) and Entire Constellation Shape

39745-814-B8-001, Rev. C (03/2014)

Page 40

4.0 Web Interface

4.11.2 QAM Constellation Common Impairments, continued

Entire QAM constellation

Fig. 4-25, Twisted or Skewed (Quadrature Distortion) and Entire Constellation Shape

4.11.3 Microreections Tool

The Microreections page provides details about impairments on the DOCSIS network and the approximate distance(s) of the impairment(s). In order to provide the analysis and a display of possible

impairments, this tool requires the Adaptive Equalization function to be enabled on the CMTS.

Navigate the mouse pointer to the Tools menu item and select “Microreections” in the drop down menu to open the Microreections page.

Fig. 4-26, Microreections Tool

(data values shown for illustration purposes only)

Click on a particular bar in the graph to display the details of the impairment such as time,

distance (feet & meters) and amplitude in the table below. The selected bar will turn a slightly

40 745-814-B8-001, Rev. C (03/2014)

different shade of color compared to other bars in the graph.

Page 41

5.0 Upgrading Firmware

5.1 Upgrading DSM3 Series Modem Firmware

The rmware is upgraded using standard DOCSIS methods as dened in RFC4639.

There are two ways to upgrade the modem’s rmware: by directly setting the appropriate MIB parameters

in the docsDevSoftware branch, or by including the appropriate SNMP parameters and values in the

modem’s DOCSIS Conguration File, stored on the TFTP root directory.

Both methods are explained below.

5.1.1 Identifying the Modem and Obtaining Firmware Files

The cable modem rmware in the DSM3 Series requires its own rmware and manufacturer's Code Verication Certicate (CVC le).

Contact Alpha Technologies to obtain the latest rmware and manufacturer's CVC les.

5.1.2 Modem Firmware Upgrade SNMP Parameters

Parameter Type Value

docsDevSoftware OID: 1.3.6.1.2.1.69.1.3

docsDevSwServer OID: 1.3.6.1.2.1.69.1.3.1.0

docDevSwFilename OID: 1.3.6.1.2.1.69.1.3.2.0

docsDevSwAdminStatus OID: 1.3.6.1.2.1.69.1.3.3.0

docsDevSwOperStatus OID: 1.3.6.1.2.1.69.1.3.4.0

docsDevSwCurrentVers OID: 1.3.6.1.2.1.69.1.3.5.0

docsDevSwServerAddressType

1.3.6.1.2.1.69.1.3.6.0

docsDevSwServerAddress OID: 1.3.6.1.2.1.69.1.3.7.0

docsDevSwServerTransportProtocol

1.3.6.1.2.1.69.1.3.8.0

Modem Firmware Upgrade SNMP Parameters

Object Heading None

IP Address The IP address of the TFTP server from which the rmware will be

Octet String Set to the lename of the rmware le. Example: [“rmwareImage.bin”]

Integer 1 = Initiate upgrade (manual method)

Integer, Read Only

Octet String, Read Only

Integer, Read Only

IP Address The IP address of the server from which the rmware will be

Integer, Read Only

downloaded"

2 = Upgrade on next reboot (Cong File Method) 3 = Ignore update

1 = TFTP download is in progress 2 = Last upgrade was performed at reboot 3 = Last upgrade was initiated by setting docsDevSwAdminStatus to “1” 4 = Firmware upgrade failed 5 = Other

The current version of rmware installed in the modem

The type of address (IPv4, IPv6) of server used or upgrades

downloaded. A set of this object to an IPv4 address will result in also setting the value of docsDevSwServer to that address. If this object is set to an IPv6 address, docsDevSwServer is set to 0.0.0.0. If docsDevSwServer is set, this object is also set to that value.

The Transport protocol to be used for software upgrades:

1 = tftp 2 = http

Table 5-1, Modem Firmware Upgrade SNMP Parameters

41745-814-B8-001, Rev. C (03/2014)

Page 42

5.0 Upgrading Firmware, continued

5.1.3 Upgrading Manually by Setting SNMP Parameters

1. Acquire the rmware and CVC les for your DSM3 Series from Alpha Technologies.

2. Import the CVC into the modem’s DOCSIS Conguration File (to create a Conguration File,

see Section 3.3, The DOCSIS Conguration File).

3. Set the following MIB parameters using an SNMP MIB browser. For additional information regarding the SNMP MIB parameters, refer to the table in Section 5.1.2, Modem Firmware

Upgrade SNMP Parameters.

Parameter Value

docsDevSwServerAddress OID:1.3.6.1.2.1.69.1.3.7.0

docsDevSwFilename OID:1.3.6.1.2.1.69.1.3.2.0

docsDevSwAdminStatus OID: 1.3.6.1.2.1.69.1.3.3.0

The rmware upgrade will begin immediately. Monitor the upgrade status with the docsDevSwOperStatus MIB parameter, and verify the rmware version with the

docsDevSwCurrentVers MIB parameter (refer to Table 5-1, Modem Firmware Upgrade SNMP Parameters). Once the rmware has been upgraded, the modem will automatically run the new

version.

IP Address of theTFTP server (IPv4 or IPv6)

Firmware lename

1 (Initiate Upgrade)

5.1.4 Upgrading via the DOCSIS Conguration File

DSM3 Series rmware can be automatically upgraded using the DOCSIS Conguration File by adding the following docsDevSoftware SNMP parameters and the manufacturer’s Code Verication Certicate (CVC).

Parameter Value

docsDevSwServerAddress OID:1.3.6.1.2.1.69.1.3.7.0

docsDevSwFilename OID:1.3.6.1.2.1.69.1.3.2.0

docsDevSwAdminStatus OID: 1.3.6.1.2.1.69.1.3.3.0

Manufacturer CVC TLV:32 The CVC le for the DSM3 Series (embed in the Conguration File).

The rmware will be upgraded on the next reset. Monitor the upgrade status with the docsDevSwOperStatus MIB parameter, and verify the rmware version with the

docsDevSwCurrentVers MIB parameter (refer to Table 5-1, Modem Firmware Upgrade SNMP Parameters). Once the rmware has been upgraded, the modem will automatically run the new

version.

IP Address of TFTP server

Firmware lename

2 (Upgrade on next reboot)

42 745-814-B8-001, Rev. C (03/2014)

Page 43

6.0 Data Management

6.1 SCTE-HMS MIBs

The DSM3 Series remotely reports power supply data and alarms using the Simple Network Management

Protocol (SNMP) over the DOCSIS (Data Over Cable Service Interface Specication) communications standard. The DSM3 Series typically reports into a centralized Network Management System (NMS) through a standard collection of data access points referred to as the SCTE-HMS Management Information Bases (MIBs). The NMS

polls the DSM3 Series for power supply data with the option of having the DSM3 Series send SNMP traps in the event that an alarm condition occurs. In addition to the SCTE-HMS MIBs, the DSM3 Series also supports the Alpha proprietary SNMP MIBs, which allows direct access to the power supply as well as the ability to change Communications Module settings.

The following MIB (Management Information Base) les are required for the NMS or SNMP Manager to collect data from the Communications Modules. These les can be found on the Society of Cable Telecommunications Engineers (SCTE) Web site www.scte.org. There are dependencies between MIB les so they should be compiled

in the order listed below:

Reference Number Description

ANSI/SCTE 36 2002R2007

(formerly HMS 028)

ANSI/SCTE 37 2010

(formerly HMS 072),

ANSI/SCTE 38-1 2009

(formerly HMS 026)

ANSI/SCTE 38-2 2005

(formerly HMS 023)

ANSI/SCTE 38-3 2008

(formerly HMS 024)

ANSI/SCTE 38-4 2006

(formerly HMS 027)

ANSI/SCTE 38-6 2006

(formerly HMS 033)

ANSI/SCTE 38-7 2008

(formerly HMS 050)

SCTE-ROOT Management Information Base (MIB) Denitions

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-ROOTS Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-PROPERTY-MIB Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-ALARMS-MIB Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-COMMON-MIB Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-PS-MIB Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-GEN-MIB Management Information Base (MIB) Denition

Hybrid Fiber/Coax Outside Plant Status Monitoring

SCTE-HMS-Transponder-Interface-Bus (TIB)-MIB Management Information Base (MIB) Denition

Table 6-1, SCTE-HMS MIB Files

43745-814-B8-001, Rev. C (03/2014)

Page 44

6.0 Data Management

6.2 SCTE-HMS MIB Alarms

6.2.1 SCTE-HMS Congurable Alarms

The HMS discrete and analog alarms provide the capability to monitor and alarm various power supply and environmental conditions and measurements. The alarms in the SCTE-

HMS propertyTable and the discretePropertyTable can be dened and set to provide a custom

monitoring system.

The following section provides an example and detailed information on how to set values, enable or disable alarms in the MIB tables. For ease of reference they are in this sequence:

• An example of how set a temperature alarm

• A table to help convert the desired reported alarm states to hexadecimal for setting the MIB

• Commonly monitored parameters and recommended values

Example:

The alarms for psTemperature below are set so that the normal temperature range is from 30°C to 45°C. If the temperature rises above 45°C, a casHI alarm will be sent to the alarmTable. Anything over 50°C is considered a critical condition and will generate a casHIHI alarm. If the temperature falls below the normal level of 30 degrees and casLO will be generated and if it continues to drop below 0, a casLOLO will be generated. The temperature must rise above the LOLO limit plus the deadband value of 3°C before the casLOLO alarm will change to a casLO.

The alarmEnable eld is set to 0F Hex to monitor and alarm for all conditions.

psTemperature

Binary to Hex Conversions for Alarm Settings

Unused HiHi Hi Lo LoLo Hex Enabled Alarms

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0 0 0 0 0 0 0 00 No Alarms 0 0 0 0 0 0 0 1 01 LoLo

0 0 0 0 0 0 1 0 02 Lo

0 0 0 0 0 0 1 1 03 Lo, LoLo

0 0 0 0 0 1 0 0 04 Hi

0 0 0 0 0 1 0 1 05 Hi, LoLo

0 0 0 0 0 1 1 0 06 Hi, Lo

0 0 0 0 0 1 1 1 07 Hi, Lo, LoLo

0 0 0 0 1 0 0 0 08 HiHi

0 0 0 0 1 0 0 1 09 HiHi, LoLo

0 0 0 0 1 0 1 0 0A HiHi, Lo

0 0 0 0 1 0 1 1 0B HiHi, Lo, LoLo

0 0 0 0 1 1 0 0 0C HiHi, Hi

0 0 0 0 1 1 0 1 0D HiHi, Hi, LoLo

0 0 0 0 1 1 1 0 0E HiHi, Hi, Lo

0 0 0 0 1 1 1 1 0F HiHi, Hi, Lo, LoLo

Table 6-2, Binary to Hex Conversions for Alarm Settings

44 745-814-B8-001, Rev. C (03/2014)

Page 45

6.0 Data Management

6.2.1 SCTE-HMS Congurable Alarms, continued

The following table displays the various analog alarms with common settings for the DSM3 Series Communications Module.

Analog Alarms Description

psTotalStringVoltage

Individual Battery Voltage

psInputVoltage

psOutputVoltage

psPowerOut

psStringChargeCurrent

psStringFloat

psOutputCurrent

psTemperature -40 to +80 degrees C 0x0F Varies by site

docsIfDownChannelPower

docsIfCmStatusTxPower

Alarms for Optional Generator

GenVBatIgnition

genEnclosureTemperature

Analog Alarms and Common Settings

Alarm

Enable

36V Scaled representation of the full

48V 0x0F 4400 4785 6030 6100 50

120V Scaled representation of the input

220V 0x0F

48V Scaled representation of the

60V 0x0F 5650 6000 6600 7000 200

90V 0x0F 7800 8200 9150 9300 200

15A

18A 0x0C Disable Disable 1980 2060 20

22A 0x0C Disable Disable 2420 2530 40

24A 0x0C Disable Disable 2640 2750 40

battery string in 1/100 Volts units

Battery Voltage of 12V battery,

scaled 1/100 V

line voltage in 1/100 Volts units

power supply output voltage in

1/100 Volts units.

Representation of power supply output power in 1W units.

Battery string charge current,

scaled in 1/100 Amp units.

Battery string oat charge current, scaled in 1/100 Amp units.

Scaled representation of power

supply RMS current in 1/100 Amp

units.

The CM's receive RF power

scaled in 1/10 dBmV units

The CM's transmit RF power

scaled in 1/10 dBmV units

Scaled representation of the generator's ignition battery in

1/100 Volts

Temperature inside generator's enclosure in degrees C

0x0F 3300 3500 4520 4570 50

0x0F 1050 1150 1530 1550 20

0x0F Varies by site. The XM2 will switch to standby at

0x0F 4300 4550 5050 5300 200

0x00 It is recommended that psOutputCurrent be used

0x0C Disable Disable 1200 1250 20

0x0C Disable Disable 1650 1720 20

0x0F -150 -10 10 150 15

0x0C 0 0 500 550 15

0x0F 1150 1200 1500 1550 20

0x09 -40 0 0 55 5

LOLO LO HI HIHI Deadband

nominal +15% -20%

for output alarms.

Table 6-3, Recommended Settings for DSM3 Series Analog Alarms

The following table displays analog alarms with common settings for the DPM Communications Module that differ from the DSM3 Series models.

Analog Alarms and Common Settings, DPM

Analog Alarms Description

psInputVoltage

psOutputVoltage

psOutputCurrent

120V Scaled representation of the input

220V 0x0F

60V Scaled representation of the

63V 0x0F 5650 6000 6600 7000 200

90V 0x0F 7800 8200 9150 9300 200

3.5A Scaled representation of power

5.0A 0x0C Disable Disable 550 575 20

line voltage in 1/100 Volts units

power supply output voltage in

1/100 Volts units.

supply RMS current in 1/100 Amp

units.

Alarm

Enable

0x0F Varies by site. The XM2-300HP will switch to

0x0F 5150 5350 6150 6350 200

0x0C Disable Disable 380 390 20

LOLO LO HI HIHI Deadband

standby at nominal +10% -15%

Table 6-4, Recommended Settings for DPM Analog Alarms

45745-814-B8-001, Rev. C (03/2014)

Page 46

6.0 Data Management

6.2.1 SCTE-HMS Congurable Alarms, continued

Discrete Alarms Description Setting

psInverterStatus (1) Inverter OFF Disable

psInverterStatus (2) Inverter running due to loss of AC Line voltage discreteMinor

psInverterStatus (3) Self-Test initiated locally Disable

psInverterStatus (4) Self-Test initiated remotely Disable

psInverterStatus (5) Last Self-Test failed discreteMajor

psMajorAlarm (1) No Alarm Disable

psMajorAlarm (2) Alarm discreteMajor

psMinorAlarm (1) No Alarm Disable

psMinorAlarm (2) Alarm discreteMinor

psTamper (1) Closed Disable

psTamper (2) Open discreteMajor

psInputVoltagePresence (1) AC Line Voltage Lost Disable

psInputVoltagePresence (2) AC Line Voltage Present Disable

tibControlMode (1) Device will respond to commands Disable

tibControlMode (2) Device is under local control Disable

tibControlMode (3) Remote device is not responding discreteMajor

Discrete Alarms for Optional Generator

genGeneratorStatus (1) Generator Off Disable

genGeneratorStatus (2) Generator Running (Test) discreteMinor

genGeneratorStatus (3) Generator Running discreteMajor

genGeneratorStatus (4) Generator Fail discreteMajor

genGasHazard (1) No Alarm Disable

genGasHazard (2) The concentration of hydrocarbon fuel in the generator enclosure has exceeded safe limits.

genWaterIntrusion (1) No Alarm Disable

genWaterIntrusion (2) Water level within the generator or fuel enclosure has exceeded safe limits for generator

genPadShear (1) No Alarm Disable

genPadShear (2) Indicates that the generator or fuel enclosure has shifted from its mounting position. Generator

genEnclosureDoor (1) No Alarm Disable

genEnclosureDoor (2) Generator and/or auxiliary fuel enclosure door is open discreteMajor

genCharger (1) No Alarm Disable

genCharger (2) Ignition battery charger is not operating correctly discreteMajor

genFuel (1) No Alarm Disable

genFuel (2) Indicates the engine's fuel supply is insufcient for extended operation. Alarm resets when fuel is

genOil (1) No Alarm Disable

genOil (2) Indicates the engine's oil is inadequate for safe operation. Alarm resets when the

genMinorAlarm (1) No Alarm Disable

genMinorAlarm (2) The generator is indicating a minor alarm. The generator requires attention, but does not require

genMajorAlarm (1) No Alarm Disable

genMajorAlarm (2) The generator is indicating a major alarm. The generator requires immediate attention. discreteMajor

Generator operation is suspended. The alarm is cleared when the sensor reports safe conditions,

discreteMajor

and the alarm is reset via the resetLatchedAlarms(3) command found in the genEquipmentControl MIB point.

discreteMajor operation. Generator operation is suspended while this alarm is active. The alarm resets when the water returns to a safe level.

discreteMajor operation is suspended. The alarm resets when the unit is returned to its original position.

discreteMajor replenished.

discreteMajor condition returns to normal.

discreteMinor an immediate visit to the site.

Table 6-5, Recommended Settings for Discrete Alarms

46 745-814-B8-001, Rev. C (03/2014)

Page 47

6.0 Data Management, continued

6.2.1 SCTE-HMS Congurable Alarms, continued

genMajorAlarm (2) The generator is indicating a major alarm. The generator requires immediate attention. discreteMajor

atiMgmtSysIoPinCtrl (1) Contact Open Disable

atiMgmtSysIoPinCtrl (2) Contact Closed Disable

atiMgmtSysIoPinIn4 (1) Contact Open Disable

atiMgmtSysIoPinIn4 (2) Contact Closed Disable

atiMgmtSysIoPinIn5 (1) Contact Open Disable

atiMgmtSysIoPinIn5 (2) Contact Closed Disable

atiMgmtSysIoPinIn6 (1) Contact Open Disable

atiMgmtSysIoPinIn6 (2) Contact Closed Disable

Table 6-5, Recommended Settings for Discrete Alarms, continued

DSM3 Alarm Cloning & Distribution

SCTE-HMS Alarm settings can be distributed automatically to all DSM3 Communications

Modules on the network. Use the following procedure to congure and distribute the alarm

settings.

1. Select the desired SCTE-HMS alarm settings on a master DSM3.

The SCTE-HMS-PROPERTY MIB denes a method for setting thresholds for analog and discrete

values that can be used for setting traps or alerting a Network Management System when those thresholds are compromised. There are two SCTE-HMS SNMP MIB Tables where these values

are congured:

propertyTable OID: 1.3.6.1.4.1.5591.1.1.1

This table is used for setting thresholds for analog properties such as input & output voltages,

individual battery voltages, currents and temperature.

discretePropertyTable OID: 1.3.6.1.4.1.5591.1.1.3

This table is used to set alarm parameters on discrete conditions such as tamper on/off, major/

minor alarms and various inverter status conditions.

Full explanations of these MIB tables and their settings can be found by reading the SCTE-HMSPROPERTY MIB. The MIB table alarm settings can be changed to desired values using a SNMP

MIB browser or status monitoring software. Once the tables are congured with the desired alarm settings, proceed to Step 2 on exporting the “AlarmSettings.acf” le.

2. Export the “AlarmSetting.acf” le of the master DSM3’s alarm settings.

2.1. Connect to the Web page of the master DSM3.

2.2. Navigate to the Advanced Conguration menu and select the HMS Alarms page.

2.3. Verify the alarm settings dened in Step 1 are displayed in the propertyTable and discrete ProperyTable. If further changes to the alarm settings are required, refer to Step 1.

2.4. Click on the Export button at the bottom of the HMS Alarms page.

2.5. When prompted, refer to Section 4.3.1, Web Interface Security Levels for the applicable User Name and Security Password.

2.6. Download the “AlarmSettings.acf” le to the TFTP root directory. If desired, the le may be renamed.

47745-814-B8-001, Rev. C (03/2014)

Page 48

6.0 Data Management, continued

6.2.1 SCTE-HMS Congurable Alarms, continued

3. Distribute the “AlarmSettings.acf” le to other DSM3s.

The “AlarmSettings.acf” le is distributed to other DSM3s by setting the following Alpha MIB

parameters to the indicated values. This can be done to an individual DSM3 using a MIB browser,

or to multiple DSM3s by placing the SNMP OIDs into the modem’s DOCSIS conguration le or the proprietary atidoc03.cfg conguration le.

Parameter Type Value

DSM Alarm Settings Distribution Parameters

atiMgmtSysDownload OID: 1.3.6.1.4.1.926.1.3.2.1

atiMgmtSysDownloadTftpAddress OID: 1.3.6.1.4.1.926.1.3.2.1.1.0

atiMgmtSysDownloadFile1 OID: 1.3.6.1.4.1.926.1.3.2.1.4.0

atiMgmtSysDownloadCtrl OID: 1.3.6.1.4.1.926.1.3.2.1.2.0

atiMgmtSysDownloadTftpServerAddressType OID: 1.3.6.1.4.1.926.1.3.2.1.15.0

atiMgmtSysDownloadTftpServerAddress

1.3.6.1.4.1.926.1.3.2.1.16.0

Object Identier

IP address The IP address of the TFTP server on which

AlarmSettings.acf is stored.

Octet String Set to “AlarmSettings.acf” or other specied

le name.

Integer 1 = Initiate download of “AlarmSettings.acf”

le.

Integer Address mode of

atiMgmtSysDownloadTftpServerAddress.

IPv4(1),IPv6(2)

Octet String Address of download TFTP server.

0.0.0.0 (IPv4), 0:0:0:0:0:0:0:0 (IPv6)

Table 6-6, DSM Alarm Setting Distribution Parameters Examples

The status of the alarm settings download can be monitored with the following parameters

(please note the AlarmSettings.acf le downloads quickly):

Parameter Type Value

atiMgmtSysDownloadProgress OID: 1.3.6.1.4.1.926.1.3.2.1.6.0

atiMgmtSysDownloadStatus OID: 1.3.6.1.4.1.926.1.3.2.1.3.0

Integer Byte count of the le download process.

Read Only Integer 1 = Idle

5 = Transferring 6 = Testing 8 = Error

Table 6-7, Alarm Monitoring Parameters

Verify the DSM3s’ SCTE-HMS property tables have been updated by viewing the DSM3 HMS

Alarms Web Page, status monitoring system or SNMP MIB browser.

48 745-814-B8-001, Rev. C (03/2014)

Page 49

6.0 Data Management

6.2.2 SNMP Traps

Use of SNMP Traps allow the network manager to set conditions (alarms) under which the device (or devices) autonomously report to the headend the existence of the pre-congured event. The

type of event determines the level of action to be taken.

1. Verify the IP address of the trap destination server(s) has been congured.

If the trap destination server requires conguration, refer to Section 3.3.3, Setting SNMP

Trap Destination Addresses for instructions.

2. Alarms must be congured. SNMP alarm traps sent by the Communications Module are formatted according to the SCTE-HMS-ALARM-MIB specication with the following

information included:

SNMP Trap community string:

commonTrapCommunityString, OID 1.3.6.1.4.1.5591.1.3.1.11.0

Default value is "public"

Example Alarm Trap

The example below is a psTamper alarm trap indicating a discreteMinor alarm: Tamper is open. Data from the raw trap will appear as shown below. Refer to Table 6-6, SNMP Alarm Trap

Varbinds and Explanations, for denitions of the varbinds.

Frame 441 (230 bytes ib wire, 230 bytes captured) Ethernet II, Src: 192.168.1.77 (00:90:EA:A0:01:4E), Dst: 3com_0d:1d:d4 (00:10:5a:0dL1d:d4) Internet Protocol, Src Port: 62481 (62481), Dst Port: snmptrap (162) Simple Network Management Protocol Version: 1 (0) Community: PUBLIC PDU type: TRAP-V1 (4) Enterprise: 1.3.6.1.4.1.5591.1 (SNMPv2-SMI::enterprises.5591.1) Agent address: 0.0.0.0 (0.0.0.0) Trap type: ENTERPRISE SPECIFIC (6)

Specic trap type: 1

Timestamp: 2358751

Object identier 1: 1.3.6.1.4.1.5591.1.3.2.7.0 (SNMPv2-SMI::enterprises.5591.1.3.2.7.0)

Value: Hex-STRING: 00 90 EA A0 0B 82

Object identier 2: 1.3.6.1.4.1.5591.1.3.1.1.0 (SNMPv2-SMI::enterprises.5591.1.3.2.1.0)

Value STRING: “123 Example Ave.”

Object identier 3: 1.3.6.1.4.1.5591.1.2.3.1.2.1 (SNMPv2-SMI::enterprises.5591.1.2.3.1.2.1)

Value: Hex-STRING: 00 00 00 76 07 10 06 0D 2B 06 01 04 01 AB 57 01 04 02 01 1B 01 02 01 02

Object identier 4: 1.3.6.1.4.1.5591.1.4.2.1.27.1 (SNMPv2-SMI::enterprises.5591.1.3.2.1.0)

Value: INTEGER: 2

Object identier 5: 1.3.6.1.4.1.5591.1.1.2.1.2 (SNMPv2-SMI::enterprises.5591.1..1.2.1.2)

Value: INTEGER: 7

Fig. 6-1, Sample Raw SNMP Alarm Trap

When viewed through a third-party trap receiver, the translated varbinds and data values will be displayed in a format similar to the sample below:

Bindings (5) Binding #1: commonPhysAddress.0 *** (octets) 00:90.EA.A0.01.4E (hex) Binding #2: commonLogicalID.0 *** (octets) (123 Example Ave.) Binding #3: alarmLogInformation.1 *** (octets) 00.00.00.76.07.10.06.0D.2B.06.01.04.01.AB.57.01.04.02.01.1B.01.02.01.02 (hex) Binding #4: psTamper.1 *** (int32) open (2) Binding #5: currentAlarmAlarmState *** (int32) caasDiscreteMinor(7)

Fig. 6-2, Sample Translated SNMP Alarm Trap

49745-814-B8-001, Rev. C (03/2014)

Page 50

6.0 Data Management

6.2.2 SNMP Alarm Traps, continued

Varbind Explanation

Binding #1 commonPhysAddress OID: 1.3.6.1.4.1.5591.1.3.2.7.0

Binding #2 commonLogicalID OID: 1.3.6.1.4.1.5591.1.3.1.1.0

Binding #3 alarmLogInformation OID: 1.3.6.1.4.1.5591.1.2.3.1.2.1

Binding #4

Alarmed Parameter OID/Value

OID:

1.3.6.1.4.1.5591.1.4.2.1.27.1

Binding #5

Alarm Location/Type

OID: 1.3.6.1.4.1.5591.1.1.2.1.2

MAC Address of the Communications Module

Optional user-congurable parameter that is often used to provide a unique logical name, or even

the physical address of where the Communications Module is installed.

This varbind was designed by the SCTE-HMS committee with the intention of being used by sophisticated trap interpreters. The information is “coded” within the octet strings:

Octet 1-4: POSIX Time of alarm occurrence (most signicant byte rst) Octet 5: Alarm Type (See description below)

Octet 6: Contents of commonNeStatus immediately after alarm occurred

Octet 7-m: Alarm Object Identier (BER encoded) Octet n-z: Alarm value (BER encoded)

Most trap interpreters cannot decode this message, which is why varbinds 4 and 5 were added that provide the same information in a more useable format.

This eld provides the varbind of the parameter that is alarming along with the value of that

parameter. This is the same information encoded in varbind #3 Octets 7 through Z. In the example above the value would be:

OID: 1.3.6.1.4.1.5591.1.4.2.1.27.1.0 (psTamper) Value: 2 (Open)

This is the information from varbind #3 Octet 5 above. The alarm location will always be the SCTE-HMS currentAlarmAlarmState and the type will be determined based on how the alarm was

congured in the SCTE-HMS PropertyIdent MIB tables. OID 1.3.6.1.4.1.5591.1.1.2.1.2.0 (currentAlarmAlarmState) Type: 1-7 based on SCTE denitions:

1 NOMINAL 2 HIHI 3 HI 4 LO 5 LOLO 6 Discrete Major 7 Discrete Minor

The Type will be determined by how the alarm is congured in the SCTE-HMS PropertyIdent MIB, whether it is a Discrete or Analog alarm and the level of alarm dened for that state.

Table 6-8, SNMP Alarm Trap Varbinds and Explanations

Trap on Normal

The DSM3 Series has the capability of sending a “return to normal” trap once an alarmed condition returns to a normal state. This feature is enabled by default, but can be disabled by setting the "TRAP ON NORMAL" parameter in the the MIB point atiMgmtSnmpTrapOnNormal to a value of "2". The contents of this trap message will be identical to the SNMP Alarm traps, but the value of the

Alarm "Type" dened in the 5th varbind will be "1" (NOMINAL).

SCTE-HMS Warm-Start Trap

In addition to the SNMP alarm traps, the DSM3 Series will also send an SCTE-HMS warm-start

trap when it is initialized. Some SNMP monitoring software requires this trap for auto-identication

of the Communications Module. The format of this trap will be similar to the alarm trap, but the only information sent will be:

commonTrapCommunityString, OID 1.3.6.1.4.1.5591.1.3.1.11.0

commonPhyAddress, OID, 1.3.6.1.4.1.5591.1.3.2.7

commonLogicalID, OID 1.3.6.1.4.1.5591.1.3.1.1.0

SCTE-HMS Cold-Start Trap

An SNMP-HMS cold-start trap will be generated by the DSM3 Series anytime it initializes with a

new rmware version. In addition, a cold start trap is sent whenever the DSM3 conguration has

changed. If any parameter in the HMS PROPERTY table has changed since the last reset, a cold-start trap will be sent upon the next reset.

50 745-814-B8-001, Rev. C (03/2014)

Page 51

6.0 Data Management

6.2.3 General Power Supply Alarms

General power supply alarms are passed directly from the power supply to the Communications

Module without specic denition and are classied in the HMS MIB table as psMinorAlarm

and psMajorAlarm. There are a number of problems that can generate these alarms and the

exact nature of the situation is not specied. Minor and Major alarms are dened by the SCTE

standards committee as follows:

psMajor

“Service has been dropped or a service interruption is imminent. Indicates that an immediate

truck roll is appropriate.” Several psMajor alarms are latching, meaning that the alarm won’t clear until the problem is xed and after a successful completion of a self-test. A self-test is the

preferred method of verifying the resolution of the alarm condition as cycling the power has the potential of masking the problem and not indicating the actual state of the system.

psMinor

“A non-service affecting condition has occurred and should be monitored.”

The following table lists the psMajor and psMinor alarm denitions for the XM2 power supply.

NOTE:

The cause of a psMajor or psMinor alarm can be determined by checking the Discretes table in the Alpha MIB or by viewing the Web page. The cause will have the value of “ALARM.”

XM2 Major and Minor Alarms

psMinor

Problem Denition

Line Loss from Inverter Status Loss of AC line as determined by power supply inverter.

Battery Temperature Probe Indicates a temperature probe has failed or is not connected.

N+1 Error N+1 circuit is not congured properly. Possibly detecting input voltage on a redundant

psMajor

Problem Denition

Output Failure (non-latching) AC output failure, an open or short detected by power supply.

General Failure (latching) Indicates a latched failure of an automated, local or remote inverter test, or some other

Test Fail (latching) Battery voltage drops below 1.85V/cell or inverter fail during self test.

Battery Fail (non-latching) Battery voltage drops below 1.75V/cell while in standby mode, battery exceeds 2.5V/cell, or

Line Isolation (latching) Line isolation circuitry has failed.

Output Overload (non-latching) Indicates the power supply is overloaded. Power supply will shut down and attempt to restart

Charger Failure (non-latching) Charger has failed or was shut down due to a problem such as battery over-temp.

Inverter Fail (latching) The power supply has detected a failure in inverter operation.

Conguration Failure The power supply has detected that it is improperly congured.

Overtemp Inverter heat sink over-temperature.

N+1 Active A power supply has failed and the N+1 system has been activated to provide backup power.

Fuse Fail Fuse failure on tap switch option board.

system or other issue.

major malfunction within the power supply.

batteries not detected.

periodically.

Table 6-9, XM2 Major and Minor Alarms

51745-814-B8-001, Rev. C (03/2014)

Page 52

6.0 Data Management

6.3 The Alpha MIBs

Accompanying the release of the DSM3 Series are 22 new MIB les. These are backward-compatible

with the existing Alpha Technologies DSM series Communications Modules. These MIBs are available by contacting Alpha Technical Support or from the Alpha website. A complete listing is shown below:

ATI-BB-SYS-APPS-MIB.my

ATI-BB-SYS-LOGS-MIB.my

ATI-BB-SYS-VIEW-MIB.my

ATI-MANAGEMENT-MIB.my

ATI-MGMT-SNMP-MIB.my

ATI-MGMT-SYS-ACCESS-MIB.my

ATI-MGMT-SYS-DOWNLOAD-MIB.my

ATI-MGMT-SYS-GENRL-CTRL-MIB.my

ATI-MGMT-SYS-GENRL-INFO-MIB.my

ATI-MGMT-SYS-LAP-MIB.my

ATI-MGMT-SYS-MIB.my

ATI-MGMT-SYS-NV-DEFAULTS.my

ATI-MGMT-SYS-PHONEHOME-MIB.my

ATI-MGMT-SYS-SERVERS-MIB.my

ATI-MGMT-SYS-TEMP-MGR-MIB.my

ATI-MPSPS-MIB.my

ATI-PKT-CABLE-UPS-MIB.my

ATI-PRODUCT-PLATFORMS-MIB.my

ATI-ROOT-MIB.my

ATI-TABLES-MGMT-MIB.my

ATI-TABLES-MIB.my

ATL-ROOT-MIB.my

MIB browsers such as MG-Soft (www.mg-soft.com) require these MIBs to be compiled into the browser for the branches and parameters to be ordered and displayed properly. Refer to your MIB browser’s documentation for instructions on compiling MIB les.

The following MIB les may be required (see http://www.simpleWeb.org) to be compiled into the MIB browser prior to the Alpha MIB les:

RFC-1212

RFC-1215

RFC1155-SMI

SNMPv2-MIB

SNMPv2-TC

Additionally, there are four MIBs from Broadcom that are necessary to support the new features of the DSM3 Series. They are:

BRCM-CABLEDATA-MGMT.my

BRCM-CABLEDATA-SMI.my

BRCM-HTTP-MGMT.my

BRCM-TELNET-MGMT.my

52 745-814-B8-001, Rev. C (03/2014)

Page 53

6.0 Data Management

6.3 The Alpha MIBs, continued

The Alpha MIB is dened within the enterprises branch of the MIB tree starting at 1.3.6.1.4.1.926 and is

organized as shown in the overview below:

MIB Tree

ccit

iso (1)

org (1.3)

dod (1.3.6)

internet (1.3.6.1)

directory (1.3.6.1.1)

mgmt (1.3.6.1.2)

experimental (1.3.6.1.3)

private (1.3.6.1.4)

enterprises (1.3.6.1.4.1)

atl(1.3.6.1.4.1.926)

alphaTechInc(1.3.6.1.4.1.926.1)

atiLegacyReserved01(1.3.6.1.4.1.926.1.1)

atiTables (1.3.6.1.4.1.926.1.2)

atiManagement (1.3.6.1.4.1.926.1.3)

atiMgntSnmp (1.3.6.1.4.1.926.1.3.1)

atimgntSnmpTrapTable(1.3.6.1.4.1.926.1.3.1.1)

atimgntSnmpAccessTable(1.3.6.1.4.1.926.1.3.1.2)

atimgntSnmpAccess(1.3.6.1.4.1.926.1.3.1.3)

atimgntSnmpCommunities(1.3.6.1.4.1.926.1.3.1.4)

atimgntSnmpControls(1.3.6.1.4.1.926.1.3.1.5)

atiMgntSys (1.3.6.1.4.1.926.1.3.2)

atiMgntSysDownload (1.3.6.1.4.1.926.1.3.2.1)

atiMgntSysAccess (1.3.6.1.4.1.926.1.3.2.2)

atiMgntSysServers (1.3.6.1.4.1.926.1.3.2.3)

atiMgntSysTempMgr (1.3.6.1.4.1.926.1.3.2.4)

atiMgntSysPhoneHome (1.3.6.1.4.1.926.1.3.2.5)

atiMgntSysGnrlControls (1.3.6.1.4.1.926.1.3.2.6)

atiMgntSysGnrlInfo (1.3.6.1.4.1.926.1.3.2.7)

atiMgntSysLAP (1.3.6.1.4.1.926.1.3.2.8)

atiMgntSysNvDefaults (1.3.6.1.4.1.926.1.3.2.9)

atiProductPlatforms (1.3.6.1.4.1.926.1.4)

atiBroadbandUPS (1.3.6.1.4.1.926.1.4.1)

atiBBSysView (1.3.6.1.4.1.926.1.4.1.1)

Table 6-10, Alpha MIB Hierarchy

53745-814-B8-001, Rev. C (03/2014)

Page 54

6.0 Data Management

6.3 The Alpha MIBs, continued

6.3.1 The Alpha MIB Structure

Measurements and settings for the power supply, generator, batteries and DSM are accessed

using Simple Network Management Protocol (SNMP) through the Alpha Management Information Base (MIB) les.

The Alpha MIB is dened within the enterprise branch of the MIB tree starting at 1.3.6.1.4.1.926

and is organized into the following branches:

Alpha CIB Tables – atiTables (1.3.6.1.4.1.926.1.2.1)

Power supply, generator, battery and DSM data and settings are located in the CIB Tables branch (atiCibTables). The tables are sorted into

the following categories:

1. Discretes - XM2 major alarms & installed XM2 options.

2. Analogs - Voltages, currents, frequencies, temperatures.

3. Counters - Batteries per string, number of strings, XM2 self-test schedule, device address, total run time and conguration settings.

4. Version - Device version information.

Alpha Management – atiManagement (1.3.6.1.4.1.926.1.3)

Advanced DSM settings are located in the Alpha management branch (atiManagement) and the settings are split between SNMP and

system-related settings.

1. SNMP Management – atiMgntSnmp (1.3.6.1.4.1.926.1.3.1)

SNMP Trap tables, SNMP access, Community Strings and SNMP Trap controls.

1.1 SNMP Trap Table - Table of SNMP trap addresses.

1.2 SNMP Access Table – Table of SNMP access addresses.

1.3 SNMP Access – Device accessibility via SNMPv1 & SNMPv2.

1.4 CPE Mode – Enable/disable dual IP and static IP settings.

1.5 Community Strings – Get, set and trap community strings.

1.6 SNMP Trap controls – Trap on normal, send count, SNMP timeout.

2. System Management – atiMgmtSys (1.3.6.1.4.1.926.1.3.2)

Download, Web server, SNTP server IP addresses, enclosure environmental controller, general controls (tamper polarity) and LA-P

status.

2.1 Download – DSM Proprietary Conguration File settings.

2.2 System Access – Enable/disable Web Page & Text Page - applies to DSM1 & DSM2 only.

2.3 HTTP Access - Enable/disable Web page – DSM3.

2.4 System Servers – Simple Network Time Protocol server (SNTP) IP address.

2.5 Temperature Manager – Battery heater mat or cooler settings.

2.6 Phone Home – IP address and timer settings.

2.7 General Controls – Tamper switch polarity and internal bus data size.

2.8 General Info – Base conguration of the device. i.e. DSM3, DSM3 Series, DPM.

2.9 LA-P Surge Suppressor – Enable/disable LA-P monitoring and current state of LA-P device.

2.10 Non-volatile Memory Defaults – Factory and custom defaults.

Alpha Product Platforms – atiProductPlatforms (1.3.6.1.4.1.926.1.4)

System power supply parameters are located the Alpha Product Platforms branch (atiProductPlatforms).

1. Broadband UPS

System View – Self Test, alarms, scalars, and counters reported by the host device.

1.1 Self Test – Start/stop and prevention and System Control Manager.

1.2 Alarms – Status of major and minor alarm, self test, temperature probe and input power.

1.3 Scalars – Power supply input voltage, frequency and current. Battery voltage and temperature. Charger settings.

1.4 Counters – Self test and inverter counters.

Table 6-11, Alpha MIB Parameter Examples

Refer to Section 10 for further details regarding the Alpha MIBs.

54 745-814-B8-001, Rev. C (03/2014)

Page 55

7.0 Installation

7.1 Verifying Power Supply Device Address

Before installing the hardware, provision the DHCP server with the cable modem’s RF MAC Address. This allows the installation to be veried while the technician is on-site, eliminating the need for a second visit if

there are problems with the installation.

WARNING!

To reduce the risk of electric shock, completely remove the inverter module from the power

supply prior to installation. For eld installation, use a service power supply to avoid losing

power to the load.

CAUTION!

The DSM3 Series is static sensitive. An ESD wrist strap should be worn when installing the Communications Module.

Before removing the Inverter Module (IM), verify the power supply device address is correct.

The power supply device address must not be set to zero and no two power supplies monitored by a single DSM3 Series can have the same address. Power supplies must have 1, 2, 3, 4 or 5 as an address.

To verify the power supply’s address do the following:

Smart Display Screen

1. Press the Enter key on the inverter module twice to access the SETUP Menu.

2. Press the Down key until DEVICE ADDRESS is displayed.

3. If the address is correct (in the range of 1 to 5), skip to Step 8.

4. To change the address, press the Enter key to enter the Edit mode.

5. Press the Up or Down keys until the desired address (1, 2, 3, 4 or 5) is displayed. Remember, each

power supply monitored by a single Communications Module must have a unique address; this may require accessing the menu systems of the additional power supplies and adjusting as applicable.

6. Press the Enter key to load the new address.

7. Press the Enter key again to accept the new data.

8. Press ESC three times to return to the OPERATION NORMAL screen.

55745-814-B8-001, Rev. C (03/2014)

Page 56

7.0 Installation

7.2 Installation / Replacement Procedure in XM2 Power Supplies

If the CableUPS has been shipped without a DSM3 Series module, or the existing module requires removal and replacement, do so via the the following procedure:

1. Switch OFF the power supply’s battery breaker.

NOTE:

With the battery breaker in the OFF position, the power supply will not go into inverter mode.

2. Unplug all inverter module connections (e.g. battery cable, remote temperature sensor).

3. Loosen the inverter module thumbscrews and slide the inverter module out just enough to disconnect the ribbon cable. Disconnect the ribbon cable.

Disconnect

Fig. 7-1, Removing the Inverter Module from the Power Supply

4. Slide the Inverter Module out of the power supply.

5. If the inverter module is equipped with a transponder, remove it by loosening the two Phillips captive screws.

Captive Screws

Fig. 7-2, Transponder Captive Screw Locations

56 745-814-B8-001, Rev. C (03/2014)

Page 57

7.0 Installation

7.2 Module Installation Procedure in XM2 Power Supplies, continued

6. Plug the supplied 18-pin jumper into the header on the back of the DSM3 Series circuit board.

NOTE:

To prevent damage to the DSM3, do not reuse the existing 18-pin connector. Instead, use the jumper supplied with the Communications Module.

Fig. 7-3, The 18-pin jumper

(Alpha p/n 540-286-19)

Fig. 7-4, The 18-pin jumper installed

7. Line up the 18-pin jumper with the header on the Inverter Module and gently push the DSM3

Series into the Inverter Module.

Fig. 7-5, Connecting the Communications Module to the Inverter Module

8. Fasten the DSM3 Series to the Inverter Module by tightening the two captive screws. It

is recommended that the screws be tightened alternately, a few turns at a time so the Communications Module aligns in parallel to the Inverter Module.

9. Reinstall the Inverter Module and reconnect the ribbon cable. Make front panel connections

(tamper, temperature sensor, battery sense, RF etc.).

10. If not yet done, record the cable modem MAC address from the front of the unit and report it to

the network manager for network provisioning.

57745-814-B8-001, Rev. C (03/2014)

Page 58

7.0 Installation

7.3 DPM Installation / Replacement Procedure

If the XM2-300HP High-Efciency CableUPS has been shipped without a DPM, or the existing module

requires removal and replacement, do so via the the following procedure:

1. Switch OFF the power supply’s battery breaker.

2. Unplug all Inverter Module connections (e.g. battery cable, remote temperature sensor).

NOTE:

With the battery breaker in the OFF position, the power supply will not go into inverter mode.

Fig. 7-6, Removing the Inverter Module from the Power Supply

3. Loosen the Inverter Module thumbscrews.

4. Slide the Inverter Module out of the power supply.

5. Loosen the two Phillips captive screws to remove the DPM sheet metal from the Inverter Module.

Captive Screw

Fig. 7-7, Removing the DPM sheet metal from the Inverter Module

58 745-814-B8-001, Rev. C (03/2014)

Page 59

7.0 Installation

7.3 DPM Installation Procedure, continued

6. Plug the supplied 18-pin jumper into the header on the Inverter Module.

Fig. 7-8, The 18-pin jumper installed

7. Attach the DPM to the sheet metal with the supplied 6-32 screws, see Fig. 7-9.

8. Line up the 18-pin jumper with the header on the Inverter Module and gently push the DPM into

the inverter module.

Fig. 7-10, DPM attached to sheet metal

9. Fasten the DPM to the Inverter Module

by tightening the two captive screws. It is recommended that the screws be tightened alternately, a few turns at a time so the Communications Module aligns in parallel to the Inverter Module.

Fig. 7-9, DPM 18-pin header

(Alpha p/n 540-581-19)

Fig. 7-11, DPM / IM connection

10. Reinstall the Inverter Module and make front panel

connections (tamper, temperature sensor, battery,

RF, etc.).

11. If not yet done, record the cable modem MAC

address from the front of the unit and report it to the network manager for network provisioning.

NOTE:

When replacing an existing DPM do not reuse the existing 18-pin connector. Use the18-pin connector supplied with the DPM.

Fig. 7-12, Completed assembly

59745-814-B8-001, Rev. C (03/2014)

Page 60

7.0 Installation

7.4 DSM3x LEDs and Connections

Item LED or Connector Status Behavior Indication

N/A OFF No power or malfunctioning DSM3 Series

GRN

ALM/RDY: Alarm

and Ready

RED

REG: Upstream

ranging and registration lock

DS: Downstream

RF Carrier detection and lock

ACT: CPE Activity

status

LNK: CPE Link

status

RF Rx/Tx Power

Level Indicator

COM: AlphaBus

communications

8 BAT A/B GRN ON/OFF ON (steady) if battery string(s) connected correctly

9 BAT A/B Connector

10 BAT C/D GRN ON/OFF ON (steady) if battery string(s) connected correctly

11 BAT C/D Connector

12 RST: Reset buttton

13 ENV: Environmental Control connector

14 TPR: Tamper Switch connector

15 ETH: Ethernet connection

16 RF Connection

17 COM: AlphaBus Communications connector

18 RF, CPE MAC Address label

GRN

TRI

GRN

ON Reset of the DSM3 Series is in process

Steady Blinking Normal operation

Blinking more OFF than ON

Blinking more ON than OFF

OFF No power, upstream frequency undetermined

OFF / ON

ON CMTS registration completed

OFF No power / downstream carrier

OFF / ON Power on, downstream carrier frequency searching

ON Downstream carrier lock

OFF No Ethernet communications activity

OFF/ON

OFF No Ethernet link

ON Link on Ethernet Craft port

OFF No RF detected

Blue

Green Rx/Tx RF Power level within tolerance

Red

OFF No AlphaBus Communications

OFF/ON

Minor Alarm

Major Alarm

Power on, downstream locked, upstream frequency ranging, DHCP request in progress

Momentary ash during CPE communications via

the Ethernet craft port

Rx/Tx Power at a warning level as set within the SCTE-HMS Property Table

Rx/Tx Power at an alert level as set within the SCTE-HMS Property Table

Momentary ash - AlphaBus Port communications

active

Fig. 7-13, DSM3x LEDs and Connectors

60 745-814-B8-001, Rev. C (03/2014)

Page 61

7.0 Installation

7.5 DSM3 LEDs and Connections

Item LED or Connector Status Behavior Indication

N/A OFF

ALM/RDY: Alarm and

Ready

REG: Upstream

ranging and registration lock

DS: Downstream RF

Carrier detection and lock

ACT: CPE Activity

status

5 LNK: CPE Link status GRN

RF Rx/Tx Power Level

Indicator

7 BAT A/B GRN ON/OFF ON (steady) if battery string(s) connected correctly.

8 BAT A/B Connector

9 RST: Reset buttton

10 TPR: Tamper Switch connector

11 ETH: Ethernet connection

12 RF Connection

13 RF, CPE MAC Address label

GRN

RED

GRN

TRI

ON Communications Module reset in process

Steady Blinking Normal operation

Blinking more OFF than ON

Blinking more ON than OFF

OFF No power, upstream frequency undetermined

BLINKING

ON CMTS registration completed

OFF No power / downstream carrier

BLINKING Power on, downstream carrier frequency searching

ON Downstream carrier lock

OFF No Ethernet communications activity

BLINKING

OFF No link

ON Link on Ethernet Craft port

OFF No RF detected

Blue

Green Rx/Tx RF Power level within tolerance

Red

No power or malfunctioning Communications Module

Minor Alarm

Major Alarm

Power on, downstream locked, upstream frequency ranging, DHCP request pending

Momentary ash during CPE communications via

the Ethernet Craft port

Rx/Tx Power at a warning level as set within the SCTE-HMS Property Table

Rx/Tx Power at an alert level as set within the SCTE-HMS Property Table

Fig. 7-14, DSM3 LEDs and Connectors

61745-814-B8-001, Rev. C (03/2014)

Page 62

7.0 Installation

7.6 DPM Connections

Item LED or Connector Status Behavior Indication

N/A OFF

ALM/RDY: Alarm and

Ready

REG: Upstream

ranging and registration lock

DS: Downstream RF

Carrier detection and lock.

ACT: CPE Activity

status

5 LNK: CPE Link status GRN

RF Rx/Tx Power Level

Indicator

7 RST: Reset buttton

8 ENV: Environmental Control connector

9 TPR: Tamper Switch connector

10 ETH: Ethernet connection

11 RF Connection

12 CM, CPE MAC Address label

GRN

RED

GRN

TRI

ON Communications Module reset in process

Steady Blinking Normal operation

Blinking more OFF than ON

Blinking more ON than OFF

OFF No power, upstream frequency undetermined

BLINKING

ON CMTS registration completed

OFF No power / downstream carrier

BLINKING Power on, downstream carrier frequency searching

ON Downstream carrier lock

OFF No Ethernet communications activity

BLINKING

OFF No link

ON Link on Ethernet Craft port

OFF No RF detected

Blue

Green Rx/Tx RF Power level within tolerance

Red

No power or malfunctioning Communications Module

Minor Alarm

Major Alarm

Power on, downstream locked, upstream frequency ranging, DHCP request pending

Momentary ash during CPE communications via

the Ethernet Craft port

Rx/Tx Power at a warning level as set within the SCTE-HMS Property Table

Rx/Tx Power at an alert level as set within the SCTE-HMS Property Table

Fig. 7-15, DPM LEDs and Connectors

62 745-814-B8-001, Rev. C (03/2014)

Page 63

7.0 Installation

7.7 Connecting the RF Drop

CAUTION!

Install a grounded surge suppressor (Alpha P/N 162-028-10 or equivalent).

Connect the RF drop according to the diagram below. The RF drop must have a properly installed ground block in the power supply enclosure. Recommended downstream RF level is 0 dBmV. Connect any other

front panel connections at this time (e.g. battery strings, tamper switch).

Grounded Surge Protector

(See Caution Above)

RF Cable

to Headend

Fig. 7-16, Connecting the RF Drop

7.8 Front Panel Connections

Linked CableUPS

Serial Interface Cards

S Y S

C O

ECM to SCM Interface

(Alpha P/N 704-709-20)

AlphaBus Cable

DSM3 Series in

Primary XM2

S Y S

C O

(Alpha P/N 875-190-20 for 6',

21 for 9', 22 for 18', 23 for 35')

I/O connection Environmental Tamper Switch Connector

Ethernet connection

RF connection

Generator (ECM)

Battery Sense Wire Harness

Refer to Section 8 for part numbers and wiring options.

Comm Port

System Port

Battery Sense Connections

Connections

Connections with more than one power supply

Fig. 7-17, System Interconnection Diagram

63745-814-B8-001, Rev. C (03/2014)

Page 64

7.0 Installation

7.9 I/O Connections (TPR, ENV)

The Alpha DSM3 series transponders (DSM3, DSM3x, DPM) are all populated with a Tamper interface to

report the status of the power supply enclosure door when equipped with the optional tamper switch. The

Alpha DSM3x and DPM are populated with the Environmental and I/O Controller interface (referred to in this section as I/O Port) which can be used to monitor and control an array of contact relay devices such

as battery heater mats, enclosure moisture sensors and emergency generators.

7.9.1 Tamper (TPR) Switch Interface

I/O Control Interface (ENV) Tamper Switch Interface (TPR)

Fig. 7-18, I/O (ENV) and Tamper Switch Interface (TPR) Connection Locations

The tamper switch interface is designed to report and alarm the status of the power supply enclosure door. The circuit created by the tamper switch is a contact relay, so other contact relay devices can be designed to be monitored through this interface. For example, the Alpha Utility

Line Sensor (Alpha P/N 746-399-20) uses the tamper interface to monitor the Utility outlet to

report the presence of line voltage.

NOTE:

In the OID column of the following table, ‘X’ denotes power supply device address (Default = 1)

Function Parameter OID Values Description

Tamper psTamper 1.3.6.1.4.1.5591.1.4.2.1.27.X

See Note 1

Utility Sense

Alarm/

Trap

Alarm/

Trap

psTamper 1.3.6.1.4.1.5591.1.4.2.1.27.X 1 = No Voltage

tamperPolarity 1.3.6.1.4.1.926.1.3.2.6.1.0 1 = Report “Open” when

psTamper(Closed) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1

.3.6.1.4.1.5591.1.4.2.1.27.X.1

psTamper(Open) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1

.3.6.1.4.1.5591.1.4.2.1.27.X.2

1 = Closed 2 = Open

2 = Voltage present

contact open

2 = Report “Open” when

contact closed

1 = disable 2 = enableMajor 3 = enableMinor

Table 7-1, Tamper (TPR) Switch Specications

Status of enclosure door

Status of Utility Voltage

Controls polarity of

‘psTamper’ reporting

Alarm enable for

psTamper=”Closed”

Alarm enable for

psTamper=”Open”

64 745-814-B8-001, Rev. C (03/2014)

Page 65

7.0 Installation

7.9.2 I/O Port Interface

ENV Connector Pin Description

1 Logic Gnd

356

Back of ENV

Connector

2 5V +/- 0.5V voltage Shotky Protection – 15mA max. – Relay current drive

3 Open/Close Control – 0V/15mA sink = Close, 3.3V/0mA = Open

4 Open/Close Sense – Pin 4 relay contact short to pin 1 = Close, Pin 4 open = Open

5 Open/Close Sense – Pin 5 relay contact short to pin 1 = Close, Pin 5 open = Open

6 Open/Close Sense – Pin 6 relay contact short to pin 1 = Close, Pin 6 open = Open

Table 7-2, ENV Connector and Pin Descriptions

Steps to congure DSM3 to monitor I/O device:

1. Set atiMgmtSysIoSelect appropriately (SNMP or Web) for device to monitor.

OID 1.3.6.1.4.1.926.1.3.2.8.1.0

1 = Generic

2 = LAP Only

3 = Heater/Cool Control Only (Heater Mat)

4 = DC Emergency Generator Only

5 = Heater/Cooler + LAP

6 = DC Generator + LAP

The device can be selected through the Web page by navigating to ‘Advanced Conguration’, ‘I/O – Environment’ and selecting from the pull-down list

2. Congure alarms (Generic Only – See below section for details)

3. Monitor appropriate SNMP parameters (See each section below for details)

7.9.3 Conguring I/O Port Connections

Alpha has created logic for control and reporting of specic devices or combination of devices.

The Alpha proprietary SNMP MIB atiMgmtSysIoSelect, 1.3.6.1.4.1.926.1.3.2.8.1.0 must be set appropriately before the device status will be correctly reported. The monitored device can

also be set through the DSM3x/DPM “Advanced Conguration - I/O” Web page pull-down. The status of the generic I/O Pins can still be monitored and alarmed via the SCTE-HMS discretePropertyTable even when specic devices have been selected.

65745-814-B8-001, Rev. C (03/2014)

Page 66

7.0 Installation

7.9.3 Conguring I/O Port Connections, continued

7.9.4 I/O Port: Generic Device

Function Parameter OID Values Description

Input atiMgmtSysIOPinIn4 1.3.6.1.4.1.926.1.3.2.8.21.0 1 = Contact Open

Input atiMgmtSysIOPinIn5 1.3.6.1.4.1.926.1.3.2.8.22.0 1 = Contact Open

Input atiMgmtSysIOPinIn6 1.3.6.1.4.1.926.1.3.2.8.23.0 1 = Contact Open

Control atiMgmtSysIOPinCtrl 1.3.6.1.4.1.926.1.3.2.8.20.0 1 = Contact Open

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

Alarm/

Trap

atiMgmtSysIoSelect (1.3.6.1.4.1.926.1.3.2.8.1.0)

MIB Value Device Reported Parameter or MIB Branch

1 No device (generic) I/O Pins Only

2 LAP Only atiMgmtSysIoLAPState 1.3.6.1.4.1.926.1.3.2.8.2.0

3 Heater Control Only atiMgmtSysTempMgr * 1.3.6.1.4.1.926.1.3.2.4

4 DC Generator Only atiMgmtSysIoGenState 1.3.6.1.4.1.926.1.3.2.8.3.0

5 Heater Control and LAP atiMgmtSysIoLAPState atiMgmtSysTempMgr *

6 Generator and LAP atiMgmtSysIoLAPState atiMgmtSysIoGenState

*MIBs within atiMgmtSysTempMgr branch will report and control will be allowed regardless of the value reported by atiMgmtSysIoSelect

Table 7-3, I/O Port Specications

The I/O connector on the Alpha DSM3x and DPM allow the headend to remotely monitor and control external contact relay devices. Each input pin can be congured through the SCTE-HMS

discretePropertyTable for alarm and SNMP trap generation.

Used to monitor

IOPinIn4(Open) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.21.0.1

IOPinIn4 (Closed) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.21.0.2

IOPinIn5 (Open) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.22.0.1

IOPinIn5 (Closed) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.22.0.2

IOPinIn6 (Open) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.23.0.1

IOPinIn6 (Closed) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.23.0.2

IOPinCtrl (Open) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6.

1.4.1.926.1.3.2.8.20.0.1

IOPinCtrl (Closed) 1.3.6.1.4.1.5591.1.1.3.1.3.13.1.3.6

.1.4.1.926.1.3.2.8.20.0.2

2 = Contact Closed

1 = disable 2 = enableMajor 3 = enableMinor

moisture sensor

Open/Close a

contact

Alarm enable when Pin4 contact is Open

Alarm enable when Pin4 contact is Closed

Alarm enable when Pin5 contact is Open

Alarm enable when Pin5 contact is Closed

Alarm enable when Pin6 contact is Open

Alarm enable when Pin6 contact is Closed

Alarm enable when control contact is Open

Alarm enable when control contact is Closed

Table 7-4, I/O Port: Generic Device Specications

66 745-814-B8-001, Rev. C (03/2014)

Page 67

7.0 Installation

7.9.5 Connecting a Generic I/O Device

7.9.6 Conguring and Monitoring a Generic I/O Device

The I/O cable P/N 875-627-25 is designed to monitor a single contact relay device through Pin 6 of the ENV connector. The I/O cable P/N 875-627-22 is designed to control a relay device

through Env Pin 3 and also monitor a contact relay through Pin 4. For any other generic device

congurations consult your Alpha representative.

Set the parameter atiMgmtSysIoSelect 1.3.6.1.4.1.926.1.3.2.8.1.0 to a value of “1” (Generic). Alternatively, navigate to ‘Advanced Conguration’, ‘I/O – Environment’ and select “Generic

Device” from the pull-down list.

The status of the control and input pins can be monitored through the following OIDs:

Pin 3 (Control)

1.3.6.1.4.1.926.1.3.2.8.20

Pin 4 (Input)

1.3.6.1.4.1.926.1.3.2.8.21

Pin 5 (Input)

1.3.6.1.4.1.926.1.3.2.8.22

Pin 6 (Input)

1.3.6.1.4.1.926.1.3.2.8.23

1 = Contact Open 2 = Contact

Closed

1 = Contact Open 2 = Contact

Closed

1 = Contact Open 2 = Contact

Closed

1 = Contact Open 2 = Contact

Closed

Voltage to drive Pin 3 is managed through the following SNMP OID:

atiMgmtSystempCtrl

1.3.6.1.4.1.926.1.3.2.4.1

1 = Off

5 = On

The SCTE-HMS discretePropertyTable can be congured to generate SNMP traps based upon the desired contact state of any of the I/O input or control pins (see Table 7-3).

7.9.7 I/O Port: Lightning Arrestor (LA-P-SM)

The DSM3 Series and DPM Communications Modules are capable of monitoring the status of the Alpha LA-P-SM Series surge suppressors.

atiMgmtSysIoSelect = 2, 5, 6

67745-814-B8-001, Rev. C (03/2014)

Page 68

7.0 Installation

7.9.8 Lightning Arrestor (LA-P-SM) Installation

The physical installation of the LA-P-SM is shown below and consists of connecting the cable (Alpha

p/n: 875-627-23) from the LA-P-SM's two leftmost screw terminals to the six pin ENV connector on the DSM3 Series or DPM and plugging the LA-P-SM into the enclosure‘s power outlet.

1. Insert cable into 3-pin connector

7.9.9 Conguring the LA-P-SM

Set the parameter atiMgmtSysIoSelect 1.3.6.1.4.1.926.1.3.2.8.1.0 to a value of “2” (LA-P-SM). Alternatively, navigate to ‘Advanced Conguration’, ‘I/O – Environment’ and select “LAP Only”

from the pull-down list.

The status of the LA-P-SM can be monitored through I/O – Environment web page or via the

SNMP MIB atiMgmtSysIoLapState 1.3.6.1.4.1.926.1.3.2.8.2.0:

2. Tighten to .22 to .25N•m 3. Connect to LA-P-SM

atiMgmtSysLAPState (1.3.6.1.4.1.926.1.3.2.8.2)

Value list Description

notInstalled(1) NO LAP INSTALLED. This would be the case if the OID atiMgmtSysIoSelect has not been set to a value of 2.

ok(2) OK. Indicates that each connected power supply detects AC input and the LAP device reports no fault. Normal

operation.

acNotPresent(3) AC OFF. One or more of the power supplies detects no AC. To check if the LAP has failed, query the OID

psInputVoltagePresence (1.3.6.1.4.1.5591.1.4.2.1.34) to ascertain if the line has truly failed; if this is the case, the LAP is working normally. If the line is OK, it is likely the LAP has a problem.

relpaceLap(4) Critical Surge Event - Replace LAP. An LAP has failed and should be replaced. This is the state when all power

supplies detect AC but the LAP sense line indicates a fault.

invalid(5) There is a fault, either the LAP has not been wired correctly or the relay in the LAP is stuck in the no-fault state. This

state occurs when at least one power supply senses AC fail, which should cause an LAP fault, but no fault is detected (this would be the case if the LAP relay is stuck in the ON condition).

4. Plug LA-P-SM into power outlet

5. Plug cable into ENV connector

Table 7-5, LA-P-SM Monitoring Values

NOTE:

The LA-P-SM control and other I/O Port controls may be implemented simultaneously. This conguration requires interface

cable Alpha part number 875-627-24. Control and monitoring are identical to the devices being used independently.

68 745-814-B8-001, Rev. C (03/2014)

Page 69

7.0 Installation

7.9.10 I/O Port: Heater Mat Control

atiMgmtSysIoSelect = 3,5

NOTE:

Heater control MIBs will continue to report regardless of atiMgmtSysIoSelect value, but DSM3x/DPM Web page will

only display Heater Control status if atiMgmtSysIoSelect is set to “3” or “5.”

A battery heater mat controller may be managed though the following set of parameters within the

‘atiMgmtSysTempMgr’ MIB branch.

Parameter Access Values Description

atiMgmtSysTempCtrl

1.3.6.1.4.1.926.1.3.2.4.1.0

atiMgmtSysTempStatus

1.3.6.1.4.1.926.1.3.2.4.2.0

atiMgmtSysTempTimer

1.3.6.1.4.1.926.1.3.2.4.7.0

atiMgmtSysTempCountdown

1.3.6.1.4.1.926.1.3.2.4.8.0

atiMgmtSysTempStatusInvert

1.3.6.1.4.1.926.1.3.2.4.9.0

RW 1 = Off 2 = Switch on Timer Starts or stops the heater mat

activation timer

R 1 = Contact Open 2 =

Contact Closed

RW 0..1440 (Default = 30) The number of minutes the heater mat

R 0..1440 Number of minutes remaining on timer

RW 1 = No invert (default) 2 -

Invert

The heater mat is activated when this parameter reports “2”

will stay on when timer is started

The manufacturer of the mat control block created some models where the

polarity is reversed (Open vs closed).

If these devices are deployed then this parameter will need to be set to “2”

Table 7-6, I/O Port: Heater Mat Control Specications

7.9.11 Connecting the Battery Heater Mat Controller

Power to the heater mat is provided via a customer-supplied controller plugged into the power

outlet inside the enclosure. A cable (Alpha p/n 875-627-22) connects the controller to the ENV (Environmental) connector on the DSM3x and DPM. The connection procedure is shown below.

1. Connect the 4-pin connector from the controller cable (Alpha p/n 875-627-22) into the base of the Heater Mat Controller.

2. Plug the controller into the power outlet.

3. Plug the Heater Mat into the controller.

4. Plug the 6-pin connector into the ENV connector.

69745-814-B8-001, Rev. C (03/2014)

Page 70

7.0 Installation

7.9.11 Connecting the Battery Heater Mat Controller, continued

7.9.12 Conguring the Battery Heater Mat Controller

Once the connection has been made, Environmental Control Management can be congured

using an SNMP MIB browser as indicated in the following tables. The Environmental Control MIB

section begins at atiMgmtSysTempMgr (1.3.6.1.4.1.926.1.3.2.4). Status of the Environmental Control is also available via the Communications Module’s Web page by navigating to ‘Advanced Conguration’, ‘I/O – Environment’. Ensure the ‘Heater/Cooler Only’ is selected from the drop-

down list.

In this example, values are written to their respective OIDs to set temperatures, control mode and status reporting.

Set these OIDs to the specied value Functionality

atiMgmtSysTempTemperature (1.3.6.1.4.1.926.1.3.2.4.5) to 5 Heater turns on at 5°C

atiMgmtSysTempHysteresis (1.3.6.1.4.1.926.1.3.2.4.6) to 3 3°C of permitted controller overshoot (in this case, would turn off at 8°C)

atiMgmtSysTempCtrl (1.3.6.1.4.1.926.1.3.2.4.1) to 3 Battery temperature sensor used to control heater setpoint

atiMgmtSysTempMode (1.3.6.1.4.1.926.1.3.2.4.3) to 1 Places controller in heater mode

atiMgmtSysTempActiveState (1.3.6.1.4.1.926.1.3.2.4.4) to 1 Drive pin to the temperature device will go low when heater is on

atiMgmtSysTempStatusInvert (1.3.6.1.4.1.926.1.3.2.4.9) to 1 Sets the polarity of the feedback signal from the temperature device

Table 7-7, Heater Mat OIDs and Functionality

During operation, the following MIB points will report the current temperature and whether the heater is on or off.

SNMP MIB Point Data

atiMgmtSysTempStatus (1.3.6.1.4.1.926.1.3.2.4.2) Temperature device ON or OFF

atiBBSysViewBatteryTemperature (1.3.6.1.4.1.926.1.4.1.1.3.5) Battery temperature (in degrees C)

Table 7-8, Heater Mat MIB Reports

70 745-814-B8-001, Rev. C (03/2014)

Page 71

7.0 Installation

7.9.13 I/O Port: Emergency DC Generator (GEN)

7.9.14 Conguring and Monitoring the DC Emergency Generator

atiMgmtSysIoSelect = 4, 6

The DPM and DSM3x have the capability to report the status of the Alpha DCX Series

Emergency DC Generator through the I/O or“ENV” port on the front of the Communications

Module.

See the DCX3000/DCX2000 Remote Status Monitoring (RSM) Assembly Kit Field Installation Guide, p/n 746-379-C0.

Set the parameter atiMgmtSysIoSelect 1.3.6.1.4.1.926.1.3.2.8.1.0 to a value of “4” (Generator). Alternatively, navigate to ‘Advanced Conguration’, ‘I/O – Environment’ and select “Generator

Only” from the pull-down list.

The status of the Generator can be monitored through I/O – Environment web page or via the

SNMP MIB atiMgmtSysIoGenState 1.3.6.1.4.1.926.1.3.2.8.3.0.

atiMgmtSysIoGenState (1.3.6.1.4.1.926.1.3.2.8.3.0)

Value list Description

notInstalled(1) This indicates that atiMgmtSysIoSelect has not been set to a value of 4 (Generator).

genOff(2) The generator has been detected but it is not powering the load.

genRunning(3) The generator is present and it is powering the load.

genNotDetected(4) atiMgmtSysIoSelect has not been set to "4" (Generator) but the Generator is not detected.

atiMgmtSysIoGenTimePowering (1.3.6.1.4.1.926.1.3.2.8.3.0)

Time (Minutes) Increments when atiMgmtSysIoGenState = 3; resets to “0” when atiMgmtSysIoGenState

Both of the above parameters can be alarmed through the SCTE-HMS propertyIdent MIB

changes to any other value

Table 7-9, Generator Monitoring Values

NOTE:

The environmental control and the LA-P-SM control may be implemented simultaneously. This conguration requires interface

cable Alpha part number 875-627-24. Control and monitoring are identical to the devices being used independently.

71745-814-B8-001, Rev. C (03/2014)

Page 72

8.0 Battery Sense Wire Kits

To Power Supply

ugBack of Pl

To Power Supply

8.1 36V Single and Dual Strings

Red

Black

NEG

POS

Black

(-)

NEG

(+) (+)

POS

Pin 4

Vbatt 3A [C] 36V

(-) (-)

NEG

POS

Pin 3

Vbatt 2A [C] 24V

(+)

Pin 2

Vbatt 1A [C] 12V

Pin 1

A/B [C/D] NEG

Fig. 8-1, 36V System, Single String

Sense Wire Kits:

Alpha P/N: 874-842-21 (6') Alpha P/N: 874-842-27 (9')

(-) (-) (-)

NEG

(+)

POS

Vbatt 3A [C] 36V

Pin 7

Vbatt 3B [D] 36V

NEG

POS

Pin 4

Pin 6

Vbatt 2B [D] 24V

POS POS POS

(+) (+)

Pin 3

Vbatt 2A [C] 24V

Pin 5

Vbatt 1B [D] 12V

NEG

POS

Vbatt 1A [C] 12V

NEG

Pin 2

Pin 1

A/B [C/D] NEG

Fig. 8-2, 36V System, Dual String

Sense Wire Kits:

Alpha P/N: 874-842-20 (6') Alpha P/N: 874-842-28 (9')

Back of Plug

72 745-814-B8-001, Rev. C (03/2014)

Page 73

8.0 Battery Sense Wire Kits

To Power Supply

8.2 48V Single and Dual Strings

NEG

POS

Pin 8

Vbatt 4A [C/D] 48V

NEG

Red

NEG

POS

Vbatt 3A [C] 36V

NEG

Black

NEG

Fig. 8-3, 48V, Single String

POS

Pin 4

Pin 3

Vbatt 2A [C] 24V

Black

NEG

POS

Vbatt 1A [C] 12V

NEG

Pin 1

Pin 2

A/B [C/D] NEG

Sense Wire Kits:

Alpha P/N: 874-841-21 (6') Alpha P/N: 874-841-25 (9')

ugBack of Pl

POS

Pin 1

A/B [C/D] NEG

Pin 8

Vbatt A/B [C/D] 48V

NEG

POS

Fig.8-4, 48V, Dual String

Sense Wire Kits:

POS

Alpha P/N: 874-841-20 (6') Alpha P/N: 874-841-24 (9')

Pin 4

Vbatt 3A [C] 36V

Pin 7

Vbatt 3B [D] 36V

NEG

Pin 6

Vbatt 2B [D] 24V

POS

Pin 3

Vbatt 2A [C] 24V

Pin 5

Vbatt 1B [D] 12V

NEG

POS

Pin 2

Vbatt 1A [C] 12V

NEG

POS

ugBack of Pl

73745-814-B8-001, Rev. C (03/2014)

Page 74

9.0 Start Up and Verication

9.1 Initial Startup and Local Verication

To conrm successful hardware installation before leaving the installation site, verify network connectivity

and correct hardware interconnection.

To Verify Network Connectivity:

The DS and REG LEDs on the front of the DSM3 Series should be ON solid green. This indicates successful registration with the headend. In addition, the RF LED should also be ON solid green

indicating proper RF power levels and the ALM/RDY LED should be blinking green for normal

operation.

With the DSM3 Series used in conjunction with the XM2-HP power supply, network connectivity

can be veried via the smart display. For other power supply models, verify the network status via

the Ethernet port.

Connect a computer’s network port to the Communications Module’s Ethernet port using a

standard network cable. Launch an Internet browser and enter 192.168.100.1 into the Address. The Communications Module will return the Web page shown below. Click on “General” to display the key communications parameters including upstream and downstream power levels and the

cable modem’s IP address, which conrms connectivity.

Fig. 9-1, Communications Section - General Page

74 745-814-B8-001, Rev. C (03/2014)

Page 75

9.0 Start Up and Verication

9.2 Verifying Correct Hardware Interconnection

The BAT A/B and BAT C/D LED indicators on the front panel of the DSM3 Series unit should illuminate

solid green once the battery wiring harnesses are correctly installed.

NOTE:

The DSM3x model provides both BAT A/B and BAT C/D LED indicators and battery harness connectors (supports a maximum 4 battery strings). The DSM3 model provides only the BAT A/B LED indicator and battery harness connector (supports a maximum 2 battery strings).

From the Power Supplies and Batteries section of "General" tab of the DSM3 Series Web page, the

following screen will be visible and the parameters shown will be available for viewing and verication.

To test hardware interconnection using the Ethernet port, verify valid values for Output Voltage, Output Current and individual battery voltages.

Fig. 9-2, Power Supply Section - General Page

75745-814-B8-001, Rev. C (03/2014)

Page 76

9.0 Start Up and Verication

9.3 System Status Indicators and Reset button

As viewed from the front of the unit, the DSM3 Series utilizes light emitting diodes (LEDs) to indicate system status. During system startup, the LEDs will rst blink momentarily then indicate the current status

of a variety of parameters on the DSM3 Series Communications Module. The LEDs indicate alarms, RF power level status, battery string connectivity and communications activity with the network. A description of each LED follows.

LED Status Behavior Indication

ALM/RDY

REG

ACT

LNK

COM

BATT A/B

BATT C/D

ALM/RDY: Alarm and Ready

REG: Upstream ranging and

registration lock.

DS: Downstream RF Carrier detection and lock.

ACT: CPE Activity status GRN

LNK: CPE Link status GRN

RF Rx/Tx Power Level

Indicator

COM: AlphaBus

communications.

BATT A/B GRN ON/OFF ON (steady) if battery string(s) connected correctly

BATT C/D GRN ON/OFF ON (steady) if battery string(s) connected correctly

N/A OFF No power or malfunctioning DSM3 Series

GRN

RED

GRN

TRI

GRN

ON Reset of the DSM3 Series is in process

Steady Blinking Normal operation

Blinking more OFF than ON Minor Alarm SCTE-HMS congured

Blinking more ON than OFF Major Alarm SCTE-HMS congured

OFF No power, upstream frequency undetermined

OFF / ON

ON CMTS registration completed

OFF No power / downstream carrier

OFF / ON Power on, downstream carrier frequency searching

ON Downstream carrier lock

OFF No Ethernet communications activity

OFF/ON

OFF No Ethernet link

ON Link on Ethernet Craft port

OFF No RF detected

Blue

Green Rx/Tx RF Power level within tolerance

Red

OFF No AlphaBus Communications

OFF/ON

Power on, downstream locked, upstream frequency ranging, DHCP request in progress

Momentary ash while CPE communications ongoing via

the Ethernet craft port

Rx/Tx Power at a warning level as set within the SCTE-HMS Property Table

Rx/Tx Power at an alert level as set within the SCTE-HMS Property Table

Momentary ash - AlphaBus Port communications

active

Fig. 9-3, LED Functionality and Indications

9.3.1 Detailed LED Descriptions

After power is applied or a reset occurs, all LED's will ash in certain patterns indicating the cable

modem chipset is starting or restarting. Once it is ready it will begin the DOCSIS requirement of searching for the downstream frequency lock and the LED's will follow the detailed descriptions below.

ALM/RDY - Alarm/Ready

The ALM/RDY - During normal operation, this LED blinks GREEN, indicating a heartbeat pulse from the processor. The frequency of ashing by this LED provides a visual alert for power supply discrete major and minor alarms, if congured in the property and discrete property tables of the SCTE-HMS MIB. The ALM LED (RED) is factory defaulted OFF. Refer to Section 6.3 for information on conguring the DSM3 Series for active monitoring and alarming. If an event triggers an HMS alarm, the ALM/RDY LED blinks RED according to the alarm type until the alarm has been resolved. For a minor alarm, the frequency of ashing (RED) will be more OFF than ON and for a major alarm the frequency of ashing will be (RED) more ON than OFF. If there are

multiple active alarms, including one or more major alarms with one or more minor alarms, the major alarm will take precedence in terms of the indication.

76 745-814-B8-001, Rev. C (03/2014)

Page 77

9.0 Start Up and Verication

9.3.1 Detailed LED Descriptions, continued

REG - CM Registration

Once a downstream channel has been negotiated between the CM and CMTS, the modem

attempts to register with the DHCP server and obtain the conguration le. This LED ashes

while the process takes place. Once the registration is complete, the LED will remain on solid. This is the best indication that the DSM3 Series is communicating with the CMTS in the headend.

DS - Downstream Communication

This LED indicates the state of the CM's attempt to gain a downstream signal. This process may take several seconds, depending on how long it takes the CM to locate a carrier signal and lock

onto a channel. The LED ashes while searching for the downstream DOCSIS channel and is on

solid when the downstream channel is locked.

ACT - CPE Activity

The CPE activity LED ashes to indicate that data is being transmitted or received between the

DSM3 Series and a network device.

LNK - Network Communication Status

The Ethernet link LED remains ON when there is an active connection on the Ethernet port (e.g.,

a computer is connected for local diagnostics).

Rx/Tx Power

The Rx/Tx PWR LED utilizes a tricolor LED to provide the installer a quick verication of the modem transmit (Tx) and receive (Rx) RF power levels. The Rx/Tx PWR LED will illuminate

“green” when both the cable modem Tx and cable modem Rx RF power levels are within the

range as specied in the SCTE-HMS PropertyTable. The LED indicator illuminates “blue” when Rx and/or Tx levels are within the “warning” range as specied by the SCTE-HMS PropertyTable. The LED indicator illuminates “red” when Rx and/or Tx levels are outside the range as specied

by the SCTE-HMS PropertyTable.

Refer to the following table for default ranges in the SCTE-HMS PropertyTable:

Parameter alarm Enable HiHi Hi Lo LoLo Deadband

docsIfDownChannelPower

(OID:1.3.6.1.2.1.10.127.1.1.1.1.6)

docsIfCmStatusTxPower

(OID:1.3.6.1.2.1.10.127.1.2.2.1.3)

(0F*)

(0C*)

150 100 -100 -150 15

550 500 00 00 15

* Values in ( ) denote behavior of the Rx/TX LED if alarmEnable bits are set to ‘00’.

By default, alarmEnable is set to 00 (disabled) to prevent unwanted SNMP traps but the LED

behavior will function as if the alarmEnable were set to the values in the above table. If the alarm Enable bits are set to anything other than 00 the LEDs will then follow the behavior of the desired enable bit setting.

The above default values translate into the following Rx/Tx Power LED color ranges:

LED Color Rx Range (dBmV) Tx Range (dBmV)

Green +10 to -10 0 to +50

Blue +15 to +10 and -10 to -15 +50 to +55

Red >+15 and <-15 >+55

In addition to the above SCTE-HMS PropertyTable entries, the Tx and Rx levels displayed on the DSM3 Series Web page will each provide colored indicator bars that correlate to the RF LED and SCTE-HMS PropertyTable thresholds.

77745-814-B8-001, Rev. C (03/2014)

Page 78

9.0 Start Up and Verication

9.3.1 Detailed LED Descriptions, continued

Rx/Tx Power, continued

The current RF level status for both the Rx and Tx will be displayed on the colored scale

highlighted in black, providing verication of modem RF power levels. Refer to the gure below

for an example of the RF power level indicator bars on the Web page.

Fig. 9-4, DSM3 Series Web Page, RF Power Level Indicators

Conguring the Rx/Tx Power LED - Custom Settings

If desired, the RF Power Level ranges for the Rx/Tx PWR LED may be customized via

SNMP by adjusting the HiHi, Hi, Lo, LoLo values for the docsIfDownChannelPower and

docsIfCmStatusTxPower in the SCTE-HMS Property Table (OID:1.3.6.1.4.1.5591.1.1.1). Be careful not to exceed the Input Level and Output Power range specications of the DSM3 Series

Communications Module.

COM - AlphaBus Communications

The COM LED indicates any data trafc being received by the DSM3 Series through the COM (AlphaBus) port. This LED will also blink with one to three blinks approximately every 10 seconds,

which indicates communication exists between the DSM3 Series and other connected devices, such as a generator or additional XM2.

BAT A/B - Battery Strings A & B

The LED indicator remains ON solid when the battery string wiring harness is correctly connected

to the batteries and the Bat A/B connector on the DSM3 and DSM3x Series.

BAT C/D - Battery Strings C & D

The LED indicator remains ON solid when the battery string wiring harness is correctly connected

to the batteries and the Bat C/D connector on the DSM3x.

9.3.2 Resetting the Communications Module

Should the need arise to reset the Communications Module locally, such as in the case of adding additional power supplies, a generator, or carrying out maintenance activities, do the following:

Press and hold the reset button (RST) for approximately three (3) seconds until the ALM/RDY LED stops blinking and turns solid (green). Release the button. The Communications Module will

perform its power up sequence.

9.4 Verifying Communications via the Headend

Using SNMP, check connectivity by verifying power supply data by doing the following:

• With a MIB browser check power supply data in the psIdent MIB branch (1.3.6.1.4.1.5591.1) of the

SCTE-HMS tree.

• With network management software, verify the DSM3 Series has been identied and is reporting data

correctly.

78 745-814-B8-001, Rev. C (03/2014)

Page 79

10.0 Alpha MIB Parameters

10.1 Denitions and Settings

The following tables display commonly-congured Alpha MIB parameters and provide specic information

with regard to functionality, options, OIDs, types and variables.

NOTE:

The Alpha MIB Denitions and Settings are subject to change without notice and should only be used

for advanced diagnostics. The SCTE-HMS MIBs listed in Section 6 should be implemented for status

monitoring & control.

Parameter OID Description Access Type Value

atiMgntSnmp 1.3.6.1.4.1.926.1.3.1.0 Object

SNMP TRAP ADDRESSES

atiMgmtSnmpTrapTable 1.3.6.1.4.1.926.1.3.1.1 Object

atiMgmtSnmpTrapAddress.1 1.3.6.1.4.1.926.1.3.1.1.1.2.1 SNMP Trap Address (1) Read/Write IP Address 0.0.0.0 (default)

atiMgmtSnmpTrapAddress.2 1.3.6.1.4.1.926.1.3.1.1.1.2.2 SNMP Trap Address (2) Read/Write IP Address 0.0.0.0

atiMgmtSnmpTrapAddress.3 1.3.6.1.4.1.926.1.3.1.1.1.2.3 SNMP Trap Address (3) Read/Write IP Address 0.0.0.0

atiMgmtSnmpTrapAddress.4 1.3.6.1.4.1.926.1.3.1.1.1.2.4 SNMP Trap Address (4) Read/Write IP Address 0.0.0.0

SECURE SNMP ACCESS ADDRESS

atiMgmtSnmpAccessTable 1.3.6.1.4.1.926.1.3.1.2 Object

atiMgmtSnmpAccessAddress.1 1.3.6.1.4.1.926.1.3.1.2.1.2.1 Secure IP Address (1) Read/Write IP Address 0.0.0.0 (default)

atiMgmtSnmpAccessAddress.2 1.3.6.1.4.1.926.1.3.1.2.1.2.2 Secure IP Address (2) Read/Write IP Address 0.0.0.0

atiMgmtSnmpAccessAddress.3 1.3.6.1.4.1.926.1.3.1.2.1.2.3 Secure IP Address (3) Read/Write IP Address 0.0.0.0

atiMgmtSnmpAccessAddress.4 1.3.6.1.4.1.926.1.3.1.2.1.2.4 Secure IP Address (4) Read/Write IP Address 0.0.0.0

SNMP ACCESS ENABLE

atiMgntSnmpAccess 1.3.6.1.4.1.926.1.3.1.3.0 Object

atiMgmtSnmpSnmpv1Access 1.3.6.1.4.1.926.1.3.1.3.1.0 SNMPv1 Access to Power

atiMgmtSnmpSnmpv2Access 1.3.6.1.4.1.926.1.3.1.3.2.0 SNMPv2c Access to Power

CPE & SECURITY KEY (Dual IP)

atiMgmtSnmpAlphaSetAccess 1.3.6.1.4.1.926.1.3.1.3.3.0 "Set to Data Access Key

atiMgmtSnmpAlphaSetKey 1.3.6.1.4.1.926.1.3.1.3.4.0 Data Access Key (Dual IP) Read/Write Octet String CIBSET (default)

atiMgmtSnmpCPESetEnabled 1.3.6.1.4.1.926.1.3.1.3.5.0 Corresponds to whether

atiMgmtSnmpSnmpCPEAccess 1.3.6.1.4.1.926.1.3.1.3.6.0 Enables the CPE interface -

CPE SETTINGS (Dual IP)

atiMgmtSysMonitoringCpeStaticMode 1.3.6.1.4.1.926.1.3.2.2.5.2.1.0 Method by which the CPE

atiMgmtSysMonitoringCpeStaticAddress 1.3.6.1.4.1.926.1.3.2.2.5.2.2.0 When the address source is

atiMgmtSysMonitoringCpeStaticMask 1.3.6.1.4.1.926.1.3.2.2.5.2.3.0 When the address source is

atiMgmtSysMonitoringCpeStaticGateway 1.3.6.1.4.1.926.1.3.2.2.5.2.4.0 When the address source is

Supply Data

CIBSET (default)"

or not the action taken on atiMgmtSnmpAlphaSetKey was successful. Once enabled, writing 1(false) to this variable will disable CPE sets.

Dual IP mode.

acquires its IP address.

static, this is the IP address the CPE will be assigned.

static, this is the mask the device will use to determine if other devices are on the local area network (LAN).

static, this is the IP address of the gateway the device will use for accessing devices not on the local area network (LAN).

Identiers

Read/Write Integer 1 = Disable

2 = Enable (Default)

Read/Write Integer 1 = Disable

2 = Enable (Default)

Read/Write Octet String Set to match the value

Read/Write Integer 1=Disabled (False)

Read/Write Integer 1=Disabled (Single IP)

Read/Write Integer 1=DHCP

Read/Write IP Address 0.0.0.0 (default)

of the Data Access Key atiMgmtSnmpAlphaSetKey)

2=Enabled (True)

2=Enabled (Dual IP)

2=Static

79745-814-B8-001, Rev. C (03/2014)

Page 80

10.0 Alpha MIB Parameters

10.1 Denitions and Settings, continued

Parameter OID Description Access Type Value

COMMUNITY STRINGS

atiMgntSnmpCommunities 1.3.6.1.4.1.926.1.3.1.4.0 Object Identier

atiMgmtSnmpCommGet 1.3.6.1.4.1.926.1.3.1.4.1.0 Default "Read" Community String Read/Write Octet String AlphaGet (default

atiMgmtSnmpCommSet 1.3.6.1.4.1.926.1.3.1.4.2.0 Default "Read/Write" Community String Read/Write Octet String AlphaSet (default)

SNMP TRAP

atiMgmtSnmpControls 1.3.6.1.4.1.926.1.3.1.5 Object Identier

atiMgmtSnmpTrapOnNormal 1.3.6.1.4.1.926.1.3.1.5.1.0 Traps sent when an item in an alarm

atiMgmtSnmpSendCount 1.3.6.1.4.1.926.1.3.1.5.2.0 Number of times a trap is to be sent/

atiMgmtSysSnmpTimeout 1.3.6.1.4.1.926.1.3.1.5.3.0 The number of minutes allowed to pass

WEB SERVER ENABLE

atiMgmtSysHttpPrams 1.3.6.1.4.1.926.1.3.2.2.4 Object Identier

atiMgmtSysHttpEnabled 1.3.6.1.4.1.926.1.3.2.2.4.1.0 Access to DSM3 via Web Browser Read/Write Integer 1=Disable

SIMPLE NETWORK TIME PROTOCOL

atiMgmtSysServers 1.3.6.1.4.1.926.1.3.2.3.0 Object Identier

atiMgmtSysServSntp 1.3.6.1.4.1.926.1.3.2.3.1.0 IP Address of SNTP Server (Optional) Read/Write IP Address 0.0.0.0 (Default)

ENVIRONMENTAL MANAGER

atiMgmtSysTempMgr 1.3.6.1.4.1.926.1.3.2.4.0 Object Identier

atiMgmtSysTempCtrl 1.3.6.1.4.1.926.1.3.2.4.1.0 Environmental Control Read/Write Integer 1=off (Default)

atiMgmtSysTempStatus 1.3.6.1.4.1.926.1.3.2.4.2.0 Environmental Control Feedback State Read Only Integer 1=Contact Open (default)

atiMgmtSysTempMode 1.3.6.1.4.1.926.1.3.2.4.3.0 Environmental Mode (Heat/Cool) Read/Write Integer 1=Heater (Default)

atiMgmtSysTempActiveState 1.3.6.1.4.1.926.1.3.2.4.4.0 Environmental Control Contact State

atiMgmtSysTempTemperature 1.3.6.1.4.1.926.1.3.2.4.5.0 Environment Temperature Read/Write Integer 1..70ºC

atiMgmtSysTempHysteresis 1.3.6.1.4.1.926.1.3.2.4.6.0 Environmental Temperature Hysteresis Read/Write Integer 1..10ºC

atiMgmtSysTempTimer 1.3.6.1.4.1.926.1.3.2.4.7.0 Environmental Default Timer Read/Write Integer 0..1440 (30 Minute Default, 15

atiMgmtSysTempCountdown 1.3.6.1.4.1.926.1.3.2.4.8.0 Environmental Timer Time Remaining Read Only Integer 0..1440 (in minutes)

atiMgmtSysTempStatusInvert 1.3.6.1.4.1.926.1.3.2.4.9.0 State Inverted to match the type of relay

PHONE HOME MANAGER

atiMgmtSysPhoneHomeIp 1.3.6.1.4.1.926.1.3.2.5 Object Identier

atiMgmtSysPhoneHomeIp 1.3.6.1.4.1.926.1.3.2.5.1.0 Address for the Phone Home Frame Read/Write IP Address 0.0.0.0

atiMgmtSysPhoneHomeForce 1.3.6.1.4.1.926.1.3.2.5.2.0 Forces one Phone Home message

atiMgmtSysPhoneHomeTimer 1.3.6.1.4.1.926.1.3.2.5.3.0 Time since last frame transmitted, zero

state returns to normal.

repeated.

without SNMP communications. On the lapse of this many minutes the device will reset. Setting this value to zero will prevent timeout resets.

(Open/Closed)

operation on the heater mat controller

regardless of timers

means never transmitted

Read/Write Integer 1 = Disable

2 = Enable (Default)

Read/Write Integer 1 to 9

1 (Default)

Read/Write Integer 0 to 65,000 (in minutes)

1440 (Default)

2=Enable (default)

2=OnTimer

3=OnTemp

4=onTimerTemp

5=on

2=Contact Closed

2=Cooler

Read/Write Integer 1=Closed (Default)

2=Open

minute increments)

Read/Write Integer 1=No invert (Default)

2=Invert

Read/Write Integer 1=No Operation (default)

2=Force

Read Only Time Ticks

80 745-814-B8-001, Rev. C (03/2014)

Page 81

10.0 Alpha MIB Parameters, continued

10.1 Denitions and Settings, continued

Parameter OID Description Access Type Value

GENERAL CONTROLS

atiMgmtSysTamperPolarity 1.3.6.1.4.1.926.1.3.2.6.1.0 Determines when tamper is active Read/Write Integer 1=doorOpenWhenContactOpen

atiMgmtSysAlphaBusSize 1.3.6.1.4.1.926.1.3.2.6.2.0 Internal microprocessor communications bus size.

atiMgmtSysGnrlInfoCongs 1.3.6.1.4.1.926.1.3.2.7.1 Object Identier

atiMgmtSysGnrlInfoCongsMain 1.3.6.1.4.1.926.1.3.2.7.1.1.0 An ASCII string programmed into the main board

atiMgmtSysGnrlInfoCongsDaughter 1.3.6.1.4.1.926.1.3.2.7.1.2.0 An ASCII string programmed into the C/D battery

atiMgmtSysGnrlInfoCongsBase 1.3.6.1.4.1.926.1.3.2.7.1.3.0 An ASCII string describing the base conguration

ENVIRONMENTAL I/O CONTROLLER

atiMgmtSysIo 1.3.6.1.4.1.926.1.3.2.8 Object Identier

atiMgmtSysIoSelect 1.3.6.1.4.1.926.1.3.2.8.1 Indicates what function the IO pins are being

atiMgmtSysIoLAPState 1.3.6.1.4.1.926.1.3.2.8.2 Current state of the LAP device Read Only Integer 1: notInstalled(1)

atiMgmtSysIoGenState 1.3.6.1.4.1.926.1.3.2.8.3 State of the DC Emergency Generator when

atiMgmtSysIoPinCtrl 1.3.6.1.4.1.926.1.3.2.8.20 Status of the ENV connector Output Pin (Pin 3) Read Only Integer 1 = Contact Open

atiMgmtSysIoPinIn4 1.3.6.1.4.1.926.1.3.2.8.21 Status of the ENV connector Input Pin#4 Read Only Integer 1 = Contact Open

atiMgmtSysIoPinIn5 1.3.6.1.4.1.926.1.3.2.8.22 Status of the ENV connector Input Pin#5 Read Only Integer 1 = Contact Open

atiMgmtSysIoPinIn6 1.3.6.1.4.1.926.1.3.2.8.23 Status of the ENV connector Input Pin#6 Read Only Integer 1 = Contact Open

PLATFORMS

atiProductPlatforms 1.3.6.1.4.1.926.1.4 Object Identier

atiBroadbandUPS 1.3.6.1.4.1.926.1.4.1 Object Identier

atiBBSysView 1.3.6.1.4.1.926.1.4.1.1 Object Identier

atiBBSysViewSelects 1.3.6.1.4.1.926.1.4.1.1.1 Object Identier

atiBBSysViewSelfTestControl 1.3.6.1.4.1.926.1.4.1.1.1.1.0 Starts/Stops a system self-test. Read/Write Integer 1=Stop

Alpha XM2 series power supplies use 9 bit. Alpha GMX and VMX series supplies use 8 bit

non-volatile memory.

circuitry (DSM3x only).

of the device.

used for

sense lines are used

2=doorOpenWhenContactClosed

(default)

Read/Write Integer 1=9 Bit (Default)

2=8 Bit

Read Only Octet String Product number, conguration

Read Only Octet String i.e. DSM3, DSM3x, DPM, etc.

Read/Write Integer 1 = Generic

Read Only Integer 1: notInstalled(1)

number serial number, etc.

2 = lapOnly 3 = heaterControlOnly 4 = generatorOnly 5 = heaterControlAndLap 6 = generatorAndLap

2: ok(2) 3: acNotPresent(3) 4: lapBlown(4) 5: lapFail(5)

2: genOff(2) 3: genRunning(3) 4: genNotDetected(4) 5: error(5)

2 = Contact Closed

2=Start

atiBBSysViewSelfTestInhibit 1.3.6.1.4.1.926.1.4.1.1.1.2.0 System self-test is prevented. On reset, the DSM

atiBBSysViewSystemControlMgr 1.3.6.1.4.1.926.1.4.1.1.1.3.0 If the System Control Manager is running, the

gets this value from the master XM2 (in a system with more than one power supply).

Small System Controller/Administrator (SSC or SSA) is running and there is coordination between the power supplies for charging, testing, etc. The value of this item is stored in non-volatile memory.

Read/Write Integer 1=Normal (Default)

2=Inhibited

Read/Write Integer 1=Running

2=Disabled

81745-814-B8-001, Rev. C (03/2014)

Page 82

10.0 Alpha MIB Parameters, continued

10.1 Denitions and Settings, continued

Parameter OID Description Access Type Value

SYSTEM ALARMS

atiBBSysViewAlarms 1.3.6.1.4.1.926.1.4.1.1.2 Object Identier

atiBBSysViewMajorAlarm 1.3.6.1.4.1.926.1.4.1.1.2.1.0 Indicates if any of the items monitored are in a major

alarm state.

atiBBSysViewMinorAlarm 1.3.6.1.4.1.926.1.4.1.1.2.2.0 Indicates if any of the items monitored are in a minor

alarm state.

atiBBSysViewSelfTestResult 1.3.6.1.4.1.926.1.4.1.1.2.3.0 If any of the items being monitored indicate that

self-test failed, this item indicates a failure.

atiBBSysViewTempProbeStatus 1.3.6.1.4.1.926.1.4.1.1.2.4.0 If any of the devices being monitored indicate a

temp probe failure or absence, this item will alarm.

atiBBSysViewInputStatus 1.3.6.1.4.1.926.1.4.1.1.2.5.0 If ALL the items being monitored indicate no AC, this

item will alarm.

SCALARS

atiBBSysViewScalars 1.3.6.1.4.1.926.1.4.1.1.3 Object Identier

atiBBSysViewInputVoltage 1.3.6.1.4.1.926.1.4.1.1.3.1.0 Power supply input voltage. Read Only Integer

atiBBSysViewInputFrequency 1.3.6.1.4.1.926.1.4.1.1.3.2.0 Power supply input line frequency. Read Only Integer

atiBBSysViewInputCurrent 1.3.6.1.4.1.926.1.4.1.1.3.3.0 Power supply input current. Read Only Integer

atiBBSysViewBatteryVoltage 1.3.6.1.4.1.926.1.4.1.1.3.4.0 Battery voltage. Read Only Integer

atiBBSysViewBatteryTemperature 1.3.6.1.4.1.926.1.4.1.1.3.5.0 Battery temperature (Degrees C). Read Only Integer

atiBBSysViewChargerCurrent 1.3.6.1.4.1.926.1.4.1.1.3.6.0 Sum of charging current from all power supplies. Read Only Integer

atiBBSysViewChargerVoltsFloat 1.3.6.1.4.1.926.1.4.1.1.3.7.0 Battery charger oat voltage. Read/Write Integer

atiBBSysViewChargerVoltsEqualize 1.3.6.1.4.1.926.1.4.1.1.3.8.0 Battery charger equalization voltage. Read/Write Integer

atiBBSysViewChargerVoltsTemperatureComp 1.3.6.1.4.1.926.1.4.1.1.3.9.0 Battery charger temperature compensation

(0 to 5mV/Cell/°C).

Read Only Integer 1=OK

2=Alarm

Read Only Integer 1=OK

2=Alarm

Read Only Integer 1=OK

2=Fail

Read Only Integer 1=OK

2=Missing

Read Only Integer 1=OK

2=No AC Present

Read/Write Integer

atiBBSysViewBatteryCapacity 1.3.6.1.4.1.926.1.4.1.1.3.10.0 Battery string capacity (Amp hours). Read/Write Integer

SCALARS

atiBBSysViewCounters 1.3.6.1.4.1.926.1.4.1.1.4 Object Identier

atiBBSysViewSelfTestInterval 1.3.6.1.4.1.926.1.4.1.1.4.1 Number of days between automated self tests Read-Write Integer 0..65535

atiBBSysViewSelfTestCountdown 1.3.6.1.4.1.926.1.4.1.1.4.2 Number of days until the next automated self test Read-Write Integer 0..65535

atiBBSysViewSelfTestDuration 1.3.6.1.4.1.926.1.4.1.1.4.3 Number of minutes for which an automated self

test will run

atiBBSysViewInverterRuntime 1.3.6.1.4.1.926.1.4.1.1.4.4 Number of minutes the inverter has run due to an

AC fail event

atiBBSysViewStandbyEvents 1.3.6.1.4.1.926.1.4.1.1.4.5 Number of times the inverter has gone into standby

due to an AC fail event

atiBBSysViewRuntimeRemaining 1.3.6.1.4.1.926.1.4.1.1.4.6 Seconds of estimated runtime remaining when in

standby

atiBBSysViewTimeInStandby 1.3.6.1.4.1.926.1.4.1.1.4.7 Seconds. If currently in standby, time in standby. If

not in standby this value will be zero

atiBBSysViewTimeSinceLastStandby 1.3.6.1.4.1.926.1.4.1.1.4.8 Seconds. The accumulated time since the end of

last standby event and the start of the next standby event. The counter will reset to zero after the next standby event has ended.

atiBBSysViewTimeInLastStandby 1.3.6.1.4.1.926.1.4.1.1.4.9 Seconds. The length (time) of last standby event.

If currently in a standby event this value will be the length of the previous standby event. This value will be updated at the conclusion of each standby event. This item is saved in non-vol memory.

DETECT 6V BATTS

atiCibDiscTable 1.3.6.1.4.1.926.1.2.1.1.1.5.14.0.11 Controls the ability to detect and report 6 Volt

batteries.

Read-Write Integer 0..65535

Read Only Integer 0..65535

Read Only Integer 0..-1

Read/Write Integer 0 = default

1 = Detect 6 Volt Batteries

82 745-814-B8-001, Rev. C (03/2014)

Page 83

10.0 Alpha MIB Parameters, continued

10.1 Denitions and Settings, continued

Broadcom MIBS:

Parameter OID Description Access Type Value

HTTP Management MIB

httpMgmt 1.3.6.1.4.1.4413.2.2.2.1.1.3 Object Identier

httpAdminId 1.3.6.1.4.1.4413.2.2.2.1.1.3.1.0 Controls and reects the user name for admin level HTTP

priveleges.

httpAdminPassword 1.3.6.1.4.1.4413.2.2.2.1.1.3.2.0 Controls and reects the password for admin level HTTP

priveleges.

httpUserId 1.3.6.1.4.1.4413.2.2.2.1.1.3.3.0 Controls and reects the user name for user level HTTP

priveleges.

httpUserPassword 1.3.6.1.4.1.4413.2.2.2.1.1.3.4.0 Controls and reects the password for user level HTTP

priveleges.

Read/Write Octet String Alpha (Default)

Read/Write Octet String AlphaSet (Default)

Read/Write Octet String Alpha (Default)

Read/Write Octet String AlphaGet (Default)

83745-814-B8-001, Rev. C (03/2014)

Page 84

11.0 Specications

Specications for

AlphaNet DSM3 Family

DSM3x DSM3 DPM

Power Supply Models Supported: XM2-HP, XM2, GMX, VMX XM2-HP, XM2, GMX, VMX XM2-300HP

Battery Monitoring:

Power System Management:

Management Protocol:

Advanced Diagnostics

Intelligent Power Supply Interface:

Up to four strings of 36 or 48V

batteries (6V batts congurable up to two strings) Up to ve power supplies and an

AlphaGen generator are managed from a single DSM3 Series including coordinated battery charging, system test and aggregated alarms

Standard ANSI/SCTE-HMS MIBs support basic power supply monitoring. Advanced diagnostics with

battery and power module analytics available via secure SNMP

Power supply user interface displays advanced diagnostics including: DOCSIS modem upstream and

downstream RF levels, IP address assigned by network DHCP server, MAC address and rmware levels,

including battery voltages to verify correct wire harness installation

Hardware

RF Cable Interface:

Local Interface: RJ-45, Ethernet, 10/100

LED Indicators:

I/O Control DPM Only)

AlphaBus: RJ-11 offset tab: Multiple-power supply and AlphaGen communications

(DSM3x Series and

F-connector, female, 75 Ohm, connector angle better accommodates coax bend radius when installed in some enclosures

Ready/Alarm, Upstream registration, Downstream lock, AlphaBus activity, RF level, Link, CPE trafc, Battery

Sense harness correctly connected

6-pin Molex: Digital input, Digital output, 5V, Common

Up to two strings of 36 or 48V

batteries (6V batts congurable up to two strings)

N/A N/A

One 12V battery (or two if AlphaCells

Battery Monitoring:

Tamper: NO or NC, software congurable, reads enclosure door magnetic switch

8-pin Molex battery string A/B and 8-pin Molex battery string C/D.

8-pin Molex battery string A/B N/A

Environment

Operating Temperature: -40 to 65°C / -40 to 149°F

Storage Temperature: -40 to 85°C / -40 to 185°F

Humidity: 10 to 90% non-condensing

FCC Part 15 Class A

Regulatory Compliance:

Advanced diagnostics are available through Alpha Certied network monitoring systems

EN 50083-2:2006 EMC requirements for CATV equipment EN 62040-2:2006 Uninterruptable power supply EMC requirements, Category C2

Surge: IEEE 587, Category B3 RoHS: Directive 2002/95/EC

Network Communications

DOCSIS (RF) Port Protocols: IP, UDP, TCP, DHCP, TFTP, SNMPv1,SNMPv2c, HTTP, SNTP

Ethernet Port:

MIBs:

Local Mode: HTTP Web interface for local on-site diagnosis. CPE Mode: DOCSIS Cable modem Ethernet CPE functionality

Power supply (ANSI/SCTE 38-4) Other SCTE-HMS MIBs as dened by the SCTE for power supply and generator status monitoring

Alpha proprietary advanced UPS diagnostics

84 745-814-B8-001, Rev. C (03/2014)

Page 85

11.0 Specications

Specications for

AlphaNet DSM3 Family

DSM3x DSM3 DPM

Power Supply Monitored Parameters

Major Alarm:

Minor Alarm: Aggregate alarm consisting of: temperature probe error, AC line loss, N+1 error

Input Voltage: Reported from power supply V(in) measurement

Output Voltage: Reported from power supply V(out) measurement

Output Current:

Output Power: Calculated, reported in AC Watts

UPS Status: AC Line, Standby, Test in progress, Test alarm

Enclosure Door: Open or Closed

Battery Voltage:

Battery Temperature: Reported from power supply battery Remote Temperature Sensor (RTS)

Remote Test Control: Start/Stop power supply test cycle

Generator Monitored Parameters (DSM3x Only)

Status: Generator Off, Running, Alarm

Generator Alarm:

Gas Hazard: OK, Alarm

Water Intrusion: OK, Alarm

Pad Shear: OK, Alarm

Enclosure Door: Open, Alarm

Ignition Battery Voltage: ±100mV

Enclosure Temperature: ±2°C

Low Fuel: OK, Alarm

Remote Test Control: Start / Stop generator test cycle

Cable Modem

Compliance: DOCSIS 1.1 and 2.0 EuroDOCSIS 2.0

Transmit Frequency Range: 5 to 42 MHz 5 to 65 Mhz

Receive Center Frequency Range: 91 to 857 MHz 112 to 858 Mhz

Output Power Range:

Input Signal Range: -15 to 15 dBmV

Channel Bandwidth: 6 MHz 8 Mhz

Additional Equipment

XP-BSC-3-6: Wire Kit, Battery Sense, 1x36V, 6'

XP-BSC-6-6: Wire Kit, Battery Sense, 2x36V, 6'

XP-BSC-4-6: Wire Kit, Battery Sense, 1x48V, 6'

Surge Protector

(Alpha p/n 162-028-10):

Aggregate alarm consisting of: test fail, battery fail, line isolation alarm, output overload, inverter, over-temperature, N+1 active, fuse fail

0 to 25A standard on port 1 Ports 2-4 require power supply option

Individual battery voltage, up to four strings of 3 or 4 batteries

(maximum 16 batteries),

±100mV per battery.

Aggregate alarm consisting of: low oil pressure, engine over-temp, engine over-speed, crank limit, over voltage, low fuel, water intrusion, pad shear, gas hazard, test fail

TDMA:

+8 to +54 dBmV (32QAM, 64QAM) +8 to +55 dBmV (8QAM, 16QAM) +8 to +58 dBmV (QPSK)

S-CDMA:

+8 to +53 dBmV (All modulations of S-CDMA)

Female/Female connector conguration, “F” type connector with integral ground block. Required for

all installations

Individual battery voltage, up to two strings of 3 or 4 batteries (maximum 8

batteries), ±100mV per

battery.

TDMA:

+68 to +114 dBuV (32QAM, 64QAM) +68 to +115 dBuV (8QAM, 16QAM) +68 to +118 dBuV (QPSK)

S-CDMA:

+68 to +113 dBuV (All modulations of S-CDMA)

64 QAM: 43 to 73 dBuV 256 QAM: 47 to 77 dBuV

Dual outputs do not exceed 300 Watts combined 3.5 Amps at 90 Vac output voltage, 5 Amps at 60 Vac output voltage

Individual battery voltage

85745-814-B8-001, Rev. C (03/2014)

Page 86

12.0 Glossary

Acronym Denitions

ANSI: American National Standards Institute

BER: Basic Encoding Rules

CM: Cable Modem

CMTS: Cable Modem Termination System

CPE: Customer Premises Equipment

DHCP: Dynamic Host Conguration Protocol

DOCSIS: Data Over Cable Service Interface Specication

EMS: Element Management System

HMS: Hybrid Management Sublayer

IT: Information Technology

MAC: Media Access Control

MIB: Management Information Base

NMS: Network Management System

QoS: Quality of Service

RTS: Remote Temperature Sensor

SCTE: Society of Cable Telecommunications Engineers

SI: Serial Interface

SNMP: Simple Network Management Protocol

SNTP: Simple Network Time Protocol

TFTP: Trivial File Transfer Protocol

TOD: Time of Day

UDP: User Datagram Protocol

VoIP: Voice over Internet Protocol

86 745-814-B8-001, Rev. C (03/2014)

Page 87

13.0 Dual IP Mode (Addendum)

13.1 Overview

The DSM3 Series can operate in either Single (default) or Dual IP Mode. In Single IP mode, data from both the cable modem and power supply are accessed and managed through the modem’s IP address on

the secure private modem network. In Dual IP mode, the Communications Module acts like a CPE device to the cable modem and registers a second IP address on the public CPE network.

The following table lists some of the common characteristics of the DSM3 Single IP and Dual IP

congurations:

Single IP Dual IP

Network All data from both the cable modem and power

supply are accessed and managed through

the modem’s IP address on the secure private

modem network.

Data Access The Network Management System requires

access to the same private modem network.

Security Communication with the Communications

Module is limited to the private LAN network, and is very secure.

IP Addresses Where the IP address pool is limited, there is

no need to issue the Communications Module

a CPE IP address. Only one (1) IP Address is

required for the cable modem of the DSM3.

Data Management Access to the Communications Module is

limited to the private LAN network making data

management less versatile, especially for eld

personnel.

Table 13-1, Single IP Mode versus Dual IP Mode

The Communications Module acts like a CPE device to the cable modem and registers a second IP address on the public CPE network.

Dual IP mode allows the power supply data to be accessed and managed from anywhere within the

public (CPE) network.

Since the Communications Module is a CPE on the public network, access may be less secure.

The CPE requires its own IP address, which may be

in short supply. A total of two (2) IP addresses are

required, one for the cable modem and one for the Communications Module.

The Communications Module is accessible on the

public (CPE) network. This makes data management more versatile for eld personnel.

One CM IP address only accessible on the private (LAN)

network with access to both CM and Communications Module data.

DSM

Cable Modem

Communications Module

MIB Tables

Fig. 13-1, Simplied Block Diagram Single IP Mode

One CM IP address, CM and Communications Module

data; accessible on the private (LAN) network.

DSM

Cable Modem

One CPE IP address, Communications Module data only;

accessible on the public (CPE) network.

Communications Module

(CPE)

MIB Tables

Fig 13-2, Simplied Block Diagram Dual IP Mode

87745-814-B8-001, Rev. C (03/2014)

Page 88

13.0 Dual IP Mode (Addendum), continued

13.2 Web Comparison, Single IP Mode/Dual IP mode

To easily determine the conguration of the Communications Module when viewing it on its web page,

check the Conguration Line as well as the entries for the CM and CPE addresses. A single IP Communications Module will display a CM MAC address only, while a dual IP Communications Module will also indicate a CPE address.

Displays CM MAC address only

Fig. 13-3, Single IP DSM3 Series Web Page

(partial page only; data values shown for illustration purposes only)

Displays CM and CPE addresses only

Fig. 13-4, Dual IP DSM3 Series Web Page

(partial page only; data values shown for illustration purposes only)

88 745-814-B8-001, Rev. C (03/2014)

Page 89

13.0 Dual IP Mode (Addendum), continued

13.3 Conguring Dual IP Mode

To switch the DSM3 Series Communications Module from Single to Dual IP Mode the atiMgmtSnmpSnmpCPEAccess parameter of the Alpha MIB will need to be enabled. The Dual IP enable

setting can be set through the DOCSIS Conguration le, the DSM3 Setup File (atidoc03.cfg) or remotely

using SNMP by setting the following Alpha MIB:

MIB Parameter Object ID Description Value

atiMgmtSnmpSnmpCPEAccess 1.3.6.1.4.1.926.1.3.1.3.6.0 Enables/Disables the

Table 13-2, Enabling Dual IP mode

The CPE Communications Module IP can be assigned its IP, Subnet Mask and Gateway Addresses either

via DHCP (default) or manually, either through the web page or via the below SNMP settings:

NOTE:

After conguring the Static settings the Communications Module must be reset in order for the settings to

take effect.

1=Disabled (Single IP)

CPE Interface

2=Enabled (Dual IP)

MIB Parameter Object ID Description Value

atiMgmtSysMonitoringCpeStaticMode 1.3.6.1.4.1.926.1.3.2.2.5.2.1.0 Method by which the CPE

acquires its IP address.

atiMgmtSysMonitoringCpeStaticAddress 1.3.6.1.4.1.926.1.3.2.2.5.2.2.0 When the IP address is static,

this is the IP address to which the CPE will respond.

atiMgmtSysMonitoringCpeStaticMask 1.3.6.1.4.1.926.1.3.2.2.5.2.3.0 When the CPE IP address is

static, this is the subnet mask.

atiMgmtSysMonitoringCpeStaticGateway 1.3.6.1.4.1.926.1.3.2.2.5.2.4.0 When the IP address is static,

this is the IP address of the gateway.

1=DHCP 2=Static

0.0.0.0 (default)

Table 13-3, CPE Communications Module IP Settings

89745-814-B8-001, Rev. C (03/2014)

Page 90

13.0 Dual IP Mode (Addendum), continued

13.3 Conguring Dual IP Mode, continued

To change the IP address allocation option from “DHCP” to “Static” via the Web Server, refer to the following:

1. Connect to DSM via Web browser per the procedure in section 4.0.

2. Move mouse pointer to the “Advanced Settings” in the menu bar of the DSM3 Web page and click on the “Communications” selection in the pop-up menu.

3. Select the “Static” option in the CPE Communications Module column of the page. Refer to Fig. 13-5. When prompted for user ID and password, enter "Alpha" and "AlphaSet".

4. Enter the desired IP address, Subnet Mask and Gateway in the provided data elds.

5. Click the “Set” button to update the Communications Module with the new values.

6. Conrm the new Static IP Address is listed under the CPE Communications Module column of the

“General” page. Refer to Fig. 13.6.

Fig. 13-5, Dual IP Conguration Settings on Communications page of DSM3 Web Server

Fig. 13-6, Dual IP Parameters on the General page of DSM3 Web Server

90 745-814-B8-001, Rev. C (03/2014)

Page 91

13.0 Dual IP Mode (Addendum), continued

13.3 Conguring Dual IP Mode, continued

13.3.1 atidoc03.cfg in Dual-IP Mode

NOTE:

Refer section 3.3.8 for details on using the atidoc03.cfg le to propagate custom settings to eld-deployed DSM3 Series Communications Modules.

In Dual-IP mode, the DSM3 Series will rst attempt to download the proprietary conguration le atidoc03.cfg through the CPE’s interface from a TFTP server on the CPE network. In many

networks, the TFTP server is blocked or disabled, so the DSM3 Series also has provisions to

download this le through the Cable Modem interface from the modem’s provisioning server if necessary. The lename and TFTP server location may also be specied through special tags in

the DHCP Offer, refer to section 13.3.3 for details. Similiar to Single-IP mode, any DSM3 Series

proprietary SNMP MIB setting may be placed in the modem’s DOCSIS conguration le which

would eliminate the need for atidoc03.cfg.

13.3.2 Changing Default atidoc03.cfg Download Settings in Dual-IP Mode

The following table explains the download options available for the atidoc03.cfg le in Dual-IP mode. The ‘Download Interface’ indicates the network from which the DSM3 series will attempt

to download atidoc03.cfg, either the CPE network or the more secure cable modem management network.

Parameter Comments Value

atiMgmtSysDownloadCongAddress

OID 1.3.6.1.4.1.926.1.3.2.1.10.0

DHCP Server IP Server or Relay Agent Address

DHCP Option 54 Server IP Server or Relay Agent Address

DHCP Tags See Below section 13.3.3 As Set 4 CPE

docsDevServerCongTftpAddress

1.3.6.1.2.1.69.1.4.11.0

docsDevSwServerAddress

1.3.6.1.2.1.69.1.3.7.0

Software Upgrade Server Set via DOCSIS conguration le As Set 7 CM

Overrides Default Location 0.0.0.0 (Default) 1 CPE

As Set 2 CPE from DHCP lease (No Change Necessary)

As Set 3 CPE from DHCP lease

Automatically set in modem CM's TFTP Server

Address

Set via DOCSIS conguration le As Set 6 CM

13.3.3 Specifying atidoc03.cfg name and location via DHCP Tags

In the User-dened area of the DHCP Tags, above option 192, the Communications Module will

look for the following value:

Tag: [Insert Unique Tag Name, e.g. ‘ati-tag’] Value: aticong

Order

5 CM

Download

Interface

In the Tag value immediately following will be the value for the TFTP server to use:

Tag: [Insert Unique Tag Name, e.g. ‘ati-ip’] Value: IP address of TFTP server (i.e. 192.168.1.51)

Immediately following will be the value for the cong lename

Tag: [Insert Unique Tag Name, e.g. ‘ati-name’] Value: =atidoc03.cfg (an equal sign needs to be in front of the lename for the DHCP server to recognize this as a valid entry.)

91745-814-B8-001, Rev. C (03/2014)

Page 92

13.0 Dual IP Mode (Addendum), continued

13.4 Dual IP SNMP Community Strings

The Communications Module community strings used for the CPE Communications Module in Dual IP

mode can be congured by the operator. The default Communications Module read-only community string is AlphaGet. The default read-write community string is AlphaSet. These settings can be congured with the DOCSIS Conguration File, the DSM3 Setup File (aitdoc03.cfg) or remotely using SNMP by including

the parameters below:

NOTE:

These community strings are only applicable for CPE access in Dual IP mode. CM access in both Single

IP and Dual IP modes use standard DOCSIS community strings set through the modem conguration le's

docsDevNmAccessTable. See Section 3.3.8.

MIB Parameter Object ID Description Value

atiMgmtSnmpCommGet 1.3.6.1.4.1.926.1.3.1.4.1.0 Read Community String AlphaGet (default)

atiMgmtSnmpCommSet 1.3.6.1.4.1.926.1.3.1.4.2.0 Read/Write Community String AlphaSet (default)

Table 13-4, Data Access Key Parameters

13.5 Security in Dual IP Mode

[desired value]

In Dual IP Mode, additional SNMP security to the DSM3 Series proprietary MIBs is required since the Communications Module and power supply data is exposed on the CPE network, which may be more

vulnerable to packet snifng and community string deciphering than on the secure cable modem network.

There are two methods of providing SNMP Security in Dual IP Mode: the Data Access Key (Default), and

the Secure Access List.

Method 1: Dual IP Security Using the Data Access Key

In Dual IP Mode atiMgmtSnmpAlphaSetAccess is the only SNMP parameter within the Alpha proprietary MIB with SNMP-write access on the CPE network by default. When this parameter is

set to the value of the parameter atiMgmtSnmpAlphaSetKey, the data access key, SNMP read/write access is granted to all parameters in the Alpha MIB tree with read/write attributes. When this access is granted, the value of atiMgmtSnmpCPESetEnabled is automatically changed to "2" (enabled). After the operator is nished setting the SNMP variables, SNMP write access can be disabled by setting the

atiMgmtSnmpCPESetEnabled to "1" or by setting atiMgmtSnmpAlphaSetAccess to any value other than the data access key or by performing a reset to the DSM3 Series.

The data access key parameters can be changed from the default values through the DOCSIS

Conguration File, the DSM3 Series Setup File (atidoc03.cfg) or remotely using SNMP by including the

following Alpha MIB parameters:

MIB Parameter Object ID Description Value

atiMgmtSnmpAlphaSetAccess 1.3.6.1.4.1.926.1.3.1.3.3.0 Set to Access Key Set to match the value of

atiMgmtSnmpAlphaSetKey

atiMgmtSnmpAlphaSetKey 1.3.6.1.4.1.926.1.3.1.3.4.0 Data Access Key (Dual IP) CIBSET (default)

atiMgmtSnmpCPESetEnabled 1.3.6.1.4.1.926.1.3.1.3.5.0 Corresponds to whether

or not the action taken on atiMgmtSnmpAlphaSetKey was successful. Once enabled, writing 1 to this variable will disable CPE sets.

1 = Disabled (False)

2 = Enabled (True)

Table 13-5, Data Access Key Parameters

92 745-814-B8-001, Rev. C (03/2014)

Page 93

13.0 Dual IP Mode (Addendum), continued

13.5 Security in Dual IP Mode, continued

Method 2: Dual IP Security Using the Secure Access List

The DSM3 provides an alternative method of providing additional SNMP security in Dual IP by limiting access to

the Communications Module’s CPE address. The Secure Access List method limits remote SNMP access to four

IP addresses. Only the IP addresses listed in the SNMP Access Table are able to read or write to the Alpha MIB

parameters from the public (CPE) network. This method overrides the default "Data Access Key" method.

The IP address entries in the SNMP Access Table can be set through the DOCSIS Conguration File, the DSM3 Setup File (atidoc03.cfg) or remotely using SNMP by including the following Alpha MIB parameters:

MIB Parameter Object ID Description Value

atiMgmtSnmpAccessTable 1.3.6.1.4.1.926.1.3.1.2 Table of SNMP

atiMgmtSnmpAccessAddress.1 1.3.6.1.4.1.926.1.3.1.2.1.2.1 SNMP access IP Address #1 0.0.0.0 (Default)

atiMgmtSnmpAccessAddress.2 1.3.6.1.4.1.926.1.3.1.2.1.2.2 SNMP access IP Address #2 0.0.0.0 (Default)

atiMgmtSnmpAccessAddress.3 1.3.6.1.4.1.926.1.3.1.2.1.2.3 SNMP access IP Address #3 0.0.0.0 (Default)

atiMgmtSnmpAccessAddress.4 1.3.6.1.4.1.926.1.3.1.2.1.2.4 SNMP access IP Address #4 0.0.0.0 (Default)

Table 13-6, Secure Access Table Parameters

Access Addresses

Object identier

93745-814-B8-001, Rev. C (03/2014)
