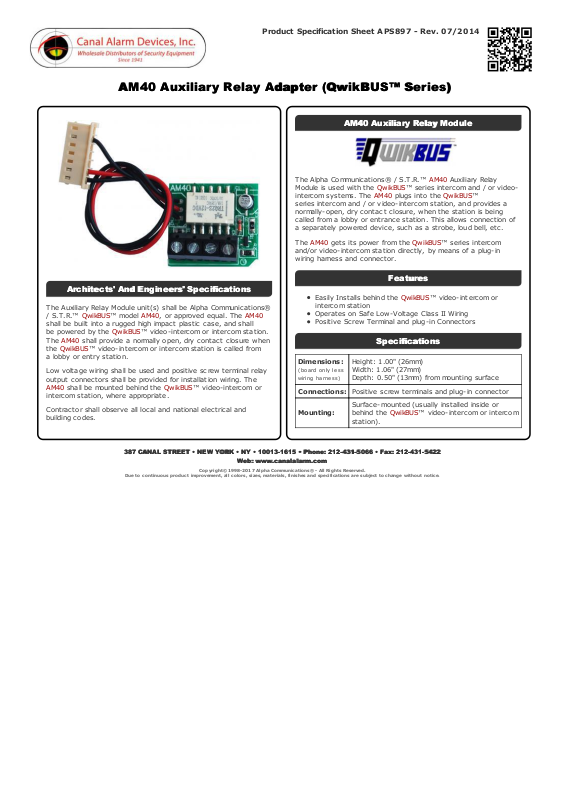

Alpha AM40 Specsheet

Product Specification Sheet APS897 - Rev. 07/2014

AM40 Auxiliary Relay Adapter (QwikBUS™ Series)AM40 Auxiliary Relay Adapter (QwikBUS™ Series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The Auxiliary Relay Module unit(s) shall be Alpha Communicat ions®
/ S.T .R.™ QwikBUS™ model AM40, or approved equal. The AM40
shall be built into a rugged high impact plastic c ase, and shall
be powered by the QwikBUS™ video-intercom or intercom station.
The AM40 shall provide a normally open, dry cont act closure when
the QwikBUS™ video-intercom or intercom station is called from
a lobby or entry stat ion.

Low voltage wiring shall be used and positive screw terminal relay
output connectors shall be provided for installation wiring. The

AM40 shall be mounted behind the QwikBUS™ video-intercom or

intercom stat ion, where appropriate.

Contractor shall observe all local and national electrical and
building codes.

AM40 Auxiliary Relay ModuleAM40 Auxiliary Relay Module

The Alpha Communicat ions® / S.T .R.™ AM40 Auxiliary Relay
Module is used with t he QwikBUS™ series intercom and / or video-
intercom systems. The AM40 plugs into the QwikBUS™
series intercom and / or video-intercom station, and provides a
normally-open, dry cont act closure, when the st ation is being
called from a lobby or entrance station. This allows connec tion of
a separately powered device, suc h as a st robe, loud bell, etc .

The AM40 gets its power from the QwikBUS™ series intercom
and/or video-intercom station directly, by means of a plug-in
wiring harness and connect or.

FeaturesFeatures

Easily Installs behind the QwikBUS™ video-intercom or
intercom stat ion
Operates on Safe Low- Voltage Class II Wiring
Positive Sc rew T erminal and plug-in Connectors

SpecificationsSpecifications

Dimensions:

(b oa rd o nly le ss

wiring ha rne ss)

Height: 1.00" (26mm)
Width: 1.06" (27mm)
Depth: 0.50" (13mm) from mounting surface

Connections: Positive sc rew terminals and plug-in c onnector

Mounting:

Surface- mounted (usually installed inside or
behind the QwikBUS™ video-interc om or intercom
stat ion).
