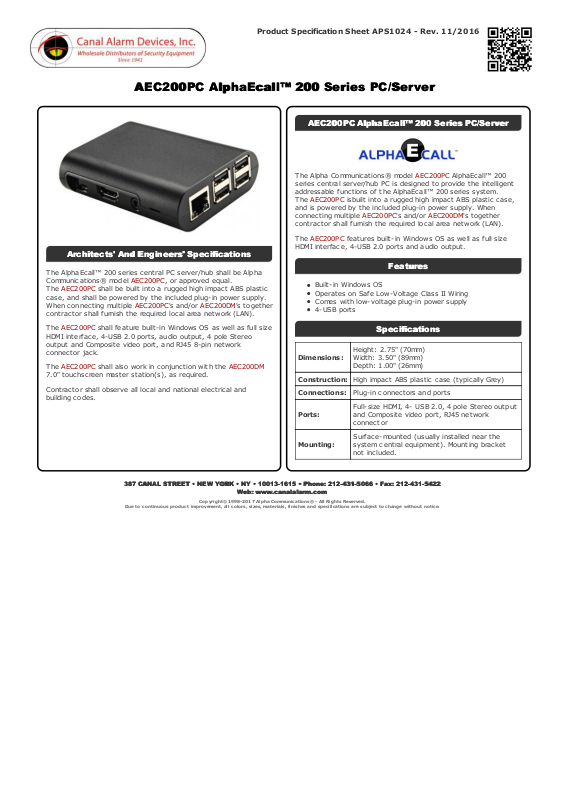

Alpha AEC200PC Specsheet

Product Specification Sheet APS1024 - Rev. 11/2016

AEC200PC AlphaEcall™ 200 Series PC/ServerAEC200PC AlphaEcall™ 200 Series PC/Server

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The AlphaEcall™ 200 series c entral PC server/hub shall be Alpha
Communications® model AEC200PC, or approved equal.
The AEC200PC shall be built into a rugged high impact ABS plastic
case, and shall be powered by the included plug-in power supply.
When connect ing multiple AEC200PC's and/or AEC200DM's toget her
contract or shall furnish the required local area network (LAN).

The AEC200PC shall feature built- in Windows OS as well as full size
HDMI interface, 4-USB 2.0 ports, audio output, 4 pole Stereo
output and Composite video port, and RJ45 8-pin network
connector jack.

The AEC200PC shall also work in conjunction with the AEC200DM

7.0" touchsc reen master station(s), as required.

Contractor shall observe all local and national electrical and
building codes.

AEC200PC AlphaEcall™ 200 Series PC/ServerAEC200PC AlphaEcall™ 200 Series PC/Server

The Alpha Communicat ions® model AEC200PC AlphaEcall™ 200
series central server/hub PC is designed to provide the intelligent
addressable funct ions of t he AlphaEcall™ 200 series syst em.
The AEC200PC isbuilt into a rugged high impact ABS plastic c ase,
and is powered by t he included plug-in power supply. When
connecting multiple AEC200PC's and/or AEC200DM's together
contract or shall furnish the required local area net work (LAN).

The AEC200PC features built-in Windows OS as well as full size
HDMI interfac e, 4-USB 2.0 ports and audio output .

FeaturesFeatures

Built-in Windows OS
Operates on Safe Low- Voltage Class II Wiring
Comes with low- voltage plug-in power supply
4-USB ports

SpecificationsSpecifications

Dimensions:

Height: 2.75" (70mm)
Width: 3.50" (89mm)
Depth: 1.00" (26mm)

Construction: High impac t ABS plastic c ase (typically Grey)

Connections: Plug-in connec tors and ports

Ports:

Full-size HDMI, 4- USB 2.0, 4 pole St ereo output
and Composite video port, RJ45 network
connector

Mounting:

Surface- mounted (usually installed near the
system c entral equipment). Mounting bracket
not included.
