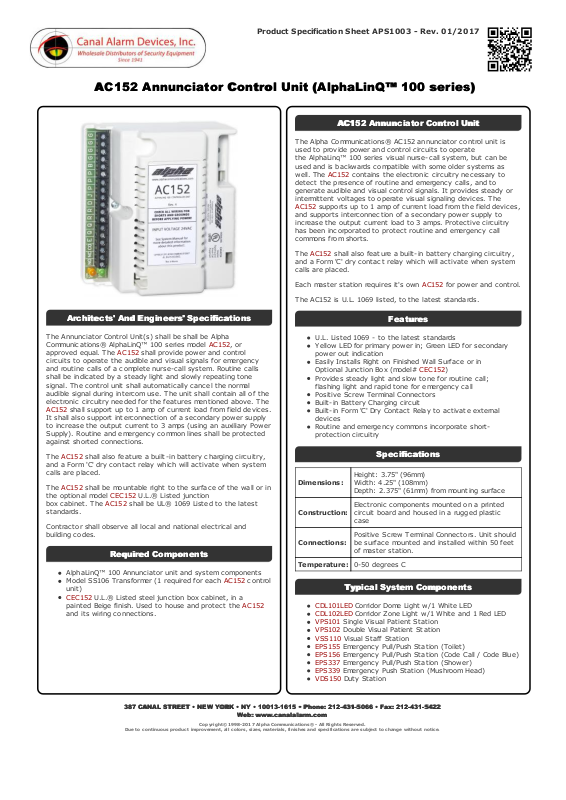

Product Specification Sheet APS1003 - Rev. 01/2017

AC152 Annunciator Control Unit (AlphaLinQ™ 100 series)AC152 Annunciator Control Unit (AlphaLinQ™ 100 series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The Annunciator Control Unit(s) shall be shall be Alpha
Communications® AlphaLinQ™ 100 series model AC152, or
approved equal. The AC152 shall provide power and control
circuits to operate the audible and visual signals for emergency
and routine calls of a c omplete nurse-call system. Routine calls
shall be indicat ed by a steady light and slowly repeat ing tone
signal. The c ontrol unit shall automatically cancel the normal
audible signal during intercom use. The unit shall contain all of the
elect ronic c ircuitry needed for the features mentioned above. The

AC152 shall support up to 1 amp of current load from field devices.

It shall also support interconnect ion of a secondary power supply
to increase t he output c urrent to 3 amps (using an auxiliary Power
Supply). Routine and emergency c ommon lines shall be protected
against shorted connections.

The AC152 shall also feat ure a built-in battery charging circuitry,
and a Form 'C' dry contac t relay which will activate when system
calls are plac ed.

The AC152 shall be mountable right to the surface of the wall or in
the optional model CEC152 U.L.® Listed junct ion
box cabinet. The AC152 shall be UL® 1069 Listed to the latest
standards.

Contractor shall observe all local and national electrical and
building codes.

Required ComponentsRequired Components

AlphaLinQ™ 100 Annunciator unit and syst em components
Model SS106 Transformer (1 required for eac h AC152 control
unit)

CEC152 U.L.® Listed steel junction box cabinet, in a

painted Beige finish. Used t o house and protect t he AC152
and its wiring connec tions.

AC152 Annunciator Control UnitAC152 Annunciator Control Unit

The Alpha Communicat ions® AC152 annunciator control unit is
used to provide power and control circuits to operate
the AlphaLinq™ 100 series visual nurse-c all syst em, but can be
used and is bac kwards compatible with some older syst ems as
well. The AC152 contains the elec tronic circuitry necessary to
detec t the presence of routine and emergency c alls, and t o
generate audible and visual control signals. It provides steady or
intermittent voltages to operate visual signaling devices. T he

AC152 supports up to 1 amp of c urrent load from the field devices,

and supports interconnect ion of a sec ondary power supply to
increase t he output c urrent load to 3 amps. Protect ive c ircuitry
has been incorporated to protect routine and emergency call
commons from shorts.

The AC152 shall also feat ure a built-in battery charging circuitry,
and a Form 'C' dry contac t relay which will activate when system
calls are plac ed.

Each master st ation requires it's own AC152 for power and c ontrol.

The AC152 is U.L. 1069 listed, to the latest st andards.

FeaturesFeatures

U.L. Listed 1069 - to the latest standards
Yellow LED for primary power in; Green LED for secondary
power out indicat ion
Easily Installs Right on Finished Wall Surfac e or in
Optional Junction Box (model# CEC152)
Provides steady light and slow tone for routine c all;
flashing light and rapid tone for emergency call
Positive Sc rew T erminal Connectors
Built-in Battery Charging circuit
Built-in Form 'C' Dry Contact Relay to activate external
devices
Routine and emergency c ommons incorporate short­protection c ircuitry

SpecificationsSpecifications

Dimensions:

Height: 3.75" (96mm)
Width: 4.25" (108mm)
Depth: 2.375" (61mm) from mounting surface

Construction:

Electronic components mounted on a printed
circuit board and housed in a rugged plastic
case

Connections:

Positive Sc rew T erminal Connectors. Unit should
be surface mounted and installed within 50 feet
of master station.

Temperature: 0-50 degrees C

Typical System ComponentsTypical System Components

CDL101LED Corridor Dome Light w/1 White LED
CDL102LED Corridor Zone Light w/1 White and 1 Red LED
VPS101 Single Visual Patient Stat ion
VPS102 Double Visual Patient St ation
VSS110 Visual Staff Stat ion
EPS155 Emergency Pull/Push Station (Toilet)
EPS156 Emergency Pull/Push Station (Code Call / Code Blue)
EPS337 Emergency Pull/Push Station (Shower)
EPS339 Emergency Push Station (Mushroom Head)
VDS150 Duty Station
