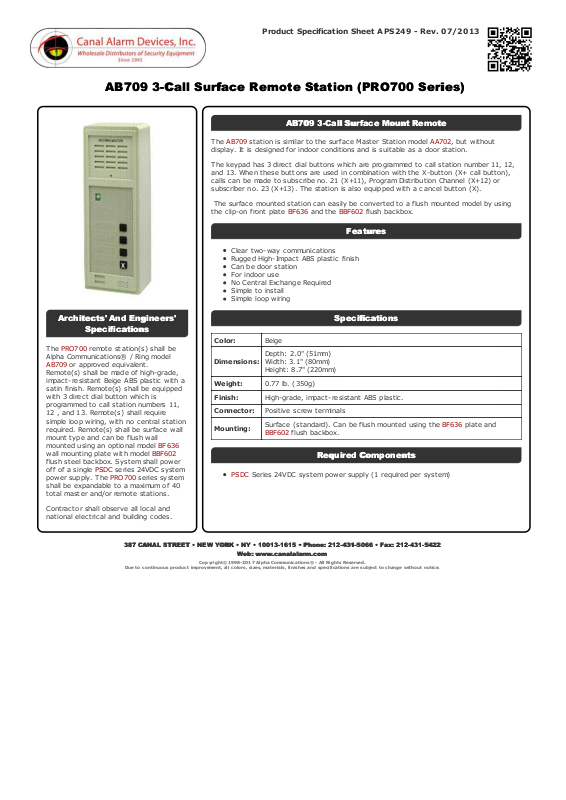

Product Specification Sheet APS249 - Rev. 07/2013

AB709 3-Call Surface Remote Station (PRO700 Series)AB709 3-Call Surface Remote Station (PRO700 Series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The PRO700 remote st ation(s) shall be
Alpha Communicat ions® / Ring model

AB709 or approved equivalent.

Remote(s) shall be made of high-grade,
impact-resistant Beige ABS plastic with a
satin finish. Remote(s) shall be equipped
with 3 direct dial button which is
programmed to call station numbers 11,
12 , and 13. Remote(s) shall require
simple loop wiring, with no central station
required. Remote(s) shall be surface wall
mount type and c an be flush wall
mounted using an optional model BF636
wall mounting plate with model BBF602
flush steel backbox. System shall power
off of a single PSDC series 24VDC syst em
power supply. The PRO700 series system
shall be expandable to a maximum of 40
tot al master and/or remote stations.

Contractor shall observe all local and
national elect rical and building codes.

AB709 3-Call Surface Mount RemoteAB709 3-Call Surface Mount Remote

The AB709 stat ion is similar to the surfac e Master St ation model AA702, but without
display. It is designed for indoor conditions and is suitable as a door st ation.

The keypad has 3 direct dial buttons which are programmed to c all station number 11, 12,
and 13. When these butt ons are used in combination with t he X- button (X+ call button),
calls c an be made to subscribe no. 21 (X+11), Program Distribution Channel (X+12) or
subscriber no. 23 (X+13). The station is also equipped with a canc el butt on (X).

The surface mounted stat ion can easily be c onverted to a flush mounted model by using
the c lip-on front plate BF636 and the BBF602 flush backbox.

FeaturesFeatures

Clear two- way communicat ions
Rugged High-Impact ABS plastic finish
Can be door station
For indoor use
No Central Exchange Required
Simple to install
Simple loop wiring

SpecificationsSpecifications

Color: Beige

Dimensions:

Depth: 2.0" (51mm)
Width: 3.1" (80mm)
Height: 8.7" (220mm)

Weight: 0.77 lb. (350g)

Finish: High-grade, impact- resistant ABS plastic.

Connector: Positive sc rew terminals

Mounting:

Surface (standard). Can be flush mounted using the BF636 plate and

BBF602 flush backbox.

Required ComponentsRequired Components

PSDC Series 24VDC system power supply (1 required per syst em)
