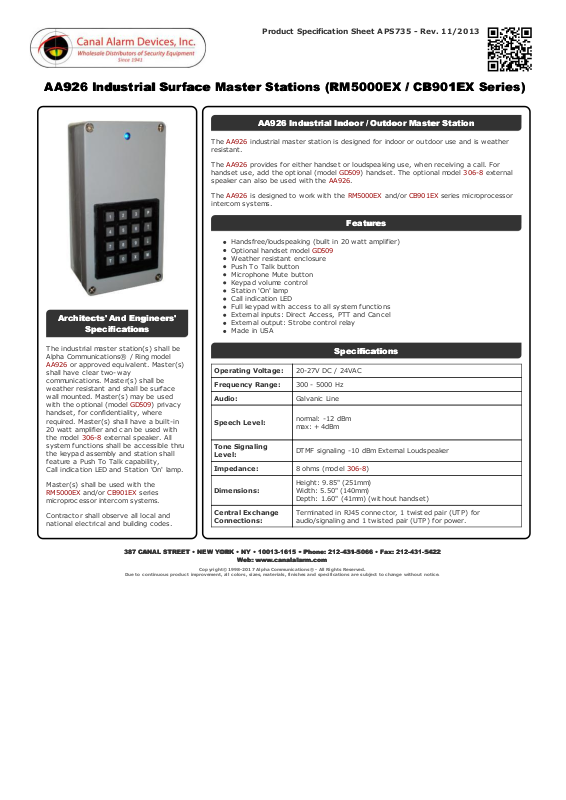

Alpha AA926 Specsheet

Product Specification Sheet APS735 - Rev. 11/2013

AA926 Industrial Surface Master Stations (RM5000EX / CB901EX Series)AA926 Industrial Surface Master Stations (RM5000EX / CB901EX Series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The industrial master station(s) shall be
Alpha Communicat ions® / Ring model

AA926 or approved equivalent. Master(s)

shall have clear two- way
communicat ions. Mast er(s) shall be
weather resistant and shall be surface
wall mounted. Mast er(s) may be used
with the optional (model GD509) privacy
handset, for confidentiality, where
required. Master(s) shall have a built-in
20 watt amplifier and can be used with
the model 306-8 external speaker. All
system functions shall be ac cessible thru
the keypad assembly and station shall
feature a Push T o Talk capability,
Call indication LED and Stat ion 'On' lamp.

Master(s) shall be used with t he

RM5000EX and/or CB901EX series

microprocessor interc om systems.

Contractor shall observe all local and
national elect rical and building codes.

AA926 Industrial Indoor / Outdoor Master StationAA926 Industrial Indoor / Outdoor Master Station

The AA926 industrial master st ation is designed for indoor or outdoor use and is weather
resistant.

The AA926 provides for either handset or loudspeaking use, when receiving a c all. For
handset use, add the optional (model GD509) handset. The optional model 306-8 external
speaker can also be used with the AA926.

The AA926 is designed to work with the RM5000EX and/or CB901EX series microprocessor
intercom systems.

FeaturesFeatures

Handsfree/loudspeaking (built in 20 watt amplifier)
Optional handset model GD509
Weather resistant enclosure
Push To Talk butt on
Microphone Mute button
Keypad volume control
Stat ion 'On' lamp
Call indication LED
Full keypad with access t o all system functions
External inputs: Direct Access, PT T and Cancel
External output: St robe control relay
Made in USA

SpecificationsSpecifications

Operating Voltage: 20-27V DC / 24VAC

Frequency Range: 300 - 5000 Hz

Audio: Galvanic Line

Speech Level:

normal: - 12 dBm
max: + 4dBm

Tone Signaling
Level:

DTMF signaling -10 dBm External Loudspeaker

Impedance: 8 ohms (model 306-8)

Dimensions:

Height: 9.85" (251mm)
Width: 5.50" (140mm)
Depth: 1.60" (41mm) (without handset )

Central Exchange
Connections:

Terminat ed in RJ45 connector, 1 t wisted pair (UTP) for
audio/signaling and 1 t wisted pair (UTP) for power.
