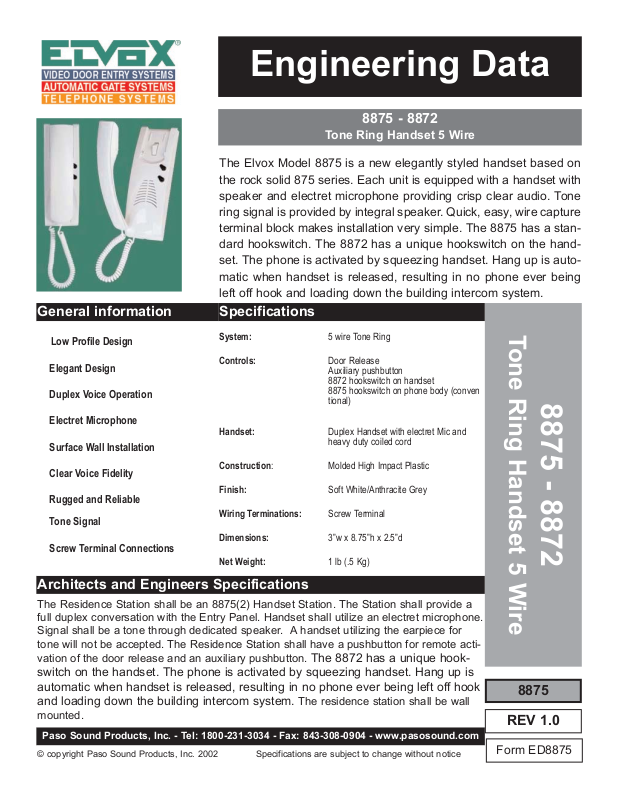

Alpha 8875 Specsheet

Engineering Data

8875 - 8872

Tone Ring Handset 5 Wire

The Elvox Model 8875 is a new elegantly styled handset based on
the rock solid 875 series. Each unit is equipped with a handset with
speaker and electret microphone providing crisp clear audio. Tone
ring signal is provided by integral speaker. Quick, easy, wire capture
terminal block makes installation very simple. The 8875 has a stan­dard hookswitch. The 8872 has a unique hookswitch on the hand­set. The phone is activated by squeezing handset. Hang up is auto­matic when handset is released, resulting in no phone ever being
left off hook and loading down the building intercom system.

General information Specifications

Architects and Engineers Specifications

Paso Sound Products, Inc. - Tel: [phone] - Fax: [phone] - www.pasosound.com

Low Profile Design

Elegant Design

Duplex Voice Operation

Electret Microphone

Surface Wall Installation

Clear Voice Fidelity

Rugged and Reliable

Tone Signal

Screw Terminal Connections

System: 5 wire Tone Ring

Controls: Door Release

Auxiliary pushbutton
8872 hookswitch on handset
8875 hookswitch on phone body (conven
tional)

Handset: Duplex Handset with electret Mic and

heavy duty coiled cord

Construction: Molded High Impact Plastic

Finish: Soft White/Anthracite Grey

Wiring Terminations: Screw Terminal

Dimensions: 3”w x 8.75”h x 2.5”d

Net Weight: 1 lb (.5 Kg)

The Residence Station shall be an 8875(2) Handset Station. The Station shall provide a
full duplex conversation with the Entry Panel. Handset shall utilize an electret microphone.
Signal shall be a tone through dedicated speaker. A handset utilizing the earpiece for
tone will not be accepted. The Residence Station shall have a pushbutton for remote acti­vation of the door release and an auxiliary pushbutton.

The 8872 has a unique hook­switch on the handset. The phone is activated by squeezing handset. Hang up is
automatic when handset is released, resulting in no phone ever being left off hook
and loading down the building intercom system. The residence station shall be wall

mounted.

8875 - 8872

Tone Ring Handset 5 Wire

© copyright Paso Sound Products, Inc. 2002 Specifications are subject to change without notice

8875

REV 1.0

Form ED8875
