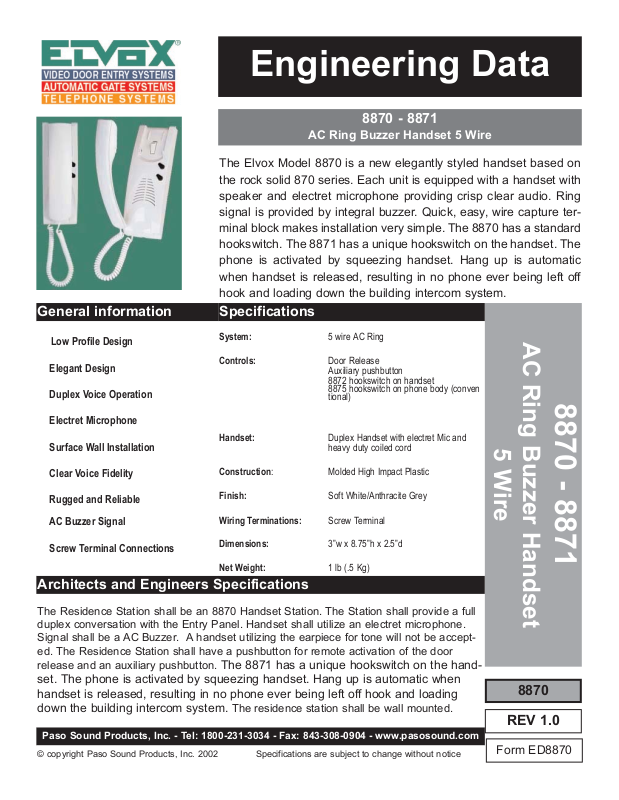

Alpha 8870, 8871 Specsheet

Engineering Data

8870 - 8871

AC Ring Buzzer Handset 5 Wire

The Elvox Model 8870 is a new elegantly styled handset based on
the rock solid 870 series. Each unit is equipped with a handset with
speaker and electret microphone providing crisp clear audio. Ring
signal is provided by integral buzzer. Quick, easy, wire capture ter­minal block makes installation very simple. The 8870 has a standard
hookswitch. The 8871 has a unique hookswitch on the handset. The
phone is activated by squeezing handset. Hang up is automatic
when handset is released, resulting in no phone ever being left off
hook and loading down the building intercom system.

General information Specifications

Architects and Engineers Specifications
