Alpha 7402-IP Specsheet

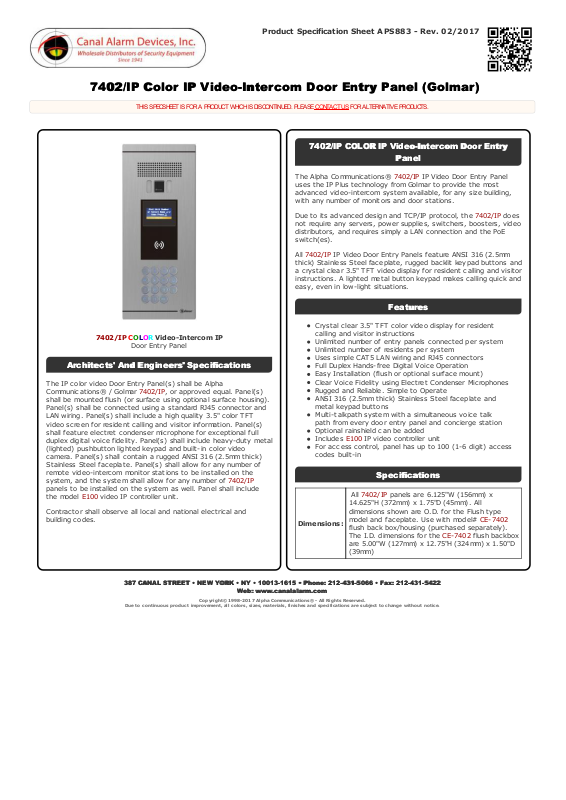

Product Specification Sheet APS883 - Rev. 02/2017

7402/IP Color IP Video-Intercom Door Entry Panel (Golmar)7402/IP Color IP Video-Intercom Door Entry Panel (Golmar)

THIS SPECSHEET IS FOR A PRODUCT WHICH IS DISCONTINUED. PLEASE CONTACT US FOR ALTERNATIVE PRODUCTS.

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

7402/IP COLOR Video-Intercom IP

Door Entry Panel

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The IP color video Door Entry Panel(s) shall be Alpha
Communications® / Golmar 7402/IP, or approved equal. Panel(s)
shall be mounted flush (or surface using optional surface housing).
Panel(s) shall be connect ed using a st andard RJ45 connect or and
LAN wiring. Panel(s) shall include a high quality 3.5" color TFT
video screen for resident c alling and visitor information. Panel(s)
shall feature elec tret c ondenser microphone for exceptional full
duplex digital voice fidelity. Panel(s) shall include heavy- duty metal
(lighted) pushbutton lighted keypad and built-in color video
camera. Panel(s) shall cont ain a rugged ANSI 316 (2.5mm thick)
Stainless Steel fac eplate. Panel(s) shall allow for any number of
remote video-intercom monitor stat ions to be installed on the
system, and t he system shall allow for any number of 7402/IP
panels to be installed on the system as well. Panel shall include
the model E100 video IP c ontroller unit.

Contractor shall observe all local and national electrical and
building codes.

7402/IP COLOR IP Video-Intercom Door Entry7402/IP COLOR IP Video-Intercom Door Entry

PanelPanel

The Alpha Communications® 7402/IP IP Video Door Entry Panel
uses the IP Plus technology from Golmar t o provide the most
advanced video-intercom system available, for any size building,
with any number of monitors and door stations.

Due t o its advanced design and TCP/IP protocol, the 7402/IP does
not require any servers, power supplies, switchers, boosters, video
distributors, and requires simply a LAN connection and the PoE
switc h(es).

All 7402/IP IP Video Door Entry Panels feature ANSI 316 (2.5mm
thick) St ainless Steel faceplate, rugged backlit keypad buttons and
a c rystal c lear 3.5" TFT video display for resident c alling and visitor
instructions. A lighted metal button keypad makes calling quick and
easy, even in low-light situations.

FeaturesFeatures

Crystal c lear 3.5" TFT color video display for resident
calling and visitor instructions
Unlimited number of entry panels c onnec ted per system
Unlimited number of residents per system
Uses simple CAT5 LAN wiring and RJ45 connectors
Full Duplex Hands-free Digital Voice Operation
Easy Installation (flush or optional surfac e mount)
Clear Voice Fidelity using Electret Condenser Microphones
Rugged and Reliable. Simple to Operate
ANSI 316 (2.5mm thick) Stainless Steel fac eplate and
metal keypad buttons
Multi-talkpath system with a simultaneous voice talk
path from every door entry panel and concierge station
Optional rainshield can be added
Includes E100 IP video cont roller unit
For ac cess c ontrol, panel has up to 100 (1-6 digit) acc ess
codes built-in

SpecificationsSpecifications

Dimensions:

All 7402/IP panels are 6.125"W (156mm) x

14.625"H (372mm) x 1.75"D (45mm). All
dimensions shown are O.D. for the Flush type
model and fac eplate. Use with model# CE-7402
flush back box/housing (purchased separately).
The I.D. dimensions for the CE-7402 flush backbox
are 5.00"W (127mm) x 12.75"H (324mm) x 1.50"D
(39mm)
