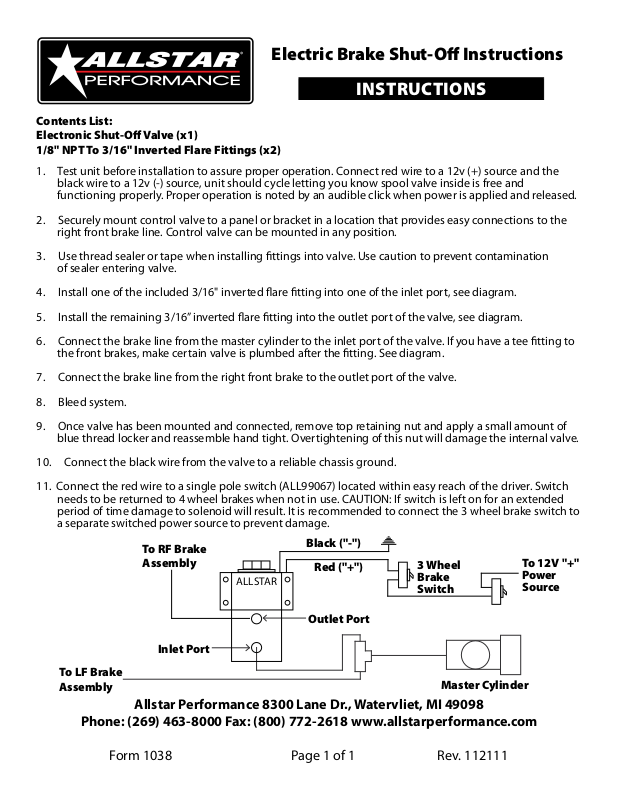

Allstar Performance ALL48015 User Manual

Electric Brake Shut-Off Instructions

INSTRUCTIONS

Contents List:
Electronic Shut-Off Valve (x1)
1/8" NPT To 3/16" Inverted Flare Fittings (x2)

1. Test unit before installation to assure proper operation. Connect red wire to a 12v (+) source and the
black wire to a 12v (-) source, unit should cycle letting you know spool valve inside is free and
functioning properly. Proper operation is noted by an audible click when power is applied and released.

2. Securely mount control valve to a panel or bracket in a location that provides easy connections to the
right front brake line. Control valve can be mounted in any position.

3. Use thread sealer or tape when installing ttings into valve. Use caution to prevent contamination
of sealer entering valve.

4. Install one of the included 3/16" inverted are tting into one of the inlet port, see diagram.

5. Install the remaining 3/16” inverted are tting into the outlet port of the valve, see diagram.

6. Connect the brake line from the master cylinder to the inlet port of the valve. If you have a tee tting to
the front brakes, make certain valve is plumbed after the tting. See diagram.

7. Connect the brake line from the right front brake to the outlet port of the valve.

8. Bleed system.

9. Once valve has been mounted and connected, remove top retaining nut and apply a small amount of
blue thread locker and reassemble hand tight. Overtightening of this nut will damage the internal valve.

10. Connect the black wire from the valve to a reliable chassis ground.

11. Connect the red wire to a single pole switch (ALL99067) located within easy reach of the driver. Switch
needs to be returned to 4 wheel brakes when not in use. CAUTION: If switch is left on for an extended
period of time damage to solenoid will result. It is recommended to connect the 3 wheel brake switch to
a separate switched power source to prevent damage.

To RF Brake
Assembly

ALLSTAR

Inlet Port

Black ("-")

Red ("+")

Outlet Port

3 Wheel
Brake
Switch

To 12V "+"
Power
Source

To LF Brake
Assembly

Master Cylinder

Allstar Performance 8300 Lane Dr., Watervliet, MI 49098

Phone: [phone] Fax: [phone] www.allstarperformance.com

Form 1038 Page 1 of 1 Rev. 112111
