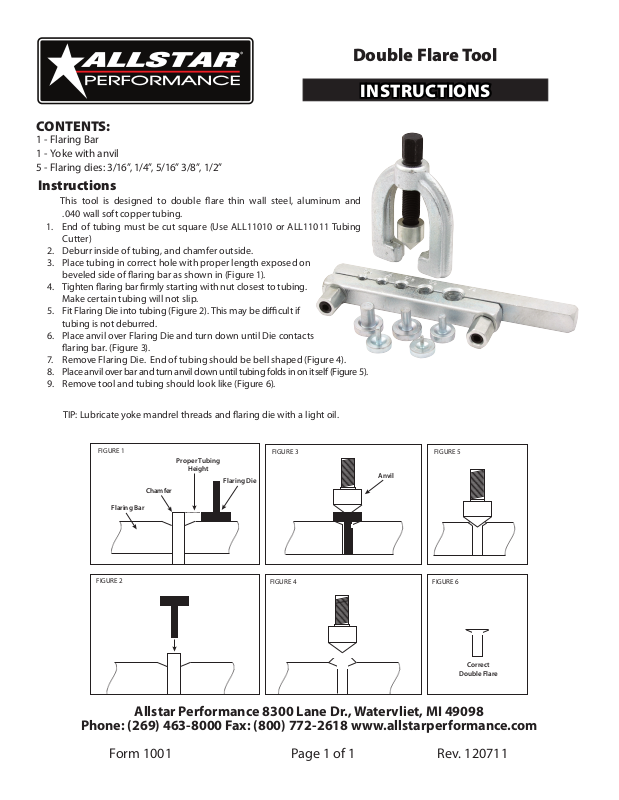

Allstar Performance ALL11015 User Manual

CONTENTS:

1 - Flaring Bar
1 - Yoke with anvil
5 - Flaring dies: 3/16”, 1/4”, 5/16” 3/8”, 1/2”

Instructions

This tool is designed to double are thin wall steel, aluminum and

.040 wall soft copper tubing.

1. End of tubing must be cut square (Use ALL11010 or ALL11011 Tubing
Cutter)

2. Deburr inside of tubing, and chamfer outside.

3. Place tubing in correct hole with proper length exposed on

beveled side of aring bar as shown in (Figure 1).

4. Tighten aring bar rmly starting with nut closest to tubing.

Make certain tubing will not slip.

5. Fit Flaring Die into tubing (Figure 2). This may be dicult if

tubing is not deburred.

6. Place anvil over Flaring Die and turn down until Die contacts

aring bar. (Figure 3).

7. Remove Flaring Die. End of tubing should be bell shaped (Figure 4).

8. Place anvil over bar and turn anvil down until tubing folds in on itself (Figure 5).

9. Remove tool and tubing should look like (Figure 6).

Double Flare Tool

INSTRUCTIONS

TIP: Lubricate yoke mandrel threads and aring die with a light oil.

FIGURE 1

Proper Tubing

Height

Flaring Die

Chamfer

Flaring Bar

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5

Anvil

FIGURE 6

Correct

Double Flare

Allstar Performance 8300 Lane Dr., Watervliet, MI 49098

Phone: [phone] Fax: [phone] www.allstarperformance.com

Form 1001 Page 1 of 1 Rev. 120711
