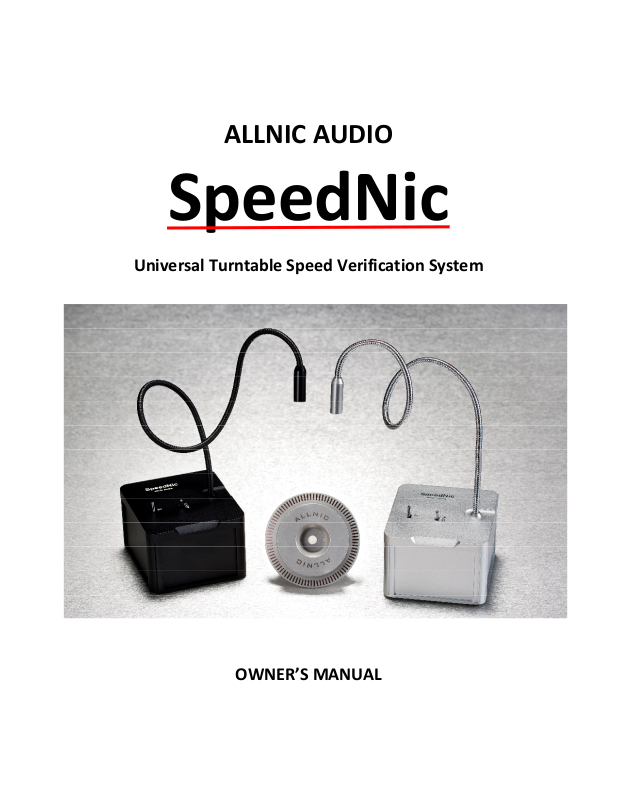

Page 1
ALLNIC AUDIO
SpeedNic
Universal Turntable Speed Verification System
OWNER’S MANUAL
Page 2
2
ALLNIC AUDIO
SpeedNic
UNIVERSAL TURNTABLE SPEED VERIFICATION
SYSTEM
Thank you for purchasing this Allnic Audio SpeedNic universal turntable
speed verification system. We are certain your trust in Allnic Audio and
Allnic Audio USA, as well as your appreciation of this high-quality device,
will be rewarded by its excellent operation for years to come.
Please read this entire manual before first using the Allnic Audio
SpeedNic.
Albert Porter
Dallas, TX
North American Distributor, Allnic Audio.
AllnicAudioUSA.com
Page 3
3
PRINCIPAL FEATURES OF THE SpeedNic
Universal application:
1. All world regions (battery operated)
2. All turntables, anywhere, worldwide, on
or off the system rack
3. All turntable speeds: 33 and a third, 45
and 78
4. All times: before, during and after
playing a record – verify the speed
while the record is playing, accounting
even for cartridge “drag”
Ultimate simplicity:
1. Does not rely on line voltage: works for
50 or 60 Hz turntables without
adjustment
2. Runs on 3 “C” type alkaline batteries,
easily replaceable
3. A single string of measurement lines to
read
4. Only two controls: On/Off and speed
selection
5. Flexible “gooseneck” lamp stem: set the
SpeedNic controller on or near the
turntable to use – or hold it in your
hand
Exceptional accuracy and reliability:
1. Accurate to within +/- 0.001%
2. CNC milled steel, 350 g record stabilizer
/ speed stability indicator
3. Extremely reliable, long life LED bulb,
manufactured in Japan
4. Heavy duty, CNC milled aluminum
controller case
5. High quality, durable steel flexible lamp
stem
WHAT’S IN THE BOX?
1 x SpeedNic controller / lamp unit
(LED bulb and 3 “C” type batteries
included and installed).
1 x SpeedNic record stabilizer
1 x Instruction manual
CLEANING AND MAINTENANCE
Use only a soft, lint-free cloth dampened slightly with
water only (NO cleaning fluids!) to clean the SpeedNic
controller and the record stabilizer.
The SpeedNic controller and record stabilizer are
rugged, but it is best not to drop them or to drop
things on them.
DO NOT drop or otherwise place the controller in
water
Change the 3 “C” type alkaline batteries by removing
the bottom plate of the controller using the
appropriate screwdriver and replacing the batteries
as indicated inside.
OPERATION – “Simplicity Itself”
Place the record stabilizer on the platter or record,
depending on when measurement is desired to be taken
Use the “On/Off” switch on the top of the control unit to
turn the LED on and off
Select the desired turntable speed with the 33 / 45 / 78
switch adjacent to the On/Off switch
Move the flexible lamp stem so that the LED illuminates
the lines of the measurement ring on the outer edge of
the record stabilizer
Start your turntable
Check the measurement line on the stabilizer outer ring
and adjust turntable speed until measurement lines
appear as if they are not moving
Turn off the SpeedNic controller
SPECIFICATIONS
Speed selections: 33 and a third, 45 and 78
Accuracy: +/- 0.001%
Battery: 3 x “C” type alkaline
LED: High brightness, white, 5 mm
diameter
Controller size: 84 (L) x 94 (W) x 56 (H) mm
Weight: Controller: 640 g
Record Stabilizer: 350 g
Page 4
4
** Information and specifications for the Allnic Audio product described in this manual
are subject to change without notice.
WARRANTY
The SpeedNic is warranted against materials and manufacturing defects for parts and labour for one (1) year from date
of purchase. The warranty is transferable for the balance of the original purchaser’s warranty period, provided, as stated
below, no unauthorized repairs or modifications have been performed on the product. Date of purchase is the date
indicated on the invoice for the product issued by Allnic Audio USA.
For the warranty to be valid, a defective product must be returned to Allnic Audio USA for service prior to any
unauthorized attempt to repair. Any repair work on an Allnic Audio product not specifically authorized by Allnic Audio
USA will void the warranty on the product.
