Allnic L-7000 User guide

ALLNIC AUDIO

L-7000 LINE-STAGE PREAMPLIFIER

OWNER’S MANUAL

ALLNIC AUDIO
L-7000 LINE-STAGE PREAMPLIFIER

Thank you for purchasing the Allnic Audio L-7000 Line-Stage Preamplifier.
We are certain your trust in Allnic Audio and its dealers worldwide, as well
as your appreciation for the sound of this high-quality device, will be
rewarded by its excellent operation for years to come.

Please read this entire manual before you connect the L-7000 Line-Stage
Preamplifier to the other components of your system and the wall outlet.

*** Information and specifications for the Allnic Audio product
described in this manual are subject to change without notice.

*** For a list of Allnic Audio distributers around the world, please visit

Allnic Audio’s website:

http://allnicaudio.com

2

TABLE OF CONTENTS:

INTRODUCING THE L-7000 LINE-STAGE PREAMPLIFIER

4

WHAT’S IN THE BOX?

6

SAFETY

7

CLEANING

7

INITIAL SET-UP

INITIAL POWER ON

9

OPERATION

10

CURRENT METERS

10

TUBES

10

SPECIFICATIONS

11

WARRANTY

12

FIGURES

12

Chassis
Connectors

Location, Location, Location
Power Connection
Inputs
Outputs
Phase Switch
Remote Control

7
8
8
8
9
9

Please read about SAFETY before you attempt to use the L-7000 Line­Stage Preamplifier - we care about our customers and the equipment,
and we want you to enjoy this product for a long time!

3

INTRODUCING THE L-7000 LINE-STAGE PREAMPLIFIER

Immerse yourself in the original recorded space. The L-7000 is a single gain stage, transformer­coupled, remote controlled line-stage pre-amplifier. It uses the 300B direct-heated triode as a
voltage regulator. The 300B has justly won the reputation for being a superb output tube in
single-ended amplifier, but it will take some rethinking to imagine this great tube in a role
outside the signal path. The benefit the 300B brings as a voltage regulator is its ability to pass a
fair amount of current at low cathode-to-plate voltages, the result of having a low Rp.

The L-7000 offers world class, holographic sound-staging combined with incredible resolution,
clarity, micro-dynamics, and drive. Instrument and vocal tone and timbre are lifelike; placement
of instruments and bodies in three dimensions startling, life-size, and addictive. The L-7000 has
no voice of its own. It is silent, except for the music emanating from the blackest of
backgrounds. The outstanding sonic quality is matched by the simple elegance, flexibility and
ergonomic functionality of the casework and connection options. Few pre-amplifiers can
compete.

The L-7000 is a reference level line-stage pre-amplifier. Like all Allnic Audio products, it uses
permalloy (iron and nickel alloy) for its transformer cores. Allnic is grateful to Mr. G.W. Elmen of
Western Electric for inventing permalloy for transformer core use, and in so doing, providing an
enormous service to recorded music listeners everywhere.

The L-7000 has the following features:

• Line output transformer coupling – The L-7000 is “transformer coupled”, using transformers
that have been upgraded from those in the L-3000. In tube amp circuitry, there are two
coupling methods; one is capacitor coupling and the other is transformer coupling.
Capacitor coupling is the traditional, low cost method. It is somewhat stable but transfers
only voltage, not wattage (i.e., not real energy). With transformer coupling, about 90% of
real wattage is transferred (there is still a transformer loss of about 10% of wattage –
voltage is not affected).

Transformer coupling is superior to capacitor coupling. However, all the advantages of
transformer coupling depend on the quality of the transformer and on the choice of tubes.
Allnic Audio manufactures its own transformers and uses what it views to be the best core
material, Permalloy. Allnic Audio's unprecedented, wide (16Hz ~ 75kHz, -3db), low
distortional, and ultra-flexible (up to 50kHz square wave response) output transformer helps
Allnic Audio to realize the ideal transformer coupled preamplifier. Of course, gain tubes are
also carefully selected for three critical factors for function with the Permalloy output
transformers: high gm, low internal resistance and high mu.

Constant and low output impedance – One of the benefits of transformer coupling is that it
facilitates constant low output impedance. Low output impedance is critical to the design of
a good preamplifier. The L-7000 has a 120 ohm (120Ω) constant output impedance at all
frequencies. In capacitor coupling (C-R coupling), a “cathode follower circuit" is usually used
to lower output impedance. Unfortunately, this method of lowering output impedance is

4

accompanied by high distortion and has an "L" shaped output impedance curve. Please

•

•

•

•

•

Output

compare the two graphs below, especially for low frequency response.

Output

Impedance

Impedance

Frequency

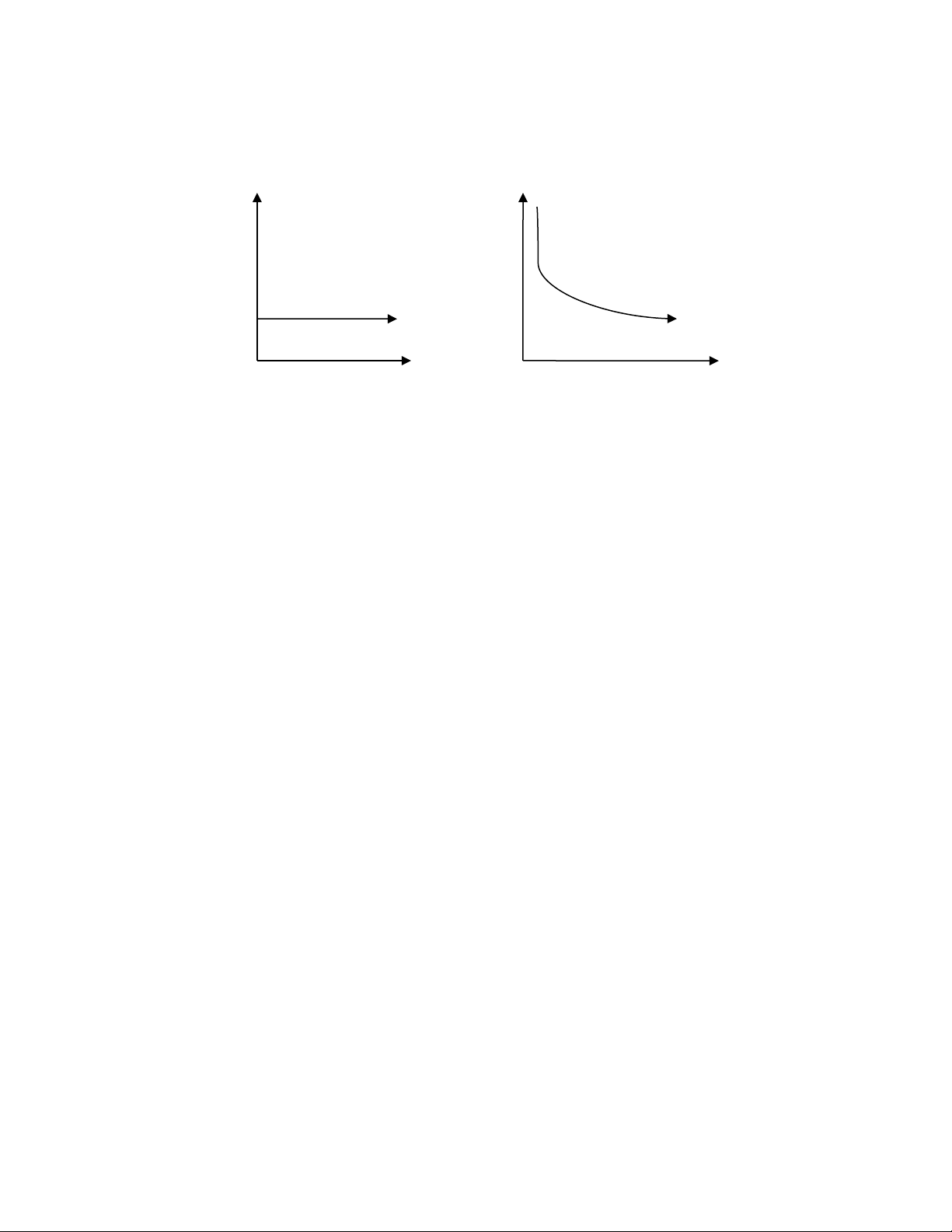

(Allnic LCR Output Impedance Curve)

Frequency
(Traditional CR Type Output Impedance Curve)

No negative feedback design

Advanced tube technology voltage regulation - For quieter and more dynamic operation, the

L-7000 has an ultra-high speed automatic voltage regulation circuit, utilizing vacuum tubes,
including the 300B triode. This also protects the amplifying tubes from change in the AC line
supply and copes with any abrupt, internal current demand.

Precision attenuator volume control – The L-7000 does not employ a digital IC volume

control or a low-cost carbon film volume control with a motor. The L-7000 uses the
WORLD’S FIRST 61 step, constant impedance, “bridged” type attenuator, standard on all
units produced after May 2019. Allnic’s new attenuator is now the most sophisticated on
the market, and we believe, without a doubt, also the absolute best sounding. With fixed
impedance and no (± 0db) channel imbalance at any volume level, this revolutionary and
currently unique, oil clutched, motorized attenuator will astound users with its elevation of
the fidelity and purity of any system in which it finds a home.

• Pure Class A operation

Pure balanced output stage

As are all Allnic Audio products, the L-7000 is fully RoHS (EU Reduction of Hazardous

Substances regulation) compliant in construction and materials

A world’s “first of its kind” for Allnic Audio

61 STEP CONSTANT IMPEDANCE BRIDGED TYPE ATTENUATOR

Allnic Audio’s newly developed 61 step constant impedance bridged type attenuator, a world’s
first, is installed inside the L-7000, which contributes to the L-7000’s outstanding dimensional
sound. It does so by ensuring that the attenuator’s impedance is absolutely constant across all
frequencies. This is in addition to the zero channel imbalance, a standard feature of Allnic’s in­house produced, motorized attenuators.

5

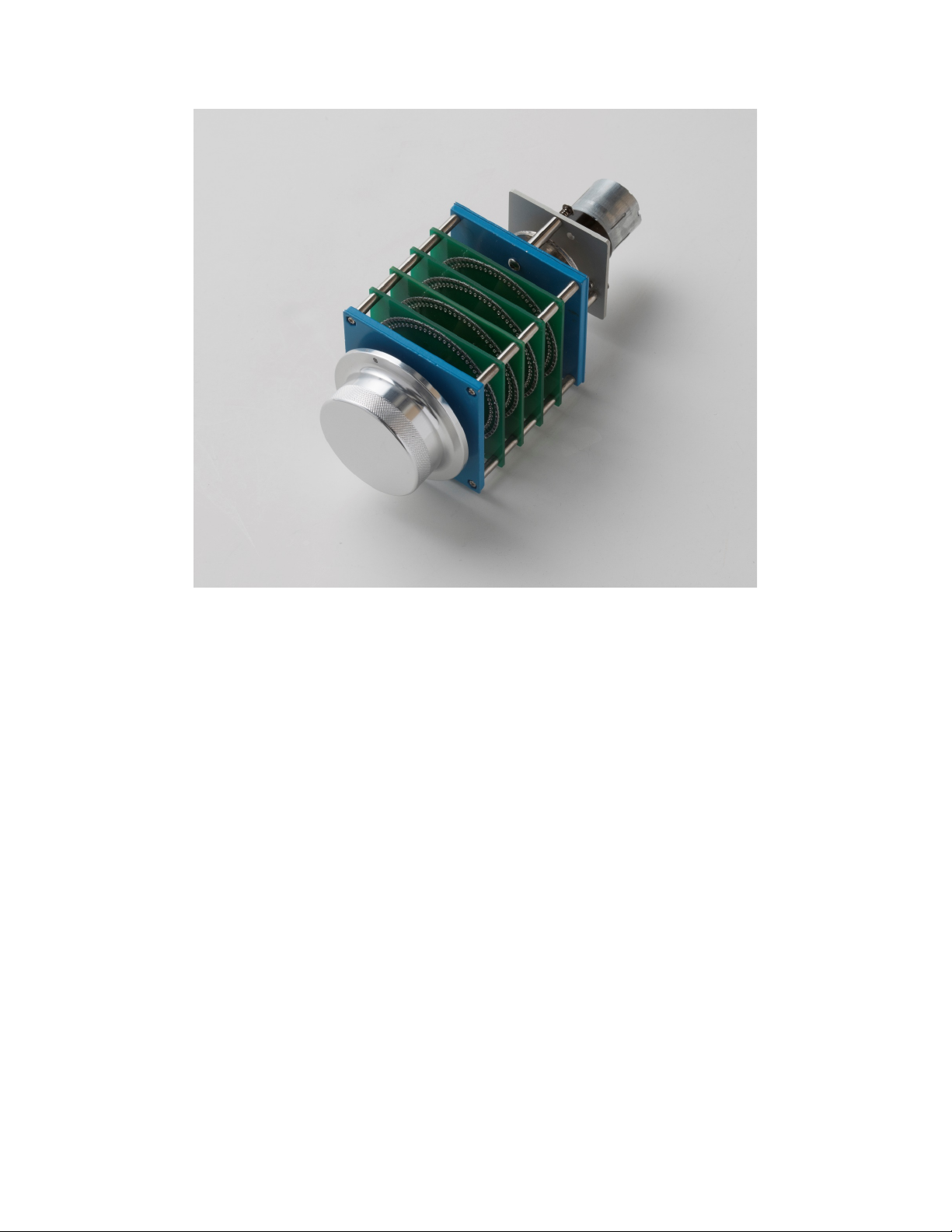

The Allnic 61 step constant impedance bridged type attenuator

WHAT’S IN THE BOX?

Please check that the shipping box contains the following:

• One (1) Allnic L-7000 Preamplifier – in natural aluminum or black, depending on your

order specification

• One (1) power cord

• One (1) remote control

• Two (2) x AAA batteries for the remote control

• One (1) Owner’s Manual

Note:

1) The L-7000 ships with the tubes installed.

2) The L-7000 will work with most IEC type aftermarket power cords. The Allnic ZL-3000

and ZL-5000 power cables will make an excellent match. Of course, only you can
determine the power cord that works most synergistically with the L-7000 in your
system.

3) Be sure the L-7000 is labeled for the AC voltage of your location. If it is not, DO

NOT connect it to your AC outlet. Please contact your Allnic dealer.

We advise that you keep the box and other packing materials that your L-7000 came in. It will be
useful if you sell your L-7000 or in the unlikely event you need to ship it for service.

6

SAFETY

• CAREFULLY and SLOWLY remove ALL cardboard and Styrofoam cushioning material inside

the tube chimneys before operation..

• Disconnect the power cord by pulling the plug, not the cable.

• Keep the power cord away from any heat source.

• Keep the unit away from liquids – do not allow any liquid to enter the interior of the unit.

• When the unit is moved from a cold to a warm environment, allow sufficient time for any

condensation to evaporate before plugging the unit into an AC connection.

• Do not attempt any repairs.

• Do not remove the chassis cover without specific authorization from your Allnic dealer.

• See the notes on “Location, Location, Location”.

CLEANING

A. Chassis and glass

Use only a soft, lint-free cloth dampened slightly with water only (NO cleaning fluids!) to clean
the faceplate, meter glass and chassis.

B. Connectors

You may use any good quality contact cleaner recommended for such applications to clean the
contacts from time to time as you deem appropriate.

INITIAL SET-UP

A. LOCATION, LOCATION, LOCATION

Like all audio products using tubes, the Allnic Audio L-7000 needs to be placed on a solid stand
in a location that provides for good air circulation around the preamplifier.

• DO NOT cover the top of the preamplifier.

• DO NOT place the unit on carpet or foam.

• DO NOT subject the unit to knocks and shocks as you move it around. This advice is

meant particularly for those who may want to place the L-7000 on a set of after-market
isolation feet or similar devices. Dropping one side of the L-7000, or the whole unit, is
not a good thing.

• DO NOT place the unit near a strong light or heat source.

• DO NOT place anything heavy on the unit.

• DO NOT allow rubber or vinyl materials to rest on the unit’s chassis for long periods of

time. This could discolour the metal.

• DO place the unit on a shelf or stand that is stable and not subject to vibration or

sudden shock.

• DO consider using a high quality power cord and inter-connects, both inputs and

outputs. The L-7000 is a highly sensitive piece of electronic equipment designed for
neutrality and will output what you put into it. Allnic’s Zero Loss Technology cables will
work synergistically with the L-7000.

7

• DO try to place the L-7000 away from major sources of RFI and EMI; though well

shielded, the L-7000 will function best away from large power transformers and other
sources of such interference.

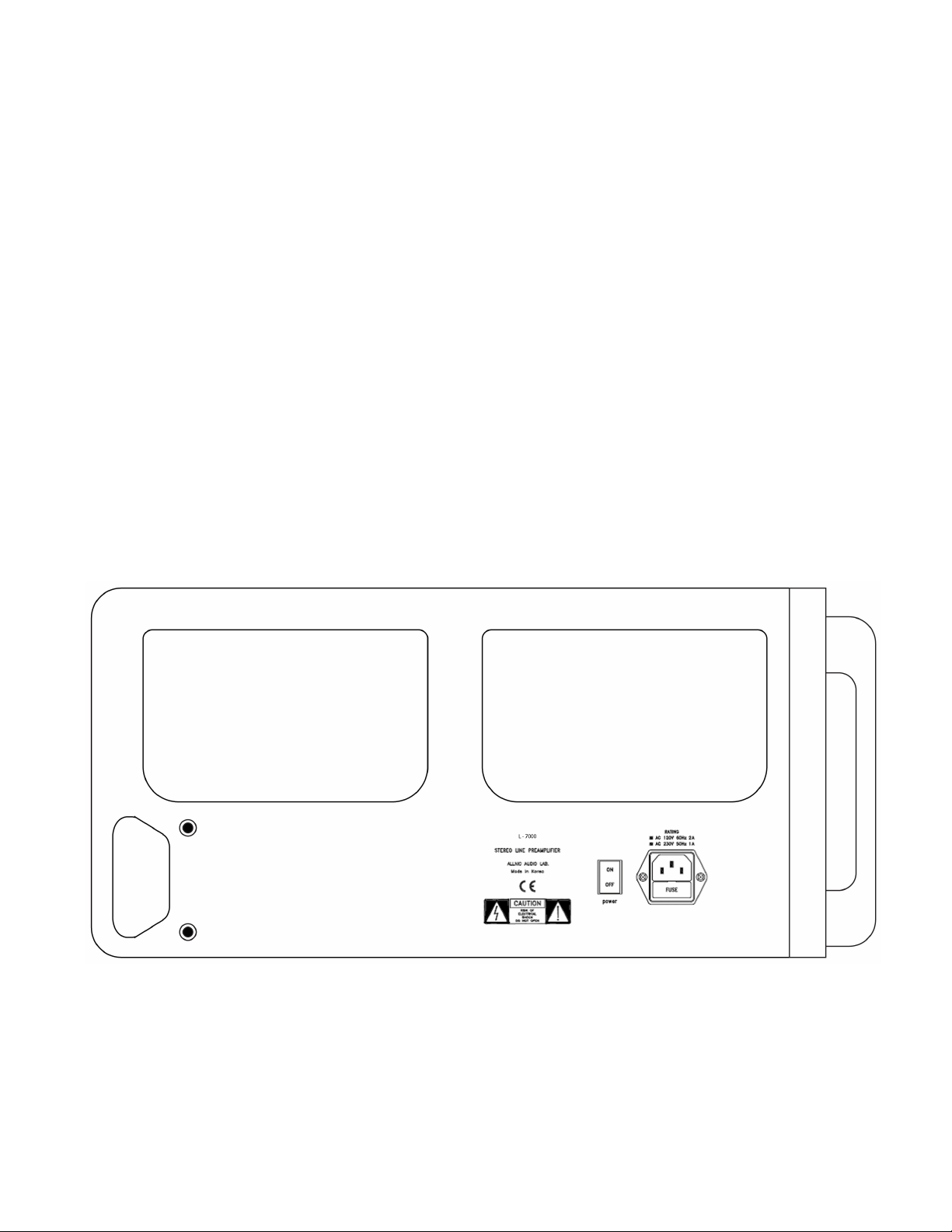

B. POWER CONNECTION

The L-7000 uses a standard three prong male 15 amp IEC connection for AC input. You need to
use a power cord with a female three prong 15 amp IEC connector at one end.

To the left of the IEC connector (facing the left side of the unit as in Figure 1), there is a power
on-off switch. Leave this switch in the OFF position – that means the switch is pressed “down” at
the bottom - while you make all initial connections.

The L-7000 you have purchased is set internally for AC 110/120 volt – 60 HZ, or 220/230 volt –
50 Hz operation. There is no way to change this to another AC setting without return of the unit
to the factory for re-wiring, at the owner’s cost, including transport both directions.

C. INPUTS

There are five (5) inputs. Line 1 and Line 2 are balanced connections (XLR type connectors). The
remaining 3 line inputs are RCA type, single-ended connections. None of the inputs is intended
especially for connection to any particular device.

NO PHONO STAGE - The L-7000 is a line-stage preamplifier and does NOT have a built in phono
preamplifier section. You will need a phono preamplifier if you want to use a turntable with the
L-7000. You can connect your phono preamplifier to any of the five inputs, provided you have
the appropriate types of connections or adaptors.

The L-7000 has been designed and manufactured to work most synergistically with Allnic Audio
phono preamplifiers, pre-preamplifiers, equalization and power amplification products, and ZL
Technology cables.

D. OUTPUTS

The L-7000 has three pairs of outputs. Two (2) output pairs are balanced (i.e., separate ground),
using XLR connectors; one (1) pair is single-ended unbalanced, using RCA type connectors.

On the back panel of the L-7000 there is a switch to select either the balanced or single-ended
connections. This selection switch is at the top centre of the rear panel and labeled “unbalanced
output” (see Figure 2). Please set the output selection switch to the output connection you are
using. If you set the switch to “balanced” (i.e., XLR – switch pushed to the right, looking from the
rear) and then connect your cables to the RCA outputs (“main out 2”), audible hum will be
introduced.

You may use the balanced and single-ended RCA outputs at the same time; for example, if you
run one pair to your stereo amplifier and the other to a powered subwoofer (or a pair of them).
In such a case, set the output selection switch to unbalanced (RCA – switch pushed to the left).
This will avoid the introduction of hum.

8

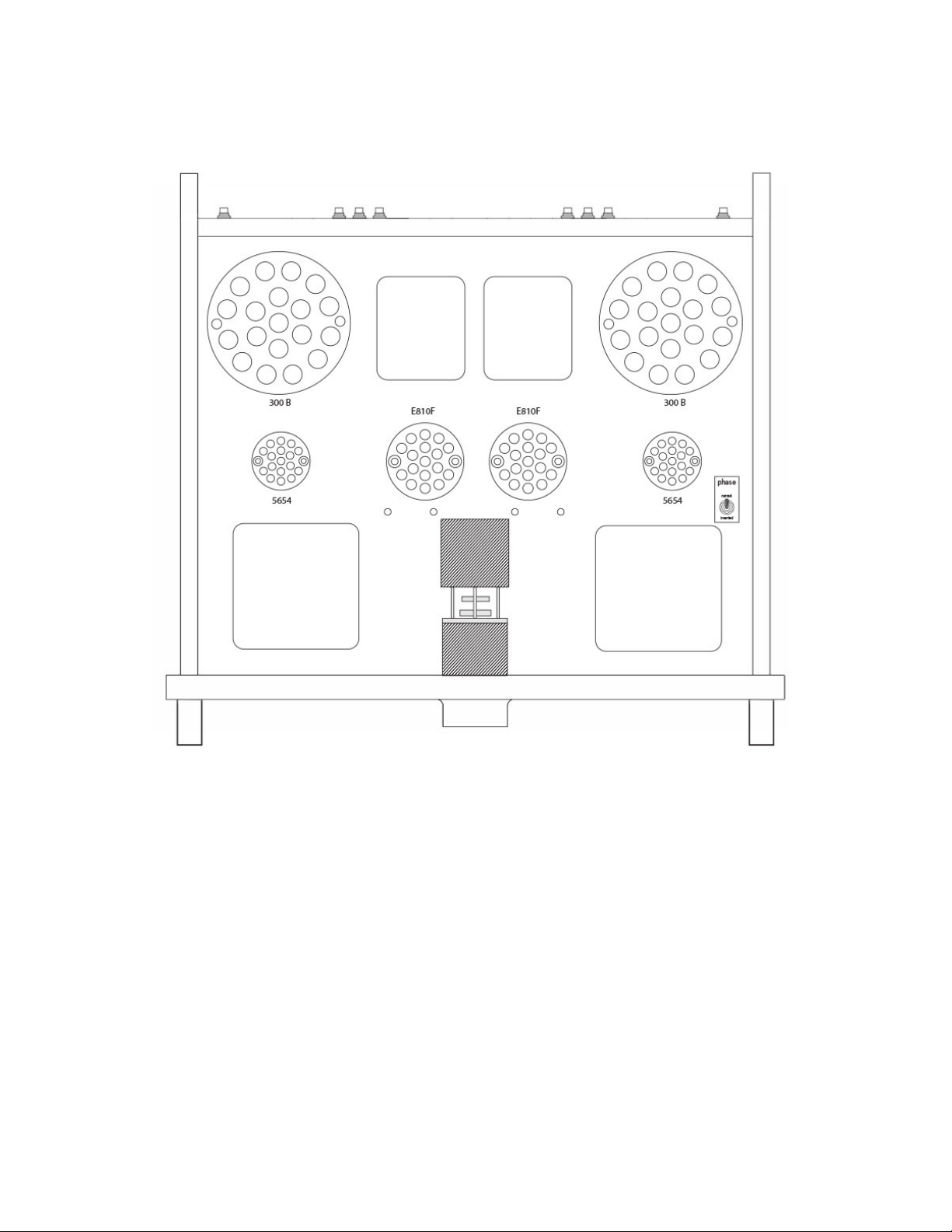

E. PHASE SWITCH

•

•

•

•

•

On the right hand side of the top deck of the chassis, there is a phase switch. This switch is a 180
degree phase switch; phase is either normal or inverted one hundred percent, depending on the
switch position. On initial connection, set the switch to normal. Depending on the phase your
sources output and their facilities with regard to phase, you may want to switch to inverted
phase sometimes. Phase issues generally will result in lack of bass and/or focus of the stereo
image (Please see Figure 5).

F. REMOTE CONTROL

The remote control provides the ability to remotely:

• Select the line source input using either the numbered selector buttons (1 to 5) or the

channel up/down arrow buttons (Please see Figure 3).

• Control the volume level using the right (louder) and left (quieter) arrow buttons adjacent

to the channel arrow buttons.

• Mute the volume using the button labeled “MUTE”. To raise the volume again after
muting, press the Mute button to take the volume level to where it was prior to muting. In
Mute mode, the light above the “operate” button on the front panel of the L-7000 will not
be illuminated; it will illuminate when the L-7000 is unmuted again.

• Use the red power on/off button in the top left-hand corner of the remote control to
power the L-7000 on and off.

INITIAL POWER-ON

Once you have your L-7000 in place and all connections have been made to your sources and
amplifier(s) and the power cord is installed and plugged into an AC receptacle, you are ready to
turn on the power for your L-7000. Before you power up the L-7000, though, be sure you have:

CAREFULLY AND SLOWLY removed ALL the cardboard cushion materials from inside the

tube chimneys

ensured the batteries are in the remote control – if not, insert the batteries (by removing

plate on the bottom of the remote control).

selected the output connections that you want to use, single-ended (RCA) or balanced (XLR),

on the switch at top centre on the back of the preamplifier

turned the volume down on or muted the L-7000
checked that all your connections are snug

Also, be sure you have manually turned the volume control on the front panel to the extreme
counter-clockwise position (minimum volume).

Push the power on-off switch to the left of the IEC connector (facing the left side of the unit as
in Figure 1) so it is in the “on position”. That will power up the L-7000. From this point on, you
need only use the far left hand button marked “power” on the front panel or the power button
on the remote control to turn the L-7000 on and off. Once the power has been turned on, the
following will happen on the front panel (Please see Figure 4):

• the light above the “power” button will illuminate

• the meters on the front panel will illuminate

9

• the light over the line source button that is depressed will illuminate

• after about 40 seconds, the light over the “operate” button will illuminate. The L-7000

has a “soft start” delay for the tubes in order to extend tube life.

The Allnic Audio L-7000 is now ready for operation. At this point, you can power on your sources
and, finally, your stereo power amplifier or mono-blocks.

OPERATION

From this point on, operation is straight-forward. All functions are controlled from the front
panel or the remote control. Of course, BE CAREFUL about differences in gain between your
sources. Generally, disc players and tuners will have greater gain than phono stages. That means
the volume setting for listening to your turntable might be too high for listening to CDs or
streaming devices.

To avoid surges to the speakers, it is best to change from input to input only with the “operate”
button set to mute (the light above the button will not be illuminated when the button is in the
“mute” position).

When you are finished listening, turn off your stereo power amplifier or mono-block amplifiers.
Then turn off the L-7000 by depressing the power button on the front panel. The power switch
on the left side panel should stay in the “on” position – this will keep key circuitry warm, and
your L-7000 will be ready to play when the soft-start turns on the L-7000 next time you want to
listen. Turn off your sources last.

CURRENT METERS

These illuminated meters indicate the current supply to the gain tubes in the L-7000. They are
indicators of failure or damage to the function of the unit. There is one meter for each channel.
The needle should be between the two parallel lines just left of centre on the meter face. Any
failure of the tubes or circuits in one or the other of the L-7000 ’s channels is indicated by the
needle on the meter for the respective channel moving out from between those two parallel
lines.

• If the needle has moved to the left of the parallel lines on a meter, it means that the gain
tube (E810F) for that channel is failing.

• If the needle on either meter moves to the right of the parallel lines, it means that one or
both of the voltage regulator tubes (300B or 5654) for that channel is failing.

In the case of any failure indicated by the meter, please contact Allnic Audio or its authorized
representative for assistance.

TUBES

The L-7000 uses the following tubes (see Figure 5):

• Two (2) x E810F

• Two (2) x 300B

• Two (2) x 5654

10

• Inputs:

Line level × 5 pairs:

• Outputs:

3 pairs:

• Input Impedance:

10kΩ Balanced/Unbalanced

• Frequency Range:

20Hz ~ 20kHz (FLAT)

• Voltage Gain:

+18dB

• THD (1kHz):

Output 0.3V, 0.06%

• S/N Ratio:

-90dB (CCIR, 1kHz)

• Maximum Output:

20V RMS (Non-clipping)

• Output Impedance:

120Ω Constant

• Power Consumption:

30W at 110/120V / 60 Hz

• Tubes:

E810F (electrically equivalent to 7788) x 2 (gain)

• Fuse:

2A 250V slow blow

• Tube chimney screws:

2mm Allen head

• Dimensions:

430mm (16.95 inches) (W)

• Weight:

18 kg (39.6 lbs) unpacked.

All consequences of changing or attempting to change tubes are borne by the user unless by
express agreement between the owner and Allnic Audio or its authorized representative. Allnic
Audio and its authorized representatives are not liable in any way whatsoever for any injury or
loss incurred by the user or for damage to the L-7000, any of its parts, or tubes or replacement
tubes resulting from the user changing or attempting to change tubes.

SPECIFICATIONS

FOR THE ALLNIC AUDIO L-7000 LINE-STAGE PREAMPLIFIER

Balanced (XLR) × 2
Unbalanced (RCA) × 3

Balanced (XLR) × 2 pair
Unbalanced (RCA) × 1 pair

16Hz ~ 75kHz (-3dB)

Output 1.0V, 0.16%

300B x 2 (no equivalent) voltage regulator
5654 (equivalent to 6AK6, A4361, CV1762) × 2 (voltage
error detector)

410mm (16.15 inches) including handles (D)
207mm (8.15 inches) (H)

24.75 kg. (54.6 lbs) packed in original shipping material

11

WARRANTY

FOR WARRANTY SERVICE, PLEASE CONTACT YOUR AUTHORIZED ALLNIC DEALER.

All Allnic Audio amplifier products are warranted against materials and manufacturing defects
for parts, excluding tubes, and labour for two (2) years from date of purchase. Tubes are
warranted against materials and manufacturing defects for one (1) year from date of purchase.
The warranty is transferable for the balance of the original purchaser’s warranty period,
provided, as stated below, no unauthorized repairs or modifications have been performed on
the product. Date of purchase is the date indicated on the invoice for the product issued by
Allnic Audio or its authorized representative. For the warranty to be valid, a defective product
must be returned to Allnic Audio’s authorized representative for service prior to any
unauthorized attempt to repair. Any repair work on an Allnic Audio product not specifically
authorized by Allnic Audio or its authorized representative will void the warranty on the
product.

FIGURES

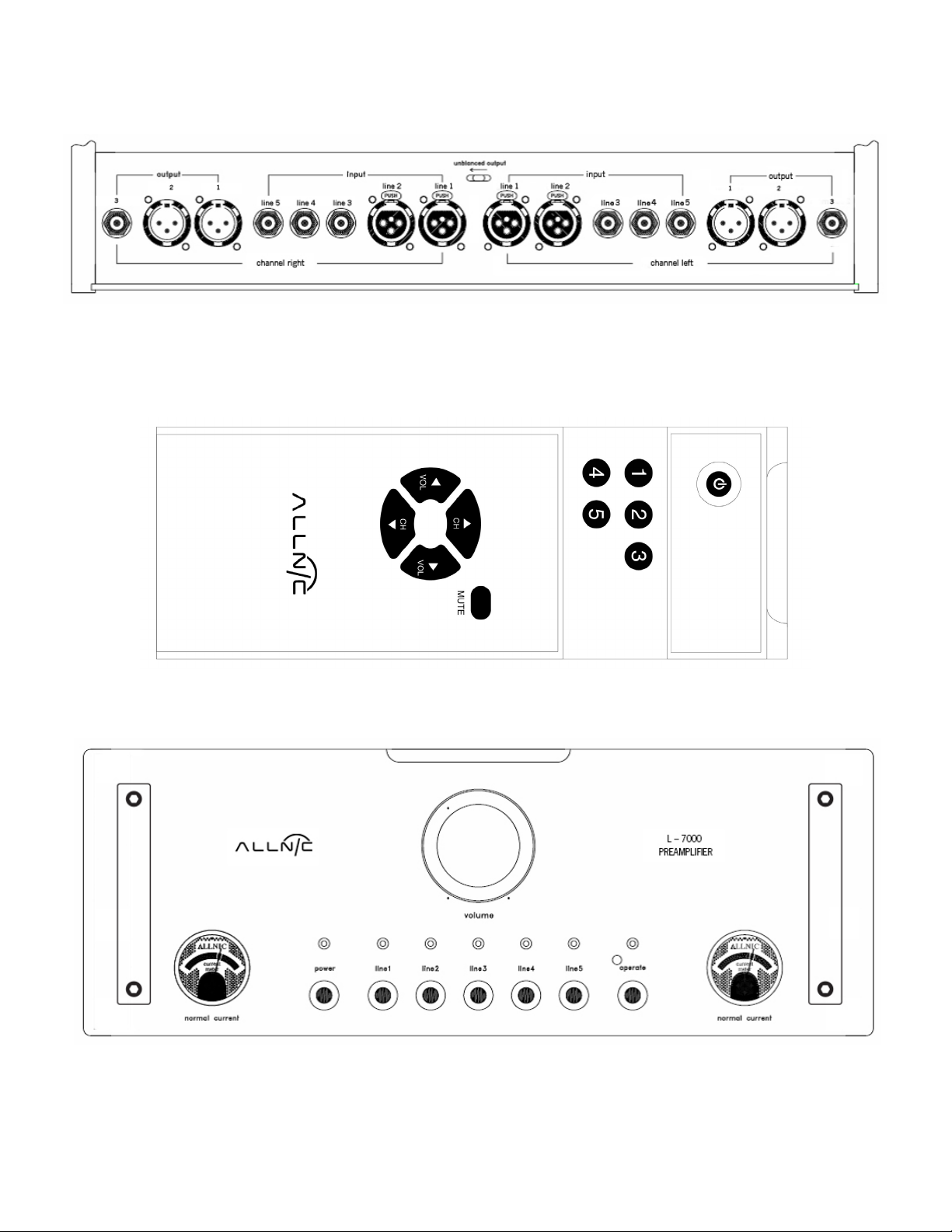

Figure 1 – L-7000 Left Side Panel View

12

Figure 2 – L-7000 Rear Panel View

Figure 3 – L-7000 Remote Control

Figure 4 – L-7000 Front Panel View

13

Figure 5 – L-7000 Top View

14
