ALLNET ALLNET ALLSG8208 User guide

Download

ALL-SG8208M

Smart managed 8 Port Gigabit Switch

User Manual

Default-IP

192.168.1.1

Username & Password:

admin

SAVE CONFIGURATION – PLEASE NOTE!

You need to save you configuration into flash memory.

Otherwise your configuration will be lost after the next reboot.

How to save your configuration: SAVE -> SAVE CONFIGURATION TO FLASH and confirm with APPLY.

Table of Contents

Chapter 1 Introduction to the Web Smart Switch ············································ 5

1.1 General Description ··············································································· 5

1.2 The Front Panel ···················································································· 6

1.3 LEDs Definition ····················································································· 6

1.4 The Rear Panel ····················································································· 7

1.5 Installation ··························································································· 8

Chapter 2 Basic Web Management Information ··········································· 10

2.1 System login ······················································································· 10

2.2 The Graphic User Interface ····································································· 10

2.3 SAVE LOGOUT REBOOT ······································································ 15

2.3.1 SAVE ······························································································ 15

2.3.1.1Saving running configurations ····························································· 15

2.3.2 LOGOUT ························································································· 15

2.3.3 REBOOT ························································································· 16

Chapter 3 Web Management Configuration ················································· 17

3.1 Status ································································································ 17

3.1.1 System Information ············································································ 17

3.1.2 Logging Message ·············································································· 17

3.1.3 Port ································································································ 18

3.1.4 Link Aggregation ················································································ 20

3.1.5 LLCP Statistics ·················································································· 21

3.1.6 IGMP Snooping Statistics ···································································· 23

3.2 Network······························································································ 24

3.2.1 IP Address ························································································ 24

3.2.2 IPv6 Address ···················································································· 25

3.2.3 Management VLAN ············································································ 26

3.2.4 Time Settings ···················································································· 26

3.2.5 SNTP Settings ·················································································· 28

3.3 Switching ···························································································· 28

3.3.1 Port Setting ······················································································ 28

3.3.2 Port Mirroring ···················································································· 30

3.3.3 Link Aggregation ················································································ 31

3.3.4 VLAN Management ············································································ 35

3.3.5 EEE ································································································ 42

3.3.6 Multicast ·························································································· 43

3.3.7 Jumbo Frame ···················································································· 50

3.3.8 STP ································································································ 51

3.4 MAC Address Table ·············································································· 55

3.5 Security ······························································································ 58

3.5.1 Storm Control ···················································································· 58

3.5.2 Protected Ports ················································································· 59

3.5.3 DoS ································································································ 60

3.5.4 Access····························································································· 63

3.6 QoS ·································································································· 65

3.6.1 General ··························································································· 65

3.6.2 QoS Basic Mode ················································································ 71

3.6.3 Rate Limit ························································································· 73

3.7 Management ······················································································· 76

3.7.1 LLDP ······························································································ 76

3.7.2 SNMP ····························································································· 83

3.8 Diagnostics ························································································· 86

3.8.1 Cable Diagnostics ·············································································· 86

3.8.2 Ping Test ·························································································· 86

3.8.3 IPv6 Ping Test ··················································································· 87

3.8.4 Logging Setting ················································································· 88

3.8.5 Factory Default ·················································································· 90

3.8.6 Reboot Switch ··················································································· 91

3.9 Maintenance ······················································································· 91

3.9.1 Backup Manager ··············································································· 91

3.9.2 Upgrade Manager ·············································································· 92

3.9.3 Configuration Manager ········································································ 93

3.9.4 Account Manager ··············································································· 94

Product Specifications ················································································ 96

Saftey Warnings ························································································ 97

FCC ······································································································· 98

CE ········································································································· 99

GPL General Public License ······································································ 100

Chapter 1 Introduction to the Web Smart Switch

1.1 General Description

High Performance

The device is a powerful, high-performance Gigabit Ethernet switch with 8 10/100/1000 Mbps ports,

providing you a cost-effective, space-saving solution for expanding your network. The gigabit ports

can lead you to a real gigabit connection, making you be able to transfer high bandwidth-needed

files higher and faster in an easy way.

This device provides the easy management function through the Ethernet Web. The network

administrator can configure the status and the port function setting of the device through the

Web-Based UI. When installing the auto-discovery management tool helps network managers to

search and access those switches on LAN easily. Therefore, network managers can access

switches that support auto-discovery on LAN without memorizing IP address.

Smart Features

The device provides rich features including Link Aggregation, VLANs, IGMP Snooping, Port

Trunking, Spanning Tree, Security and other network management to meet the requirements

evolving medium and small-sized enterprises. QoS secures the bandwidth for some

bandwidth-demanded applications including VoIP or video conference. Additionally, IEEE 802.3az

Energy Efficient Ethernet ability is supported to promise operation in Low Power Idle Mode and

save power consumption.

Easy Installation and Management

This switch is plug & play and hassle-free in installation. Auto-MDI/MDI-X crossover on all ports

eliminates the need for crossover cables for connection to another switch or hub. Auto-Negotiation

on each port senses the link speed of a network device and intelligently adjusts for compatibility and

optimal performance. This switch also features diagnostic LEDs, which display the status and

activities of the network.

1.2 The Front Panel

The following figure shows the front panel of the switch.

The following table describes the port labels on the front panel.

LABEL DESCRIPTON

8 10/100/1000 RJ-45 Ethernet Ports

Connect these ports to a computer, a hub, an Ethernet switch or router

1.3 LEDs Definition

This device provides extensive LEDs to show the activities on power, system and ports.

See the following description for your reference:

LED Status Operation

Steady Green The switch is powered on.

PWR

Off The switch is powered off.

Steady Green The switch is on and functioning properly.

SYS

Link/ACT

The RESET Button

Blinking Green The switch is rebooting and performing self-diagnostic tests.

Off The power is off or the system is not ready/malfunctioning.

Steady Green The link to a 1000 Mbps Ethernet network is up.

Blinking Green

Off Port disconnected.

The system is transmitting/receiving to/from a 1000 Mbps Ethernet network.

Reset the switch to its factory default configuration via the RESET button. Press the RESET button

for three seconds and release. The switch automatically reboots and reloads its factory

configuration file. The RESET button is on the front panel of the switch.

1.4 The Rear Panel

The following figure shows the rear panel of the switch:

Power Receptacle To be compatible with the electric service standards around the world, the switch is designed to

afford the power supply in the range from 100 to 240 VAC, 50/60 Hz. Please make sure that your

outlet standard to be within this range.

To power on the switch, please plug the female end of the power cord firmly into the receptacle of

the switch, the other end into an electric service outlet, and

the Switch power on or off. After the switch powered on, please check if the power LED is lit for a

use the POWER ON/OFF switch to have

normal power status.

1.5 Installation

This switch can be placed on your desktop directly, or mounted on the wall. Please refer to the

instructions for installation.

Before installing the switch, we recommend:

1. The switch is placed with appropriate ventilation environment. A minimum 25 mm space around

the unit is recommended.

2. The switch and the relevant components are away from sources of electrical noise such as

radios, transmitters and broadband amplifiers

3. The switch is away from environments beyond recommend moisture

Desktop Installation

1. Install the switch on a level surface that can support the weight of the unit and the relevant

components.

2. Plug the switch with the power cable of adaptor and plug the power adaptor to the power outlet.

Wall-mount Installation

The switch may be standalone, or mounted on wall. Wall mounting facilitate to an orderly

installation when you are going to install series of networking devices.

Procedures to Wall-mount the switch:

1. Screw the two screws provided with your Switch into the wall. Use screws with 6 mm ~ 8 mm (0.24" ~

0.31") wide heads. Do not screw the screws all the way in to the wall; leave a small gap between the

head of the screw and the wall.

2. Align the holes on the back of the Switch with the screws on the wall. Hang the Switch on the screws.

Note:

The Switch should be wall-mounted horizontally. The Switch's side panels with ventilation slots

should not be facing up or down as this position is less safe.

Installing Network Cables

1. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X

functionality. Both straight-through or crossover cables can be used as the media to connect the

switch with PCs as well as other devices like switches, hubs or router.

2. Category 3, 4, 5 or 5e, 6 UTP/STP cable: To make a valid connection and obtain the optimal

performance, an appropriate cable that corresponds to different transmitting/receiving speed is

required. To choose a suitable cable, please refer to the following table.

Media Speed Wiring

10/100/1000 Mbps

copper

10 Mbps Category 3,4,5 UTP/STP 100 Mbps Category 5 UTP/STP 1000 Mbps Category 5e, 6 UTP/STP

Chapter 2 Basic Web Management Information

2.1 System login

1. Start your web browser.

2. Type “http://”and the IP address of the switch (for example, the default management IP address

is 192.168.1.1) in the Location or Address field. Press [ENTER].

3. The login screen appears. The default username and password are “admin”, so you can click

OK and go to the web configuration screen directly.

2.2 The Graphic User Interface

After the password authorization, the information page shows up. You may click on each folder on

the left column of each page to get access to each configuration page. The Graphic User Interface

is as follows:

–Click the menu items to open submenu links, and then click on a submenu link to open the

screen in the main window.

B –It shows the switch’s current link status. Green squares indicate the port link is up, while black

squares indicate the port link is down.

–Displays system information such as MAC address and firmware version.

In the navigation panel, click a main link to reveal a list of submenu links shown as the following:

Status Network Switching

MAC Address Table Security QoS

Management Diagnostics Maintenance

The following table describes the links in the navigation panel.

LINKS DESCRIPTION

Status

System Information

This link takes you to a screen that displays general system information.

Logging Message

Port

Link Aggregation

This sub-menu takes you to screens where you can view and setup system logs.

This link takes you to a screen where you can configure the port information.

This link takes you to a screen where you review the LAG Status and the LACP Information.

This link takes you to view the summary and per-port

LLDP Statistics

information for LLDP frames transmitted and received on the switch.

IGMP Snooping Statistics This link takes you to see the statistics information of IGMP.

Network

IP Address

IPv6 Address

Management VLAN

Time Settings

Switching

Port Setting

Mirror

Link Aggregation

VLAN Management

This link takes you to a screen where you can configure the IP information.

This link takes you to a screen where you can configure the IPv6 information.

This link takes you to view the entry of a VLAN from which a management station will be allowed to manage the device using TCP/IP (in-band via web manager or Telnet).

This link takes you to a screen where you can configure the switch’s time settings.

This link takes you to a screen where you can configure settings for individual switch ports.

This sub-menu takes you to screens where you can copy traffic from one port or ports to another port in order that you can examine the traffic from the first port without interference.

This link takes you to a screen where you can configure the trunk settings on a port.

This link takes you to a screen where you can configure the VLAN (IEEE 802.1Q) settings on a port.

EEE

Multicast

Jumbo Frame

STP

MAC Address Table

Static MAC Setting

Dynamic Address Setting

Dynamic Learned

Security

Storm Control

This link takes you to enable or disable port EEE(Energy Efficient Ethernet) function.

This link takes you to set multicast filtering and unknown multicast action.

This link takes you to a screen where you can configure the Jumbo Frame size.

This sub-menu takes you to screens where you can configure the STP to prevent network loops.

This link takes you to display and configure the Static MAC settings.

This link takes you to configure the Dynamic Address settings.

This link takes you to a screen where you can to view the Dynamic Address settings information.

This link takes you to a screen where you can limit the number of broadcast, multicast and unknown unicast and multicast packets the Switch receives per second on the ports.

Protected Ports

This link takes you to a screen to setting and revising the protected ports.

DoS

Access This link takes you a way to access the switch.

QoS

General

QoS Basic Mode

Rate Limit

Management

This link takes you to configure DoS setting to enable/disable DoS function and all others related in the sub-menu.

This link takes you to a screen where you can configure QoS through the sub-menu, including QoS Priorities, Port Settings, Queue Settings, CoS Mapping, DSCP Mapping, and IP Precedence Mapping. This link takes you to a screen where you can configure the QoS Basic Mode through the sub-menu, including the Global Settings and the Port Settings. This link takes you to a screen where you can configure the QoS Rate Limit through the sub-menu, including Ingress Bandwidth Control, Egress Bandwidth Control, and Egress Queue.

LLDP

SNMP

Diagnostics

Cable Diagnostics

Ping Test This link takes you to a screen where you can do Ping test.

Ping6 Test This link takes you to a screen where you can do Ping6 test.

Logging Setting

Factory Default This link takes you back to the factory default configuration.

Reboot Switch

Maintenance

Backup Manager

Upgrade Manager

This link takes you to a screen where you can set and revise the LLDP.

This link takes you to a screen where you can set and revise the SNMP.

This link takes you to a screen where you can do Copper test on each port.

This link takes you to a screen where you can configure log settings.

This link takes you to a screen where you can reboot the switch.

This link takes you to a screen where you can backup the settings you have made.

This link takes you to a screen where you can upgrade the switch settings.

Configuration Manager

Account Manager

This link takes you to a screen where you can save all the configurations you have made to the switch.

This link takes you to a screen where you can change the web configuration login account.

2.3 SAVE LOGOUT REBOOT

2.3.1

2.3.1.1

Click SAVE-> Save Configuration to FLASH to view the screen as shown next. This page allow

user to copy running configuration, startup configuration or backup configuration to startup

configuration or backup configuration.

SAVE

Saving running configurations

Configuration Manager Page

Configuration Manager Fields

LABEL DESCRIPTION Source File

Destination File

Select upgrade method

 Running configuration: Running configuration file  Startup configuration: Startup configuration file

Select Upgrade Type  Startup Configuration: Startup configuration file

2.3.2 LOGOUT

Click Logout to exit the web configurator. You have to log in with your password again after you log

out, if there is any. This is recommended after you finish a management session for security

reasons.

2.3.3 REBOOT

Reboot allows you to restart the switch without physically turning the power off.

Follow the steps below to reboot the switch.

1. Click REBOOT to view the screen as shown next.

2. Click Reboot button, then the following interface pops up.

3. When it finished, the switch has been restarted.

Chapter 3 Web Management Configuration

3.1 Status

Use the Status pages to view system information and status.

3.1.1 System Information

In the navigation panel, click Status > System Information to display the screen as shown below.

This page allow user to configure and browse some system information such as MAC address, IP

address, loader version and firmware version and so on.

With “Edit”button in the table，user could configure the field value.

LABEL DESCRIPTION

System Name

System Location

System Contact

System name of the switch. This name will also use as CLI prefix of each line. (“Switch>” or “Switch#”)

System location of the switch.

System contact of the switch.

3.1.2 Logging Message

Use this screen to display the switch logs. Click Status > Logging Message in the navigation panel

to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Select the log message source to show on the table

Target

Severity Category

 Buffered: Logs store in the device buffer.

 FLASH: Logs store in the device flash.

Select severity to filter log messages. Select category to filter log messages.

3.1.3 Port

The Port configuration page displays port summary and status information.

3.1.3.1 Port Counters

Use this screen to display the Switch port statistics. Click Status->Port > Port Counters to view the

screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port

This identifies the Ethernet port.

3.1.3.2 Bandwidth Utilization

The following table describes the labels in this screen.

LABEL DESCRIPTION Refresh Period

IFG

Refresh the web page every period of seconds Inter frame gap in bandwidth calculation

 Enable: Add inter frame gap to bandwidth calculation  Disable: Remove inter frame gap to bandwidth

calculation

3.1.4 Link Aggregation

Click Status > Link Aggregation in the navigation panel to view the screen as shown below.

The following table describes the labels in this screen.

LAG Status Field:

LABEL DESCRIPTION

LAG Name

Type

Link State Active Member Standby Member

LAG Name LAG port description The type of the LAG  Static: The groups of ports assigned to a static LAG are always active

members.

 LACP: The groups of ports assigned to dynamic LAG are candidate

ports. LACP determines which candidate ports are active member ports.

LAG port link status

Active member ports of the LAG

Inactive or candidate member ports of the LAG

LACP Status Field:

LABEL DESCRIPTION

LAG Port

PartnerSysId

PnKey

AtKey

Sel

Mux

Receiv

PrdTx

AtState

PnState

LAG Name Member port name. The system ID of link partner. This field would be updated when the port receives LACP PDU from link partner. Port key of partner. This field would be updated when the port receives LACP PDU from link partner. Port key of actor. The key is designed to be the same as trunk ID. LACP selection logic status of the port. “S” means selected, “U” means unselected, and “D” means standby. LACP mux state machine status of the port. “DETACH” means the port is in detach state, “WAIT” means waiting state, “ATTACH” means attach state, “CLLCT” LACP receive state machine status of the port. “INIT” means the port is in initialize state, “PORTds” means port disabled state, “EXPR” means expired state, “LACPds” means LACP disabled state, “DFLT” means defaulted state, “CRRNT” means current state. LACP periodic transmission state machine status of the port. “no PRD” means the port is in no periodic state, “FstPRD” means fast periodic state, “SlwPRD” means slow periodic state, “PrdTX” means periodic TX state. The actor state field of LACP PDU description. The field from left to right describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and “Expired”. The contents could be true or false. If the contents are false, the web shows “_”; if the contents are true, the web shows “A”, “T”, “G”, “S”, “C”, “D”, “F” and “E” for each content respectively. The partner state field of LACP PDU description. The field from left to right describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and “Expired”. The contents could be true or false. If the contents are false, the web shows “_”; if the contents are true, the web shows “A”, “T”, “G”, “S”, “C”, “D”, “F” and “E” for each content respectively.

3.1.5 LLCP Statistics

Click Status > LLDP Statistics.

displays summary and per-port information for LLDP frames transmitted and received on the switch.

The Link Layer Discovery Protocol (LLDP) Statistics page

The following table describes the labels in this screen.

LABEL DESCRIPTION

The number of times the complete set of information advertised by a

Insertions

particular MAC Service Access Point (MSAP) has been inserted into tables associated with the remote systems.

Deletions

The number of times the complete set of information advertised by MSAP has been deleted from tables associated with the remote systems. The number of times the complete set of information advertised by MSAP

Drops

could not be entered into tables associated with the remote systems because of insufficient resources. The number of times the complete set of information advertised by MSAP

Age Outs

has been deleted from tables associated with the remote systems because the information timeliness interval has expired.

Port TX Frames Total RX Frames Total RX Frames Discarded RX Frames Errors RX TLVs Discarded RX TLVs Unrecognized RX Ageouts Total

Interface or port number.

Number of LLDP frames transmitted on the corresponding port.

Number of LLDP frames received by this LLDP agent on the corresponding port, while the LLDP agent is enabled. Number of LLDP frames discarded for any reason by the LLDP agent on the corresponding port. Number of invalid LLDP frames received by the LLDP agent on the corresponding port, while the LLDP agent is enabled. Number of TLVs of LLDP frames discarded for any reason by the LLDP agent on the corresponding port. Number of TLVs of LLDP frames that are unrecognized while the LLDP agent is enabled

Number of age out LLDP frames.

3.1.6 IGMP Snooping Statistics

Click Status > IGMP Snooping Statistics in the navigation panel to view the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Total RX Valid RX Invalid RX Other RX Leave RX Report RX General Query RX Special Group Query RX

This field displays the total amount of RX

This field displays the total amount of valid RX.

This field displays the total amount of invalid RX.

This field displays the total amount of other RX.

This field displays the total amount of leave RX.

This field displays the total amount of report RX.

This field displays the total amount of general query RX.

This field displays the total amount of Special Group query RX.

Special Group & Source

This field displays the total amount of Special Group & Source query RX.

Query RX Leave TX Report TX General Query TX Special Group Query TX

This field displays the total amount of leave TX.

This field displays the total amount of report TX.

This field displays the total amount of general query TX.

This field displays the total amount of Special Group query TX.

Special Group & Source

This field displays the total amount of Special Group & Source query TX.

Query TX

3.2 Network

Use the Network pages to configure settings for the switch network interface and how the switch

connects to a remote server to get services.

3.2.1 IP Address

Use the IP Setting screen to configure the switch IP address and the default gateway device. The

gateway field specifies the IP address of the gateway (next hop) for outgoing traffic.

The switch needs an IP address for it to be managed over the network. The factory default IP

address is 192.168.1.1. The subnet mask specifies the network number portion of an IP address.

The factory default subnet mask is 255.255.255.0.

Click Network > IP Address in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Mode

IP Address

Select the mode of network connection

 Static: Enable static IP address.  DHCP: Enable DHCP to obtain IP information from a DHCP server on the

network.

Enter the IP address of your switch in dotted decimal notation for example

192.168.1.1. If static mode is enabled, enter IP address in this field.

Subnet Mask

Gateway

DNS Server 1 DNS Server 2

Apply

Enter the IP subnet mask of your switch in dotted decimal notation for example 255.255.255.0. If static mode is enabled, enter subnet mask in this field. Enter the IP address of the gateway in dotted decimal notation. If static mode is enabled, enter gateway address in this field. If static mode is enabled, enter primary DNS server address in this field.

If static mode is enabled, enter secondary DNS server address in this field. Click Apply to save your changes to the switch.

3.2.2 IPv6 Address

Click Network> IPv6 Address in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

IPv6 Information Filed:

LABEL DESCRIPTION Auto

Configuration

IPv6 Address

Gateway

DHCPv6 Client

Select Enable or Disable this function.

Enter the IPv6 address of your switch. If auto configuration mode is disabled, enter IPv6 address in this field. Enter the IP address of the gateway in dotted decimal notation. If auto configuration mode is disabled, enter IPv6 gateway address in this field. DHCPv6 client state.

 Enable: Enable DHCPv6 client function.  Disable: Disable DHCPv6 client function

Apply

Click Apply to save your changes to the switch.

IPv6 Address Setting Filed:

LABEL Auto Configuration IPv6 In Use

Address IPv6 In Use

Router IPv6 Static Address IPv6 Static router DHCPv6 Client

DESCRIPTION It displays whether the auto configuration function is opened or not.

It displays the in use address information of IPv6.

It displays the in use router information of IPv6.

It displays the static address of IPv6.

It displays the static router of IPv6.

It displays the DHCPv6 Client Status.

3.2.3 Management VLAN

Click Network> Management VLAN in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Management

VLAN

This allows the entry of a VLAN from which a management station will be allowed to manage the device using TCP/IP (in-band via web manager or Telnet). Management stations that are on VLANs other than the one selected here will not be able to manage the Switch. The default management VLAN is VLAN 1.

3.2.4 Time Settings

Click Network> Time Settings in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Enable SNTP Manual Time

Time Zone Daylight Saving

Time

Select the radio button to enable or disable using SNTP server. Specify static time. Select a time zone Select the mode of daylight saving time.

 Disable: Disable daylight saving time.  Recurring: Using recurring mode of daylight saving time.  Non-Recurring: Using non-recurring mode of daylight saving time.  USA: Using daylight saving time in the United States that starts on the

second Sunday of March and ends on the first Sunday of November

 European: Using daylight saving time in the Europe that starts on the

last Sunday

Daylight Saving

Specify the adjust offset of daylight saving time.

Time Offset Recurring From

Specify the starting time of recurring daylight saving time. This field available when selecting “Recurring” mode.

Recurring To

Specify the ending time of recurring daylight saving time. This field available when selecting “Recurring” mode.

Non-recurring From

Specify the starting time of non-recurring daylight saving time. This field available when selecting “Non-Recurring” mode.

Non recurring To

Apply

Specify the ending time of recurring daylight saving time. This field available when selecting “Non-Recurring” mode.

Click Apply to save your changes to the switch.

3.2.5 SNTP Settings

Click Network> Time Settings in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION SNTP/NTP

Server Address Server port

Input IP address or hostname of time server.

Input time server port number. Default is 123.

3.3 Switching

Use the Switching pages to configure settings for the switch ports, trunk, Layer 2 protocols and

other switch features.

3.3.1 Port Setting

This page allow user to configure switch port settings and show port current status.

Click Switching > Port Setting in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port Select

Enabled

Select the port(s) from the list box that you will change the port settings for. Select Enable from the drop-down box to enable a port. The factory

default for all ports is enabled. A port must be enabled for data transmission to occur. Select Disable to not use a port.

Speed

Port speed capabilities:

 Auto: Auto speed with all capabilities.  Auto-10M: Auto speed with 10M ability only.  Auto-100M: Auto speed with 100M ability only.  Auto-1000M: Auto speed with 1000M ability only.  Auto-10/100M: Auto speed with 10/100M ability.  10M: Force speed with 10M ability.  100M: Force speed with 100M ability.  1000M: Force speed with 1000M ability.

Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends support. When auto-negotiation is turned on, a port on the switch negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the switch determines the connection speed by detecting the signal on the cable and using half duplex mode. When the switch’s auto-negotiation is

turned off, a port uses the pre-configured

speed and duplex mode when making a connection, thus requiring you to make sure that the settings of the peer port are the same in order to connect.

Duplex

Port duplex capabilities:

 Auto: Auto duplex with all capabilities.  Half: Auto speed with 10/100M ability only.  Full: Auto speed with 10/100/1000M ability only.

Flow Control

Apply Flow Control

Config Flow Control

Status

A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses. Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later. Select “Enabled” to enable it. Or select “Disabled” to disable it.

Click Apply to save your changes to the switch. The Config column displays if Flow Control has been configured to be

turned On or Off for the port. The column displays the port’s current Flow Control status.

3.3.2 Port Mirroring

The Mirror function copies all the packets that are transmitted by the source port to the destination

port. It allows administrators to analyze and monitor the traffic of the monitored ports.

The Mirror Configuration steps are as follows:

Click Switching > Mirror > Local Mirror Setting in the navigation panel to display the screen as

shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Session ID

Monitor session state Destination Port

Select mirror session ID Select mirror session state : port-base mirror or disable

Select mirror session destination port

Allow-ingress

Sniffer Rx ports

Sniffer Tx ports

Apply

Select destination port ingress state.

Select mirror session source rx ports only select portbased-enabled state, this field is valid only when “Monitor session state” is port-base mirror

Select mirror session source tx ports only select portbased-enabled state, this field is valid only when “Monitor session state” is port-base mirror

Click Apply to save your changes to the switch.

3.3.3 Link Aggregation

3.3.3.1 LAG Setting

Click Switching> Link Aggregation > LAG Setting in the navigation panel to view the screen as

shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION Load Balance

Algorithm

Apply

Select the LAG load balance distribution algorithm  MAC Address: Based on source and destination MAC address for all

packets

 IP/MAC Address: Based on source and destination IP addresses for IP

packet, and source and destination MAC address for non-IP packets.

Click Apply to save your changes to the switch.

3.3.3.2 LAG Management

Click Switching> Link Aggregation > LAG Management in the navigation panel to view the

screen as shown below.

The following table describes the labels in this screen.

LAG Management Setting Field:

LABEL DESCRIPTION LAG Name

Type

Select the LAG to be configured. LAG port description Select the type of the LAG

 Static: The group of ports assigned to a static LAG are always active

members.

 LACP: The group of ports assigned to dynamic LAG are candidate ports.

LACP determines which candidate ports are active member ports.

Ports

Select the trunk member ports in this field. There are the following limitations for choosing the member ports:

 All ports in a LAG must be of the same media type.  To add a port to the LAG, it cannot belong to any VLAN except the

default VLAN.

 Ports in a LAG must not be assigned to another LAG.  Ports in a LAG must not be a mirroring port.  No more than eight ports are assigned to a LAG.  When a port is added to a LAG, the configuration of the LAG is applied

to the port. When the port is removed from the LAG, its original configuration is reapplied.

 There could be at most 8 member ports in a trunk.

Apply

Click Apply to save your changes to the switch.

LAG Management Information Field:

LABEL DESCRIPTION LAG

LAG Name

Name Type

LAG port description Select the type of the LAG

 Static: The group of ports assigned to a static LAG are always active

members.

 LACP: The group of ports assigned to dynamic LAG are candidate ports.

LACP determines which candidate ports are active member ports.

Link State Active

LAG port link status Active member ports of the LAG

Member Standby

Inactive or candidate member ports of the LAG

Member Modify

Click “Edit” button to edit LAG.

3.3.3.3 LAG Port Settings

Click Switching> Link Aggregation > LAG Port settings in the navigation panel to view the

screen as shown below.

The following table describes the labels in this screen.

LAG Port Setting Field:

LABEL DESCRIPTION LAG Name

Enabled

Select the LAG to be configured. LAG port description Port admin state.

 Enabled: Enable the port.  Disabled: Disable the port.

Speed

Port speed capabilities.

 Auto: Auto speed with all capabilities  Auto-10M: Auto speed with 10M ability only  Auto-100M: Auto speed with 100M ability only

 Auto-1000M: Auto speed with 1000M ability only  Auto-10M/100M: Auto speed with 10M/100M  abilities  10M: Force speed with 10M ability  100M: Force speed with 100M ability  1000M: Force speed with 1000M ability

Flow Control

Apply

LAG Port Status Field:

LABEL DESCRIPTION LAG Description

Port Type Enable Link Status Speed Duplex Flow Control

Config Flow Control Status

Port flow control.

 Enabled: Enable flow control ability.  Disabled: Disable flow control ability.

Click Apply to save your changes to the switch.

LAG Name LAG port description Member port media type LAG port admin state LAG port link status Current LAG port speed Current LAG port duplex LAG port flow control configuration

Current LAG port flow control state

3.3.3.4 LACP Setting

Click Switching > Link Aggregation > LACP Setting to display the screen shown next.

LACP: Link Aggregation Control Protocol.

The following table describes the labels in this screen.

LAG Setting Field:

LABEL DESCRIPTION System Priority

Apply

Configure the system priority of LACP. This decides the system priority field in LACP PDU.

Click Apply to save your changes to the Switch.

LAG Information Field:

LABEL DESCRIPTION System Priority

LACP system priority value

3.3.3.5 LACP Port Setting

Click Switching > Link Aggregation > LACP Port Setting to display the screen shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port Select

Priority Timeout

Apply

Select one or multiple ports to configure Enter the LACP priority value of the port Select the periodic transmissions of LACP PDUs.

 Long: Transmit LACP PDU with slow periodic (30s).  Short: Transmit LACPP DU with fast periodic (1s).

Click Apply to save your changes to the Switch.

3.3.4 VLAN Management

A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common set of

requirements that communicate as if they were attached to the same broadcast domain, regardless

of their physical location. A VLAN has the same attributes as a physical local area network (LAN),

but it allows for end stations to be grouped together even if they are not located on the same

network switch. VLAN membership can be configured through software instead of physically

relocating devices or connections.

3.3.4.1 Create VLAN

This page allow user to add, edit or delete VLAN settings.

Click Switching > VLAN Management > Create VLAN to access this screen below to configure

and view VLAN parameters for the switch.

The following table describes the related labels in this screen.

LABEL DESCRIPTION VLAN LIST VLAN Action VLAN Name Prefix Apply

Specify the VLAN list to apply the operation (add/delete/edit). Select the action of operation, To add/delete/edit the VLANs Specify the prefix string of the VLAN name for new created VLANs. This

field is only available with add action. Click Apply to save your changes to the Switch.

3.3.4.2 Interface Settings

This page allow user to configure VLAN Interface related settings.

Click Switching > VLAN Management > Interface Settings to access the screen below.

A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port so that

the frames are forwarded to the VLAN group that the tag defines.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port Select

Interface VLAN Mode

PVID

Accepted Type

Ingress Filtering Apply

Select specified port or all ports to configure Interface Settings. Select the VLAN mode of the interface.

 Hybrid: Support all functions as defined in IEEE 802.1Q

specification.

 Access: Accepts only untagged frames and join an untagged VLAN.  Trunk: An untagged member of one VLAN at most, and is a tagged

member of zero or more VLANs. Specify the port-based VLAN ID (1-4094). It’s only available with Hybrid and Trunk mode.

Specify the acceptable-frame-type of the specified interfaces. It’s only available with Hybrid mode.

Specify the status of ingress filtering. It’s only available with Hybrid mode. Click Apply to save your changes to the Switch.

3.3.4.3 Port to VLAN

This page allow user to configure VLAN port setting.

Click Switching > VLAN Management > Port to VLAN to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION VLAN ID

Interface VLAN Mode

Membership

PVID

Select specified VLAN ID to configure Port to VLAN Settings. Display the interface VLAN mode of this port.

Select the membership for this port with the specified VLAN ID.

 Forbidden: Specify the port is forbidden in the VLAN.  Excluded: Specify the port is excluded in the VLAN.  Tagged: Specify the port is tagged in the VLAN.

 Untagged: Specify the port is untagged in the VLAN.

Check this checkbox to select the VLAN ID to be the port-based VLAN ID for this port.

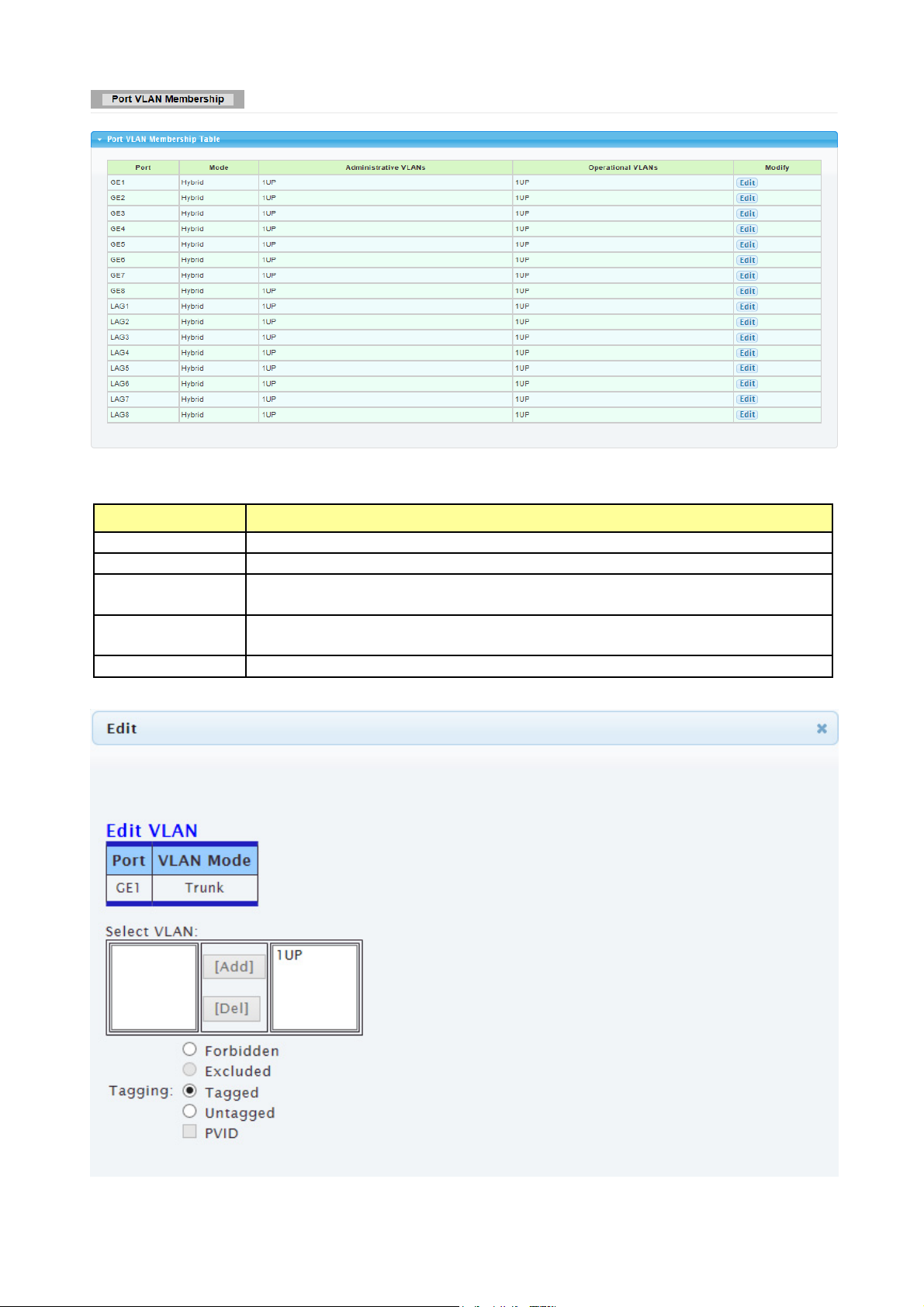

3.3.4.4 Port VLAN Membership

This page allow user to configure Port VLAN Membership setting.

Click Switching > VLAN Management > Port VLAN Membership to access the screen below.

Use the Port VLAN Membership page to view membership information. Click “Edit” to edit selected

port to modify the membership.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port

Mode Administrative

Display the interface of this port entry. Display the interface VLAN mode of this port. Display the administrative VLAN list of this port.

VLANs Operational

Display the operational VLAN list of this port.

VLANs Modify

Click the `Edit` Button to edit the VLAN membership of this port.

The following table describes the labels in “Edit” screen.

LABEL DESCRIPTION Select VLAN

Tagging PVID

Select the left available VLANs to add or the right used VLANs to delete for this port. Select the VLAN membership of the specified left VLANs for this port.

Check this checkbox to select the VLAN ID to be the port-based VLAN ID for this port.

3.3.4.5 Voice VLAN

This page allow user to configure Voice VLAN Properties setting.

Click Switching > VLAN Management > Voice VLAN > Properties to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION State

Voice VLAN ID Cos/802.1p 1p remark Aging Time

Select Voice VLAN state Enable –Voice VLAN is enabled Disable –Voice VLAN is disabled

Select Voice VLAN ID Select a value of vpt that will be advertised by LLDP-MED Select 1p remark state Select value of aging time

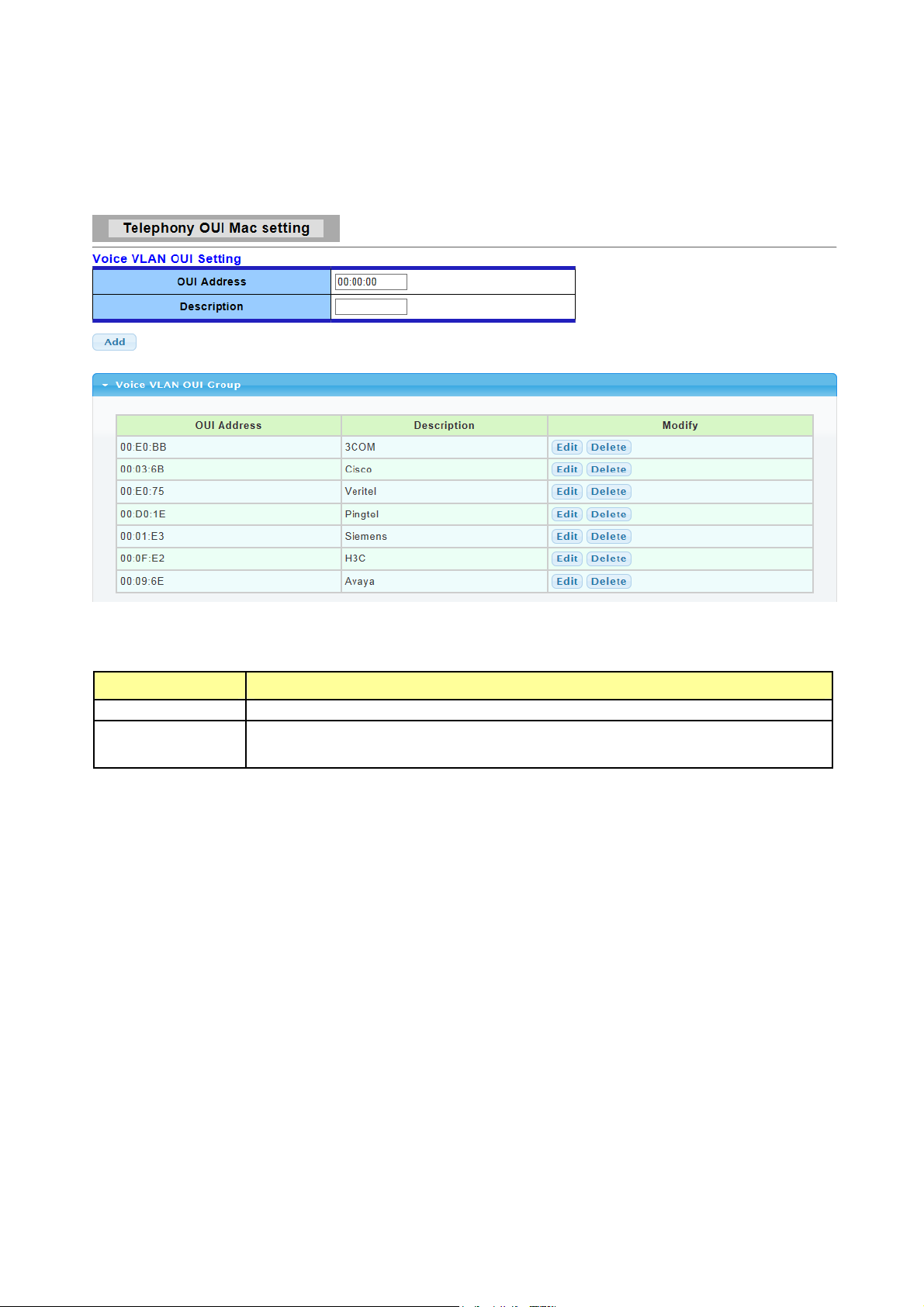

3.3.4.6 Telephony OUI Mac setting

This page allow user to configure Voice VLAN Properties setting.

Click Switching > VLAN Management > Voice VLAN > Telephony OUI Mac setting to access

the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION OUI Address

Description

Select oui address description of the specified MAC address to the voice VLAN OUI

table

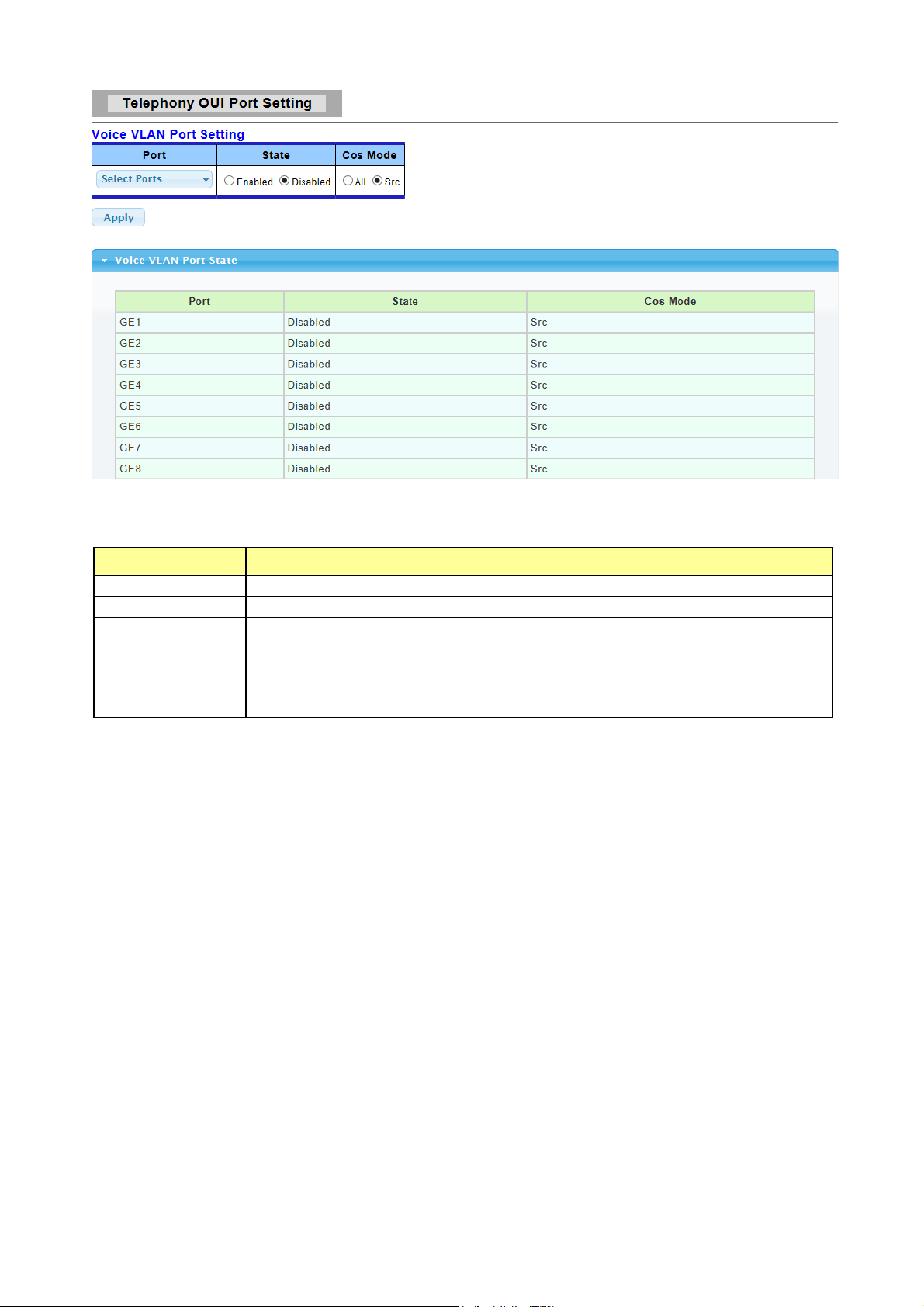

3.3.4.7 Telephony OUI Port Setting

This page allow user to configure Voice VLAN Properties setting.

Click Switching > VLAN Management > Voice VLAN > Telephony OUI Port Setting

the screen below.

to access

The following table describes the labels in this screen.

LABEL DESCRIPTION Port

State Cos Mode

Select one or multiple ports to configure Ingress/Egress type value Select port cos mode

Src QoS attributes are applied to packets with OUIs in the source MAC address. All QoS attributes are applied to packets that are classified to the Voice VLAN.

3.3.5 EEE

3.3.5.1 SVLAN Setting

This page allow user to enable or disable port EEE (Energy Efficient Ethernet) function.

Click Switching > EEE to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

State

Apply

Select one or multiple ports to configure

Port EEE function.

 Enabled: Enable EEE function  Disabled: Disable EEE function

Click Apply to save your changes to the switch.

3.3.6 Multicast

3.3.6.1 Properties

Click Switching > Multicast > Properties in the navigation panel to bring up the screen as shown

next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Unknown Multicast Action

Set the unknown multicast action

 Drop: drop the unknown multicast data.  Flood: flood the unknown multicast data.  Router port: forward the unknown multicast data to router port.

IPv4 Forward Method

Set the ipv4 multicast forward method.

 MAC: forward method dmac+vid.  Src-Dst-Ip: forward method dip+sip.

Apply

Click Apply to save your changes to the switch.

3.3.6.2 IGMP Snooping

Use the Switching pages to configure settings for the switch network interface and how the switch

connects to a remote server to get services.

3.3.6.2.1 IGMP Setting

Click Switching > Multicast > IGMP Snooping > IGMP Setting to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION IGMP Snooping

Status

Set the enabling status of IGMP functionality

 Enable: Enable IGMP Snooping.  Disable: Disable IGMP Snooping.

IGMP Snooping Version

Set the igmp snooping version

 v2: Only support process igmp v2 packet.  v3: Support v3 basic and v2.

IGMP Snooping Report Suppression

Apply

Entry No

VLAN ID IGMP Snooping

Operation Status

Set the enabling status of IGMP v2 report suppression

 Enable: Enable IGMP Snooping v2 report suppression.  Disable: Disable IGMP Snooping v2 report suppression.

Click Apply to save your changes to the switch.

The IGMP entry number.

The IGMP entry VLAN ID The enable status of IGMP VLAN functionality

 Enabled: when IGMP Snooping enable and IGMP VLAN enable and

multicast filtering enable.

 Disabled: when IGMP Snooping disable or IGMP VLAN disable or

multicast filtering disable.

Router Ports Auto Learn

Set the enabling status of IGMP router port learning  Enable: Enable learning router port by query and PIM, DVRMP.

 Disable: Disable learning dynamic router port.

Robustness Variable Query Interval

Query Max Response Interval

Last Member Query count

Last Member Query Interval Immediate leave

Edit

The Robustness Variable allows tuning for the expected packet loss on a subnet. The interval of querier send general query

In Membership Query Messages, it specifies the maximum allowed time before sending a responding report in units of 1/10 second.

The count that Querier-switch sends Group-Specific Queries when it receives a Leave Group message for a group.

The interval that Querier-switch sends Group-Specific Queries when it receives a Leave Group message for a group. Leave the group when receive IGMP Leave message.

 Enable: Enable Fastleave.

 Disable: Disable Fastleave.

Click Edit to edit the IGMP Snooping Table.

The following table describes the labels in “Edit” screen.

LABEL DESCRIPTION VLAN ID

IGMP Snooping

The IGMP VLAN ID

The admin enable status of IGMP VLAN functionality

Status

Router Ports Auto Learn

Robustness Variable Query Interval

 Enable: IGMP VLAN enable.  Disable: IGMP VLAN disable.

Set the enabling status of IGMP router port learning

 Enable: Enable learning router port by query and PIM, DVRMP.  Disable: Disable learning dynamic router port.

The Robustness Variable allows tuning for the expected packet loss on a subnet. The admin query interval

Oper Query Interval

Query Max Response Interval

Oper Query Max Response Interval

Last Member Query count Oper Last Member Query count Last Member Query Interval Oper Last Member Query Interval

Immediate leave

Cancel Submit

The operation query interval

The admin query max response interval

The operating query max response interval

The admin last member query count

The operating last member query count

The admin last member query interval.

The operation last member query interval.

Leave the group when receive IGMP Leave message.

 Enable: Enable Fastleave.

 Disable: Disable Fastleave.

Click Cancel to cancel the change to switch. Click Submit to submit the change to switch.

3.3.6.2.2 IGMP Querier Setting

This page allow user to configure querier settings on specific VLAN of IGMP Snooping.

Click Switching > Multicast > IGMP Snooping > IGMP Querier Setting to access the screen

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION VLAN ID

Querier State

Select the VLANs to configure. Set the enabling status of IGMP Querier Election on the chose VLANs

 Enable: Enable IGMP Querier.  Disable: Disable IGMP Querier.

Snooping State

Set the query version of IGMP Querier Election on the chose VLANs

 v2: Querier version 2.  v3: Querier version 3.

Apply

Click Apply to save your changes to the switch.

3.3.6.2.3 IGMP Static Group

This page allow user to set static group for IGMP.

Click Switching > Multicast > IGMP Snooping > IGMP Static Group to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION VLAN ID

Select the VLANs to configure.

Group IP Address

Member Ports

The IP address of this group.

The member ports of this group.

Add

Edit

Delete

The following table describes the labels in “Edit” screen.

LABEL DESCRIPTION VLAN ID

Click Add to add IGMP Group to the switch.

Click Edit to edit the IGMP Static Group.

Click Delete to edit the IGMP Static Group.

The VLAN ID of static group.

Group Address Include Ports

Select Cancel

Submit

The group address The static member ports

Click Cancel to cancel the change to switch. Click Submit to submit the change to switch.

3.3.6.2.4 IGMP Group Table

This page allow user to browse IGMP group information of IGMP Snooping.

Click Switching > Multicast > IGMP Snooping > IGMP Group Table to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION VLAN ID

The VLAN ID of this group.

Group IP Address Member Port Type Life(Sec)

The group IP address of this group. The member ports of this group. The type of this group. Static or Dynamic. The life time of this group.

3.3.6.2.4 IGMP Router Table

This page allow user to browse IGMP group information of IGMP Snooping.

Click Switching > Multicast > IGMP Snooping > IGMP Router Table to access the screen below.

The following table describes the labels in this screen.

LABEL DESCRIPTION VLAN ID

Port Expiry Time(Sec)

The VLAN ID of this group.

The member ports of this group. The expiry time of this group.

3.3.7 Jumbo Frame

This page allow user to configure switch port jumbo frame settings.

Click Switching > Jumbo Frame in the navigation panel to bring up the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION Jumbo Frame

(Bytes) Apply

Jumbo frame size. The valid range is 1526 bytes – 9216 bytes.

Click Apply to save any changes to the switch.

3.3.8 STP

The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any

bridged Ethernet local area network.

3.3.8.1 STP Global Setting

Use the SPT Global Setting screen to activate one of the STP modes on the switch.

Click Switching > STP > STP Global Setting.

The following table describes the labels in this screen.

LABEL DESCRIPTION Enabled

BPDU Forward

Path Cost

Specify the STP status to be enabled/disabled on the switch. Specify the BPDU forwarding action when the global STP is disabled.

Specify the Cost Method of STP.

Method

Force Version

Set the operating mode of STP:

 STP-Compatible: IEEE 802.1D STP operation.  RSTP-Operation: IEEE 802.1w operation.

Apply

Click Apply to save your changes to the switch.

3.3.8.2 STP Port Setting

This page allow user to configure general setting of STP port and browser CIST port status.

Click Switching > STP > STP Port Setting.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port Select

Select the port(s) to change spanning tree protocol settings for. Path cost is the cost of transmitting a frame on to a LAN through that port. It is

Path Cost

recommended to assign this value according to the speed of the bridge. The slower the media, the higher the cost. Entering 0 means the switch will automatically assign a value.

Edge Port

Set the edge port configuration:

 No: Force to false state ( as link to a bridge).  Yes: Force to true state ( as link to a host).

Set the Point-to-Point port configuration:

P2P MAC

 No: Force to false state.  Yes: Force to true state.

Force to try to use the new MST/RST BPDUs, and hence to test the hypothesis

Migrate

that all legacy systems that do not understand the new BPDU formats have been removed from the LAN segment on the port(s).

Apply

Click Apply to save your changes to the switch.

3.3.8.3 STP Bridge Setting

Click Switching > STP > STP Bridge Setting.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Priority

Max Hops

Forward Delay

Max Age

Tx Hold Count

Hello Time

Apply

Set the STP Bridge Priority in the instance.

Set the value of the maximum number of hops in the region.

Set the delay time an interface takes to converge from blocking state to forwarding state.

Set the time any switch should wait before trying to change the STP topology after unhearing Hello BPUD.

Set the Transmit Hold Count used to limit BPDU transmission rate.

Set the interval between periodic transmissions of BPDU by Designated Ports.

Click Apply to save your changes to the switch.

3.3.8.4 STP Port Advanced (CIST Port) Setting

This page allow user to configure gener setting of STP CIST port and browser CIST port status.

Click Switching > STP > STP Port Advanced Setting.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port Select

Priority

Apply

Select the port list to specify which ports should apply this setting.

Set the Port Priority to the selected ports in the CIST instance.

Click Apply to save your changes to the switch.

3.3.8.5 STP Statistics

This page allow user to browser general statistics of STP.

Click Switching > STP > STP Statistics.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

Configuration BDPUs

Received

TCN BDPUs Received

Configuration BDPUs Transmitted

TCN BDPUs Transmitted

It displays the port number.

It displays the configuration BDPUs received.

It displays the TCN BDPUs received.

It displays the configuration BDPUs transmitted.

It displays the Multiple Spanning Tree Protocol (MSTP) BDPUs transmitted.

3.4 MAC Address Table

Use the MAC Address Table pages to show dynamic MAC table and configure settings for static

MAC entries.

3.4.1 Static MAC Setting

Click Status > MAC Address Table > Static MAC Setting in the navigation panel to bring up the

screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

MAC Address

VLAN

Enter the MAC address in valid MAC address format, that is, six hexadecimal character pairs. Static MAC addresses do not age out. Enter the VLAN identification number the MAC address belongs to. There are two types of MAC entry:

Type

 Unicast: add a unicast MAC entry.  Multicast: add a multicast MAC entry.

Port

Add

If Type is unicast, select the port number of the MAC entry; If Type is multicast, select the port list of the MAC entry.

Click Add to add any port into the static MAC address table.

No.

Delete

This is the index number for the MAC address forwarding entries.

To delete any selected MAC address entries.

3.4.2 Dynamic Address Setting

Click Status > MAC Address Table > Dynamic Address Setting in the navigation panel to bring

up the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Aging Time

Apply

<10-630> The Dynamic MAC address aging out value

Click Apply to save your changes to the switch.

3.4.3 Dynamic Learned

Click Status > MAC Address Table > Dynamic Learned in the navigation panel to bring up the

screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Select the port number to show or clear dynamic MAC entries. If not select

Port

any port, VLAN and MAC address, the whole dynamic MAC table will be displayed or cleared. This is the VLAN group to which the MAC address belongs. Select the

VLAN

VLAN to show or clear dynamic MAC entries. If not select any port, VLAN and MAC address, the whole dynamic MAC table will be displayed or cleared. This field displays the MAC address that will be forwarded. Select the MAC

MAC Address

address to show or clear dynamic MAC entries. If not select any port, VLAN and MAC address, the whole dynamic MAC table will be displayed or cleared.

View

Clear

Click the View button to display the logs according the criteria specified in the fields above. Click this button to remove any dynamically learned MAC address forwarding entries. This shows whether the MAC address is Dynamic (learned by the Switch)

Type

or Static Unicast (manually entered in the Static MAC Forwarding screen).

Port

This field displays the port where the MAC address will be forwarded.

Add to Static MAC table

Click this button to add any port into the static MAC table.

3.5 Security

Use the Security pages to configure settings for the switch security features.

3.5.1 Storm Control

3.5.1.1 Global Setting

Click Security > Storm Control > Global Setting to display the configuration screen as shown.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Mode

Preamble & IFG

Apply

Select the mode of storm control

 pps: storm control rate calculates by packet-based  bps: storm control rate calculates by octet-based

Select the rate calculates w/o preamble & IFG (20 bytes)  Excluded: exclude preamble & IFG (20 bytes) when count ingress storm

control rate.

 Included: include preamble & IFG (20 bytes) when count ingress storm

control rate.

Click Apply to save your changes to the Switch.

3.5.1.2 Port Setting

Click Security > Storm Control > Port Setting to display the configuration screen as shown.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port State

Action

Storm Type

Rate

Apply

Select the setting ports

Select the state of setting

 Disable: Disable the storm control function.  Enable: Enable the storm control function.

Select the state of setting

 Drop: Packets exceed storm control rate will be dropped.  Shutdown: Port exceed storm control rate will be shutdown.

Select the type of storm control Broadcast: Broadcast packet

 Unknown Unicast: Unknown unicast packet  Unknown Multicast: Unknown multicast packet

Value of storm control rate, Unit: pps (packet per-second) or Kbps (Kbits per-second) depends on global mode setting. The range is from 0 to 1000000.

Click Apply to save your changes to the Switch.

3.5.2 Protected Ports

This page allow user to configure protected port setting to prevent the selected ports from

communicate with each other.

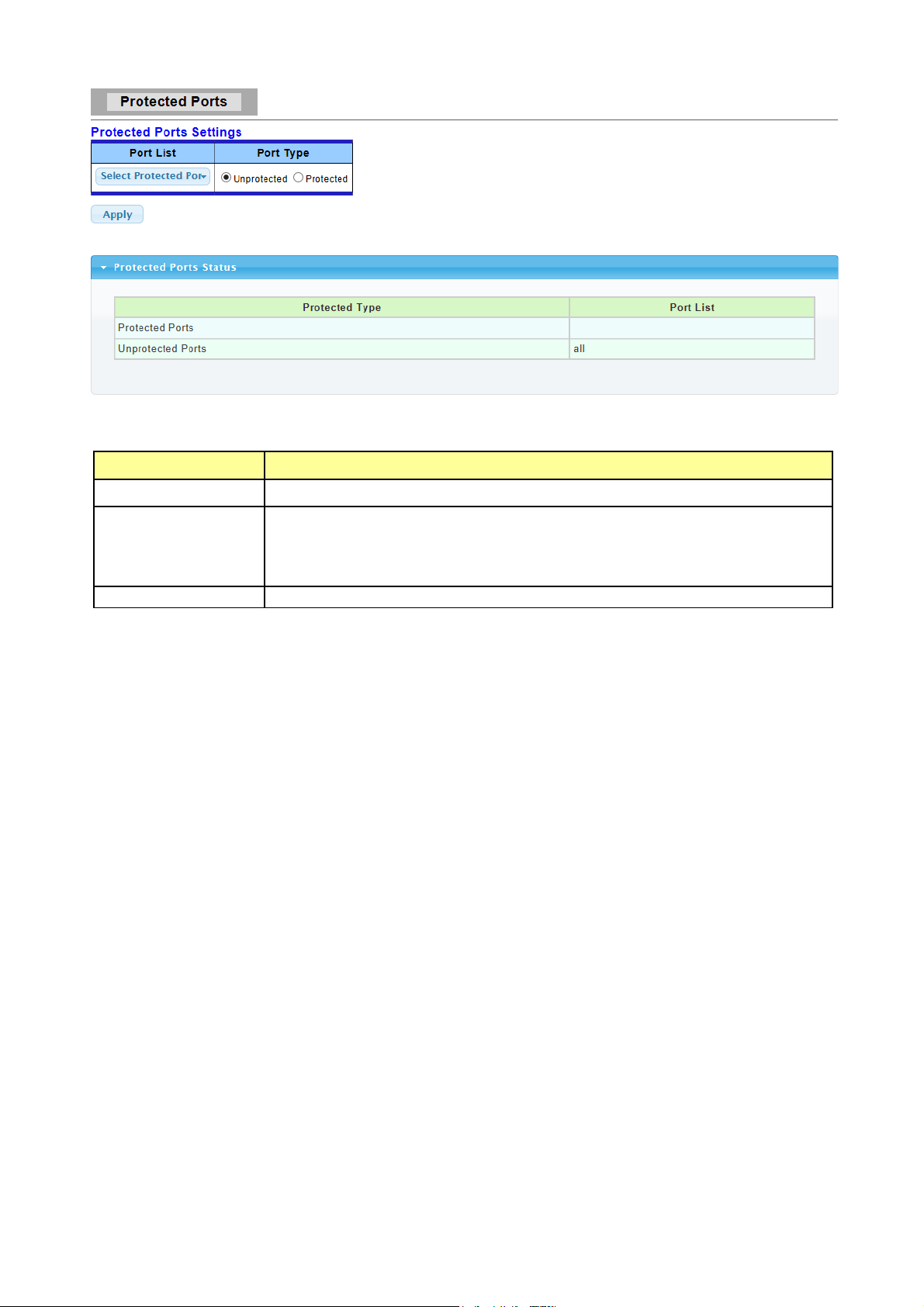

Click Security > Protected Ports to display the configuration screen as shown.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port List Port Type

Apply

To select the port to be protected.

Configure port protect type:

 Unprotected: Unprotected port can communicate with all ports.  Protected: Prevent protected ports from communicate with each

other.

Click Apply to save your changes to the Switch.

3.5.3 DoS

3.5.3.1 DoS Global Setting

This page allow user to configure DoS setting to enable/disable DoS function for Global Setting.

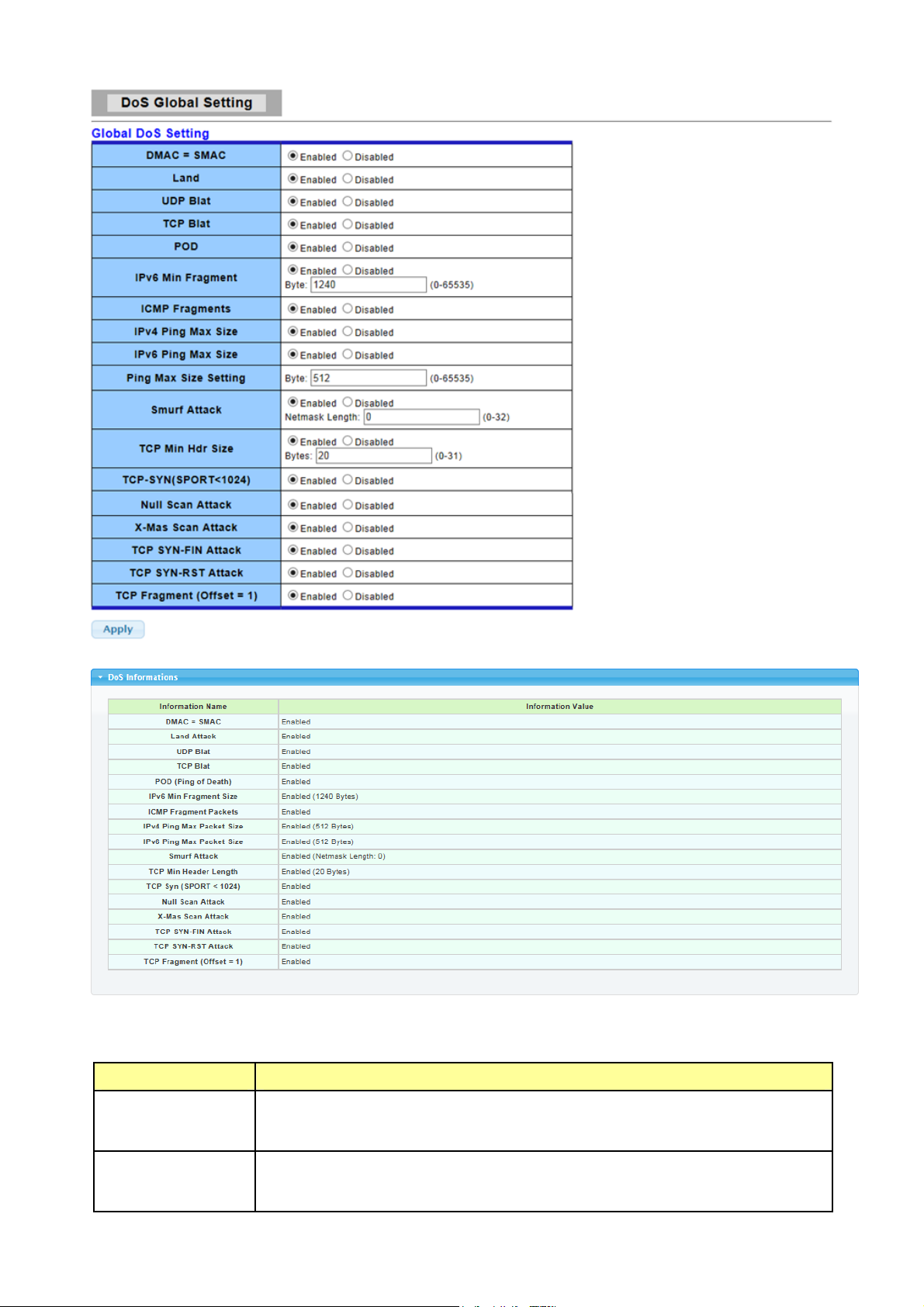

Click Security > DoS > DoS Global Setting to display the configuration screen as shown.

The following table describes the labels in this screen.

LABEL DESCRIPTION DMAC = SMAC

Both the source and the destination MAC addresses are the same.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Land

Both the source and the destination IPv4/IPv6 addresses are the same.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

UDP Blat

TCP Blat

POD

IPv6 Min Fragment

ICMP Fragments

IPv4 Ping Max Size

Ipv6 Ping Max Size

Ping Max Size Setting

Smurf Attack

TCP Min Hdr Size

TCPSYN( SPORT <1024)

Null Scan Attack

X-Mas Scan Attack

TCP SYN-FIN Attack

TCP SYN-RST Attack

TCP Fragment(Offset=

1) Apply

Both the source and the destination UDP port are the same.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Both the source and the destination TCP port are the same.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Ping packets that length are larger than 65535 bytes.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

IPv6 fragmented packets (not including the last one) that payload length less than 1240 bytes, and the Min length can be configured if needed.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Fragmented ICMP packets.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

IPv4 PING packet with the length.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

IPv6 PING packet with the length.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Ping packet Max Size Setting. The default value is 512 Bytes, it can be configured if needed.

ICMP echo request packet that destination IPv4 address is broadcast address. The default Netmask length is 0, and it can be configured if needed.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

TCP packet that header length is less than the configured value. The default TCP Min Hdr Size is 20, it can be configured if needed.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

TCP SYN packets with source port less than 1024.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

TCP sequence number is zero, and all control flags are zeroes.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

TCP sequence number is zero, and the FIN/URG/PSH flags are set.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

A TCP packet with the SYN and FIN flags set.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

A TCP packet with the SYN and RST flags set.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Fragmented TCP packets.

 Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting.

Click Apply to save your changes to the Switch.

3.5.3.2 DoS Port Setting

Click Security > DoS > DoS Port Setting to display the configuration screen as shown.

The following table describes the labels in this screen.

LABEL DESCRIPTION Port Select

DoS Protection

Apply

Select one or multiple ports to configure. Configure port protect state

 Disabled: Disable port DoS Protection function.  Enabled: Enable port DoS Protection function.

Click Apply to save your changes to the Switch.

3.5.4 Access

3.5.4.1 Telnet

Telnet is the TCP/IP standard protocol for remote terminal service. TELNET allows a user at one

site to interact with a remote timesharing system at another site as if the user’s keyboard and

display connected directly to the remote machine.

To display Telnet web page, click Security > Access > Telnet

The following table describes the labels in this screen.

LABEL DESCRIPTION

Telnet Service

Set Enabled to access telnet service or Disabled not to access telnet service.

Disconnect Apply

Click Disconnect to disconnect Telnet connection. Click Apply to save your changes to the Switch.

3.5.4.2 HTTP

HTTP is the acronym of Hyper Text Transfer Protocol.

To display HTTP web page, click Security > Access > HTTP

The following table describes the labels in this screen.

LABEL DESCRIPTION HTTP Service

Support HTTP service

Enable: Enable HTTP service. Disable: Disable HTTP service.

Session Timeout

Apply

Set session timeout minutes for user access WEB from HTTP protocol. If user does not response after session timeout minute, WEBUI will logout automatically. 0 minutes means never timeout.

Click Apply to save your changes to the Switch.

3.5.4.3 HTTPS

HTTPS is the acronym of Hypertext Transfer Protocol over Secure Socket Layer.

To display HTTPS web page, click Security > Access > HTTPS

The following table describes the labels in this screen.

LABEL DESCRIPTION HTTPS Service

Apply

Support HTTPS service

Enable: Enable HTTPS service. Disable: Disable HTTPS service.

Select one of the login authentication lists we configured in “Login List” page. Set session timeout minutes for user access WEB from HTTPS protocol. If user does not response after session timeout minute, WEBUI will logout automatically. 0 minutes means never timeout. Click Apply to save your changes to the Switch.

3.6 QoS

Use the QoS pages to configure settings for the switch QoS interface and how the switch connects

to a remote server to get services.

3.6.1 General

3.6.1.1 QoS Properties

Use the QoS general pages to configure settings for both basic and advanced modes.

Click QoS > General > QoS Properties in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

QoS Mode

Apply

Select the QoS operation mode.

 Disable: Disable QoS  Basic: Set QoS to basic mode

Click Apply to save your changes to the switch.

3.6.1.2 Port Settings

Click QoS > General > Port Settings in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

CoS Value

Remark CoS

Remark DSCP

Remark IP

Select one or multiple ports to configure

Set default CoS/802.1p priority value for the selected ports

Enable/Disable CoS remark

Enable/Disable DSCP remark

Enable/Disable IP Precedence remark

Precedence

Apply

Click Apply to save your changes to the switch.

3.6.1.3 Queue Settings

Click QoS > General > Queue Settings in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Queue

Strict Priority

WRR

Weight

Apply

Queue ID to configure

Set queue to strict priority type

Set queue to Weight round robin type

If the queue type is WRR, set the queue weight for the queue.

Click Apply to save your changes to the switch.

3.6.1.4 CoS Mapping

Click QoS > General > CoS Mapping in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Class of service

Queue

Apply

Queue

Class of service

Class of service value

Select queue ID for the CoS value

Click Apply to save your changes to the switch.

Queue ID

Select CoS Value for the Queue ID

3.6.1.5 DSCP Mapping

Click QoS > General > DSCP Mapping in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

DSCP

Select the DSCP value to mapping to the priority and drop precedence. The DSCP range is 0 to 63.

Queue

Apply

Queue

DSCP

Select queue ID for the DSCP value

Click Apply to save your changes to the switch.

Queue ID

Select DSCP Value for the Queue ID

3.6.1.6 IP Precedence Mapping

Click QoS > General > IP Precedence Mapping in the navigation panel to display the screen as

shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

IP Precedence

Queue

Apply

Queue

IP Precedence

IP Precedence value

Select queue ID for the IP Precedence value

Click Apply to save your changes to the switch.

Queue ID

Select IP Precedence value for the queue ID

3.6.2 QoS Basic Mode

Use the QoS basic mode pages to configure settings for basic mode.

3.6.2.1 Global Settings

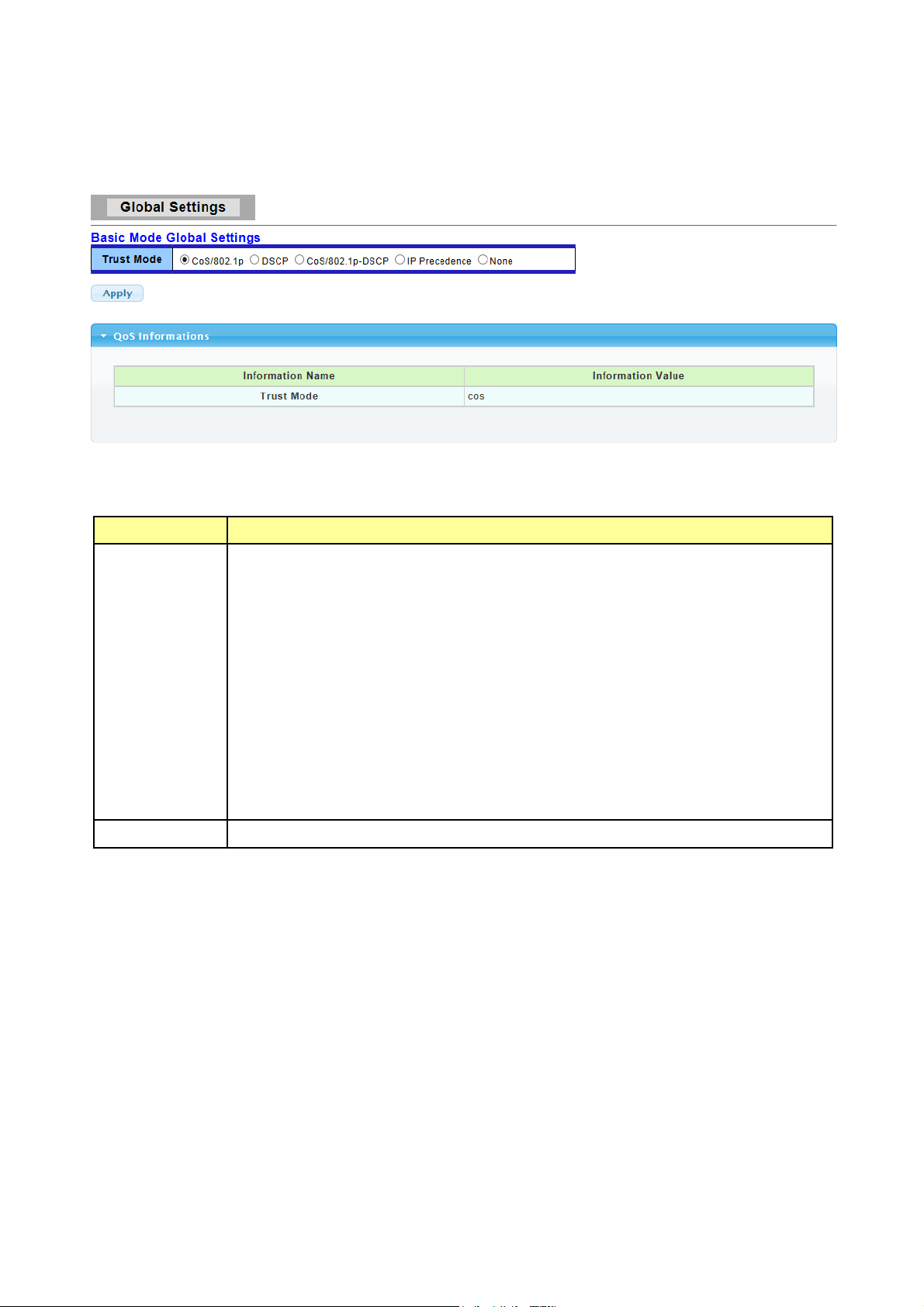

Click QoS > QoS Basic Mode > Global settings in the navigation panel to display the screen as

shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Trust Mode

Apply

Select the QoS operation mode.  CoS/802.1p: Traffic is mapped to queues based on the CoS field in the

VLAN tag, or based on the per-port default CoS value if there is no VLAN tag on the incoming packet.

 DSCP: All IP traffic is mapped to queues based on the DSCP field in the

IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.

 CoS/802.1p-DSCP: All IP traffic is mapped to queues based on the

DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag.

 IP Precedence: All IP traffic is mapped to queues based on the IP

Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.

 None: All traffic is mapped to the lowest priority queue. Click Apply to save your changes to the switch.

3.6.2.2 Port Settings

Click QoS > QoS Basic Mode > Port settings in the navigation panel to display the screen as

shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

Apply

Trust

Select one or multiple ports to configure

Click Apply to save your changes to the switch.

Select the port trust state.

Enabled: Traffic from this port will follow the global trust type. Disabled: Traffic will always go to the lowest priority queue.

3.6.3 Rate Limit

Use the QoS basic mode pages to configure settings for basic mode.

3.6.3.1 Ingress Bandwidth Control Settings

Click QoS > Rate Limit > Ingress Bandwidth Control Settings in the navigation panel to display

the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

State

Rate

Select one or multiple ports to configure

Enable/Disable ingress bandwidth control

Rate value,<0-1000000>,unit:16 Kbps

Apply

Click Apply to save your changes to the switch.

3.6.3.2 Egress Bandwidth Control Settings

Click QoS > Rate Limit > Egress Bandwidth Control Settings in the navigation panel to display

the screen as shown below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

State

Rate

Apply

Select one or multiple ports to configure

Enable/Disable ingress bandwidth control

Rate value,<0-1000000>,unit:16 Kbps

Click Apply to save your changes to the switch.

3.6.3.3 Egress Queue

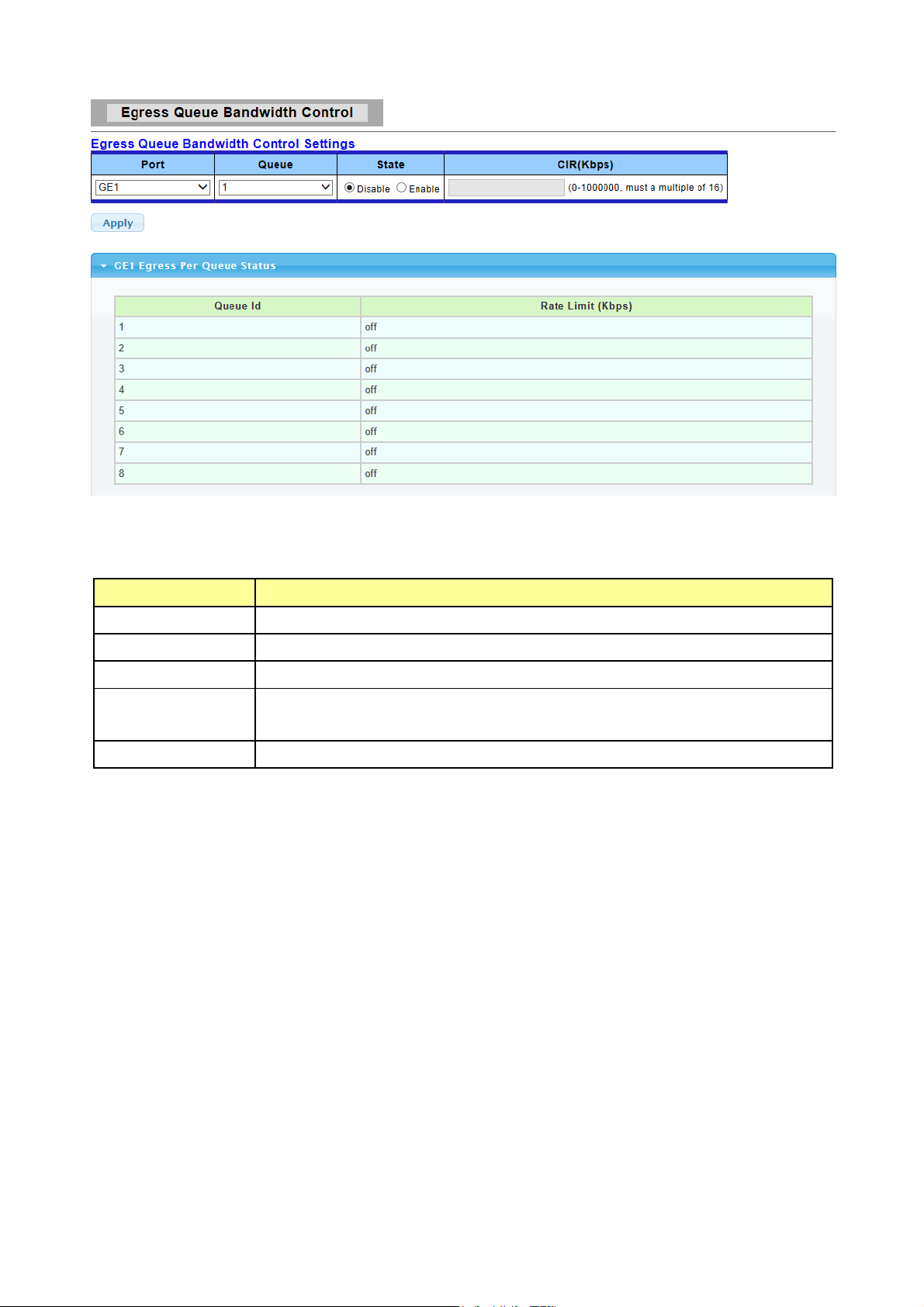

Click QoS > Rate Limit > Egress Queue in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

Queue

State

Rate

Apply

Select one or multiple ports to configure

Select one queue to configure

Enable/Disable ingress bandwidth control

Rate value,<0-1000000>,unit:16 Kbps

Click Apply to save your changes to the switch.

3.7 Management

Use the Network pages to configure settings for the switch network interface and how the switch

connects to a remote server to get services.

3.7.1 LLDP

LLDP is a one-way protocol; there are no request/response sequences. Information is advertised by

stations implementing the transmit function, and is received and processed by stations

implementing the receive function. The LLDP category contains LLDP and LLDP-MED pages.

3.7.1.1 LLDP Global Setting

Click Management > LLDP > LLDP Global Setting to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Enabled

LLDP PDU Disable Action

Transmission Interval

Holdtime Multiplier

Reinitialization Delay

Transmit Delay

Enable/ Disable LLDP protocol on this switch.

Select LLDP PDU handling action to be filtered, bridging or flooded when LLDP is globally disabled.

Select the interval at which frames are transmitted. The default is 30 seconds, and the valid range is 5–32768 seconds.

Select the multiplier on the transmit interval to assign to TTL (range 2–10, default = 4).

Select the delay before a re-initialization (range 1–10 seconds, default =

2).

Select the delay after an LLDP frame is sent (range 1–8192 seconds, default = 3).

Apply

Click Apply to save your changes to the switch.

3.7.1.2 LLDP Port Setting

Click Management > LLDP > LLDP Port Setting to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port Select

State

Select specified port or all ports to configure LLDP state.

Select the transmission state of LLDP port interface.  Disable: Disable the transmission of LLDP PDUs.

Apply

Port Select

Optional TLV Select

Apply

Port Select

 RX Only: Receive LLDP PDUs only.  TX Only: Transmit LLDP PDUs only.  TX And RX: Transmit and receive LLDP PDUs both.

Click Apply to save your changes to the switch.

Select specified port or all ports to configure optional TLVs.

Select the LLDP optional TLVs to be carried (multiple selection is allowed).

 System Name  Port Description  System Description  System Capability  802.3 MAC-PHY  802.3 Link Aggregation  802.3 Maximum Frame Size  Management Address  802.1 PVID

Click Apply to save your changes to the switch.

Select specified port or all ports to configure VLAN Name.

VLAN Select

Apply

Select the VLAN Name ID to be carried (multiple selection is allowed).

Click Apply to save your changes to the switch.

3.7.1.3 LLDP Local Device

Use the LLDP Local Device page to view LLDP local device information. Click “detail” button on the

page to view detail information of the selected port.

Click Management > LLDP > LLDP Local Device to display the screen as shown next.

3.7.1.4 LLDP Remote Device

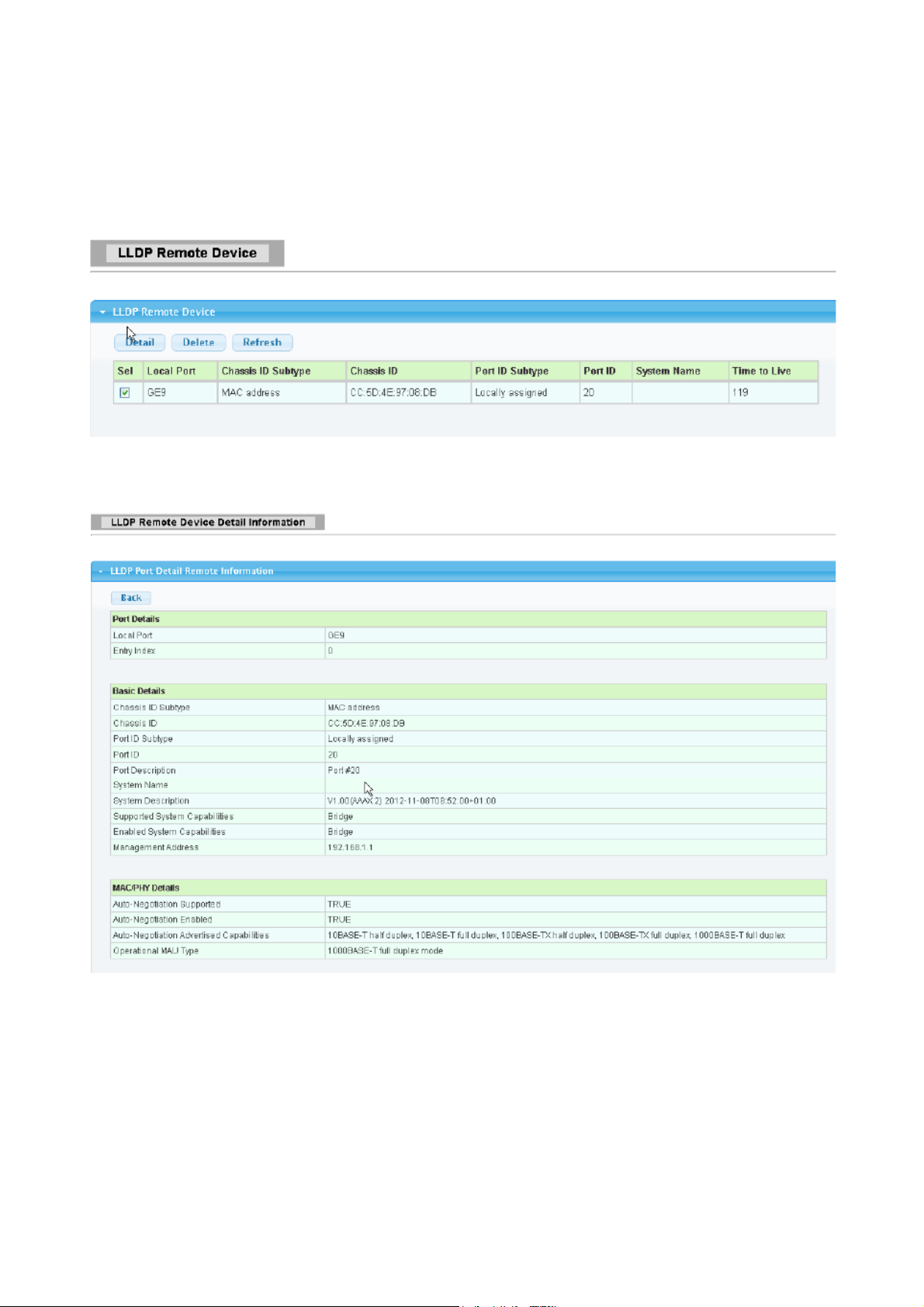

Click Management > LLDP > LLDP Remote Device to display the screen as shown next.

Use the LLDP Remote Device page to view LLDP neighbors information. Click “detail” to view

selected neighbor detail information.

3.7.1.5 LLDP Overloading

Click Management > LLDP > LLDP Overloading to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Interface

Total (Bytes)

Left to Send (Bytes)

Status

Mandatory TLVs

This label shows the port you are viewing.

This field displays the total in bytes.

This field displays what is left to send in bytes.

This field displays whether the Switch is overloading or not.

This field displays how many bytes used by mandatory TLVs.

802.3 TLVs

Optional TLVs

802.1 TLVs

This field displays how many bytes used by 802.3 TLVs.

This field displays how many bytes used by optional TLVs.

This field displays how many bytes used by 802.1 TLVs.

3.7.2 SNMP

3.7.2.1 SNMP Setting

Click Management > SNMP->SNMP Setting to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

State

SNMP daemon state: Select Enabled to activate SNMP daemon. Select Disabled to not use SNMP daemon.

Apply

Click Apply to save your changes to the switch.

3.7.2.2 SNMP Community

Click Management > SNMP->SNMP Community to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Community Name

Enter a Community string, this will act as a password for requests from the management station.

Access Right

Add

SNMP community type:  Read-Only: Read all objects only, it can allow the SNMP manager

using this string to collect information from the switch.  Read-Write: Read and write all objects, it can allow the SNMP

manager using this string to create or edit MIBs (configure settings on

the switch). Click Add to add any other community. It displays the port number which in the community.

Community

This field displays the community strings.

Name

Access Right

This field displays the community string’s type. This will either be read-only or read-write.

Delete

Click Delete to remove any selected community strings.

3.7.2.3 SNMP Trap Host

This page allow user to add or delete SNMP trap receiver IP address and community name.

Click Management > SNMP->SNMP Trap Host to display the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

IP Address

Community Name

Enter the IP addresses to send your SNMP traps to.

Enter a Community string, which is the password sent with each trap to the SNMP manager.

Add

IP Address

Click Add to add any trap receiver.

This field displays the IP address where the traps from the switch are sent.

Community Name

This field displays the password which is sent with each trap to the SNMP manager.

Version

Indicates the SNMP trap supported version. Possible versions are:

 v1: Set SNMP trap supported version 1.  v2c: Set SNMP trap supported version 2c.

Delete

Click Delete to remove any selected trap receiver entries.

3.8 Diagnostics

Use the Diagnostics pages to configure settings for the switch diagnostics feature or operating

diagnostic utilities.

3.8.1 Cable Diagnostics

3.8.1.1 Copper Test

Click Diagnostics > Cable Diagnostics > Copper Test to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Port

Copper Test

The Selected Port ID.

Click Copper to start the test.

3.8.2 Ping Test

Click Diagnostics > Ping Test to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

IP Address

Count

Interval

Size

Ping Results

Apply

Enter the IP addresses of the test destination.

It displays how many times to send ping request packet. Enter a number between 1 and 5 as the count and the default

configuration is 4.

It displays time interval between each ping request packet. Enter a number between 1 and 5 as the interval and the default

configuration is 1.

It displays the size of ping packet. Enter a number between 0 and 5120 as the size and the default

configuration is 56.

After ping finished, results will show in this field.

Click Apply to save your changes to the switch.

3.8.3 IPv6 Ping Test

Click Diagnostics > IPv6 Ping Test to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

IPv6 Address

Count

Interval

Size

Ping Results

Apply

Enter the IPv6 addresses of the test destination.

It displays how many times to send ping request packet. Enter a number between 1 and 5 as the count and the default

configuration is 4.

It displays time interval between each ping request packet. Enter a number between 1 and 5 as the interval and the default

configuration is 1.

It displays the size of ping packet. Enter a number between 0 and 5120 as the size and the default

configuration is 56.

After ping finished, results will show in this field.

Click Apply to save your changes to the switch.

3.8.4 Logging Setting

3.8.4.1 Logging Service

Use this screen to display the switch logs.

Click Diagnostics > Logging Setting > Logging Service to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION Logging

Service Apply

Enable / disable logging system

Click Apply to save your changes to the switch.

3.8.4.2 Local Logging

Use this screen to display the switch logs.

Click Diagnostics > Logging Setting > Local Logging to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Select the target to store log message

Buffered: Store log messages in device buffer. All log messages will

Target

Severity Apply Status

disappear after system reboot. FLASH: Store log messages in FLASH. All log messages will not disappear after system reboot.

Select severity of log messages which will be stored.

Click Apply to save your changes to the switch. It displays the status of local log settings.

Target Severity Delete

It displays the target you’ve chose. It displays the severity status. Click Delete to delete the target chose.

3.8.4.3 Remote Logging

This page allow user to configure remote logging server information

Click Diagnostics > Logging Setting > Remote Logging to view the screen as shown next.

The following table describes the labels in this screen.

LABEL DESCRIPTION

Server IP

Server Port Severity

Facility Apply Status Server Info Severity Facility Action

The IP address of remote log server.

Enter a number between 1 and 65535 as the server port. Select severity of log messages which will be sent.

Select facility of log messages which will be sent. Click Apply to save your changes to the switch. It displays the status of local log settings. It displays the server information. It displays the severity status. It displays the facility chose. It displays the action status.

3.8.5 Factory Default

Follow the steps below to restore the switch back to the factory defaults.

1. Click Diagnostics->Factory Default to view the screen as shown next.

2. Click the Restore button, then the confirm interface pops up.

3. Click OK to restore all switch configurations to the factory defaults and the switch will reboot.

3.8.6 Reboot Switch

Reboot allows you to restart the switch without physically turning the power off.

Follow the steps below to reboot the switch.

1. Click Diagnostics->Reboot Switch to view the screen as shown next.

2. Click Reboot button, then the following interface pops up.

3. When it finished, the switch has been restarted.

3.9 Maintenance

3.9.1 Backup Manager

This page allows user to backup the firmware image or configuration file on the switch to remote

TFTP server or host file system through HTTP protocol.

Click Maintenance > Backup Manager to view the screen as shown next.

Backup files with TFTP Page

Backup files with HTTP Page

The following table describes the labels in this screen.

LABEL DESCRIPTION

Backup Method

Select backup method:

 TFTP: Use TFTP to backup.  HTTP: Use HTTP to backup.

Server IP

IP address of the TFTP server. If the TFTP backup method is selected, the IP address of the TFTP server must be assigned.

Select backup type:

Backup Type

 Image: Firmware image of current system.  Running Configuration: Running Configuration file.  Startup Configuration: Startup Configuration file.

Backup

Click Backup to save the switch configuration/image to the local address specified.

3.9.2 Upgrade Manager

This page allows user to upgrade new firmware image or configuration file to the switch from remote

TFTP server or select file from web browser.

Click Maintenance->Upgrade Manager to view the screen as shown next.

Upgrade with TFTP Page

Upgrade with HTTP Page

The following table describes the labels in this screen.

LABEL DESCRIPTION

Upgrade Method

Select upgrade method:

 TFTP: Use TFTP to upgrade.  HTTP: Use HTTP to upgrade.

Server IP

File Name

Browse File

Upgrade Type

IP address of the TFTP server. If the TFTP upgrade method is selected, the IP address of the TFTP server must be assigned.

Firmware image or configuration file name on remote TFTP server. If the TFTP upgrade method is selected, the file name must be specified.

If the HTTP upgrade method is selected, the browse file field allows you to select any file on host operating system.

Select upgrade type:

 Image: Firmware image of current system.  Configuration: Configuration file.

Upgrade

Click Upgrade to update the file specified above and install the new firmware.

3.9.3 Configuration Manager

This page allows user to save either the running configuration or the startup configuration to the

existing configuration file as the startup configuration.

Click Maintenance-> Configuration Manager to view the screen as shown next.

Configuration Manager Page

Configuration Manager Success Page

LABEL DESCRIPTION Source File

Select upgrade method

 Running configuration: Running configuration file  Startup configuration: Startup configuration file

Destination File

Select Upgrade Type

 Startup Configuration: Startup configuration file

Apply

Click Apply to save the running or the startup configuration to the startup configuration file.

3.9.4 Account Manager

This page allows user to add or delete switch local user database for authentication. The default

user is “admin”.

Click Maintenance > Account Manager in the navigation panel to display the screen as shown

below.

The following table describes the labels in this screen.

LABEL DESCRIPTION User name Password Type

Enter your user name for new account. Select password type for new account:

 Clear Text: Password without encryption.  Encrypted: Password with encryption.  No Password: No password for new account.

Password

If the password type is not “No Password”, the password must be specified.

Retype Password

Retype password to make sure the password is exactly you typed before in “Password” field.

Privilege Type

Select privilege level for new account:

 Admin: Allow to change switch settings.  User: See switch settings only. Not allow to change it.

Apply Modify

Click Apply to save your changes to the switch. Click Delete to delete the added users.

Product Specifications

Standard

IEEE802.3, IEEE802.3u, and IEEE802.3ab IEEE 802.3x flow control IEEE 802.1D spanning tree protocol IEEE 802.1p class of service, priority protocols IEEE 802.1Q VLAN tagging IEEE 802.3ad LACP aggregation IEEE 802.3az Energy Efficient Ethernet(EEE)

Interface

Transmission

Mode

Memory

MAC Address

Table

Jumbo Frame

Buffer Memory

Temperature

Humidity

LED Indications

Power Supply

Dimensions

8* 10/100/1000Mbps ports

10/100Mbps: Full-duplex, Half-duplex 1000Mbps: Full-duplex

Flash: 16MB DDR2: 128MB

10K Bytes

524.8K Bytes

Operating: 0°C ~ 40°C (32°F ~104°F) Storage: -40°C ~ 70°C (-40°F ~158°F)

Operating: 20% ~ 90% RH, non-condensing

1*Power LED(Green) 1*System LED(Green) 8*Gigabit port LEDs(Link/Act: Green)

Power Adaptor 12V/1A

250*104*27 mm

Case Material

Certification

Metal

EMC/FCC, CE Class B; Safety/LVD EN60950-1

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions.

 Do not open the device. Opening or removing the device cover can

expose you to dangerous high voltage points or other risks. Only

qualified service personnel can service the device. Please contact

your vendor for further information.

 Do not use your device during a thunderstorm. There may be a risk

of electric shock brought about by lightning.

 Do not expose your device to dust or corrosive liquids.

 Do not use this product near water sources.

 Make sure to connect the cables to the correct ports.

 Do not obstruct the ventilation slots on the device.

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received; including interference that may cause undesired operation.

CE-Decl

For the foll

Smart

ALL-

The Allnet

This equip

EN 55022:

ration of

wing equip

anaged

G820

The

obey

devi

ALL-SG82

ment meet

010 / AC:2

Conformi

ent:

8 Port

afety advi

ed. The co

8M confor

the follow

11, CLASS

igabit

e in the do

formity to

s to the

ing confor

witch

cumentatio

he above

ouncil Dire

ance stan

Ger

n accompa

irective is i

ctives o

ards:

ering, 10th

nying the p

ndicated b

04/108/EC

of October,

roducts sh

the CE si

014

ll be

n on the

EN 61000-

EN 55024:

IEC 61000-

This equip

This declar

ALLNET G

Maistraße

82110 Ger

-2:2006 +

-3:2013

010

4-2:2008

4-3:2006 +

4-4:2012

4-5:2005

4-6:2008

4-8:2009

4-11:2004

ent is inten

tion is mad

bH Compu

ering

2:2009

1:2007 + A

ed to be op

tersysteme

:2010

erated in all

countries.

Germany

Germering,

01.10.2014

DISCLAIMER_OF_WARRANTY

This Program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as

published by the Free Software Foundation; version 2 of the License.

This Program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty

of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this Program; if not, write to the Free Software

Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.

The full text of the GNU General Public License version 2 is included with the software distribution in the file LICENSE.GPLv2

NO WARRANTY

BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT

PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER

PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE,

YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. IN NO EVENT UNLESS REQUIRED BY

APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY

AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM

(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER

PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Written Offer for Source Code

For binaries that you receive from ALLNET GmbH Computersysteme on physical media or within the download of the offered

firmware that are licensed under any version of the GNU General Public License (GPL) or the GNU LGPL, you can receive a

complete machine-readable copy of the source code by sending a written request to:

ALLNET GmbH Computersysteme

Maistrasse 2

82110 Germering

Your request should include: (i) the name of the covered binary, (ii) the version number of the ALLNET product containing the

covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).

We may charge you a nominal fee to cover the cost of the media and distribution. Your request must be sent within three (3)

years of the date you received the GPL or LGPL covered code. For your convenience, some or all of the source code may also be

found at:

http://www.allnet.de/gpl.html

100

ALLNET ALLNET ALLSG8208 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
