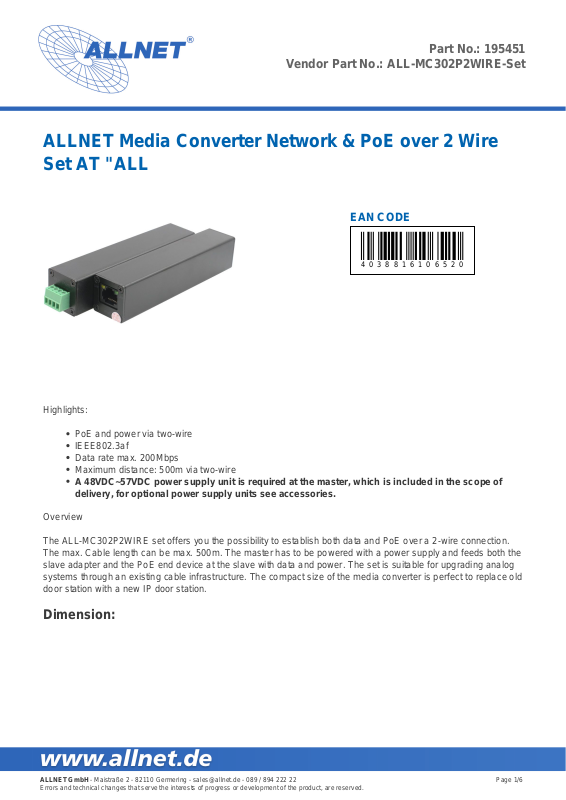

Page 1
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
ALLNET Media Converter Network & PoE over 2 Wire
Set AT "ALL
EAN CODE
4038816106520
Highlights:
PoE and power via two-wire
IEEE802.3af
Data rate max. 200Mbps
Maximum distance: 500m via two-wire
A 48VDC~57VDC power supply unit is required at the master, which is included in the scope of
delivery, for optional power supply units see accessories.
Overview
The ALL-MC302P2WIRE set offers you the possibility to establish both data and PoE over a 2-wire connection.
The max. Cable length can be max. 500m. The master has to be powered with a power supply and feeds both the
slave adapter and the PoE end device at the slave with data and power. The set is suitable for upgrading analog
systems through an existing cable infrastructure. The compact size of the media converter is perfect to replace old
door station with a new IP door station.
Dimension:
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 1/6
Page 2
Diagram:
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
PoE Power Loss Diagram:
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 2/6
Page 3
Technical Details:
Ethernet
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
Netzwerk Standards
Up down Agreement
Transmission / Rate
Cabling
Maximum Distance
Connector
Twisted Pair
Cabling
Connector
Distance
Datarate Downlink
Datarate Uplink
Technology
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3af Power over Ethernet PoE
IEEE 802.3at Power over Ethernet PoE
IEEE1901 PLC
CSMA/CA
500Mbps Physical Bandwidth
88Mbps Transmission Speed
Cat5 or above
100m
1x RJ45
Twisted pair
2-pin terminal block
up to 500m@24AWG
Up to 500Mbps
Up to 500Mbps
Powerline Communication (PLC)
Electric and Mechanical
Input Power
Power Consumption
PoE Standard
Output Power
Port
Dimmension (W x D x H)
Weight
Casing
Environmental
Operating Temperature
Relative Humidity
Additional Images
48-57VDC (Terminal Block)
?3.5W / PC
IEEE802.3af
Standard 48VDC; IEEE802.3af
RJ45
123mm x 26mm x 26mm
0,25kg
Aluminium Case
-20°C to 60°C
<95% (Non-condensation)
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 3/6
Page 4
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 4/6
Page 5
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 5/6
Page 6
Part No.: 195451
Vendor Part No.: ALL-MC302P2WIRE-Set
Accessories
Part No. Name
134034 ALLNET ALL-B100-24VDC / Power-Booster 24VDC to 48~55VDC 90W
140523 Mean Well power supply - 48V 75W DIN rail, narrow
140522 Mean Well power supply - 48V 120W DIN rail, narrow
146994 Mean Well Power Supply - 48V 480W DIN Rail
119067 ALLNET Ersatznetzteil 55V/2A für z.B. ALL048900 oder andere PoE Endgeräte
115128 ALLNET / ALL95101 TP Cat 6 / ADSL / VDSL / ISDN Surge protec
