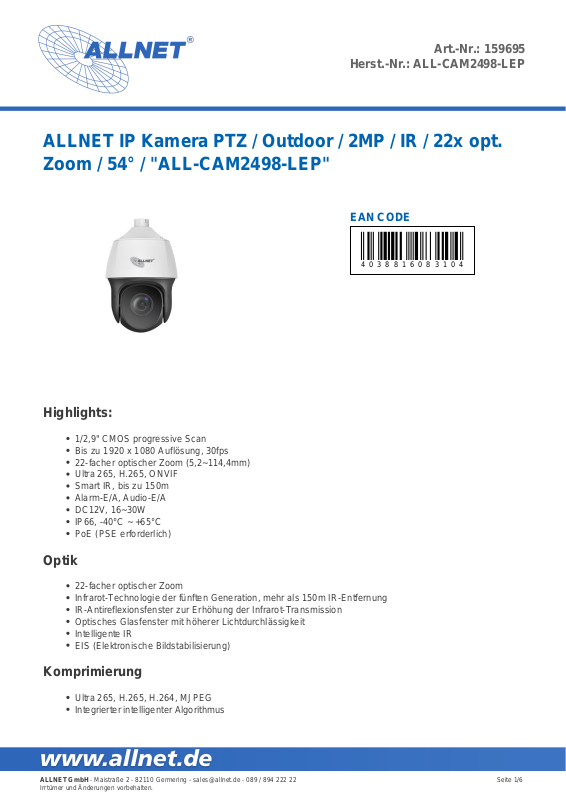

ALLNET ALLNET ALLCAM249 Datasheet [de]

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

ALLNET IP Kamera PTZ / Outdoor / 2MP / IR / 22x opt.
Zoom / 54° / "ALL-CAM2498-LEP"

EAN CODE

4038816083104

Highlights:

1/2,9" CMOS progressive Scan
Bis zu 1920 x 1080 Auflösung, 30fps
22-facher optischer Zoom (5,2~114,4mm)
Ultra 265, H.265, ONVIF
Smart IR, bis zu 150m
Alarm-E/A, Audio-E/A
DC12V, 16~30W
IP66, -40°C ~ +65°C
PoE (PSE erforderlich)

Optik

22-facher optischer Zoom
Infrarot-Technologie der fünften Generation, mehr als 150m IR-Entfernung
IR-Antireflexionsfenster zur Erhöhung der Infrarot-Transmission
Optisches Glasfenster mit höherer Lichtdurchlässigkeit
Intelligente IR
EIS (Elektronische Bildstabilisierung)

Komprimierung

Ultra 265, H.265, H.264, MJPEG
Integrierter intelligenter Algorithmus

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.

Seite 1/6

3-fach Streams
Kundenspezifisches OSD

Netzwerk

ONVIF-Konformität

Struktur

Intelligente Temperaturregelungstechnik
Effektiveres Wärmeableitungssystem
6 KV Überspannungsschutz für die Netzwerkschnittstelle ausgelegt
IP66

Technical Details:

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

ALL-CAM2498-LEP

Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens 5.2 ~ 114.4mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 22
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m)

Angle of View
(V)

Angle of View
(O)

Angle of View
(H)

5.2 83.6 33.4 16.7

114.4 1838.6 735.4 367.7

54.40° ~ 3.44°

Angle of View
(V)

Angle of View
(O)

Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum

Illumination

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.

39.2° ~ 1.9°

66.9° ~ 4.1°

Colour: 0.01Lux (F1.5, AGC ON)
0Lux with IR

Seite 2/6

Iris Auto/Manual; F1.5 ~ F3.8
Day/Night IR-cut filter with auto switch (ICR)

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

Digital noise

2D/3D DNR

reduction
S/N >52 dB
IR Range UP to 150m (492ft)
Defog Digital Defog
WDR 120db
Video
Video

Ultra 265, H.265, H.264, MJPEG

Compression
H.264 code

Baseline profile, Main Profile, High Profile

profile
Frame Rate Main Stream: 2MP (1920*1080), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion

Up to 4 areas
Detection

Smart
Behavior

Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage
Detection

Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion

Moving within a pre-defined virtual region
detection

Recognition Face detection, Audio detection
Statistical

People counting
Analysis

General
Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy,

ARP Protection, RTSP Authentication, User Authentication
Audio
Audio

G.711
Compression

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.

Seite 3/6

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

Two-way

Supported
Audio

Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network

ANR
Storage

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP,

FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS
Compatible

ONVIF (Profile S, Profile G, Profile T), API
Integration

Pan & Tilt
Pan Range 360°
Pan Speed 0.1°/s ~ 240°/s

Preset speed: 300°/s
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed 0.1° ~ 80°/s

Preset speed: 80°/s
Number of

1024
Presets

Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O 1 Input: impedance 35k?; amplitude 2V [p-p]

1 Output: impedance 600?; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±10%, PoE (PSE Required)

Power consumption: 16 ~ 30W
Dimensions (Ø

?215 × 344mm (?8.5” x 13.5”)
x H)

Weight 3kg (6.6lb)
Working

-40°C ~ 65°C (-40°F ~ 149°F), Humidity: ?95% RH (non-condensing)

Environment
Ingress IP66

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.

Seite 4/6

Protection
Reset Button Supported

Weitere Bilder

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

Zubehör

Art.-Nr. Name

159715 ALLNET IP Kamera zbh. Wallmount/Wandhalter for ALL-CAM2498-LEP
159720 ALLNET IP Kamera zbh. Polemount/Masthalter for ALL-CAM2498-LEP
159716 ALLNET IP Kamera zbh. Junctionbox/Montagebox for ALL-CAM2498-LEP
159721 ALLNET IP Kamera zbh. Cornermount/Deckenhalter Eckadapter for ALL-CAM2498-LEP
99305 ALLNET TP Cat 6 Überspannungs-/Blitzschutz Surge Protector ALL95100 Indoor
186548 ALLNET PoE Injektor Gigabit PoE & PoE+ (15,4W/30W) / Kunststoffgehäuse / "ALL0488v6"
112270 ALLNET PoE Injektor Gigabit / PoE & PoE+ & PoE & LT PoE (15,4W/30W/60W/90W) /

Metallgehäuse / "ALL048900v2"

113046 ALLNET Switch unmanaged 4 Port Gigabit 300W / 4x LT PoE 90W / 1x LT PoE In / Lüfterlos /

"ALL048605PD"

99315 ALLNET Switch unmanaged 8 Port Gigabit 63W / 4x PoE+ / 4x LAN / Lüfterlos /19" /

"ALL8804PoE+"

93392 ALLNET Switch unmanaged 8 Port Gigabit 150W / 8x PoE+ / 4x LAN / Lüfterlos / 19" /

"ALL8808POE"

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.

Seite 5/6

Art.-Nr.: 159695

Herst.-Nr.: ALL-CAM2498-LEP

Art.-Nr. Name

193997 ALLNET Switch smart managed 8 Port Gigabit 150W / 8x PoE+ / 2x SFP / Lüfterlos / 19" / "ALL-

SG8610PM"

137466 ALLNET Switch full managed 8 Port Gigabit 240W / 8x PoE+ / 2x LAN oder 2x SFP / 19" / "ALL-

SG8910PM"

183826 ALLNET Switch smart managed 24 Port Gigabit 500W / 24x PoE+ / 4x SFP / 19" / "ALL-

SG8824PMv2"
124360 Networkoptix NVR 4 Kanal NX1-004 ALL2268
124355 Networkoptix IP Nx-Professional Videomanagement Software 1 Kanal "X86 Platform"
162926 Networkoptix IP Nx-Professional Videomanagment Software 4 Kanal "X86-Platform"
162927 Networkoptix IP Nx-Professional Videomanagment Software 8 Kanal "x86 Platform"
146999 ALLNET PoE USV Backup - USV für Kameras, Accesspoints ALL90011PoE
