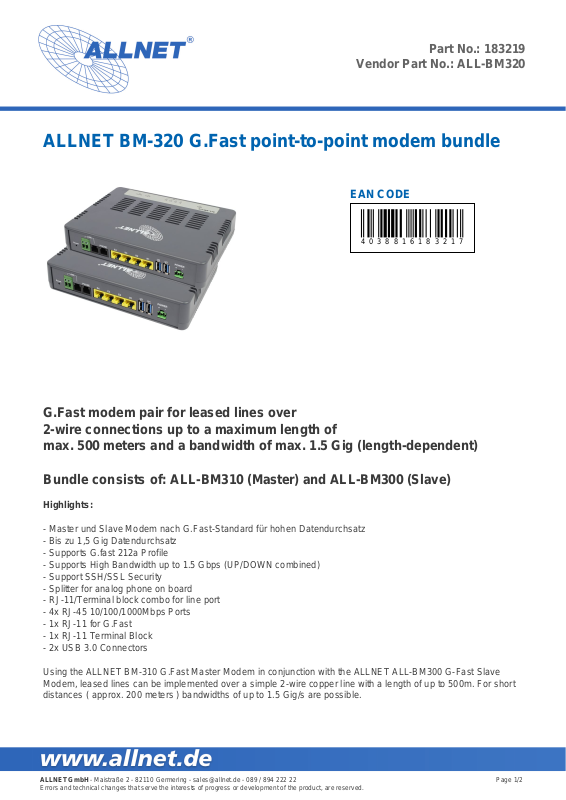

Part No.: 183219
Vendor Part No.: ALL-BM320
ALLNET BM-320 G.Fast point-to-point modem bundle
EAN CODE
4038816183217
G.Fast modem pair for leased lines over
2-wire connections up to a maximum length of
max. 500 meters and a bandwidth of max. 1.5 Gig (length-dependent)
Bundle consists of: ALL-BM310 (Master) and ALL-BM300 (Slave)
Highlights:
- Master und Slave Modem nach G.Fast-Standard für hohen Datendurchsatz
- Bis zu 1,5 Gig Datendurchsatz
- Supports G.fast 212a Profile
- Supports High Bandwidth up to 1.5 Gbps (UP/DOWN combined)
- Support SSH/SSL Security
- Splitter for analog phone on board
- RJ-11/Terminal block combo for line port
- 4x RJ-45 10/100/1000Mbps Ports
- 1x RJ-11 for G.Fast
- 1x RJ-11 Terminal Block
- 2x USB 3.0 Connectors
Using the ALLNET BM-310 G.Fast Master Modem in conjunction with the ALLNET ALL-BM300 G-Fast Slave
Modem, leased lines can be implemented over a simple 2-wire copper line with a length of up to 500m. For short
distances ( approx. 200 meters ) bandwidths of up to 1.5 Gig/s are possible.
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 1/2
Part No.: 183219
Vendor Part No.: ALL-BM320
Especially for demanding retrofits in an existing IT, this technology is the optimal solution to provide cost-effective,
high-performance network applications with high data rates with minimal effort.Another large field of application
are buildings that do not yet have any Lan cabling and this is due to the given building structure can not be
implemented.
