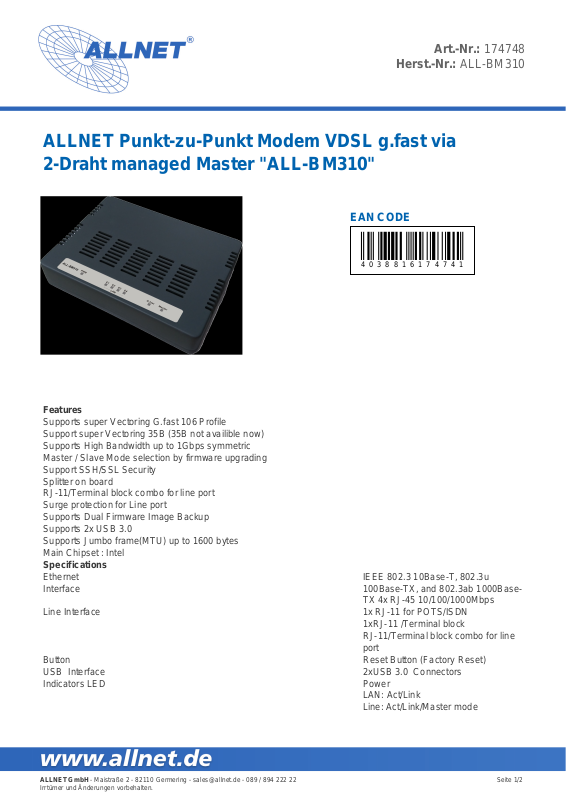

Page 1
Art.-Nr.: 174748
Herst.-Nr.: ALL-BM310
ALLNET Punkt-zu-Punkt Modem VDSL g.fast via
2-Draht managed Master "ALL-BM310"
EAN CODE
4038816174741
Features
Supports super Vectoring G.fast 106 Profile
Support super Vectoring 35B (35B not availible now)
Supports High Bandwidth up to 1Gbps symmetric
Master / Slave Mode selection by firmware upgrading
Support SSH/SSL Security
Splitter on board
RJ-11/Terminal block combo for line port
Surge protection for Line port
Supports Dual Firmware Image Backup
Supports 2x USB 3.0
Supports Jumbo frame(MTU) up to 1600 bytes
Main Chipset : Intel
Specifications
Ethernet
Interface
Line Interface 1x RJ-11 for POTS/ISDN
Button Reset Button (Factory Reset)
USB Interface 2xUSB 3.0 Connectors
Indicators LED Power
IEEE 802.3 10Base-T, 802.3u
100Base-TX, and 802.3ab 1000BaseTX 4x RJ-45 10/100/1000Mbps
1xRJ-11 /Terminal block
RJ-11/Terminal block combo for line
port
LAN: Act/Link
Line: Act/Link/Master mode
ALLNET GmbH - Maistraße 2 - 82110 Germering - [email protected] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.
Seite 1/2
Page 2
Firewall IPv6 Firewall
Packet, URL filtering
Parental Control, DMZ Host
Input Power DC 12V / 2A
Temperature 0~50 C (Operating), -20 ~70 C (Storage)
Humidity 10 - 90% non-condensing
Certification CE, FCC, RoHS Compliant
Zubehör
Art.-Nr. Name
174279 ALLNET ALL-BM300 Módem VDSL g.fast Slave
Art.-Nr.: 174748
Herst.-Nr.: ALL-BM310
ALLNET GmbH - Maistraße 2 - 82110 Germering - [email protected] - 089 / 894 222 22
Irrtümer und Änderungen vorbehalten.
Seite 2/2
