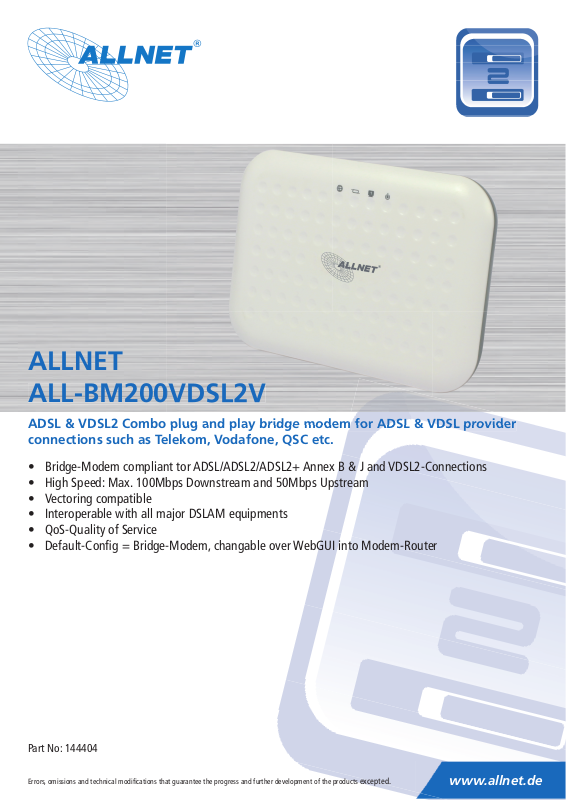

Page 1
ALLNET
ALL-BM200VDSL2V
ADSL & VDSL2 Combo plug and play bridge modem for ADSL & VDSL provider
connections such as Telekom, Vodafone, QSC etc.
• Bridge-Modem compliant tor ADSL/ADSL2/ADSL2+ Annex B & J and VDSL2-Connections
• High Speed: Max. 100Mbps Downstream and 50Mbps Upstream
• Vectoring compatible
• Interoperable with all major DSLAM equipments
• QoS-Quality of Service
• Default-Con g = Bridge-Modem, changable over WebGUI into Modem-Router
Part No: 144404
Errors, omissions and technical modi cations that guarantee the progress and further development of the products excepted.
www.allnet.de
Page 2
The ALLNET ALL-BM200VDSL2V is a ADSL & VDSL2 bridge modem, which allows you access to the VDSL2 Internet
quick and easy.
The modem is easily connected to a broadband router, rewall PC or MAC, no further adjustments are necessary.
The LAN port / terminal only needs to your router / rewall / PC etc. are connected.
Element Spezi cations
Chipset
Operation Mode
Broadcom BCM63381+BCM6303
4MB Flash & 32MB RAM
ADSL Modem / VDSL2 Modem or ADSL/VDSL Router
WAN Connection Type
Physical Interface
Standards
Indicators
Features
Power
Dimensions
Temperature
Humidity
Marks
Bridge (Default), DHCP-Client, Static-IP, PPPoE, PPPoA, IPoA
IEEE 802.3 10Base-T, 802.3u 100Base-TX
1x RJ-45 10/100Mbps
1x RJ-11 DSL-Port
Reset Button (Factory Reset)
ON/OFF Switcher
Full-rate ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt), supporting Annex B
ITU -TG.992.2 (G.lite), supporting Annex B
ITU-T G.992.3 (G. dmt.bis), supporting Annex B and Annex J
ITU-T G.992.4 (G.lite.bis), supporting Annex B
ITU-T G.992.5 (ADSL2+), supporting Annex and Annex J
ITU-T G.993.1 (VDSL)
ITU-T G.993.2(VDSL2) (Pro le 8a, 8b, 8c, 8d, 12a,12b,17a)
ITU-T G.994.1 (G.hs)
Power, LAN, DSL & INET
- Supports G.993.5 Vectoring
- Interoperable with major VDSL2 chipsets
- Supports up to VDSL2 pro le 30a
- Supports up to 100 Mbps symmetric
- Port Based VLAN & 802.1q VLAN tagging
- Con guration backup and restoration over internal WEG-GUI.
- Supports Bridge or Router mode (Default Con g = Bridge)
DC 12V / 500mA
145 x 105 x 35 mm
0~40° C (Operating), -30 ~60° C (Storage)
10 - 90% non-condensing
CE, RoHS Compliant
