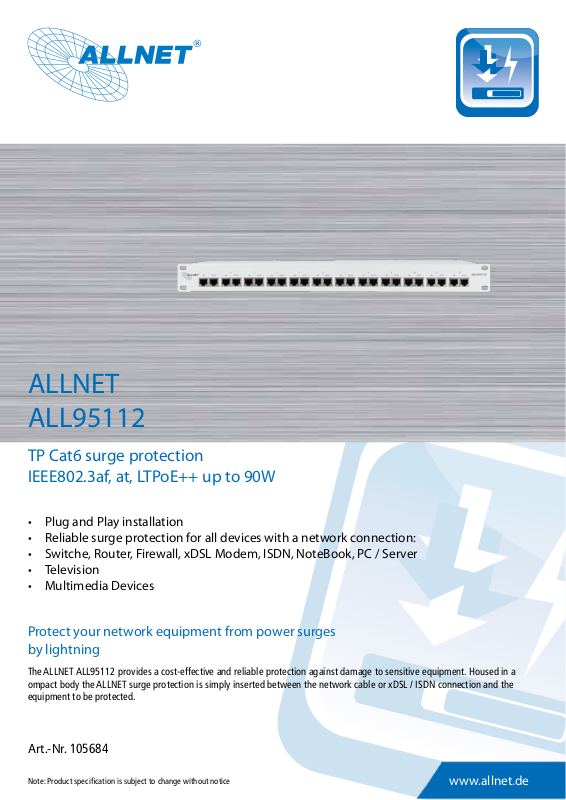

ALLNET
ALL95112
TP Cat6 surge protection
IEEE802.3af, at, LTPoE++ up to 90W
• Plug and Play installation
• Reliable surge protection for all devices with a network connection:
• Switche, Router, Firewall, xDSL Modem, ISDN, NoteBook, PC / Server
• Television
• Multimedia Devices
Protect your network equipment from power surges
by lightning
The ALLNET ALL95112 provides a cost-effective and reliable protection against damage to sensitive equipment. Housed in a
ompact body the ALLNET surge protection is simply inserted between the network cable or xDSL / ISDN connection and the
equipment to be protected.
Art.-Nr. 105684
Note: Product specication is subject to change without notice
www.allnet.de
Without conguration the device is immediately protected from power surges. Along with a regular surge protector and bonding
can be for example the infrastructure in safety-relevant areas permanently protected.
Not only indoors, but also particularly like the outside, the ALL95112 is used effectively in conjunction with PoE enabled IP Cam‘s
and wireless access points.
Item Specication
Network Interface: 2x RJ45 10/100/1000Mbps
PoE-Capability:
Arrest capacity:
Ignition voltage:
Diff. Clamping: <15V, <5ns, 30Apk (Pair wire to wire)
Diff. Capacity: <4.0pF
Lines protected: (Pins)1 - 8 (at 8 pin modular plug)
Test mark: IEEE 802.3, CAT 5, 6
ESD Protection: IEC 61000-4-2 class 4 (10kV CD)
Housing: metal case
Dimension: 82 x 25 x 25 mm (Length x Width x Height)
Weight: 200 Gramm
Enviroment: Temperature operating: -15 ~ 40 °C
Certicate: CE, RoHS
Warranty: 36 months
IEEE802.3af, at, LTPoE++ bis 90W
10kA (8/20µs), 100A (10/1000µs)
90VDC ±20% (Pair to Earth)
<450V (at 100V/µs)
<600V (at 1kV/µs)
Humidity operating: 10% ~ 95% (non condensed)
Note: Product specication is subject to change without notice
www.allnet.de
