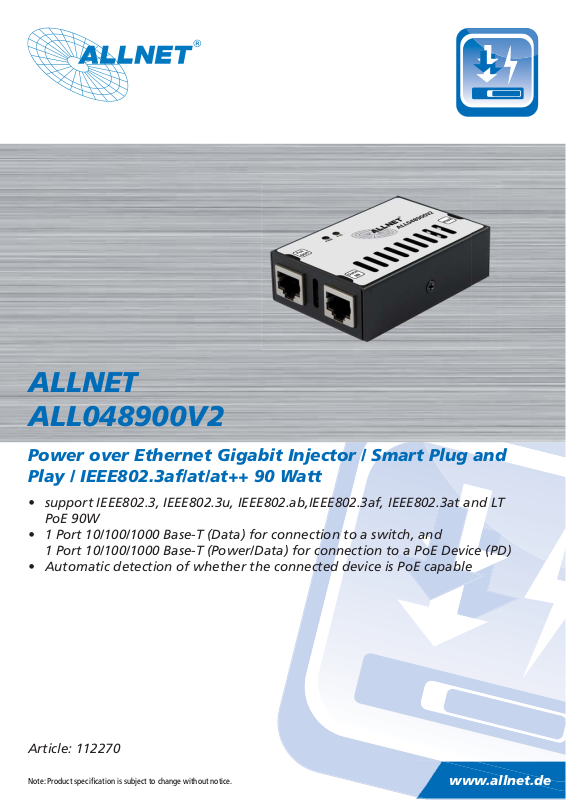

ALLNET
ALL048900V2
Power over Ethernet Gigabit Injector / Smart Plug and
Play / IEEE802.3af/at/at++ 90 Watt
• support IEEE802.3, IEEE802.3u, IEEE802.ab,IEEE802.3af, IEEE802.3at and LT
PoE 90W
• 1 Port 10/100/1000 Base-T (Data) for connection to a switch, and
1 Port 10/100/1000 Base-T (Power/Data) for connection to a PoE Device (PD)
• Automatic detection of whether the connected device is PoE capable
Article: 112270
Note: Product speci cation is subject to change without notice.
www.allnet.de
Page 2
With the ALLNET ALL048900V2 High Power PoE Injector you install your PoE-enabled IP devices such as wireless access points,
VoIP phones and much more totally independent of existing electrical outlets.
So can choose the best locations for example WLAN Access Points Installations in a building regarding the wireless technology,
without having to worry about Power cabling.
Non-PoE switches can be ef ciently „upgraded“ with Power over Ethernet, especially when you only need a few ports with PoE
power supply. Here the ALL048900V2 saves the expensive purchase of a PoE switch.
The ALLNET ALL048900V2 supports the IEEE802.3af Standard with a power of 15,4 Watt,
The IEEE802.3at High Power Standard with 30 Watt and the LT PoE with 90 Watt Power.
The ALL048900V2 must not be con gured. It has an RJ45 jack and an RJ-45 output connector, which are connected to this switch
and the end device to the PoE injector. The cable length can here, as usual in Ethernet, up to 100 meters between the switch and
terminal in total.
The compact design and the metal case of the ALLNET ALL048900V2 can be very inconspicuous installed and is extremely robust.
Item Speci cation
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet enhancements
LT PoE 90W
IEEE802.3 10BaseT
IEEE802.3u 100BaseTX
IEEE802.ab 1000BaseT
Ethernet Ports: 1x RJ45 10/100/1000Mbps for connection to passive switch or hub
1x RJ45 10/100/1000Mbps for connection to PoE device
LED Indicators: Power / PoE Act / Status
Power Input: 44~57V
Power consumption: System: 5W (Max.)
LT PoE+: up to 90W
Attached Power Adapter: Input: 100~240VAC
Output: 56VDC/2A, 70W (Max.)
Case: Metal case, wall-mountable
Dimension: Length/Width/Height: 102 x 75 x 23 mm
Weight: 0.28 kg (only device)
Environment: Temperature operating: 0 ~ 40 °C
Humidity operating: 10% ~ 90% (non-condensing)
Temperature storage: -25 ~ 90 °C
Marking: FCC Class A, CE
Note: Product speci cation is subject to change without notice.
www.allnet.de
Page 3
ApApplplicicatatioioonnexeamam
pl
e:
Overview of supported PoE standards and cable assignment
The ALL048900V2 supports various PoE devices. The devices are scanned by the injector and will be automatically provided
with the correct power.
The table shows an overview of all supported standards and power levels.
Application example:
Accessories:
ALL048700 ALLNET PoE Splitter/Extractor LTPoE 90W 10-25V switchable ALL048700
ALL048701 ALLNET PoE Splitter-Mini/Extractor LTPoE 60W 5-14V switchable ALL048701
ALL048600 ALLNET PoE repeater gigabit AT++/LTPoE 90W ALL048600
ALL048605PD
ALLNET switch unmanaged 4 port gigabit LT-PoE 90W 1 port gigabit PD, fanless,
ALL048605PD
Note: Product speci cation is subject to change without notice.
www.allnet.de
