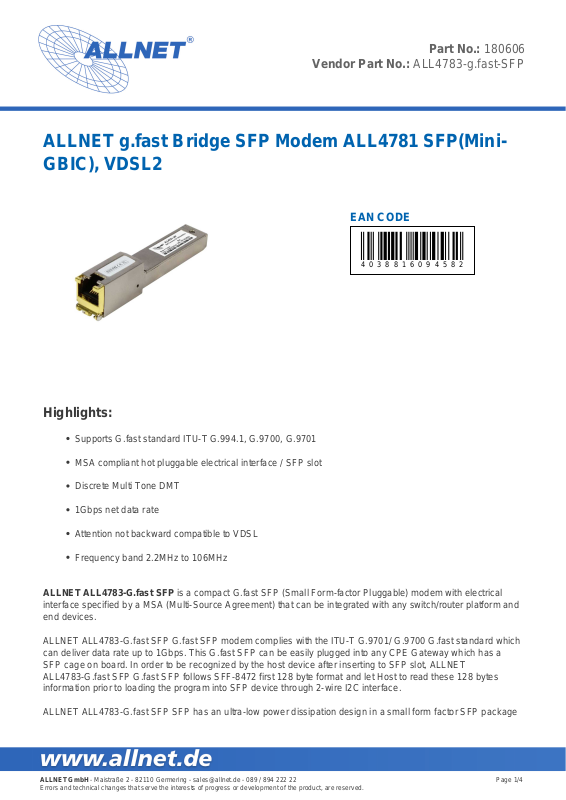

ALLNET ALLNET ALL4783 Datasheet

Part No.: 180606

Vendor Part No.: ALL4783-g.fast-SFP

ALLNET g.fast Bridge SFP Modem ALL4781 SFP(Mini­GBIC), VDSL2

EAN CODE

4038816094582

Highlights:

Supports G.fast standard ITU-T G.994.1, G.9700, G.9701

MSA compliant hot pluggable electrical interface / SFP slot

Discrete Multi Tone DMT

1Gbps net data rate

Attention not backward compatible to VDSL

Frequency band 2.2MHz to 106MHz

ALLNET ALL4783-G.fast SFP is a compact G.fast SFP (Small Form-factor Pluggable) modem with electrical
interface specified by a MSA (Multi-Source Agreement) that can be integrated with any switch/router platform and
end devices.

ALLNET ALL4783-G.fast SFP G.fast SFP modem complies with the ITU-T G.9701/ G.9700 G.fast standard which
can deliver data rate up to 1Gbps. This G.fast SFP can be easily plugged into any CPE Gateway which has a
SFP cage on board. In order to be recognized by the host device after inserting to SFP slot, ALLNET
ALL4783-G.fast SFP G.fast SFP follows SFF-8472 first 128 byte format and let Host to read these 128 bytes
information prior to loading the program into SFP device through 2-wire I2C interface.

ALLNET ALL4783-G.fast SFP SFP has an ultra-low power dissipation design in a small form factor SFP package

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.

Page 1/4

Part No.: 180606

Vendor Part No.: ALL4783-g.fast-SFP

and it can co-exist with legacy xDSL deployments using programmable bandwidth and PSD which allows Service
Providers to offer different access technology within One Box. Realizing the modulation of broadband access
technology will help ISPs prevent any possible increase on the management cost. On the other hand, using the
same user interface will make the upgrade easier and more attractive to end users.

ALLNET ALL4783-G.fast SFP SFP completes the One Box solution for broadband access which enables users to
upgrade their existing Home Gateways to Gigabit speed without paying for the expensive hardware upgrades.
Leveraging ALLNET xDSL SFP modules will be the most cost-efficient solution for ISPs to upgrade their network
service.

Technische Details:

Hardware Compact & Robust RJ-45 connector

SGMII/ SERDES connect to host
Access to transceiver function via I2C
(SFF-8472) or Ethernet bus for
management & configuration
LED 1: MT5321 G.fast SFP link
status LED (YELLOW)
LED 2: SGMII activity LED (GREEN)

Software Support Ethernet Boot mode and

Management (EBM)
Linux SDP driver for managed device

Power Dissipation

Power Supply 3.3 V

Environment

Certification

Operating Temperature 0°C ~ +75°C (SFP cage)
Storage Temperature -20 ~ +85°C
Operating Humidity 10% to 90%

Storage Humidity 5% to 95%

Surge Protection 4KV

2 W

(non-condensed)

(non-condensed)

CE / FCC

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.

Page 2/4

Part No.: 180606

Vendor Part No.: ALL4783-g.fast-SFP

Accessories

Part No. Name

134035 ALLNET Medien Konverter Industrial 100/1000BaseT PoE "PSE" auf 1000BaseSX/LX SFP

(Mini-GBIC) ALL-MCI2011P-60W HUT/DIN

102460 ALLNET Medien Konverter 10/100/1000BaseT-1000BaseSX/LX SFP (Mini-GBIC) ALL-

MC104G-SFP1

124821 ALLNET Medien Konverter 10/100/1000BaseT PoE "PSE" auf 1000BaseSX/LX SFP (Mini-

GBIC) ALL-MC202P-SFP

134037 ALLNET Switch industrial unmanaged 4 Port Gigabit HPoE + 2x SFP + 1x TX HUT/DIN-Rail

ALL-SWI8142BP

134063 ALLNET Switch industrial unmanaged 4 Port Gigabit HPoE 60W + 2x SFP HUT/DIN-Rail ALL-

SWI8142P-60W

126780 ALLNET Switch industrial unmanaged 4 Port Gigabit HPoE + 2x Combo SFP, lüfterlos,

HUT/DIN/Desktop IP40 ALL-SGI8206v2P

139360 \ALLNET Switch industrial smart managed 8 Port Gigabit HPoE + 4x SFP, lüfterlos,

HUT/DIN/Desktop IP40 ALL-SGI8210PM

124022 ALLNET Switch smart managed 8 Port Gigabit HPoE + 2x SFP Ports 8x HP PoE, lüfterlos,

internes Netzteil ALL-SG8310PM

137466 ALLNET Switch full managed 8 Port Gigabit HPoE + 2 Giga Combo Ports (RJ/SFP) ALL-

SG8910PM
127210 ALLNET Switch smart managed 16 Port Gigabit + 4x SFP lüfterlos, SNMP, ALL-SG8420M 19"
133577 ALLNET Switch smart managed 16 Port Gigabit PoE + 2x SFP lüfterlos, SNMP, ALL-

SG8318PM 19"

ALLNET GmbH - Maistraße 2 - 82110 Germering - [e-mail] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.

Page 3/4

Part No.: 180606

Vendor Part No.: ALL4783-g.fast-SFP

Part No. Name

137467 ALLNET Switch full managed 16 Port Gigabit HPoE + 2 Giga Combo Ports (RJ/SFP) ALL-

SG8918PM "Lüfterlos"
127211 ALLNET Switch smart managed 24 Port Gigabit + 4x SFP lüfterlos, SNMP, ALL-SG8428M 19"
123236 ALLNET Switch smart managed 24 Port Gigabit PoE, Power Budget 500Watt, 19" ALL-

SG8824PM
137465 ALLNET Switch full managed 24 Port Gigabit HPoE nach 802.3af und 802.3at incl 2 Giga

Combo Ports (RJ/SFP) ALL-SG8926v2PM
130253 ALLNET Switch smart managed 48 Port Gigabit + 4x SFP lüfterlos, SNMP, ALL-SG8452M 19"
112082 ALLNET Switch full managed 24 Port Gigabit PoE AT 500W + 2x SFP/SFP+ & 2x SFP+ Stack,

19" Layer2+ ALL-SG8826PMX-10G
112203 ALLNET Switch full managed 24 Port Gigabit + 2x SFP/SFP+ & 2x SFP+ Stack 19" Layer2+

ALL-SG8826MX-10G
122263 ALLNET Switch full managed 48 Port Gigabit + 2x 10G SFP+ ALL-SG8950M
