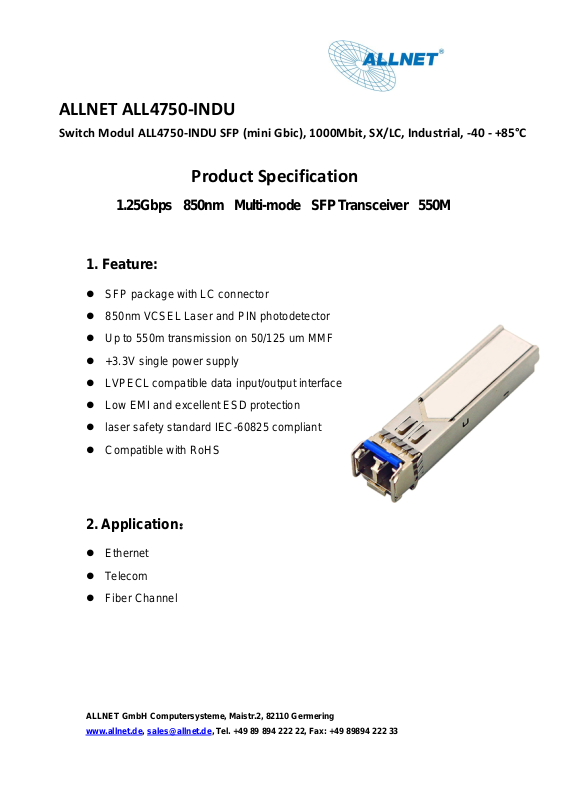

ALLNET ALLNET ALL4750 Datasheet [de]

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

Product Specification

1.25Gbps 850nm Multi-mode SFP Transceiver 550M

1. Feature:

 SFP package with LC connector
 850nm VCSEL Laser and PIN photodetector
 Up to 550m transmission on 50/125 um MMF
 +3.3V single power supply
 LVPECL compatible data input/output interface
 Low EMI and excellent ESD protection
 laser safety standard IEC-60825 compliant
 Compatible with RoHS

2. Application：

 Ethernet
 Telecom
 Fiber Channel

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

Parameter

Symbol

Minimum

Maximum

Units

Storage Temperature

Tst

-40

+85

C

Supply Voltage

Vcc 0 +3.6

V

Operating Relative

Humidity

RH 5 95

%

Parameter

Symbol

Min

Typical

Max

Units

Supply Voltage

Vcc

3.15

3.45

V

Operating

Case

Temperature

Commerci
al

Tc

0

+70

C

Industrial

-40

+85

Power Dissipation

1

W

Data Rate

1.25

Gbps

Parameter

Symbol

Min.

Typ.

Max.

Units

Transmitter Section

Center Wavelength

o

840

850

860

nm

Spectral Width(RMS)



-

-

0.85

nm

Average Output Power

Po

-8 - -3

dBm

Extinction Ratio

Er

10 - 15

dB

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC



3. Absolute Maximum Ratings：

4. Operation Environment：

, Industrial, -40 - +85°C

5. Optical Characteristics：

(Ambient Operating Temperature 0C to +70C, Vcc =3.3 V)

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

Rise/Fall

Time(20%~80%)

Tr/Tf

0.26

ns

Total jitter

Tj

0.43

UI

Optical Eye Diagram

IEEE 802.3z and ANSI Fibre Channel

Compatible

Receiver Section

Center Wavelength

o

770

850

860

nm

Receiver Sensitivity

Rsen

-19

dBm

Receiver Overload

Rov

-3

dBm

Return Loss

12

dB

LOS Assert

LOSA

-32

dBm

LOS Dessert

LOSD

-19

dBm

LOS Hysteresis

0.5 5

Parameter

Symbol

Min.

Typ.

Max.

unit

Transmitter Section

Input Differential
Impendence

Zin

90

100

110

Ohm

Data Input Swing Differential

Vin

500

2400

mV

TX Disable

Disable

2.0

Vcc V Enable

0

0.8

V

TX Fault

Assert

2.0

Vcc

V

Deassert

0

0.8

V

Receiver Section

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

6. Electrical Characteristics

(Ambient Operating Temperature 0C to +70C, Vcc =3.3 V)

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

Output differential
impendence

Zout

100

Ohm

Data Input Swing Differential

Vout

370

2000

mV

Rx_LOS
Assert

2.0

Vcc

V

Deassert

0

0.8

V

Addr

Field Size
(Bytes)

Name of

Field

HEX

Description

0 1 Identifier

03

SFP

1 1 Ext. Identifier

04

MOD4

2 1 Connector

07

LC

3-10 8 Transceiver

00 00 00 02 12 00 0D

01

Transmitter Code

11 1 Encoding

01

8B10B

12 1 BR, nominal

0D

1250M bps

13 1 Reserved

00

14

1

Length (9um)-km

37

550m

15 1 Length (9um)

00

16 1 Length (50um)

37

550m

17

1

Length (62.5um)

1B

270m

18

1

Length (copper)

00

19 1 Reserved

00

20-35

16

Vendor name

57 49 4E 54 4F 50 20

20

20 20 20 20 20 20 20

20

WINTOP

36 1 Reserved

00

37-39 3 Vendor OUI

00 00 00

40-55

16

Vendor PN

xx xx xx xx xx xx xx xx
xx xx xx xx xx xx xx xx

ASC II

56-59 4 Vendor rev

31 2E 30 20

V1.0

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

7. EEPROM INFORMATION（A0）:

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

Pins Name

Discription

NOTE

1

VeeT

Transmitter Ground

2

Tx Fault

Transmitter Fault Indication

1

3

Tx Disable

Transmitter Disable

2

4

MOD DEF2

Module Definition 2

3

5

MOD DEF1

Module Definition 1

3

6

MOD DEF0

Module Definition 0

3

7

Rate Select

Not Connected

8

LOS

Loss of Signal

4

9

VeeR

Receiver Ground

10

VeeR

Receiver Ground

11

VeeR

Receiver Ground

60-61 2 Wavelength

03 52

850nm

62 1 Reserved

00

63 1 CC BASE

XX

Check sum of byte

0~62

64-65 2 Options

00 1A

LOS, TX_DISABLE,

TX_FAULT

66 1 BR, max

32

50%

67 1 BR, min

32

50%

68-83

16

Vendor SN

00 00 00 00 00 00 00

00

00 00 00 00 00 00 00

00

Unspecified

84-91

8

Vendor date code

XX XX XX 20

Year, Month, Day

92-94 3 Reserved

00

95 1 CC_EXT

XX

Check sum of byte

64~94

96-255

160

Vendor specific

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

8. Pin Description:

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

12

RD-

Inv. Received Data Output

5

13

RD+

IReceived Data Output

5

14

VeeR

Receiver Ground

15

VccR

Receiver Power

16

VccT

Transmitter Power

17

VeeT

Transmitter Ground

18

TD+

Transmit Data Input

6

19

TD-

Inv. Transmit Data Input

6

20

VeeT

Transmitter Ground

ALLNET ALL4750-INDU

Switch Modul ALL4750

Notes:

-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

1. TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ
resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0
indicates normal operation; logic 1 indicates a laser fault of some kind. In the low
state, the output will be pulled to less than 0.8V.

2. TX Disable is an input that is used to shut down the transmitter optical output. It is
pulled up within the module with a 4.7k~10kΩ resistor. Its states are:
Low (0~0.8V): Transmitter on
(>0.8V, <2.0V): Undefined
High (2.0~3.465V): Transmitter Disabled
Open: Transmitter Disabled

3. MOD-DEF 0,1,2 are the module definition pins. They should be pulled up with a

4.7k~10kΩ resistor on
the host board. The pull-up voltage shall be VccT or VccR.
MOD-DEF 0 is grounded by the module to indicate that the module is present
MOD-DEF 1 is the clock line of two wire serial interface for serial ID
MOD-DEF 2 is the data line of two wire serial interface for serial ID

4. LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ
resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0
indicates normal operation; logic 1 indicates loss of signal. In the low state, the

output will be pulled to less than 0.8V.

5. These are the differential receiver output. They are internally AC-coupled 100Ω
differential lines which should be terminated with 100Ω (differential) at the user senders.

6. These are the differential transmitter inputs. They are AC-coupled, differential lines with
100Ω differential termination inside the module.

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

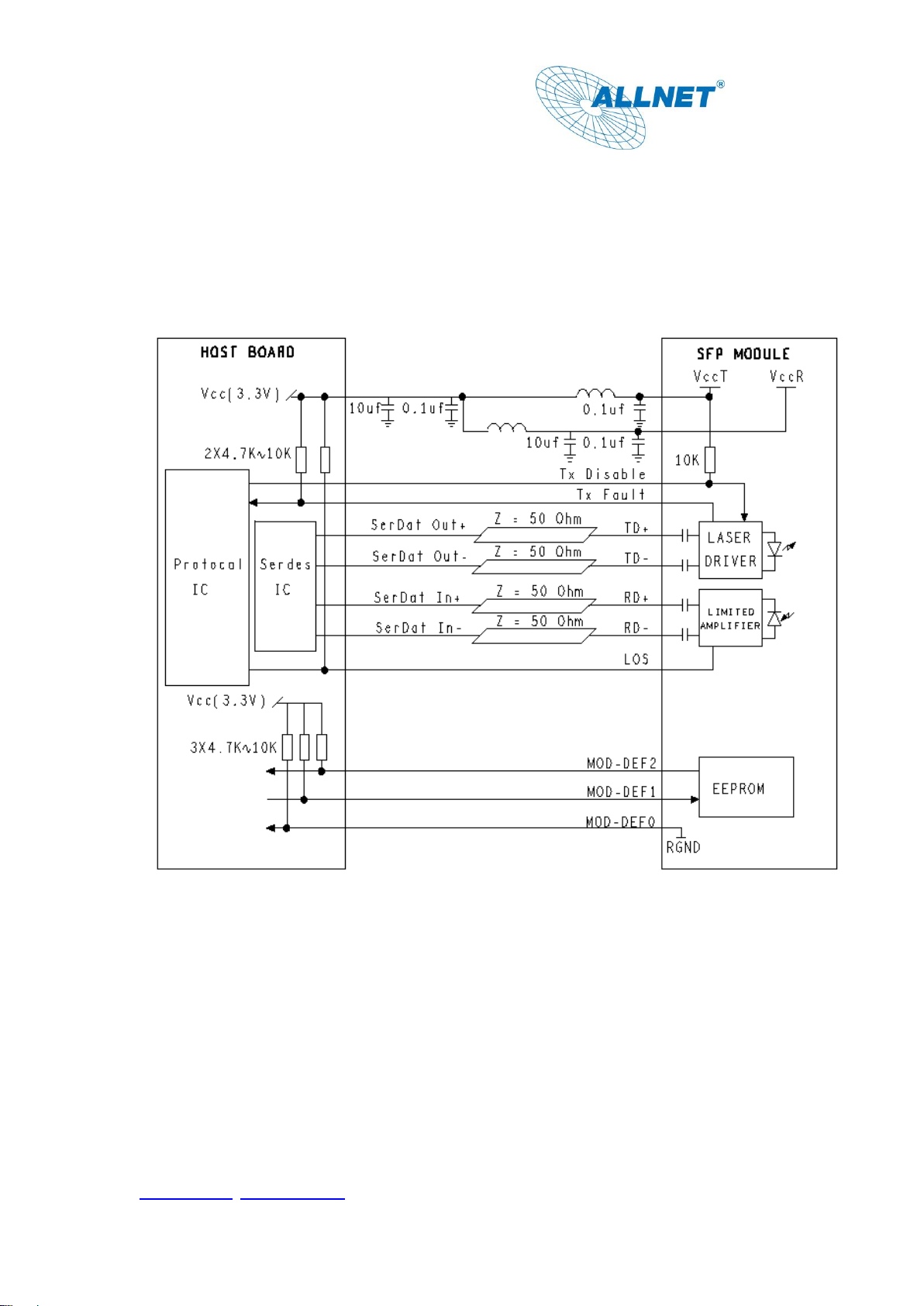

9. Recommended Application Circuit：

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]

ALLNET ALL4750-INDU

Switch Modul ALL4750-INDU SFP (mini Gbic), 1000Mbit, SX/LC, Industrial, -40 - +85°C

10. Outline drawing (mm):

ALLNET GmbH Computersysteme, Maistr.2, 82110 Germering

www.allnet.de, [e-mail], Tel. [phone], Fax: [phone]
