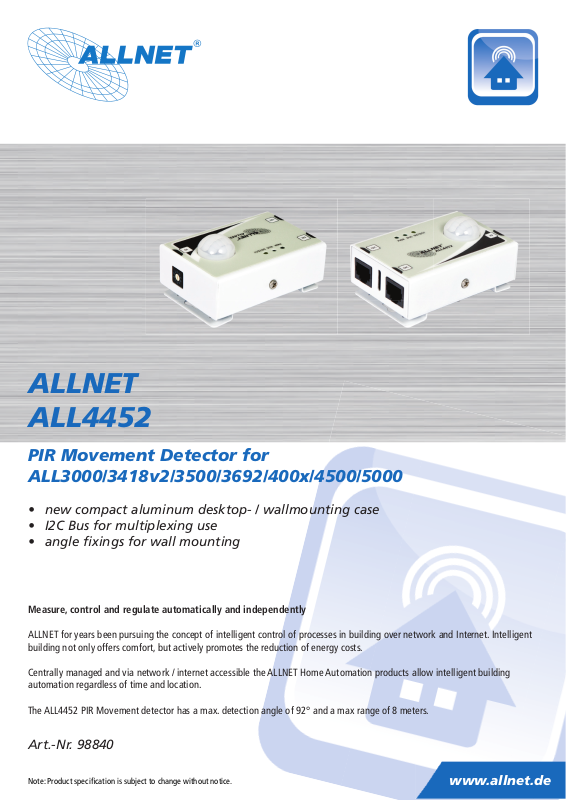

Page 1
ALLNET
ALL4452
PIR Movement Detector for
ALL3000/3418v2/3500/3692/400x/4500/5000
• new compact aluminum desktop- / wallmounting case
• I2C Bus for multiplexing use
• angle xings for wall mounting
Measure, control and regulate automatically and independently
ALLNET for years been pursuing the concept of intelligent control of processes in building over network and Internet. Intelligent
building not only offers comfort, but actively promotes the reduction of energy costs.
Centrally managed and via network / internet accessible the ALLNET Home Automation products allow intelligent building
automation regardless of time and location.
The ALL4452 PIR Movement detector has a max. detection angle of 92° and a max range of 8 meters.
Art.-Nr. 98840
Note: Product speci cation is subject to change without notice.
www.allnet.de
Page 2
Movement detector in desktop-/ wallmounting case
• max. detection angle 92°, max. range 8 meters
• Aluminum housing with bracket for wall mounting
• Multiple multiplexing = multiple modules on one line
• Interfaces: 2x RJ45
Item Speci cation
Sensor type PIR movement detection
measuring range: max. detection angle 92°, max. range 8 meters
Chip PCF8574
Interfaces: 2x RJ45 (I2C Bus)
Multiplexing: dial wheel for ID (8), see note below
LED Indicators: 1x PWR, 1x BUS, 1x Detect
Housing: metal case
Environment: Temperature operating: -45 ~ 90 °C
Humidity operating: 10% ~ 85% (non condensed)
Temperature storage: -20 ~ 60 °C
Humidity storage: 5% ~ 90% (non condensed)
Certi cates: CE, RoHS
Dimension: 79 x 50 x 24 mm (Length x Width x Height)
Weight: 230 Grams (only device)
Warranty: 36 months
package content: 1x ALL4452 Contact sensor
1x connection cable
Multiplexing - Note to the operation of several sensors on one sensor port
Basically, it is for the ARM and MIPS-based systems possible, unlike to teh ALL3000/4000 to operate more than
one sensor on a physical port.
Standard hardware requirement is that the sensors are equipped with 2 RJ45 connectors so that the sensor signal can be continued to the next sensor. The total cable length of 100 m does not increase thereby.
So that the sensors can be uniquely identi ed by the devices, it is necessary that these sensors have different software-I2C chip
addresses and IDs. Sensors with the same address and adjustable chip ID can be combined. For sensors without adjustable ID
address only one type of sensor can be connected per port.
Note: Product speci cation is subject to change without notice.
www.allnet.de
