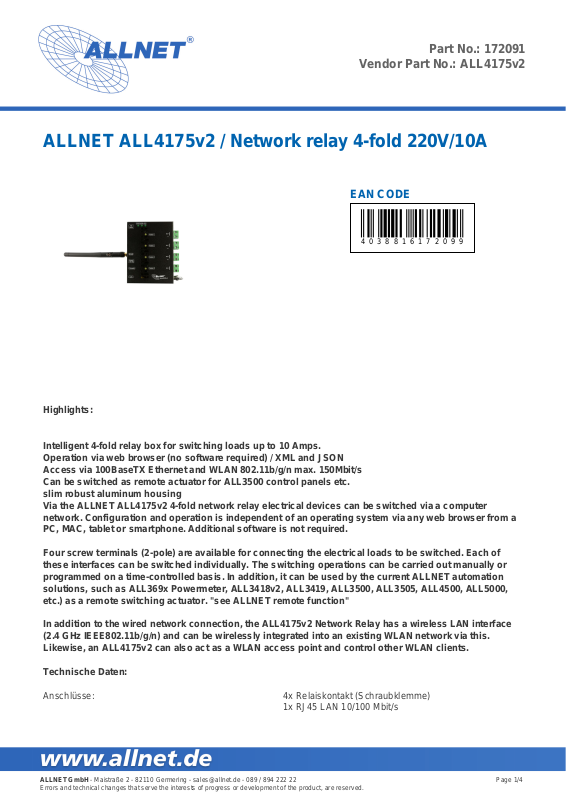

Page 1
Part No.: 172091
Vendor Part No.: ALL4175v2
ALLNET ALL4175v2 / Network relay 4-fold 220V/10A
EAN CODE
4038816172099
Highlights:
Intelligent 4-fold relay box for switching loads up to 10 Amps.
Operation via web browser (no software required) / XML and JSON
Access via 100BaseTX Ethernet and WLAN 802.11b/g/n max. 150Mbit/s
Can be switched as remote actuator for ALL3500 control panels etc.
slim robust aluminum housing
Via the ALLNET ALL4175v2 4-fold network relay electrical devices can be switched via a computer
network. Configuration and operation is independent of an operating system via any web browser from a
PC, MAC, tablet or smartphone. Additional software is not required.
Four screw terminals (2-pole) are available for connecting the electrical loads to be switched. Each of
these interfaces can be switched individually. The switching operations can be carried out manually or
programmed on a time-controlled basis. In addition, it can be used by the current ALLNET automation
solutions, such as ALL369x Powermeter, ALL3418v2, ALL3419, ALL3500, ALL3505, ALL4500, ALL5000,
etc.) as a remote switching actuator. "see ALLNET remote function"
In addition to the wired network connection, the ALL4175v2 Network Relay has a wireless LAN interface
(2.4 GHz IEEE802.11b/g/n) and can be wirelessly integrated into an existing WLAN network via this.
Likewise, an ALL4175v2 can also act as a WLAN access point and control other WLAN clients.
Technische Daten:
Anschlüsse: 4x Relaiskontakt (Schraubklemme)
1x RJ45 LAN 10/100 Mbit/s
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 1/4
Page 2
Part No.: 172091
Vendor Part No.: ALL4175v2
1x R-SMA (WLAN)
Wireless LAN: 2,4 GHz Wireless N, bis zu 150 Mbps 1T1R
Verschlüsselung: WEP,WPA,WPA2
Wireless LAN Chipsatz: Ralink RT7688
Unterstützte Standards: IEEE 802.3
IEEE 802.3u
IEEE 802.11b/g/n
Protokolle: HTTP/HTTPS
TCP/IP
Management/Steuerung: per Webbrowser
Betriebssysteme: alle netzwerkfähigen Betriebssysteme
Spannungsbereich: 200 - 250 Volt
Schaltstrom: 4x 10 Ampere max.
Gehäuse: Aluminiumgehäuse mit Wandbefestigungsoption
Umgebung: Temperatur Betrieb: 0 ~ 40 °C
Luftfeuchtigkeit Betrieb: 10% ~ 85% (nicht
kondensierend)
Temperatur Aufbewahrung: -20 ~ 60 °C
Luftfeuchtigkeit Aufbewahrung: 5% ~ 90% (nicht
kondensierend)
Maße: 105 x 78 x 29 mm (Länge x Breite x Höhe)
Gewicht: 175 Gramm (ohne Verpackung und Zubehör)
Kennzeichnung: CE
Additional Images
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 2/4
Page 3
Part No.: 172091
Vendor Part No.: ALL4175v2
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 3/4
Page 4
Part No.: 172091
Vendor Part No.: ALL4175v2
Accessories
Part No. Name
127304 ALLNET MSR Zentrale ALL3500 zbh. KEFA (Phoenix® kompatible) Relais-Ersatzstecker 4er
Set
104126 ALLNET MSR Zentrale "ALL3505" inkl. 8 Sensor Ports & Hutschienen Montage für IP Gebäude
Automation
81174 ALLNET MSR Zentrale "ALL5000" inkl. 16 Sensor Ports & 19" für IP Gebäude Automation
134571 ALLNET MSR Zentrale "ALL3419" inkl. 3 Sensor Ports & WLAN & Temperaturfühler "ALL3006"
für IP Gebäude Automation
98686 ALLNET MSR Zentrale "ALL3500" inkl. 4 Sensor Ports & WLAN für IP Gebäude Automation
126134 Crack-IT 785 Blitzlicht mit Schwellheuler AC 230V 100db / Gelb / IP43 / Alarmlicht
126135 Crack-IT 787 Blitzlicht mit Alarmsirene AC 230V 100db / Gelb IP43
118725 ALLNET MSR Powermeter Zentrale "ALL3696" inkl. 1x S0 & 1x D0 & Induktion für IP Gebäude
Automation
37038 ALLNET MSR zbh. ALL3088 / IP-Symcon Basic Software für ALL3000/ALL4000
96687 ALLNET MSR zbh. ALL3089 / IP-Symcon Prof. Software für ALL3000/ALL4000
146596 ALLNET MSR zbh. Signal/Warnlampe, Rot/Gelb/Grün/Buzzer einzeln ansteuerbar
