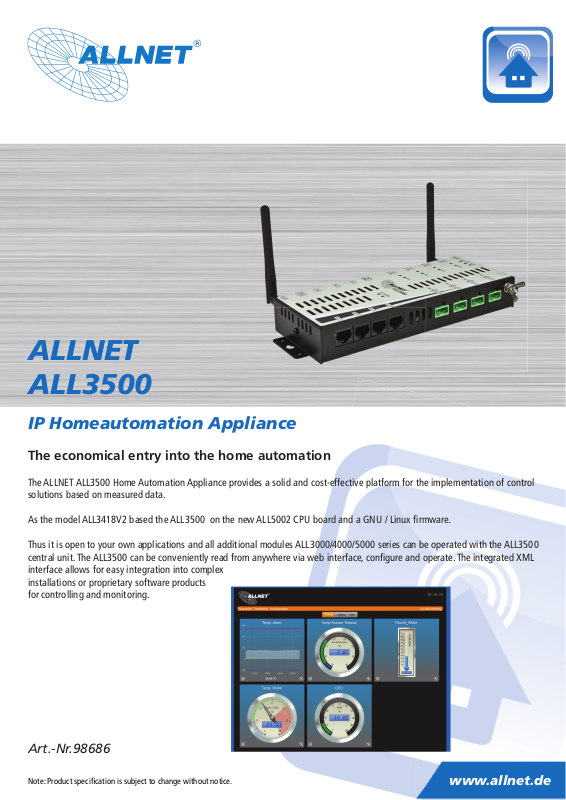

ALLNET
ALL3500
IP Homeautomation Appliance
The economical entry into the home automation
The ALLNET ALL3500 Home Automation Appliance provides a solid and cost-effective platform for the implementation of control
solutions based on measured data.
As the model ALL3418V2 based the ALL3500 on the new ALL5002 CPU board and a GNU / Linux rmware.
Thus it is open to your own applications and all additional modules ALL3000/4000/5000 series can be operated with the ALL3500
central unit. The ALL3500 can be conveniently read from anywhere via web interface, con gure and operate. The integrated XML
interface allows for easy integration into complex
installations or proprietary software products
for controlling and monitoring.
Art.-Nr.98686
Note: Product speci cation is subject to change without notice.
www.allnet.de
Controlling, measurement, regulation via network, Internet and Smartphone
Application examples:
• Temperature monitoring in HACCP or alarm scenarios , as well as depending of alarm detection circuits
• Climate control of a room by monitoring temperature and humidity, as well as needs-based control of heating and humidi cation.
• Recognition of a crisis in mission critical areas and turn of alarms if you smell gas, ooding, smoke, etc.
• Time-and humidity-controlled garden irrigation
• Consumption-based circuit using external sensors such as ALL4950 power meter module
Compact, powerful, economical
The right platform for your home automation application
We are suceed in integrating a lot of functionality in a compact and cost-saving design in the ALL3500. This saves space and
cost, yet delivers impressive functionality. Four relays, sensor ports and contact interfaces are available. Thus the ALL3500 is
extremely versatile.
Sensors, actuators and switches
A wide productrange allows complex application
The ALL3500 central unit has four ports for connecting external sensors and actuators, and four relay outputs for switching any
loads. In addition, the device has four contact inputs, eg can be used to connect push buttons and switches.
Thus, ambient conditions such as temperature, humidity, air pressure, and much more can capture, share and process, as well as
switching processes via actuators or relays. This can be performed manually, time-controlled or depending of the detected values .
Connectivity
With Ethernet and built-in WLAN easily accessible
The ALL3500 central unit is accessed via an IP address in the TCP / IP network. The values can be accessed via the web browser
directly from the device, processed or sent periodically via email. An integrated XML interface is used for data retrieval and control via the Internet, bringing the ALL3500 can be integrated into an overall control solution.
I2C-Bus
Use existing cable networks to connect sensors
To connect the measurement and control modules to the central units all ALLNET home automation products use a simple network cable (RJ45 connector, Cat. 5). For this purpose, an existing wired network such as the own network or phone wiring can be
used. The maximum cable length between the central unit and module can be up to 100 meters. Here the modules are supplied
with voltage by the CPU. A separate power source for each module is not necessary.
Note: Product speci cation is subject to change without notice.
www.allnet.de
