ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Best viewed at full screen.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

VDSL2 Point to Point Solution

VDSL2 (Very-High-Bit-Rate Digital Subscriber Line 2, ITU-T G.993.2 Standard) is an access technology that exploits the

existing infrastructure of copper wires that were originally deployed for POTS services. It can be deployed from central offices, from fibre-fed cabinets located near the customer premises, or within buildings.

ITU-T G.993.2 VDSL2 is the newest and most advanced standard of DSL broadband wireline communications. Designed to support the wide deployment of Triple Play services such as voice, video, data, high definition television (HDTV) and interactive gaming, VDSL2 enables operators and carriers to gradually, flexibly, and cost efficiently upgrade existing xDSL-infrastructure.

ITU-T G.993.2 (VDSL2) is an enhancement to G.993.1 VDSL that permits the transmission of asymmetric and symmetric (Full-Duplex) aggregate data rates up to 200 Mbit/s on twisted pairs using a bandwidth up to 30 MHz.

VDSL2 deteriorates quickly from a theoretical maximum of 200 Mbit/s (Full-Duplex) at 'source' to 100 Mbit/s at 0.3 km (symmetric).

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

CONTENT

1. Unpacking Information 3 Checkl List 3

2. Installation 4 Hardware Installation 4

2.1 Pre-installation Requirements 4 General Rules 5 Connecting the ALL126AM2/AS2 5

3. Hardware Description 6

4. Setup the ALL126AM2/AS2 by Web Browser 10

4.1 Login 10

4.2 Run the Setup Wizard 11

4.3 Select LAN 13

5. Building a VDSL2 System 16

5.1 Connect the CO and the CPE to the Line 17

5.2 Connect the CO and the CPE to the LAN Devices 17

5.3 Run Demos and Tests 17

6. Operating the VDSL 2 19

6.1 Configuration Settings 19

6.2 Status Displays 25

7. Configuration Interface of the Router 29

7.1 Logging on the ALL126AM2/AS2 29

7.2 Configuration Menu for Administrators 30

Appendix A: Product Features & Specification 64 Appendix B: Troubleshooting 68 Appendix C: Compliance and Safety Information 69 Appendix D: CE Certification 70 Appendix E: GPL Declaration 72

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

1.Unpacking Information

Check List

Carefully unpack the package and check its contents against the checklist. Package Contents

 VDSL2 Modem (ALL126AM2 (CO) / ALL126AS2 (CPE))  Two plastic feet  User’s Manual  AC to DC 12V Power Adapter  RJ-45 cable  RJ-11 cable

Please inform your dealer immediately for any missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use them to repack the unit in case there is a need to return for repair.

2. Installation Hardware Installation

This chapter describes how to install the ALL126AM2/AS2 and establishes network connections. You may install the ALL126AM2/AS2 on any level surface (e.g, a table or shelf). However, please take note of the following minimum site requirements before you begin.

2.1 Pre-installation Requirements

Before you start actual hardware installation, make sure you can provide the right operating environment, including power requirements, sufficient physical space, and proximity to other network devices that are to be connected. Verify the following installation requirement:

 Power requirements: DC12V/1A or above.  The ALL126AM2/AS2 should be located in a cool dry place, with at least 10cm/4in of space at the front and back

for ventilation.

 Place the ALL126AM2/AS2 out of direct sunlight, and away from heat sources or areas with a high amount of

electromagnetic interference.

 Check if network cables and connectors needed for installation are available

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

General Rules

Before making any connections to the ALL126AM2/AS2, note the following rules:

Ethernet Port (RJ-45)

All network connections to the Modem Ethernet port must be made using Category 5 UTP for 100Mbps;

Category 3,4 UTP for 10Mbps. No more than 100 meters of cabling may be use between the MUX or HUB and an end node.

Phone Port (RJ-11) All Phone set connections to the RJ-11 Port made using 24~26 Gauge phone wiring. Connecting the ALL126AM2/AS2

The ALL126AM2/AS2 can be controlled by a PC, henceforth, called the "Control PC". For this purpose, you need a PC with an Ethernet network interface and a DB-9 RS232 serial interface. Two programs are required: A Web browser is mandatory and a terminal program should be available optionally. The board has several connectors.

• 4 Ethernet RJ45 jacks (connect LAN devices to route); the Auto MDIX feature of the ports switches automatically between MDI and MDI-X (MDI = Media Dependant Interface), therefore straight Ethernet cables can be used.

• 2 x RJ11 jack (LINE Port is for connects VDSL client side to Line Interface, Phone port is for connects phone set or FAX machine)

•1 x Console port (monitoring, access to operating system via shell for firmware downloads, starting drivers and web etc.,)

•1 Power Supply (as described above)

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 2.1 VDSL2 Point to Point application

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

3. Hardware Description

This section describes the important parts of the ALL126AM2/AS2. It features the front indicators and rear connectors.

Front Indicators

The following figure shows the front panel.

Figure Chapter 3.1 ALL126AM2

Figure Chapter 3.2 ALL126AS2

Six LED indicators. At a quick glance of the front panel, it will be easy to tell if the modem has power, signal from its Ethernet RJ-45 port or there is phone line signal RJ-11port

Front Indicators

LED Description and Operation The Modem has three LED indicators.

LEDs Status Descriptions

PWR

Steady

(Ready LED)

E1~E4

(Ethernet

LED)

Link

Steady

Flashing

(LINK/ACT)

Steady

(VDSL LED)

Green

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

It will light up (ON) to show that the product is power good, and system reset OK.

Each RJ-45 station port on the Ethernet is assigned an LED light for monitoring port “Good Linkage”. LED is normally OFF after the power on operation, but will light up steadily to show good linkage and flashing to show data transmission.

RJ11 station port on the VDSL is assigned an LED light for monitoring port “Good Linkage”. LED is normally OFF after the power on operation, but will light up steadily to show good linkage.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Rear Panel

The following figure shows the rear connectors

Figure Chapter 3.3 Rear Connectors

ALL126AM2/AS2 Rear Connectors Connectors Description Type

Line

Phone

E1~E4 Console port

Power On

1. Check the adapter is properly connected.

2.

For connecting to the VDSL Modem Using a RJ-11 cable

For connecting to the telephone or FaxISDN modem For connecting to a Ethernet equipped

device For connecting to PC with RS-232 serial port over a D-SUB Cable

Verify the power LED is steadily on.

RJ-11

RJ-45 RS-232

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4. Setup the ALL126AM2/AS2 by Web Browser

The ALL126AM2/AS2 provides a built-in web browser. You can use Web browser to configure the ALL126AM2/AS2. First please input the IP address 192.168.16.249 (ALL126AM2 (CO) and 192.168.16.250 (ALL126AS2 (CPE)) in the Web page.

4.1 Login. The password is “admin“.

Figure 4.1 Login

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4.2 Setup Wizard

There is a simple Setup Wizard for end users and an Advanced Setup Menu. You have to run the Setup Wizard on both VDSL2 Modems to configure the VDSL2 Connection

4.2.1 Host & Domain Name

Configure Host Name and Domain Name on the ALL126AM2 and the ALL126AS2

Figure 4.2.1 Mastermodem configuration

Figure 4.2.2 Clientmodem configuration

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4.2.2 WAN Type

In this Menu you can configure the WAN Type on the ALL126AM2/AS2. The following Connectionstypes can be selected:

• Cable Modem

• Fixed-IP xDSL

• Dial-UP xDSL (PPPOE)

Figure 4.2.3 WAN Type

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4.3 Select LAN

The menus below will not be used very often. But when connecting the ALL126AM2/AS2 to a new control PC, you may

want to go through the following steps in order to make the IP address previously set by ifconfig in the terminal console permanent. Or on some later occasion you may want to change it again without using the console. Then the menu below will help you too. In order to set the IP address, click on “LAN Settings”.

Figure 4.3 LAN menu

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4.3.1 Select LAN Settings and set the IP Address The form below is used to change the IP address of the LAN port “adm0” in the ALL126AM2/AS2.

• The proposed IP address either is the default address of adm0 or it is the address changed by an ifconfig command via the shell running in the terminal.

• The Subnet Mask display can be ignored.

• In case the DHCP checkbox is checked, some additional data and options will be on display

(see Chapter 7.2.4.1 on Page 50). The DHCP server is not required to work with VDSL2 in a lab environment. It is recommended to uncheck the box if it is not unchecked already.

Now the IP address either may be changed or left as it is. If it has been changed in the form or after it has been changed using the ifconfig command via the shell running in the terminal, it needs to be stored permanently Hit the “APPLY” button in order to make the displayed IP address new default address.

Figure 4.3.1 LAN Settings

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

4.3.2 Restart the Settings Dialog

After the “APPLY” button has been hit, the displayed IP address “adm0” port will be stored in a non volatile

memory on the ALL126AM2/AS2. Also, the Ethernet link between the control PC and the ALL126AM2/AS2 will be re-initialized – even if the IP address has not been changed. Refresh the display of the HTTP browser running on the control PC and login again.

Figure 4.4.2 Login after Storing the IP Address as Default Value

The ALL126AM2/AS2 now is prepared to be controlled by the control PC.

5. Building a VDSL2 System

First a quick overview over a complete setup:

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 5 VDSL2 Application

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

5.1 Connect the ALL126AM2 (CO) and the ALL126AS2 (CPE) to the Line The objective for VDSL2 is passing data over a twisted pair cable at high speed. In the setup, either such a cable

connects the ALL126AM2 (CO) and the ALL126AS2 (CPE), or a line simulator or any other hardware representation of a cable network, with or without noise injection and crosstalk simulations.

5.2 Connect the ALL126AM2 (CO) and the ALL126AS2 (CPE) to LAN Devices In the setup, usually a Ethernet tester serves as representation of the LAN side as well as representation of the

WAN side.

5.3 Run Demos and Tests The Ethernet tester may send data downstream as well as upstream. It also receives the data in order to check the

integrity of the data transmission. Different data rates can be tested under different line conditions.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6. Operating the VDSL2 System

After the VDSL2 system has been set up, you may want to configure the settings which are related to VDSL2.

Configuration of operation modes, test modes (loop back) and the display of status information is supported by an graphical user interface.

6.1 Configuration Settings

Configure and start the ALL126AM2 (CO) and the ALL126AS2 (CPE)

•Configuration: As a minimum configuration, usually selecting the bandplan is required.

See Chapter 6.1.3, Profile Configuration.

•Next, both sides should be activated from the web interface.

See Chapter 6.1.6, Line Activation

•The connection status of the link can be monitored.

See Chapter 6.2.1, Line Status

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.1.1 Channel Configuration

This function is for setting VDSL channel. Click on VDSL 2 and then on Channel config

Figure 6.1.1 Channel Configuration Menu Channel Configuration Settings Setting Description Channel Number To which bearer channel number shall the settings

apply?

•Channel 0

Direction To which direction shall the settings apply?

•Upstream

•Downstream

Min Data Rate Minimum Payload Data Rate Max Data Rate Maximum Payload Data Rate Max Int Delay Maximum Interleaver Delay

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Note: The Reboot is needed for saving the new settings.

6.1.2 Line Configuration

Figure 6.1.2 Line Configuration Menu for SNR Margin Selection

Line Configuration Setting Description Direction Select the target direction. Target SNRM Set the required SNR Margin *10 (60=6dB)

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.1.3 Profile Configuration For this function, ALL126AM2/AS2

standard band plan 998(17a), USA telecom standard band plan 997(8a, 8b) and Janpan Telecom standard band plan (30a) etc.

Annex A specifies bandplans for the North American region and enables ALL126AM2/AS2 to be deployed with traditional POTS telephony or in an all-digital mode. Annex B specifies bandplans for Europe and enables ALL126AM2/AS2 deployment with underlying POTS and ISDN services. Annex C allows ALL126AM2/AS2 to coexist with TCM-ISDN services, found primarily in Japan. ALL126AM2/AS2 has numerous configuration profiles and bandplans to meet regional service provider requirements. The frequency bandwidth has increased to 30 MHz, with configuration options at 8.5 MHz, 12 MHz, 17.7 MHz and 30 MHz.

provides world wide telecom standard band plan, such as meet European telecom

Note : Please deactivate then activate once when any band profile is being changed. This version does not support ADSL band

profile, but will support that in the near future.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 6.1.3 Profile Configuration

6.1.4 Band Configuration This function is for setting tones for each band.

Figure 6.1.4 Band Configuration

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.1.5 Loop Back The loop back testing function for checking phone wire link problem: 1. System Loop 2. Line Side Loop

Figure 6.1.5 Loop Back Activation/Deactivation Menu

Loop Back

Setting Description Channel Number

To which bearer channel number shall the settings apply?

•Channel 0

6.1.6 Line Activation This function is for enable/disable VDSL2 port.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 6.1.6 Activation and Deactivation of the Line

Line Activation/Deactivation Setting Description Line Activate or deactivate the line. (Select the activity and the press

the APPLY button.)

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.2 Status Displays

6.2.1 Line Status This function provides SNR value for checking phone wiring quality.

Figure 6.2.1 Line Status Display: Actual SNR

The following status messages may occur: not_initialized, exception, idle request, idle, silent request, silent, handshake, full init, discovery, training, analysis, exchange, showtime no sync, showtime tc sync, fast retrain, lowpower l2, loopdiagnostic, loopdiagnostic complete, resync, test, lowpower l3, unknown

6.2.2 Channel Status This function show VDSL2 port status.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

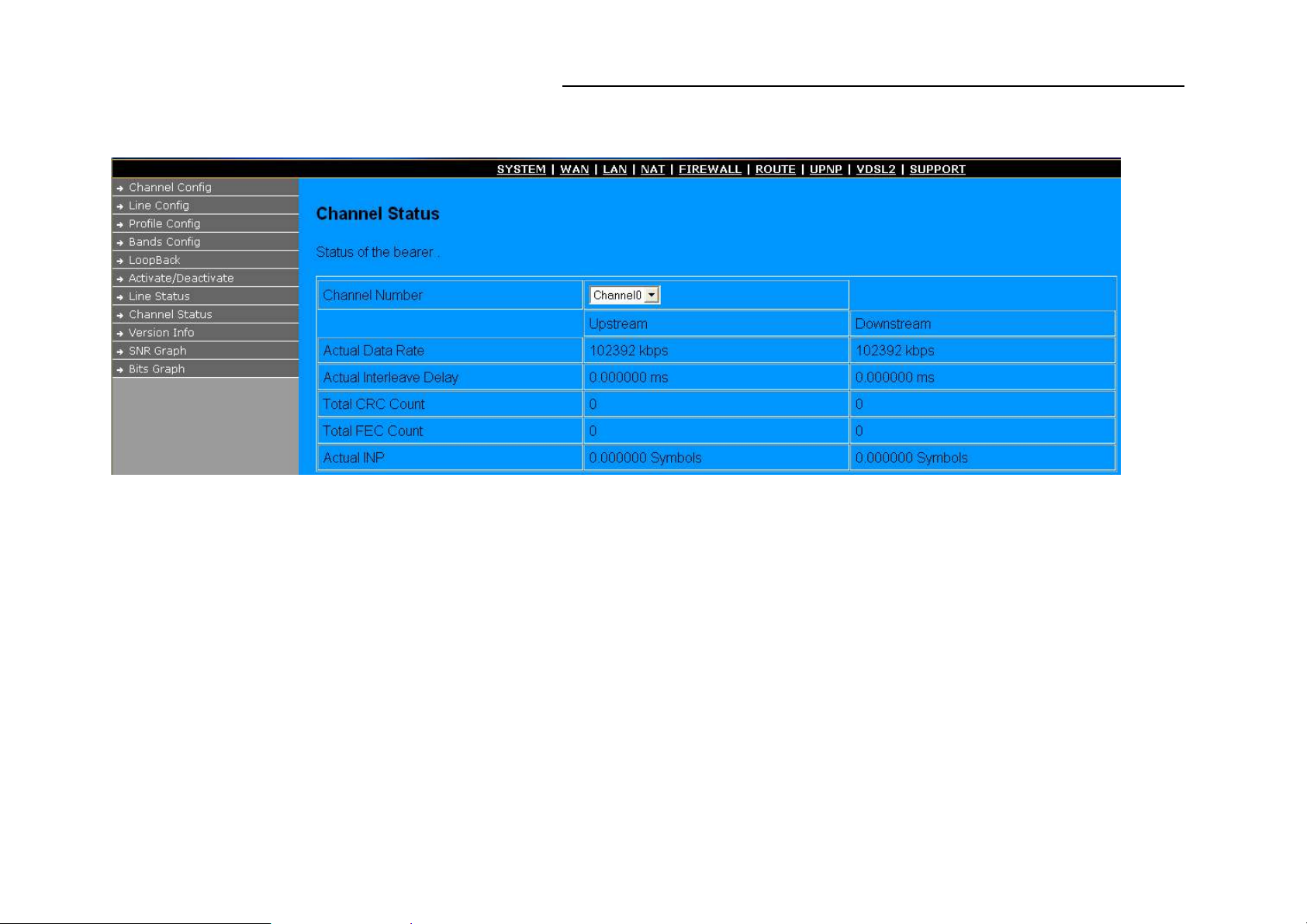

Figure 6.2.2 Channel Status Display: Data Rate, Delay, Error Counters and Impulse Noise Protection

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.2.3 Version Info This function show hardware and firmware version.

Figure 6.2.3 Display of Version Data

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

6.2.4 SNR Graphs When ALL126AM2 (CO) link with ALL126AS2 (CPE), this graph will show the SNR value for each band.

Figure 6.2.4 Display of SNR per Carrier

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7. Configuration Interface of the Router

This section explains how to configure the router section of the ALL126AM2/AS2 using its web-based configuration.

The parts of the circuitry as well as the router configuration menu has been ported from that of the reference kit to the ALL126AM2/AS2 reference board. As for the menu, There are only a few differences:

• The “adm1” port now is the port to the VDSL2 side. The port on the LAN is “adm0”. It supports four Ethernet connections.

• The IP addresses are used in this chapter are different from the examples in the previous chapters.

• The password used in this chapter is different from the examples in the previous chapters.

• The ALL126AM2/AS2 of course has no menu option for VDSL settings. The ALL126AM2/AS2 Series has a VDSL menu which is described in Chapter 6. Also the entry menu (Chapter 4.2) has different “looks” tailored to the ALL126AM2/AS2.

7.1 Logging on to the ALL126AM2/AS2 To log on to the ALL126AM2/AS2 Web Application, you must have a valid password. The Administrator creates the log

on user with its password. When you log on to the ALL126AM2/AS2 Web Application, the USER LOGIN window is displayed as shown in Figure 7.1.

Figure 7.1 ALL126AM2/AS2 Web Application

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

In the USER LOGIN window:

1. Enter the password in the Password text box. For an Admin user, the default password is “admin”.

2. Click LOGIN to begin the configuration or click CANCEL in the USER LOGIN window to cancel this log on operation.

7.2 Configuration Menu for Administrators

This chapter is only for Administrators.

The Homepage is the first screen displayed when a user logs on to the ALL126AM2/AS2 Web Application. The ALL126AM2/AS2 Web Application is categorized into two modules:

Advanced Setup — Advanced setup features allow the user to configure all the functions that are supported by the

ALL126AM2/AS2 like Firewall, routing, UPnP.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.1 Home Setup

The following configuration options are displayed in the top navigation bar, as shown in Figure 7.2.1:

•System

•WAN

•LAN

•NAT

•Firewall

•Route

•UPnP

•vdsl2

Figure 7.2.1 Advanced Setup

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.2 System

The System link can be viewed in the left navigation bar. The following are the options available under System, as shown in Figure 7.2.2 :

• Administrator Settings

• Firmware Upgrade

• Device Mode

• System Status

• System Log

• Reboot

• Reset System

Figure 7.2.2 System in the Left Navigator Bar

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.2.1 Administrator Settings

To add a user or change user’s password, click on the Administrator Settings link in the left navigation bar. A screen is displayed as shown in Figure 7.2.2.1.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 7.2.2.1 Administrator Settings Configuration While adding a user, each user must be assigned a separate port. Hence the number of users that can be added to the

system depends on the number of ports available on the ALL126AM2/AS2. The screen contains the following details:

Fields in User Setting Field Description Current Password

This is the password associated with the administrator. This is enabled only for the

user Administrator login. Password This is the password of the login administrator. Re-type

This is the password verification. Password Auto-Logout

The auto-logout time, at least one minute. Time

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.2.2 Firmware Upgrade To update the system firmware, click on the Firmware Upgrade link in the left navigation bar. A screen is displayed as shown in 7.2.2.2

Figure 7.2.3.5 Firmware Update

The screen contains the following detail:

• Click Browse to select a specified file name to change the File Name.

• Click APPLY to start the firmware update.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.2.3 Device Mode The ADM5120 network processor used in the reference system is able to act as either a switch or a router. Clicking on Device Mode on the left navigation bar allows the user to change the mode of operation, as shown in the following figure.

Figure 7.2.2.3 Device Mode

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.2.4 System Status To view system status, click on the System Status link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.2.4

Figure 7.2.3.6 Status Window

This screen displays the status of certain important system parameters. It also offers control over the current DHCP lease for the IP Address.

• Click Release to release IP Address for the WAN interface.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

• Click Renew to renew the IP Address for the WAN interface.

7.2.2.5 System Log To view the system logs, click on the System log link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.2.5.

Figure 7.2.2.5 Security Logs The screen contains the following details: Fields in Security Logs

Field Description Log File This lists all the system events.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

• Click Download to download the log file to the computer.

• Click Clear to clear this page.

• Click Refresh to retrieve system event and update the log file.

7.2.2.6 Reboot To reboot the unit, click on the Reboot link in the left navigation bar. A screen is displayed as shown in Figure 7.2.2.6.

Figure 7.2.2.6 Reboot ALL126AM2/AS2 Modem

• Click Reboot to reboot the unit.

7.2.2.7 Reset system To reset the system, click on the Reset link in the left navigation bar. A screen is displayed as shown in Figure 7.2.2.7.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

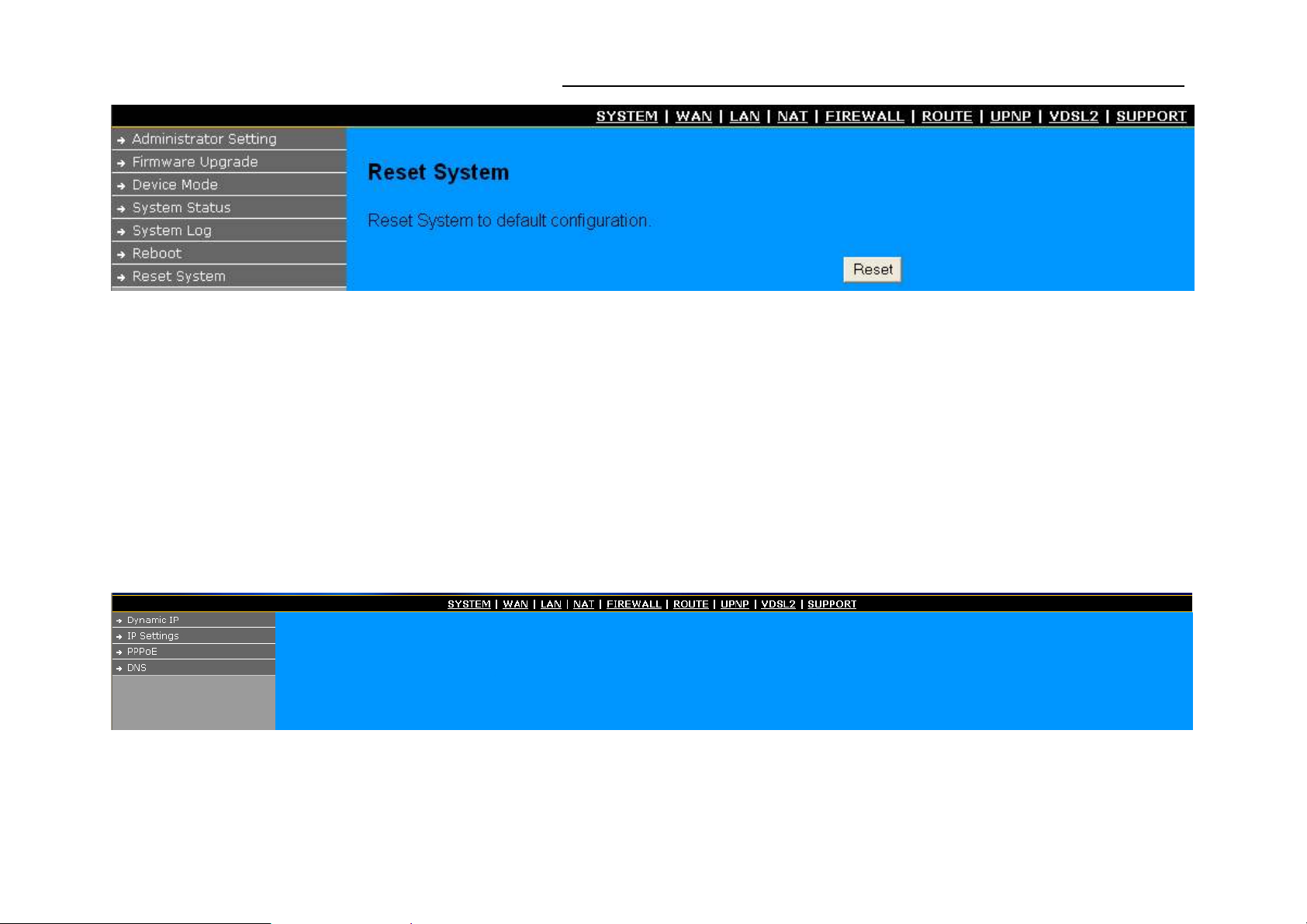

Figure 7.2.2.7 Reset ALL126AM2/AS2 Modem

• Click Reset to restart the system.

7.2.3 WAN The WAN settings can be viewed in the left navigation bar. The following are the options available under WAN, as shown

Figure 7.2.3:

• Dynamic IP

• Static IP

• PPPoE

• DNS

Figure 7.2.3 WAN Setting in Left Navigator Bar

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.3.1 Dynamic IP To configure the WAN interface to dynamically obtain an IP Address, click on the Dynamic IP link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.1.

Figure 7.2.3.1 Dynamic IP Configuration

The screen contains the following details:

• Click APPLY to save the information that has been entered.

• Click CANCEL to exit from this page.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.3.2 Static IP To configure the WAN interface to use a Static IP Address, click on the Static IP link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.2.

Figure 7.2.3.2 Static IP Configuration

The screen contains the following details: Fields in Static IP

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Field Description IP Address assigned by your ISP Enter the IP Address of ALL126AM2/AS2. Subnet Mask Enter the Subnet Mask of ALL126AM2/AS2.

Fields in Static IP (cont’d) Field Description ISP Gateway Address Enter the Gateway address of the ALL126AM2/AS2. Does ISP provide more IP Address

Provides more IP Addresses of the WAN interface. Select the check box to enable this option. A screen is displayed as shown in Figure 41. Click Add to add IP Address and Subnet Mask.

7.2.3.3 PPPoE To configure the WAN interface to use PPPoE, click on the PPPoE link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.3.

Figure 7.2.3.3 PPPoE Configuration

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

The screen contains the following details: Fields in PPPoE

Field Description

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

User Name Enter a name to use the PPPoE session. Password Enter the password of the login user. Retype Password Enter the password again to reconfirm. Service Name Enter a service name. Fields in PPPoE (cont’d) Field Description MTU Enter the maximum connection units of the

PPPoE. The MTU range is 1400 to 1492 bytes. By default, it is 1492.

Maximum Idle Time This is the period of time required to keep the

connection alive if no packets are transmitted. If no packets are transmitted between LAN port and WAN port or between ALL126AM2/AS2 and WAN, the connection is disconnected after the 'Maximum idle time. If the Auto-reconnect check box is selected, the PPP connection is re-established if there is some data that is received from the upper layers to be transmitted on this link.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.3.4 DNS To configure the DNS address, click on the DNS link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.3.4:

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 7.2.3.4 DNS Configuration

The screen contains the following details: Fields in DNS Field Description Domain Name Server(DNS) Address Enter the DNS address of the primary DNS server. Secondary DNS Address(optional) Enter the address of the secondary DNS server, if

available.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.4 LAN The LAN Setting can be viewed in the left navigation bar. The following are the options available under LAN, as shown in

Figure 7.2.4:

• LAN Settings

• DHCP Client List

• LAN Switch Port Setting

• LAN Port Status

Figure 7.2.4 LAN in Left Navigator Bar

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.4.1 LAN Settings Attention: For the ALL126AM2/AS2 it is recommended to select a simple IP setting suitable to controlled lab

environments. Set a static IP address and don’t use DHCP. The required steps are explained in Chapter 4.4 on

Page 13!

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

To configure the LAN interface, click on the LAN Settings link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.4.1 in case of the ALL126AM2/AS2.

Figure 7.2.4.1 LAN Settings

The screen contains the following details: Fields in LAN Settings Field Description IP Address Enter the LAN interface IP Address of ALL126AM2/AS2.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Subnet Mask Enter the LAN Subnet Mask of ALL126AM2/AS2. The Gateway acts as DHCP Server

Enable or disables the DHCP Server of the ALL126AM2/AS2. Select the check-box to enable this option.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.4.2 DHCP Client List To view the DHCP client list, click on the DHCP Client List link in the left navigation bar. A screen is displayed to list all DHCP client connection with IP Address and MAC Address as shown in Figure 7.2.4.2.

Figure 7.2.4.2 DHCP Client List

7.2.4.3 LAN Switch Port Setting To view the All Lan Port Setting, click on the All Lan Port Setting link in the left navigation bar. A screen is displayed to All Lan Port Setting as shown in Figure 7.2.4.3.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 7.2.4.3 DHCP Client List

7.2.4.4 LAN Port Status The following information provides a view of the current Ethernet ports status of the unit

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

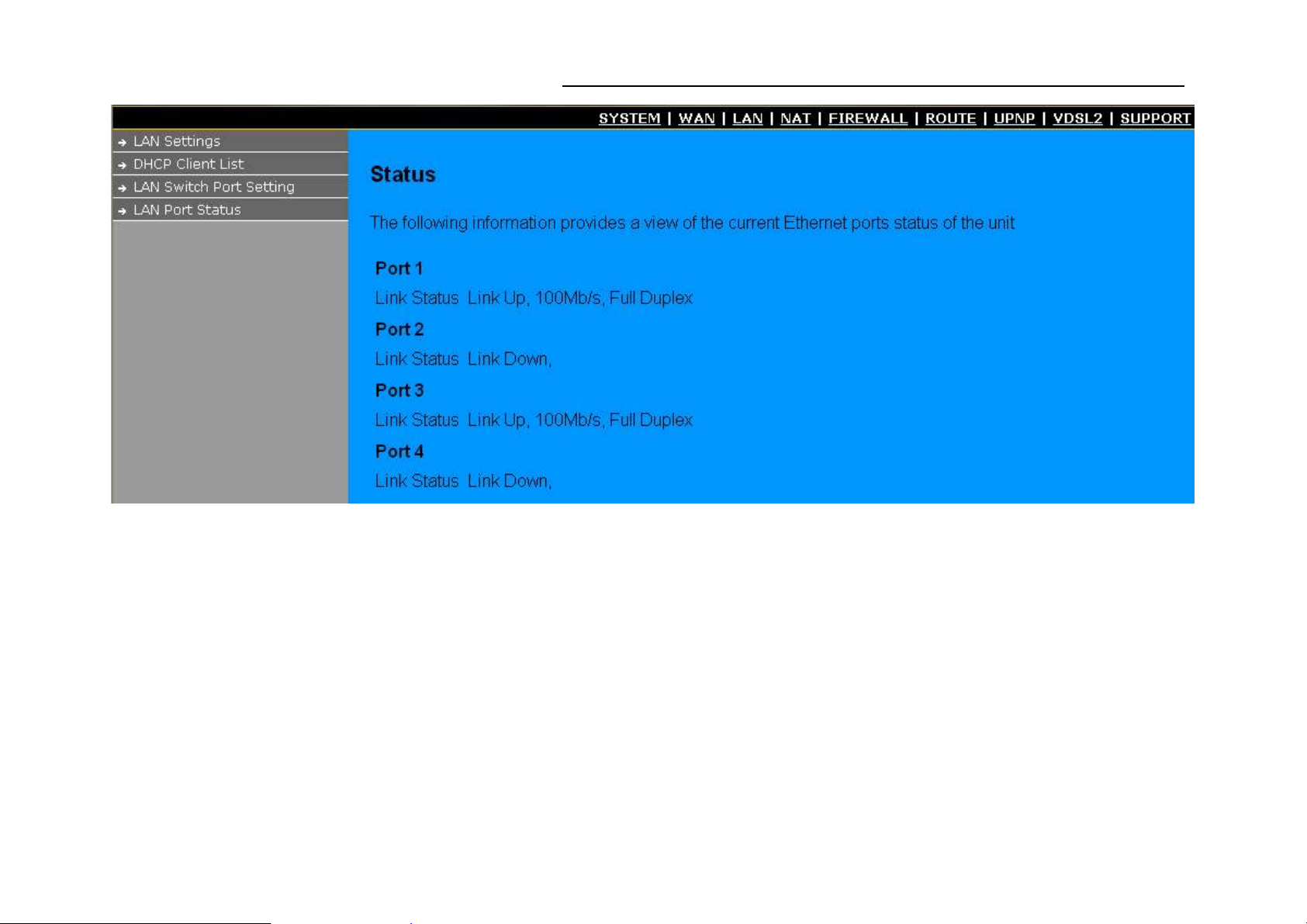

Figure 7.2.4.4 LAN Port Status

7.2.5 NAT The NAT Settings can be viewed in the left navigation bar. The following are the options available under NAT, as shown in

Figure 7.2.5:

• Virtual Server

• Port Mapping

• DMZ

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Figure 7.2.5 NAT in Left Navigator Bar

7.2.5.1 Virtual Server

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

To configure virtual server, click on the Virtual Server link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.5.1:

Figure 7.2.5.1 Virtual Server Configuration

The screen contains the following details: Fields in Virtual Server Field Description Private IP Enter a private IP Address of specified entry. Private Port Enter a private Port number of the specified entry. Type Select virtual server protocol type of the specified entry. Public Port Enter a public port number of the internet user to

access the virtual server.

Enabled Enable the specified entry of the virtual server.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.5.2 Port Mapping

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

To configure Port Mapping, click on the Port Mapping link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.5.2:

Figure 7.2.5.2 Port Mapping Configuration

The screen contains the following details: Fields in Port Mapping Field Description Server IP Enter the IP Address of a specified local machine. Mapping Port Assign a range of port or specific port number to route the packets. Enabled Enable a specified entry of the Port Mapping.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.5.3 DMZ

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

To configure the DMZ, click on the DMZ link in the left navigation bar. A screen is displayed as shown in Figure 7.2.5.3:

Figure 7.2.5.3 DMZ Configuration The screen contains the following details: Fields in DMZ

Field Description Enable Enable or disable the DMZ setting of

ALL126AM2/AS2. Select the check box to enable this option.

IP Address Enter IP Address of the DMZ host.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

7.2.6 Firewall

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

The Firewall Settings can be viewed in the left navigation bar. The following are the options available under Firewall, as shown in Figure 7.2.6:

• Firewall Options

• Client Filter MAC Control

• MAC Control

Figure 7.2.6 Firewall in Left Navigator Bar

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.6.1 Firewall Options To enable the firewall options, click on the Firewall Options link in the left navigation bar. A screen is displayed as shown in Figure 7.2.6.1:

Figure 7.2.6.1 Firewall Options Configuration

The screen contains the following details: Fields in Firewall Options Field Description Enable Hacker Attack

Select the check box to log and drop all the hacker attack events. Protect Discard PING from WAN Select the check box to drop all PING from the WAN side. Discard PING the Gateway Select the check box to drop all PING to ALL126AM2/AS2

packet for the LAN side. Drop Port Scan Select the check box to drop all the port scan packets.

• Click APPLY to save the information that has been entered.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.6.2 Client Filter To enable Client Filter, click on the Client Filter link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.6.2.

Figure 7.2.6.2 Client Filter Configuration

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

The screen contains the following details: Fields in Client Filter Field Description Enable Client Filter Enable or disable the Client Filter feature of

VDSL2 CO&CPE MODEM. Select the check box to enable this option.

IP Enter the filter IP Address range of the local

machines under VDSL2 CO&CPE MODEM.

Port Enter the filter Port number range of the local

machines under VDSL2 CO&CPE MODEM.

Type Select TCP or UDP to filter the protocol type

packets from the local machines.

Enable Provides more IP Addresses of the WAN interface.

• Click CANCEL to exit from this page without saving the changes.

• Click APPLY to save the information that has been entered.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.6.3 MAC Control To configure MAC Control, click on the MAC Control link in the left navigation bar. A screen is displayed as shown in

Figure 7.2.6.3

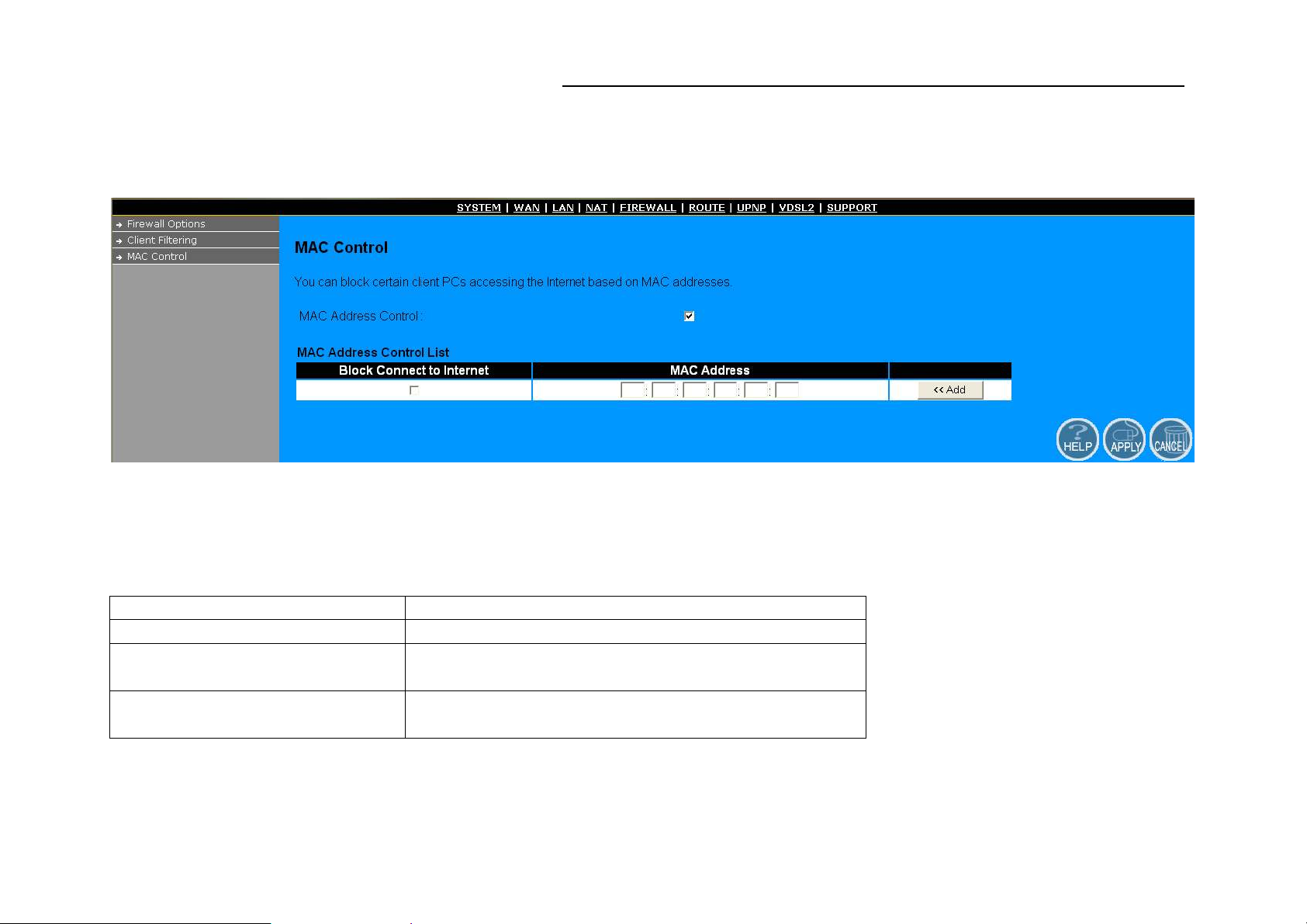

Figure 7.2.6.3 MAC Control Configuration The screen contains the following details: Fields in MAC Control

Field Description MAC Address Control Enable or disable the MAC address control. Block Connection to Internet Enable or disable block status. If the check box is

selected, it blocks the specified MAC address.

MAC Address Assign the blocking MAC address for local

machine.

• Click Add to add the specified MAC address entry in the list.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.7 Route Settings The Route Settings can be viewed in the left navigation bar. The following are the options available under Route, as shown in Figure 7.2.7:

• Static Rotuing

• Routing Table List

Figure 7.2.7 Route in Left Navigator Bar

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.7.1 Routing Table List To view the Routing entry table list of ALL126AM2/AS2, click on the Routing Table by link in the left navigation bar. A screen is displayed as shown in Figure 7.2.7.1.

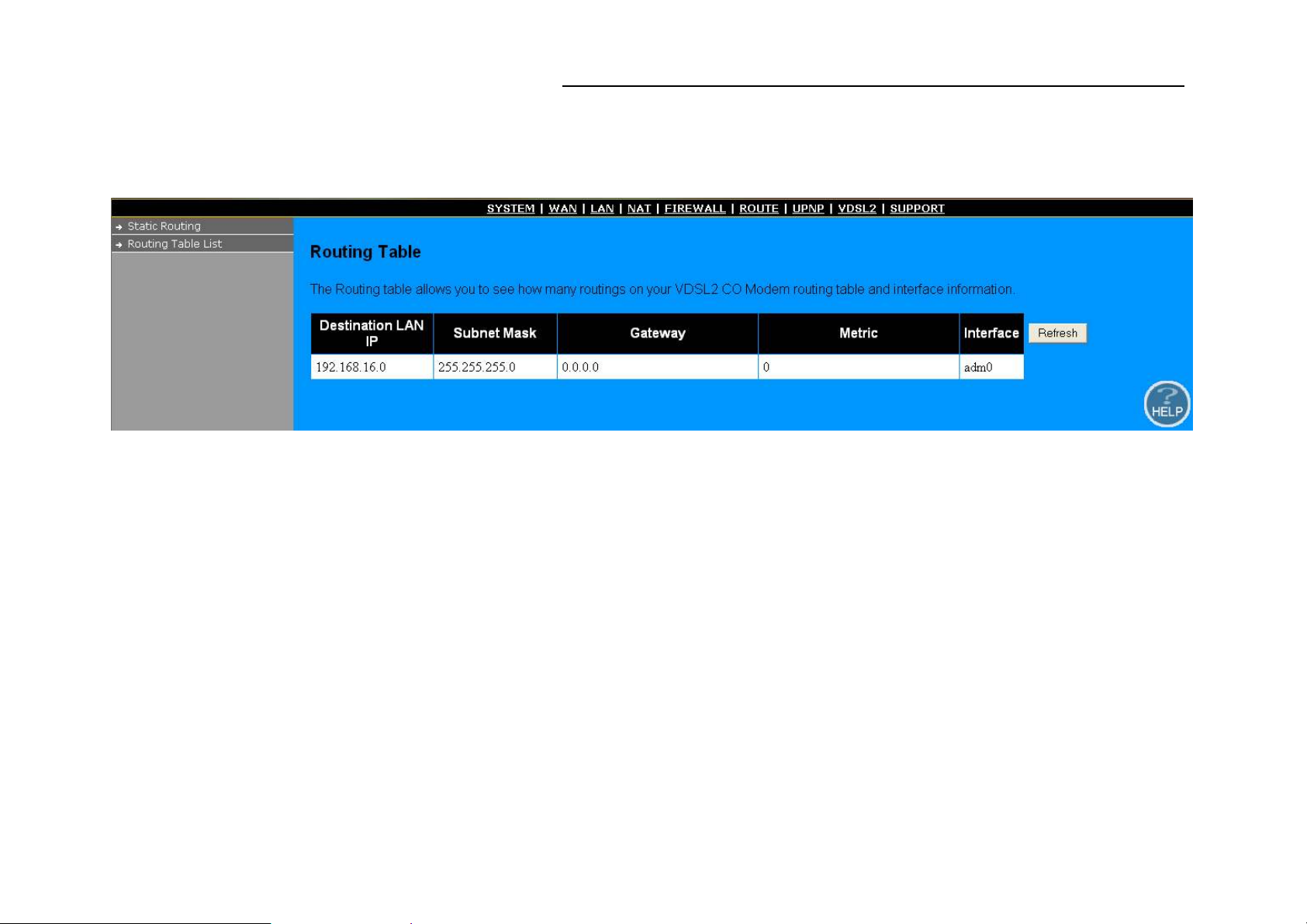

Figure 7.2.7.1 Routing Table List

The screen contains the following details:

• Click Refresh to update currently routing list of the ALL126AM2/AS2.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

7.2.8 UPnP Setting The UPnP Settings can be viewed in the left navigation bar. The following are the options available under UPnP, as shown in Figure 7.2.8: To enable or disable the UPnP Settings, click on the Settings link in the left navigation bar. A screen is displayed as shown in Figure 7.2.8.1.

Figure 7.2.8 / 7.2.8.1

The screen contains the following details: Table 22 Fields in UPnP Settings

Field Description Enable UpnP To enable or disable UPnP Setting. Select the check box to

Enable or Disable the UPnP function of SPEED-VDSL2 CO&CP MODEM.

• Click CANCEL to exit from this page without saving the changes.

•

Click APPLY at any time during configuration to save the information that you have entered.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Appendix A: Product Features & Specification Product Name ALL126AM2/AS2 ( VDSL2 Modem)

Features:

Compliant with IEEE 802.3 & 802.3u Ethernet Standards Compliant with ETSI, ITU, ANSI VDSL standards Provides 4 x 10/100M auto-sensing RJ-45 Ethernet ports Supports Bandwidth setup with 100 Mbps VDSL RJ-11 ports POTS / ISDN Splitter port RJ-11 x 1 (Splitter on board) Supports auto speed for VDSL2 port Supports Web management(HTTP) Supports TFTP Supports PPPOE Supports NAT/DHCP/DMZ Supports Firewall Supports Route & Switch mode Supports UPnP Supports Loop back Supports SNR indicator  Provides surge protection for VDSL2 port

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Specifications:

Compliant with IEEE 802.3 & 802.3u Ethernet Standards Compliant with ETSI, ITU, ANSI VDSL2 standards 10/100M auto-sensing/auto-MDIX RJ-45 Ethernet ports x 4 VDSL2 RJ-11 port x 1 (ALL126AM2 for CO / ALL126AS2 for CPE) POTS / ISDN Splitter port RJ-11 x 1 Switch method : store and forward

Flow control Full duplex : IEEE 802.3x

Half duplex : Back pressure

Driver capable : 100 M: 0.3 Km Indication LED x 6: Power LED x1

Ethernet Link/Active LED x 4 VDSL Link LED x 1

Console port : RS-232C/115200bps Dimension: L x W x H = 184mm x 146mm x 40mm(7.2" x 5.74" x 1.57") Operating temperature: 0°C to 50°C (32 to 122F) Operating humidity: 10% to 90% (non-condensing) Storage temperature: -20 to 65°C (-4F to 149F) AC to DC adapter

Input range: 100VAC~240VAC/50~60Hz Output: 12VDC/1A

Power consumption : 7.5w EMI Compliant: CE, FCC, VCCI



Chipset: Infineon



VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Appendix B: Troubleshooting

1. Symptom: Connected the Co-Modem with CPE-Modem within 300 meters RJ-11 phonecable got only less than 10

Mbit/s.

Cause: Some testing program which is base on TCP/IP protocol such as FTP, Iperf, NetIQ, the bandwidth of testing

outcome will be limited by TCP window size.

Solution: We recommand to test VDSL2 bandwidth best by Smartbit equipment, if you don't have Smartbit, we

recommand test that by IPERF program, and TCP window size must be setted max. 64k, the parameter as iperf –c co side ip address–I 1 –t 50 –w 65535 for client side.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Appendix CCompliance and Safety Information

FCC Radio Frequency Interference Statement

This equipment has been tested to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by taking one or more of the following

measures

1.Reorient or relocate the receiving antenna.

2.Increase the distance between the equipment and receiver.

3.The equipment and the receiver should be connected to outlets on separate circuits.

4.Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

If this telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

Important Safety Instructions

CautionThe direct plug-in wall transformer serves as the main product for disconnecting. The socket outlet shall be installed near the product and be readily accessible.

CautionUse only the power supply included with this product. In the event the power supply is lost or damagedIn the United States, use only with CSA certified or UL listed Class 2 power supply, rated 12Vdc 1A or above. IN Europe, use only with CE certified power supply, rated 12Vdc 1A or above. Do not use this equipment near water, for example in a wet basement. Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leaking area. If you experience trouble with this unit, please contact customer service at the address and phone listed below. DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.

FCC Warning

This equipment has been tested to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment can generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at owner’s expense.

CE Mark Warning

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

This is a CE class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Warranty

The original owner of this package will be free from defects in material and workmanship for one-year parts after purchase. For the warranty to apply, you must register your purchase by returning the registration card indicating the date of purchase.

There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical cooling devices. The warranty will not apply to any products which have been subjected to any misuse, neglect or accidental damage, or which contain defects which are in any way attributable to improper installation or to alteration or repairs made or performed by any person not under control of the original owner.

The above warranty is in lieu of any other warranty, whether express, implied, or statutory, including but not limited to any warranty of merchantability, fitness for a particular purpose, or any warranty arising out of any proposal, specification, or sample. Shall not be liable for incidental or consequential damages. We neither assumes nor authorizes any person to assume for it any other liability.

Note: Please do not tear off or remove the warranty sticker as shown, otherwise the warranty will be void.

CE-Kennzeichnung und EG-Konformitätserlärung

Für das folgend bezeichnete Erzeugnis

ALL126AM2 VDSL2 Master-Modem

ALLNET PartNr. 63905

CE-Kennzeichnung

Wird hiermit bestätigt, dass es den Anforderungen entspricht, die in der Richtlinie des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträglichkeit (89/336/EWG) festgelegt sind.

Zur Beurteilung des Erzeugnisses hinsichtlich elektromagnetischer Verträglichkeit wurden folgende Normen herangezogen:

EN 55022: 1998 + A1: 2000 + A2: 2003, Class A EN 61000-3-2: 2000

EN 61000-3-3: 1995 + A1:2001 EN 55024: 1998 + A1:2001 IEC 61000-4-2 1995 + A1: 1998 + A2: 2000 IEC 61000-4-3 2002 + A1: 2002 IEC 61000-4-4 1995 + A1: 2000 + A2: 2001 IEC 61000-4-5 1995 + A1: 2000 IEC 61000-4-6 1996 + A1: 2000 IEC 61000-4-8 1993 + A1: 2000 IEC 61000-4-11 1994 + A1: 2000

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Diese Erklärung wird verantwortlich für den Hersteller/Bevollmächtigten abgegeben: ALLNET Computersysteme GmbH

Maistr. 2 82110 Germering

CE-Kennzeichnung und EG-Konformitätserlärung

Für das folgend bezeichnete Erzeugnis

ALL126AS2 VDSL2 Client-Modem

ALLNET PartNr. 63906

CE-Kennzeichnung

Wird hiermit bestätigt, dass es den Anforderungen entspricht, die in der Richtlinie des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträglichkeit (89/336/EWG) festgelegt sind.

Zur Beurteilung des Erzeugnisses hinsichtlich elektromagnetischer Verträglichkeit wurden folgende Normen herangezogen:

EN 55022: 1998 + A1: 2000 + A2: 2003, Class A EN 61000-3-2: 2000

EN 61000-3-3: 1995 + A1:2001 EN 55024: 1998 + A1:2001 IEC 61000-4-2 1995 + A1: 1998 + A2: 2000 IEC 61000-4-3 2002 + A1: 2002 IEC 61000-4-4 1995 + A1: 2000 + A2: 2001 IEC 61000-4-5 1995 + A1: 2000 IEC 61000-4-6 1996 + A1: 2000 IEC 61000-4-8 1993 + A1: 2000 IEC 61000-4-11 1994 + A1: 2000

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

Diese Erklärung wird verantwortlich für den Hersteller/Bevollmächtigten abgegeben: ALLNET Computersysteme GmbH

Maistr. 2 82110 Germering

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

ERKLÄRUNG ZUR VERWENDUNG VON GPL-LIZENSIERTER SOFTWARE IN ALLNET-PRODUKTEN

Im vorliegenden Produkt wurden Teile von Linux sowie des netfilter/iptables Projektes (www.netfilter.org), die unter der GPL (General Public Licence, (http://www.gnu.org/home.de.html) lizensiert wurden, implementiert. Den Source Code, welcher in dem Produkt verwendet wurde, können Sie auf unserer Website www.allnet.de im Downloadbereich herunterladen.

Ihre Allnet Deutschland GmbH ALLNET GmbH

Maistraße 2 82110 Germering

Tel.: 089 / 894 222 22 Fax: 089 / 894 222 33

sales@allnet.de www.allnet.de

Achtung: Bitte beachten sie, dass durch Modifikation der Firmware eines Allnet-Geräts die Garantie auf dieses Gerät verloren geht. Alle Veränderungen an der Firmware geschehen also auf ihr eigenes Risiko, da dieses Gerät dann im Fehlerfall nicht umgetauscht oder sonstwie ersetzt werden kann..

VDSL2 Modem ALL126AM2 (CO) / ALL126AS2 (CPE) USER’S MANUAL

DISCLAIMER FOR ALLNET-PRODUCTS WHICH CONTAIN GPL-LICENSED SOFTWARE

The Allnet-product you have bought is using Linux software and parts of the netfilter/iptables-project. (www.netfilter.org) , which both are licensed using the GPL (General Public License, available for download at www.gnu.org/home.de.html ).

You can download the complete source-code of this product at www.allnet.de in the download-area for this model. ALLNET GmbH

Maistraße 2 82110 Germering

Tel.: +49 89 / 894 222 22 Fax: +49 89 / 894 222 33

sales@allnet.de www.allnet.de

Attention: Please be aware that any modifications of the firmware for this device will void the warranty. All modifications will be on your own risk and, in case of any damage to the device, Allnet can not repair or replace the device free of charge.

ALLNET ALLNET ALL126AM3 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
