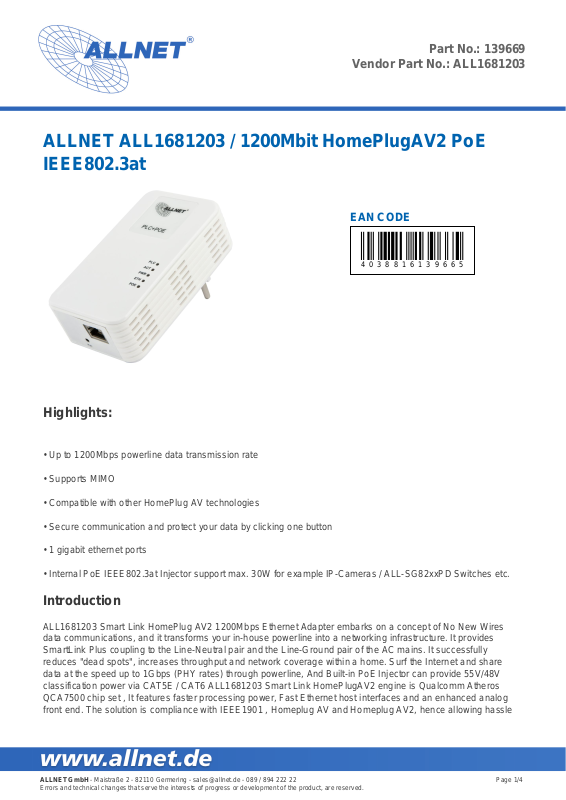

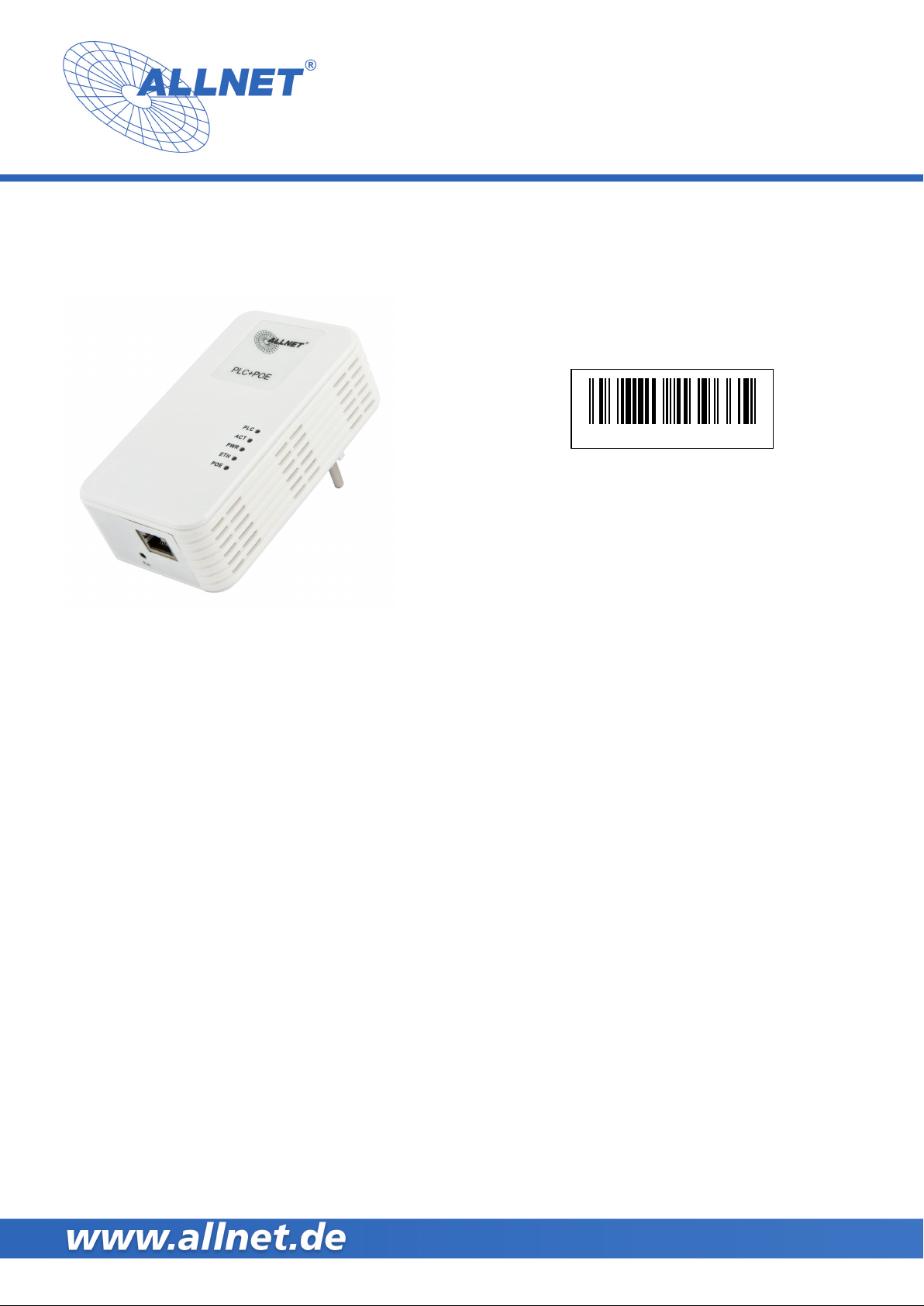

Part No.: 139669
Vendor Part No.: ALL1681203
ALLNET ALL1681203 / 1200Mbit HomePlugAV2 PoE
IEEE802.3at
EAN CODE
4038816139665
Highlights:
• Up to 1200Mbps powerline data transmission rate
• Supports MIMO
• Compatible with other HomePlug AV technologies
• Secure communication and protect your data by clicking one button
• 1 gigabit ethernet ports
• Internal PoE IEEE802.3at Injector support max. 30W for example IP-Cameras / ALL-SG82xxPD Switches etc.
Introduction
ALL1681203 Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on a concept of No New Wires
data communications, and it transforms your in-house powerline into a networking infrastructure. It provides
SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully
reduces "dead spots", increases throughput and network coverage within a home. Surf the Internet and share
data at the speed up to 1Gbps (PHY rates) through powerline, And Built-in PoE Injector can provide 55V/48V
classification power via CAT5E / CAT6 ALL1681203 Smart Link HomePlugAV2 engine is Qualcomm Atheros
QCA7500 chip set , It features faster processing power, Fast Ethernet host interfaces and an enhanced analog
front end. The solution is compliance with IEEE1901 , Homeplug AV and Homeplug AV2, hence allowing hassle
ALLNET GmbH - Maistraße 2 - 82110 Germering - [email protected] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 1/4
Page 2
Part No.: 139669
Vendor Part No.: ALL1681203
free compatibility with existing Homeplug AV2 devices and other suppliers of IEEE1901 PLC (Powerline Line
Communication) devices and IEEE 802.3at /af compliant Midspan or Endpoint (Option) PSE.
Technical Details:
Element Spezifikation
Chipset: Qualcomm QCA7500 + QCA8334
Standards: • IEEE 1901, IEEE 1905.1 and HomePlug AV Compliant
• HomePlug AV2 Compliant
• AV2 30MHz and 67MHz MIMO profi les
• AV2 30MHz and 67MHz SISO profi les
• Power Save mode
• Co- existence with HomePlug 1.0/Turbo Nodes
• Compliant to ErP 2013 directive
• IEEE 802.3 10/100/1000 Ethernet(1200Mbps)
Brutto data rate Powerline: up to 1200Mbps
Frequency band: 2MHz to 67,5 MHz
Access-Methode Powerline: Priority-based CSMA/CA channel access
Quality of Service: Priority-based CSMA/CA channel access
schemes maximize effi ciency and throughput
Integrated Quality of Service (QoS)
Enhancements
Supports IGMP managed multicast session
Modulation:
Powerline interface: Type F earthing contact connector (DE), Type C/E (FR)
Network interface: 1x RJ45 10/100/1000Mbit
IGMP: Support IGMP managed multicast sessions
Nodes/Clients: max. 15 devices
Security support: 128bit AES Link encryption with key management
OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK,
ROBO, und Mini-ROBO Modulation Schema
IGMP snooping with multicast to multiple unicast
support
IGMP/MLD Adressfiltering
(aktivated via Simple Connect button)
LED indicators: Power LED
PowerLine Link/ACT Status LED
2x Ethernet Link/ACT Status LED
Power supply: Type F earthing contact connector (DE), Type C/E (FR)
Switch mode 110VAC to 240VAC
Power over Ethernet: Data PIN´s: 1,2 & 3,6
Power: 4,5 & 7,8
ALLNET GmbH - Maistraße 2 - 82110 Germering - [email protected] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 2/4
Page 3
Vendor Part No.: ALL1681203
Max. 30 PoE IEEE802.3at 48V
Operating systems: all TCP/IP operating systems
Operating systems for
configurationsoftware:
Housing: synthetic housing
Environment: Temperature operating: 0 ~ 40 °C
Marks: CE, RoHS
Dimensions: 115 x 65 x 30mm
Weight: 300g (only device)
Package content: 1x ALLNET ALL1681203
Windows® XP32bit, Windows® Vista32/64bit,
Windows®7 32/64bit
Humidity operating: 30% ~ 80% (non condensing)
Temperature storage: -25 ~ 70 °C
Humidity storage: 30% ~ 95% (non condensing)
1x RJ45 patch cable 1m
1x CD-ROM with manual & software
Part No.: 139669

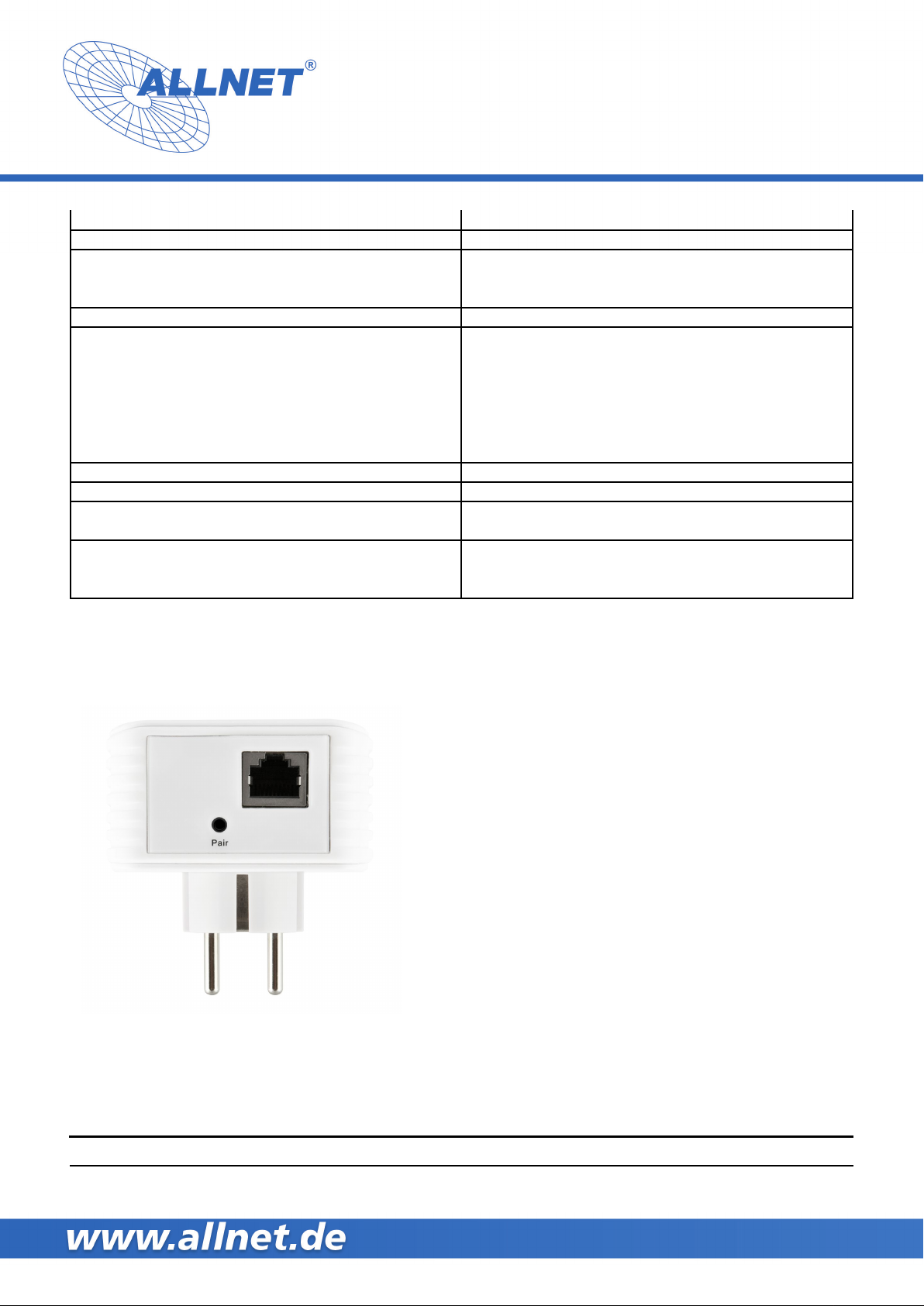

Additional Images
Accessories
Part No. Name
90246 ALLNET Powerline Phasenkoppler 3 Phasen + LX "passiv" ALL1688PC
ALLNET GmbH - Maistraße 2 - 82110 Germering - [email protected] - 089 / 894 222 22
Errors and technical changes that serve the interests of progress or development of the product, are reserved.
Page 3/4
Page 4
Part No.: 139669
Vendor Part No.: ALL1681203
Part No. Name
112411 ALLNET Powerline Phasenkoppler/FI-Signalbrücke 3 Phasen "ALLNET" ALL16881PC
23651 ALLNET Powerline Phasenkoppler 3 Phasen + LX "passiv" ALL168x
165177 ALLNET Powerline Sperr-Filter 2-68Mhz 16 A Schutzkontakt-Durchgangsgehäuse
65447 ALLNET Powerline Sperr-Filter 2,0-40 Mhz 16 A
65448 ALLNET Powerline Sperr-Filter 2,0-40 Mhz 25 A
118597 ALLNET Powerline 1200Mbit 2er Bundle Bridge RJ45 HomePlugV2 "SmartLink" Passtrough
ALL1681205
137500 ALLNET Powerline 1200Mbit HomePlugV2 "SmartLink" MIMO mit WiFI AC ALL1681211
