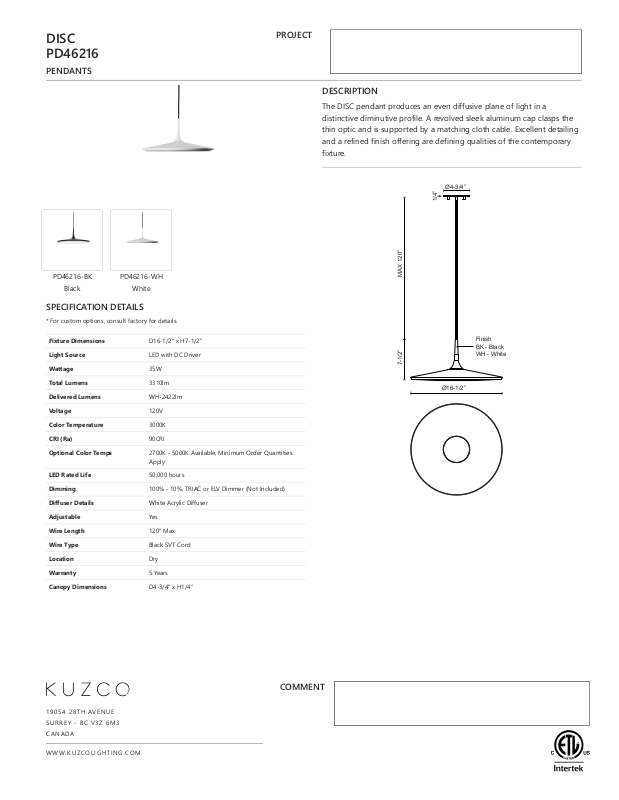

DISC
PD46216
PENDANTS
PROJECT
PD46216-BK
Black
PD46216-WH
White
SPECIFICATION DETAILS
* For custom options, consult factory for details.
Fixture Dimensions D16-1/2" x H7-1/2"
Light Source LED with DC Driver
Wattage 35W
Total Lumens 3310lm
Delivered Lumens WH-2422lm
Voltage 120V
Color Temperature 3000K
CRI (Ra) 90CRI
Optional Color Temps 2700K - 5000K Available, Minimum Order Quantities
Apply
LED Rated Life 50,000 hours
Dimming 100% - 10%, TRIAC or ELV Dimmer (Not Included)
Diffuser Details White Acrylic Diffuser
Adjustable Yes
Wire Length 120" Max
Wire Type Black SVT Cord
Location Dry
Warranty 5 Years
Canopy Dimensions D4-3/4" x H1/4"
DESCRIPTION
The DISC pendant produces an even diffusive plane of light in a
distinctive diminutive profile. A revolved sleek aluminum cap clasps the
thin optic and is supported by a matching cloth cable. Excellent detailing
and a refined finish offering are defining qualities of the contemporary
fixture.
1/4”
MAX 120”7-1/2”
Ø4-3/4”
Ø16-1/2”
Finish
BK - Black
WH - White
19 05 4 28 TH AV EN UE
SU RR EY - B C V3 Z 6M 3
CA NA DA
WW W. KU ZC OL IG HT IN G. COM
