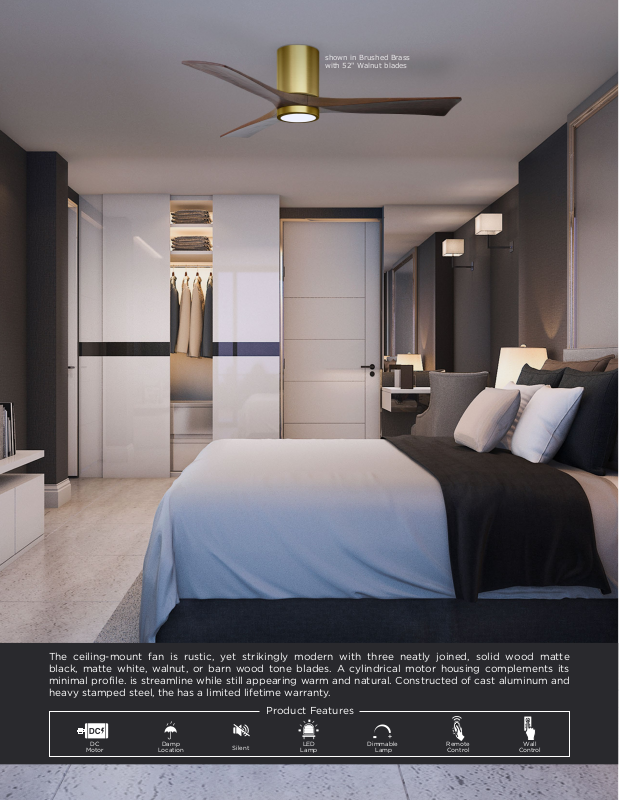

Page 1
shown in Brushed Brass
with 52" Walnut blades
The ceiling-mount fan is rustic, yet strikingly modern with three neatly joined, solid wood matte
black, matte white, walnut, or barn wood tone blades. A cylindrical motor housing complements its
minimal profile. is streamline while still appearing warm and natural. Constructed of cast aluminum and
heavy stamped steel, the has a limited lifetime warranty.
Product Features
Motor
DC
Damp
Location
Silent
LED
Lamp
Dimmable
Lamp
Remote
Control
Wall
Control
Page 2
with 60" Walnut blades
shown in
Walnut with
42" Walnut blades
shown in
Barn Wood with
42" Barn Wood
blades
shown in Gloss White
with 60" Matte White
blades
shown in Walnut
shown in Brushed Nickel
with 52" Barn Wood blades
shown in Matte Black
with 52" Matte Black blades
with 60" Walnut blades
shown in Polished Chrome
with 52" Matte Black blades
shown in Brushed Bronze
with 52" Barn Wood blades
shown in
Textured Bronze
FINISH AND BLADE OPTIONS
IR3HLK-XXXX-XXX-XX
SKU#
(Model+Finish+Blade+Diameter)
NEW
Barn Wood BW
Brushed Brass BRBR
Brushed Bronze BB
Brushed Nickel BN
Standard Finishes
Gloss White WH
Matte Black BK
Polished Chrome CR
Textured Bronze TB
Walnut WN
NEW
Blade Finishes
Barn Wood Tone BW
Matte Black BK
Matte White MWH
Walnut Tone WA
42 inches / 107 cm 42
Fan Diameter
52 inches / 132 cm 52
60 inches / 152 cm 60
TECHNICAL SPECS
Fan Diameter
inches: 42, 52 or 60
centimeters: 107, 132 or 152
Blade Material CNC Cut Solid Wood
Overall Drop 12 inches / 30 cm
Fan Weight 12 lbs
Voltage 110 or 220
Motor Type DC
Damp locations for all finishes
Environment
Neither coastal, saltwater nor
chlorine compatible
Ambience Silent
Safety Certification ETL / CETL
Warranty Limited Lifetime
NEW JAN 21, 2020 DOE MOTOR EFFICIENCY DATA
Fan Diameter
42 inch /
107 cm
52 inch /
132 cm
60 inch /
152 cm
RPM (Low / High) 50 / 232 51 / 212 51 / 152
CFM (Low / High) 701 / 3573 1057 / 5047 1783 / 5878
Watts (High) 17.61 32.49 30.81
CFM/Watt (High) 168 149 191
Blade Pitch 15° 15° 15°
LIGHT KIT PHOTOMETRICS
Lamping (Replaceable) Integrated LED
Remote Dimmable Yes
Delivered Temperature in K 3075
Delivered Lumens 690
CRI 90
Watts 16
Hours 60,000
Light kit longevity if used 6 Hours/Day: 27.4 Years
STANDARD EQUIPMENT
Light Cover
Black 6-speed RF
remote control
with reverse
White wireless
Decora-style,
6-speed, wall
control with
reverse
NOTE: Only compatible with included controllers.
Blade Options
Barn
Wood
Matte
Black
Matte
White
Walnut
Page 3
TECHNICAL SPECIFICATIONS
7" / 18 cm diameter
12" / 30 cm
10" / 25 cm
7" / 18 cm width
2" / 5 cm
42", 52" or 60" / 107 cm, 132 cm or 152 cm
CEILING PITCH TABLE
0/12 0 degrees
1/12 4.76 degrees
2/12 9.46 degrees
3/12 14.04 degrees
4/12 18.43 degrees
5/12 22.62 degrees
6/12 26.57 degrees
7/12 30.26 degrees
8/12 33.69 degrees
9/12 36.87 degrees
10/12 39.81 degrees
11/12 42.51 degrees
CEILING HEIGHT TABLE
Suitable for ceiling heights 7’10” or greater
