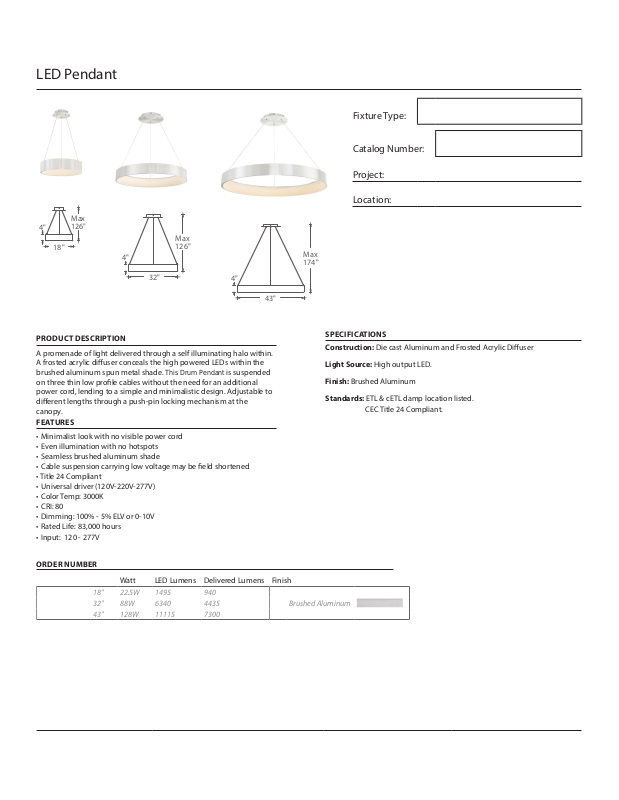

Page 1
LED Pendant
Max
4"
126"
18"
Fixture Type:
Catalog Number:
Project:
Location:
Max
126"
4"
32"
4"
43"
Max
174"
PRODUCT DESCRIPTION
A promenade of light delivered through a self illuminating halo within.
A frosted acrylic diuser conceals the high powered LEDs within the
brushed aluminum spun metal shade. This Drum Pendant is suspended
on three thin low prole cables without the need for an additional
power cord, lending to a simple and minimalistic design. Adjustable to
dierent lengths through a push-pin locking mechanism at the
canopy.
FEATURES
• Minimalist look with no visible power cord
• Even illumination with no hotspots
• Seamless brushed aluminum shade
• Cable suspension carrying low voltage may be eld shortened
• Title 24 Compliant
• Universal driver (120V-220V-277V)
• Color Temp: 3000K
• CRI: 80
• Dimming: 100% - 5% ELV or 0-10V
• Rated Life: 83,000 hours
• Input: 120 - 277V
ORDER NUMBER
Watt LED Lumens Delivered Lumens Finish
18" 22.5W 1495 940
43" 128W 11115 7300
SPECIFICATIONS
Construction: Die cast Aluminum and Frosted Acrylic Diuser
Light Source: High output LED.
Finish: Brushed Aluminum
Standards: ETL & cETL damp location listed.
CEC Title 24 Compliant.
Brushed Aluminum 32" 88W 6340 4435
