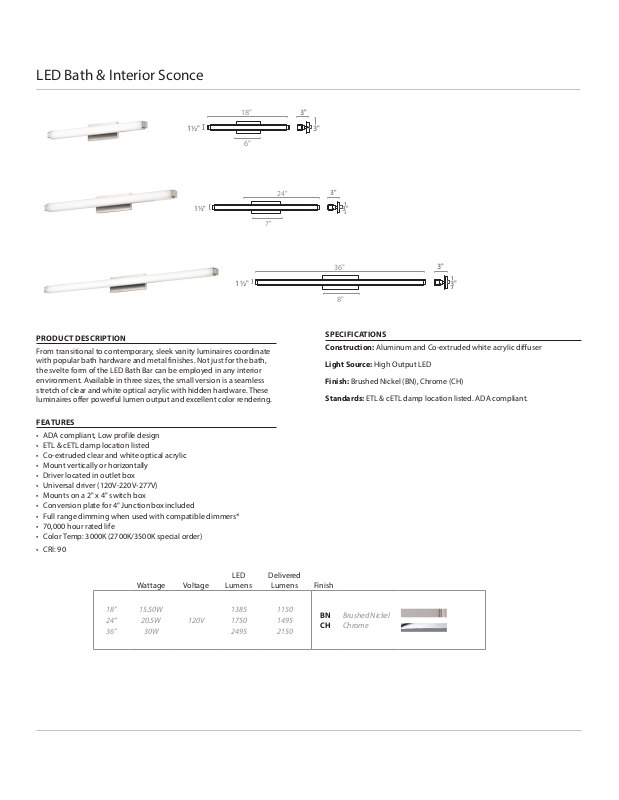

LED Bath & Interior Sconce
18"
1½"
6"
1½"
1½"
PRODUCT DESCRIPTION
From transitional to contemporary, sleek vanity luminaires coordinate
with popular bath hardware and metal finishes. Not just for the bath,
the svelte form of the LED Bath Bar can be employed in any interior
environment. Available in three sizes, the small version is a seamless
stretch of clear and white optical acrylic with hidden hardware. These
luminaires offer powerful lumen output and excellent color rendering.
3"
3"
24"
7"
3"
3"
36"
8"
SPECIFICATIONS
Construction: Aluminum and Co-extruded white acrylic diuser
Light Source: High Output LED
Finish: Brushed Nickel (BN), Chrome (CH)
Standards: ETL & cETL damp location listed. ADA compliant.
3"
3"
FEATURES
• ADA compliant, Low profile design
• ETL & cETL damp location listed
• Co-extruded clear and white optical acrylic
• Mount vertically or horizontally
• Driver located in outlet box
• Universal driver (120V-220V-277V)
• Mounts on a 2" x 4" switch box
• Conversion plate for 4” Junction box included
• Full range dimming when used with compatible dimmers*
• 70,000 hour rated life
• Color Temp: 3000K (2700K/3500K special order)
• CRI: 90
18”
24”
36”
Wattage Voltage
15.50W
20.5W
30W
120V
Lumens
LED
1385
1750
2495
Delivered
Lumens Finish
1150
1495
2150
BNCHbrushed Nickel
Chrome
