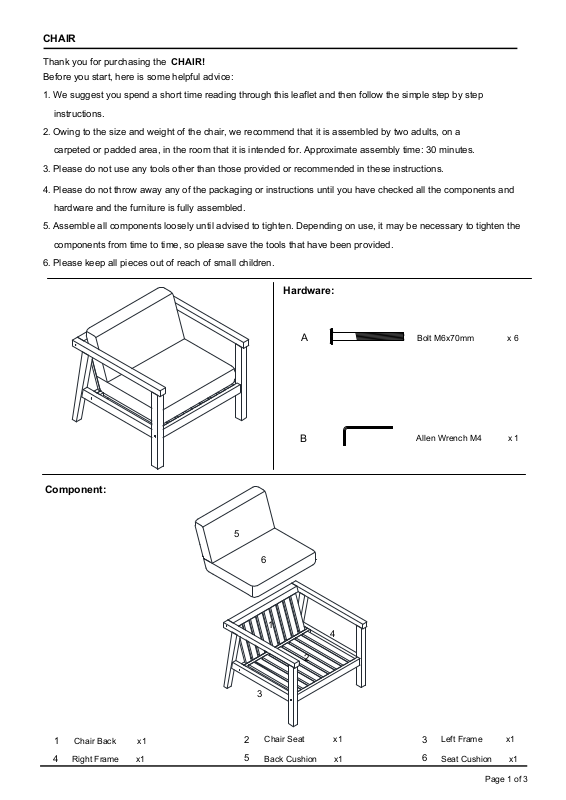

CHAIR
Thank you for purchasing the CHAIR!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Hardware:
Component:
5
6
A
B
Bolt M6x70mm x 6
Allen Wrench M4 x 1
1
4
2
3
Chair Seat x1
Chair Back x1
1
Right Frame x1
4
Page 1 of 3
2
5
Back Cushion x1
Left Frame x1
3
6
Seat Cushion x1
Page 2
CHAIR

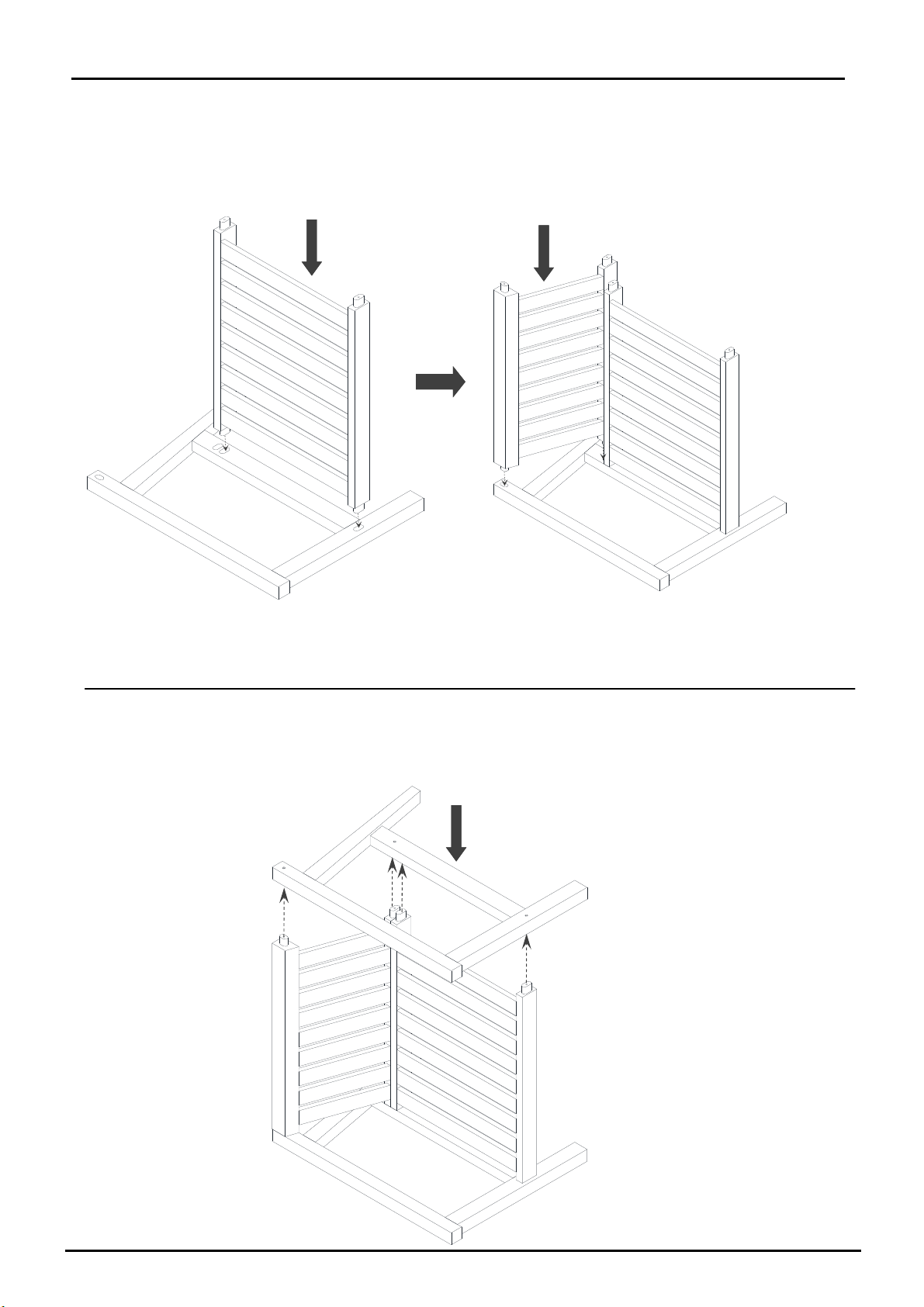

STEP 1:
Please put Left Frame (3) on a carpeted or padded area.
Insert the tenon on Chair Seat (2) into the rabbet on Left Frame (3) at first.
Then insert the tenon on Chair Back (1) into the rabbet on Left Frame (3) as shown.
1
2
2
3
3
STEP 2:
Carefully position Right Frame (4) to the assembled Chair Back (1), Chair Seat (2) and Left Frame (3) as shown.
Insert the tenon on Chair Back (1) and Chair Seat (2) into the rabbet on Right Frame (4).
4
1
2
3
Page 2 of 3
Page 3
CHAIR
STEP 3:
Carefully turn over the assembled Chair Back (1), Chair Seat (2), Left Frame (3) and Right Frame (4).
Insert 2 pieces of Bolt (A) into the pre-drilled hoes on Chair Back (1) through the top pre-drilled holes on Left Frame (3).
Insert 1 piece of Bolt (A) into the pre-drilled hoes on Chair Seat (2) through the top pre-drilled holes on Left Frame (3) .
Use Allen Wrench (B) to tighten Bolts (A) clockwise until secure.
Repeat the same steps for Right Frame (4).
A
1
A
4
A
B
A
3
2
A
Ax6 Bx1
STEP 4:
Carefully position the assembled chair to the desired location.
Put Back Cushion (5) and Seat Cushion (6) into the assembled chair as shown.
A
Hardware & Tool required
5
6
Assembly is complete. Your chair
Page 3 of 3
is ready to be used now!
