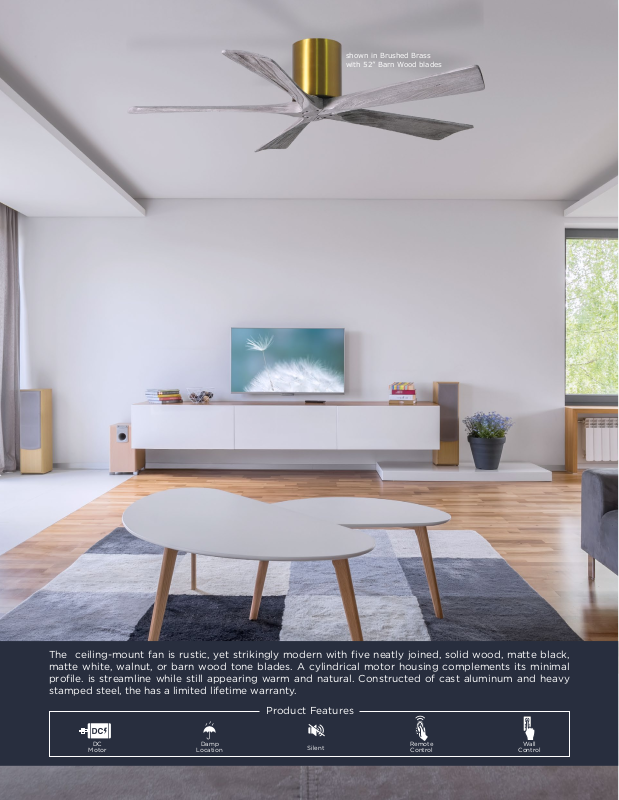

Page 1
shown in Brushed Brass
with 52” Barn Wood blades
The ceiling-mount fan is rustic, yet strikingly modern with five neatly joined, solid wood, matte black,
matte white, walnut, or barn wood tone blades. A cylindrical motor housing complements its minimal
profile. is streamline while still appearing warm and natural. Constructed of cast aluminum and heavy
stamped steel, the has a limited lifetime warranty.
Product Features
DC
Motor
Damp
Location
Silent
Remote
Control
Wall
Control
Page 2
shown in
Polished Chrome
with 60"Barn Wood blades
shown in Walnut
with 42" Barn Wood blades
with 42" Walnut blades
shown in Brushed Nickel
with 52" Walnut blades
shown in Matte Black
with 42"Matte Black blades
with 52" Matte White blades
shown in Textured Bronze
shown in Gloss White
FINISH AND BLADE OPTIONS
(Model+Finish+Blade+Diameter)
NEW
Barn Wood BW
Brushed Brass BRBR
Brushed Bronze BB
Brushed Nickel BN
Standard Finishes
Brushed Pewter BP
Gloss White WH
Matte Black BK
Polished Chrome CR
Textured Bronze TB
Walnut WN
NEW
Blade Finishes
Barn Wood Tone BW
Matte Black BK
Matte White MWH
Walnut Tone WA
42 inches / 107 cm 42
Fan Diameter
52 inches / 132 cm 52
60 inches / 152 cm 60
TECHNICAL SPECS
Fan Diameter
inches: 42, 52 or 60
centimeters: 107, 1 32 or 152
Blade Material CNC Cut Solid Wood
Overall Drop 10 inches / 25 cm
Fan Weight 12 lbs
Voltage 110 or 220
Motor Type DC
Damp locations for all finishes
Environment
Neither coastal, saltwater nor
chlorine compatible
Ambience Silent
Safety Certification ETL / CETL
Warranty Limited Lifetime
NEW JAN 21, 2020 DOE MOTOR EFFICIENCY DATA
Fan Diameter
42 inch /
107 cm
52 inch /
132 cm
60 inch /
152 cm
RPM (Low / High) 51 / 226 51 / 151 51 / 78
CFM (Low / High) 855 / 3989 1631 / 4970 2201 / 3543
Watts (High) 25.76 31.46 31.58
CFM/Watt (High) 193 162 123
Blade Pitch 15° 15° 15°
STANDARD EQUIPMENT
shown in Barn Wood
with 42" Walnut blades
shown in Brushed Pewter
with 42" Matte Black blades
shown in Brushed Bronze
with 42" Matte Black blades
6-speed RF
remote control
w/reverse in black
Wireless
Decora-style,
6-speed, wall
control in white
NOTE: Only compatible with included controllers.
Blade Options
Barn
Wood
with 52" Barn Wood blades
shown in Brushed Brass
Matte
Black
Matte
White
Walnut
Page 3
Irene-5H
weight: 12 lbs
voltage: 110/220
TECHNICAL SPECIFICATIONS
10" / 25 cm
Blade Pitch 15°
7" / 18 cm diameter
6" / 15 cm width
2" / 5 cm
CEILING PITCH TABLE
0/12 0 degrees
1/12 4.76 degrees
2/12 9.46 degrees
3/12 14.04 degrees
4/12 18.43 degrees
5/12 22.62 degrees
6/12 26.57 degrees
7/12 30.26 degrees
8/12 33.69 degrees
9/12 36.87 degrees
10/12 39.81 degrees
11/12 42.51 degrees
42", 52" or 60" / 107 cm, 132 cm or 152 cm
CEILING HEIGHT TABLE
Suitable for ceiling heights 7’10” or greater
