Page 1

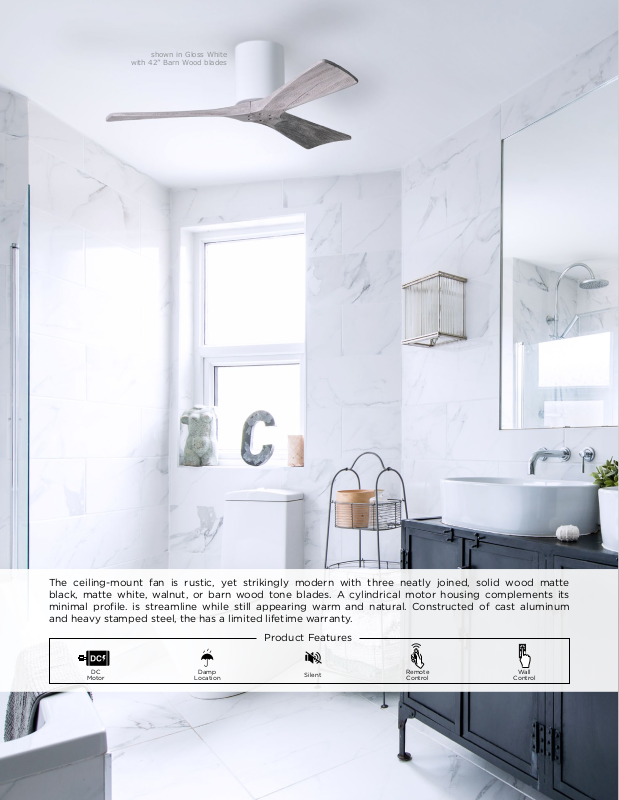

with 42” Barn Wood blades
shown in Gloss White
The ceiling-mount fan is rustic, yet strikingly modern with three neatly joined, solid wood matte
black, matte white, walnut, or barn wood tone blades. A cylindrical motor housing complements its
minimal profile. is streamline while still appearing warm and natural. Constructed of cast aluminum
and heavy stamped steel, the has a limited lifetime warranty.
Product Features
DC
Motor
Damp
Location
Silent
Remote
Control
Wall
Control
Page 2
shown in
Brushed Brass with
60" Matte White blades
shown in
Textured Bronze with
42" Walnut blades
shown in Barn Wood
with 60" Matte Black blades
shown in
Brushed Bronze with
42" Barn Wood blades
shown in
Matte Black with 42"
Matte Black blades
shown in Brushed Nickel
with 42" Matte White blades
FINISH AND BLADE OPTIONS
(Model+Finish+Blade+Diameter)
NEW
Barn Wood BW
Brushed Brass BRBR
Brushed Bronze BB
Brushed Nickel BN
Standard Finishes
Brushed Pewter BP
Gloss White WH
Matte Black BK
Polished Chrome CR
Textured Bronze TB
Walnut WN
NEW
Blade Finishes
Barn Wood Tone BW
Matte Black BK
Matte White MWH
Walnut Tone WA
42 inches / 107 cm 42
Fan Diameter
52 inches / 132 cm 52
60 inches / 152 cm 60
TECHNICAL SPECS
Fan Diameter
inches: 42, 52 or 60
centimeters: 107, 132 or 152
Blade Material CNC Cut Solid Wood
Overall Drop 10 inches / 25 cm
Fan Weight 11 lbs
Voltage 110 or 220
Motor Type DC
Damp locations for all finishes
Environment
Neither coastal, saltwater nor
chlorine compatible
Ambience Silent
Safety Certification ETL / CETL
Warranty Limited Lifetime
NEW JAN 21, 2020 DOE MOTOR EFFICIENCY DATA
Fan Diameter
42 inch /
107 cm
52 inch /
132 cm
60 inch /
152 cm
RPM (Low / High) 51 / 23 1 51 / 193 52 / 155
CFM (Low / High) 746/ 3743 1254 / 5326 1755 / 5720
Watts (High) 1 7. 6 1 32.38 32.08
CFM/Watt (High) 176 160 181
Blade Pitch 1 5° 1 5° 1 5°
STANDARD EQUIPMENT
shown in Polished Chrome
with 52" Barn Wood blades
with 42" Walnut blades
shown in Brushed Pewter
with 42" Walnut blades
shown in Walnut
Black 6-speed RF
remote control
with reverse
White wireless
Decora-style,
6-speed, wall
control with
reverse
NOTE: Only compatible with included controllers.
Blade Options
Barn
Wood
shown in Gloss White
with 52" Barn Wood blades
Matte
Black
Matte
White
Walnut
Page 3
TECHNICAL SPECIFICATIONS
10" / 25 cm
Blade Pitch 15°
7" / 18 cm diameter
7" / 18 cm width
2" / 5 cm
42", 52" or 60" / 107 cm, 132 cm or 152 cm
CEILING PITCH TABLE
0/12 0 degrees
1/12 4.76 degrees
2/12 9.46 degrees
3/12 14.04 degrees
4/12 18.43 degrees
5/12 22.62 degrees
6/12 26.57 degrees
7/12 30.26 degrees
8/12 33.69 degrees
9/12 36.87 degrees
10/12 39.81 degrees
11/12 42.51 degrees
CEILING HEIGHT TABLE
Suitable for ceiling heights 7’10” or greater
