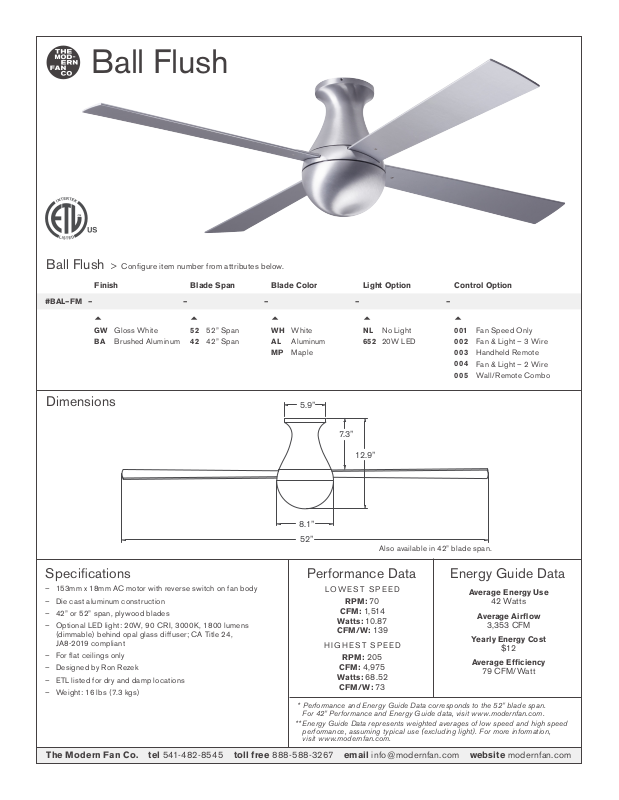

Page 1
Ball Flush
Ball Flush > Configure item number from attributes below.
Finish Blade Span Blade Color Light Option Control Option
#BAL–FM –
– – – –
GW
Gloss White
BA
Brushed Aluminum
52
42
52” Span
42” Span
WH
AL
MP
White
Aluminum
Maple
NL
652
No Light
20W LED
001
Fan Speed Only
002
Fan & Light – 3 Wire
003
Handheld Remote
004
Fan & Light – 2 Wire
005
Wall/Remote Combo
Dimensions
5.9”
7.3”
12.9”
8.1”
52”
Also available in 42” blade span.
Specifications
– 153mm x 18mm AC motor with reverse switch on fan body
– Die cast aluminum construction
– 42” or 52” span, plywood blades
– Optional LED light: 20W, 90 CRI, 3000K, 1800 lumens
(dimmable) behind opal glass diffuser; CA Title 24,
JA8-2019 compliant
– For flat ceilings only
– Designed by Ron Rezek
– ETL listed for dry and damp locations
– Weight: 16 lbs (7.3 kgs)
Performance Data
LOWEST SPEED
70
RPM :
CFM: 1,514
Watts: 10.87
CFM/W: 139
HIGHEST SPEED
205
RPM :
CFM: 4,975
Watts: 68.52
CFM/W: 73
* Performance and Energy Guide Data corresponds to the 52” blade span.
For 42” Performance and Energy Guide data, visit www.modernfan.com.
** Energy Guide Data represents weighted averages of low speed and high speed
performance, assuming typical use (excluding light). For more information,
visit www.modernfan.com.
Energy Guide Data
Average Energy Use
42 Watts
Average Airflow
3,353 CFM
Yearly Energy Cost
$12
Average Efficiency
79 CFM/Watt
The Modern Fan Co. tel 541-482-8545 toll free 888-588-3267 email [email protected] website modernfan.com
Page 2
Ball Flush
Gloss White with
White Blades
(no light)
FAN FINISHES
Gloss White
with Maple Blades
(no light)
PLY WOOD B LA DES
Plywood blades are constructed of furniture grade veneers, painted or stained as
shown here. Natural variations may exist in woodgrains and finishes.
Gloss
White
Brushed
Aluminum
White
BALL FLUSH FAN CONTROLS
Selection of a control option is made at time of order and incorporated into the fan item
number (except #FC-009A and #FC-009B which are sold as accessory items).
#FC- 001
Fan Speed Only Control
(no light)
For a single AC fan, providing
four speeds. Not intended for
a fan with light. Note: Not com-
patible with remote control.
#FC- 002
Fan & Light Control −3 Wire
For a single AC fan with LED light,
providing four speeds and dimming
function. Requires three wires from
switch location to fan. Note: Not
compatible with remote control.
Brushed Aluminum
with Aluminum Blades
and 652 LED Light
Aluminum Maple
M O U N T I N G
The Ball Flush installs with a flat
mounting plate (included) for attachment to
an appropriately rated junction box.
The Ball Flush is intended for flat,
low ceilings (approximately 8’0”).
For higher ceilings and/or for sloped
ceilings, please select from one of our
down rod suspended models.
#FC- 003- LED
Handheld Remote RF Control
Designed for independent operation
a single AC fan or AC fan with LED
light, providing three speeds and full
range dimming (or “on/off” switching),
using only one circuit (two wires).
Includes RF handset, receiver, battery
and comes with a wall mounting
bracket for handset.
#FC- 005- LED
Wall/Remote Combo
RF Control−2 Wire
Designed for independent
operation of a single AC fan
or AC fan with LED light,
providing three speeds and
full range dimming (or “on/
off” switching), using only one
circuit (two wires). Includes
RF handset, RF wall control
(with master power switch),
switch plate and receiver.
#FC- 004- LED Fan & Light
RF Control−2 Wire
Designed for independent operation of a single AC fan or AC fan
with LED light, providing three
speeds and full range dimming
(or “on/off” switching), using only
one circuit (two wires). Includes
RF wall control (with master power
switch), switch plate and receiver.
#FC- 009A / #FC- 009B
Multi-fan Speed Controls
for AC Fans
(no lights)
Sold as an accessory item,
providing three speeds for multiple
AC fans on a single switch leg.
FC-009A for 2-3 fans
FC-009B for 3-6 fans
Note: Not compatible with remote
control. Control of fan lights
must be accounted for separately
with owner provided control on
separate switch leg.
The Modern Fan Co. tel 541-482-8545 toll free 888-588-3267 email [email protected] website modernfan.com
