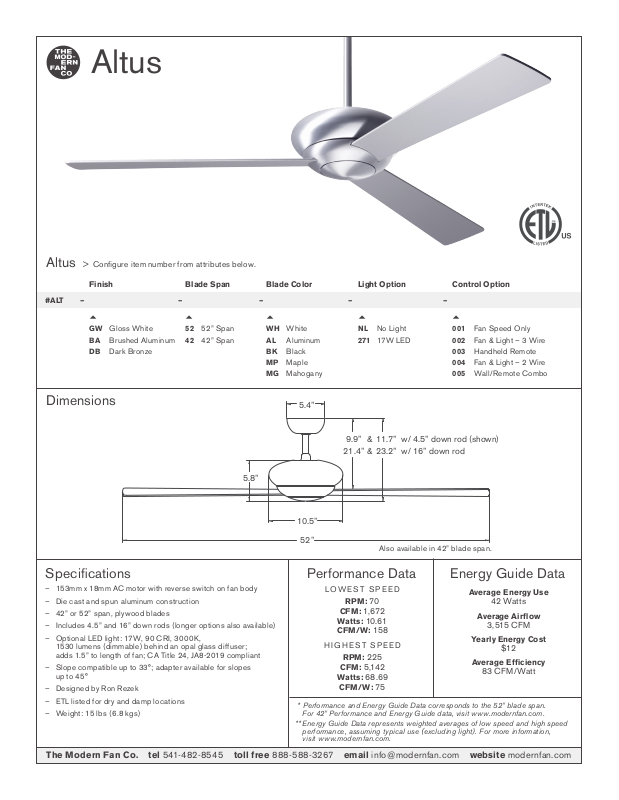

Page 1
Altus
Altus > Configure item number from attributes below.
Finish Blade Span Blade Color Light Option Control Option
#ALT –
– – – –
GW
Gloss White
BA
Brushed Aluminum
DB
Dark Bronze
52
42
52” Span
42” Span
WH
AL
BK
MP
MG
White
Aluminum
Black
Maple
Mahogany
NL
271
No Light
17W LED
001
Fan Speed Only
002
Fan & Light – 3 Wire
003
Handheld Remote
004
Fan & Light – 2 Wire
005
Wall/Remote Combo
Dimensions
5.4”
9.9” &
21.4”
11.7” w/ 4.5” down rod (shown)
&
23.2” w/ 16” down rod
5.8”
10.5”
52”
Also available in 42” blade span.
Specifications
– 153mm x 18mm AC motor with reverse switch on fan body
– Die cast and spun aluminum construction
– 42” or 52” span, plywood blades
– Includes 4.5” and 16” down rods (longer options also available)
– Optional LED light: 17W, 90 CRI, 3000K,
1530 lumens (dimmable) behind an opal glass diffuser;
adds 1.5” to length of fan; CA Title 24, JA8-2019 compliant
– Slope compatible up to 33°; adapter available for slopes
up to 45°
– Designed by Ron Rezek
– ETL listed for dry and damp locations
– Weight: 15 lbs (6.8 kgs)
Performance Data
LOWEST SPEED
70
RPM :
CFM: 1,672
Watts: 10.61
CFM/W: 158
HIGHEST SPEED
225
RPM :
CFM: 5,142
Watts: 68.69
CFM/W: 75
* Performance and Energy Guide Data corresponds to the 52” blade span.
For 42” Performance and Energy Guide data, visit www.modernfan.com.
** Energy Guide Data represents weighted averages of low speed and high speed
performance, assuming typical use (excluding light). For more information,
visit www.modernfan.com.
Energy Guide Data
Average Energy Use
42 Watts
Average Airflow
3,515 CFM
Yearly Energy Cost
$12
Average Efficiency
83 CFM/Watt
The Modern Fan Co. tel 541-482-8545 toll free 888-588-3267 email [email protected] website modernfan.com
Page 2
Altus
Gloss White with
White Blades
(no light)
FAN FINISHES
Brushed Aluminum
with Maple Blades
(no light)
PLYWOOD BLADES
Plywood blades are constructed of furniture grade veneers, painted or stained
as shown here. Natural variations may exist in woodgrains and finishes.
Gloss
White
Brushed
Aluminum
Dark
Bronze
White
Aluminum Maple MahoganywBlack
ALTUS FAN CONTROLS
Selection of a control option is made at time of order and incorporated into the fan item
number (except #FC-009A and #FC-009B which are sold as accessory items).
#FC- 001
Fan Speed Only Control
(no light)
For a single AC fan, providing
four speeds. Not intended for
a fan with light. Note: Not com-
patible with remote control.
#FC- 003- LED
Handheld Remote RF Control
Designed for independent operation
a single AC fan or AC fan with LED
light, providing three speeds and full
range dimming (or “on/off” switching),
using only one circuit (two wires).
Includes RF handset, receiver, battery
and comes with a wall mounting
bracket for handset.
#FC- 005- LED
Wall/Remote Combo
RF Control−2 Wire
Designed for independent
operation of a single AC fan
or AC fan with LED light,
providing three speeds and
full range dimming (or “on/
off” switching), using only one
circuit (two wires). Includes
RF handset, RF wall control
(with master power switch),
switch plate and receiver.
#FC- 002
Fan & Light Control −3 Wire
For a single AC fan with LED light,
providing four speeds and dimming
function. Requires three wires from
switch location to fan. Note: Not
compatible with remote control.
#FC- 004- LED Fan & Light
RF Control−2 Wire
Designed for independent operation of a single AC fan or AC fan
with LED light, providing three
speeds and full range dimming
(or “on/off” switching), using only
one circuit (two wires). Includes
RF wall control (with master power
switch), switch plate and receiver.
#FC- 009A / #FC- 009B
Multi-fan Speed Controls
for AC Fans
(no lights)
Sold as an accessory item,
providing three speeds for multiple
AC fans on a single switch leg.
FC-009A for 2-3 fans
FC-009B for 3-6 fans
Note: Not compatible with remote
control. Control of fan lights
must be accounted for separately
with owner provided control on
separate switch leg.
Dark Bronze with
Mahogany Blades
and 271 LED
Light
D O W N R O D S
The Altus ships standard with 4.5” and 16”
down rods. Use the following part numbers
to order accessory down rods.
Finish Length
#DRD –
–
GW
Gloss White
BA
Brushed Aluminum
DB
Dark Bronze
12
24
36
48
60
72
SLOPE ADAPTER
The Altus will accommodate ceiling
slopes up to 33 degrees. The #045
slope adapter can accommodate slopes
exceeding 33 degrees and up to
#045 –
45 degrees.
Finish
GW
Gloss White
BA
Brushed Aluminum
DB
Dark Bronze
12”
24”
36”
48”
60”
72”
The Modern Fan Co. tel 541-482-8545 toll free 888-588-3267 email [email protected] website modernfan.com
