Page 1
PART LIST
ITEM DESCRIPTION
QTY
A
CHAIR FRAME 1 PC
B
CHAIR LEG (L)
1 PC
C
CHAIR LEG (R)
1 PC
D
FRONT RAIL 1 PC
E
BACK RAIL 1 PC
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Hammer (not provided).

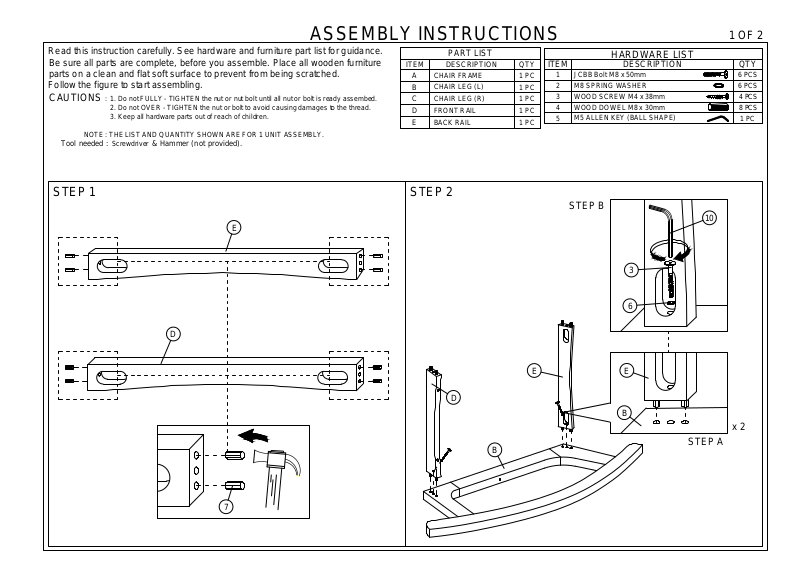

ASSEMBLY INSTRUCTIONS
STEP 1 STEP 2
HARDWARE LIST
ITEM DESCRIPTION
QTY
1
JCBB Bolt M8 x 50mm 6 PCS
2 M8 SPRING WASHER 6 PCS
3 WOOD SCREW M4 x 38mm 4 PCS
4 WOOD DOWEL M8 x 30mm 8 PCS
5
M5 ALLEN KEY (BALL SHAPE)
1 PC
E
D
7
D
E
B
6
3
10
E
B
STEP A
STEP B
x 2
1 OF 2
Page 2
STEP 3 STEP 4
STEP 5 STEP 6
6
3
10
E
C
C
STEP A
x 2
STEP B
2 OF 2
x 2
x 4
