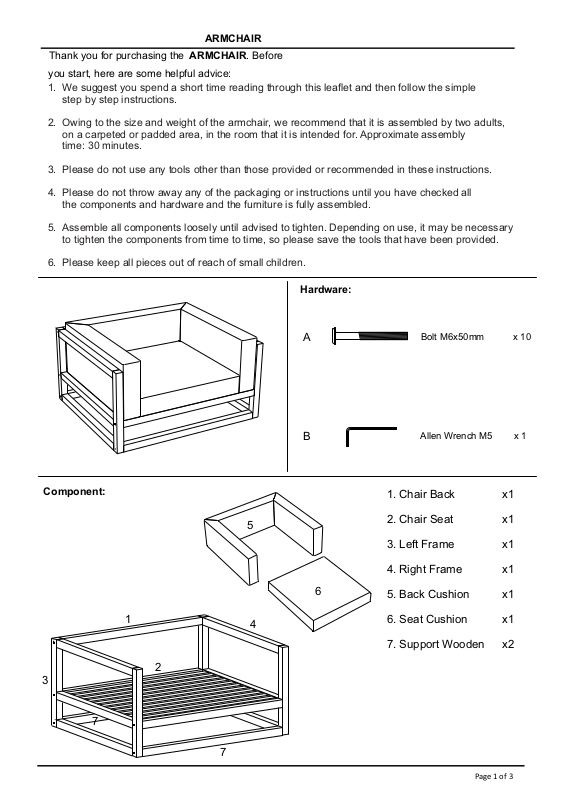

ARMCHAIR
Thank you for purchasing the ARMCHAIR. Before
you start, here are some helpful advice:
We suggest you spend a short time reading through this leaflet and then follow the simple
1.
step by step instructions.
Owing to the size and weight of the armchair, we recommend that it is assembled by two adults,
2.
on a carpeted or padded area, in the room that it is intended for. Approximate assembly
time: 30 minutes.
Please do not use any tools other than those provided or recommended in these instructions.
3.
Please do not throw away any of the packaging or instructions until you have checked all
4.
the components and hardware and the furniture is fully assembled.
Assemble all components loosely until advised to tighten. Depending on use, it may be necessary
5.
to tighten the components from time to time, so please save the tools that have been provided.
Please keep all pieces out of reach of small children.
6.
Component:
Hardware:
A
B
5
Bolt
M6x50mm
Allen Wrench M5 x 1
1. Chair Back
2. Chair Seat
3. Left Frame
x1
x1
x1
x 10
4. Right Frame
6
1
4
5. Back Cushion
6. Seat Cushion
7. Support Wooden
x1
x1
x1
x2
2
3
7
7
Page 1 of 3
ARMCHAIR
STEP 1:
Please put Left Frame (3) on a carpeted or padded area.
Insert the tenon on Chair Seat (2) into the rabbet on Left Frame (3) at first.
Insert Chair Back (1) through the drilling hole.
Insert Support Wooden (7) one by one through the drilling hole.
1
2
3
3
7
7
2
1
1
2
2
3
STEP 2:
Carefully position Right Frame (4) to the assembled Chair Back (1), Chair Seat (2) and Left Frame (3) as shown.
Insert the tenon on Chair Back (1) and Chair Seat (2) into the rabbet on Right Frame (4).
3
3
5
5
3
4
7
1
2
7
3
Page 2 of 3
ARMCHAIR
STEP 3:
Carefully turn over the assembled Chair Back (1), Chair Seat (2), Left Frame (3) and Right Frame (4).
Insert 5 pieces of Bolt (A) into the pre-drilled holes on Chair Back (1), Chair Seat (2), Support Wooden (7)
through the top pre-drilled holes on Left Frame (3).
Repeat the same steps for Right Frame (4).
A
B
1
4
2
3
7
Hardware & Tool required
STEP 4:
Carefully position the assembled chair to the desired location.
Put Back Cushion (5) and Seat Cushion (6) into the assembled chair as shown.
Ax10
Bx1
5
6
Assembly is complete. Your armchair is ready to be used now!
Page 3 of 3
