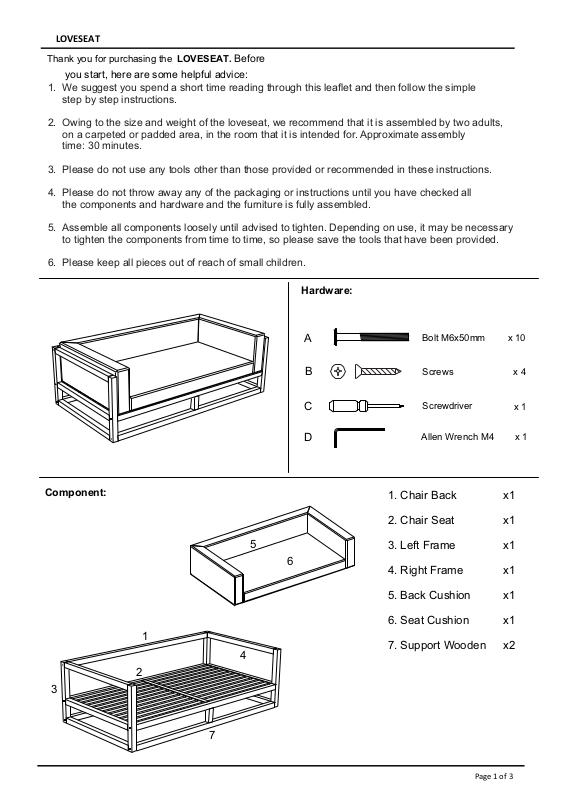

LOVESEAT
Thank you for purchasing the LOVESEAT. Before
you start, here are some helpful advice:
We suggest you spend a short time reading through this leaflet and then follow the simple
1.
step by step instructions.
Owing to the size and weight of the loveseat, we recommend that it is assembled by two adults,
2.
on a carpeted or padded area, in the room that it is intended for. Approximate assembly
time: 30 minutes.
Please do not use any tools other than those provided or recommended in these instructions.
3.
Please do not throw away any of the packaging or instructions until you have checked all
4.
the components and hardware and the furniture is fully assembled.
Assemble all components loosely until advised to tighten. Depending on use, it may be necessary
5.
to tighten the components from time to time, so please save the tools that have been provided.
Please keep all pieces out of reach of small children.
6.
Component:
Hardware:
A
B
C
D
5
Bolt M6x50mm
Screws
Screwdriver
Allen Wrench M4 x 1
1. Chair Back
2. Chair Seat
3. Left Frame
x 10
x1
x1
x1
x 4
x 1
6
4. Right Frame
x1
5. Back Cushion
6. Seat Cushion
x1
x1
1
7. Support Wooden
x2
4
2
3
7
Page 1 of 3
LOVESEAT
STEP 1:
Please assemble Chair Seat (2) first including the Support Wooden (7).
Insert the tenon on Support Wooden (7) into the rabbet on Chair Seat (2) at first.
2
1
2
2
1
7
7
STEP 2:
Carefully insert the tenon on Chair Back (1), Chair Seat (2) and Support Wooden (7) and into the rabbet on
Left Frame (3) and Right Frame (4) as shown.
5
5
4
3
3
3
4
1
2
4
7
Page 2 of 3
LOVESEAT
STEP 3:
Insert 5 pieces of Bolt (A) into the pre-drilled holes on Chair Back (1), Chair Seat (2), and Support Wooden (7)
through the top pre-drilled holes on Left Frame (3).
Use Allen Wrench (D) to tighten Bolts (A) clockwise until secure.
Repeat the same steps for Right Frame (4).
Insert 4 pieces of Screws (B) into the pre-drilled holes on Chair Seat (2), tighten it with Screwdriver (C).
3
Hardware & Tool required
STEP 4:
1
4
2
7
A
B
x 10
x 4
B
C
x 1
C
D
x 1
Carefully position the assembled chair to the desired location.
Put Back Cushion (5) and Seat Cushion (6) into the assembled chair as shown.
5
6
Assembly is complete. Y our loveseat is ready to be used now!
