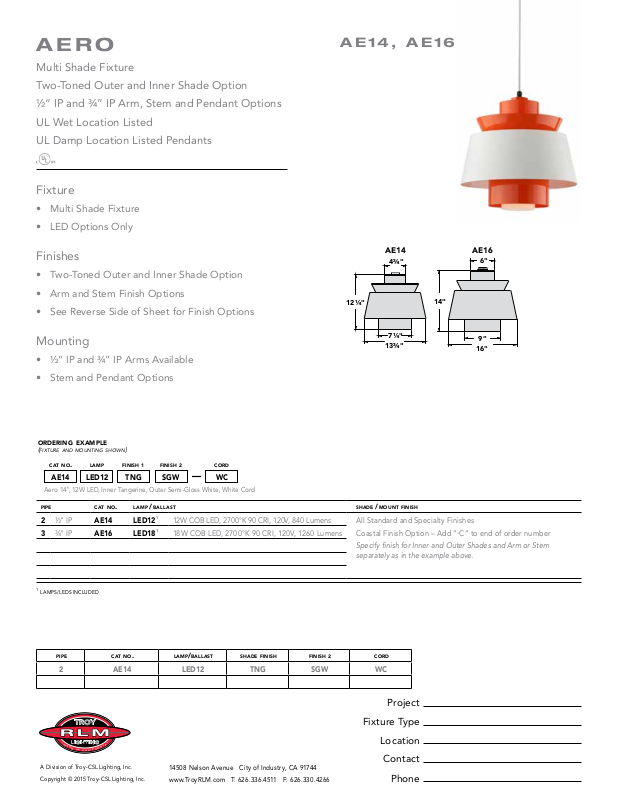

Page 1
A E R o
Multi Shade Fixture
Two-Toned Outer and Inner Shade Option
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
Fixture
• Multi Shade Fixture
• LED Options Only
A E 14 , A E 1 6
Finishes
AE14
4¾"
• Two-Toned Outer and Inner Shade Option
• Arm and Stem Finish Options
12¼"
14"
• See Reverse Side of Sheet for Finish Options
7¼"
Mounting
13¾"
• ½” IP and ¾” IP Arms Available
• Stem and Pendant Options
oRDERing ExAm pLE
(fixture an d mounting show n)
cAT no. LAmp fini sh 1 finish 2
AE14 LED12 Tng sgw wc
Aero 14", 12W LED, Inner Tangerine, Outer Semi-Gloss White, White Cord
pipE cAT no. LAmp / BALLAsT shADE / mounT finis h
2 ½" I P AE14 LED12112W COB LED, 2700°K 90 CRI, 120V, 840 Lumens All Standard and Specialty Finishes
1
3 ¾" I P AE16 LED18
18W COB LED, 2700°K 90 CRI, 120V, 1260 Lumens
coRD
—
Coastal Finish Option – Add “-C” to end of order number
Specify finish for Inner and Outer Shades and Arm or Stem
separately as in the example above.
AE16
6"
9"
16"
1
LAMPS/LEDS INCLUDED
pipE cAT no. LAmp/BALL AsT shADE f inish finish 2 coRD
2 AE14 LED12 TNG SGW WC
A Divis ion of Troy- CSL Lig hting, I nc.
Copyr ight © 2015 Troy-CSL Lighting, Inc.
•
M
A
D
TRO YTRO Y
LIGHTINGLIGHTING
E
I
N
I
L
C
A
•
A
I
N
R
O
F
14508 Nelson Avenue City of Industry, CA 91744
www.TroyRLM.com T: 626.336.4511 F: 626.330.4266
Project
Fixture Type
Location
Contact
Phone
Page 2
A E R o
Multi Shade Fixture
Two-Toned Outer and Inner Shade Option
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
l A m p s/b A l l A s T s
l E d s
(included)
TEmp
cAT. no. wATTs LumEns voLTs
LED12 12W 840 120V 2700°K 90 Incandescent
LED18 18W 1260 120V 270 0°K 90 Incandescent
70% lume n maintena nce @ 50,0 00 hours
coLoR
±100°
cRi
A E 14 , A E 1 6
Dimming
f i n i s h E s
COASTAL FINISH OPTION
• The Coastal Finish is a coating available to protect finishes on
fixtures installed in coastal environments.
• To specify, add “-C” to end of order number
FIXTURES/SHADES
• Specialty Finishes can be specified for all Fixtures/Shades,
unless otherwise noted.
• The insides of all Shades are painted Gloss White (WT) unless
otherwise specified.
• Fixtures/Shades in Galvanized (GA) finish are not painted white
inside. Shades will be Galvanized (GA) finish inside.
• Mounting Canopy finish to match Shade finish
MOUNTS
• Arms, Stems and Wall Mounts can be specified in all Standard
and Specialty Finishes.
• Post Mounts can be specified only in Standard Finishes.
s TA n d A R d f i n i s h E s
ABL Aegean Blue
BB Burnished Bronze
BK Gloss Black
BLU Blue
BZP Bronze Patina
DVG Dove Gray
FLG Flannel Gray
HG Hunter Green
LG Lime Green
PNC Painted Natural Copper
RD Red
SGW Semi Gloss White
SS Satin Silver
TBZ Textured Bronze
TGP Textured Graphite
TNG Tangerine
TTL Tahi t ian Teal
WT Gloss White
MB Matte Black
PNA Painted Natural Aluminum
s p E c i A l i T y
f i n i s h E s
GA Galvanized SA Satin Aluminum
TRO YTRO Y
•
LIGHTINGLIGHTING
M
A
D
E
I
A Divis ion of Troy- CSL Lig hting, I nc.
Copyr ight © 2015 Troy-CSL Lighting, Inc.
•
A
I
N
R
O
N
F
I
L
C
A
14508 Nelson Avenue City of Industry, CA 91744
www.TroyRLM.com T: 626.336.4511 F: 626.330.4266
Rev 042016
