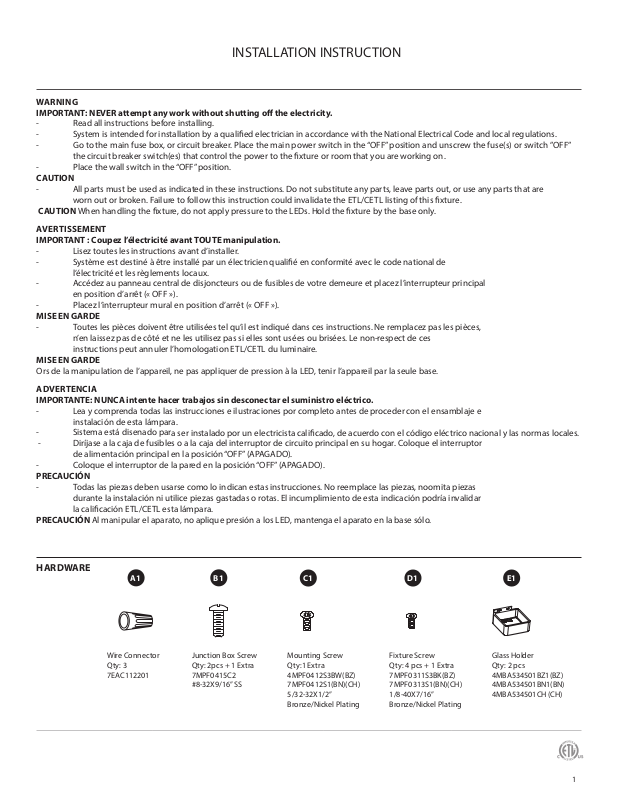

Page 1
INSTALLATION INSTRUCTION
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de
l’électricité et les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal
en position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces,
n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces
instructions peut annuler l’homologation ETL/CETL du luminaire.
MISE EN GARDE
Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e
instalación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor
de alimentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas
durante la instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar
la calicación ETL/CETL esta lámpara.
PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.

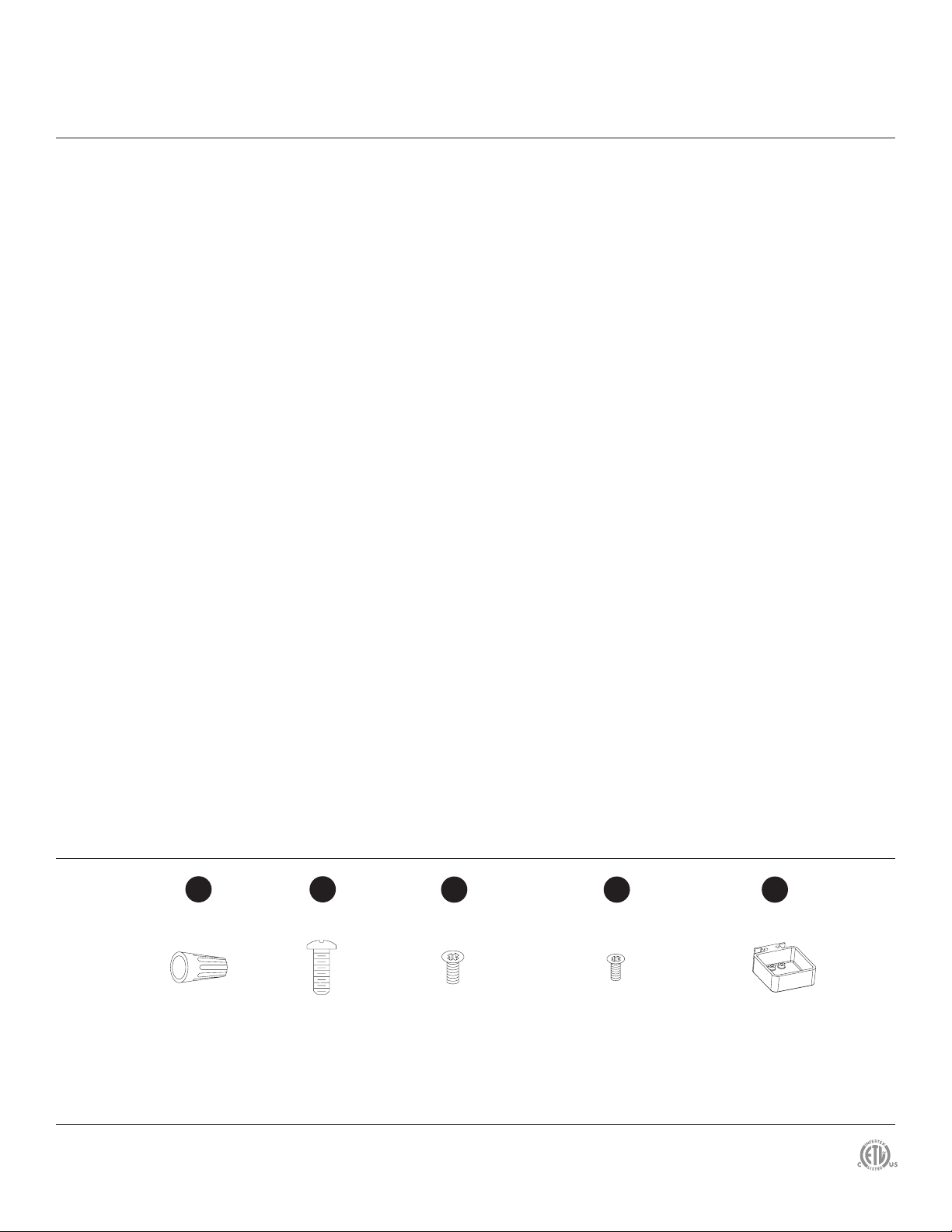

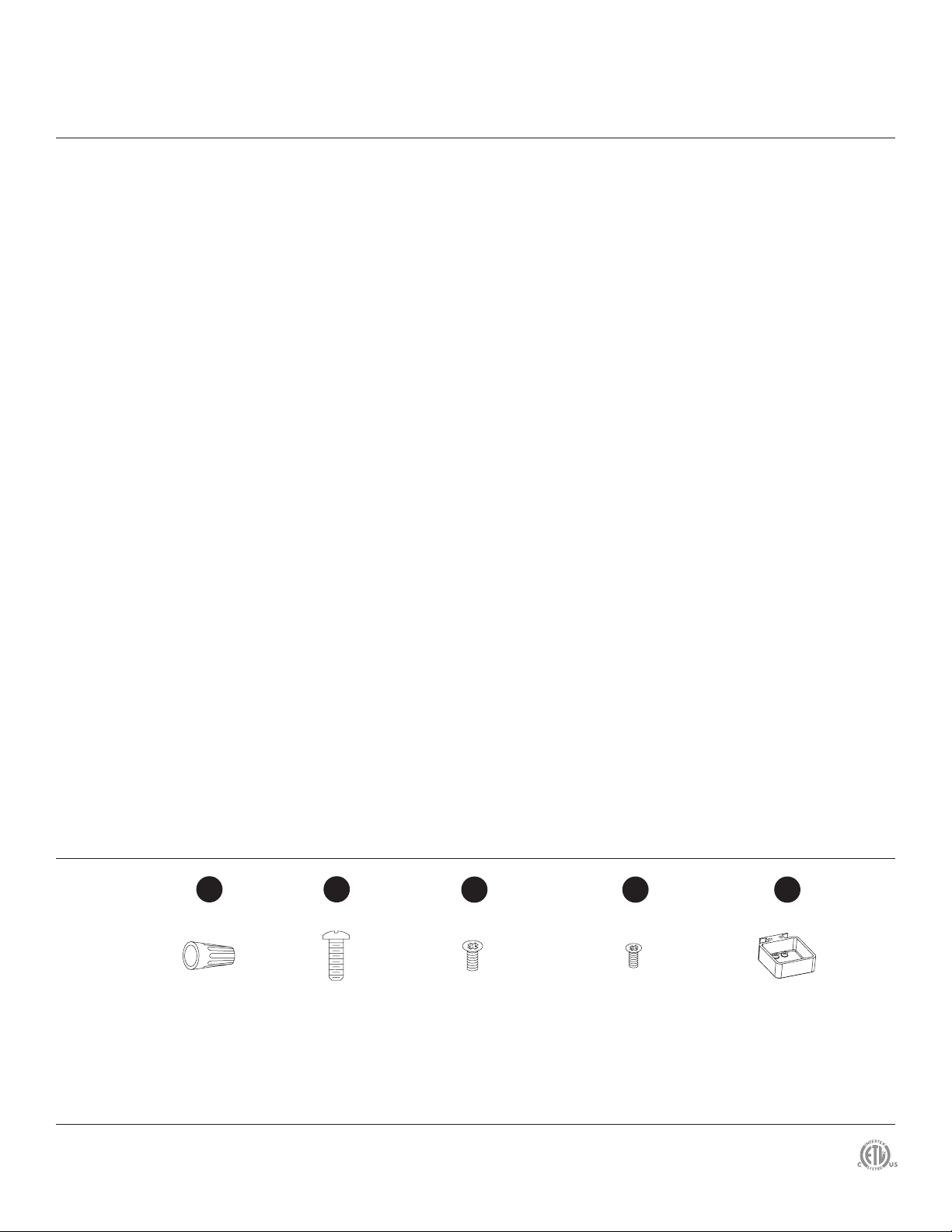

HARDWARE
A1 B1
Wire Connector
Qty: 3
7EAC112201
Junction Box Screw
Qty: 2pcs + 1 Extra
7MPF0415C2
#8-32X9/16” SS
C1 D1 E1
Mounting Screw
Qty:1 Extra
4MPF0412S3BW(BZ)
7MPF0412S1(BN)(CH)
5/32-32X1/2”
Bronze/Nickel Plating
Fixture Screw
Qty: 4 pcs + 1 Extra
7MPF0311S3BK(BZ)
7MPF0313S1(BN)(CH)
1/8-40X7/16”
Bronze/Nickel Plating
Glass Holder
Qty: 2 pcs
4MBA534501BZ1(BZ)
4MBA534501BN1(BN)
4MBA534501CH (CH)
1
Page 2
INSTALLATION INSTRUCTION

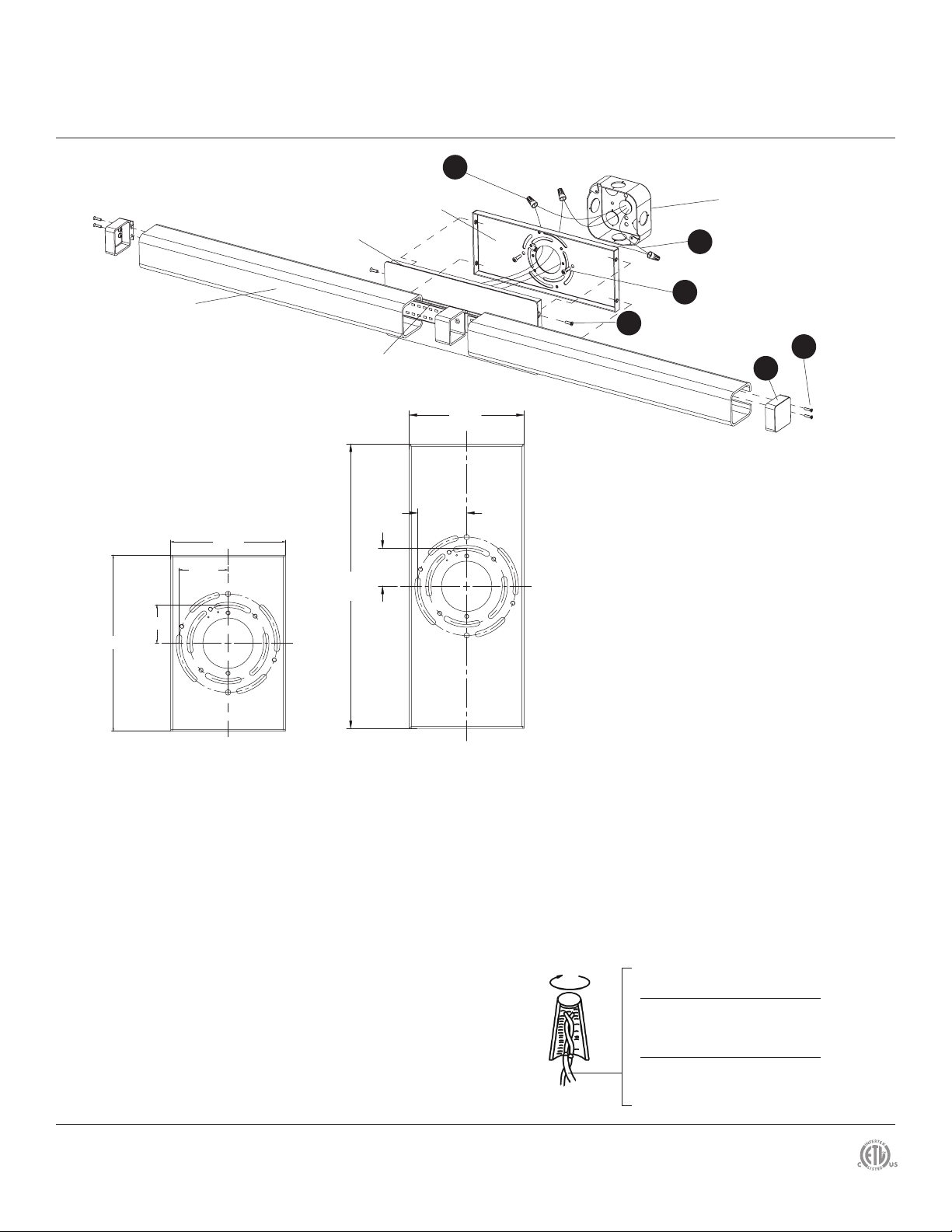

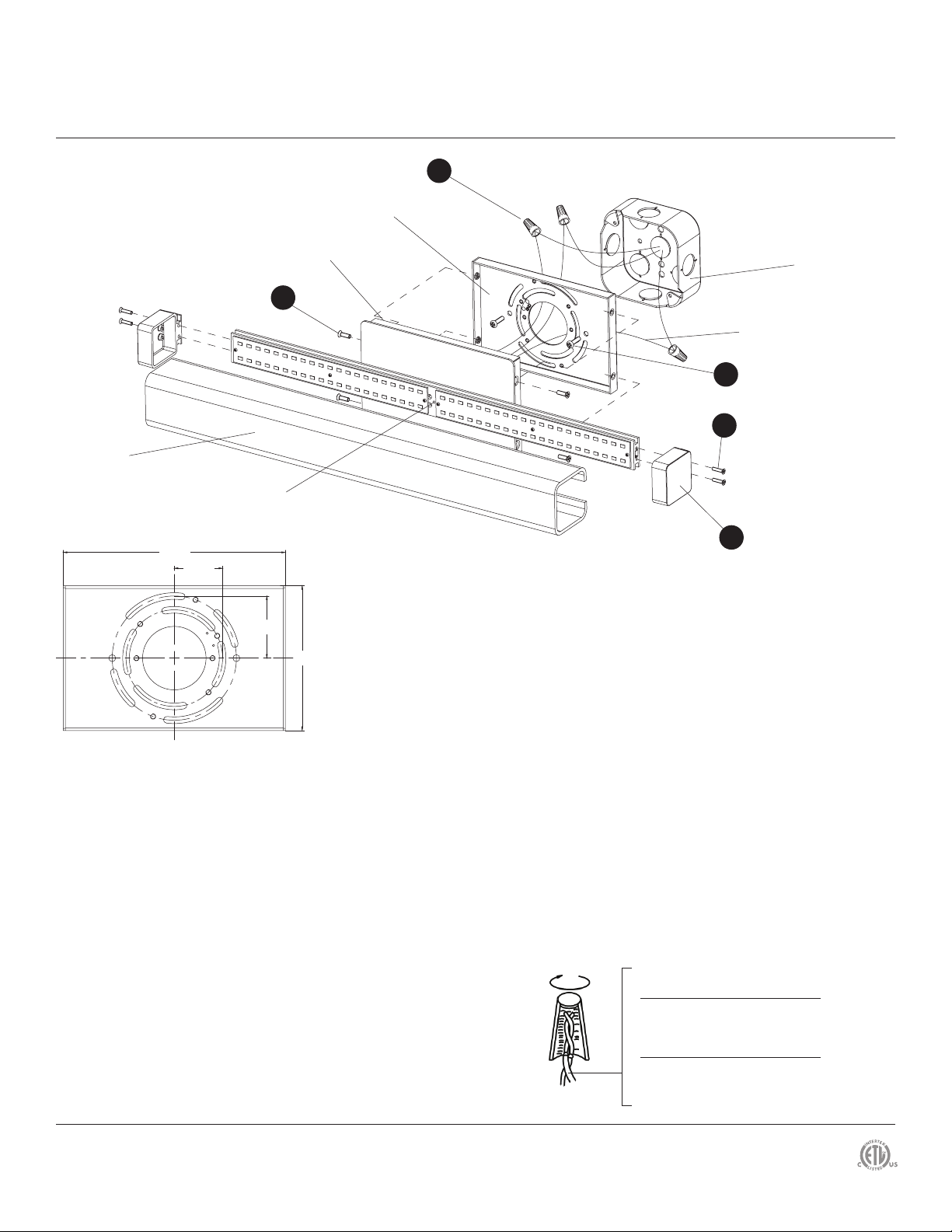

FIG.1
Glass
Mounting Screw
6 3/8”
1 3/8”
Mounting Backplate
Canopy Plate
C1
Front Bracket
Wire Connector
A1
Ground Wire
Junction Box Screw
B1
Fixture Screw
D1
E1
Glass Holder
Junction Box
1 3/4”
4 1/8”
Back Plate Dimensions
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (C1) from the xture.
4. Secure the mounting back plate to the junction box using junction box screws (B1). The side of the mounting back plate marked “GND”
must face out.
CONNECTING THE WIRES (Fig. 2)
5. Connect the xture’s wires to junction box wires as shown in Fig. 2,
making sure that all wire connectors (A1) are secured. If your outlet box has
a green or bare copper ground wire, connect the xture’s ground wire to it.
Otherwise, connect the xture’s ground wire directly to the back plate using
the green screw provided. After wires are connected, tuck them carefully
inside the junction box.
COMPLETING THE INSTALLATION (Fig. 1)
6. Slide the glass into the front bracket; secure it with glass holder (E1)
using xture screw (D1).
7. Place the canopy plate over the mounting back plate; secure it with
Fig.2 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
the mounting screw (C1).
2
Page 3
INSTALLATION INSTRUCTION
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de
l’électricité et les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal
en position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces,
n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces
instructions peut annuler l’homologation ETL/CETL du luminaire.
MISE EN GARDE
Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e
instalación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor
de alimentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas
durante la instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar
la calicación ETL/CETL esta lámpara.
PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
A1 B1
Wire Connector
Qty: 3
7EAC112201
Junction Box Screw
Qty: 2pcs + 1 Extra
7MPF0415C2
#8-32X9/16” SS
C1 D1 E1
Mounting Screw
Qty:1 Extra
4MPF0412S3BW(BZ)
7MPF0412S1(BN)(CH)
5/32-32X1/2”
Bronze/Nickel Plating
Fixture Screw
Qty: 4 pcs + 1 Extra
7MPF0311S3BK(BZ)
7MPF0313S1(BN)(CH)
1/8-40X7/16”
Bronze/Nickel Plating
Glass Holder
Qty: 2 pcs
4MBA534501BZ1(BZ)
4MBA534501BN1(BN)
4MBA534501CH (CH)
1
Page 4
INSTALLATION INSTRUCTION
FIG.1
Glass
1 3/4”
4 1/8”
Mounting Backplate
Canopy Plate
Front Bracket
10 1/4”
Wire Connector
1 3/8”
1 3/4”
A1
4 1/8”
C1
Mounting Screw
Junction Box
Ground Wire
M1
Junction Box Screw
B1
Glass Holder
Fixture Screw
D1
E1
1 3/8”
6 3/8”
Back Plate Dimensions
Back Plate Dimensions
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (FIG. 1)
3. Remove the mounting screw (C1) from the xture.
4. Secure the mounting back plate to the junction box using junction box screws (B1). The side of the mounting back plate marked “GND” must
face out.
CONNECTING THE WIRES (Fig. 2)
5. Connect the xture’s wires to junction box wires as shown in Fig. 2,
making sure that all wire connectors (A1) are secured. If your outlet
box has a green or bare copper ground wire, connect the xture’s
ground wire to it. Otherwise, connect the xture’s ground wire
directly to the back plate using the green screw provided. After wires
are connected, tuck them carefully inside the junction box.
COMPLETING THE INSTALLATION (Fig. 1)
6. Slide the glass into the front bracket; secure it with glass holder (E1)
using xture screw (D1).
7. Place the canopy plate over the mounting back plate; secure it with
Fig.2 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
the mounting screw (C1).
2
