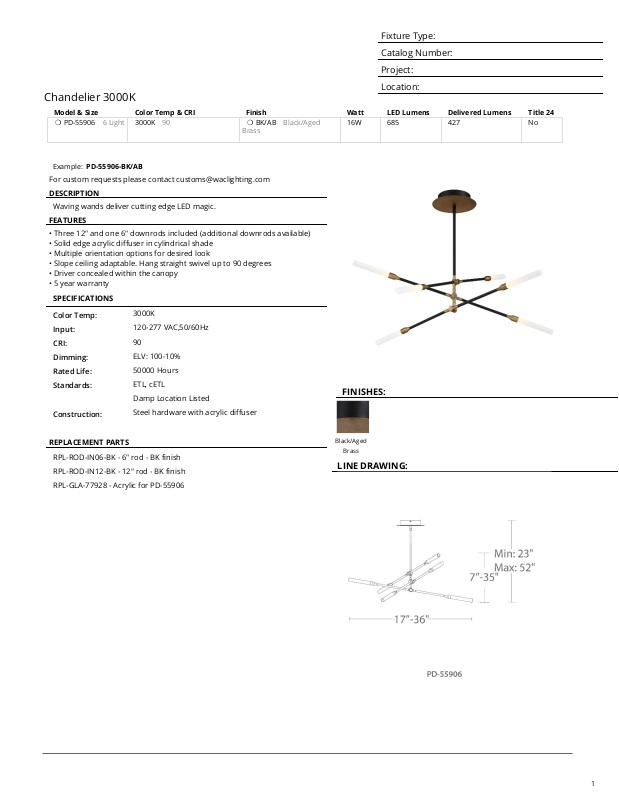

Page 1
Fixture Type:
❍
❍
Catalog Number:
Project:
Location:
Chandelier 3000K
Model & Size Color Temp & CRI Finish Watt LED Lumens Delivered Lumens Title 24
PD-55906 6 Light 3000K 90 BK/AB Black/Aged
Example: PD-55906-BK/AB
For custom requests please contact [email protected]
DESCRIPTION
Waving wands deliver cutting edge LED magic.
FEATURES
• Three 12" and one 6" downrods included (additional downrods available)
• Solid edge acrylic diffuser in cylindrical shade
• Multiple orientation options for desired look
• Slope ceiling adaptable. Hang straight swivel up to 90 degrees
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Standards:
Construction:
3000K
120-277 VAC,50/60Hz
90
ELV: 100-10%
50000 Hours
ETL, cETL
Damp Location Listed
Steel hardware with acrylic diffuser
Brass
16W 685 427 No
FINISHES:
REPLACEMENT PARTS
RPL-ROD-IN06-BK - 6" rod - BK finish
RPL-ROD-IN12-BK - 12" rod - BK finish
RPL-GLA-77928 - Acrylic for PD-55906
Black/Aged
Brass
LINE DRAWING:
1
Page 2
Fixture Type:
❍
❍
Catalog Number:
Project:
Location:
Chandelier 3000K
Model & Size Color Temp & CRI Finish Watt LED Lumens Delivered Lumens Title 24
PD-55912 12
Light
Example: PD-55912-BK/AB
For custom requests please contact [email protected]
DESCRIPTION
Waving wands deliver cutting edge LED magic.
FEATURES
• Three 12" and one 6" downrods included (additional downrods available)
• Solid edge acrylic diffuser in cylindrical shade
• Multiple orientation options for desired look
• Slope ceiling adaptable. Hang straight swivel up to 90 degrees
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Standards:
Construction:
3000K 90 BK/AB Black/Aged
Brass
3000K
120-277 VAC,50/60Hz
90
ELV: 100-10%
50000 Hours
ETL, cETL
Damp Location Listed
Steel hardware with acrylic diffuser
31W 1370 796 No
FINISHES:
REPLACEMENT PARTS
RPL-ROD-IN06-BK - 6" rod - BK finish
RPL-ROD-IN12-BK - 12" rod - BK finish
RPL-GLA-55908 - Acrylic for 55904 or 55912
Black/Aged
Brass
LINE DRAWING:
Powered by TCPDF (www.tcpdf.org)
2
