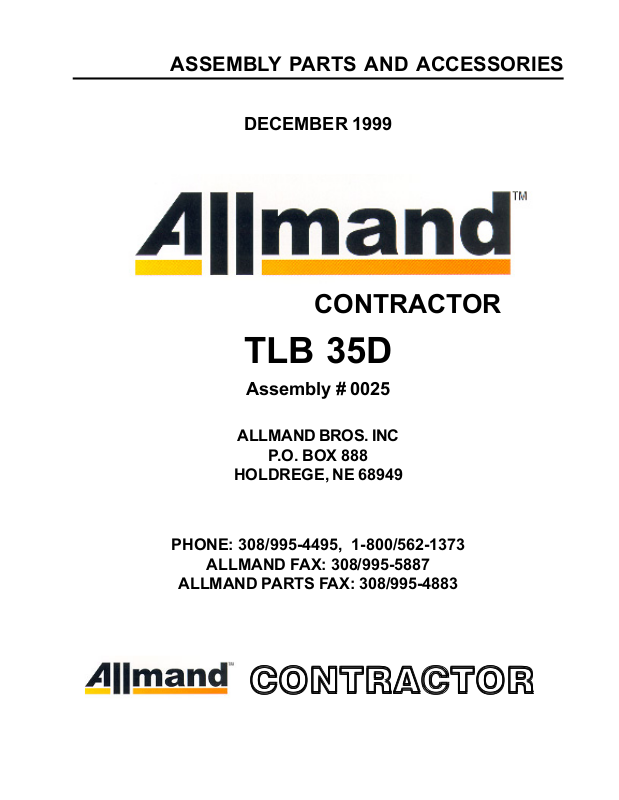

ASSEMBLY PARTS AND ACCESSORIES

DECEMBER 1999

CONTRACTOR

TLB 35D

Assembly # 0025

ALLMAND BROS. INC

P.O. BOX 888

HOLDREGE, NE 68949

PHONE: [phone]

ALLMAND FAX: [phone]

ALLMAND PARTS FAX: [phone]

CONTRACTORCONTRACTOR

CONTRACTOR

CONTRACTORCONTRACTOR

TABLE OF CONTENTS

FRAME AND DIFFERENTIAL A-1A

FRAME AND DIFFERENTIAL PARTS LIST A-1B

PARK BRAKE ASSEMBLY A-2A

PARK BRAKE ASSEMBLY PARTS LIST A-2B

DRIVE MOTOR ASSEMBLY A-2C

DRIVE MOTOR ASSEMBLY PARTS LIST A-2D

DRIVE MOTOR ASSEMBLY (FRONT WHEEL ASSIST) A-2E

DRIVE MOTOR ASSEMBLY (FRONT WHEEL ASSIST) PARTS LIST A-2F

TRACTOR SEAT AND OIL FILTER ASSEMBLY A-3A

TRACTOR SEAT AND OIL FILTER PARTS LIST A-3B

FORWARD/REVERSE PEDAL ASSEMBLY A-4A

FORWARD/REVERSE PEDAL PARTS LIST A-4B

HYDROSTAT LINKAGE ASSEMBLY A-4C

HYDROSTAT LINKAGE ASSEMBLY PARTS LIST A-4D

FRAME RAIL AND ENGINE MOUNTS A-5A

FRAME RAIL AND ENGINE MOUNT PARTS LIST A-5B

ORBITROL/LOADER VALVE MOUNT ASSEMBLY A-6A

ORBITROL/LOADER VALVE MOUNT PARTS LIST A-6B

LOADER VALVE AND HANDLE ASSEMBLY A-6C

LOADER VALVE AND HANDLE ASSEMBLY PARTS A-6D

FRONT AXLE INSTALLATION A-7A

FRONT AXLE INSTALLATION PARTS LIST A-7B

FRONT AXLE ASSEMBLY A-7C

FRONT AXLE ASSEMBLY PARTS LIST A-7D

FRONT AXLE ASSEMBLY (FRONT WHEEL ASSIST) A-7E

FRONT AXLE ASSEMBLY (FRONT WHEEL ASSIST) PARTS LIST A-7F

FRONT AXLE INSTALLATION (FRONT WHEEL ASSIST) A-7G

FRONT AXLE INSTALLATION (FRONT WHEEL ASSIST) PARTS LIST A-7H

BATTERY TRAY AND FITTINGS A-8A

BATTERY TRAY AND FITTINGS PARTS A-8B

KUBOTA ENGINE A-9A

KUBOTA ENGINE PARTS LIST A-9B

HYDROSTAT AND FITTINGS A-9C

HYDROSTAT AND FITTINGS PARTS LIST A-9D

KUBOTA ENGINE, FRAME AND MUFFLER A-10A

KUBOTA ENGINE, FRAME AND MUFFLER PARTS LIST A-10B

DRIVE MOTOR HOSE ASSEMBLY A-11A

DRIVE MOTOR HOSE ASSEMBLY PARTS LIST A-11B

HYDROSTAT HOSE ASSEMBLY A-11C

HYDROSTAT HOSE ASSEMBLY PARTS A-11D

STEERING HYDRAULIC ASSEMBLY A-11E

STEERING HYDRAULIC ASSEMBLY PARTS A-11F

COOLER/LOADER VALVE HYDRAULIC ASSEMBLY A-11G

COOLER/LOADER VALVE HYDRAULIC ASSEMBLY PARTS A-11H

DRIVE MOTOR HYDRAULIC HOSE ASSEMBLY (FRONT WHEEL ASSIST) A-11I

DRIVE MOTOR HYDRAULIC HOSE ASSEMBLY (FRONT WHEEL ASSIST)PARTS LIST A-11J

TABLE OF CONTENTS

NOSE ASSEMBLY A-12A

NOSE ASSEMBLY PARTS LIST A-12B

RADIATOR AND AIR CLEANER ASSEMBLY A-12C

RADIATOR ASSEMBLY PARTS LIST A-12D

HOOD AND INSTRUMENT PANEL ASSEMBLY A-13A

HOOD AND INSTRUMENT PANEL PARTS LIST A-13B

INSTRUMENT PANEL ASSEMBLY A-13C

INSTRUMENT PANEL ASSEMBLY PARTS LIST A-13D

ROPS KIT ASSEMBLY A-14A

ROPS KIT PARTS LIST A-14B

OPTIONAL BACKUP, STROBE, AND WORK LIGHTS A-14C

BACKUP, STROBE, AND WORK LIGHTS PARTS LIST A-14D

OPTIONAL BACKUP ALARM SWITCH ASSEMBLY A-14E

OPTIONAL BACKUP ALARM SWITCH PARTS LIST A-14F

LOADER/BUCKET ASSEMBLY A-15A

LOADER/BUCKET ASSEMBLY PARTS LIST A-15B

LOADER HYDRAULIC ASSEMBLY A-15C

LOADER HYDRAULIC ASSEMBLY PARTS LIST A-15D

BACKHOE SEAT ASSEMBLY A-16A

BACKHOE SEAT ASSEMBLY PARTS LIST A-16B

AUXILIARY VALVE ASSEMBLY (BEFORE 7/1/98) A-16C

AUXILIARY VALVE ASSEMBLY PARTS LIST (BEFORE 7/1/98) A-16D

AUXILIARY VALVE ASSEMBLY (AFTER 7/1/98) A-16E

AUXILIARY VALVE ASSEMBLY PARTS LIST (AFTER 7/1/98) A-16F

FUEL TANK ASSEMBLY A-17A

FUEL TANK ASSEMBLY PARTS LIST A-17B

DECALS (DASH/FENDERS) A-18A

DECALS (DASH/FENDERS) PARTS LIST A-18B

DECALS (RIGHT SIDE) A-18C

DECALS (RIGHT SIDE) PARTS LIST A-18D

DECALS (LEFT SIDE) A-18E

DECALS (LEFT SIDE) PARTS LIST A-18F

DECALS (ROPS) A-18G

DECALS (ROPS) PARTS LIST A-18H

DECALS (HOOD AND NOSE) A-18I

DECALS (HOOD AND NOSE) PARTS LIST A-18J

DECALS (LOADER) A-18K

DECALS (LOADER) PARTS LIST A-18L

DECALS (BUCKET) A-18M

DECALS (BUCKET) PARTS LIST A-18N

BACKHOE BUCKET OPTIONS A-19A

BACKHOE BUCKET OPTIONS PARTS LIST A-19B

STABILIZER GUARDS A-20A

STABILIZER GUARDS PARTS LIST A-20B

A-1A

FRAME AND DIFFERENTIAL

MODEL TLB 35D

FRAME AND DIFFERENTIAL

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 ** 9/16-12 NC X 1-1/4" GRADE 5 BOLT
2 4 ** 9/16 SPLIT LOCK WASHER
3 1 10-000133 COMPLETE REAR AXLE ASSEMBLY (4.56:1)

920146 (2) SHAFT ASSEMBLY COMPLETE

920147 (1) SEAL PINION
4 10 920148 (10) WHEEL STUD
5 4 ** 1/2-13 NC X 1-1/4" GRADE 5 BOLT
6 4 ** 1/2 SPLIT LOCK WASHER
7 4 ** 1/2-13 NC HEX HEAD NUT
8 10 920295 1/2 - 20 90 DEGREE LUG NUT

NS 2 920415 REAR WHEEL ASSEMBLY

920316 (2) REAR WHEEL 15 X 13

920310 (2) TIRE SUPER TERRA GRIP 31-15.50-15

NS 2 920412 REAR WHEEL ASSEMBLY

920316 (2) REAR WHEEL 15 X 13

920305 (2) TIRE SOFTRAC 31-15.50-15

A-1B

LEGEND: NS = Not Shown
** = Purchase locally

A-2A

PARK BRAKE ASSEMBLY

MODEL TLB 35D

PARK BRAKE ASSEMBLY PARTS

NO REQ’D PART NO DESCRIPTION

1 3 ** 5/16 - 18 NC KEPS NUT

2 1 92T063 PARK BRAKE COVER
3 3 ** 5/16 - 18 NC NYLON INSERT NUT
4 1 920220 PARK BRAKE LEVER
5 6 ** 3/8-16 NC NYLON INSERT NUT
6 3 ** 5/16-18 NC X 2-1/4 GRADE 5 BOLT
7 1 920221 BRAKE CONTROL ASSEMBLY
8 1 ** 7/16-14 NC X 5 GRADE 5 BOLT
9 4 044057 3/8-16 NC GRADE 8 NUT
10 1 921232 DRIVE HUB COUPLER

(Replaces 92T045 and 920223)

11 4 046161 7/16-20 x 2” GRADE 8 BOLT

(Replaces HC117 and HC118)
13 2 92T092 PARK BRAKE SPACER
14 1 920222 BRAKE BAND ASSEMBLY
15 1 ** 7/16 - 14 NC NYLON INSERT NUT
16 1 92T064 BRAKE ACTUATOR WELDMENT
17 2 ** 3/8 -16 NC X 2 GRADE 5 BOLT
18 1 ** 3/8 -16 NC X 5 GRADE 8 BOLT
19 1 401256 1/4 -28 NF STRAIGHT GREASE ZERK
20 1 320076 ADAPTER 6 F50X-S
21 2 920674 ADAPTER 12-10 F50X-S

22 1 921169 COMPANION FLANGE 1350

(Replaces 920150A Companion Flange)

MODEL TLB 35D

A-2B

LEGEND: NS = Not Shown
** = Purchase locally

A-2C

DRIVE MOTOR ASSEMBLY

MODEL TLB 35D

DRIVE MOTOR ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 1/2 - 13 NC X 2 GRADE 8 BOLT
2 12 1/2 GRADE 8 FLAT WASHER
3 4 1/2 - 13 NC X 1-1/4 GRADE 5 BOLT
4 1 92T220 CROSSMEMBER, HYDRAULIC MOTOR
5 4 1/2 SPLIT LOCK WASHER
6 4 1/2 - 13 NC HEX NUT
7 4 1/2 - 13 NC NYLON INSERT NUT

8 1 920882 4 BOLT HYDRAULIC MOTOR, ROSS, ME-24

(AFTER SN 9812TO50024)

920806 4 BOLT HYDRAULIC MOTOR, ROSS, ME-24

(BEFORE SN 9812TO50024)
9 4 5/16-18 NC x 2-1/2 GRADE 5 BOLT
10 4 5/16 SPLIT LOCK WASHER
11 1 920674 12-10F50X-S HYDRAULIC CONNECTOR
12 1 920881 CROSSOVER RELIEF VALVE
13 1 920675 12-10C50X-S HYDRAULIC ELBOW CONNECTOR
14 1 320076 HYDRAULIC ADAPTER 6F50X-S

A-2D

LEGEND: NS = Not Shown
** = Purchase locally

A-2E

DRIVE MOTOR ASSEMBLY (FWA)

MODEL TLB 35D

DRIVE MOTOR ASSEMBLY (FWA) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 ** 1/2 -13 NC X 2 GRADE 8 BOLT

2 12 ** 1/2 GRADE 8 FLAT WASHER
3 4 ** 1/2 - 3 NC X 1 1/4 GRADE 5 BOLT
4 1 92T220 CROSS MEMBER, HYDRAULIC MOTOR
5 4 ** 1/2 SPLIT LOCK WASHER
6 4 ** 1/2 -13 NC HEX NUT
7 4 ** 1/2 -13 NC NYLON INSERT NUT
8 1 920882 4 BOLT HYDRAULIC MOTOR, ROSS (ME-24)

(AFTER SN 9812TO50024)

1 920806 4 BOLT HYDRAULIC MOTOR, ROSS (ME-24)

(BEFORE SN 9812TO50024)
9 1 920675 HYDRAULIC FITTING ELBOW, 12-10C50X-S
10 1 920881 CROSS-OVER RELIEF VALVE
11 1 920674 HYDRAULIC FITTING, 12-10F50X-S
12 2 920698 HYDRAULIC ADAPTER, 8-F50X-S
13 4 ** 5/16-18 X2 1/2" BOLT
14 4 ** 5/16 FLAT WASHER
15 1 320076 HYDRAULIC ADAPTER 6F50X-S

A-2F

LEGEND: NS = Not Shown
** = Purchase locally

A-3A

TRACTOR SEAT AND OIL FILTER ASSEMBLY

MODEL TLB 35D

TRACTOR SEAT AND OIL FILTER PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920821 HYDRAULIC ADAPTER 8 - 12 C50X-S

2 1 920809 FILTERHEAD ASSEMBLY STD.
3 2 920803 REPLACEMENT FILTER, 35HP
4 1 DD-297 DECAL, CHANGE FILTER ELEMENT
5 3 920816 HYDRAULIC ADAPTER 8 -12 F50X-S
6 1 920835 HYDRAULIC ADAPTER 8R6X-S
7 1 920807 FILTERHEAD ONLY WITH THIRD PORT
8 1 920820 HYDRAULIC ADAPTER 10 -12 C50X-S

9 8 ** 1/4 INTERNAL TOOTH LOCK WASHER
10 8 ** 1/4 -20 NC X 1/2 GRADE 5 BOLT
11 2 ** 3/8 -16 NC X 1 1/4 GRADE 5 BOLT
12 2 ** 5/16 FLAT WASHER
13 2 ** 3/8-16 NC NYLON INSERT NUT
14 4 ** 5/16-18 NC KEPS NUT
15 1 92T196 SEAT MOUNT PLATE
16 8 ** 1/4 FLAT WASHER
17 1 920245 TRACTOR SEAT W/ADJUSTERS
18 8 ** SPLIT LOCK WASHER

A-3B

LEGEND: NS = Not Shown
** = Purchase locally

A-4A

FORWARD/REVERSE PEDAL ASSEMBLY

MODEL TLB 35D

FORWARD/REVERSE PEDAL ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 10 ** 5/16-18 KEPS NUT

2 2 ** 5/16-18 X 1 1/2 FULL THREAD PAN HEAD BOLT
3 8 ** 5/16-18 X 1 GRADE 5 BOLT
4 2 ** 5/16-18 NYLON INSERT NUT
5 1 92T087 RIGHT SIDE FOOT REST
6 1 920280 PEDAL PAD, LARGE
7 1 92T085 RIGHT FOOT PEDAL
8 1 920281 BRAKE PEDAL PAD, REAR

9 2 HD145 1/4 X 1 1/2 ROLL PIN
10 1 92T086 RIGHT FOOT PEDAL PIVOT SHAFT
11 2 92T055B PEDAL BUSHING
12 1 92T055 RIGHT FOOT PEDAL MOUNT WELDMENT
13 1 92T061 RIGHT FOOT PEDAL F/R LINKAGE ARM
14 1 401256 1/4 - 28 NF STRAIGHT GREASE ZERK
15 1 920811 CENTER DAMPNER
16 2 ** 5/16 SPLIT LOCKWASHER
17 2 ** M8 X 1.25 HEX NUT
18 2 ** 3/8-16 X 1 1/2 GRADE 5 BOLT
19 6 ** 3/8 FLAT WASHER
20 2 ** 3/8-16 NYLON INSERT NUT
21 2 ** POP RIVET
22 1 92T226 3/8 LINK ROD (BEFORE SN 9903T180024)

1 92T214 3/8 LINK ROD (AFTER SN 9903T180024)
23 2 712572 OFFSET YOKE, 3/8-24
24 1 ** 3/8-16 X 2 GRADE 8 BOLT
25 2 ** 3/8 TOPLOCK NUT
26 2 ** 3/8-24 HEX NUT
27 1 ** 3/8-16 X 1 1/2 GRADE 8 BOLT
28 1 92T195 DAMPENER MOUNTING BRACKET
29 1 920874 RIGHT SIDE STEP PEDAL PROTECTOR
30 2 ** ¼-20 X 1 TRUSS HEAD SCREW
31 2 ** ¼-20 NC KEPS NUT

A-4B

LEGEND: NS = Not Shown
** = Purchase locally

A-5A

FRAME RAILS AND ENGINE MOUNTS

MODEL TLB 35D

FRAME RAILS AND ENGINE MOUNT PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 92T219A FRAME RAIL LEFT
2 1 92T219B FRAME RAIL RIGHT
3 1 92T221 DRIVE GUARD

4 8 ** 1/2 FLAT WASHER
5 4 ** 1/2 SPLIT LOCKWASHER

6 4 ** 1/2-13 NC NUT
7 4 ** 1/2-13 NC x 1 1/4 GRADE 5 BOLT
8 2 920020 TIE DOWN HOOK

9 4 ** 3/8-16 NC x 1 CARRIAGE BOLT
10 12 ** 3/8-16 NC NYLON INSERT NUT
11 1 92T199 ISUZU ENGINE MOUNT LEFT
12 1 92T206 ISUZU ENGINE MOUNT RIGHT
13 8 ** 3/8 FLAT WASHER
14 8 ** 3/8-16 NC x 1 1/4 GRADE 5 BOLT

15 1 92T228 SKID PLATE
16 6 ** 5/16-18 NC x 1 SELF-TAPPING BOLT

A-5B

LEGEND: NS = Not Shown
** = Purchase locally

A-5A

FRAME RAIL AND ENGINE MOUNTS

MODEL TLB 35D

FRAME RAIL AND ENGINE MOUNTS PARTS LIST

MODEL TLB 35D

A-5B

NO REQ’D PART NO DESCRIPTION

1 1 92T065 KUBOTA ENGINE FRAME RIGHT MOUNT
2 1 92T030 KUBOTA ENGINE FRAME LEFT MOUNT
3 1 92T088 SKID PLATE
4 1 92T003A LEFT FRAME RAIL
5 1 92T0031 RIGHT FRAME RAIL
6 4 ** 5/16-18 NC x 1-1/4 GRADE 5 BOLT
7 4 ** 5/16-18 NC NYLON INSERT NUT
8 8 ** 3~8-16 NC x 1-1/4 GRADE 5 BOLT
9 8 ** 3 8 FLAT WASHER
10 12 ** 3/8-16 NC NYLON INSERT NUT
11 2 920021 TIE DOWN HOOK

12 4 ** 3/8 - 16 NC X 1 CARRIAGE BOLT

LEGEND: NS = Not Shown
** = Purchase locally

ORBITROL/LOADER VALVE MOUNT ASSEMBLY

MODEL TLB 35D

A-6A

ORBITROL/LOADER VALVE MOUNT PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 ** 3/8 - 16 NC TOP-LOCK LOCK NUT

2 4 ** 5/16 FLAT WASHER
3 1 92T187 WALVOIL JOYSTICK MOUNT PLATE
4 1 920157 STEERING COLUMN - 11 “
5 4 ** 3/8 SPLIT LOCK WASHER
6 4 ** 318 - 16 NC X 1 1/2 GRADE 5 BOLT
7 1 920322 BREATHER CAP
8 2 92T113 VALVE MOUNTING U-BOLT

9 1 920155 STEERING ORBITAL 4.23 CID
NS 920156 STEERING WHEEL

NS 920158 STEERING WHEEL NUT

A-6B

LEGEND: NS = Not Shown
** = Purchase locally

A-6C

LOADER VALVE AND HANDLE ASSEMBLY

MODEL TLB 35D

LOADER VALVE / HANDLE ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 3 ** 5/16 - 18 NC x 2" CARRIAGE BOLT
2 1 920801 LOADER VALVE HANDLE, WALVOIL
3 1 920800 LOADER VALVE, WALVOIL
4 1 920698 ADAPTER 850X-S
5 3 ** 5/16 - 8 NC TOP LOCK NUT
6 2 320076 ADAPTER 3/8 ORM - 3/8 JIC MALE 6 F50X-S
7 2 920692 ADAPTER 90° 6C50X-S
8 1 320070 ADAPTER 90° SC50X-S
9 1 92T187 WALVOIL JOYSTICK MOUNT PLATE

A-6D

A TTENTION

For the following TLB Serial Numbers:

980BT54 9808T82
9808T55 9808T83

9808T56 9808T84

Add the following when ordering. 920800:

1 920692 ADAPTER 90° 6C50X-S
1 920840 HOSE ASSEMBLY 3/8 x 29 6FJX - 6FJX

See page A-6E and A-6F if needing fittings or hoses.

LEGEND: NS = Not Shown
** = Purchase locally

A-6E

LOADER VALVE AND HANDLE #2

MODEL TLB 35D

LOADER VALVE AND HANDLE #2 PARTS

MODEL TLB 35D

ATTENTION

For the following TLB Serial Numbers:

9808T54 9808T82
9808T55 9808T83
980BT56 9808T84

NO REQ’D PART NO DESCRIPTION

1 3 ** 5/16 - 18 NC X 2" CARRIAGE BOLT

2 1 920801 LOADER VALVE HANDLE, WALVOIL
3 1 920800 LOADER VALVE, WALVOIL
4 1 920698 ADAPTER 850X-S
5 3 ** 5/15 - 18 NC TOP LOCK NUT
6 3 920665 ADAPTER 6-8F50X-S
7 1 920825 ADAPTER 90' 6-8C50X-S
8 1 320070 ADAPTER 90' 8C50X-S
9 1 92T187 WALVOIL JOYSTICK MOUNT PLATE

A-6F

See pages A-11I and A-11J for hose replacement numbers.

LEGEND: NS = Not Shown
** = Purchase locally

A-6G

LOADER VALVE LINKAGE ASSEMBLY

MODEL TLB 35D

LOADER VALVE LINKAGE ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 921003 BELLOW
2 4 ** M6 x 25 - 12.9 NICKEL PLATED SHCS
3 4 ** A6 DIN-7980 GALVINIZED WASHER
4 2 920832 M6 ARTICULATED JOINT
5 1 921002 PIVOT
6 1 921000 PIN
7 1 920833 M6 ROD END
8 2 ** 5,Ox9xO, 5 SCHNORR WASHER
9 2 ** MWO-12.9 SOCKET HEAD CAP SCREW
10 3 ** ISO-4032/M6-8 GALVANIZED HEX NUT
11 2 ** UNI-5933M5x14-8.8 FLAT HEAD SCREW
12 1 921001 HOLDER

A-6H

LEGEND: NS = Not Shown
** = Purchase locally

A-7A

FRONT AXLE ASSEMBLY NO.1

MODEL TLB 35D

FRONT AXLE ASSEMBLY NO.1 PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 HN075 1 3/4 -12 HEX JAM NUT
2 1 92T152 FRONT AXLE NUT PLATE
3 1 92T100 AXLE PIVOT BOLT BRACKET WELDMENT
4 1 920243 FRONT AXLE ASSEMBLY
5 2 ** 5/16 FLAT WASHER
6 2 ** 5/16 SPLIT LOCK WASHER
7 2 ** 5/16 -18 NC X 1 GRADE 5 BOLT
8 AR FW063 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 18 GA.

AR FW064 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 14 GA.

AR FW065 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 10 GA.
9 1 92T002 PIVOT BOLT ASSEMBLY
10 1 401258 1/4 -28 45° GREASE ZERK

A-7B

LEGEND: NS = Not Shown
** = Purchase locally

A-7C

FRONT AXLE ASSEMBLY NO. 2

MODEL TLB 35D

24

25

24

25

FRONT AXLE ASSEMBLY NO. 2 PARTS

MODEL TLB 35D

A-7D

NO REQ’D PART NO DESCRIPTION

1 1 920203 FRONT AXLE ASSEMBLY 7/96

2 1 92T105 SHORT SPINDLE WELDMENT, RIGHT
3 2 920230 THRUST WASHER
4 4 920340 BUSHING, 1 3/4 X 1 1/2 LONG
5 5 401257 1/4 -28 9CP GREASE ZERK
6 2 92T104 SPINDLE SLEEVE CAP
7 2 ** 3/8 -16 NC X 1 GRADE 8 BOLT
8 2 ** 3/8 SPLIT LOCK WASHER
9 2 ** 1/2 -13 NC NYLON INSERT NUT
10 2 ** 1/2 -13 NC X 1 1/4 GRADE 8 BOLT
11 1 920750 STEERING CYLINDER 1:10 TAPER
12 2 920217 INNER SEAL -162289 (RIGHT SIDE NOT SHOWN)
13 2 920212 INNER BEARING -JL69349 (RIGHT SIDE NOT SHOWN)
14 2 920215 INNER BEARING RACE (RIGHT SIDE NOT SHOWN)
15 2 920210 HUB W/RACES, BEARINGS, CAP, SEALS, STUDS
16 12 920202 STUD BOLT (ONLY ONE SHOWN)
17 2 920216 OUTER BEARING RACE (RIGHT SIDE NOT SHOWN)
18 2 920213 OUTER BEARING -LM67048 (RIGHT SIDE NOT SHOWN)
19 2 920208 7/8 WASHER (RIGHT SIDE NOT SHOWN)
20 2 920207 7/8 HEX CASTLE NUT (RIGHT SIDE NOT SHOWN)
21 2 920206 COTTER PIN (RIGHT SIDE NOT SHOWN)
22 2 920205 GREASE CAP (RIGHT SIDE NOT SHOWN)
23 4 FW028 1/2 USS HARDENED LOCK WASHER
24 4 ** 3/32 X 3/4 COTTER PIN
25 4 ** 7/16 - 20 NF HEX CASTLE NUT
26 4 920291 TIE ROD END (LARGE)
27 4 042085 14mm X 1.5 JAM NUT
28 2 92T103 TIE ROD STUD 14mm X 82.5

29 1 92T102 SHORT SPINDLE SLEEVE WELDMENT, LEFT
30 2 320076 ADAPTER 3/8 ORM - 3/8 JIC MALE 6F50X-S
NS 920370 STEERING ARM BUSHING

NS 920459 OPTIONAL FRONT AND REAR TURF TIRE ASSEMBLY

INCLUDES (2) REAR TURF TIRES AND )2) FOAM
FILLED FRONT TIRES.

LEGEND: NS = Not Shown
** = Purchase locally

A-7E

FRONT AXLE ASSEMBLY (FWA)

MODEL TLB 35D

11

15

FRONT AXLE ASSEMBLY (FWA) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920239 FRONT AXLE ASSEMBLY, FWD

2 2 ** 1/2-13 NC NYLON INSERT NUT
3 2 ** 1/2-13 NC x 1-1/4 GRADE 8 BOLT
4 1 920750 STEERING CYLINDER 1:10 TAPER
5 4 920291 TIE ROD END (LARGE)
6 4 MFO85 14mm X 1.5 JAM NUT
7 4 FW028 1/2 USS HARDENED LOCKWASHER
8 4 ** 7/16-20 NF HEX CASTLE NUT

9 4 ** 3/32 X 3/4 COTTER PIN
10 2 320076 ADAPTER 3/8 ORM - 3/8 JIC MALE 6F50X-S
11 2 921013 TIE ROD STUD

LEGEND: NS = Not Shown
** = Purchase locally

A-7F

NO REQ’D PART NO DESCRIPTION

1 1 923228 AXLE ALLMAND BROS. WELDMENT
2 1 923229 SPINDLE ASSEMBLY RH ALLMAND BROS.
3 1 923230 SPINDLE ASSEMBLY LH ALLMAND BROS.
4 2 ** HHCS G5P 1/4-20 X 3-3/4

2 ** WASHER, FLAT 1/4 USS PLTD
2 ** WASHER, LOCK 1/4 PLTD

2 ** NUT HEX 1/4-20 PLTD
5 2 923231 BRACKET HOSE LOOP
6 2 923232 CAP, SPINDLE
7 4 923233 BUSHING, CAST BRONZE
8 2 923234 SHIM, SPINDLE
9 2 923235 MOTOR, WHEEL CHARLYNN
10 2 923236 HUB, CAST 5 ON 4.5-2000 CHARLYNN

10 ** BOLT, WHEEL 1/2-20 X 1-1/4 90D
11 8 ** HHCS G5P 1/2-13 X 1-3/4

8 ** WASHER, LOCK 1/2 PLTD
12 2 923237 SNAP RING, EXTERNAL
13 3 923238 ZERK, GREASE STRAIGHT 1/4-28
14 1 923239 MOD-BUSHING SOLID BRONZE
15 1 921243 BUSHING, TIE ROD END

LEGEND: NS = Not Shown
** = Purchase locally

A-7G

FRONT AXLE INSTALLATION (FWA)

MODEL TLB 35D

FRONT AXLE INSTALLATION (FWA) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 HN075 1 3/4 -12 HEX JAM NUT
2 1 92T152 FRONT AXLE NUT PLATE
3 1 92T100 AXLE PIVOT BOLT BRACKET WELDMENT
4 1 920239 FRONT AXLE ASSEMBLY, FWD
5 2 ** 5/16 FLAT WASHER
6 2 ** 5/16 SPLIT LOCK WASHER
7 2 ** 5/16 - 18 NC X 1 GRADE 5 BOLT
8 AR FW063 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 18 GA.

AR FW064 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 14 GA.

AR FW065 1 3/4 I.D. X 2 1/4 O.D. MACHINE BUSHING 10 GA.
9 1 92T002 PIVOT BOLT ASSEMBLY
10 5 401257 1/4 -28 90° GREASE ZERK

A-7H

LEGEND: NS = Not Shown
** = Purchase locally

A-8A

BATTERY TRAY AND FITTINGS (2WD)

MODEL TLB 35D

BATTERY TRAY AND FITTINGS (2WD) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 92T01 4 BATTERY TRAY

2 2 ** 5/16-18 NC KEPS NUT
3 2 ** 3/8-16 NC x 1 GRADE 5 BOLT
4 2 ** 5/16-18 NC x 1 GRADE 5 BOLT
5 2 920325 FLOW EZY FILTER #S15-100
6 2 ** 3/8-16 NC KEPS NUT

7 1 920699 90° FITTING 8-8 CTX-6
8 1 920823 FITTING 6 FTX-S
9 1 920886 HYDRAULIC OIL LEVEL INDICATOR

NS 320550 SIGHT GLASS (BEFORE 1/1/99)
10 1 920322 OIL BREATHER CAP
11 1 320080 90° FITTING 6 CTX-S
12 1 920822 90° FITTING 10-12 CTX-S

13 4 920669 90° FITTING 6 WETX-WLNS

A-8B

LEGEND: NS = Not Shown
** = Purchase locally

A-8C

BATTERY TRAY AND FITTINGS (FWD)

MODEL TLB 35D

BATTERY TRAY AND FITTINGS (FWD) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 92T01 4 BATTERY TRAY
2 2 ** 5/16-18 NC KEPS NUT
3 2 ** 3/8-16 NC x 1 GRADE 5 BOLT
4 2 ** 5/16-18 NC x 1 GRADE 5 BOLT
5 2 920325 FLOW EZY FILTER #S15-100
6 2 ** 3/8-16 NC KEPS NUT
7 1 920699 90° FITTING 8-8 CTX-6
8 1 920886 HYDRAULIC OIL LEVEL INDICATOR

NS 320550 SIGHT GLASS (BEFORE 1/l/99)

9 1 920322 OIL BREATHER CAP
10 2 320080 90° FITTING 6 CTX-S
11 1 920822 90° FITTING 10-12 CTX-S

12 4 920669 90° FITTING6 WETX-WLNS

A-8D

LEGEND: NS = Not Shown
** = Purchase locally

A-9A

ISUZU ENGINE ASSEMBLY

MODEL TLB 35D

26

ISUZU ENGINE ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920812 ISUZU 3LD ENGINE ASSEMBLY
2 1 92T203 THROTTLE BRACKET

1 920901 THROTTLE BRACKET (AFTER S/N 0004T160025)
3 3 ** 1/4 SPLIT LOCKWASHER
4 3 ** M6 x 1.0 x 12mm GRADE 8.8 BOLT
5 2 92T200 ENGINE MOUNT
6 16 ** M10 x 1.5 x 20mm GRADE 8.8 BOLT
7 16 ** 10mm FLAT WASHER
8 1 @@@ SPLINE ADAPTER
9 1 921239 SERVO CONTROL HYDROSTAT
10 2 ** M12 x 1.75 x 35mm GRADE 8.8 BOLT
11 2 ** 12mm SPLIT LOCKWASHER
12 2 ** 12mm FLAT WASHER
13 1 920826 GEAR PUMP
14 2 ** 3/8-16 NC x 1 1/4 GRADE 5 BOLT
15 2 ** 3/8 SPLIT LOCKWASHER
16 1 92T205 FUEL FILTER BRACKET
17 2 ** 10mm SPLIT LOCKWASHER
18 2 ** M10 x 1.5 x 20mm GRADE 8.8 BOLT
19 1 650220 FUEL FILTER ELEMENT
20 2 ** 5/16-18 NC x 1 3/4 GRADE 5 BOLT
21 2 ** 5/16 FLAT WASHER
22 2 ** 5/16-18 NC NYLON INSERT NUT
23 1 92T223 DAMPENER MOUNT
24 2 ** 1/4-20 NC x 1 GRADE 5 BOLT
25 2 ** 1/4-20 NC NYLON INSERT NUT
26 1 DD 310 DECAL (AIR CLEANER SERVICE)
NS 3 920878 GLOW PLUG
NS 1 650221 OIL FILTER
NS 1 920871 AIR FILTER ELEMENT

A-9B

LEGEND: NS = Not Shown
** = Purchase locally

@@@ = See Isuzu Dealer

A-9C

HYDROSTAT DRIVE FITTINGS

MODEL TLB 35D

HYDROSTAT DRIVE FITTING PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 2 920819 ADAPTER 90° 16 C50X-S

2 1 920825 ADAPTER 90° 6-8 C50X-S
3 1 920880 VIBRO-INSULATOR
4 3 920817 ADAPTER 90° 12-16 C50X-S
5 1 BF099 HYDROSTATIC FITTING
6 1 BF100 HYDROSTATIC FITTING
7 2 920818 ADAPTER MALE CONNECTOR 0503-10-8
8 1 920816 ADAPTER MALE CONNECTOR 12 F50X-S

NS 1 920894 HYDROSTAT DUMP VALVE

A-9D

LEGEND: NS = Not Shown
** = Purchase locally

A-10A

ENGINE AND FRAME RAILS

MODEL TLB 35D

ENGINE AND FRAME RAIL PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 640500 ENGINE SHOCK MOUNT
2 4 ** 3/8-16 NC x 2 3/4 GRADE 5 BOLT
3 4 ** 3/8 FLAT WASHER
4 4 ** 3/8-16 NC NYLON INSERT NUT
5 8 640565 ENGINE MOUNT WASHER
6 1 920864 ISUZU 35 HP MUFFLER
7 1 92T079 MUFFLER HEAT SHIELD
8 4 ** M8 X 1.25 HEX NUT
9 8 ** 8mm FLAT WASHER
10 4 ** 5/16-18 NC x 1 GRADE 5 BOLT
11 4 ** 5/16 SPLIT LOCKWASHER
NS 650234 MUFFLER GASKET

A-10B

LEGEND: NS = Not Shown
** = Purchase locally

A-11A

HYDRAULIC HOSE MASTER LIST

MODEL TLB 35D

ISUZU HOSE KIT (920810)

DESCRIPTIONS AND LOCATIONS

HYDRAULIC HOSE MASTER LIST (CONT’D)

MODEL TLB 35D

ISUZU ROSS DRIVE (2 WHEEL DRIVE AND FRONT

WHEEL ASSIST)

TLB HYDRAULIC FITTINGS

DESCRIPTIONS AND LOCATIONS

A-11B

DRIVE MOTOR HYDRAULIC HOSE ROUTING (2WD)

A-11C

MODEL TLB 35D

DRIVE MOTOR HYDRAULIC HOSE (2WD) PARTS

MODEL TLB 35D

A-11D

NO REQ’D PART NO DESCRIPTION

1 1 920856 HOSE ASSEMBLY 3/4 X 21 1/2

12FJX - 12FJX901

2 1 920883 HOSE ASSEMBLY 3/4 X 13 1/2

12FJX - 12FJX901

3 1 920845 HOSE ASSEMBLY 3/8 X 22 1/2

6FJX - 6FJX90S

LEGEND: NS = Not Shown
** = Purchase locally

A-11E

HYDROSTAT HYDRAULIC HOSE ASSEMBLY

MODEL TLB 35D

HYDROSTAT HYDRAULIC HOSE PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920846 HOSE ASSEMBLY 1/2 X 26 1/4

8FJX - 8FJX90S

2 1 920851 HOSE ASSEMBLY 1 X 27

16MP - 16FJX90L

3 1 920849 HOSE ASSEMBLY 1/2 X 48

8FJX - 8FJX90S

4 1 920852 HOSE ASSEMBLY 1 X 21 1/2

16MP - 16FJX90S

5 1 920847 HOSE ASSEMBLY 1/2 X 50 1/2

8FJX - 8FJX90S

A-11F

LEGEND: NS = Not Shown
** = Purchase locally

A-11G

STEERING HYDRAULIC ASSEMBLY

MODEL TLB 35D

STEERING HYDRAULIC ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920617 HOSE ASSEMBLY 3/8 X 62-1/2

6FJX90S - 6FJX54M - 270°

2 1 920844 HOSE ASSEMBLY 3/8 X 76-1/2

6FJX90L - 6FJX45M - 180°

4 1 920843 HOSE ASSEMBLY 3/8 X 27-1/2

6FJX - 6FJX90S

4 1 920619 HOSE ASSEMBLY 3/8 X 20-1/2

A-11H

LEGEND: NS = Not Shown
** = Purchase locally

6FJX - 6FJX90L - 25°

A-11I

LOADER VALVE HYDRAULIC ASSEMBLY

MODEL TLB 35D

LOADER VALVE HYDRAULIC ASSEMBLY PARTS

MODEL TLB 35D

A-11J

NO REQ’D PART NO DESCRIPTION

1 1 920840 HOSE ASSEMBLY 3/8 X 29

6FJX - 6FJX

2 1 920841 HOSE ASSEMBLY 3/8 X 48-1/4

6FJX - 6FJX90S

3 1 920842 HOSE ASSEMBLY 3/8 X 46-1/2

6FJX - 6FJX

4 1 920686 HOSE ASSEMBLY 3/8 X 30

6FJX - 6FJX90S

5 1 920850 HOSE ASSEMBLY 1/2 X 26-1/2

8FJX - 8FJX90S

6 1 920890 HOSE ASSEMBLY 1/2 X 108

8FJX - 8FJX

ATTENTION

For the following TLB Serial Numbers

9808T54 9808T82
9808T55 9808T83
9808T56 9808T84

Add the following when ordering 920800:

1 920692 ADAPTER 900 6C50X-S
1 920840 HOSE ASSEMBLY 3/8 X 29 6FJX - 6FJX

LEGEND: NS = Not Shown
** = Purchase locally

A-11K

COOLER / FILTER HYDRAULIC ASSEMBLY

MODEL TLB 35D

COOLER / FILTER HYDRAULIC ASSY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920848 HOSE ASSEMBLY 1/2 X 45-1/2

8FJX - 8FJX90S

2 1 920857 HOSE ASSEMBLY 1/2 X 23

8FJX - 8FJX90S

3 1 920853 HOSE ASSEMBLY 5/8 X 84

10FJX - 10FJX90S

4 1 920854 HOSE ASSEMBLY 5/8 X 53

10FJX - 10FJX90S

A-11L

LEGEND: NS = Not Shown
** = Purchase locally

A-11M

DRIVE MOTOR HYD. HOSE ASSEMBLY (FWA)

MODEL TLB 35D

DRIVE MOTOR HYD. HOSE ASSY (FWA) PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920883 HOSE ASSEMBLY 3/4 X 13-1/2

12FJX - 12FJX90L

2 1 920884 HOSE ASSEMBLY 3/4 X 21"

12FJX - 12FJX90L

3 1 920845 HOSE ASSEMBLY 3/8 X 22-1/2

6FJX - 6FJX90L

4 1 920892 HOSE ASSEMBLY 3/8 X 61"

8FJX - 8FJX45S

5 1 920891 HOSE ASSEMBLY 3/8 X 59"

8FJX - 8FJX45S

6 4 HOSE ASSEMBLY, SUPPLIED BY VENDOR

A-11N

LEGEND: NS = Not Shown
** = Purchase locally

A-12A

NOSE ASSEMBLY

MODEL TLB 35D

NOSE ASSEMBLY PARTS

MODEL TLB 35D

A-12B

NO REQ’D PART NO DESCRIPTION

1 1 92T184 NOSE
2 14 ** 5/16 FLAT WASHER
3 8 ** 5/16 SPLIT LOCKWASHER
4 6 ** 5/16-18 NC x 1-1/2 GRADE 5 BOLT
5 2 ** HAIRPIN COTTER
6 11 92T130 FRONT BUMPER WEIGHT ROD
7 1 ** SUITCASE WEIGHT, 20KG
8 1 92T201 FRONT BUMPER WELDMENT (HOLDS 8 WEIGHTS)
9 8 ** 1/4-20 NC x 3/4 GRADE 5 BOLT
10 6 ** 5/16-18 NC NUT
11 8 ** 1/4-20 NC KEPS NUT
12 1 ** 4 WEEL DRIVE POWER UNIT (AS REQUIRED)
13 2 ** 5/16-18 NC x 1 GRADE 5 BOLT
14 2 920234 SOUTHCO SOFT LATCH
15 4 ** #8-32 NC x 1/2 SCREW
16 4 ** #8-32 NC KEPS NUT

LEGEND: NS = Not Shown
** = Purchase locally

A-12C

RADIATOR ASSEMBLY

MODEL TLB 35D

RADIATOR ASSEMBLY PARTS

MODEL TLB 35D

A-12D

NO REQ’D PART NO DESCRIPTION

1 1 92T192 RADIATOR FAN SHROUD
2 6 ** #7 x 3/4 SELF-TAPPING SHEET METAL SCREW
3 1 920813 RADIATOR
4 8 ** 5/16 FLAT WASHER
5 1 ** COOLANT TUBING (AS REQUIRED)
6 1 WP053 TRIM LOK, 28”
7 1 920473 COOLANT BOTTLE
8 1 ** COOLANT OVERFLOW TUBING (AS REQUIRED)
9 2 ** STRAP
10 2 WP051 TRIM LOK 6"
11 2 920820 90° HOSE ADAPTER
12 1 920780 OIL COOLER, 6 ROW
13 4 920332 COOLER MOUNT
14 4 ** 5/16-18 NC x 1" CARRIAGE BOLT
15 4 ** 5/16-18 NC KEPS NUT
16 2 92T242 OIL COOLER MOUNTING BRACKET

LEGEND: NS = Not Shown
** = Purchase locally

A-13A

HOOD / INSTRUMENT PANEL ASSEMBLY

MODEL TLB 35D

HOOD / INSTRUMENT PANEL ASSEMBLY PARTS

MODEL TLB 35D

A-13B

NO REQ’D PART NO DESCRIPTION

1 4 ** #6-32 NC KEPS NUT
2 4 ** #6-32 NC x 3/8 SCREW
3 2 920234 SOUTHCO SOFT LATCH
4 2 ** 5/16-18 NC ACORN NUT
5 1 10-000070-05 FIBERGLASS HOOD ONLY
6 4 330437 BALL STUD
7 2 920231 GAS SPRING, 35LB
8 2 ** 5/16-18 NC KEPS NUT

9 5 ** #10-24 NC x 1/2 SCREW
10 1 92T138 HOOD HINGE, STAINLESS STEEL
11 2 ** 1/4-20 NC x 3/4 SCREW
12 1 92T190 INSTRUMENT PANEL (PANEL ONLY)
13 4 ** #10-24 NC NYLON INSERT NUT
14 5 ** #10-24 NC KEPS NUT
15 2 ** 1/4-20 NC KEPS NUT
16 4 ** #10-24 NC x 3/4 SCREW

LEGEND: NS = Not Shown
** = Purchase locally

A-13C

INSTRUMENT PANEL ASSEMBLY

MODEL TLB 35D

INSTRUMENT PANEL ASSEMBLY PARTS

MODEL TLB 35D

A-13D

NO REQ’D PART NO DESCRIPTION

1 1 92T190 INSTRUMENT PANEL

2 7 ** 1/4-20 NC x 3/4 SCREW
3 1 640163 CIRCUIT BREAKER MOUNTING BRACKET
4 1 620087 30 AMP CIRCUIT BREAKER
5 1 920441 15 AMP CIRCUIT BREAKER
6 3 HD216 TINNEMAN FASTENERS
7 1 92T198 STEERING COLUMN COVER PANEL
8 6 ** 5/15-18 NC x 3/4 SELF-TAPPING SCREW
9 1 N/A IGNITION SWI TCH

1 921441 IGNITION KEY ONLY
1 922004 IGNITION SWITCH (OUTER SHELL)

1 922005 IGNITION KEYS (SET OF 2 -FLAT TYPE W/TUIMBLER)
10 4 ** #10-24 NC x 3/4 SCREW
11 1 920824 THROTTLE CABLE

920902 THROTTLE CABLE (AFTER S/N 0004T160025)
12 4 ** 1/4-20 NC KEPS NUT
13 4 ** #10-24 NC NYLON INSERT NUT
14 1 92T073 THROTTLE CONTROL MOUNT BRACKET
15 1 @@@ GLOW PLUG
16 1 920865 ROCKER SWITCH
17 1 920866 PLUG
18 1 320024 PUSH BUTTON, FRONT WHEEL ASSIST (AS REQ’D)
19 1 340014 HOUR METER
20 1 920867 OIL TEMPERATURE GAUGE
21 1 920462 CLUSTER GAUGE
22 1 920868 WATER TEMPERATURE GAUGE
23 1 920010 PLASTIC MANUAL BOX
24 1 920008 1/2 SCALE OPERATOR’S MANUAL
NS 1 920007 OPERATOR’S & PARTS MANUAL
25 4 ** #10-24 NC x 1/2 SCREW
26 4 ** #10 FLAT WASHER
27 4 ** #10-24 NC KEPS NUT
NS 1 920464 ISUZU WIRING HARNESS
NS 3 ** 5/8 CUSHION CLAMP
NS 36" WP053 TRIM LOCK (ON LOWER EDGE OF INSTRUMENT PANEL)
NS 1 920694 CLEVIS, THROTTLE CABLE END (AFTER S/N 0004T160025)
NS 921019 KIT THROTTLE CABLE/CLEVIS/ BRACKET

LEGEND: NS = Not Shown
** = Purchase locally

@@@ = See Isuzu Dealer

A-14A

ROPS ASSEMBLY

MODEL TLB 35D

ROPS ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 92T011 ROPS KIT

(1) FRONT POST ASSEMBLY

(1) REAR POST ASSEMBLY
2 1 920122A 2" LAP BELT KIT
3 1 711028 7/8 O.D. x 9/16 LD. RUBBER GROMMET
4 2 ** 7/16 FLAT WASHER
5 2 ** 7/16 - 20 NF NYLON INSERT NUT
6 2 ** 7/17 - 20 NF x 1 GRADE 5 BOLT
7 1 92T213 TLB LIGHT BRACKET (OPTIONAL)
8 2 920445 TRACTOR IMPLEMENT LIGHT (OPTIONAL)
NS 920123A 3" LAP BELT KIT (OPTIONAL)
NS 1 920427 LIGHT PLATE, 16/3 WIRE HARNESS

A-14B

IN THE EVENT OF A ROLL OVER OR R.O.P.S. DAMAGE,
THE COMPLETE R.O.P.S. SHOULD BE REPLACED INCLUDING THE HARDWARE.

IF INDIVIDUAL HARDWARE COMPONENTS NEED TO BE REPLACED, THEY CAN BE
SOURCED LOCALLY PROVIDING THEY ARE EQUIVALENT SIZE AND GRADE.

UNDER NO CIRCUMSTANCES SHOULD THE R.O.P.S. EVER BE MODIFIED OR AL­TERED. IF THIS HAPPENS, CERTIFICATION WILL BE VOID.

LEGEND: NS = Not Shown
** = Purchase locally

OPTIONAL BACKUP, STROBE, AND WORK LIGHTS

MODEL TLB 35D

A-14C

BACKUP, STROBE, AND WORK LIGHT PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 2 920445 TRACTOR IMPLEMENT LIGHT KIT

2 2 ** 1/2-13 NC HEX NUT
3 2 ** 1/2 SPLIT LOCKWASHER
4 2 ** 1/2 FLAT WASHER
5 2 ** 1/2-13 NC x 3 1/4 GRADE 5 BOLT
6 1 711028 RUBBER GROMMET 7/8 O.D. x 9/16 I.D.
7 1 920432 BACK-UP ALARM
8 2 ** 1/4-20 NC x 3/4 GRADE 5 BOLT
9 2 ** 1/4-20 NC KEPS NUT
10 1 920442 STROBE LIGHT, 12 VOLT
11 2 ** #10-24 NC x 3/4 SCREW
12 2 ** #10-24 NC KEPS NUT
13 1 92T097 LIGHT MOUNTING BRACKET
NS 1 920427 LIGHT PLATE WIRING HARNESS
NS 920476 WORK LIGHT UPDATE KIT
NS 920477 BACK-UP ALARM UPDATE KIT

A-14D

LEGEND: NS = Not Shown
** = Purchase locally

A-14E

OPTIONAL BACKUP ALARM SWITCH

MODEL TLB 35D

OPTIONAL BACKUP ALARM SWITCH PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920431 BACK-UP ALARM SWITCH

2 1 HN065 3/4 X 16 PALNUT
3 1 92T055 RIGHT FOOT PEDAL MOUNT WELDMENT
4 4 ** 5/15-18 NC KEPS NUT
5 4 ** 5/16-18 NC X 1 GRADE 5 B0LT

NS 1 920428 BACK UP ALARM SWITCH WIRING HARNESS

LEGEND: NS = Not Shown
** = Purchase locally

A-14F

A-15A

LOADER / BUCKET ASSEMBLY

MODEL TLB 35D

LOADER / BUCKET ASSEMBLY PARTS

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 10 ** 1/4 - 20 NC NYLON INSERT NUT
2 2 ** 1/4 - 20 NC X 2 1/2 GRADE 5 BOLT

3 2 92L006 LOADER LIFT CYLINDER
4 2 92L001S LOADER PIVOT PIN WELDMENT
5 2 92L002 CYLINDER PIVOT PIN
6 8 ** 1/4-20 X 2" GRADE 5 BOLT
6A 2 HD149 5/16 X 2 SPIRAL ROLL PIN
7 2 92T006 UPPER LOADER PIN WASHER
8 4 92L001M LOADER PIN
9 1 92L001 LOADER ARM ASSEMBLY
10 2 92L007 BUCKET CYLINDER
11 4 92L004M BUCKET PIN
12 1 92L004 BUCKET ASSEMBLY
13 4 401256 1/4 - 28 NF GREASE ZERK, STRAIGHT
NS 92L006K LOADER CYLINDER SEAL KIT (BUCKET & LOADER)
NS 92L007G LOADER CYLINDER GLAND (BUCKET & LOADER)
NS 92L007P LOADER CYLINDER PISTON (BUCKET & LOADER)
NS 92L007R LOADER CYLINDER ROD (BUCKET)
NS 92L006R LOADER CYLINDER ROD (LOADER)

A-15B

LEGEND: NS = Not Shown
** = Purchase locally

A-15C

LOADER HYDRAULIC ASSEMBLY

MODEL TLB 35D

LOADER HYDRAULIC ASSEMBLY PARTS

MODEL TLB 35D

A-15D

NO REQ’D PART NO DESCRIPTION

1 2 920625A HOSE ASSEMBLY 3/8 X 34 ¼ 6FJX - 6FJX
2 2 920627 HOSE ASSEMBLY 3/8 X 19 ½ 6FJX - 6FJX90S
3 8 ** 1/4 -20 NC X 3/4 SELF-TAPPING SCREW
4 4 920668 HYDRAULIC ADAPTER 6JTX-S
5 8 920605 TUBE CLIP
6 8 320076 HYDRAULIC ADAPTER 6 ORM - 6 JICM
7 2 920623 HOSE ASSEMBLY 3/8 X 23 ¾ 6FJX - 6FJX
8 2 920621 HOSE ASSEMBLY 3/8 X 41 6FJX - 6FJX

9 1 920636 HOSE ASSEMBLY 3/8 X 78 ½ 6FJX90L - 6FJX90S - 308°
10 1 920635 HOSE ASSEMBLY 3/8 X 78 6FJX90S - 6FJX90S - 300°
11 1 920638 HOSE ASSEMBLY 3/8 X 84 6FJX90L - 6FJX90S - 285°
12 1 920637 HOSE ASSEMBLY 3/8 X 81 6FJX90S - 6FJX90S - 305°

NS 92L006K LOADER CYLINDER SEAL KIT (BUCKET & LOADER)

LEGEND: NS = Not Shown
** = Purchase locally

A-16A

BACKHOE SEAT ASSEMBLY

MODEL TLB 35D

BACKHOE SEAT ASSEMBLY PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920246 BACKHOE SEAT

2 1 92B002 BACKHOE SEAT MOUNT WELDIVIENT
3 4 ** 1/4 FLAT WASHER
4 4 ** 8MM X 20MM X 1.25 HCS 8.8 BOLT
5 2 ** 3/8-16 NC x NYLON INSERT NUT
6 2 ** 5/16 FLAT WASHER
7 2 ** 3/8-16 NC x 1-1/4 GRADE 5 BOLT
8 2 ** 1/4-20 NC NYLON INSERT NUT
9 2 ** 1/4 FLAT WASHER
10 2 ** 1/4-20 NC x 1" SOCKET HEAD SCREW

A-16B

LEGEND: NS = Not Shown
** = Purchase locally

A-16C

AUXILIARY VALVE ASSEMBLY

MODEL TLB 35D

AUXILIARY VALVE ASSEMBLY PARTS LIST

MODEL TLB 35D

A-16D

NO REQ’D PART NO DESCRIPTION

1 1 920835 HYDRAULIC ADAPTER 8R6X-S
2 1 920285 1/2 X 29.5-8FJX-8FJX45S (RETURN HOSE)
3 1 920286 1/2 X 61.5-8FJX-8FJX45S (PRESSURE SUPPLY)
4 1 920277 POWER BEYOND SLEEVE
5 3 320070 MALE 0 RING BOSS TO MALE JIC 370 FLARE 90°
6 3 ** 1/4 - 20 NC NYLON INSERT NUT
7 2 920697 8-12 CTX-S HYDRAULIC FITTING
8 1 920328 DIRECTIONAL VALVE
9 3 ** 1/4 - 20 NC X 1 3/4 GRADE 5 BOLT

10 1 320084 HYDRAULIC FITTING 1/2 FF-S

11 1 920650 FEMALE COUPLING
12 1 920651 FEMALE COUPLING CAP
13 1 920653 MALE COUPLING CAP
14 1 920652 MALE COUPLING
15 1 920298 PF1OL-8-3 HYDRAULIC FITTING
16 2 920297 1/2 CD-S 10-12 PIPE THREAD 90° MALE-FEMALE

HYDRAULIC FITTING
17 1 920296 1/2 CD 45-S PIPE THREAD HYDRAULIC FITTING
18 1 92T224 QUICK COUPLE SUPPORT BRACKET
19 1 92T225 QUICK COUPLE SUPPORT BRACKET BOTTOM
20 6 ** 1/4 FLAT WASHER
21 2 ** 1/4-20 X 3/4 BOLT
22 1 ** 1/4-20 X 3/4 PHILLIPS HEAD SCREW

23 1 ** 1/4-20 KEPS NUT

LEGEND: NS = Not Shown
** = Purchase locally

A-17A

FUEL TANK ASSEMBLY

MODEL TLB 35D

FUEL TANK ASSEMBLY PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 6 920190 1/4-20 NC J-NUT
2 1 713050 1/8 NPTM X BARB ELBOW
3 1 92T093 POLY FUEL TANK
4 1 92T094 POLY FUEL TANK MOUNTING PLATE
5 10 ** 1/4 - 20 NC X 1 GRADE 5 BOLT
6 10 ** 1/4 FLAT WASHER

7 1 340027 FILLER CAP, PLASTIC CAP

A-17B

LEGEND: NS = Not Shown
** = Purchase locally

A-18A

DECALS (DASH/FENDERS)

MODEL TLB 35D

DECALS (DASH/FENDERS) PARTS LIST

MODEL TLB 35D

A-18B

NO REQ’D PART N0 DESCRIPTION

1 1 920897 COMPLETE DECAL SET TLB 35D
1 1 DD-034 DIESEL
2 1 DD-197 (DANGER) OVERHEAD ELECTROCUTION HAZARD
3 1 DD-195 (DANGER) UNDERGROUND ELECTROCUTION HAZARD
4 1 DD-300 FRONT WHEEL ASSIST
5 1 DD-299 FRONT WHEEL ASSIST (REVERSE)
6 1 DD-209 LIGHTS SYMBOL (W/OPTIONAL WORK LIGHTS)
7 1 DD-298 ENGINE START, ISUZU

DD-246 LOADER JOYSTICK FUNCTIONS (AFTER SN 9708TO6)
8 1 DD-189 (DANGER) TO AVOID BODILY INJURY
9 1 DD-207 LOADER JOYSTICK FUNCTIONS

10 1 DD-179 CALIFORNIA PROPOSITION 65 DIESEL WARNING
11 1 DD-196 ENGINE THROTTLE CONTROL

LEGEND: NS = Not Shown
** = Purchase locally

A-18C

DECALS (RIGHT SIDE)

MODEL TLB 35D

DECALS (RIGHT SIDE) PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 DD-147 NO STEP

2 1 DD-212 OPERATORS MANUAL
3 1 DD-270 ALLMAND DECAL
4 1 DD-191 (WARNING) HIGH-PRESSURE FLUID HAZARD
5 4 DD-210 TIE DOWN POINT

(2) ON TRACTOR FRAME (RIGHT & LEFT)
(2) ON BACKHOE FRAME (RIGHT & LEFT)

LEGEND: NS = Not Shown
** = Purchase locally

A-18D

A-18E

DECALS (LEFT SIDE)

MODEL TLB 35D

DECALS (LEFT SIDE) PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 4 DD-210 TIE DOWN POINT

(2) ON TRACTOR FRAME (RIGHT & LEFT)

(2) ON BACKHOE FRAME (RIGHT & LEFT)
2 1 DD-193 (DANGER) HOT EXHAUST
3 1 DD-258 HYDRAULIC SYSTEM SERVICE DECAL
4 1 DD-158 READ HAND BOOK DECAL

A-18F

LEGEND: NS = Not Shown
** = Purchase locally

A-18G

DECALS (ROPS)

MODEL TLB 35D

DECALS (ROPS) PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 DD-190 (CAUTION) AVOID DEATH OR SERIOUS INJURY
2 1 DD-194 (WARNING) AVOID CRUSHING
3 2 DD-219 (WARNING) PINCH POINT

LEGEND: NS = Not Shown
** = Purchase locally

A-18H

A-18I

DECALS (HOOD / NOSE)

MODEL TLB 35D

A-18K

DECALS (LOADER)

DECALS (HOOD / NOSE) PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 DD-270 ALLMAND DECAL
2 2 DD-292 DECAL TLB-35D

3 2 DD-287 DECAL NOSE - HOOD SET

4 2 DD-182 CONTRACTOR

LEGEND: NS = Not Shown
** = Purchase locally

A-18J

DECALS (LOADER) PARTS LIST

1 2 DD-274 CONTRACTOR DECAL

2 2 DD-269 ALLMAND LOGO

LEGEND: NS = Not Shown
** = Purchase locally

A-18L

A-18M

DECALS (BUCKET)

MODEL TLB 35D

DECALS (BUCKET) PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 DD-285 BUCKET LEVEL INDICATOR

LEGEND: NS = Not Shown
** = Purchase locally

A-18N

A-19A

BACKHOE BUCKET OPTIONS

MODEL TLB 35D

BACKHOE BUCKET OPTIONS PARTS LIST

MODEL TLB 35D

A-19B

PART NUMBER BUCKET DESCRIPTION AND SIZE

920131 BACKHOE BUCKET 509-12”

920132 BACKHOE BUCKET 509--16"

920133 BACKHOE BUCKET 509-18”

920134 BACKHOE BUCKET 509--20"

920135 BACKHOE BUCKET 509--24"

920189 BACKHOE QUICK ATTACH--509

A-20A

STABILIZER GUARD KIT

MODEL TLB 35D

STABILIZER GUARD KIT PARTS LIST

MODEL TLB 35D

NO REQ’D PART NO DESCRIPTION

1 1 920169 STABILIZER GUARD

2 1 340117 1 1/2" MUFFLER CLAMP - PLATED

LEGEND: NS = Not Shown
** = Purchase locally

A-20B
