ALLMAND MP65T4F Operators Manual

Maxi-Power

Not for

Reproduction

Towable Generator

Operator’s Manual

MP65-8C1
(65 kVA - Kubota)

Copyright © 2017 Allmand Bros., Inc.
Holdrege, NE, USA. All rights reserved.

112419USCN

Revision C

Thank you for purchasing this quality-built Allmand towable generator. We are pleased that you’ve placed your

Not for

Reproduction

confidence in the Allmand brand. When operated and maintained according to the instructions in this manual, your
Allmand generator will provide many years of dependable service.

This manual contains safety information to make you aware of the hazards and risks associated with towable
generators and how to avoid them. Because Allmand does not necessarily know all the applications this towable
generator could be used for, it is important that you read and understand these instructions thoroughly before
attempting to start or operate this equipment. Save these original instructions for future reference.

Where to Find Us

If you have any questions about the machine, contact your authorized dealer. You can also contact Allmand
Customer Service by phone at [phone], or on the Internet at allmand.com.

Knowing the model number of your Allmand Generator will make it easy to order maintenance or repair parts either
online or from your local dealer. The model number is generally a number stamped into metal or on a sticker directly
on your product.

Towable Generator Engine

Model Number _____________________ Model Number ______________________

Revision __________________________ Type Number _______________________

Serial Number ______________________ Code Number _______________________

Date Purchased ___________________

2 ALLMAND.COM

Table of Contents

Not for

Reproduction

Operator Safety....................... 4

Features and Controls ................. 8

Transporting and Set-Up .............. 10

Operation........................... 13

Maintenance ........................ 27

Storage ............................ 35

Troubleshooting ..................... 36

Specifications ....................... 37

Wiring Diagram ...................... 38

Operation Log ....................... 41

Addendum A - Cam Locks / Arctic Kit.... 42

Addendum B - Tire Safety Information ... 43

3

Operator Safety

Not for

Reproduction

Equipment Description

Read this manual carefully and become

familiar with your towable compressor.
Know its applications, its limitations, and
any hazards involved.

Every effort has been made to ensure that information
in this manual is accurate and current. Figures and
drawings in this manual may differ slightly from your
model. However, we reserve the right to change, alter,
or otherwise improve the product and this document at
any time without prior notice.

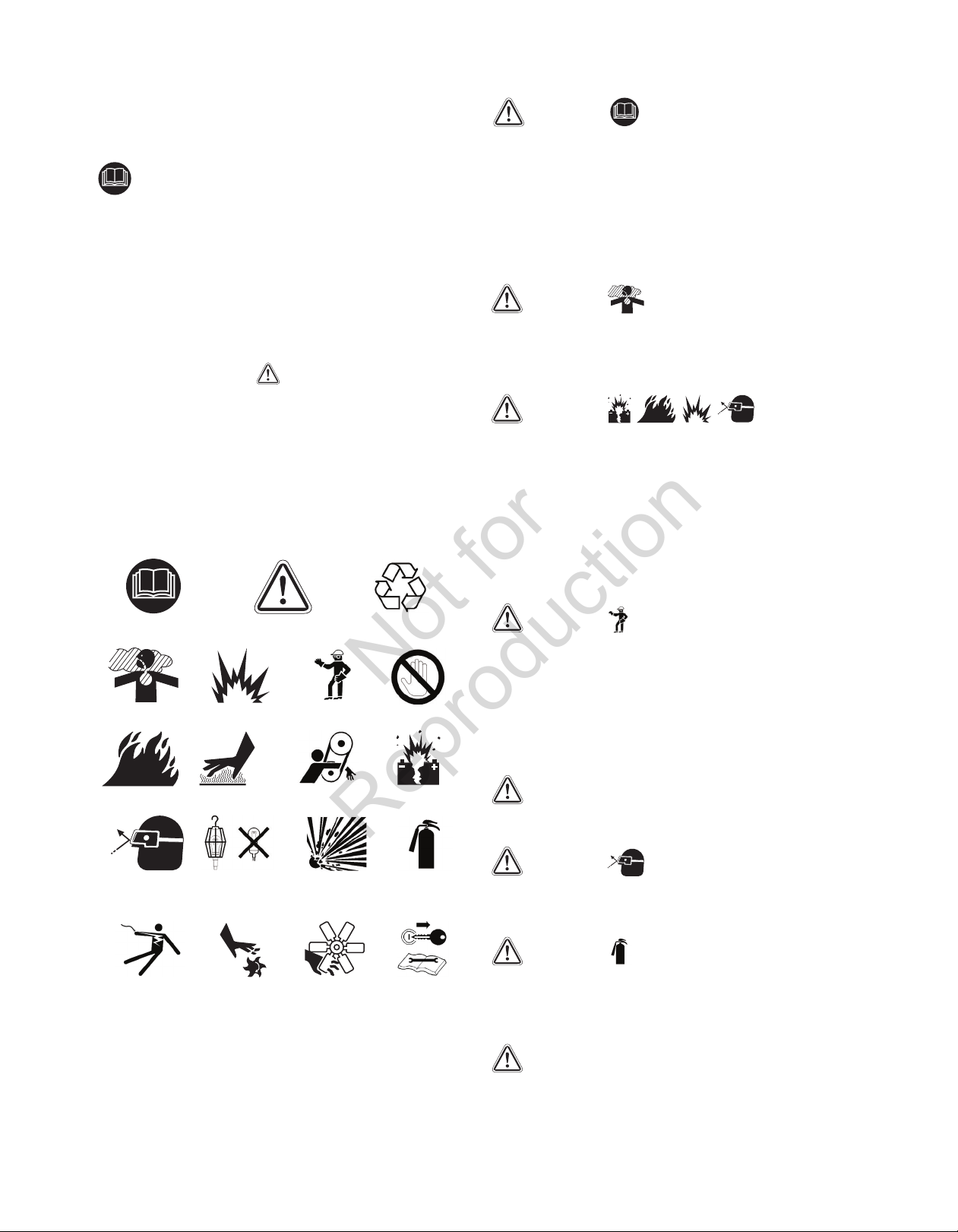

Safety and Control Symbols

The safety alert symbol indicates a potential
personal injury hazard. A safety symbol may be used
to represent the type of hazard. DANGER indicates
a hazard which, if not avoided, will result in death or
serious injury. WARNING indicates a hazard which,
if not avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
could result in minor or moderate injury. NOTICE
indicates information considered important, but not hazard­related.

WARNING Read and follow safety

directions:

• Be sure safety decals are present and legible.
Replace if damaged or missing.

• Do not modify machine without prior approval.
Machine safety may be compromised, functions may
be altered, or machine life may be shortened.

• Never use machine for purposes other than power
supply. Death or serious injury could result.

WARNING VENTILATION!

• Exhaust gas from the engine is poisonous, and could
cause death when inhaled.

• Avoid using the machine in an insufficiently
ventilated building or tunnel.

WARNING

• Keep flames away from battery.

• Battery may generate hydrogen gas, which is
explosive.

• Battery electrolyte is dilute sulfuric acid. Mishandling
could result in severe burns.

• When handling battery, be sure to wear appropriate
safety protection such as safety goggles and gloves.

• Dispose of battery according to local, state and/or
federal regulations.

Operator’s Manual

Toxic Fumes

Fire

Protective

Gear

Electrocution

Hazard

Hot Surface

Explosion

Lighting

Apparatus

Rotating

Parts

Alert

Clothing

Entanglement

Explosive

Pressure

Moving

Parts

Organic Waste

Prohibited

Battery

Safety

Equipment

Remove

Key Before

Maintainance

WARNING When operating machine, do not

wear:

• Loose clothes

• Clothes with unbuttoned sleeves

• Hanging tie or scarf

• Accessories such as dangling jewelry

• Such items could be caught in rotating parts of
machine, and could result in death or serious injury.

WARNING Do not operate machine when
tired or under influence of drugs or alcohol. Careless
operation could result in death or serious injury.

WARNING Wear appropriate personal
protective equipment (PPE), such as a helmet, safety
glasses, earplugs, safety shoes, gloves, and a dust
mask.

WARNING Have first-aid boxes and fire
extinguishers near machine in case of emergency
such as injury and fires. It is also advisable to have a
list of phone numbers of doctors, ambulance and fire
department available in case of emergency.

WARNING To prevent injury, tools, cables,
hoods, covers and other unnecessary items should be
cleaned and removed from machine before operation.

4 ALLMAND.COM

WARNING

Not for

Reproduction

• Contact with the output terminals and control board
could cause electric shock, resulting in death or
serious injury. Do not open the cover of the output
terminal board during machine operation.

• When removing or connecting a connecting cable
for changing load, be sure to switch OFF the circuit
breaker, remove the starter key from the starter
switch, then perform work.

WARNING Contact with rotating parts or
belts could cause death or serious injury. Keep hands
from rotating parts and belts while machine is in
operation.

WARNING Do not open radiator
cap during or immediately after operation. Explosive
pressure of hot liquid could cause severe burns,
resulting in death or serious injury.

WARNING Do not touch hot parts.

• Never work nearby hot portions of the machine while

it is running.

• Parts such as engine, exhaust manifold, exhaust

pipe, muffler and radiator are especially hot. Never
touch these parts, as it could result in serious burns.

• Coolant water and engine oil are also very hot and

dangerous to touch. Do not check or add while
machine is running.

WARNING Fire prevention.

• Fuel and oils are extremely flammable. Do not bring

ignition sorces near machine when checking or
adding fuel and oils.

• Adding fuel and oils should be done outdoors or in a

well-ventilated location.

• Refuel after stopping engine, and never leave

fuel near machine. Do not spill. If spilled, wipe up
completely.

• Do not fill fuel oil up to cap level. Fuel oil will overflow

due to volume expansion caused by rise of ambient
temperature. Fuel can also spill during machine
movement or transporting.

• Parts such as muffler and exhaust pipe can be

extremely hot. Remove twigs, dried leaves, dried
grass, waste paper, etc. from around muffler and
exhaust pipe.

• Keep a fire extinguisher available by machine in case

of fire.

WARNING Hang a “Now Checking and under
Maintenance” tag:

• Remove starter key from starter switch before

starting inspection, and hang up a “Now Checking
and under Maintenance” tag where it can be easily

seen. Inspector must keep key during checking and
maintenance.

• Remove black negative (–) cable from battery.

• Neglecting above procedure could result in death or
serious injury.

WARNING Adjusting belt tension:

• Attempting to adjust belt tension with machine
running could result in death or serious injury.

• Stop engine, remove starter key, and remove black
negative (-) cable from battery before adjusting belt
tension.

WARNING Hands off cooling fan:

• Contact with cooling fan while machine is running
could result in death or serious injury.

• Stop engine and remove starter key whenever
maintenance is to be performed near cooling fan.

WARNING Wear safety glasses when
cleaning dust accumulated in such devices as air-filter
by blowing compressed air.

WARNING Lighting apparatus:

• If work site is dark, use lighting to illuminate work

area. Working without illumination could result in
death or serious injury.

• Work lighting should be fitted with safety guard to

protect against breakage.

• Do not allow work light to contact fuel or oils, as they

could ignite, causing death or serious injury.

WARNING Opening coolant water drain

valve cap:

• Stop engine and let coolant water sufficiently cool

down before draining.

• If drain valve is opened before coolant water is

cooled enough, hot water could jet out, resulting in
death or serious injury.

CAUTION Refilling or draining engine oil:

• Engine oil is extremely hot during and just after

operation.

• Stop engine and wait 10 to 20 minutes before

checking, adding or draining engine oil.

CAUTION Treatment of organic wastes.

• Waste liquid from machine contains harmful

material. Do not discharge onto ground or into rivers,
lakes or sea. Such material will contaminate the
environment.

• Be sure to use an approved container to hold waste

liquid from machine.

• Be sure to follow local, state or federal regulations

when disposing of oil, fuel, coolant (antifreeze), filter,
battery or other harmful materials.

5

WARNING

Not for

Reproduction

• The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

WARNING

• Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer, birth
defects, or other reproductive harm. Wash hands
after handling.

NOTICE

• Parts of this machine contain sensitive electronic
components. If welding work is required, disconnect
any electronic equipment on the machine to prevent
damage due to excessive current.

NOTICE

• When washing the machine, cover the control panel,
generator and its electric parts to prevent them from
being exposed to splashing water and avoid possible
malfunction.

• Dust, sand and dirt accumulated inside control panel
could cause instrument malfunction. Clean with
compressed air.

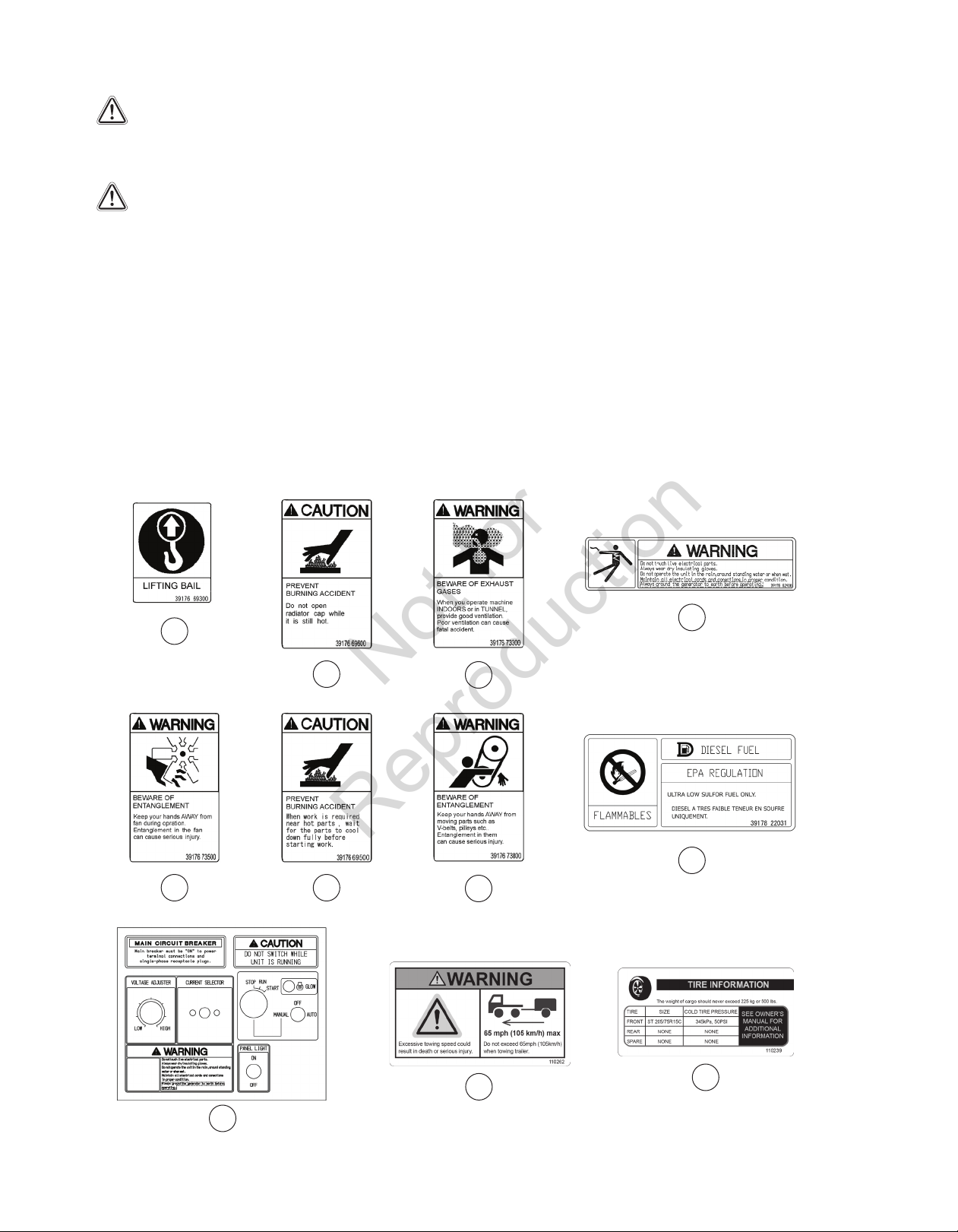

Safety Decals and Locations

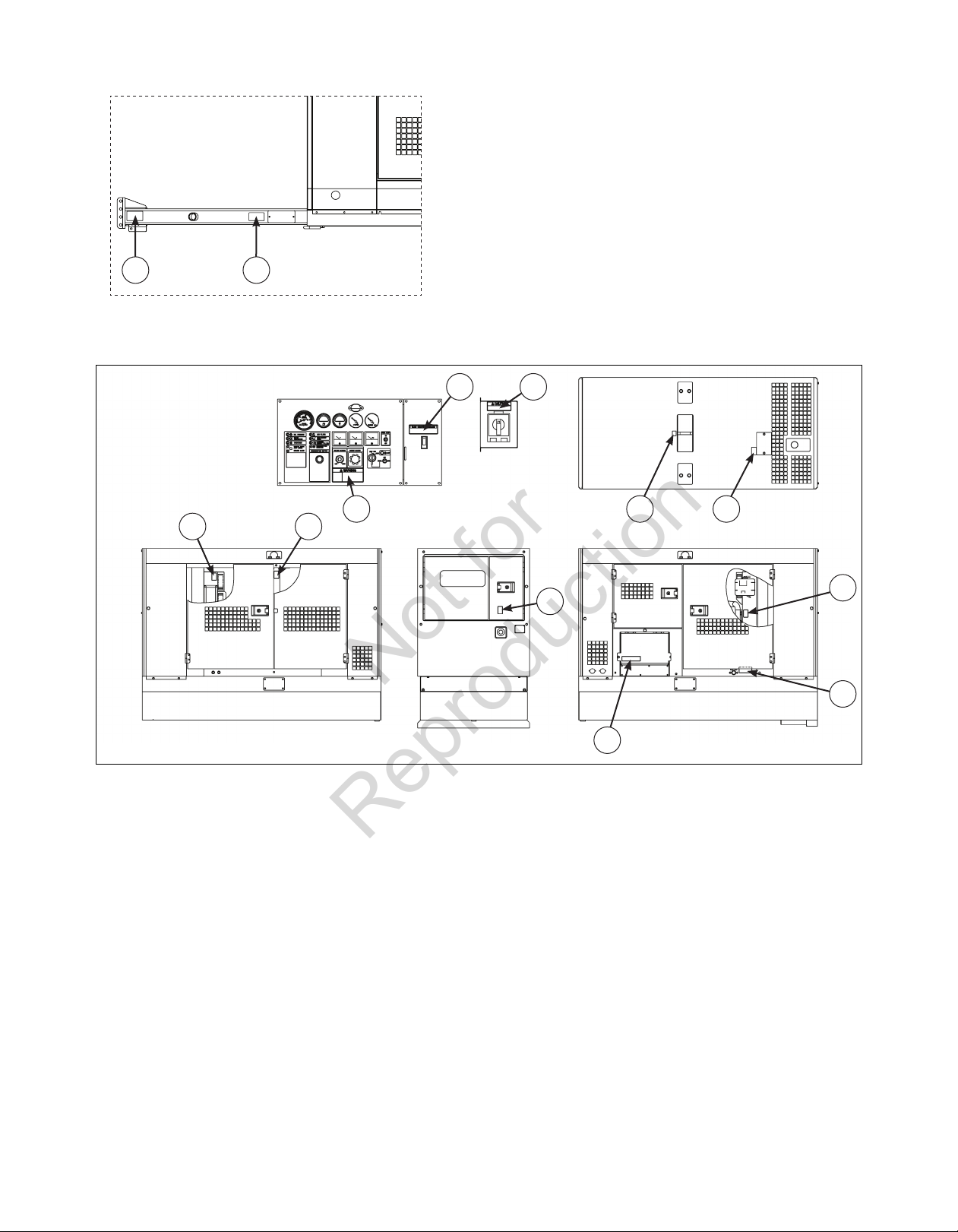

The following safety decals are attached to the machine. Keep them clean at all times. If they are damaged or
missing, contact your authorized dealer for replacements. Part numbers are indicated on the lower right corner of the
label. Adhere a new one to the original location.

A

B

FE

C

G

D

H

J

I

6 ALLMAND.COM

K

KJ

Not for

Reproduction

I I

G F

I

C

A B

E

H

D

7

Features and Controls

Not for

Reproduction

Read this Operator’s Manual and safety rules before operating your towable generator.
Compare the illustrations with your towable generator, to familiarize yourself with the locations of various

controls and adjustments. Save this manual for future reference.

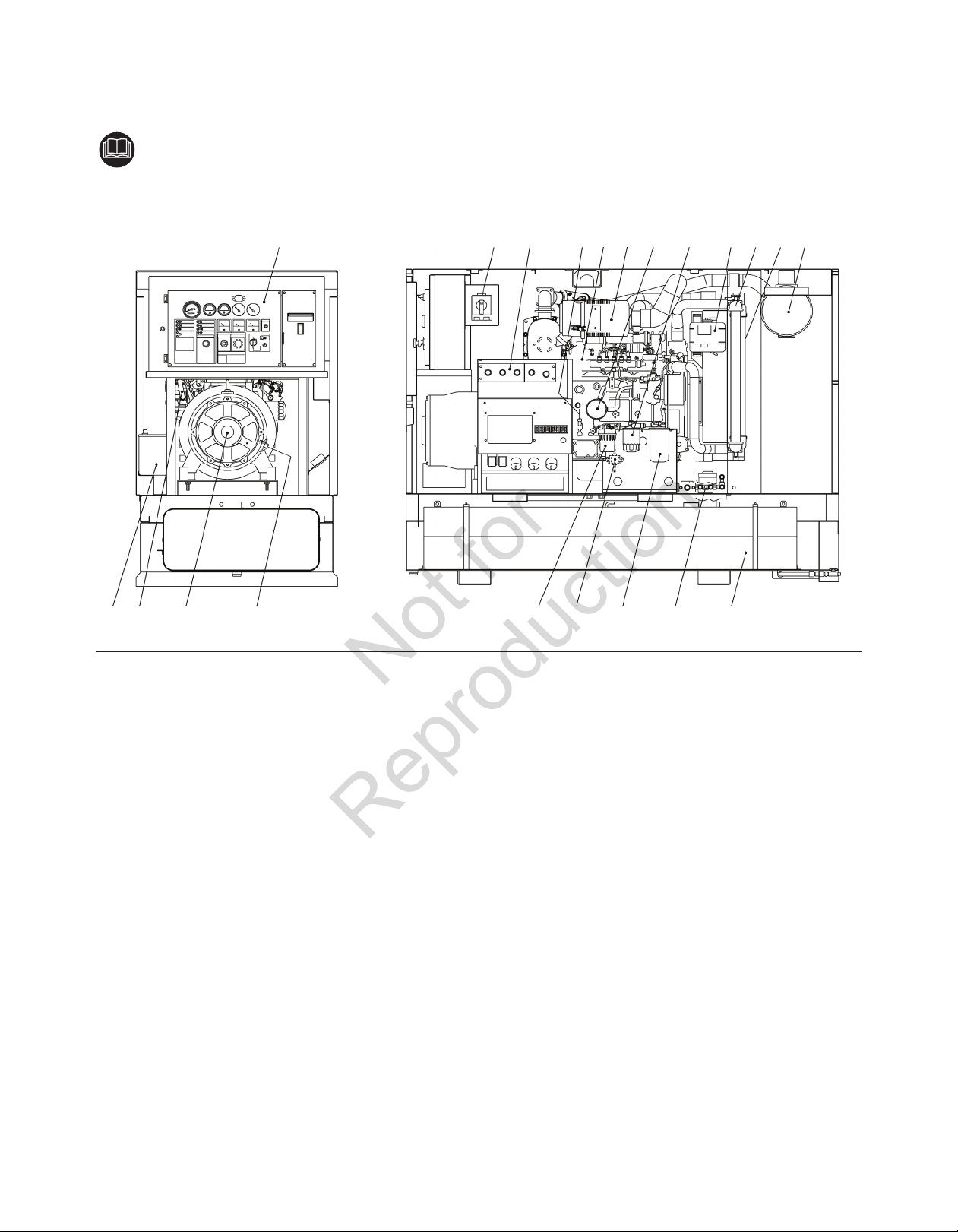

Internal Components

A B C D E F G H I J K L

U T S R Q P O N M

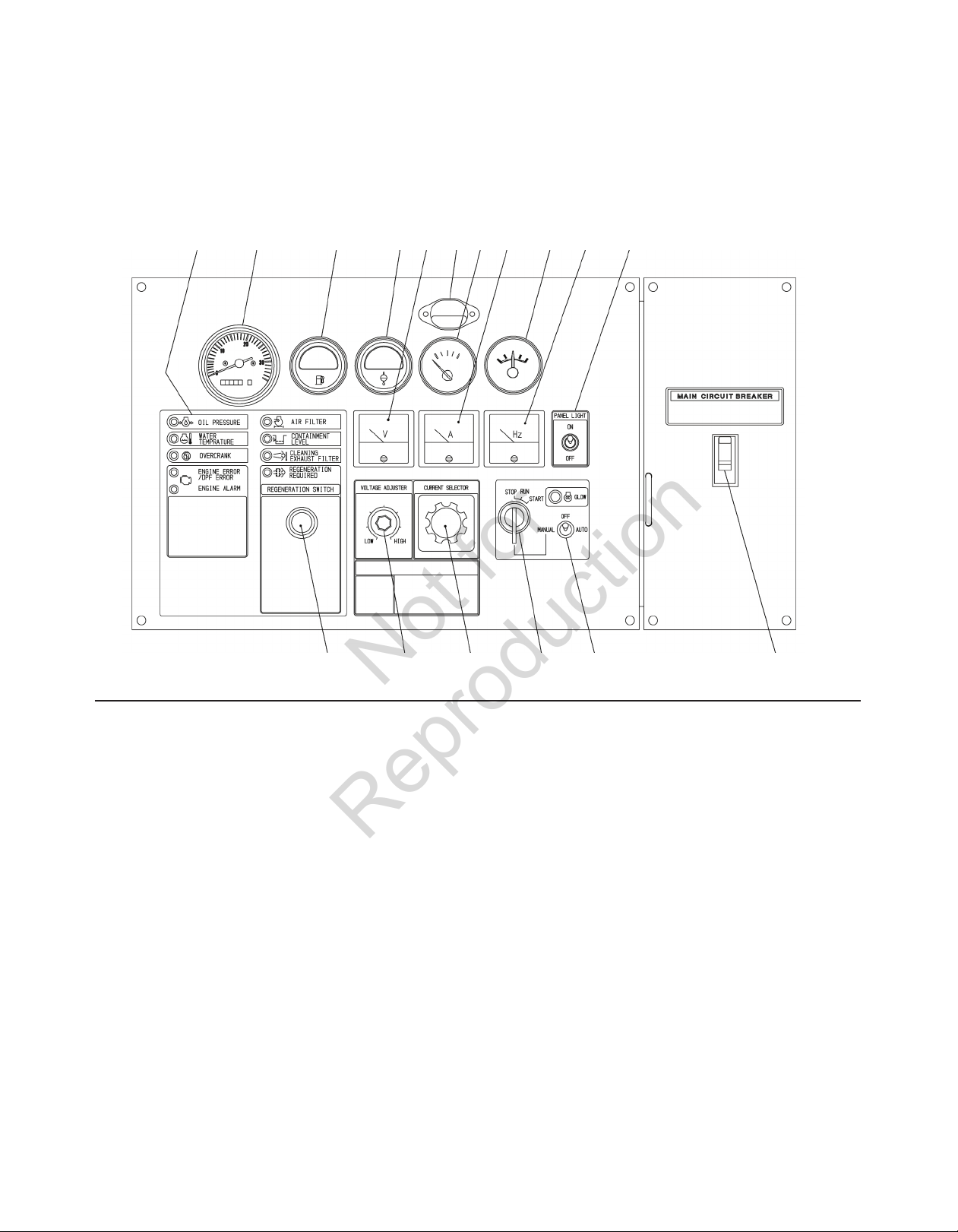

A - Control Panel - Controls and monitors various

machine functions

B - Voltage Selector Switch - Selects output voltage
C - Output Terminals - Equipped with three phase

and single-phase terminal and receptacle for single
phase

D - Engine Oil Level Gauge - Indicates engine oil

level

E - Engine - Drives generator
F - Air Filter - Filters impurities from intake air
G - Engine Oil Filter - Filters impurities from engine

oil

H - Fuel Pre-Filter - Filters impurities / separates

water from fuel

I - Reserve Coolant Tank - Reserve coolant storage
J - Radiator - Cools engine

K - Intercooler - Cools air heated by engine
L - Exhaust Muffler - Muffles engine exhaust
M - Fuel Tank - Stores fuel
N - Fuel Pipe Selector Valve - Selects fuel source
O - Fuel Filter - Filters impurities from fuel
P - Fuel Air-Bleeding Electromagnetic Pump -

Automatically bleeds air from fuel pipes

Q - Sedimenter - Separates water mixed in fuel oil
R - Engine Oil Filler Port - Location for adding engine

oil

S - Generator Main Unit - Generates AC power
T - Breather Filter Element - Removes contaminated

oil from blow-by gas

U - Battery - Power for starting engine

8 ALLMAND.COM

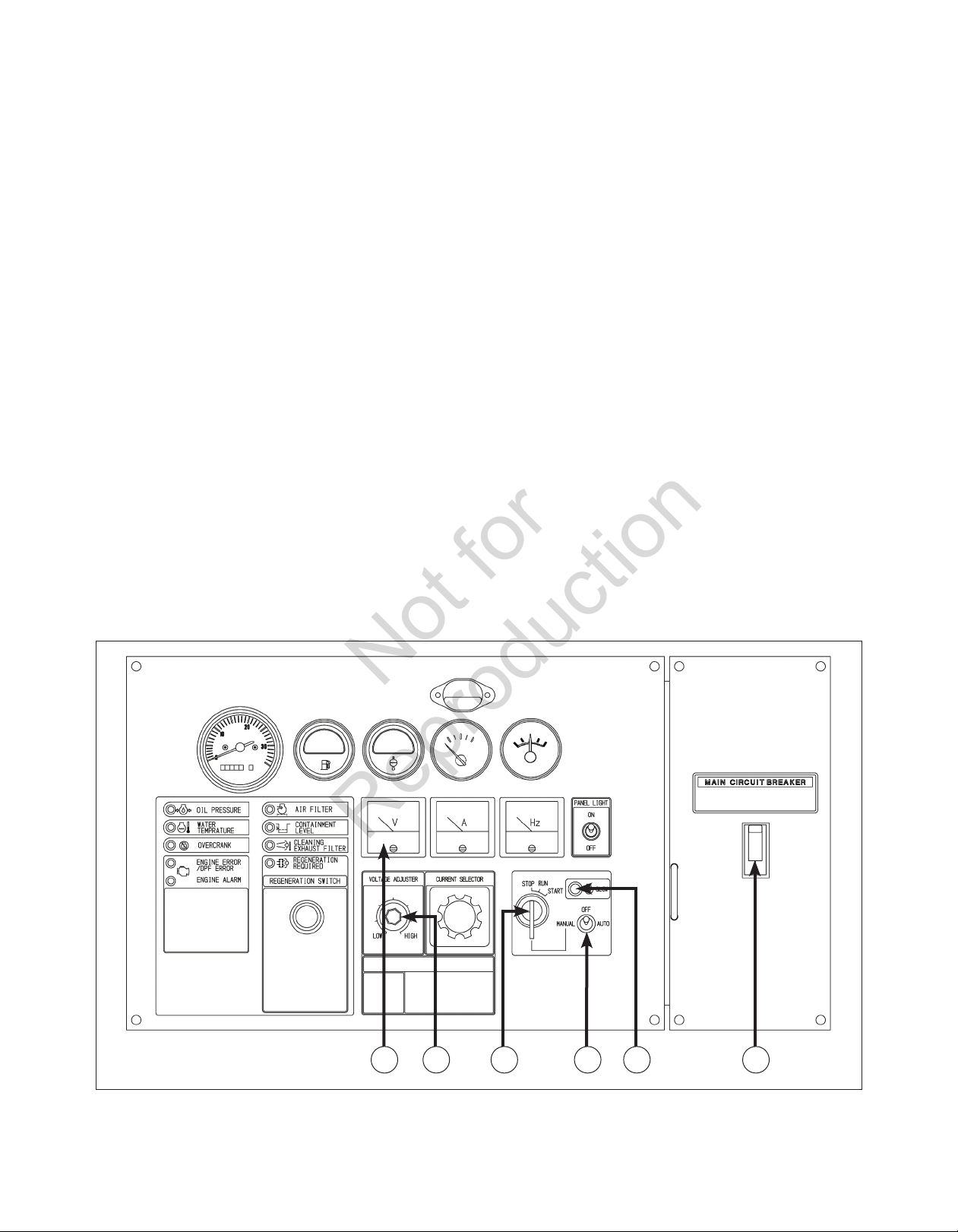

Instrument Panel

Not for

Reproduction

A B

I

C D E F G H I J K

L M N O P Q

A - Monitor Lamp

B - Tachometer with Hourmeter

C - Fuel Gauge

D - Coolant Temperature Gauge

E - Voltmeter

F - Panel Light

G - Engine Oil Pressure Gauge

H - Ammeter

I - Ammeter for Battery Charge

J - Frequency Meter

K - Panel Light Switch

L - Regeneration Switch

M - Voltage Adjuster Switch

N - Ammeter Change-Over Switch

O - Starter Switch

P - Manual-Automatic Change-Over Switch

Q - Main Circuit Breaker

(NOTE: The voltage selector switch is located

inside the unit.)

9

Transporting and Set-Up

Not for

Reproduction

Read entire Operator’s Manual before you

attempt to setup, transport, or operate your
new towable generator.

Your towable generator is ready for use after it has
been properly setup with the recommended oil and fuel.
If you have any problems with the setup of your towable
generator, contact your authorized dealer

Transporting

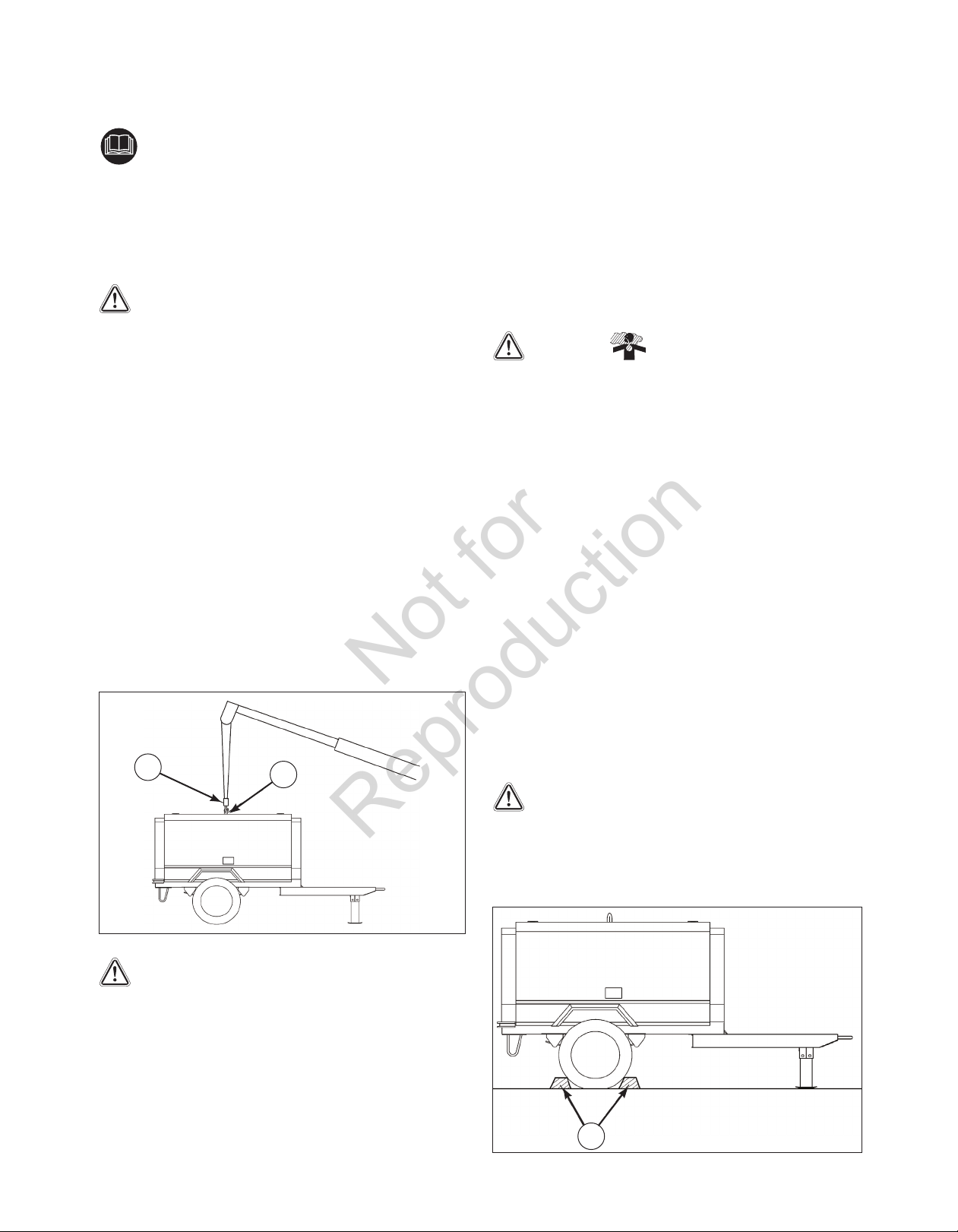

WARNING When loading and unloading the
unit, be sure to use the lifting bail (B) located at the top
center of the unit.

• Never get under the unit when lifted.

• Never lift the unit while in operation.

• If the unit is transferred by truck, fasten it by ropes

at the front eye and rear stand. Also be sure ot
place a set of chocks against the front and rear of
each wheel.

Lifting the Generator

Before lifting the unit, make sure to check the lifting
bail for any cracks, loose bolts, etc.

1. Connect the hook (A) of the crane or shackle with

the lifting bail (B) eye fitted at the top center of the
unit. Ensure there is no person standing around
the unit. Then perform hoisting operation.

2. Select a truck or crane with capacity sufficient

for the weight and size of the unit. See

Specifications.

3. Never hang anything from generator while lifting.

Bail is designed to carry only weight of generator.

A

B

• Ensure that the end of the drawbar is securely
connected to the coupler of the towing vehicle.

• Ensure there is no damage to the towing vehicle
and the drawbar of the machine.

• Be sure to keep hands and fingers away from
any part of the coupling device when coupling or
uncoupling a drawing device to a draw bar.

• Be sure the height of the hitch is adjusted so
that the trailer is level while connected to the tow
vehicle.

• Make sure to drive the towing vehicle safely.

Set-Up

WARNING

• Exhaust gas from the engine is poisonous, and could

cause death when inhaled.

• Avoid using the machine in an insufficiently ventilated

building or tunnel.

• Do not position the exhaust gas outlet in the direction

of a person or building.

The machine should be operated in the following
conditons:

• Ambient temperature 5°F to 104°F (-5°C to 40°C).

• Humidity less than 85%.

• At altitudes lower than 3,281 ft (1000 meters)
above sea level.

• Set up the machine in a place with good
ventilation, lower temperature, and with
surroundings as dry as possible.

• If more than two machines are placed parallel in
operation, keep enough distance so that exhaust
air from one machine does not affect the other.

• Set up the unit in an area where fresh air is
always available.

• Keep enough space around the unit for inspection
and maintenance access.

WARNING The machine must be parked
horizontally on a level surface. If the machine must be
parked on a slope, place it across the grade to prevent
rolling. Do not park on a slope exceeding 15°. Be sure
to place wheel chocks (C) against the front and back
of each wheel.

Towing the Generator

WARNING Before towing the machine, make
sure to check and confirm the following points. Failure
to follow the instructions below, could result in serious
injury or death.

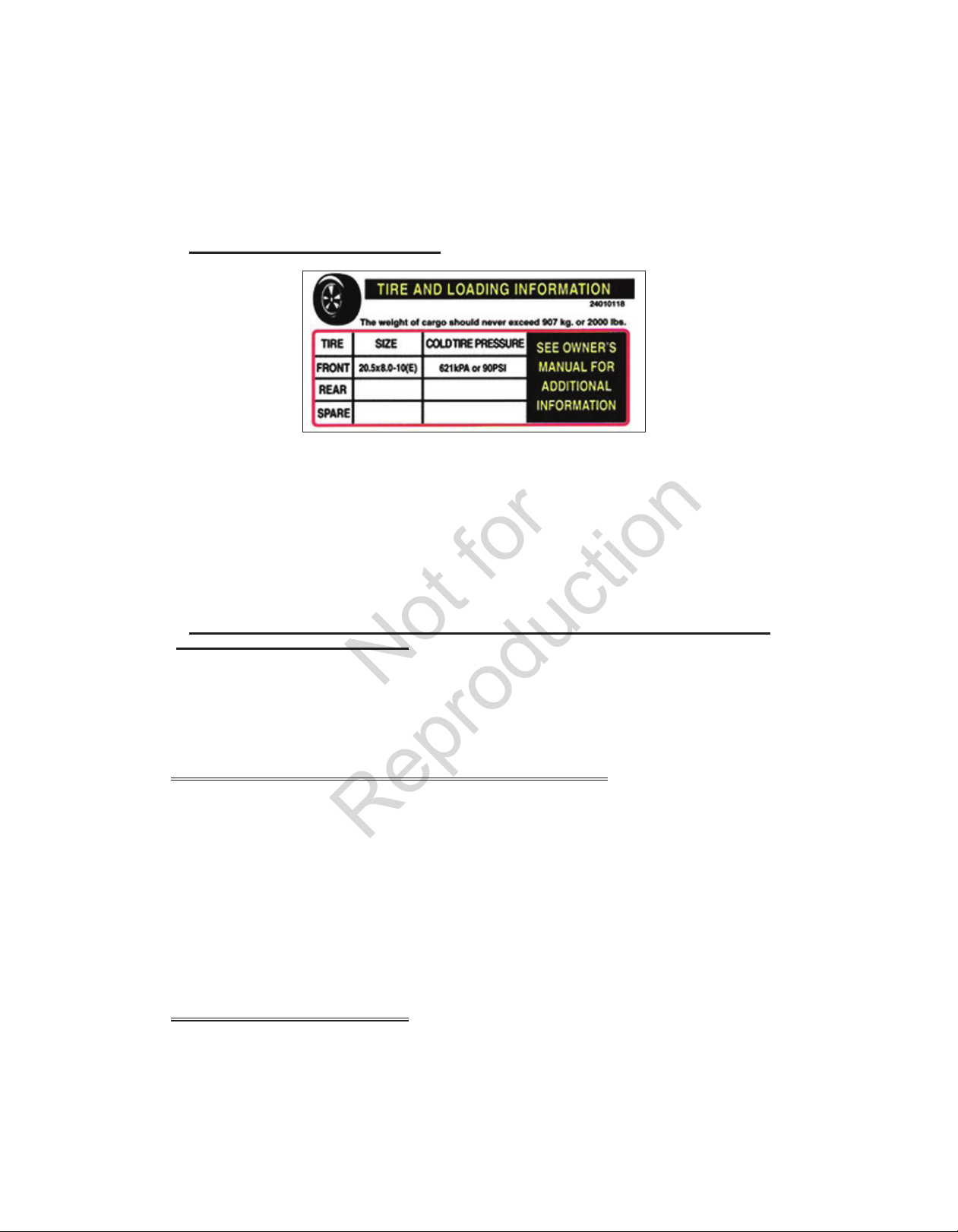

• Proper tire air pressure.

• Tire lug nuts are not loose.

• Tires are not worn or damaged. See Addendum

B - Tire Safety Information.

C

10 ALLMAND.COM

Grounding

Not for

Reproduction

WARNING

• Failure to properly ground the unit could result in
death or serious injury. Be sure to properly ground
the unit before operation.

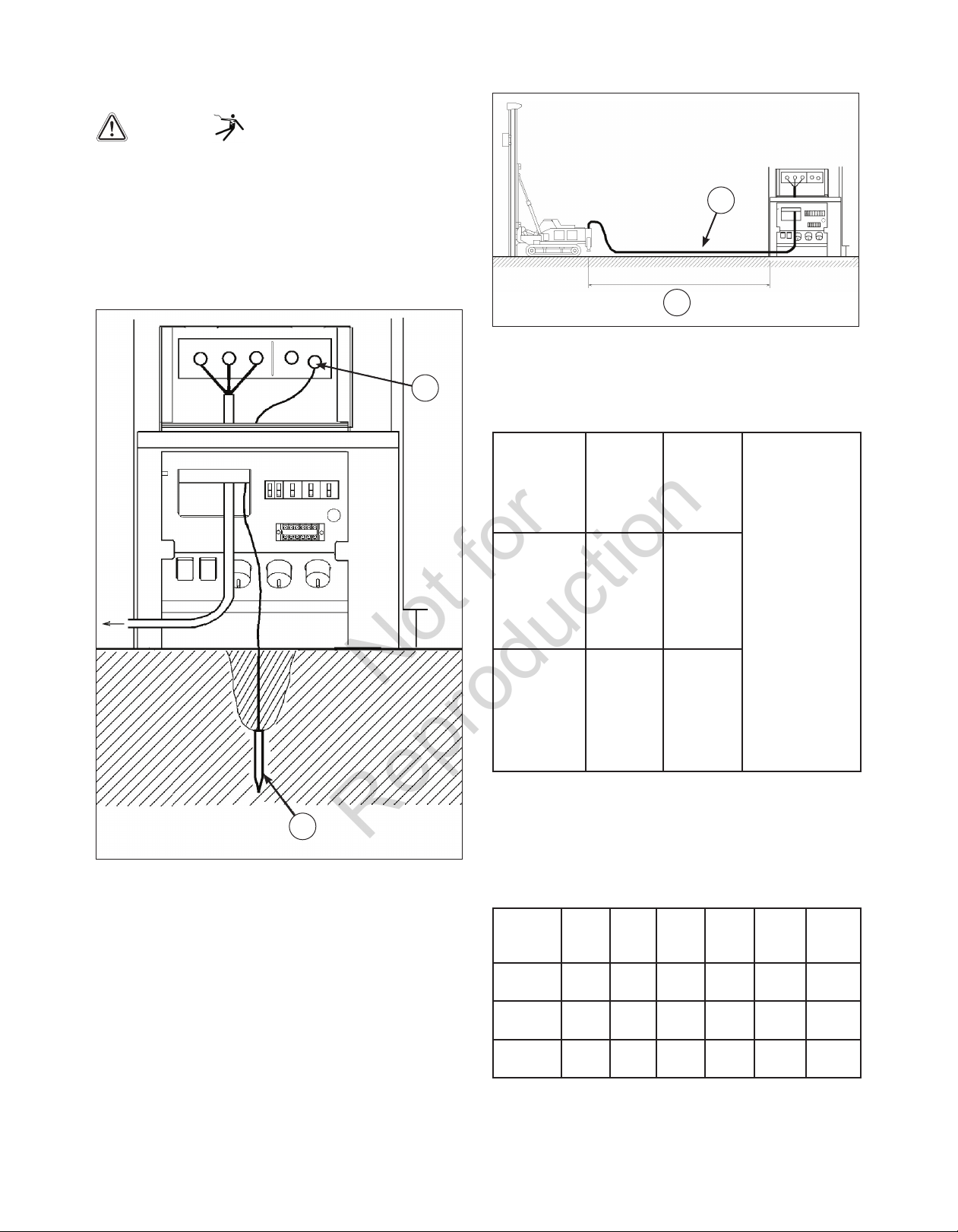

1. Using a mallet, install a grounding rod (D) firmly

into the ground, less than 5 feet (1.5 m) from the
unit’s grounding terminal (E).

2. Connect the grounding rod cable to the grounding

terminal.

E

F

G

• Below is a simplified three-phase three-wire formula
to seek voltage drop or cross-sectional area of
the cable from cable length and working current.
Select such a cable length and thickness so that the
voltage drop will remain less than 5%.

D

Selecting Cable

• Select a cable (F) with sufficient diameter by
considering the permissible current on the cable
and the distance from the generator to the load (G).

• If the current flowing to the load exceeds the
permissible current of the cable, resultant
overheating may burn the cable. Similarly, if the
cable is too small in thickness to the length, the
input voltage to the load will fall to cause the load
input power to drop, as a result, the performance of
the machine cannot be displayed.

Output
system

Three­phase
3-wire Type

Three­phase
4-wire Type

• The following tables show the relations between
the cable length and the cable thickness (nominal
cross-sectional area) suited to the working current.

(Based on the condition that working voltage is 200

V, with voltage drop of 10V.)

Single-Conductor Cable (Unit: in² (mm²))

Length
(ft (m)) /
Current

50A 0.01

100A 0.02

150A 0.06

Voltage
drop

e = 30.8
x L x I /
1000 x A

e = 17.8
x L x I /
1000 x A

164
(50)

(8)

(22)

(38)

246
(75)

0.02
(14)

0.05
(30)

0.06
(38)

Cross­Sectional
Area of
Cable

A = 30.8
x L x I /
1000 x e

A = 30.8
x L x I /
1000 x e¹

328

(100)

0.03

0.06

0.08

(125)

(22)

(38)

(50)

e: Voltage drop
(V)

e¹: Voltage
drop between
outside line
or one line of
each phase
and neutral line

A: Cable
thickness
(mm²)

L: Cable length
(m)

I: Working
current (A)

410

0.03
(22)

0.08
(50)

0.09
(60)

492

(150)

0.05
(30)

0.08
(50)

0.12
(80)

656

(200)

0.06
(38)

0.09
(60)

0.16

(100)

11

Three-Conductor Cable (Unit: in² (mm²))

Not for

Reproduction

Length
(ft (m)) /
Current

50A 0.02

100A 0.06

150A 0.03x2

164
(50)

(14)

(38)

(22x2)

246
(75)

0.02
(14)

0.06
(38)

0.03x2
(22x2)

328

(100)

0.03
(22)

0.06
(38)

0.06x2
(38x2)

410

(125)

0.03
(22)

0.08
(50)

0.06x2
(38x2)

492

(150)

0.05
(30)

0.08
(50)

0.06x2
(38x2)

656

(200)

0.06
(38)

0.09
(60)

0.08x2
(50x2)

Fuel Pipe Selector Valve

WARNING

• Monitor the fuel feeding conditions while feeding fuel
from a separate fuel storage tank.

• Do not switch the selector valve to the external tank
position unless an external tank is being used. Fuel
pipe damage and fuel leakage may result.

• Do not use excessive force operating the selector
valve handle. Valve damage and fuel leakage may
result.

This valve is designed to feed fuel to the engine from
an external fuel storage tank.

Operation

1. Unit is delivered from factory with fuel line piping and
selector valves set as shown (A). When operating the
unit using installed fuel tank, run the machine with the
fuel line piping and selector valves with the factory­arranged settings.

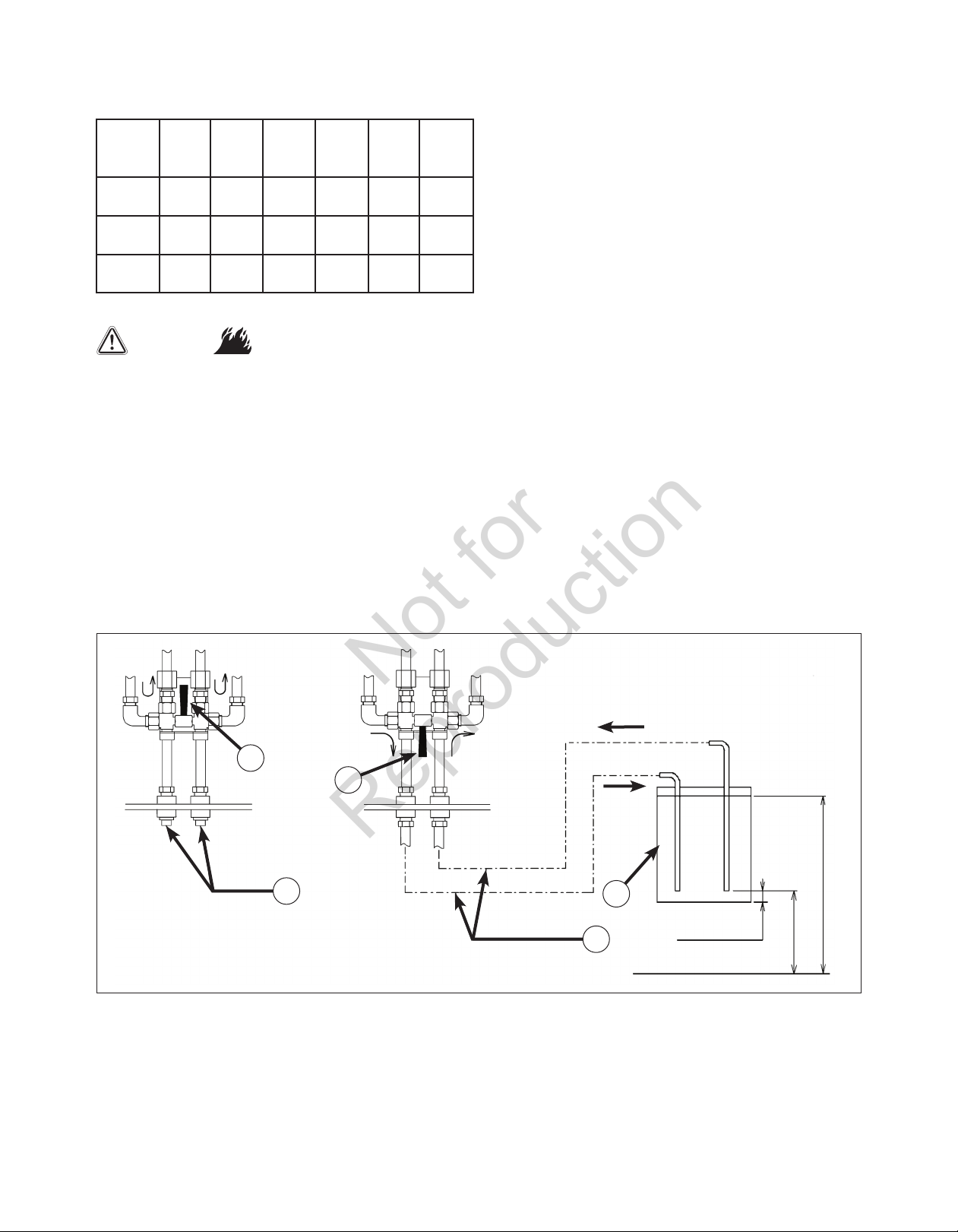

2. When using a separate storage tank (B), remove the
plugs (C) fitted at the connections to the separator
tank and make piping connections as shown in D.
Then switch the selector valve handle as shown (E).

3. When removing the external tank, be sure to return
the selector valve handle to the original position (A),
remove the external tank piping connections, and
reinstall the plugs.

Installation of Separate Storage Fuel Tank and
Piping

1. Use oil resistant fuel hose with inside diameter of
8mm to 10mm.

2. Install the fuel tank so that the fuel level of the tank
may be kept at a level 0 - 98” (0 - 2.5m) higher than
the machine.

3. In order to avoid suction of water and sediment,
install the suction and return pipe so that the inlet
ports are 0.6 - 0.8” (15 - 20mm) higher than the
bottom of the tank (B).

4. When refilling fuel in the tank, be careful to not mix
water and sediment.

A

E

C

B

0.6 - 0.8”

D

(15 - 20mm)

Grounding

Max. 98” (2.5m)

Min. 0” (0m)

12 ALLMAND.COM

Operation

Not for

Reproduction

If you have any problems operating your towable
generator, please contact your authorized dealer.

WARNING POISONOUS GAS
HAZARD. Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in minutes. You
CANNOT smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed to
carbon monoxide gas.

• Operate this product ONLY outside far away from
windows, doors and vents to reduce the risk of
carbon monoxide gas from accumulating and
potentially being drawn towards occupied spaces.

• Install battery-operated carbon monoxide alarms or
plug-in carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.

• DO NOT run this product inside buildings, garages,
tunnels, or other partially-enclosed spaces, even
if using fans for ventilation. Carbon monoxide can
quickly build up in these spaces and can linger for
hours, even after this product has shut off.

• ALWAYS place this product downwind and point the
engine exhaust away from occupied spaces.

If you start to feel sick, dizzy, or weak while using this
product, get to fresh air RIGHT AWAY. See a doctor.
You may have carbon monoxide poisoning.

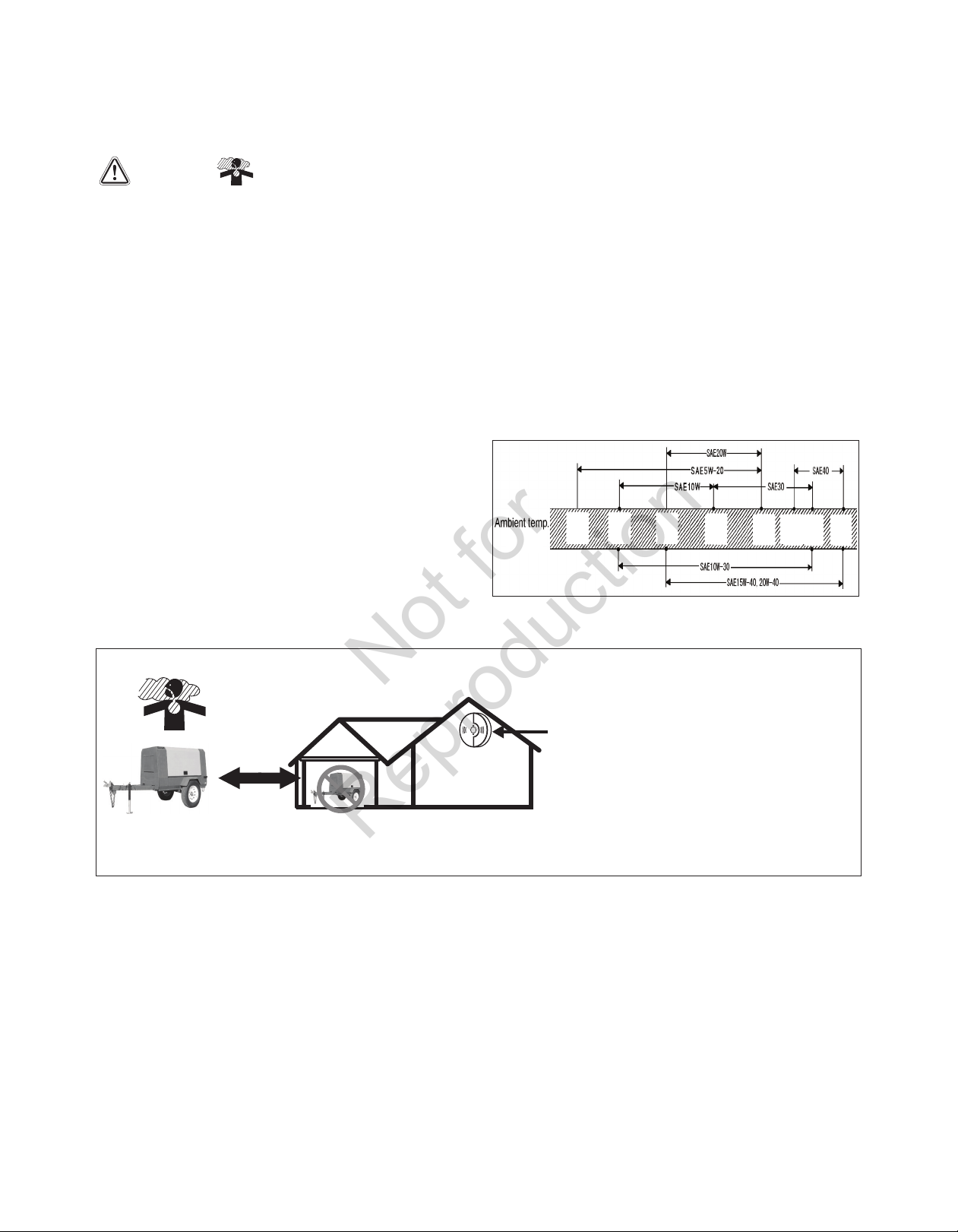

Oil Recommendations

Engine Oil

We recommend the use of CJ-4 class engine oil or
superior class for best performance. Using poor quality
engine oil may shorten the life of the engine.

Outdoor temperatures determine the proper oil viscosity
for the engine.

Use the chart to select the best viscosity for the outdoor
temperature range expected.

NOTICE When two or more different brands of oil are
mixed, its performance can be deteriorated. When it
is expected to be used for a long period at light load
(less than 20% load), it’s better to replace the oil with
suitable oil.

-13

˚F

(˚C)

(-25)

-4

(-20)5(15)

32
(0)

59

(15)

77

(25)

86

(30)

104
(40)

USE OUTDOORS - AVOID CARBON MONOXIDE POISONING

point away
from home

CARBON MONOXIDE ALARM(S)

Install carbon monoxide alarms inside your
home. Without working carbon monoxide
alarms, you will not realize you are getting
sick and dying from carbon monoxide
poisoning.

13

Checking / Adding Engine Oil

Not for

Reproduction

WARNING Be sure to check the unit
before operation. If any issue is found, be sure to
repair it before restarting the unit. Be sure to make
daily checks before operation. Operating the unit
without prior inspection could result in death or serious
injury.

NOTICE Unit should be on level before checking oil
level. When you check oil level after initial operation,
wait 10 to 20 minutes after stopping engine before
checking the oil level.

1. Place unit on a flat, level surface.

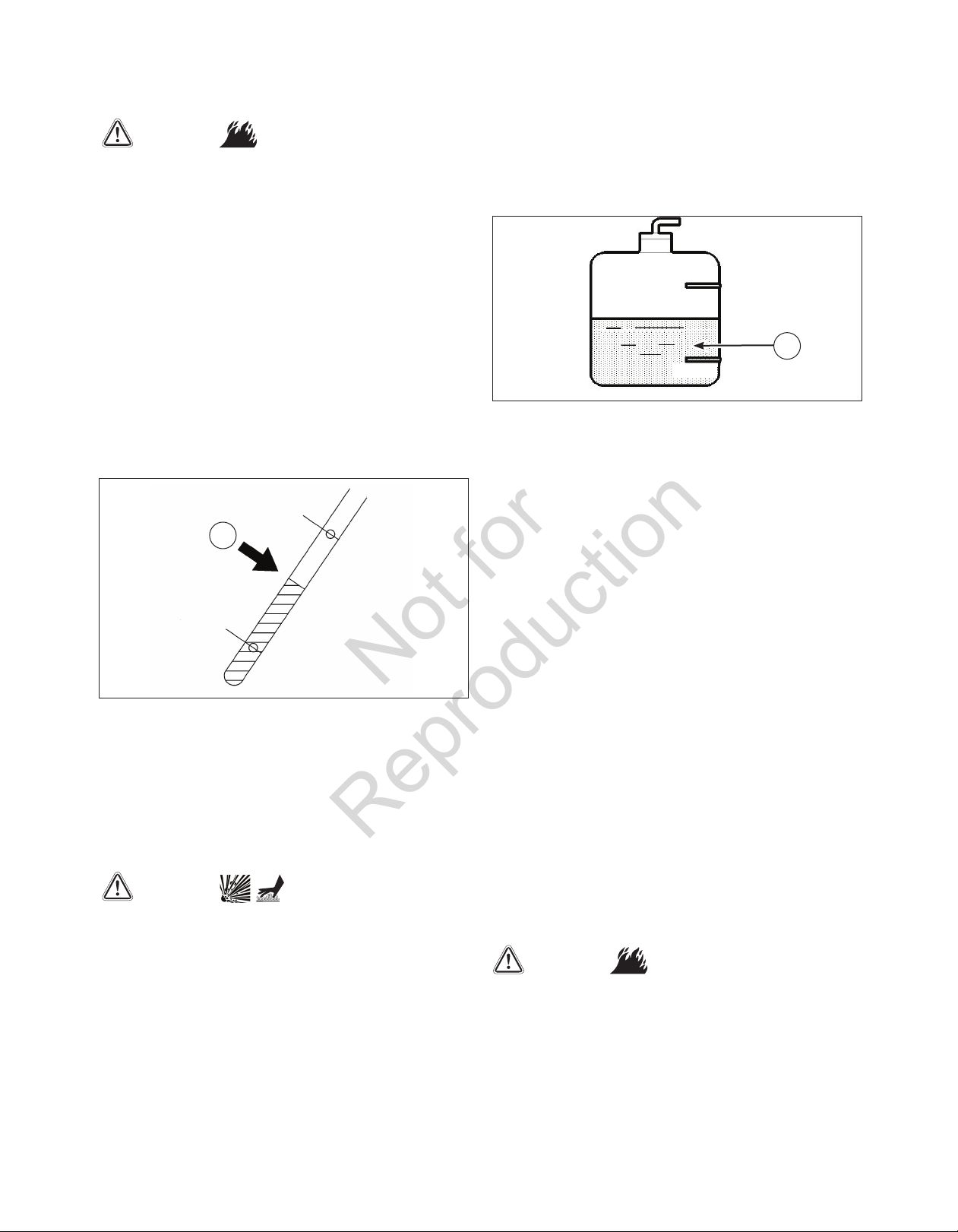

2. Clean area around oil fill, remove oil level gauge,
and wipe it with a clean cloth.

3. Re-insert the oil level gauge fully and pull it out
again. The oil level should be between LOW and
HIGH (A).

4. If the oil level is below LOW, add engine oil to oil
filler port.

A

• While checking oil level, check also for
contamination. If the oil is found dirty, contaminated
or should it be changed according to the periodic
inspection list, change the oil. See Maintenance.

• Excessive engine oil supply could cause engine
output degradation. Therefore, never fill more
than the HIGH level.

the coolant. Level must be kept above MIN mark
(B).

2. If there is a little or no coolant in the reserve tank,
remove the radiator cap and check the coolant
level. Supply coolant to the radiator and also the
reserve tank, if necessary. See Maintenance.

HIGH

B

LOW

Checking / Adding Fuel

Fuel must meet these requirements:

• Do not use such diesel fuel having higher sulfur

content above 0.0015%(15 ppm).

• Use ultra-low sulfur diesel fuel only for diesel engine.

• Use such diesel fuel which conforms to either

standard EN590 or ASTM D975.

• Do not use kerosene. And never use fuel mixed with

kerosene.

• Carbon residue content in fuel must be a low.

• Follow the designated regulations to dispose of fuel.

NOTICE Fuel for DIESEL engines must have the
following specific characteristics:

• It must be free from even minute dust particles in it.

(Do not use such diesel fuel which has been long
stored in a oil drum.)

• It must have optimum viscosity.

• It must have high cetane number.

• It must have high fluidity even at low temperature.

• Carbon residue content in fuel must be a low.

• It must not contain zinc and NA (sodium).

Checking Coolant Level

WARNING Taking off the radiator

cap.

• Be sure to stop the machine and allow time to
cool. Then loosen the radiator cap one notch. After
the coolant water is sufficiently cooled and the
inner pressure is released, take the cap off. If this
procedure is neglected, the inner pressure can blow
off the cap. Steam jetting out of the radiator could
result in serious burns.

NOTICE Continuing operation at low coolant levels
could result in damage to the radiator.

1. Check the coolant level in the reserve tank. If it is

lower than the limit, open the cap and replenish

14 ALLMAND.COM

NOTICE Before starting operation, make sure to
check the level of residual fuel so that fuel shortage
during operation can be avoided. Drain condensate
accumulated at the bottom of the fuel tank whenever
necessary.

WARNING Fire Prevention.

• Do not allow ignition sources near fuel.

• Fuel is extremely flammable and dangerous. Handle
with extreme care.

• Refuel only after stopping engine, and never leave
open fuel can near machine. Do not spill. it fuel is
spilled, wipe up completely.

• Refilling fuel tank should be done outdoors or in a
well-ventilated location.

• Do not fill fuel oil up to the cap level. When fuel

Not for

Reproduction

tank is filled to cap level, fuel oil will overflow due
to volume expansion caused by rise of ambient
temperature. Fuel may also spill due to machine
movement or transporting.

Checks Before Starting

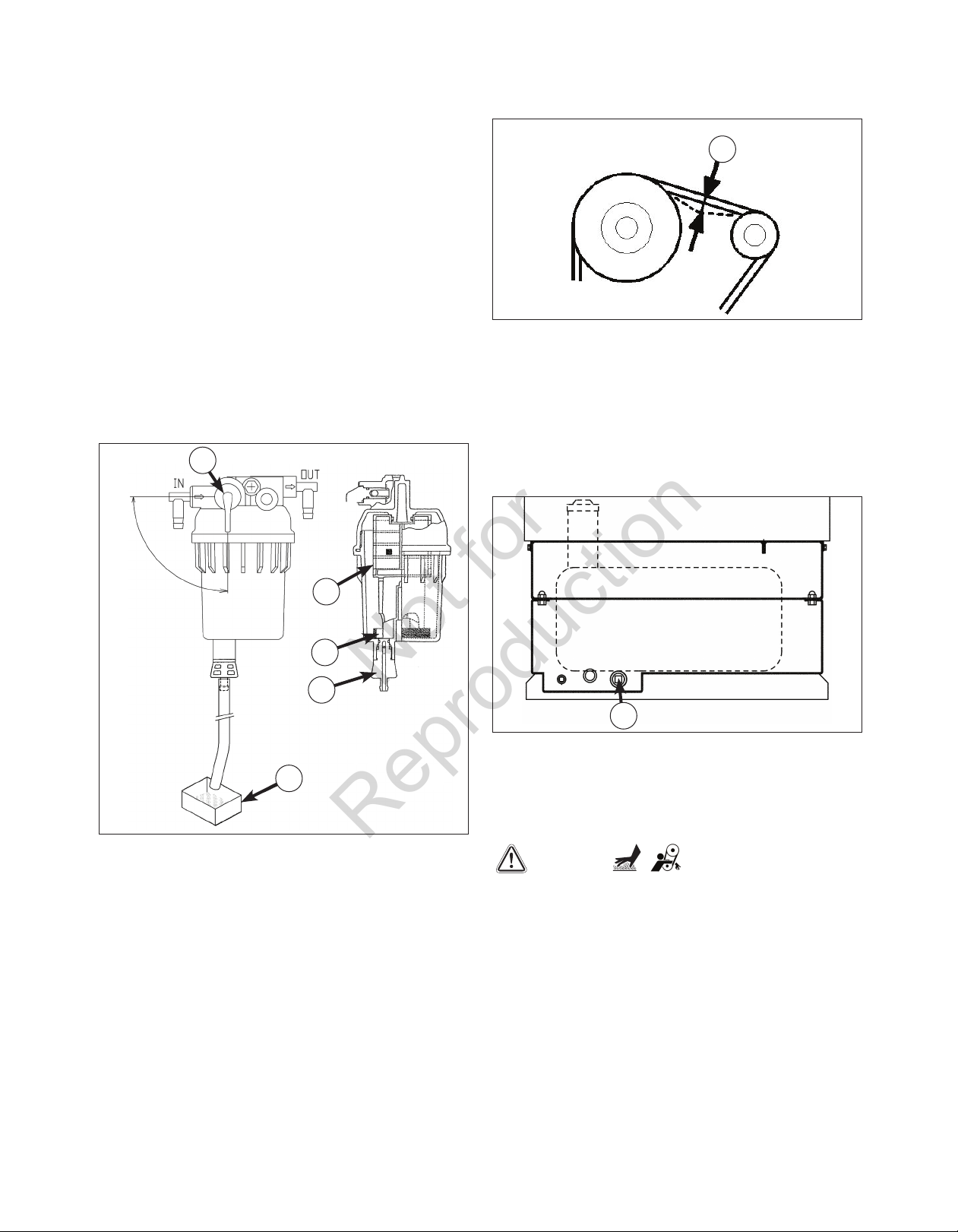

Check Drain Water Sedimenter

If the red float (D) below the element (C) of the water
sedimenter rises to the upper level, it is necessary to drain
water.

1. Turn the fuel selector valve (F) to the OFF position.

2. Open drain valve (E) to drain accumulated condensed
water into an approved container (G).

3. After draining the condensate, close the drain valve.

4. Dispose of condensate according to local, state and/or
federal regulations.

F

2. Wipe any grease, oil, coolant, etc. from belt.

H

Check Oil Fence for Condensate

1. Remove the drain plug (I) and drain any condensate
accumulated inside the oil fence into an approved
container.

2. After making sure all condensate is drained, reinstall
the drain plug.

3. Dispose of condensate according to local, state and/or
federal regulations.

C

D

E

G

Check Belt Tension
NOTICE If belt tension too tight, it can cause shaft

breakage or shorten the life of a bearing. If too loose, the
belt may slip and will cause early breakage or damage to
the belt.

1. Visually check the belt for any cracks, wear, and other
defect. Replace if needed.

2. Depress the middle of the belt with a finger. Belt
deflection should be between 0.30 - 0.47” (8 - 12mm)
(H).

If adjustment is needed:

1. Loosen the alternator mounting bolt. Adjust until belt
deflection is 0.30 - 0.47” (8 - 12mm) when pressing
with a finger. Tighten securely.

I

Clean Control Panel

Open control panel and check each breaker, terminal
plate and controller for any dust, sand and dirt
accumulated. Clean with compressed air.

Unit Operation

WARNING

• Keep the door shut and locked when machine is in
operation.

• If opening the door is necessary, be careful not to
touch rotating or hot parts. Burns or serious injury
could result.

NOTICE Be sure to let unit warm up after starting for
smooth operation of the engine and the generator. Do
not operate the engine at full load immediately after
starting. This will shorten the equipment life.

• During machine warm-up, inspect the equipment

for any loose parts, fluid leakage, and other
issues.

• Make sure that monitor lamps are off.

15

• Be sure to operate the generator at a rated

Not for

Reproduction

frequency, irrespective of the load capacity.

• Operating the unit at a frequency lower than the
rated frequency could result in generator damage.

• Avoid operating the unit for long periods without
loads or with light loads.

To Start Unit
Manual Operation

1. Check and confirm that both the main circuit
breaker (A) on the operation panel and the circuit
breakers for the auxiliary receptacles at the output
terminal panel are in the OFF position.

2. Set the selector switch (B) to MANUAL operation.

3. Turn the starter switch (C) to the RUN position.
The engine starts preheating automatically.

4. When the preheating lamp (D) turns off, turn the
starter switch (C) to the START position to start
the engine.

5. Once engine has started, let it warm up about 5
minutes at no-load condition.

6. Adjust to the rated voltage by turning the voltage
adjuster knob (F) while monitoring the voltmeter
(E).

7. Supply power to the load(s) by switching both the
main circuit breaker (A) and the circuit breaker(s)
for the auxiliary receptacle(s) to the ON position.

16 ALLMAND.COM

BC DF AE

Automatic Operation

Not for

Reproduction

WARNING

• Never put hands close to the interior of the

machine, as the generator can start unexpectedly.

• Before starting inspection and maintenance, make

sure to place the selector switch to MANUAL
operation, and hang a tag stating “Under
inspection and maintenance”.

• Remove the black negative (-) cable from the

battery.

• Remove the starter key from the unit.

• Failure to heed the above-noted items could result

in deat or serious injury.

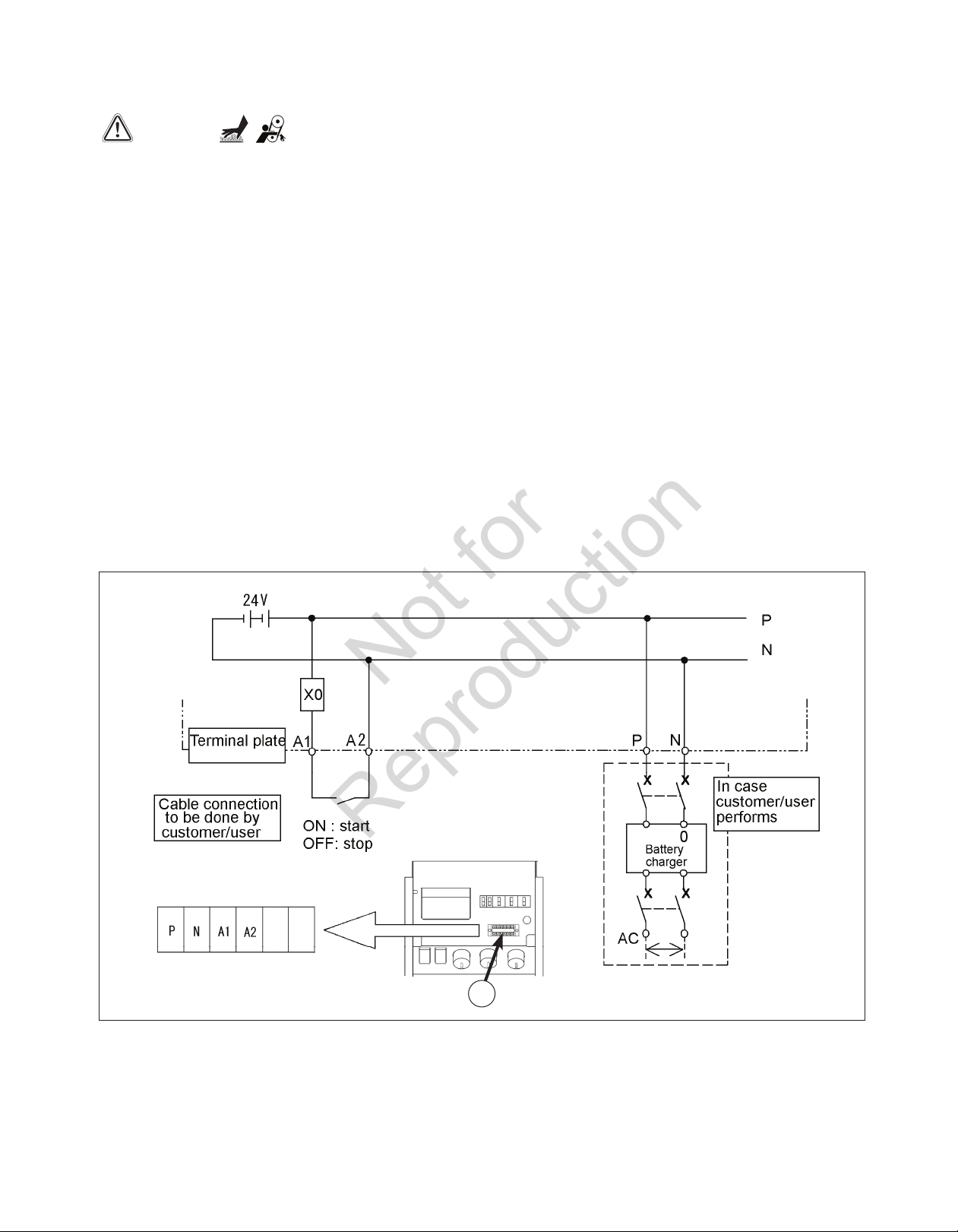

Connection of Remote Control Switch

• The remote control terminal (G) is provided inside
the output terminal. Perform cable connection
as shown below for remote control operation
of the machine. Be sure to remove the black
negative (-) cable from the battery before making
connections.

NOTE: When the unit is in AUTOMATIC mode,

battery discharge occurs. Be sure to charge
battery.

G

17

Operating Procedure

Not for

Reproduction

1. Start the generator unit and adjust the frequency
and voltage as outlined in Manual Operation.

2. Turn the starter switch to the STOP position to
stop the engine.

3. Turn the main circuit breaker, as well as the
circuit breaker of any receptacle connected to a
load, to the ON position.

4. Turn the operating selector switch on the control
panel to the AUTO position, and turn the engine
speed switch to the HIGH position.

5. The unit is now in stand-by mode, and will start
once the start signal is sensed. See Function.

Function

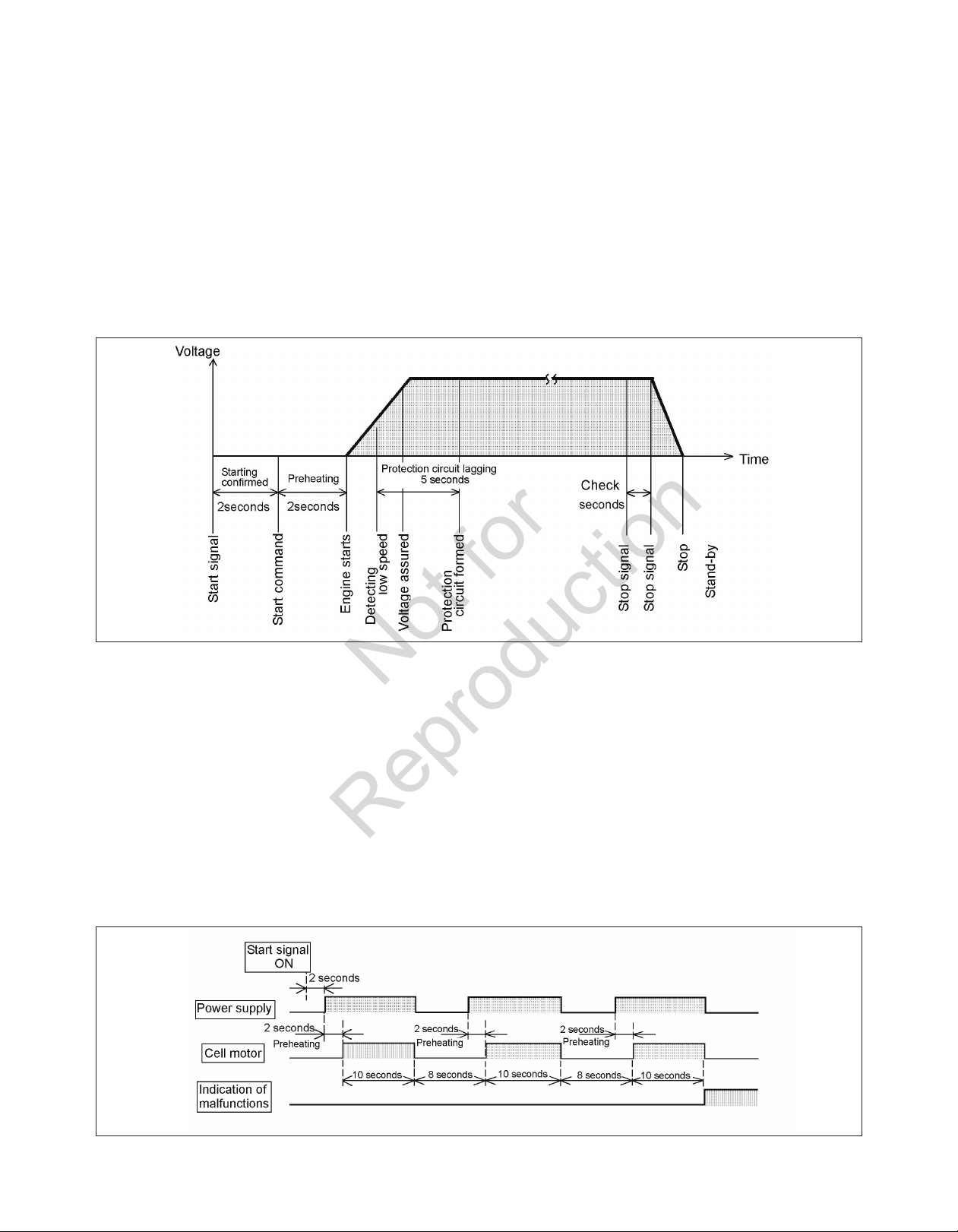

• When the start signal activates in stand-by mode,
it starts the unit. (This includes preheating.)

• When the stop signal activates, the unit continues
to operate for a cool-down phase, then the unit
stops and is placed again in stand-by mode.

10

Starting Action

• The unit will attempt to start over three 10-second
intervals, with an 8-second break (including
preheating) between attempts. If after the third
attempt the unit will not start, an indicator light
will light, indicating the problem. See Meters and

Indicator Lights during Operation; see also
Troubleshooting.

• If the OVERCRANK indicator light turns on,
immediately press the emergency stop button.
See Emergency Stop.

NOTICE Failure to press the emergency stop

button when the OVERCRANK indicator light
turns on may result in engine damage.

18 ALLMAND.COM

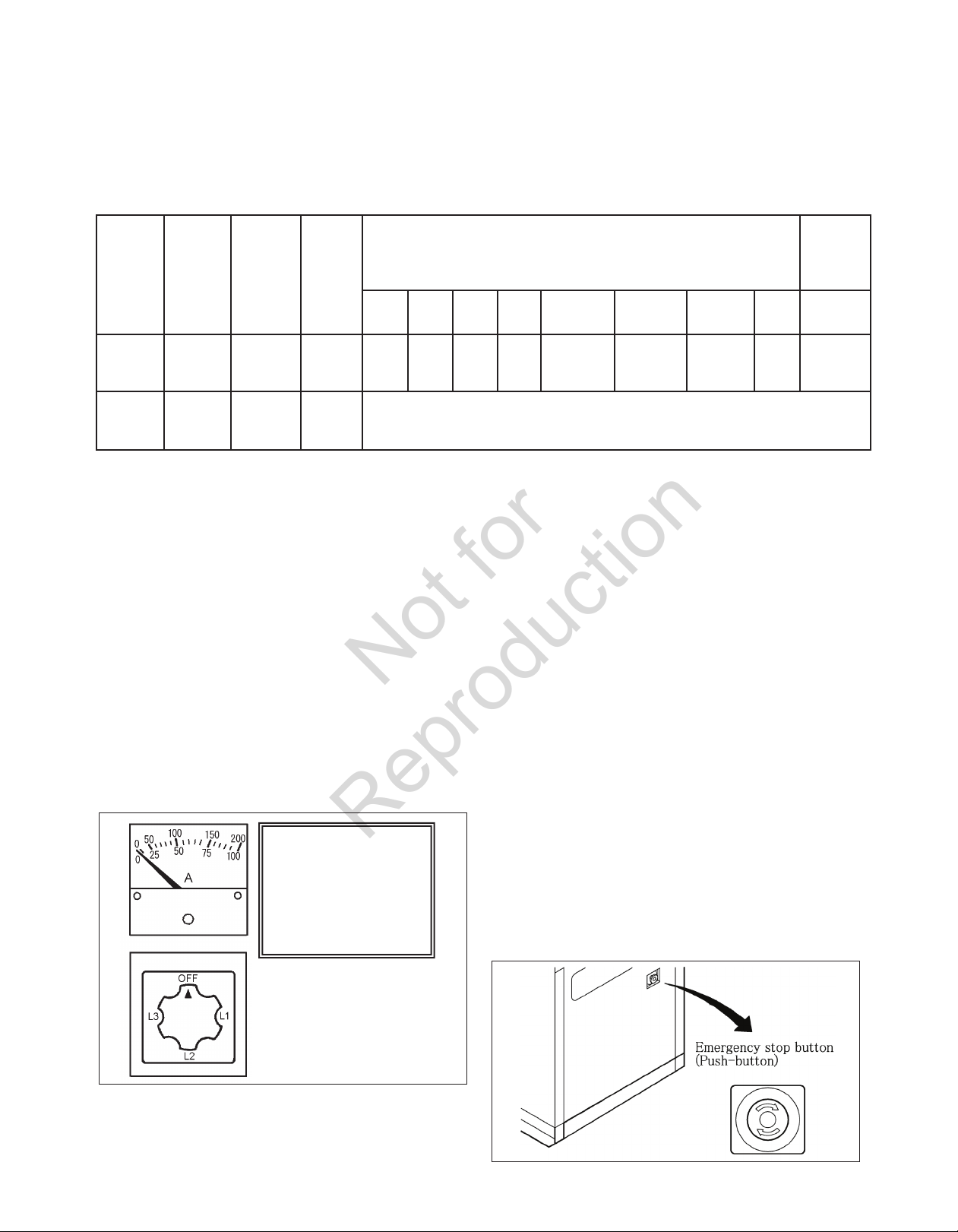

Meters and Indicator Lights during Operation

CURENT SELECTOR

Not for

Reproduction

During normal operation, each indication of
instruments is shown in the table below. Refer to the
table for daily checks.

NOTE: The values marked * vary with location of the
voltage selector switch.

Before
Starting
(RUN)

During
Operation

Voltmeter

(V)

240
480

Frequency
Meter (Hz)

0 0 0 ●

*

60 Less

Ammeter

(A)

Press

Off●Off●Off●Off

than

rated

current

Oil

Water
Temp

• Be sure to frequently check meters and indicators
for proper operation, or any machine water, oil,
fuel leaks, etc.

• The above table gives standard values. They may
vary slightly depending on operating conditions
and other factors.

• In single-phase load operation, check the current
of L1, L2, and L3 phase with the ammeter, by
turning the ammeter change-over switch.

Each current should be balanced if unbalanced.

Change load connections so the current of L1,
L2, and L3 is equally balanced. Make sure that
the current of each phase does not exceed the
rated one.

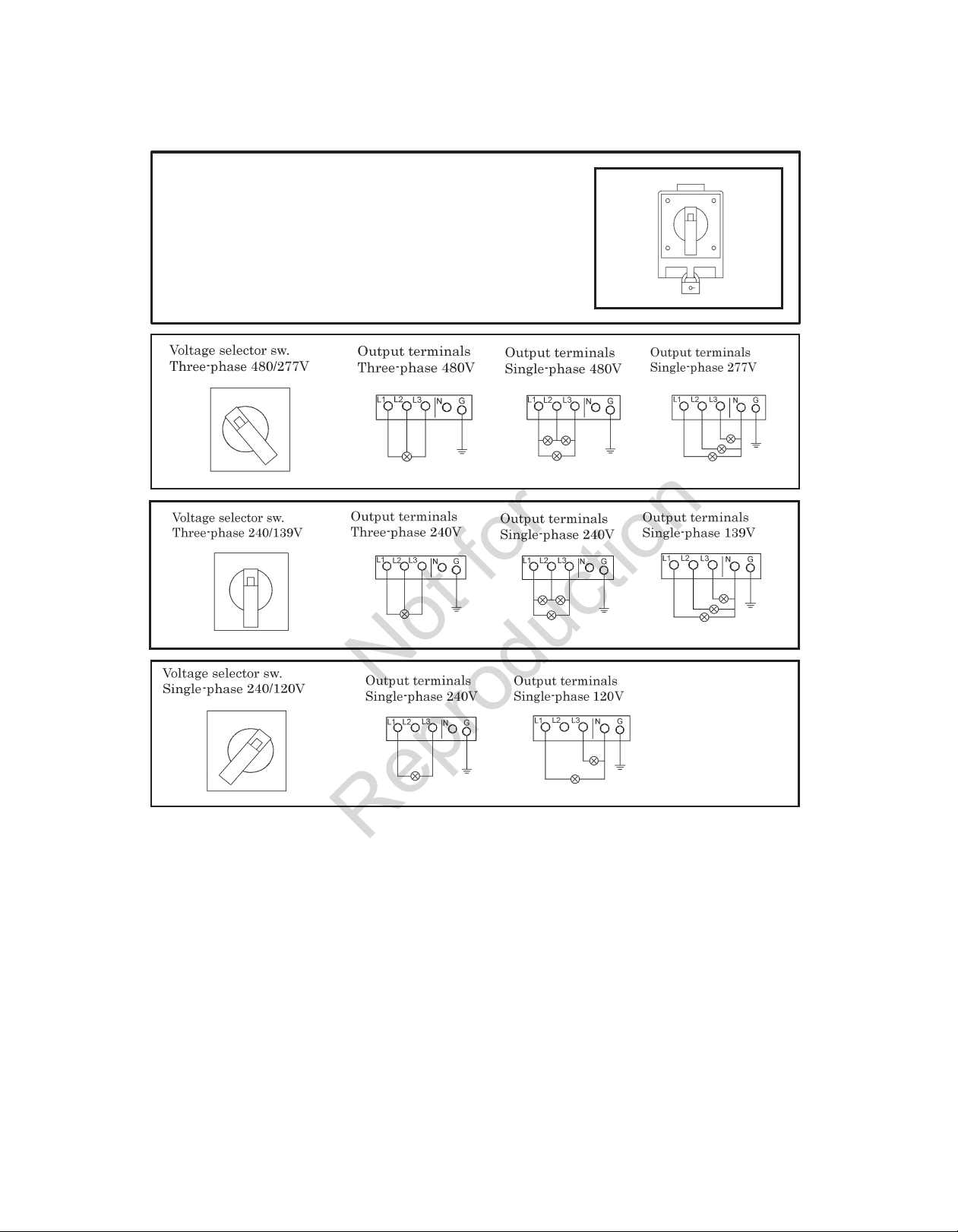

• When the voltage selector switch is in the single­phase 240/120V position, place the ammeter
change-over switch to the L1 or L3 position to
read the output.

Upper scale: low voltage
For 200 V class

Lower scale: high voltage
For 400 V class

Monitor Lamp Monitor

Over

Crank

Air

Filter

Containment

Level

●

Off

During DPF

Regeneration

Off

●

Off

Engine Error

/ DPF Error

●

Off

Engine

Alarm

●

●

Off On

Panel Light

• The instruments are provided with illumination.
Switch the panel light to ON.

• When illumination is not necessary, turn the light
OFF to conserve lamp life.

Stopping the Unit

1. Switch the circuit breakers for the auxiliary
receptacles, as well as the main circuit breaker
on the operation panel, to the OFF position.

2. Allow the unit to cool down, 30-60 seconds for
normal to light load conditions, 2-5 minutes for
heavy load conditions, then turn the starter switch
to the STOP position to stop the engine.

NOTICE Failure to allow unit to cool down could

result in engine damage.

3. While the machine is unused, keep the operation
selector switch in the OFF position.

Emergency Stop

NOTICE

• The Emergency Stop button should be used only
for emergencies.

• Regularly check the operating performance.

1. If it is necessary to stop the generator in the event
of an emergency, press the Emergency Stop
button.

Lamp

Installed

Separately

Glow

19

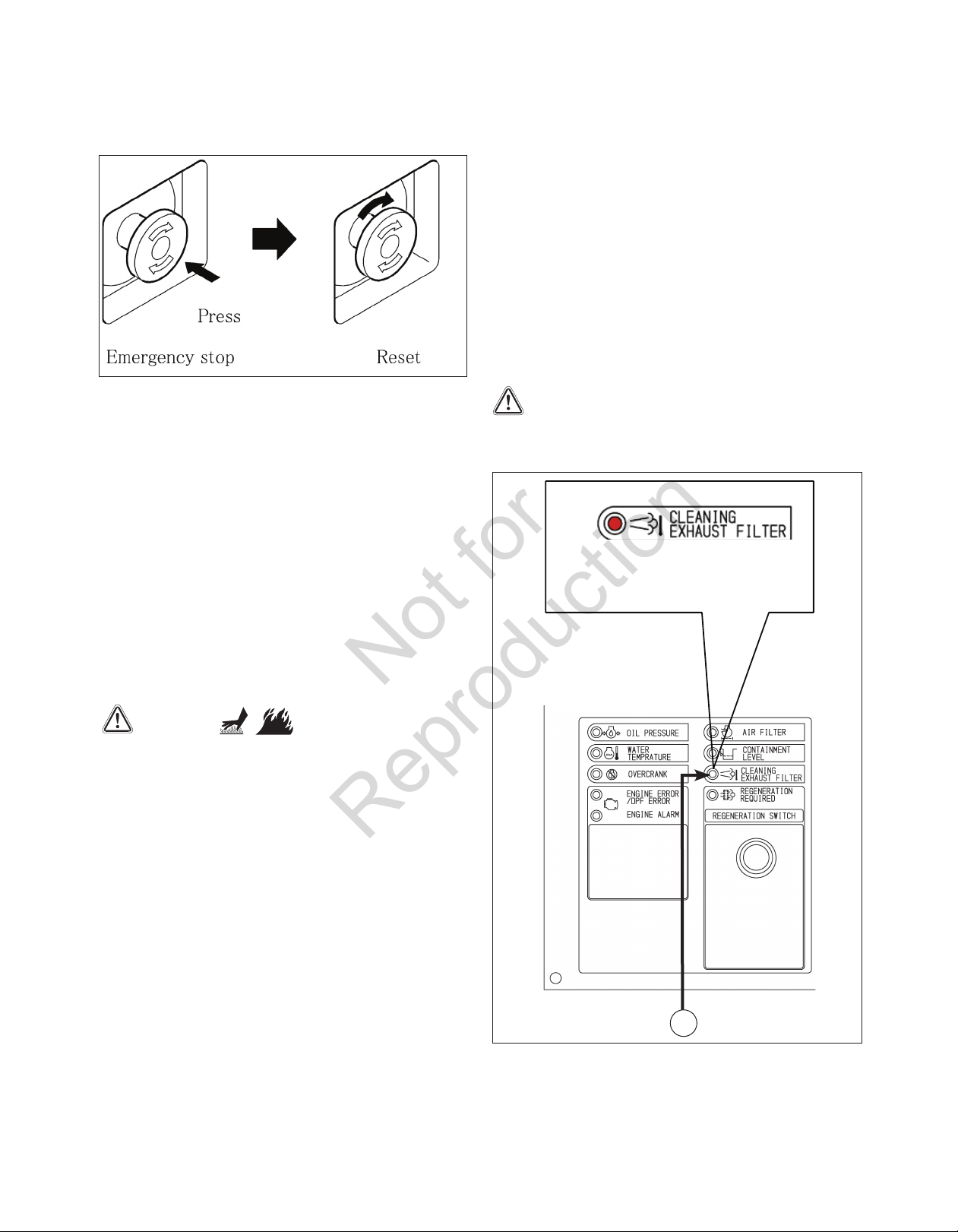

2. To reset the button, turn the button head in

Not for

Reproduction

the direction of the arrow. If it is not reset, the
machine will not restart.

Air Bleeding

If the unit runs out of fuel, the air must be bled from the
fuel system once the unit is refueled.

1. Turn the manual-auto selector switch on the
control panel to the MANUAL position.

2. Turn the starter switch to the RUN position to
keep the electromagnet pump functioning.

3. Air bleeding will be completed within 20 to 30
seconds.

4. Start the engine.

5. Perform warm-up operation for 3 minutes after the
engine starts.

6. Turn the manual-auto selector switch to the OFF
position.

Active Regeneration

• In operation under light load application or no
load, it turns into active regeneration because
engine exhaust temperature is not high enough to
burn the soot collected in the DPF.

• Even during automatic regeneration operation, it
is possible to continue loaded operation.

Active Regeneration Mode

• ‘Cleaning Exhaust Filter’ lamp (A) will turn on.

• The regeneration process will last for about 70
minutes. *

• The lamp will turn off when regeneration is
completed.

* Time required for regeneration depends on load

factor and ambient temperature.

CAUTION Do not stop engine during automatic
regeneration operation, except for unavoidable
conditions.

ON

Active Regeneration

DPF Regeneration

WARNING Hot Surface and Fire

Hazard.

• During DPF regeneration operation, exhaust gas
of high temperature is discharged. Check and
confirm that there is no person nor flammables
near by. It could cause scalding to person and
fire.

Even during automatic regeneration operation, it

is possible to continue loaded operation.

Passive Regeneration

• Soot collected in the DPF is burnt automatically
because of high temperature during normal
operation under heavy load application.

A

20 ALLMAND.COM

Manual Regeneration

Not for

Reproduction

• Except in unavoidable case, during automatic
regeneration operation, do not stop engine.
Especially when ambient temperature is very low
and in almost no-load operation, incomplete soot
combustion occurs. If operated continuasly in the
same conditions, regeneration required lamp goes
on soon. In this case, take necessary procedure
for enforced regeneration operation according to
the following steps.

Manual Regeneration Procedure

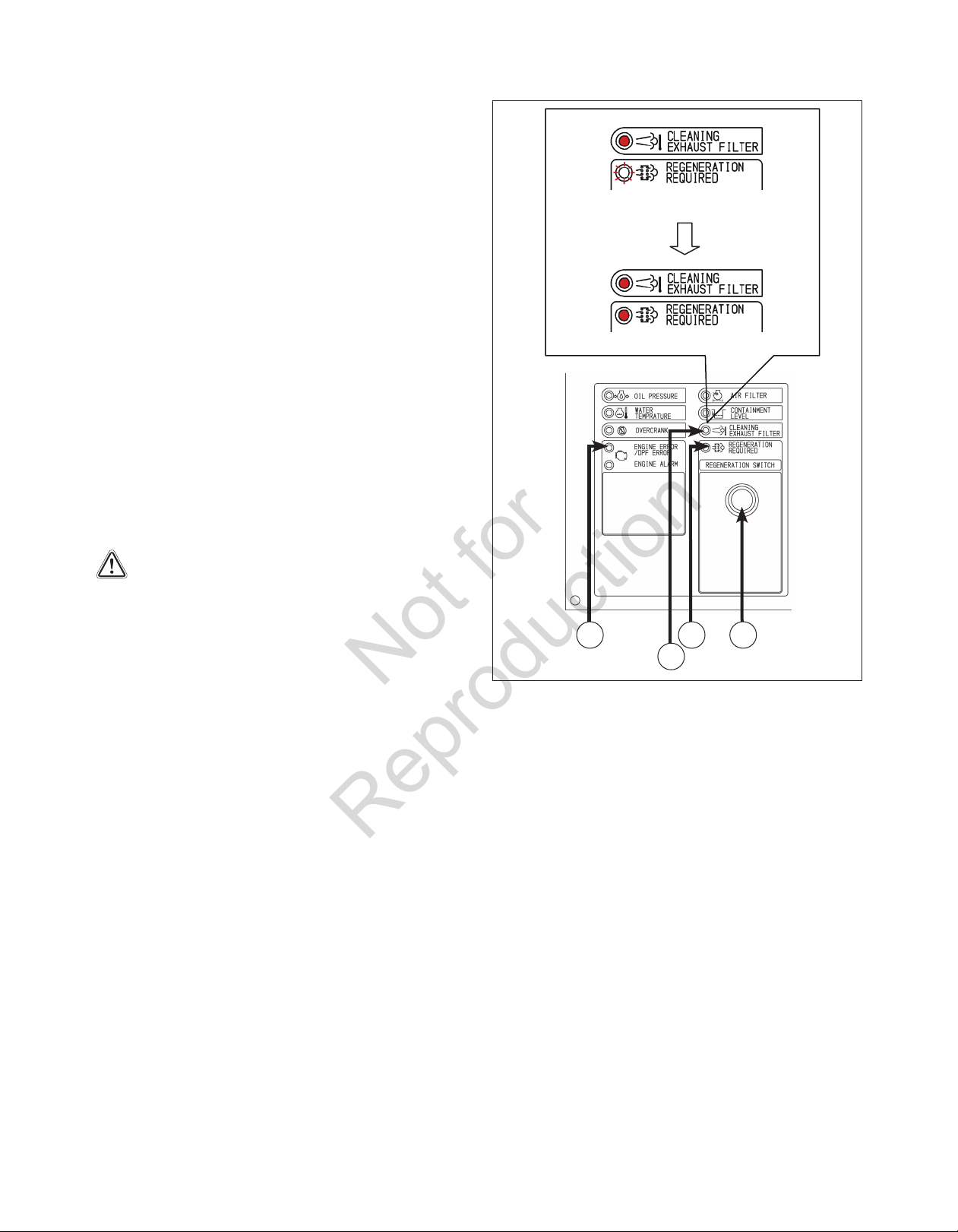

• ‘Regeneration Required’ lamp (B) is flashing and
‘Cleaning Exhaust Filter’ lamp (C) is on.

• Turn the main breaker to the OFF position. **

• Push the Regeneration switch (D) to start manual
regeneration. The flashing ‘Regeneration
Required’ lamp will glow steadily.

• After 5 minutes, engine speed will gradually
increase to max. 1,890 rpm.

• Regeneration will continue for about 60 minutes
under this condition. ***

• Both lamps will turn off when regeneration is
completed. Engine speed will return to normal
operation (1,800 rpm).

CAUTION Do not stop engine during enforced
regeneration operation, except for unavoidable
conditions.

• If it is necessary to use a load during manual
regeneration, push the Regeneration switch (D)
again to interrupt the regeneration operation and
then turn on the breaker.

• If the unit is continuously operated without manual
regeneration started, even while the Regeneration
Required lamp is lit, the DPF error lamp (E) will
eventually turn on to stop the engine.

• If the engine stops, restart it and push the
Regeneration switch to start manual regeneration.
Unless it is pressed, the engine will stop one
minute after it starts.

** If the breaker is left on, the unit will not switch

to manual regeneration. Further, if the breaker
is turned on during manual regeneration,
regeneration will discontinue.

*** Time of regeneration varies upon the ambient

temperature.

ON

Flashing

ON

ON

E

R egeneration required

Manual regeneration

B D

C

21

Protection Devices

/

Not for

Reproduction

To prevent possible unit damage during operation, this
machine is provided with various protection devices.

If the engine stops due to the function of any of
these protection devices, correct the problem before
attempting to restart operation.

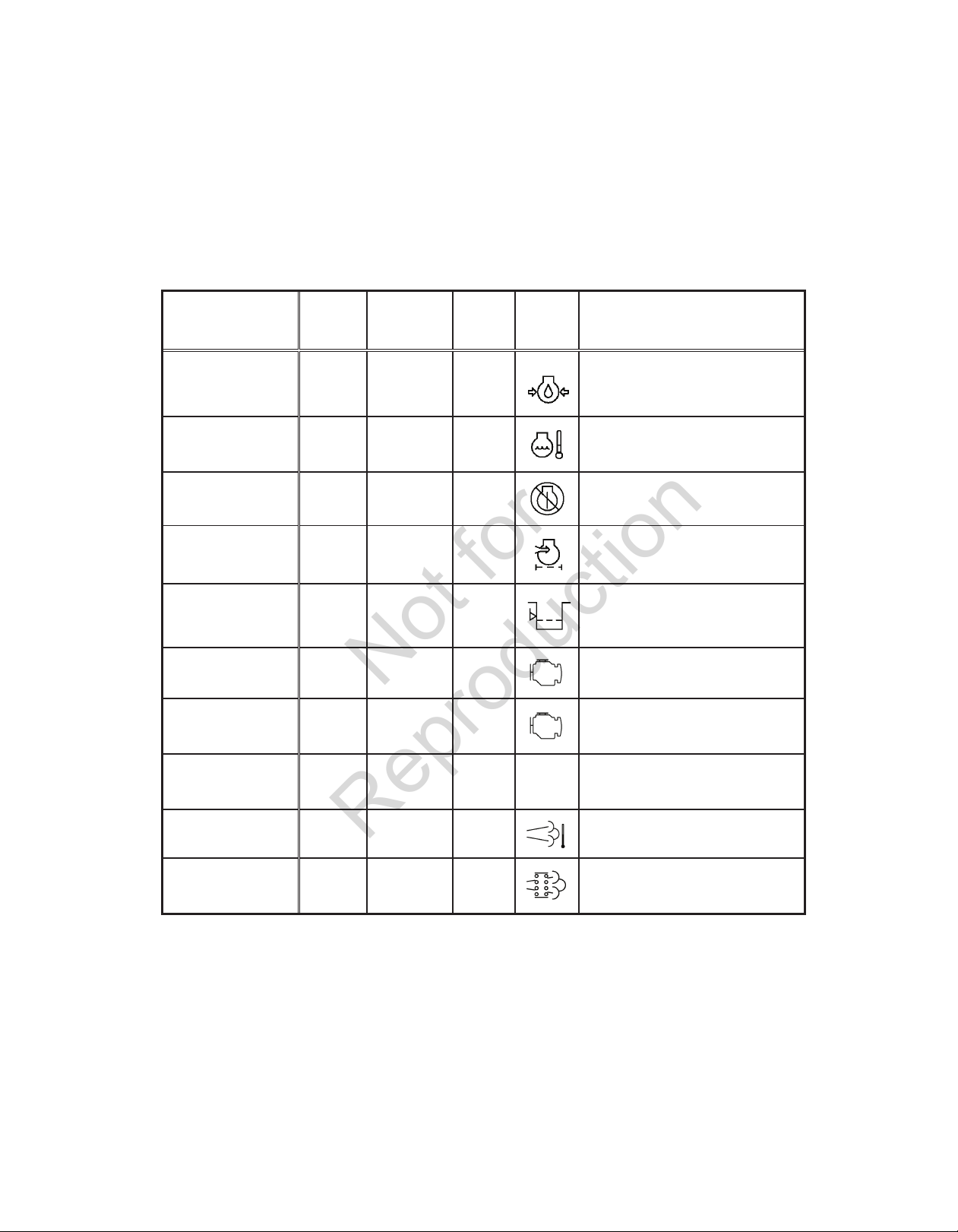

List of Protection Devices

This machine is equipped with the following protection

devices (○) in the table. Make necessary repairs in

accordance with the noted item.

Item

Engine oil pressure
drop

Engine water
temperature rises.

Over crank

Clogging of air filter

*

Oil Fence

**

Engine error

DPF error

**

Engine alarm

Engine

stops

Three-phase

circuit

breaker trips.

Lamp

display

○ ― ○

○ ― ○

○ ― ○

― ― ○

― ―○

○ ― ○

― ― ○

Monitor Functions

When engine oil pressure drops, it
functions.
Operating pressure:
lower than 14psi (0.098MPa)

In case of abnormal rise of engine
water temperature, it functions.
temperature reaches:
more than 230°F (110Ԩ)

This lamp goes on when operator
fails to start engine, during
automatic operation mode.

When air filter is clogged and it
becomes necessary to clean it, it
functions.

When more condensate (fuel,
engine oil and coolant) than 1/3 of
capacity in the oil fence is
accumulated, monitor lamp lights.

Monitor lamp goes on when engine
error/DPF filter gets heavily
soot-covered.

Monitor lamp goes on when engine
alarm occurs.

Overcurrent or short
circuit

***

During DPF regeneration

***

DPF Regeneration
required

* If oil fence monitor lamp lights, immediately drain oil fence.

** Engine alarm lamp indicates engine and / or DPF trouble. Contact your authorized dealer.

*** Refer to DPF Regeneration.

To protect environment, do not drain it directly into rivers. (For details, see Engine Oil – Coolant - Fuel)

― ○ ― ―

― ― ○

― ― ○

In case of overload or short circuit
accident, it functions.

Monitor lamp goes on during DPF
regeneration (cleaning).

Monitor lamp goes on regeneration
(cleaning ) is required because it
gets heavily soot-covered.

22 ALLMAND.COM

Circuit Breaker

Not for

Reproduction

In case overload or short-circuited wire connection
should occur, the circuit-breaker trips.

If tripped, stop the unit, disconnect the load, reset the
circuit breaker, and identify and correct the problem.

To reset the breaker:
Press down on the breaker lever until it clicks.

Circuit Protector (CP) for AVR Protection

AVR is equipped with circuit-protector (CP) for
protection against overcurrent. It functions in the
following cases:

• The machine gets overloaded while engine speed is
still lower.

• The output voltage of generator is increased higher
than the specified voltage.

When CP functions, voltage drops.

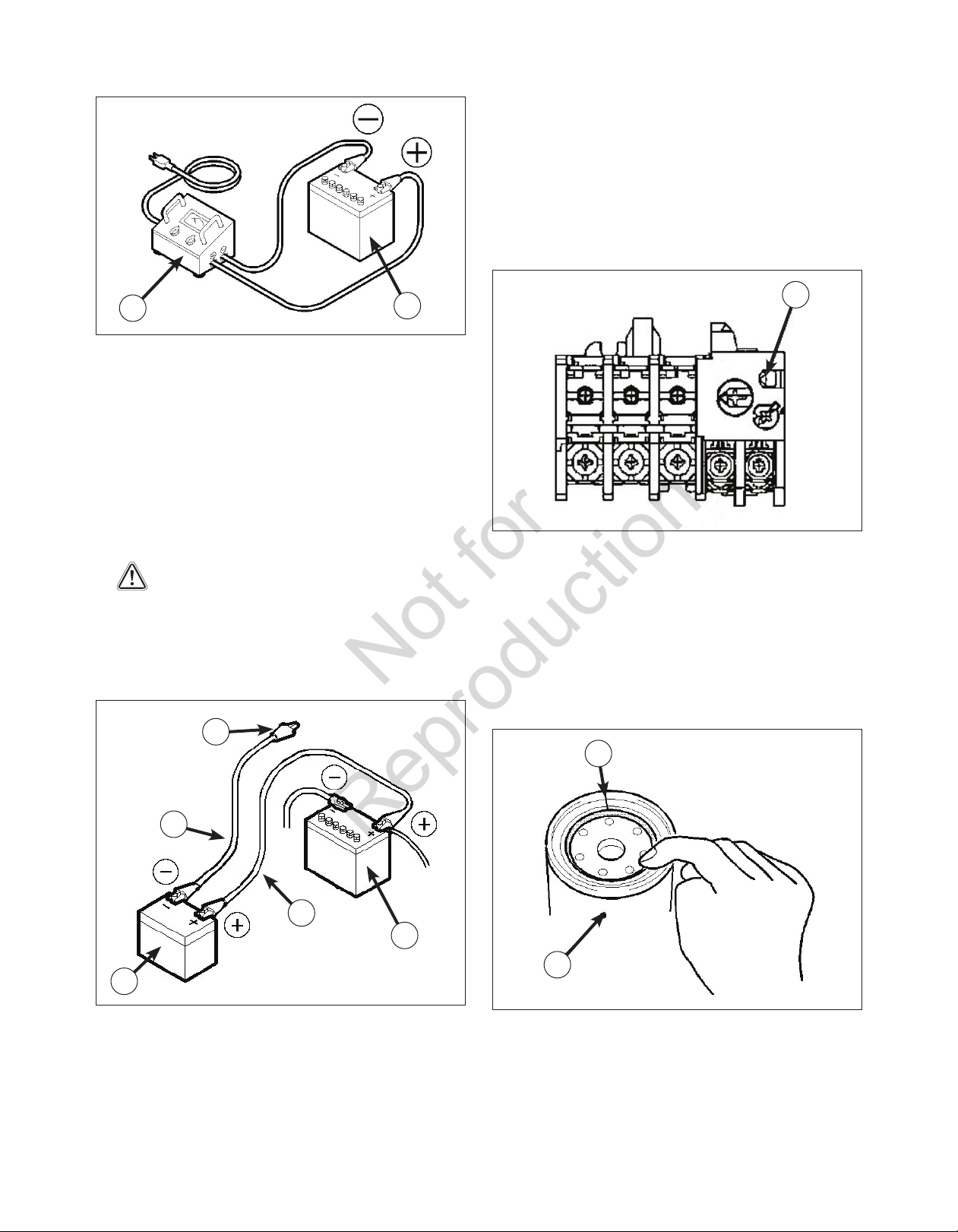

To reset, press the AVR button (A) at the side of the

breaker plate in the control panel.

Thermal Relay

In case an overload or short-circuit should occur to the
load or load connection cable, this relay functions to
trip the circuit-breaker.

It is not necessary to push the reset button even after
the three-phase main breaker is tripped since the
thermal relay is set to automatic return at the factory.

Thermal Relay

Reset Switch Lever

A

23

Connecting Loads

Not for

Reproduction

WARNING

• Make sure not to connect the output terminal of the
machine with a commercial power source. It could
result in electric shock or fire.

• Make sure to ground the machine and the load. It
could cause an electric shock when the machine is
installed at a damp place or on a steel frame or a
steel plate.

• Never touch the output terminals during operation.

• Notice that the voltage of several hundred volts is
applied to the output terminal.

• When removing or connecting a connecting cable
for changing load, be sure to switch OFF the circuit
breaker, remove the starter key from the starter
switch, then carry out the work. The operator must
keep the key during operation.

• For a connecting cable to load, do not use a
cable with damaged sheath nor an inappropriate
insulation cable to the voltage.

Be sure connections between each cable terminal

and input/output terminal are secure. Otherwise, it
may be slackened during operation and may cause
a fire or an electric shock.

NOTICE

• When using a single-phase load [277V or 139V],
see to it that the loads on the different phases will
be evenly balanced. Unbalanced loads may cause
the generator to overload.

1. Select a cable with sufficient diameter by
considering the load capacity and the distance
from the generator to the load. Use terminals for
connection and securely fasten them.

2. After checking phase number and voltage of the
load, make sure to connect them correctly.

Terminal size (B)

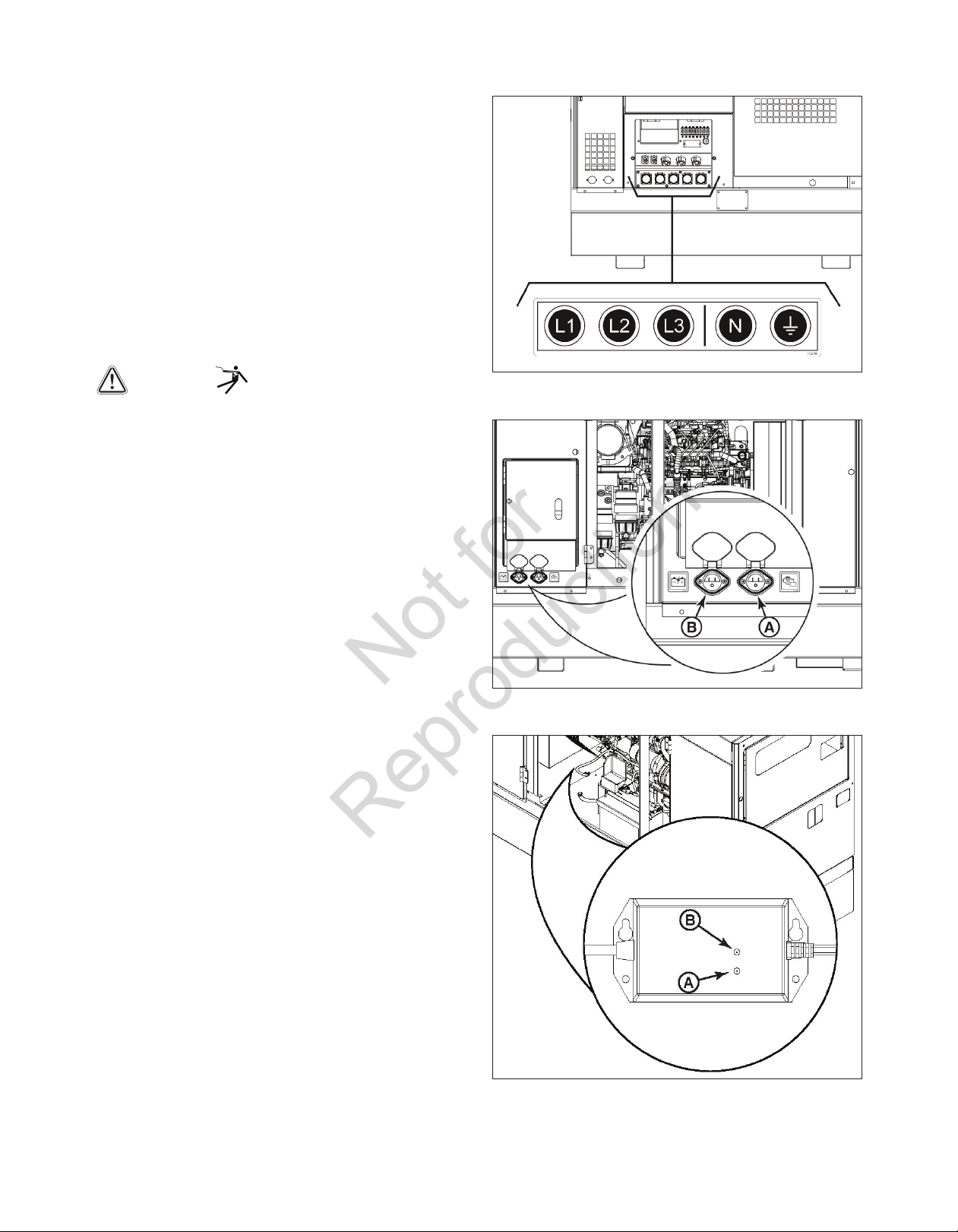

Three-phase output
(L1,L2,L3,N)

Leakage relay ground Terminal(G) M14

B

3. Install a switch panel (C) between the output
terminal and the load to switch on/off the load. Do
not switch the load on/off directly by the circuit­breaker of the generator. It could cause damage to
the circuit-breaker.

4. Connect the connecting cable to the load so that
the output terminals do not touch each other.

C

M14

24 ALLMAND.COM

Proper Connection of Three-Phase Four-Wire

Not for

Reproduction

Type Terminals

 During operation, do not operate voltage selector switch. Voltage

selection during operation may cause abnormal voltage on the load
side to damage the load and may cause a fire.



In addition it could cause damage to generator and automatic
voltage regulator(AVR).



Be sure to shut off generator before using voltage selector switch.



When voltage selection is completed, lock the voltage selector
switch in position to prevent anyone from operating it.

480/277V

240/139V

240/120V

NOTE; When the voltage selector switch is in the single-phase 240/120V position, place the ammeter

change-over switch to the L1 or L3 position to read the output.

25

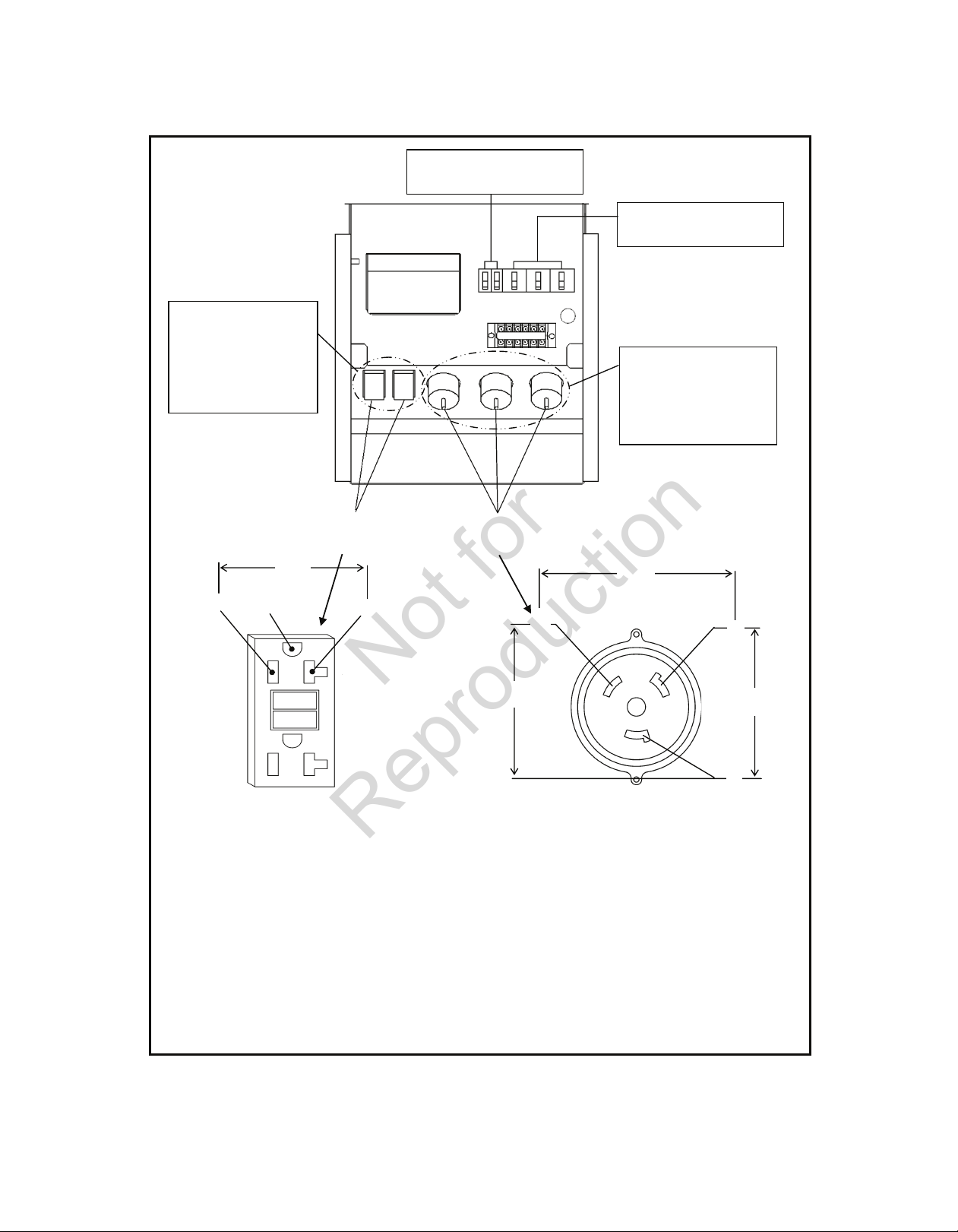

Auxiliary AC Power

A

A

A

Not for

Reproduction

uxiliary AC Power
will be available
independently of
the position of
voltage selector
switch.

GFCI RECEPTACLES
BREAKER

UX. RECEPTACLES

BREAKER

NOTE: Aux receptacles
breaker may differ from
shown.

uxiliary AC Power
will be available only
when the voltage
selector switch is
turned to 240/120V.

GFCI RECEPTACLES
120V 20AMPS

120V

H G

㸺How to use GFCI Receptacles㸼

It is available to get 1 phase/120V from
GFCI receptacles independently of the
position of voltage selector switch on the
control panel.

<Procedure>

ձStart the generator unit and turn the main

breaker “ON” on the control panel.

ղ Turn the receptacle breaker of output

terminal “ON”.

W

AUX.RECECTACLES
240/120V 50AMPS

W

120V

㸺How to use aux. receptacles㸼

Aux. receptacles are available only when the
voltage selector switch is turned to 240/120V
on the control panel.

<Procedure>

ձTurn the voltage selector switch to

240/120V on the control panel when the
generator unit stops.

ղStart the generator unit and turn the main

breaker “ON” on the control panel.

ճTurn the receptacle breaker of output

terminal “ON”.

120V

X

240V

Y

26 ALLMAND.COM

Maximum Combined Simultaneous Power

Not for

Reproduction

Consumption

NOTICE

• Never exceed the maximum combined
simultaneous power consumption.

The following chart shows the maximum power
available from the 120V-20A GFCI receptacles during
simultaneous consumption (main terminals and
receptacles) for both single or three phase settings.
Values shown in the left column give the maximum
current available at the 120V-20A GFCI receptacles
compared to the value of the simultaneous current
consumption from the main terminals.

Single Phase
120V-20A
GFCI Rcept.

kW kVA kVA

0.0 63.0 36.5

1.2 59.0 35.3

2.4 54.9 34.1

3.6 50.7 32.9

4.8 46.6 31.7

Three Phase

240/480V

Single Phase

240/120V

Maintenance

Regular maintenance will improve the performance
and extend the life of the generator. See your
authorized dealer for service.

Generator Maintenance Schedule

Follow the hourly or calendar intervals, whichever
occurs first. More frequent service is required when
operating in adverse conditions noted below.

1 Or whenever needed

2

Or monthly

³ Or every 4 months

Daily

• Clean instruments in control panel¹

• Check looseness in pipe connecting part, and
wear and tear of pipe

• Check each instrument and warning lamp

• Check functions of all instruments and devices

Every 250 Hours

• Check GFCI receptacles²

• Check insulation resistance³

• Check thermal relay⁴

⁴ Or every 2 months

Engine Maintenance Schedule

Refer to engine operation manual for inspection and
maintenance of engine.

Miscellaneous Maintenance Schedule

Daily

• Check condensate in oil fence
Every 500 Hours

• Check electrical terminals and cable connections¹

Every 1000 Hours

• Check vibration isolators²

• Check each rubber hose²

1

Or every 4 months

²Or yearly

Undercarriage Maintenance Schedule

Every 300 Hours or 3 Months

• Supply grease to trailer hub bearing

• Check drawbar hardware for proper tightness

Every 1,000 Hours

• Check undercarriage bracket hardware for
proper tightness

• Check wheel lug nuts for proper tightness

27

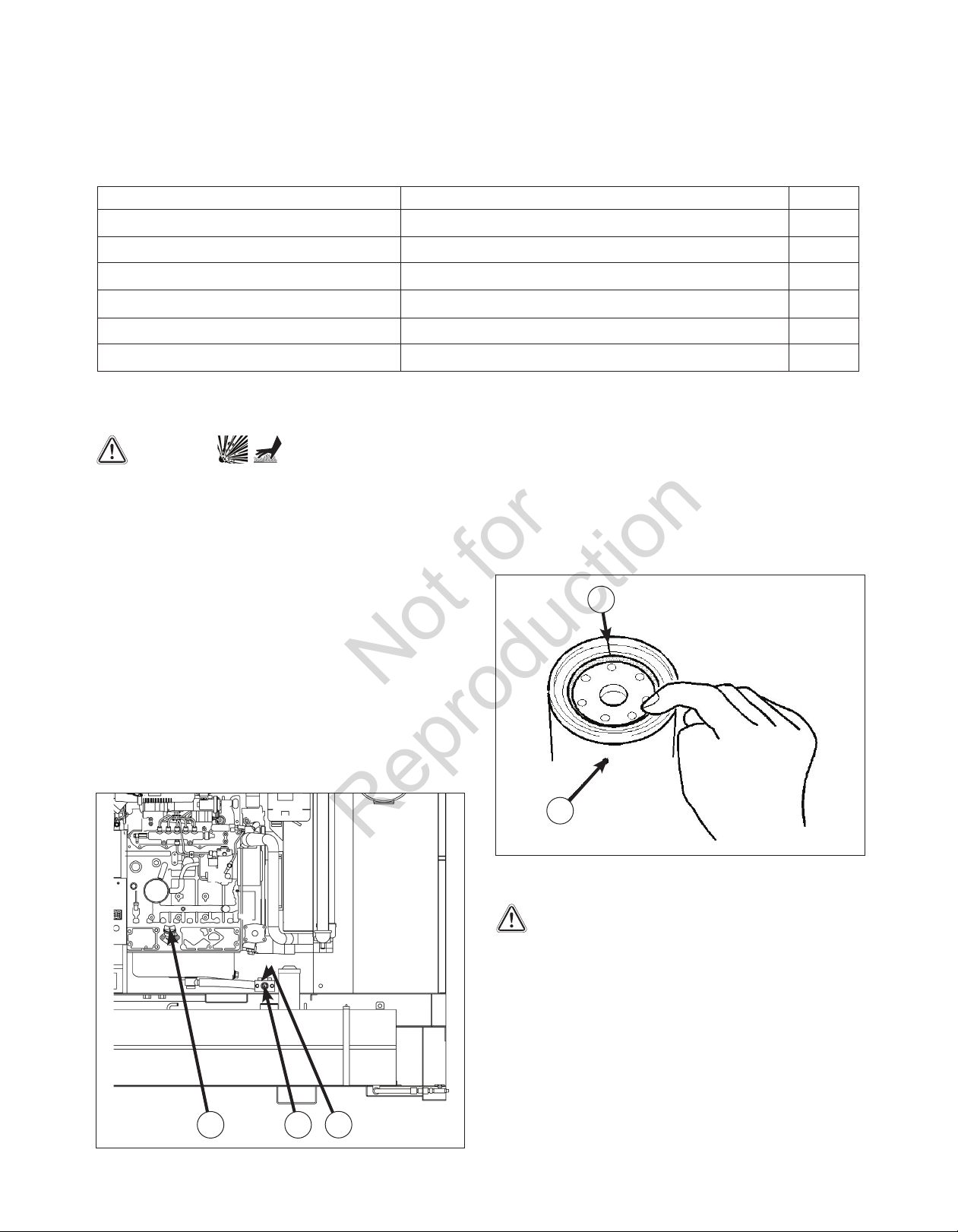

Replacement Parts

Not for

Reproduction

Note: Part numbers may change without notice.
Contact your authorized dealer.

Part Name Part Number Qty

Air Filter Element 32143 11800 1

Engine Oil Filter Kubota HH1C0-32433 1

Fuel Filter Element Kubota 1K947-43171 1

Fuel Pre-Filter Element Kubota HH166-43561 1

Belt Kubota 1G381-97010 1

Breather Filter Element (with O-Ring) Kubota 1J419-05481-0 1

Change Engine Oil Filter

Maintenance Items

Change Engine Oil

WARNING

Engine oil is very hot and highly pressurized during or
just after operation. Hot oil could blow out of the tank
and can cause serious injury.

NOTICE
Never supply more engine oil than specified level.

Excessive engine oil could cause engine damage.

1. After stopping engine, wait 10 to 20 minutes until
engine oil cools off.

2. Remove drain plug (A), open drain valve (B), and
discharge engine oil drain. Dispose of used oil
according to local, state and/or federal regulations.

3. When oil is completely drained, close drain valve
and replace drain plug.

4. Remove engine oil filler cap (C), and fill engine
with oil. See Checking / Adding Engine Oil in
Operation. (Oil capacity: see Specifications.)

(For part number, see Replacement Parts)

1. Remove the old filter.

2. Before installing the new oil filter (D), spread a thin
layer of oil over the seal (E), then install. When the
seal touches the sealing surface, further tighten the
filter by approximately two-thirds turn with a filter
wrench.

3. After the oil filter is installed, check for any oil leaks
during operation.

E

D

Check GFCI Receptacles

WARNING

• Test the GFCI receptacle before each use.

• In case the GFCI has tripped due to the hazard of
ground fault currents, investigate the cause and
correct it.

Regularly check GFCI operation for safety.

B

AC

28 ALLMAND.COM

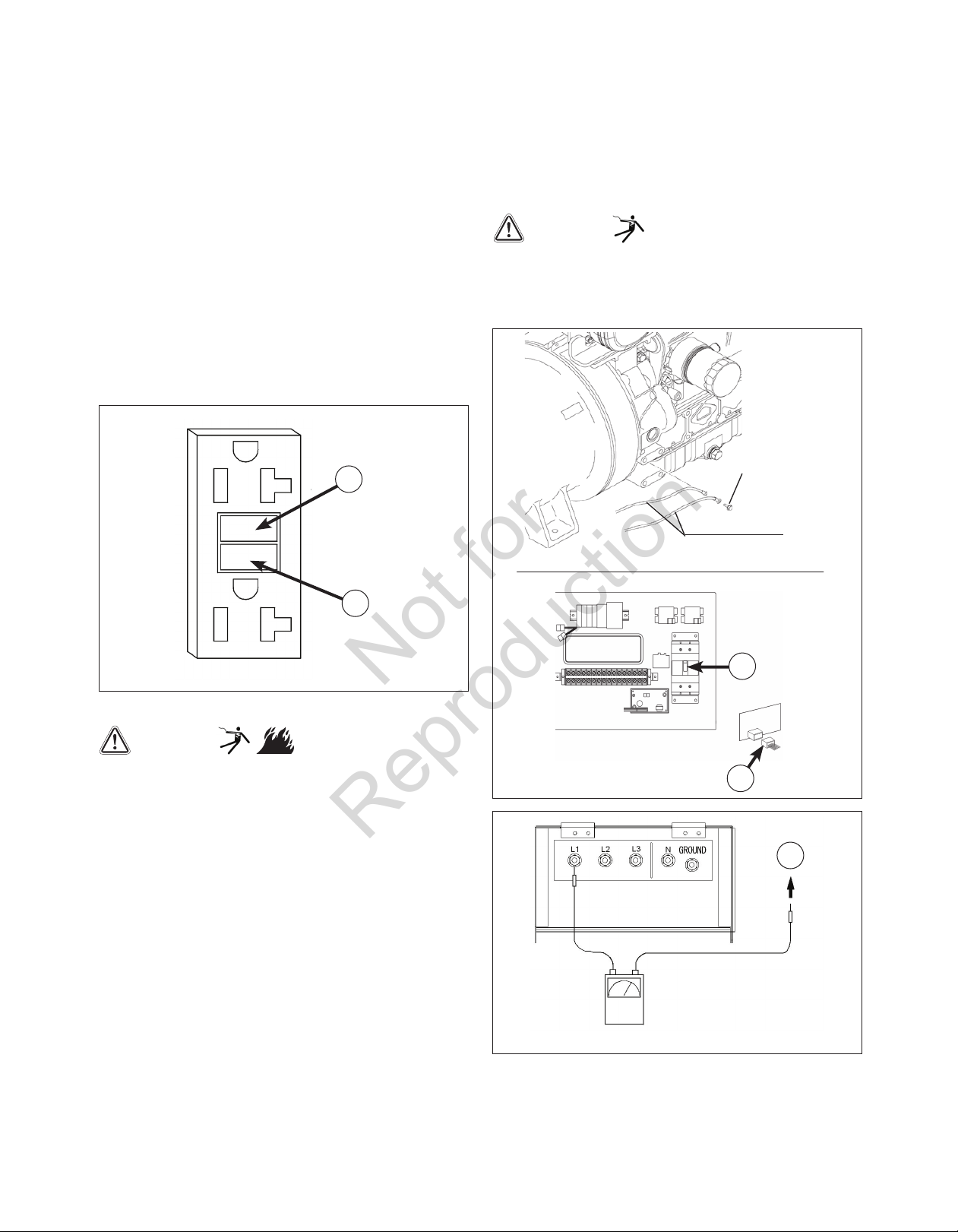

1. Unplug all appliances from the generator.

2. Start the engine.

3. Turn each single-phase and three-phase breaker
ON.

4. Press the TEST BUTTON (F):

Not for

Reproduction

• The RESET BUTTON (G) should extend with a
click.

• If the RESET BUTTON does not extend, contact
your authorized dealer.

5. Press the RESET BUTTON.

6. If the RESET BUTTON extends during operation:

• Unplug all appliances from the GFCI protected
receptacle.

• Press the RESET BUTTON:

IF THE GFCI CANNOT BE RESET:

• The GFCI is faulty. Contact your nearest dealer.

IF THE GFCI RESETS PROPERLY:

• Check the appliance or the power cord.

F

NOTE: For improvement of insulation resistance,

wipe and clean dust and dirt from around output
terminals, circuit breaker, generator body outlet port
and receptacles.

7. After checking and confirming that insulation
resistance is proper, reestablish all connections.

WARNING

• Be sure to reconnect the cable between the
terminal “N” and terminal “Ground” just as it was
originally connected. If left disconnected, the lack of
grounding could result in electric shock.

Ground terminal
Mounting bolt

Ground terminal

G

Check Insulation Resistance

WARNING

• Insulation resistance should be regularly checked
or measured with a 500V insulation resistance

meter. If it is reduced to lower than 1MΩ, it could

cause an electrical leakage or a fire.

1. Remove the load side cable from the output
terminal board.

2. Remove the grounding terminal from output
terminal plate “N” and “GROUND”, out of the
grounding position of the unit.

3. Loosen the ground terminal mounting bolts of the
engine (M12), and remove the ground terminal.

4. Remove the AVR connector (H) inside the
generator control panel.

5. Switch ON the three-phase breaker (I), measure
each insulation resistance between the terminals
L1. L2. L3 terminal and bonnet (J).

6. If insulation resistance value measured is found

more than 1MΩ, it is good. If lower, contact your

authorized dealer.

I

H

J

29

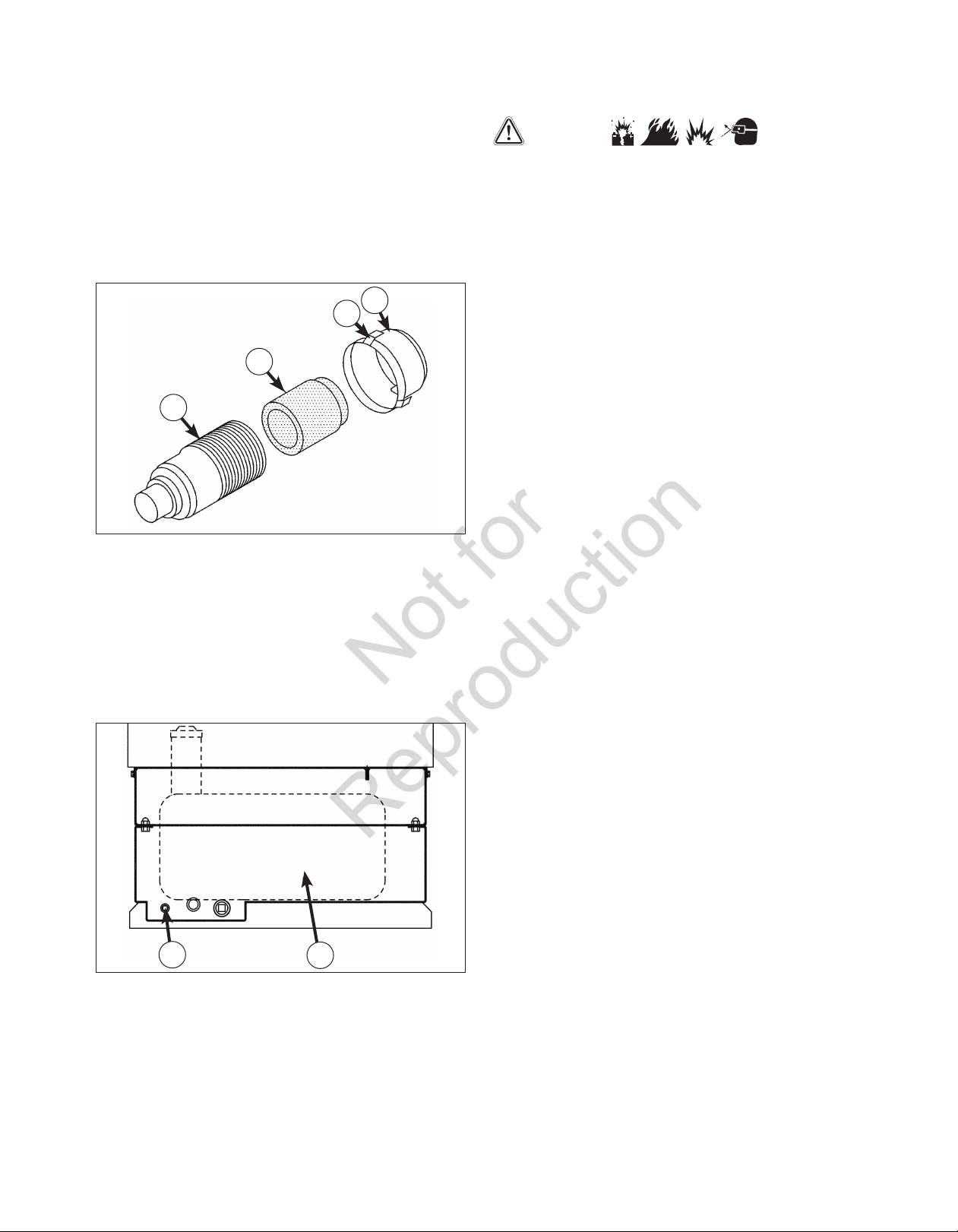

Check / Clean Air Filter Element

Not for

Reproduction

1. Loosen latch (L), and remove cap (K). Clean
interior of cap.

2. Remove and clean filter element (M). If damaged
or heavily soiled, replace. (For part numbers, see
Replacement Parts.)

3. Clean interior of case (N).

4. Install filter element into case, then install cap,
securing with latch.

K

L

M

N

Drain Fuel Tank

1. Remove the drain plug (O) and drain any condensate
accumulated inside the fuel tank (P) into an approved
container.

2. After making sure all condensate is drained, reinstall
the drain plug.

3. Dispose of condensate according to local, state and/or
federal regulations.

O

P

Battery Maintenance

WARNING

• Keep ignition sources away from battery.

• Battery generates hydrogen gas and may explode if
ignited.

• Charging should be done at a well-ventilated place.

• Do not spark near the battery nor light a match, nor
bring lit cigarette and match close to the battery.

• Do not check the battery by short-circuiting the
positive and negative terminals.

• Do not operate machine or charge battery with low
electrolyte level. Doing so may damage battery, or
may cause explosion.

• Add distilled water so that electrolyte level reads
between “UPPER” and “LOWER” level.

• Do not charge frozen battery. Otherwise it may
explode. If battery is frozen, warm it up until the
battery temperature becomes 16°C to 30°C.

• Battery electrolyte is dilute sulfuric acid.

• Mishandling battery could cause severe burns.

• Wear protective gloves and safety goggles when
handling battery.

• If battery electrolyte contacts clothes or skin, wash
immediately with large amount of water.

• If battery electrolyte gets into eyes, flush with plenty
of water and seek immediate medical attention.

• Dispose of battery according to local, state and/or
federal regulations.

Check Battery Electrolyte

Standard battery:

1. Check battery electrolyte level. If low, add distilled
water.

2. Measure specific gravity of battery electrolyte. If
below 1.24, recharge battery. See Charge Battery.

Maintenance-free battery:

1. Check indicator on top surface of battery.

2. If indicator shows that charge is needed, recharge
battery.

Charge Battery

1. Disconnect cables between battery and unit, black
negative (-) cable first, and charge battery (A) with
a 12-volt battery charger (B). Do not charge two
batteries at the same time.

2. Be sure not to connect (+) and (–) terminals
backwards.

3. Read operation manual of battery charger before
use.

30 ALLMAND.COM

Check Thermal Relay

Not for

Reproduction

1. Turn the starter switch to the ON position.

2. Set the main circuit breaker to the ON position.

3. The three phase main breaker will trip if you push
the test lever (H) of the thermal relay.

4. Note that once the three phase main breaker trips
to the off position, the single phase breaker that
supplies power to the GFCI outlets can still be ON.

B

Booster Cables

To use booster cables:

1. Connect one end of red positive (+) cable (C) to
positive (+) terminal of machine battery (D).

2. Connect other end of red positive (+) cable to
positive (+) terminal of external battery (E).

3. Connect one end of black negative (–) cable (F) to
negative (–) terminal of external battery.

4. Connect other end of black negative (–) cable to
engine block of machine (G, not shown).

CAUTION
Be careful not to connect positive (+) and negative

(–) terminals backwards.

5. Start engine.

6. Disconnect booster cables by following above
procedure in reverse order.

G

A

H

Change Fuel Filter / Pre-Filter Element

(For element part numbers, see Replacement Parts)

1. Remove the old filter.

2. Before installing the new filter (I), spread a thin layer
of oil over the seal (J), then install. When the seal
touches the sealing surface, further tighten the filter
by approximately two-thirds turn with a filter wrench.

3. After the filter is installed, check for any oil leaks
during operation.

J

F

C

D

I

E

31

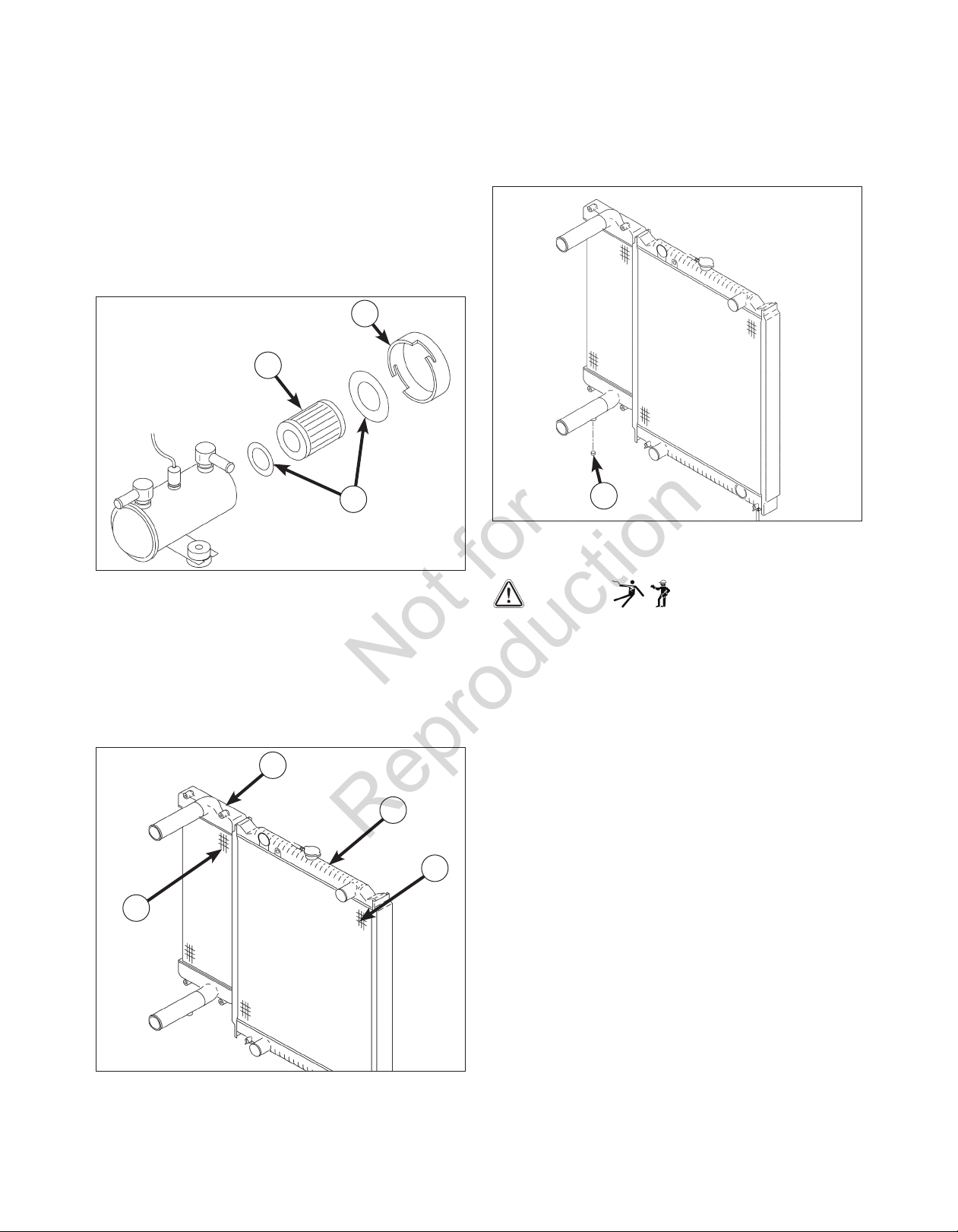

Clean Fuel Air-Bleeding Electromagnetic

Not for

Reproduction

Pump Filter

For part numbers, see Replacement Parts.

1. Turn the cap (K) to the left and remove.
NOTE: Collect any fuel that spills in an approved

container.

2. Remove and clean the filter (L). Replace if needed.

3. Replace the gaskets (M).

4. Install filter with gaskets, securing with cap.

K

L

Drain Intercooler

1. Remove the drain plug (Q) below the intercooler to
drain condensate.

2. After draining is complete, reinstall the drain plug.

M

Clean Outside Of Radiator / Intercooler

• Clean the fin tubes (P) of the radiator (N) and
intercooler (O) of dust or other foreign materials.

NOTICE

Do not use high pressure cleaning equipment, as it
may damage fin tubes.

O

N

P

Q

Check Electrical Terminals and Cable
Connections

WARNING

• Be sure to stop engine and remove black negative
(-) battery cable before inspection.

• Be sure to wear appropriate personal protective
equipment (PPE).

Check for any loose cables, damage on insulated
covers, disconnected cables, short-circuits, etc., on the
following items:

Generator

• Terminal connections of output terminal plate

• Main circuit of circuit breaker

• Terminal connection on control box

• Each terminal connection of each instrument

P

• Connectors

Engine

• Engine connectors

• Terminal connections

32 ALLMAND.COM

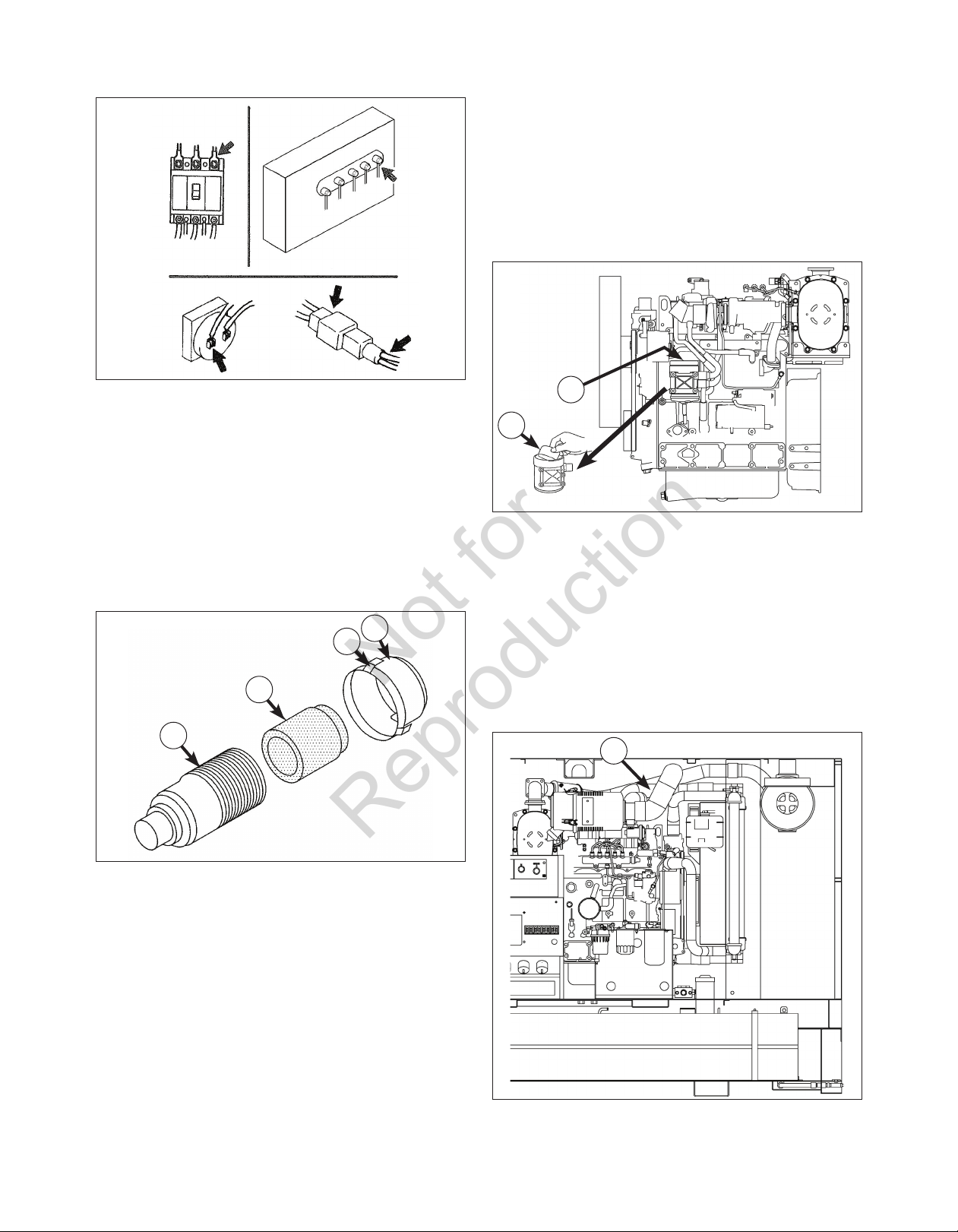

Change Air Filter Element

Not for

Reproduction

For filter element part number, see Replacement
Parts.

1. Loosen latch (B) and remove cap (A). Clean interior
of cap.

2. Dispose of old filter element (C), replacing with new.

3. Clean interior of case (D).

4. Install filter element into case, then install cap,
securing with latch.

A

B

C

D

Change Breather Filter Element

For filter element part number, see Replacement
Parts.

1. Remove the breather filter cap (E), and remove the
element (F) from inside.

2. Install the new element, and firmly install the cap.

E

F

Check Rubber Hoses

• Check each rubber hose for damage or wear.

• If damage or wear is found, contact your authorized
dealer for repair or replacement.

Check Exhaust Flexible Pipe

• Check for any crack or leak on the exhaust flexible
pipe (G).

• If any leak is found, contact your authorized dealer
for repair or replacement.

G

33

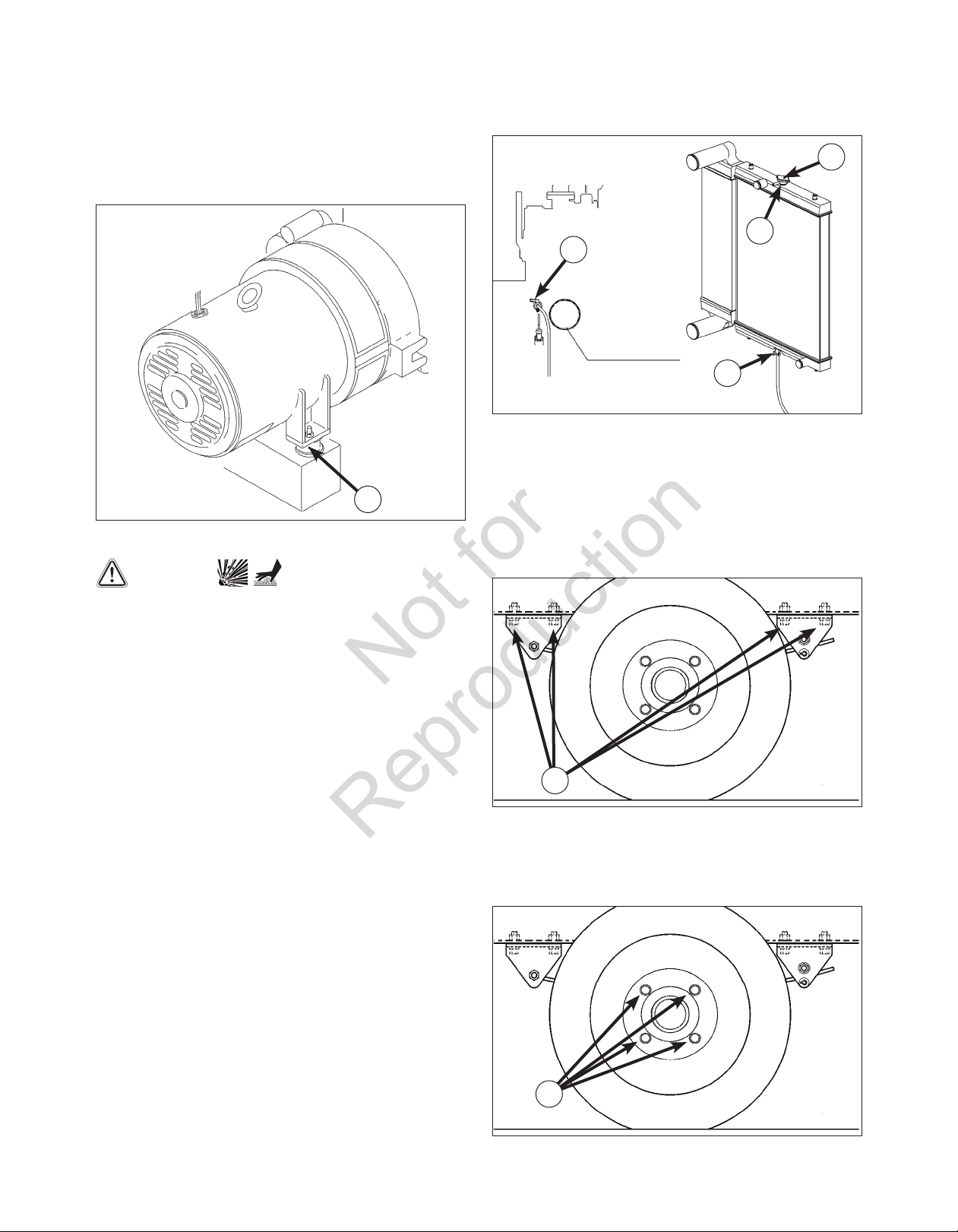

Check Vibration Isolators

Not for

Reproduction

The vibration isolators (F) are used for the support
of generator and engine. Check for any damage or
deterioration due to oil sticking. If any is found, contact
your authorized dealer.

4. Dispose of used coolant according to local, state
and/or federal regulations.

H

K

J

Oil Filter

I

Grease Trailer Hub Bearing

Contact your authorized dealer.

F

Change Coolant

WARNING

• Be sure to stop the machine and allow time to cool.
Then loosen the radiator cap one notch. After the
coolant water is sufficiently cooled and the inner
pressure is released, take the cap off.

If this procedure is neglected, the inner pressure

can blow off the cap. Steam jetting out of the
radiator could result in causing scalding. Follow this
procedure under all circumstances.

• LLC (Antifreeze) is a toxic material.

If swallowed, seek immediate medical attention. Do

not induce vomiting.

If in eyes, wash eyes with clean running water and

seek immediate medical attention.

When storing, store in an approved container,

clearly labeled ‘LLC (Antifreeze) inside’, away from
children.

• Keep away from fire and flame.

1. To drain coolant, remove radiator cap (H), and
loosen radiator drain valve (I). Also open drain
valve on engine cylinder block (J). Be sure to drain
coolant into an approved container.

2. After draining, close drain valves, then supply
coolant through filler port (K). (Coolant capacity:
see Specifications.)

3. After filling with coolant, run machine in unloaded
condition for approximately 2 to 3 minutes. Stop
machine and check coolant level. Add as needed.

Check Undercarriage Bracket Hardware
for Correct Tightness

Check tightness of undercarriage bracket hardware
(L). Tighten to 130 lb-ft (176 Nm).

L

Check Wheel Lug Nuts / Tire Pressure

Check tightness of wheel lug nuts (M). Tighten to 100
lb-ft (136 Nm).

Also check tire pressure. Adjust to 30 psi (207 kPa).

M

34 ALLMAND.COM

Periodic Load Operation

Not for

Reproduction

When a diesel engine driven generator is continuously
operated with less light load than 30% or at no load
for a long time, carbon will be stuck inside the exhaust
pipe, exhaust muffler and engine. Unburned fuel
will also leak sometimes from the turbo wastegate,
connected portion of exhaust pipe, and the outlet
port of muffler. If it is continuously operated under the
conditions, the unburned fuel could ignite.

Moreover, carbon accumulation could cause engine
power drop or overheating, resulting in engine
damage.

Eliminate carbon accumulation by periodically burning
it during operation with a load until the exhaust gas
becomes almost clear.

(For load current, refer to the following table as a
standard value.)

WARNING

Increase the load factor, step by step, paying attention
to the exhaust conditions. Also watch for sparks from
the exhaust pipe that could result in a fire.

Type
Frequency Hz 60
Rated Voltage V 240 480
Load Current A 120 60

Storage

Preparation for Long-term Storage

If the machine is left unused or not operated longer
than six months:

• Store in a clean, dry place. Avoid leaving machine
outside.

• Remove battery from machine, if possible, and
store in a dry place.

• Charge battery (at least once every month).

• Drain engine oil from machine.

• Drain coolant and fuel from machine.*

• Seal engine, air-intake port and other openings
with vinyl sheet, packing tape, etc., to protect from
moisture and dust.

• Perform any necessary repairs or maintenance
items.

Disposal of Products

In case of disposal of this unit, at first drain and
dispose of all fluids according to local, state and/or
federal regulations.

For further information, please contact your authorized
dealer.

35

Troubleshooting

Not for

Reproduction

Troubleshooting Chart

Problem Cause Correction

Low starter revolution speed 1. Battery low or dead

1. Fuel filter clogging

Starter rotates but engine does not
start

Low engine oil pressure, engine
stops

Coolant temperature high, engine
stops

Air Filter Clogging monitor lamp
flickers

Oil Fence monitor lamp glows

2. Fuel pre-filter clogging

3. No diesel fuel

4. Air mixing in fuel pipings

1. Engine oil level low

2. Engine oil filter clogged

3. Faulty oil pressure switch

4. Loose or broken wire

1. Radiator clogged

2. Faulty thermostat

3. Faulty coolant temp switch

4. Belt slipping

5. Low coolant level

6. Loose or broken wire

1. Air filter clogging 1. Clean or replace

1. Condensate (fuel, engine oil
and coolant) accumulated in oil

fence

2. Oil fence level switch not
functioning

1. Check battery; charge or replace
as needed

1. Clean / replace

2. Clean / replace

3. Add diesel fuel

4. Bleed air

1. Add engine oil

2. Replace

3. Contact authorized dealer

4. Connect; contact authorized
dealer

1. Change coolant

2. Contact authorized dealer

3. Contact authorized dealer

4. Contact authorized dealer

5. Add coolant

6. Connect; contact authorized
dealer

1. Drain condensate

2. Contact authorized dealer

Engine Error / DPF Trouble lamp
glows

DPF Regeneration Required lamp
glows

Circuit breaker trips

Even when operated at rated
speed, no voltage or low voltage
generated

Voltage generated too high
when set at the rated frequency
(50Hz/60Hz)

Unstable voltage generation

Contact your authorized dealer for all other issues.

1. DPF clogged

2. Engine trouble

1. DPF clogged

2. Engine trouble

1. Overloaded

2. Short circuit at load side

1. Voltage regulator knob set too
low

2. Circuit protector (CP) for AVR
protection tripped

3. Internal problem

1. Voltage regulator knob set too
high

2. Loose or disconnected wiring

3. Internal problem

1. Circuit protector (CP) for AVR
protection tripped

2. Internal problem

1. Perform manual regeneration

2. Contact authorized dealer

1. Perform manual regeneration

2. Contact authorized dealer

1. Reduce load

2. Remove and repair load

1. Adjust voltage regulator knob

2. Reset

3. Contact authorized dealer

1. Adjust voltage regulator knob

2. Check / connect wiring

3. Contact authorized dealer

1. Reset

2. Contact authorized dealer

36 ALLMAND.COM

Specifications

Not for

Reproduction

Exciting system Brushless

Armature connection Star with neutral ZigZag

Phase number Three Single

Power factor % 80 100

Model MP65-8C1

Generator

Engine

General
Specifications

Frequency Hz 60

Rated output kVA 63 36.5

Rated output kW 50 36.5

Voltage V 240 480 240 / 120

Current A 152 76 152

Model KUBOTA V3800CR-TIE4B

Type

No Cylinders 4

Total Displacement cu in (L) 230 (3.769)

Rated Output hp (kW) 76.0 (56.7)

Revolutions per minute rpm (min¹) 1800 (1800)

Lubricating Oil Capacity gal (L) 3.5 (13.2)
Coolant Capacity (including

Radiator)
Battery 95R31R (12V)
Fuel Tank Capacity gal (L) 106 (401)
Overall Length in (mm) 141 (3566)
Overall Length (Bonnet

Only)

Overall Width in (mm) 68 (1715)

Overall Height in (mm) 73 (1852)
Net Dry Mass lb (kg) 3900 (1769)
Operating Mass lb (kg) 4680 (2123)

gal (L) 2.9 (11.0)

in (mm) 82 (2080)

4-cycle, water-cooled, direct injection, turbo-

charged, intercooled

37

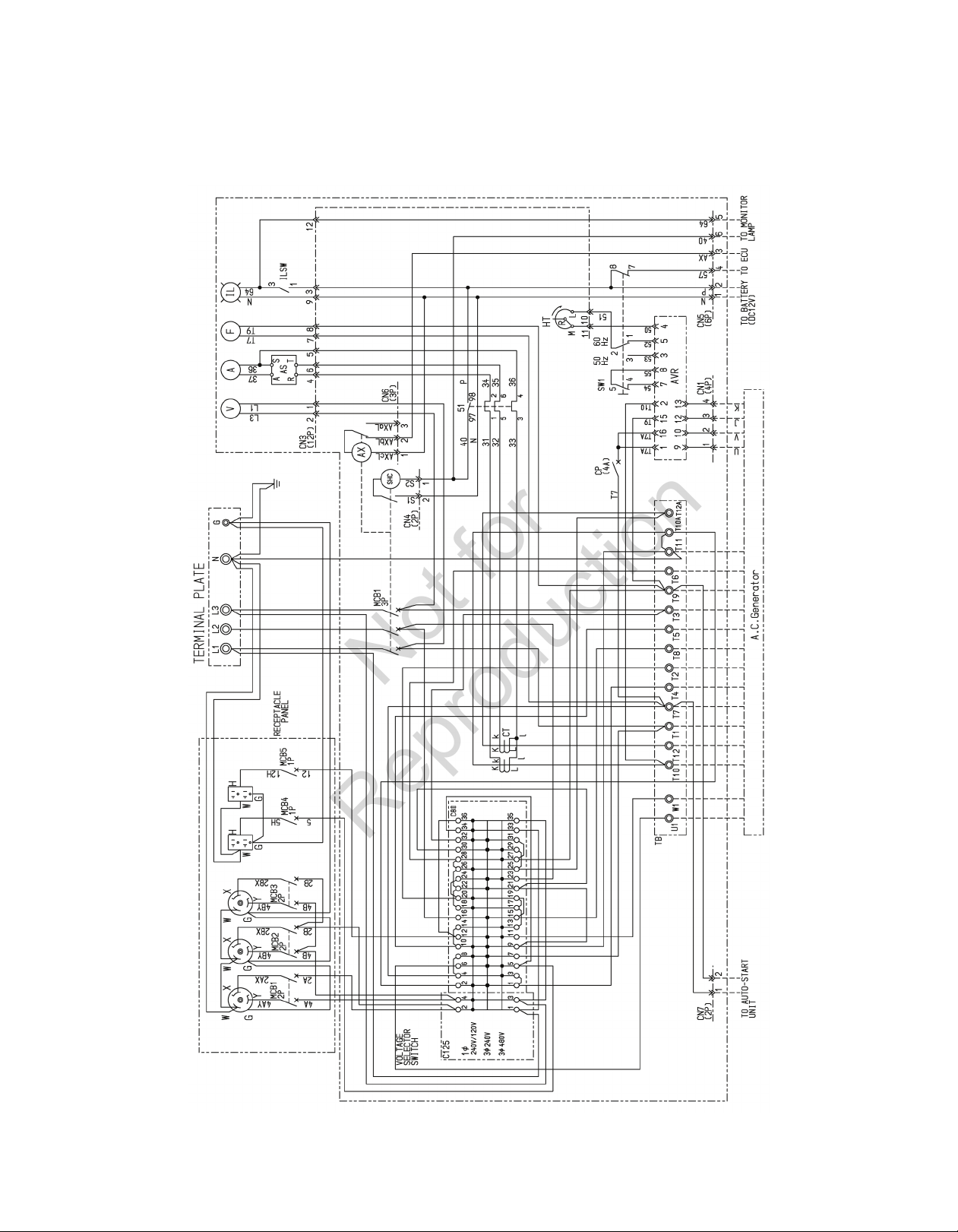

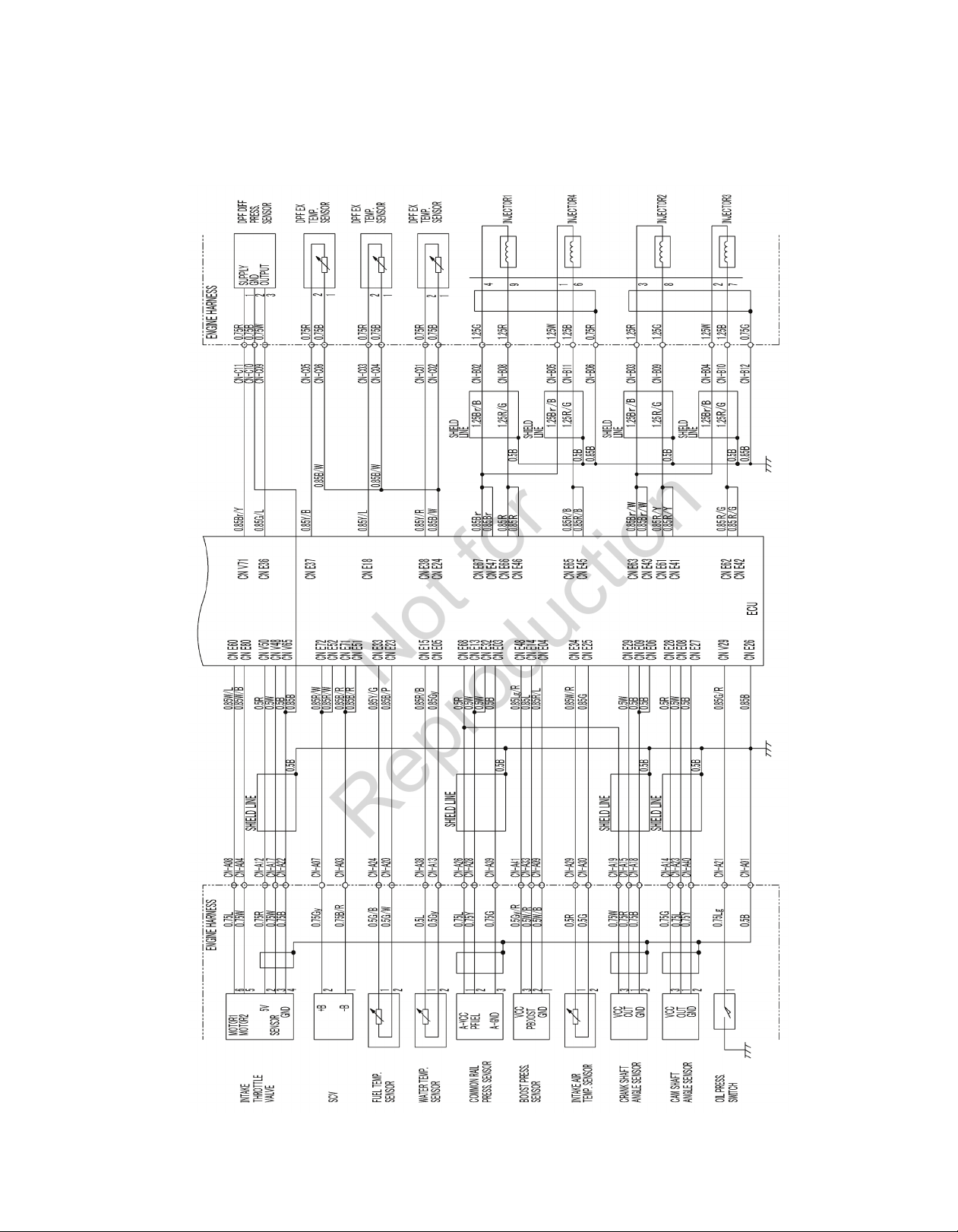

Wiring Diagram

Not for

Reproduction

Generator

38 ALLMAND.COM

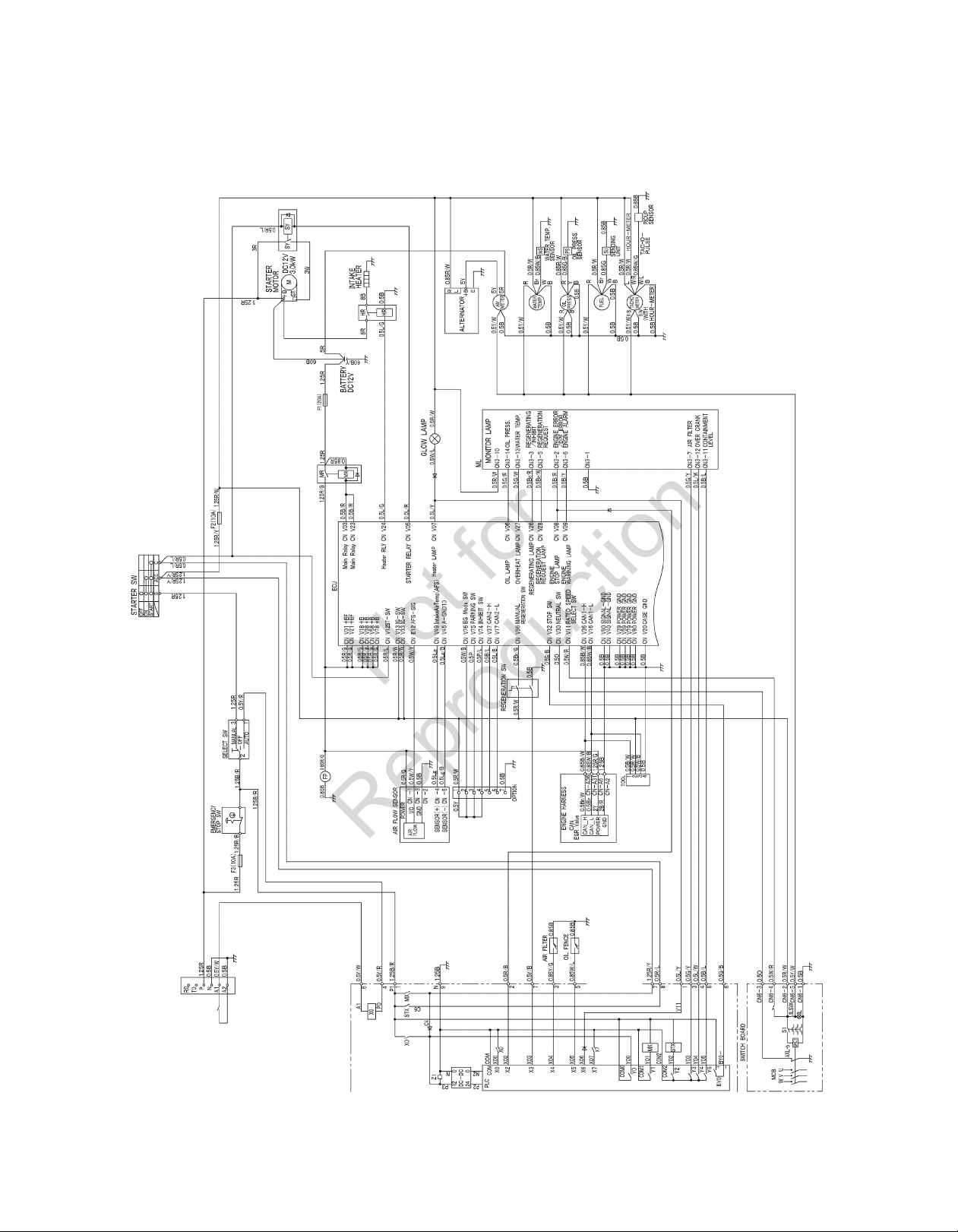

Engine

Not for

Reproduction

39

Not for

Reproduction

40 ALLMAND.COM

START

OUTPUT

VOLTAGE(V)

TOTAL

OPERATION

HOURS

AMBIENT

TEMP.( F)

FREQUENCY

(Hz)

REMARKS

(INSPECTION/PART CHANGE

OUTPUT CURRNT(A)

ENG.OIL

REPLACEMENT

HOUR (h)

ENG.　OIL

PRES

OPERATION

OPERATION TIME

COOLANT

TEMP.( F)

Not for

Reproduction

HISTORY ETC.)

S.(PSI)

WVU

OPERATION LOG

(h)

：

：

：

：

TIME

STOP

：

TIME

：

：

：

：

：

DATE

． 　．

． 　．

． 　．

． 　．

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

：

：

． 　．

41

Addendum A -

Not for

Reproduction

Cam Locks / Arctic Kit

NOTE: Location and configuration of kit components
may differ according to model.

Cam Lock Receptacles

The cam lock receptacles allow for quick connection
and disconnection of loads.

1. Connect the cam lock connectors from the load to
the cam lock receptacles on the lower portion of
the outlet panel on the unit. See Figure A1. Be sure
to connect the load correctly. See Connecting

Loads.

WARNING

Electrocution Hazard. Do not connect or disconnect
loads to the cam lock receptacles while the unit is in
operation.

NOTICE: Do not operate the voltage selector switch
while the unit is in operation. Unit damage may result.

Arctic Kit

Block Heater / Battery Heater

The block heater / battery heater keeps the engine
block and battery heated while the unit is stored or not
in use.

The block heater / battery heater should be
used whenever the unit is stored or not in use in
temperatures below 32° F (0° C).

1. Plug the female end of a heavy-duty power cord
(not supplied) into the Block Heater / Battery Heater
recessed receptacle (A, Figure A2).

2. Plug the male end of the power cord into a standard
120V outlet.

3. Unplug the block heater / battery heater before
putting the unit into operation.

Battery Charger

The battery charger keeps the battery charged while
the unit is stored or not in use.

1. Plug the female end of a heavy-duty power cord
(not supplied) into the Battery Charger recessed
receptacle (B, Figure A2).

2. Plug the male end of the power cord into a standard
120V outlet.

3. The red light (A, Figure A3) on the battery charger
module, located in the left front section of the
engine compartment (see Figure A3) indicates the
battery is charging. The green light (B) indicates
full charge. (The battery charger can stay plugged
in after the battery reaches full charge without
damaging the battery.)

4. Unplug the battery charger before putting the unit
into operation.

Figure A1

Figure A2

Figure A3

42 ALLMAND.COM

Addendum B -

Not for

Reproduction

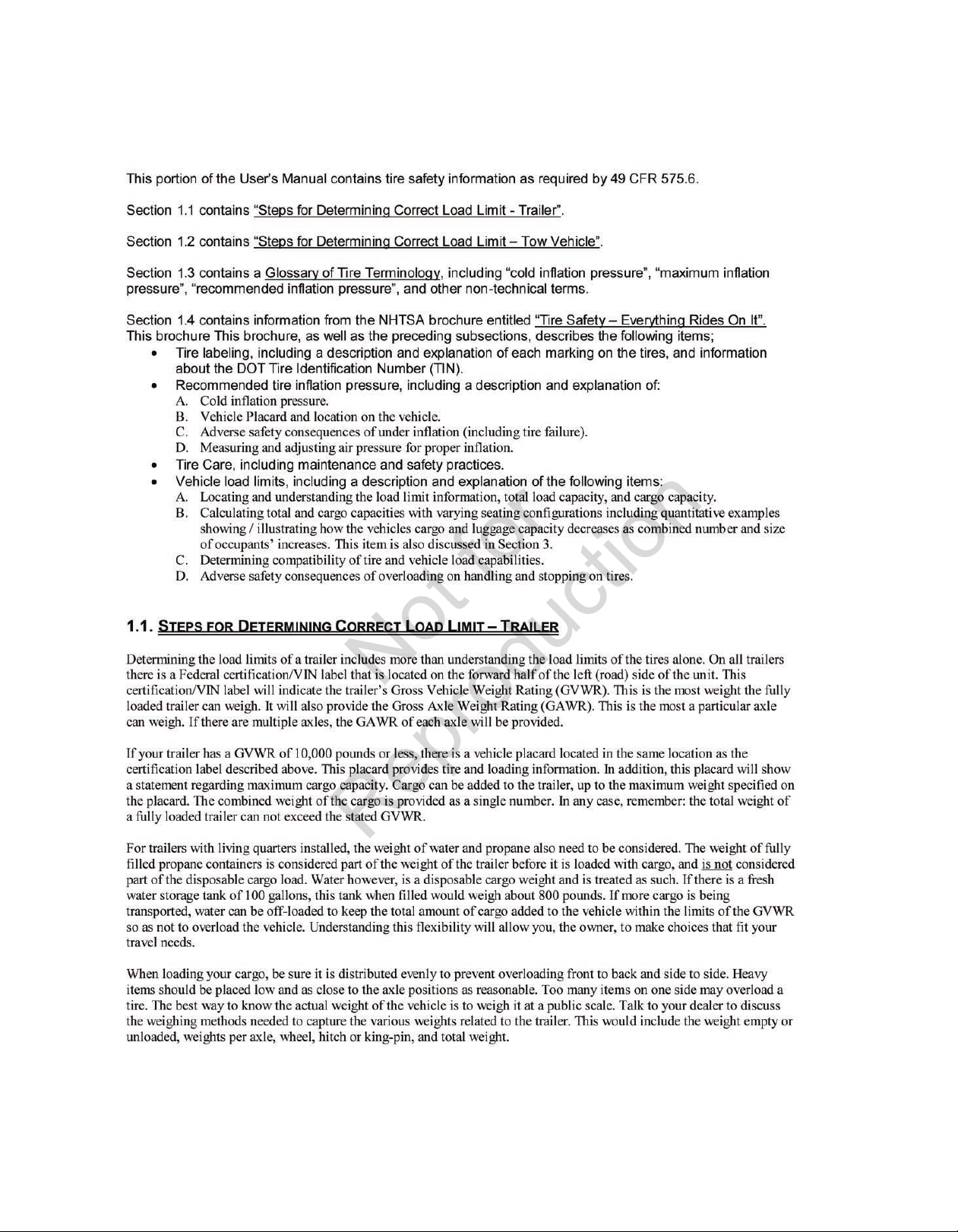

Tire Safety Information

43

Not for

Reproduction

Excessive loads and/or underinflation cause tire overloading and, as a result, abnormal tire flexing occurs. This situation
can generate an excessive amount of heat within the tire. Excessive heat may lead to tire failure. It is the air pressure that
enables a tire to support the load, so proper inflation is critical. The proper air pressure may be found on the
certification/VIN label and/or on the Tire Placard. This value should never exceed the maximum cold inflation pressure
stamped on the tire.

1.1.1. T

RAILERS 10,000 POUNDS GVWR OR LESS

Tire and Loading Information Placard – Figure 1-1

1. Locate the statement, “The weight of cargo should never exceed XXX kg or XXX lbs.,” on your vehicle’s
placard. See figure 1-1.

2. This figure equals the available amount of cargo and luggage load capacity.

3. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may no t
safely exceed the available cargo and luggage load capacity.

The trailer’s placard refers to the Tire Information Placard attached adjacent to or near the trailer’s VIN
(Certification) label at the left front of the trailer.

1.1.2. T

1. Determine the empty weight of your trailer by weighing the trailer using a public scale or other means.

2. Locate the GVWR (Gross Vehicle Weight Rating) of the trailer on your trailer’s VIN (Certification) label.

3. Subtract the empty weight of your trailer from the GVWR stated on the VIN label. That weight is the

RAILERS OVER 10,000 POUNDS GVWR (NOTE: THESE TRAILERS ARE NOT REQUIRED TO HAVE A TIRE

INFORMATI ON PLAC AR D ON THE VEHICLE)

This step does not have to be repeated.

maximum available cargo capacity of the trailer and may not be safely exceeded.

1.2. STEPS FOR DETERMINING CORRECT LOAD LIMIT – TOW VEHICLE

1. Locate the statement, “The combined weight of occupants and cargo should never exceed XXX lbs.,” on
your vehicle’s placard.

2. Determine the combined weight of the driver and passengers who will be riding in your vehicle.

3. Subtract the combined weight of the driver and passengers from XXX kilograms or XXX pounds.

4. The resulting figure equals the available amount of cargo and luggage capacity. For example, if the “XXX”
amount equals 1400 lbs. and there will be five 150 lb. passengers in your vehicle, the amount of available
cargo and luggage capacity is 650 lbs. (1400-750 (5 x 150) = 650 lbs.).

5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may n ot
safely exceed the available cargo and luggage capacity calculated in Step # 4.

6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult the
tow vehicle’s manual to determine how this weight transfer reduces the available c argo and luggage
capacity of your vehicle.

1.3. GLOSSARY OF TIRE TERMINOLOGY

Accessory weight

The combined weight (in excess of those standard items which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power seats, radio and heater, to the extent that these items
are available as factory-installed equipment (whether installed or not).

44 ALLMAND.COM

Not for

Reproduction

Bead

The part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to f it the
rim.

Bead separation

This is the breakdown of the bond between components in the bead.

Bias ply tire

A pneumatic tire in which the ply cords that extend to the beads are laid at alternate angles substantially less
than 90 degrees to the centerline of the tread.

Carcass

The tire structure, except tread and sidewall rubber which, when inflated, bears the load.

Chunking

The breaking away of pieces of the tread or sidewall.

Cold inflation pressure

The pressure in the tire before you drive.

Cord

The strands forming the plies in the tire.

Cord separation

The parting of cords from adjacent rubber compounds.

Cracking

Any parting within the tread, sidewall, or inner liner of the tire extending to cord material.

CT

A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire.

Curb weight

The weight of a motor vehicle with standard equipment including the maximum capacity of fuel, oil, and
coolant, and, if so equipped, air conditioning and additional weight optional engine.

Extra load tire

A tire designed to operate at higher loads and at higher inflation pressures than the corresponding standard
tire.

Groove

The space between two adjacent tread ribs.

Gross Axle Weight Rating

The maximum weight that any axle can support, as published on the Certification / VIN label on the front left
side of the trailer. Actual weight determined by weighing each axle on a public scale, with the trailer attached
to the towing vehicle.

Gross Vehicle Weight Rating

The maximum weight of the fully loaded trailer, as published on the Certification / VIN label. A ctual weight
determined by weighing trailer on a public scale, without being attached to the towing vehicle.

Hitch Weight

The downward force exerted on the hitch ball by the trailer coupler.

Innerliner
The layer(s) forming the inside surface of a tubeless tire that contains the inflating medium within the tire.

Innerliner separation

The parting of the innerliner from cord material in the carcass.

45

Not for

Reproduction

Intended outboard sidewall

The sidewall that contains a white-wall, bears white lettering or bears manufacturer, brand, and/or model name
molding that is higher or deeper than the same molding on the other sidewall of the tire or the outward facing
sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a
vehicle.

Light truck (LT) tire

A tire designated by its manufacturer as primarily intended for use on lightweight trucks or multipurpose
passenger vehicles.

Load rating

The maximum load that a tire is rated to carry for a given inflation pressure.

Maximum load rating

The load rating for a tire at the maximum permissible inflation pressure for that tire.

Maximum permissible inflation pressure

The maximum cold inflation pressure to which a tire may be inflated.

Maximum loaded vehicle weight

The sum of curb weight, accessory weight, vehicle capacity weight, and production options weight.

Measuring rim

The rim on which a tire is fitted for physical dimension requirements.

Pin Weight

The downward force applied to the 5

Non-pneumatic rim

A mechanical device which, when a non-pneumatic tire assembly incorporates a wheel, supports the tire, and
attaches, either integrally or separably, to the wheel center member and upon which the tire is attached.

Non-pneumatic spare tire assembly

A non-pneumatic tire assembly intended for temporary use in place of one of the pneumatic tires and rims that
are fitted to a passenger car in compliance with the requirements of this standard.

Non-pneumatic tire

A mechanical device which transmits, either directly or through a wheel or wheel center member, the vertical
load and tractive forces from the roadway to the vehicle, generates the tractive forc es that provide the
directional control of the vehicle and does not rely on the containment of any gas or fluid for providing those
functions.

Non-pneumatic tire assembly

A non-pneumatic tire, alone or in combination with a wheel or wheel center member, which can be mounted on
a vehicle.

Normal occupant weight

This means 68 kilograms (150 lbs.) times the number of occupants specified in the second column of Table I
of 49 CFR 571.110.

Occupant distribution

The distribution of occupants in a vehicle as specified in the third column of Table I of 49 CFR 571.110.

Open splice

Any parting at any junction of tread, sidewall, or innerliner that extends to cord material.

Outer diameter

The overall diameter of an inflated new tire.

Overall width

th

wheel or gooseneck ball, by the trailer kingpin or gooseneck coupler.

46 ALLMAND.COM

The linear distance between the exteriors of the sidewalls of an inflated tire, including elevations due to

Not for

Reproduction

labeling, decorations, or protective bands or ribs.

Ply

A layer of rubber-coated parallel cords.

Ply separation

A parting of rubber compound between adjacent plies.

Pneumatic tire

A mechanical device made of rubber, chemicals, fabric and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains the gas or fluid that sustains the load.

Production options weight

The combined weight of those installed regular production options weighing over 2.3 kilograms (5 lbs.) in
excess of those standard items which they replace, not previously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.

Radial ply tire

A pneumatic tire in which the ply cords that extend to the beads are laid at substantially 90 degrees to the
centerline of the tread.

Recommended inflation pressure

This is the inflation pressure provided by the vehicle manufacturer on the Tire Information label and on the
Certification / VIN tag.

Reinforced tire

A tire designed to operate at higher loads and at higher inflation pressures than the corresponding standard
tire.

Rim

A metal support for a tire or a tire and tube assembly upon which the tire beads are seated.

Rim diameter

This means the nominal diameter of the bead seat.

Rim size designation

This means the rim diameter and width.

Rim type designation

This means the industry of manufacturer’s designation for a rim by style or code.

Rim width

This means the nominal distance between rim flanges.

Section width

The linear distance between the exteriors of the sidewalls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands.

Sidewall

That portion of a tire between the tread and bead.

Sidewall separation

The parting of the rubber compound from the cord material in the sidewall.

Special Trailer (ST) tire
The "ST" is an indication the tire is for trailer use only.

Test rim

The rim on which a tire is fitted for testing, and may be any rim listed as appropriate for use with that tire.

Tread

47

That portion of a tire that comes into contact with the road.

Not for

Reproduction

Tread rib

A tread section running circumferentially around a tire.

Tread separation

Pulling away of the tread from the tire carcass.

Treadwear indicators (TWI)

The projections within the principal grooves designed to give a visual indication of the degrees of wear of the
tread.

Vehicle capacity weight

The rated cargo and luggage load plus 68 kilograms (150 lbs.) times the vehicle’s designated seating capacity.

Vehicle maximum load on the tire

The load on an individual tire that is determined by distributing to each axle its share of the maximum loaded
vehicle weight and dividing by two.

Vehicle normal load on the tire

The load on an individual tire that is determined by distributing to each axle its share of the curb weight,
accessory weight, and normal occupant weight (distributed in accordance with Table I of CRF 49 571.110) and
dividing by 2.

Weather side

The surface area of the rim not covered by the inflated tire.

Wheel center member

In the case of a non-pneumatic tire assembly incorporating a wheel, a mechanical device which attaches,
either integrally or separably, to the non-pneumatic rim and provides the connection between the non ­pneumatic rim and the vehicle; or, in the case of a non -pneumatic tire assembly not incorporating a wheel, a
mechanical device which attaches, either integrally or separably, to the non-pneumatic tire and provides the
connection between tire and the vehicle.

Wheel-holding fixture

The fixture used to hold the wheel and tire assembly securely during testing.

1.4. TIRE SAFETY - EVERYTHING RIDES ON IT

The National Traffic Safety Administration (NHTSA) has published a brochure (DOT HS 809 361) that
discusses all aspects of Tire Safety, as required by CFR 575.6. This brochure is reproduced in part below. It
can be obtained and downloaded from NHTSA, free of charge, from the following web site:

http://www.nhtsa.dot.gov/cars/rules/TireSafety/ridesonit/tires_index.html

Studies of tire safety show that maintaining proper tire pressure, observing tire and vehicle load limits (not
carrying more weight in your vehicle than your tires or vehicle can safely handle), avoiding road hazards, and
inspecting tires for cuts, slashes, and other irregularities are the most important things you can do to avoid tire
failure, such as tread separation or blowout and flat tires. These actions, along with other care and
maintenance activities, can also:

Improve vehicle handling
Help protect you and others from avoidable breakdowns and accidents
Improve fuel economy
Increase the life of your tires.

This booklet presents a comprehensive overview of tire safety, including information on the following topics:

Basic tire maintenance
Uniform Tire Quality Grading System
Fundamental characteristics of tires

48 ALLMAND.COM

Tire safety tip s.

Not for

Reproduction

Use this information to make tire safety a regular part of your vehicle maintenance routine. Recognize that the
time you spend is minimal compared with the inconvenience and safety consequences of a flat tire or other tire
failure.

1.5. SAFETY FIRST–BASI C TIRE MAINTENANCE

Properly maintained tires improve the steering, stopping, traction, and load-carrying capability of your vehicle.
Underinflated tires and overloaded vehicles are a major cause of tire failure. Therefore, as mentioned above,
to avoid flat tires and other types of tire failure, you should maintain proper tire pressure, observe tire and
vehicle load limits, avoid road hazards, and regularly inspect your tires.

1.5.1. F

Tire information placards and vehicle certification labels contain information on tires and load limits. These
labels indicate the vehicle manufacturer's information including:

Recommended tire size
Recommended tire inflation pressure
Vehicle capacity weight (VCW–the maximum occupant and cargo weight a vehicle is designed to carry)
Front and rear gross axle weight ratings (GAWR– the maximum weight the axle systems are designed to

Both placards and certification labels are permanently attached to the trailer near the left front.

1.5.2. U

Tire inflation pressure is the level of air in the tire that provides it with load-carrying capacity and affects the
overall performance of the vehicle. The tire inflation pressure is a num ber that indicates the amount of air
pressure– measured in pounds per square inch (psi)–a tire requires to be properly inflated. (You will also find
this number on the vehicle information placard expressed in kilopascals (kpa), which is the metric measure
used internationally.)

Manufacturers of passenger vehicles and light trucks determine this number based on the vehicle's design
load limit, that is, the greatest amount of weight a vehicle can safely carry and the vehicle's tire size. The
proper tire pressure for your vehicle is referred to as the "recommended cold inflation pressure." (As you will
read below, it is difficult to obtain the recommended tire pressure if your tires are n ot cold.)
Because tires are designed to be used on more than one type of vehicle, tire manufacturers list the "maximum
permissible inflation pressure" on the tire sidewall. This number is the greatest amount of air pressure that
should ever be put in the tire under normal driving conditions.

INDING YOUR VEHICLE'S RECOMMENDED TIRE PRESSURE AND LOAD LIMITS

carry).

NDERSTANDING TIRE PRESSURE AND LOAD LIMITS

1.5.3. C

It is important to check your vehicle's tire pressure at least once a month for the following reasons:

For convenience, purchase a tire pressure gauge to keep in your vehicle. Gauges can be purchased at tire
dealerships, auto supply stores, and other retail outlets.
The recommended tire inflation pressure that vehicle manufacturers provide reflects the proper psi when a tire
is cold. The term cold does not relate to the outside temperature. Rather, a cold tire is one that has not been
driven on for at least three hours. When you drive, your tires get warmer, causing the air pressure within them
to increase. Therefore, to get an accurate tire pressure reading, you must measure tire pressure when the tires
are cold or compensate for the extra pressure in warm tires.

49

HECKING TIRE PRESSURE

Most tires may naturally lose air over time.
Tires can lose air suddenly if you drive over a pothole or other object or if you strike the curb when

parking.

With radial tires, it is usually not possible to determine underinflation by visual inspection.

1.5.4. STEPS FOR MAINTAINING PROPER TIRE PRESSURE

Not for

Reproduction

Step 1: Locate the recommended tire pressure on the vehicle's tire information placard, certification

label, or in the owner's manual.
Step 2: Record the tire pressure of all tires.
Step 3: If the tire pressure is too high in any of the tires, slowly release air by gently pressing on the

tire valve stem with the edge of your tire gauge until you get to the correct pressure.
Step 4: If the tire pressure is too low, note the difference between the measured tire pressure and the

correct tire pressure. These "missing" pounds of pressure are what you will need to add.
Step 5: At a service station, add the missing pounds of air pressure to each tire that is underinflated.
Step 6: Check all the tires to make sure they have the same air pressure (except in cases in which the

front and rear tires are supposed to have different amounts of pressure).

If you have been driving your vehicle and think that a tire is underinflated, fill it to the recommended cold
inflation pressure indicated on your vehicle's tire information placard or certification label. While your tire may
still be slightly underinflated due to the extra pounds of pressure in the warm tire, it is safer to drive with air
pressure that is slightly lower than the vehicle manufacturer's recommended cold inflation pressure than to
drive with a significantly underinflated tire. Since this is a temporary fix, don't forget to recheck and adjust the
tire's pressure when you can obtain a cold reading.

1.5.5. T

To maintain tire safety, purchase new tires that are the same size as the vehicle's original tires or another size
recommended by the manufacturer. Look at the tire information placard, the owner's manual, or the sidewall of
the tire you are replacing to find this information. If you have any doubt about the correct size to choose,
consult with the tire dealer.

1.5.6. T

The tire tread provides the gripping action and traction that prevent your vehicle from slipping or sliding,
especially when the road is wet or icy. In general, tires are not safe and should be replaced when the tread is
worn down to 1/16 of an inch. Tires have built-in treadwear indicators that let you know when it is time to
replace your tires. These indicators are raised sections spaced intermittently in the bottom of the tread
grooves. When they appear "even" with the outside of the tread, it is time to replace your tires. Another method
for checking tread depth is to place a penny in the tread with Lincoln's head upside down and facing you. If
you can see the top of Lincoln's head, you are ready for new tires.

1.5.7. T

To avoid vibration or shaking of the vehicle when a tire rotates, the tire must be properly balanced. This
balance is achieved by positioning weights on the wheel to counterbalance heavy spots on the wheel-and-tire
assembly. A wheel alignment adjusts the angles of the wheels so that they are positioned correctly relative to
the vehicle's frame. This adjustment maximizes the life of your tires. These adjustments require special
equipment and should be performed by a qualified technician.

1.5.8. T

The proper repair of a punctured tire requires a plug for the hole and a patch for the area inside the tire that
surrounds the puncture hole. Punctures through the tread can be repaired if they are not too large, but
punctures to the sidewall should not be repaired. Tires must be removed from the rim to be properly inspected
before being plugged and patched.

IRE SIZE

IRE TREAD

IRE BALANCE AND WHEEL ALIGNMENT

IRE REPAIR

1.5.9. T

Federal law requires tire manu facturers to place standardized information on the sidewall of all tires. This
information identifies and describes the fundamental characteristics of the tire and also provides a tire
identification number for safety standard certification and in case of a recall.

50 ALLMAND.COM

IRE FUNDAMENTALS

1.5.9.1. Information on Passenger Vehicle Tires

Not for

Reproduction

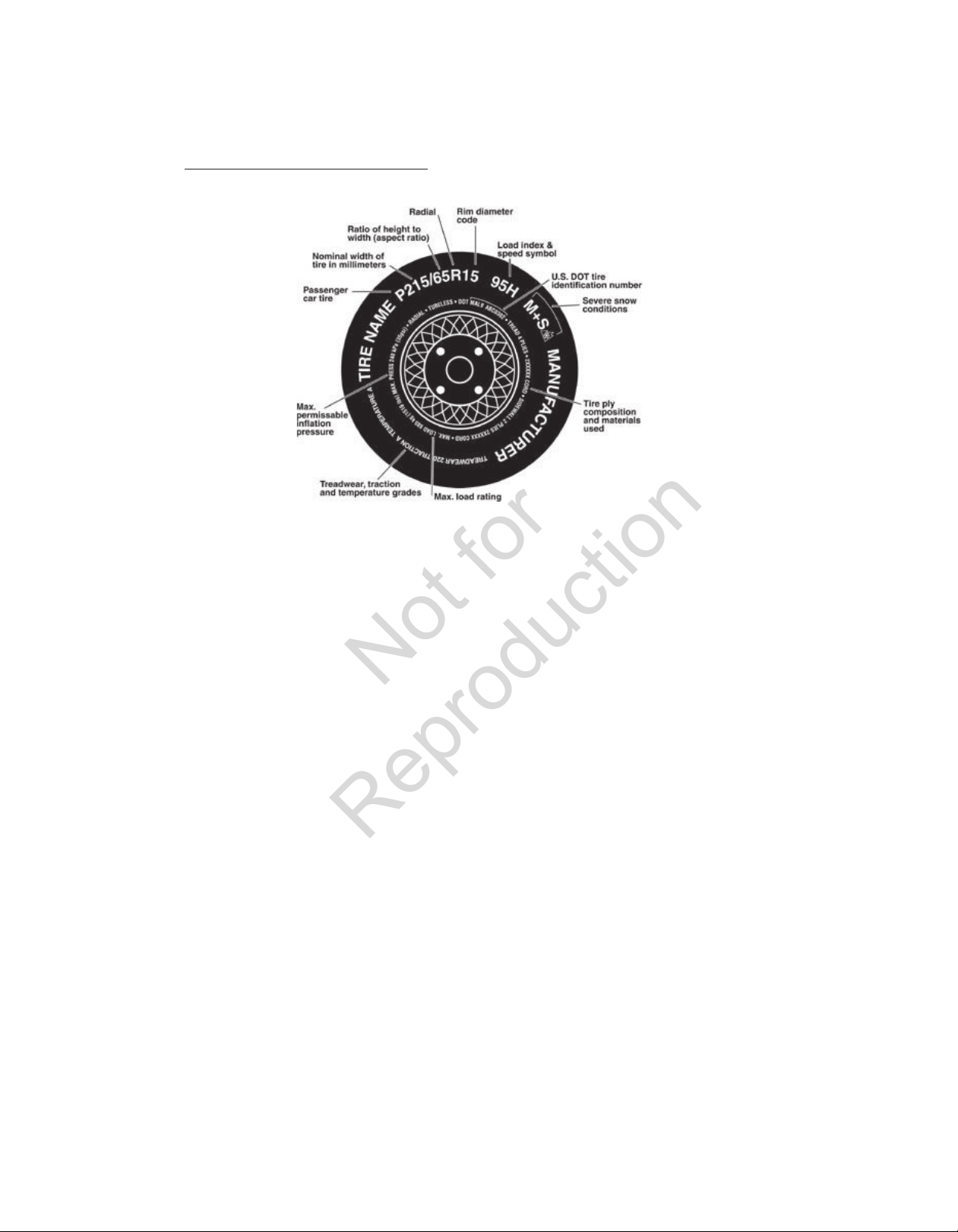

Please r efer to the diagram below .

P

The "P" indicates the tire is for passenger vehicles.

Next number

This three-digit number gives the width in millimeters of the tire from sidewall edge to sidewall edge. In
general, the larger the number, the wider the tire.

Next number

This two-digit number, known as the aspect ratio, gives the tire's ratio of height to width. Numbers of 70 or
lower indicate a short sidewall for improved steering response and better overall handling on dry pavement.

R
The "R" stands for radial. Radial ply construction of tires has been the industry standard for the p ast 20 years.

Next number

This two-digit number is the wheel or rim diameter in inches. If you change your wheel size, you will have to
purchase new tires to match the new wheel diameter.

Next number

This two- or three-digit number is the tire's load index. It is a measurement of how much weight each tire can
support. You may find this information in your owner's manual. If not, contact a local tire dealer. Note: You may
not find this information on all tires because it is not required by law.

M+S

The "M+S" or "M/S" indicates that the tire has some mud and snow capability. Most radial tires have these
markings; hence, they have some mud and snow capability.

Speed Rating

The speed rating denotes the speed at which a tire is designed to be driven for extended periods of time. The
ratings range from 99 miles per hour (mph) to 186 mph. These ratings are listed below. Note: You may not find
this information on all tires because it is not required by law.

51

Tire Safety Information

Letter Rating

Speed Rating

Q

99 mph

R

106 mph

S

112 mph

T

118 mph

U

124 mph

H

130 mph

V

149 mph

W

168* mph

Y

186* mph

Not for

Reproduction

* For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR.
For those with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.

U.S. DOT Tire Identification Number

This begins with the letters "DOT" and indicates that the tire meets all federal standards. The next two
numbers or letters are the plant code where it was manufactured, and the last four numbers represent the
week and year the tire was built. For example, the numbers 3197 means the 31st week of 1997. The other
numbers are marketing codes used at the manufacturer's discretion. This information is used to contact
consumers if a tire defect requires a recal l.

Tire Ply Composition and Materials Used

The number of plies indicates the number of layers of rubber-coated fabric in the tire. In general, the greater
the number of plies, the more weight a tire can support. Tire manufacturers also must indicate the materials in
the tire, which include steel, nylon, polyester, and others.

Maximum Load Rating

This number indicates the maximum load in kilograms and pounds that can be carried by the tire.

Maximum Permissible Inflation Pressure

This number is the greatest amount of air pressure that should ever be put in the tire under normal driving
conditions.

1.5.9.2. UTQGS Information

Treadwear Number

This number indicates the tire's wear rate. The higher the treadwear number is, the longer it should take for the
tread to wear down. For example, a tire graded 400 should last twice as long as a tire graded 200.

Traction Letter

This letter indicates a tire's ability to stop on wet pavement. A higher graded tire should allow you to stop your
car on wet roads in a shorter distance than a tire with a lower grade. Traction is graded from highest to lowest
as "AA","A", "B", and "C".

Temperature Letter

This letter indicates a tire's resistance to heat. The temperature grade is for a tire that is inflated properly and
not overloaded. Excessi ve speed, underinflation or excessive loading, either separately or in combination, can
cause heat build-up and possible tire failure. From highest to lowest, a tire's resistance to heat is graded as
"A", "B", or "C".

52 ALLMAND.COM

1.5.9.3. Additional Information on Light Truck Tires

Not for

Reproduction

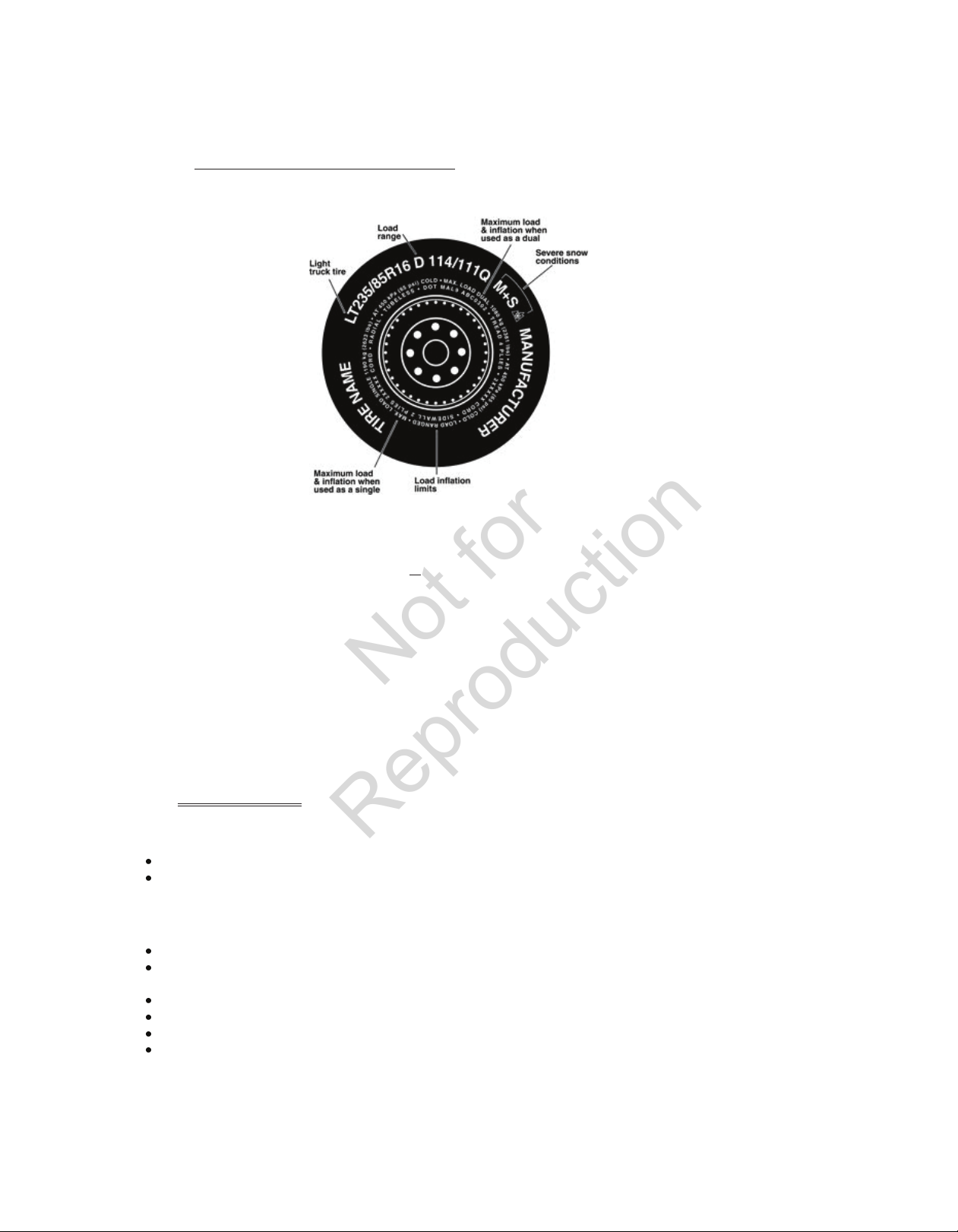

Please refer to the following diagram.

Tires for light trucks have other markings besides those found on the sidewalls of passenger tires.

LT

The "LT" indicates the tire is for light trucks or trailers.

ST

An "ST" is an indication the tire is for trailer use only.

Max. Load Dual kg (lbs) at kPa (psi) Cold

This information indicates the maximum load and tire pressure when the tire is used as a dual, that is,
when four tires are put on each rear axle (a total of six or more tires on the vehicle).

Max. Load Single kg (lbs) at kPa (psi) Cold

This information indicates the maximum load and tire pressure when the tire is used as a single.

Load Range

This information identifies the tire's load-carrying capabilities and its inflation limits.

1.6. TIRE SAFETY TIPS

Preventing Tire Damage

Slow down if you have to go over a pothole or other object in the road.
Do not run over curbs or other foreign objects in the roadway, and try not to strike the curb when

parking.

Tire Safety Checklist

Check tire pressure regularly (at least once a month), including the spare.
Inspect tires for uneven wear patterns on the tread, cracks, foreign objects, or other signs of wear or

trauma.
Remove bits of glass and foreign objects wedged in the tread.
Make sure your tire valves have valve caps.
Check tire pressure before going on a long trip.
Do not overload your vehicle. Check the Tire Information and Loading Placard or User’s Manual for the

maximum recommended load for the vehicle.

53

Not for

Reproduction

54 ALLMAND.COM

Not for

Reproduction

55

Not for

Reproduction
