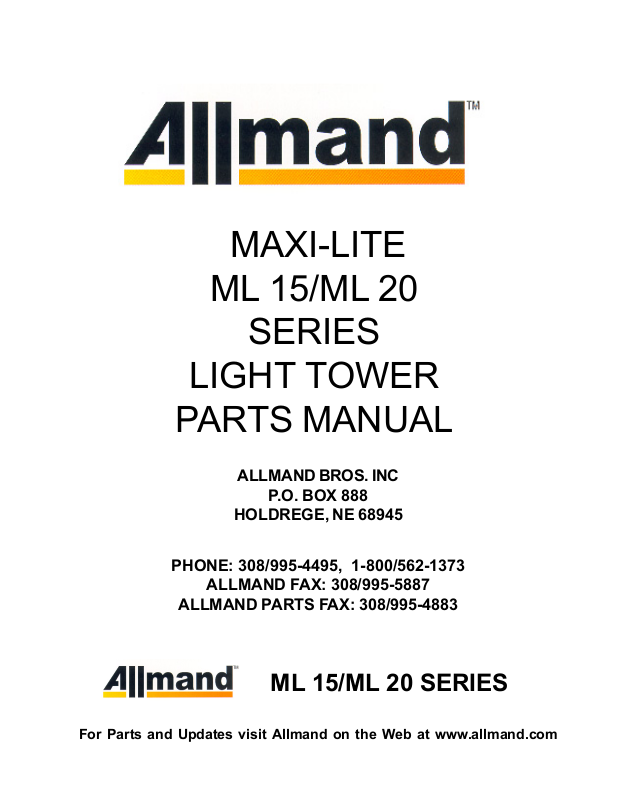

Maxi-Lite ML 15/ML 20

MAXI-LITE

ML 15/ML 20

SERIES

LIGHT TOWER

PARTS MANUAL

ALLMAND BROS. INC

P.O. BOX 888

HOLDREGE, NE 68945

PHONE: [phone]

ALLMAND FAX: [phone]

ALLMAND PARTS FAX: [phone]

ML 15/ML 20 SERIES

* Use these codes to designate color needed:

01-White 06-Allmand Gold

For Parts and Updates visit Allmand on the Web at www.allmand.com

02-Gloss Black 09-Flat Black
03-Gray 10-High temp Black
04-Allmand Yellow 11-Red
05-Orange

Contents

SHO 1000 HIGH PRESSURE SODIUM LAMP ................................................................................4

SHO 1000 METALLIC VAPOR LAMP ................................................................................................ 5

MANUAL WINCH TOWER ASSEMBLY ............................................................................................6

MANUAL WINCH TOWER CABLE ROUTING .................................................................................8

ELECTRIC WINCH, STRAIGHT CORD TOWER ASSEMBLY ......................................................10

ELECTRIC WINCH TOWER CABLE ROUTING ............................................................................ 12

6-LIGHT REMOVABLE LIGHT BAR ASSEMBLY ..........................................................................14

4-LIGHT REMOVABLE LIGHT BAR ASSEMBLY ..........................................................................14

AXLE ASSEMBLY, HITCH ASSEMBLY AND TONGUE JACK...................................................... 16

TAILLIGHTS, DOOR PROPS AND OUTRIGGER LOCKS ...........................................................18

BATTERY, CABLES, AND GROUND STRAP ................................................................................ 20

KUBOTA V2203 ENGINE/GENERATOR SET...............................................................................22

ISUZU 4LE ENGINE/GENERATOR SET ........................................................................................ 24

KUBOTA RADIATOR AND MOUNTING PLATE ............................................................................ 26

ISUZU RADIATOR MOUNTING PLATE .........................................................................................28

4-LIGHT BALLAST ASSEMBLY ..................................................................................................... 30

4-LIGHT AC GAUGE PANEL ASSEMBLY ...................................................................................... 32

ISUZU 4-LIGHT AC GAUGE PANEL ASSEMBLY ..........................................................................34

MANUAL WINCH AND TOWER SUPPORT ASSEMBLY ..............................................................36

ELECTRIC WINCH, SLACK LIMIT SWITCH, AND TOWER SUPPORT ...................................... 38

FUEL TANK ASSEMBLY ................................................................................................................. 40

RIGHT QUARTER PANEL ASSEMBLY .........................................................................................42

KUBOTA ENGINE DC GAUGE PANEL ASSEMBLY .....................................................................44

ISUZU ENGINE DC GAUGE PANEL ASSEMBLY ..........................................................................46

RIGHT ROOF PANEL ASSEMBLY .................................................................................................48

LEFT ROOF PANEL ASSEMBLY ...................................................................................................50

RIGHT DOOR PANEL ASSEMBLY ...............................................................................................52

LEFT DOOR PANEL ASSEMBLY .................................................................................................. 54

LEFT PLASTIC FRONT PANEL ASSEMBLY ................................................................................. 56

RIGHT PLASTIC FRONT PANEL ASSEMBLY .............................................................................58

OUTRIGGERS AND REAR JACK MOUNT ASSEMBLY ............................................................... 60

REAR OUTLET PANEL ASSEMBLY ..............................................................................................62

REAR DOOR AND PANEL ASSEMBLY ......................................................................................... 64

LICENSE PLATE HOLDER ASSEMBLY .......................................................................................66

DECAL PLACEMENT ................................................................................................................ 68-77

KUBOTA V2003T and V2203...........................................................................................................78

ISUZU 4LE1 ...................................................................................................................................... 80

KUBOTA ENGINE/GENERATOR SET ELECTRICAL...................................................................82

ISUZU 4LE1 ENGINE ELECTRICAL ..............................................................................................83

BALLAST ASSEMBLY, 4-LIGHT CSA ............................................................................................ 84

BALLAST ASSEMBLY, 6-LIGHT CSA ............................................................................................ 85

OUTLET ASSEMBLY CSA 15KW WITH EXTRA 50A RECEPTACLE ........................................... 86

OUTLET ASSEMBLY CSA 20KW WITH EXTRA 50A RECEPTACLE ........................................... 87

LAMP SOCKET/BALLAST COMPARTMENT WIRING, 4-LIGHT .................................................88

352037 TAILLIGHT WIRING HARNESS .........................................................................................89

DUTTON-LAINSON STRONG ARM WINCH SCHEMATIC ........................................................... 90

LIMITED WARRANTY ......................................................................................................................91

A-1A

SHO 1000 METALLIC VAPOR LAMP

SHO 1000 HIGH PRESSURE SODIUM LAMP

4 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

SHO 1000 METALLIC VAPOR LAMP
SHO 1000 HIGH PRESSURE SODIUM LAMP

NO REQ’D PART NO DESCRIPTION

NS 610250 LAMP HOLDER ASS’Y WITH YOKE AND LAMP (SOLID MT.) (REM. FIXTURES)
NS 610265 LAMP HOLDER ASS’Y WITH YOKE AND LAMP (SOLID MT.) (HPS)
NS 610255 LAMP HOLDER ASSEMBLY W/YOKE, LAMP AND CUSHIONS (CUSHION MT.)
NS 610253 LAMP HOLDER ASSEMBLY W/YOKE, LAMP AND CUSHIONS (CUSHION MT.) (HPS)
NS 650144 LAMP HOLDER ASSEMBLY WITH YOKE AND LAMP
NS 610263 LAMP HOLDER ASSEMBLY WITH NO YOKE, NO LAMP,s HPS
1 1 610208 ALUMINUM RING
2 1 610211 LAMP BT-37
2A 1 610218 LAMP 1000W SHO ED37 (HPS)
3 2 ** #8 WASHER (STAINLESS STEEL)
4 2 ** #8-32 NC X 1/2 HEX HEAD BOLT (STAINLESS STEEL)
5 8 041028 #10-24 NC X 1/2 HEX HEAD BOLT (STAINLESS STEEL)15
6 8 043017 #10 INTERNAL TOOTH WASHER
7 1 610207 ALUMINUM PLATE
8 2 044013 #8 -32 NC NYLON INSERT NUT (STAINLESS STEEL)
9 1 610209 LAMP TIP SUPPORT
NS 1 650250 LAMP TIP SUPPORT (HIGH PRESSURE SODIUM)
10 1 610210 LAMP TIP SUPPORT TUBE
11 1 610212 CERAMIC SOCKET
12 1 610201 REFLECTOR
13 2 610213 END HOUSING GASKET
14 1 610206 RH SOLID END CASTING
15 2 044037 3/8 - 24 NF NYLON INSERT NUT
16 4 047019 .75 OD x.385 ID x.20 NYLON WASHER
17 2 045142 3/8 - 24 NF X 3/8 - 16 NC X 2" STUD
18 1 680493 SOLID MOUNT YOKE
19 2 047016 3/8 SAE WASHER
20 044031 5/16-18 KEPS NUT
21 2 041035 #10 - 24 NC X 1 1/4 ROUND HEAD BOLT
22 4 610260 RUBBER SHOCK MOUNT SHO 1000
23 2 610235 SHO CUSHION MOUNT PLATE
24 2 044018 10-24 NYLON LOCK NUT
25 1 610234 SHO 1000 CUSHION MOUNT YOKE
26 610236 SHO 1000 CUSHION MOUNT YOKE ASSEMBLY
27 310434 16/3 PORTABLE CORD 66
28 1 510007 1/2-CORD GRIP
29 1 610214 1/2” ENTRANCE ELBOW
30 1 610215 1/2 CONDUIT NIPPLE
31 1 610205 LH SOCKET END CASTING
32 1 ** GREEN HEAT TEMP WIRE
33 1 ** BLACK HEAT TEMP WIRE
34 1 ** WHITE HEAT TEMP WIRE
35 1 610203 LENS
36 1 610217 LENS GASKET (SILICONE)
37 2 044019 #10-24 NYLON INSERT NUT (STAINLESS)
38 1 610202 LENS CHANNEL SET
39 2 045070 #10-24 NC SQ BD HOOK BOLT (W/VISOR)
40 1 610017 SHO 1000 LIGHT VISOR (OPTIONAL
41 2 044016 #10-24 NC KEPS NUT

A-1B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 5

B-1A

MANUAL WINCH TOWER ASSEMBLY

6 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

MANUAL WINCH TOWER ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680102* 4" MANUAL WINCH TOWER WELDMENT
2 2 320110 3” PULLEY W/BUSHING
3 2 620550 1/2 - 13 NC X 2 1/8 LOCKING KNOB
4 3 650110 .312 TOWER PAD
5 1 352280 PLASTIC TOWER PAD
6 1 043100 5/8 INTERNAL TOOTH LOCK WASHER
7 8 310212 #8 CUSHION CLAMP
8 1 046242 5/8 - 11 NC X 1 GRADE 5 BOLT
9 2 046200 1/2 - 13 NC X 2 1/4 GRADE 5 BOLT
10 3 044048 1/2 -13 NC NYLON INSERT NUT
11 8 046015 1/4 - 20 NC X 1” GRADE 5 HEX BOLT
12 8 044023 1/4 - 20 NC NYLON INSERT NUT
13 14 047009 1/4” FLATWASHER STAINLESS STEEL
14 8 041023 #10 X 3/8 SELF-TAPPING PLASTIC SCREW
15 1 680180* 3" TOWER WELDMENT MANUAL WINCH
16 1 352017* 2-5/8" MANUAL TOWER WELDMENT FOR REM. LIGHT BAR
17 1 620511 WELDMENT, TOWER SUPPORT
18 2 047030 5/8 FLAT WASHER (with painted tower)

1 047030 5/8 FLAT WASHER (with galvanized tower)
19 1 044053 5/8 - 11 NC NYLON INSERT NUT
20 1 650145 MAST LOCKING BAR
21 1 047025 1/2” PLATED FLAT WASHER
22 1 610531 DLB 1200 BRAKE WINCH - PLATED
23 1 1/2” NUT (SUPPLIED WITH WINCH)
24 1 WINCH SPRING (SUPPLIED WITH WINCH)
25 1 712032 HANDLE FOR DLB 1200 - 7"
26 3 046110 3/8 - 16 NC X 1 GRADE 5 BOLT
27 3 047010 5/16” FLAT WASHER
28 3 044038 3/8 -16 NC NYLON INSERT NUT
29 1 320410 CORD REEL (OPTIONAL)
30 1 320453 3/16” X 1-3/4” ROLL PIN

B-1B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 7

B-2A

MANUAL WINCH TOWER CABLE ROUTING

8 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

MANUAL WINCH TOWER CABLE ROUTING

NO REQ’D PART NO DESCRIPTION

1 2 620084 WIRE ROPE CLIP 3/16"
2 1 045040 WIRE ROPE THIMBLE, ¼”
3 1 620076 STEEL CABLE 3/16- X 11'
4 1 650140 MAST WIRING - 14/7 X 324" (STRAIGHT CORD)
5 1 650133 STEEL CABLE 3/16” X 17' 9"
6 1 320185 STEEL CABLE 3/16" X 10’
7 1 352016 MAST WIRING 16/8 X 344” (CORD REEL 4 LIGHT)

1 352083 MAST WIRING 16/10 X 344” (CORD REEL 6 LIGHT)

680209* MANUAL WINCH TOWER (4 Light) Complete W/Light Bar Assy
680210* MANUAL CORD REEL TOWER (4 Light) Complete W/Light Bar Assy
680213* MANUAL WINCH TOWER (6 Light) Complete W/Light Bar Assy
680214* MANUAL CORD REEL TOWER (6 Light) Complete W/Light Bar Assy

INSTRUCTIONS FOR REPLACING STEEL CABLES.

3/16 X 11'

REMOVE THE CUSHION CLAMPS AND MAST WIRING FROM 3" MAST SECTION.

REMOVE THE WIRE ROPE CLIPS AT TOP END OF THE 4" MAST SECTION.

REMOVE THE 3" PULLEY AT THE END OF THE 3" MAST SECTION.

REMOVE THE 2 5/8" ROUND MAST SECTION.

REMOVE ALL BROKEN AND FRAYED CABLE.

REPLACE NEW CABLE THROUGH SLOT AND EYELET IN THE ROUND MAST SECTION.

REPLACE 2 5/8" ROUND MAST SECTION IN THE 3" MAST SECTION.

ROUTE CABLE THROUGH PULLEY BRACKETS AND INSTALL 3" PULLEY.

WITH ALL SECTIONS PUSHED TOGETHER TIGHT, INSERT CABLE THROUGH HALF-LINK

AND REINSTALL WIRE ROPE CLIPS.

REINSTALL CUSHION CLAMPS AND MAST WIRING ON THE 3" MAST SECTION.

B-2B

3/16 X 17' 9"

REMOVE MAST WIRING FROM BALLAST COMPARTMENT (SEE ELECTRICAL SCHEMATIC)

REMOVE THE CUSHION CLAMPS AND MAST WIRING FROM 4" MAST SECTION.

REMOVE STOP BOLT AND WASHER.

REMOVE 4 TOWER PADS AND 3" PULLEY AT THE END OF THE 4" MAST SECTION.

REMOVE THE 2 5/8" ROUND AND 3" MAST SECTIONS TOGETHER.

REMOVE ALL BROKEN AND FRAYED CABLE.

REPLACE NEW CABLE THROUGH SLOT AND EYELET IN THE 3" MAST SECTION AND

THROUGH PULLEY BRACKETS.

REPLACE 2 5/8" ROUND AND 3" MAST SECTIONS.

REPLACE 3" PULLEY AND 4 TOWER PADS.

ATTACH CABLE TO WINCH AND WIND IN CLOCKWISE DIRECTION UNTIL ALL SLACK IS OUT.

REPLACE STOP BOLT AND WASHER.

REPLACE CUSHION CLAMPS AND MAST WIRING ON 4" MAST SECTION.

REPLACE MAST WIRING IN BALLAST COMPARTMENT. (SEE ELECTRICAL SCHEMATIC)

3/16 X 10’

REMOVE ALL BROKEN AND FRAYED CABLE.

FEED NEW CABLE THROUGH EYELET IN MAST PIVOT SECTION.

FEED THROUGH PULLEY BRACKETS AND AROUND PULLEY IN FRONT UPRIGHTS.

ATTACH CABLE TO WINCH AND WIND IN CLOCKWISE DIRECTION UNTIL ALL SLACK IS OUT.

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 9

B-3A

ELECTRIC WINCH TOWER ASSEMBLY

ELECTRIC WINCH MAST PIVOT SECTION ASSEMBLY

10 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ELECTRIC WINCH TOWER ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680184* WELDMENT, 4” TOWER, ELECTRIC
2 3 320112 2 1/2" PULLEY W/BUSHING

3 2 320110 3" PULLEY
4 1 620579 LOCK SPRING
5 1 620577 LOCK HANDLE
6 1 620550 LOCKING KNOB 1/2 - 13 NC X 2 1/8”
7 2 650110 PLASTIC TOWER PAD, .312
8 1 352280 PLASTIC TOWER PAD 5/16 SHORT
9 1 043100 5/8 INTERNAL TOOTH LOCK WASHER
10 1 046242 5/8 - 11 NC X 1 GRADE 5 BOLT
11 8 022022 #8 CUSHION CLAMP
12 1 090309 SPRING LATCH RELEASE DECAL
13 5 046200 1/2 - 13 NC X 2 1/4 GRADE 5 BOLT
14 5 044048 1/2 - 13 NC NYLON INSERT NUT
15 2 046110 3/8 - 16 NC X 1 GRADE 5 BOLT
16 2 044080 3/8 - 16 NC TOPLOCK NUT
17 2 046105 3/8 - 16 NC X 3/4 GRADE 5 BOLT
18 2 043070 3/8 INTERNAL TOOTH LOCK WASHER
19 1 046438 1/4” X 3” QUICK RELEASE PIN
20 1 712061 STEEL LANYARD
21 4 046010 1/4 - 20 NC X 3/4 GRADE 5 BOLT
22 9 044023 1/4 - 20 NC NYLON INSERT NUT
23 8 046015 1/4 - 20 NC X 1” GRADE 5 BOLT
24 14 047009 1/4” SS FLAT WASHER
25 8 041023 #10 X 3/8 SELF TAPPING PLASTIC SCREW
26 1 680185* 3" ELECTRIC WINCH TOWER WELDMENT
27 1 352050* REMOVEABLE LIGHT BAR 2 5/8” ROUND TOWER WELDMENT
28 1 320410* CORD REEL (used on cord reel towers only)
29 1 320453 3/16 X 1 3/4 ROLL PIN (used on cord reel towers only)

B-3B

ELECTRIC WINCH MAST PIVOT SECTION ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 620570* TOWER SUPPORT WELDMENT, ELECTRIC WINCH
2 1 620545 3/4 PLATED HAIRPIN CLIP
3 1 352168 MAST LOCKING BAR, ELECTRIC WINCH
4 1 620550 LOCKING KNOB 1/2 - 13 NC X 2 1/8”
5 2 047055 1” NARROW RIM PLATED MACHINE BUSHING
6 1 047025 1/2” PLATED FLAT WASHER
7 1 044048 1/2 - 13 NC NYLON INSERT NUT

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold

LEGEND: NS= Not Shown
** =Purchase locally

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 11

09-Flat Black 10-High temp Black 11-Red

B-4A

ELECTRIC WINCH TOWER CABLE ROUTING

12 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ELECTRIC WINCH TOWER CABLE ROUTING

NO REQ’D PART NO DESCRIPTION

1 2 620084 WIRE ROPE CLIP 3/16
2 1 045040 WIRE ROPE THIMBLE, 1/4
3 1 620525 MAST WIRING - 14/7 X 324” (4-LIGHT STRAIGHT CORD)

352094 MAST WIRING - 16/10 X 324” (6-LIGHT STRAIGHT CORD)
4 1 320185 STEEL CABLE 3/16” X 10'
5 1 352054 STEEL CABLE 7/32” X 26'
6 1 352016 MAST WIRING 16/8 X 344” (cord reel 4 light)

1 352083 MAST WIRING 16/10 X 344” (cord reel 6 light)

680533 MAST WIRING - 16/10 X 326” (4-LIGHT CORD REEL 3 PHASE)
NS 680204* ELECTRIC ST. CORD TOWER (4 Light) Complete W/Light Bar Assy

680203* ELECTRIC CORD REEL TOWER (4 Light) Complete W/Light Bar Assy

680207* ELECTRIC ST. CORD TOWER (6 Light) Complete W/Light Bar Assy

680208* ELECTRIC CORD REEL TOWER (6 Light) Complete W/Light Bar Assy

INSTRUCTIONS FOR REPLACING STEEL CABLES.

3/16 X 10'

REMOVE THE CUSHION CLAMPS AND MAST WRING FROM 3" MAST SECTION.
REMOVE LIGHT BAR BY REMOVING 4 NUTS ON BAR AND LAY BAR ON GROUND.
REMOVE THE WIRE ROPE CLIPS AT TOP END OF THE 4" MAST SECTION.
REMOVE THE 3" PULLEY AT THE END OF THE 3" MAST SECTION.
REMOVE THE 2 5/8" ROUND MAST SECTION.
REMOVE ALL BROKEN AND FRAYED CABLE.
REPLACE NEW CABLE THROUGH SLOT AND EYELET IN THE ROUND MAST SECTION.
REPLACE: 2 5/8" ROUND MAST SECTION IN THE 3" MAST SECTION.
ROUTE CABLE THROUGH PULLEY BRACKETS AND INSTALL 3" PULLEY.
WITH ALL SECTIONS PUSHED TOGETHER TIGHT, INSERT CABLE THROUGH HALF-LINK
AND REINSTALL WIRE ROPE CLIPS.
REINSTALL CUSHION CLAMPS AND MAST WIRING ON THE 3" MAST SECTION.

7 /32 X 26'

REMOVE CABLE FROM WINCH.
REMOVE MAST WIRING FROM BALLAST COMPARTMENT (SEE ELECTRICAL SCHEMATIC)
REMOVE TOWER ASSEMBLY FROM TRAILER.
REMOVE STOP BOLT AND WASHER.
REMOVE 4 NYLON ROLLERS AND 3" PULLEY AT TOP END OF 3" SQUARE SECTION.
REMOVE THE 2 5/8" ROUND AND 3" MAST SECTIONS TOGETHER.
REMOVE 2 1/2" PULLEY FROM END OF 4- SECTION.
REMOVE ALL BROKEN AND FRAYED CABLE.
REPLACE NEW CABLE THROUGH SLOT AND EYELET IN THE 3" MAST SECTION AND
THROUGH PULLEY BRACKETS.
REPLACE 2 5/8- ROUND AND 3” MAST SECTIONS.
REPLACE 3" PULLEY AND 4 NYLON ROLLERS.
REPLACE STOP BOLT AND WASHER.
RUN NEW CABLE ON OUTSIDE OF 4" SECTION.
REPLACE 2 ½” PULLEY.
REPLACE TOWER ASSEMBLY ON TRAILER.
REPLACE MAST WIRING IN BALLAST COMPARTMENT. (SEE ELECTRICAL SCHEMATIC)
RUN NEW CABLE THROUGH PULLEY BRACKEIS IN FRONT OF TRAILER.
ATTACH CABLE TO ELECTRIC WINCH.
WIND IN CLOCKWISE DIRECTION UNTIL ALL SLACK IS OUT.

B-4B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 13

B-5A

HYDRAULIC TOWER ASSEMBLY

14 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

HYDRAULIC TOWER ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 352222 4" HYDRAULIC TOWER, COIL CORD
2 1 352198 HYDRAULIC TOWER BACKBONE
3 1 352216 3" HYDRAULIC TOWER
4 1 352206 HYDRAULIC TOWER TELESCOPIC CYLINDER
5 1 620545 HAIRPIN CLAMP
6 3 FW055 1" NARROW MACHINE BUSHING
7 1 352209 HYDRAULIC SWIVEL FITTING
8 1 620550 LOCKING KNOB 1/2-13 NC x 2"
9 1 352168 MAST LOCKING BAR

10 1 ** 5/8 FLAT WASHER
11 1 ** 1/2-13 NC NYLON INSERT NUT
12 3 FP010 2" NYLON ROLLER
13 3 ** 3/8-16 NC x 2-1/2 GRADE 5 BOLT
14 3 ** 3/8-16 NC NYLON INSERT NUT
15 1 ** 5/8-11 NC x 1" GRADE 5 BOLT
16 1 ** 5/8 SPLIT LOCK WASHER

17 2 MS023 #10 x 3/8 SELF-TAPPING PLASTIC SCREW
18 1 650110 PLASTIC TOWER PAD, 5/16
19 1 ** 1/2-13 x 1” GRADE 8 BOLT
20 1 ** 1/2” SPLIT LOCK WASHER

B-5B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 15

B-6A

HYDRAULIC TOWER COIL CORD ASSEMBLY

16 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

HYDRAULIC TOWER COIL CORD ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 2 310032 CORD GRIP
1A 2 EL039 1/2" BUSHING
2 6 ** 5/16-18 NC x 3/4 SELF-TAPPING SCREW
3 1 MS050 1/4-20 NC x 3/4 TRUSS HEAD SCREW
4 3 ** 1/4 FLAT WASHER
5 3 ** 1/4-20 NC HEX NUT
6 3 EL022 #8 CUSHION CLAMP
7 1 320126 COIL CORD 16/8

8 1 352224 TUNNEL,COIL CORD, HYDRAULIC TOWER

B-6B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 17

B-7A

HYDRAULIC TOWER SUPPORT ASSEMBLY

18 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

HYDRAULIC TOWER SUPPORT ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 ** 3/4-10 NC x 10" GRADE 5 BOLT
2 4 620545 HAIRPIN RETAINER
3 1 352392 STAND-UP CYLINDER PIVOT PIN, UPPER
4 1 ** 3/4-10 NC NYLON INSERT NUT
5 4 ** 3/8-16 NC x I GRADE 5 BOLT
6 6 ** 5/16 FLAT WASHER
7 1 650330 TOWER KICK-OUT SPRING

8 4 ** 3/8-16 NC NYLON INSERT NUT
9 1 352219 STAND-UP CYLINDER FRAME MOUNT
10 1 352393 STAND-UP CYLINDER PIVOT PIN, LOWER
11 1 352207 TOWER STAND-UP CYLINDER
12 2 ** 1/4-20 NC x 3/4 GRADE 5 BOLT
13 2 ** 1/4-20 NC x 3/4 HEX NUT
14 * 352225 STAND-UP CYLINDER SHIM PLATE, 1/4”
NS * 352226 STAND-UP CYLINDER SHIM PLATE, 7 GAUGE
NS * 352227 STAND-UP CYLINDER SHIM PLATE, 10 GAUGE
NS * 352228 STAND-UP CYLINDER SHIM PLATE, 12 GAUGE
NS * 352229 STAND-UP CYLINDER SHIM PLATE, 14 GAUGE
NS * 352230 STAND-UP CYLINDER SHIM PLATE, 16 GAUGE

B-7B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 19

B-8A

HYDRAULIC TANK ASSEMBLY

20 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

HYDRAULIC TANK ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 352212 HYDRAULIC HOSE ASSEMBLY

6M3K-6FJX-6FJX902-24"

2 1 352211 HYDRAULIC HOSE ASSEMBLY

6M3K-6FJX-6FJX90S-38"

3 1 352210 HYDRAULIC HOSE ASSEMBLY

6M3K-6FJX90S-6C28FJX90M-87"-30°
4 3 320076 HYDRAULIC FITTING, 6F50X-S
5 3 1/4-20 NC NYLON INSERT NUT
6 3 310212 HOSE CLAMP
7 1 352259 HYDRAULIC FITTING, 8V6X-S
8 1 352209 HYDRAULIC FITTING, SWIVEL 90°
9 2 ** 3/8-16 NC x 3/4 GRADE 5 BOLT

10 2 ** 1/4-20 NC x 1" TRUSS HEAD BOLT
11 2 ** 3/8 SPLIT LOCKWASHER
12 1 920692 HYDRAULIC FITTING, 6C50X-S
13 1 352208 HYDRAULIC POWER UNIT

3 320545 SOLENOID COIL
2 320555 CARTRIDGE, UP

1 320560 CARTRIDGE, DOWN
14 1 352260 HYDRAULIC FITTING, STRAIGHT SWIVEL, 6F6X-S
15 1 320087 FLOW CONTROL VALVE
16 1 920823 HYDRAULIC FITTING, 6FTX-S
17 2 ** 1/4 FLAT WASHER
18 2 ** 1/4-20 NC NYLON INSERT NUT
19 1 920666 HYDRAULIC FITTING, 6-8FTX-S

B-8B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 21

B-9A

4-LIGHT REMOVABLE LIGHT BAR ASSEMBLY

11

B-10A

6-LIGHT REMOVABLE LIGHT BAR ASSEMBLY

11

22 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

4-LIGHT REMOVABLE LIGHT BAR ASSEMBLY

NO REQ’D PART NO DESCRIPTION

352042* LIGHT BAR ASSEMBLY, 4-LIGHT
1 10 ** 1/4 - 20 NC X 1/2 CARRIAGE BOLT
2 4 ** 3/4 - 10 NC NYLON INSERT NUT
3 8 ** 3/4 FLAT WASHER
4 1 620537* LIGHT BAR COVER PLATE
5 1 650319* LIGHT BAR FRAME ONLY
6 10 ** 1/4 - 20 NC KEPS NUT
7 1 310033 CORD GRIP NUT - METAL
7A 1 022039 1/2" BUSHING
8 4 ** 5/16 - 18 NC KEPS NUT
9 1 711029 LOCKING HOLE PLUG
10 4 310414 LAMP CONNECTOR, FEMALE
11 1 325017* 2 5/8 ROUND TOWER SECTION (Manual removeable light bar)

1 352050* 2 5/8 ROUND TOWER SECTION (Electric removeable light bar)

B-9B

6-LIGHT REMOVABLE LIGHT BAR ASSEMBLY

NO REQ’D PART NO DESCRIPTION

352045* LIGHT BAR ASSEMBLY, 6-LIGHT
1 10 ** 1/4 - 20 NC X 1/2 CARRIAGE BOLT
2 4 ** 3/4 - 10 NC NYLON INSERT NUT
3 8 ** 3/4 FLAT WASHER
4 1 352031* LIGHT BAR COVER PLATE
5 1 352030* LIGHT BAR FRAME ONLY
6 10 ** 1/4 - 20 NC KEPS NUT
7 1 310033 CORD GRIP NUT - METAL
7A 1 022039 1/2" BUSHING
8 4 ** 5/16 - 18 NC KEPS NUT
9 1 711029 LOCKING HOLE PLUG
10 6 310414 LAMP CONNECTOR, FEMALE
11 1 325017* 2 5/8 ROUND TOWER SECTION (Manual removeable light bar)

1 352050* 2 5/8 ROUND TOWER SECTION (Electric removeable light bar)

B-10B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 23

C-1A

AXLE ASSEMBLY, HITCH ASSEMBLY AND TONGUE JACK

24 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

AXLE ASSEMBLY, HITCH ASSEMBLY AND TONGUE JACK

NO REQ’D PART NO DESCRIPTION

2 1 650235 SIDE CRANK JACK, SNAP RING (SHOWN)

1 680558 SIDE CRANK JACK, TUBE MOUNT (NOT SHOWN)
1 680879 TOP CRANK JACK, TUBE MOUNT (NOT SHOWN)
1 330013 JACK LOCK PIN (USE WITH 680558 and 680879)

3 1 330014 JACK SNAP RING 2 5/16 XT (USE WITH 650235)

4 330012A JACK HOLE PIN KIT
5 2 046220 1/2 - 13 NC X 4 GRADE 5 BOLT
6 1 712021 BALL COUPLER ONLY
7 2 044062 1/2 - 13 NC TOPLOCK NUT
8 1 712540* PINTLE HITCH WELDMENT
9 2 046250 5/8 - 11 NC X 5 GRADE 5 BOLT
10 330009 JACK MOUNTING BRACKET W/SNAP RING
11 2 044061 5/8 - 11 NC TOPLOCK NUT
12 049040 SAFETY CHAIN SET
13 10 044099 AXLE LUG NUT
14 2 680124* WHEEL & TIRE 15" SILVER MOD

032020 TIRE P225/75R15

032075 TIRE VALVE STEM
15 1 032025 AXLE MOUNTING HARDWARE KIT
16 1 352021 AXLE 3000 LB. 56"/44"
17 712021 2" BALL COUPLING KIT
18 712552 HITCH PLATE, ONE EACH
19 2 046160 7/16-14NC X 1 1/2” GRADE 5 BOLT
20 4 047016 3/8 FLAT WASHER
21 2 044043 7/16-14NC NYLON LOCK NUT
NS 600770* REVERSIBLE HITCH ASSY.
NS 330007 HUB W/RACES
NS 330005 BEARING SET
NS 330004 HUB W/RACES AND BEARING SET

C-1B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 25

C-2A

TAILLIGHTS, DOOR PROPS AND OUTRIGGER LOCKS

26 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

TAILLIGHTS, DOOR PROPS AND OUTRIGGER LOCKS

NO REQ’D PART NO DESCRIPTION

1 8 044023 ¼-20 NC NYLON INSERT NUT
2 2 330430 OUTRIGGER PIN BLOCK
3 2 330455 OUTRIGGER PIN
4 4 041053 1/4 - 20 NC X 1 3/4 SS SCREW
5 2 352057 TELESCOPIC PROP
6 4 041080 1/4 - 20 NC X 1 SS SCREW
7 6 045113 3/16 ALUMINUM RIVETS
8 2 650129 TAILLIGHT

352037 TAILLIGHT WIRING HARNESS

680190 TAILLIGHT ASSEMBLY

C-2B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 27

C-3A

BATTERY, CABLES, AND GROUND STRAP

28 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

BATTERY, CABLES, AND GROUND STRAP

NO REQ’D PART NO DESCRIPTION

1 1 027010 21" BATTERY CABLE
2 1 027010 21" BATTERY CABLE
3 2 044033 5/16 - 18 NC NYLON INSERT NUT
4 1 340017 NYLON BATTERY HOLD DOWN
5 1 024002 12 VOLT BATTERY

1 024003 12 VOLT BATTERY (ARCTIC SPL. ONLY)
6 2 433507 J-B0LT 5/16 X 11"
7 1 046015 1/4-18 NC X 1 BOLT W/ KEPS NUT
8 2 047005 1/4 FLAT WASHER
9 1 340105 GROUND STRAP

C-3B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 29

C-4A

KUBOTA V2203 ENGINE/GENERATOR SET

30 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

KUBOTA V2203 ENGINE/GENERATOR SET

NO REQ’D PART NO DESCRIPTION

1 4 044038 3/8 - 16 NC NYLON INSERT NUT
2 4 640565 ENGINE MOUNT WASHER
3 8 044033 5/16 - 18 NC NYLON INSERT NUT
4 4 650260 SNUBBING WASHER
5 8 046050 5/16 - 18 NC X 1 GRADE 5 BOLT
6 6 047015 3/8 FLAT WASHER
7 4 848997 RUBBER ENGINE MOUNTS
8 6 046132 3/8 - 16 NC X 2 1/4 GRADE 5 BOLT
9 9 042038 10mm X 20mm X 1.25 GRADE 8.8 BOLT
10 1 640238* ENGINE MOUNT BRACE, RIGHT
11 1 640237* ENGINE MOUNT BRACE, LEFT
12 12 047016 3/8 SAE FLAT WASHER
13 3 044031 5/16 - 18 NC KEPS NUT
14 3 046055 5/16 - 18 NC X 1-1/4 GRADE 5 BOLT
15 3 043060 5/16 INTERNAL TOOTH LOCK WASHER
16 1 650272 AIR INTAKE HOSE
17 2 045038 HOSE CLAMP #32
18 1 @@@ FUEL FILTER MOUNTING PLATE
19 1 920745 KUBOTA FUEL FILTER
20 4 042027 8mm X 20mm X 1.25 GRADE 8.8 BOLT
21 2 043055 5/16 SPLIT LOCK WASHER
22 1 022025 2-SCREW ROMEX CLAMP 3/4
23 1 022036 3/4" STEEL LOCK NUT
24 1 650291 AIR CLEANER MOUNT PLATE
25 3 650234 EXHAUST MANIFOLD MOUNT GASKET
26 1 352139 KUBOTA BOX MUFFLER KIT
27 6 046080 5/16 - 18 NC X 4-1/4 GRADE 5 BOLT
28 1 650262 AIR CLEANER RADIAL SEAL
29 2 650263 AIR CLEANER BAND CLAMP
30 1 313086 MUFFLER CLAMP
31 1 680241 GENERATOR MOUNT PLATE
32 1 350350 ENGINE KUBOTA V1903

350355 ENGINE KUBOTA V2203

350352 ENGINE KUBOTA V2003T
33 1 352140 EXHAUST PIPE, KUBOTA
34 1 350351 GENERATOR 15 KW

C-4B

@@@ =See Kubota Dealer

NOTE: Exhaust pipe, muffler, and air
cleaners used may differ from illustration
depending on engine used.

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 31

C-4C

ISUZU 4LE ENGINE/GENERATOR SET

32 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ISUZU 4LE ENGINE/GENERATOR SET

NO REQ’D PART NO DESCRIPTION

1 1 680298 EXHAUST PIPE, ISUZU
2 1 @@@ AIR CLEANER
3 8 042038 10MM X 20MM X 1.25 GRADE 8.8 BOLT
4 8 047016 3/8 SAE FLAT WASHER
5 1 680427 MUFFLER, ISUZU

650234 MUFFLER GASKET
6 6 046132 3/8 - 16 NC X 2 1/4 GRADE 5 BOLT
7 1 022025 CLAMP, 2 SCREW ROMEX 3/4”
8 1 680254 GENERATOR MOUNT PLATE, ISUZU

680504 GENERATOR MOUNT PLATE, ISUZU/NEWAGE 3 PHASE

680531 GENERATOR MOUNT PLATE, ISUZU/MARATHON 3 PHASE
9 6 047015 3/8 FLAT WASHER
10 1 022036 3/4" STEEL LOCK NUT
11 8 046050 5/16 - 18 NC X 1 GRADE 5 BOLT
12 8 047010 5/16 FLAT WASHER
13 4 640565 ENGINE MOUNT WASHER
14 1 680301 ENGINE MOUNT, RIGHT
15 1 680302 ENGINE MOUNT, LEFT
16 1 650272 AIR INTAKE HOSE, ISUZU
17 4 650259 RUBBER ENGINE MOUNTS
18 4 044038 3/8 - 16 NC NYLON INSERT NUT
19 1 350357 GENERATOR, MARATHON 15KW

350356 GENERATOR, MARATHON 20KW

350358 GENERATOR, NEWAGE 20 KW 3 PHASE

680867 GENERATOR, MARATHON 20 KW 3 PHASE
20 1 680275 ENGINE, ISUZU 4LE
21 8 044033 5/16 - 18 NC NYLON INSERT NUT
22 4 650260 SNUBBING WASHER
NS 680331 AIR FILTER (PRIMARY)
NS 680332 AIR FILTER (SECONDARY)
NS 650221 OIL FILTER
NS 650220 FUEL FILTER

C-4D

@@@ =See Isuzu Dealer

NOTE: Exhaust pipe, muffler, and air
cleaners used may differ from illustration
depending on engine used.

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 33

C-5A

KUBOTA RADIATOR AND MOUNTING PLATE

34 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

KUBOTA RADIATOR AND MOUNTING PLATE

NO REQ’D PART NO DESCRIPTION

1 4 044036 3/8 - 16 NC KEPS NUT
2 1 @@@ UPPER RADIATOR HOSE
3 4 045035 #20 HOSE CLAMP
4 1 650107 KUBOTA RADIATOR
5 1 680122* KUBOTA/PERKINS RADIATOR MOUNT PLATE
6 4 047015 3/8 FLAT WASHER
7 4 046110 3/8 - 16 NC X 1 GRADE 5 BOLT
8 1 @@@ LOWER RADIATOR HOSE
9 9 044031 5/16 - 18 NC KEPS NUT
10 9 047005 1/4 FLAT WASHER
11 9 046045 5/16 - 18 NC X 3/4 GRADE 5 BOLT

@@@ =Contact local Kubota Dealer

C-5B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 35

C-5C

ISUZU RADIATOR MOUNTING PLATE

36 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ISUZU RADIATOR MOUNTING PLATE

NO REQ’D PART NO DESCRIPTION

1 9 046045 5/16 - 18 NC X 3/4 GRADE 5 BOLT
2 9 047005 1/4 FLAT WASHER
3 9 680294* ISUZU RADIATOR MOUNT PLATE
4 9 044031 5/16 - 18 NC KEPS NUT

C-5D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 37

C-6A

4-LIGHT BALLAST ASSEMBLY

38 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

4-LIGHT BALLAST ASSEMBLY

NO REQ’D PART NO DESCRIPTION

310118 HPS TRANSFORMER, CAPACITOR, AND STARTER

310119 HPS CAPACITOR AND STARTER ONLY
1 1 680119* BALLAST PANEL, ONLY
2 1 022025 2-SCREW ROMEX CLAMP, 3/4
3 2 ** 7/8 CUSHION CLAMP
4 2 ** 1/4 - 20 NC SELF TAPPING SCREW
5 1 ** 1/4 - 20 NC X 1 1/2 STUD BOLT
6 3 044021 1/4 -20 NC KEPS NUT
7 1 043050 1/4 INTERNAL TOOTH LOCK WASHER
8 16 041075 5/16 - 18 NC SELF-TAPPING SCREW
9 4 310124 TRANSFORMER ONLY
10 4 044004 #6 - 32 NC KEPS NUT
NS 1 330490 RECEPTACLE 240V. 15A (6KW ONLY)
11 4 650367 OUTLET COVER
12 2 044024 1/4 - 20 NC NYLON INSERT NUT
13 2 610570-03 DUAL CAPACITOR MOUNTING CLAMP
14 4 310115 CAPACITOR ONLY, 24 UF
NS 310391 CAPACITOR ONLY, 28 UF
15 4 047009 #8 FLAT WASHER SS
16 4 041017 #6-32 NC X 3/8 ROUND HEAD SCREW
17 2 047005 1/4 FLAT WASHER
NS 1 711029 7/8 HOLE PLUG (MANUAL WINCH)
18 1 046036 1/4-20 X 2-1/2 GRADE 5 BOLT
19 1 022036 STEEL LOCK NUT, 3/4
20 1 030054 RUBBER EDGE TRIM 3/16 X 5” LONG

C-6B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 39

C-7A

4-LIGHT AC GAUGE PANEL ASSEMBLY

40 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

4-LIGHT AC GAUGE PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 4 047010 5/16 FLAT WASHER
2 2 046055 5/16 - 18 NC X 1 1/4 GRADE 5 BOLT
3 2 046045 5/16 - 18 NC X 3/4 GRADE 5 BOLT
4 2 044004 #6 - 32 NC KEPS NUT
5 1 650139 30 AMP CIRCUIT BREAKER, KUBOTA ONLY
6 1 680119* BALLAST PANEL, ONLY
7 7 043021 ¼-20 NC KEPS NUT
8 14 041017 #6-32 NC X 3/8 ROUND HEAD SCREW
9 4 330458 CIRCUIT BREAKER SWITCH, 15 AMP SP
10 1 680118* LEFT QUARTER PANEL 4-LIGHT
11 1 041250 1/4 - 20 NC X 1/2 ROUND HEAD NYLON SCREW
12 2 041050 1/4 - 20 NC X 3/4 SCREW
13 3 044023 1/4 - 20 NC NYLON INSERT NUT
14 1 330459 CIRCUIT BREAKER SWITCH , 15 AMP DP (6KW ONLY)

1 330453 CARLING SWITCH 20 AMP SP (8KW ONLY)
15 1 680123* KUBOTA DC GAUGE PANEL
16 3 043050 1/4 INTERNAL TOOTH LOCK WASHER
17 4 046015 1/4 - 20 NC X 1 GRADE 5 BOLT
18 1 330494 1/4 - 20 NC WING NUT
19 1 ** 1/4 - 20 NC X 1 1/2 STUD
20 2 041080 1/4 - 20 NC X 1 SCREW
21 2 047008 1/4 STAINLESS STEEL FLAT WASHER
22 9 044031 5/16 - 18 NC KEPS NUT
23 5 022024 3/4" CUSHION CLAMP WITH 3/8 HOLE
24 1 352000 PULLEY BRACKET (NOTE: USE LOWER HOLE FOR MANUAL

WINCH AND UPPER HOLE FOR ELECTRIC WINCH)

25 1 330458 CARLING SWITCH, 15 AMP DP (6KW ONLY)

1 330456 CARLING SWITCH, 30AMP DP (8KW ONLY)

C-7B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 41

C-7C

ISUZU 4-LIGHT AC GAUGE PANEL ASSEMBLY

C-7C2

ISUZU 4-LIGHT AC GAUGE PANEL ASSEMBLY (3 PHASE)

42 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ISUZU 4-LIGHT AC GAUGE PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 4 047010 5/16 FLAT WASHER
2 2 046055 5/16 - 18 NC X 1 1/4 GRADE 5 BOLT
3 2 046045 5/16 - 18 NC X 3/4 GRADE 5 BOLT
4 2 044004 #6 - 32 NC KEPS NUT
5 1 650139 30 AMP CIRCUIT BREAKER, KUBOTA ONLY
6 1 680119* BALLAST PANEL, ONLY
7 7 043021 ¼-20 NC KEPS NUT
8 14 041017 #6-32 NC X 3/8 ROUND HEAD SCREW
9 4 330458 CIRCUIT BREAKER SWITCH, 15 AMP SP
10 1 680118* LEFT QUARTER PANEL 4-LIGHT
11 1 041250 1/4 - 20 NC X 1/2 ROUND HEAD NYLON SCREW
12 2 041050 1/4 - 20 NC X 3/4 SCREW
13 3 044023 1/4 - 20 NC NYLON INSERT NUT
14 1 330459 CIRCUIT BREAKER SWITCH , 15 AMP DP (6KW ONLY)

1 330453 CARLING SWITCH 20 AMP SP (8KW ONLY)
15 1 680365* ISUZU DC GAUGE PANEL
16 3 043050 1/4 INTERNAL TOOTH LOCK WASHER
17 4 046015 1/4 - 20 NC X 1 GRADE 5 BOLT
18 1 330494 1/4 - 20 NC WING NUT
19 1 ** 1/4 - 20 NC X 1 1/2 STUD
20 2 041080 1/4 - 20 NC X 1 SCREW
21 2 047008 1/4 STAINLESS STEEL FLAT WASHER
22 9 044031 5/16 - 18 NC KEPS NUT
23 5 022024 3/4" CUSHION CLAMP WITH 3/8 HOLE
24 1 352000 PULLEY BRACKET (NOTE: USE LOWER HOLE FOR MANUAL

WINCH AND UPPER HOLE FOR ELECTRIC WINCH)

25 1 330458 CARLING SWITCH, 15 AMP DP (6KW ONLY)

1 330456 CARLING SWITCH, 30AMP DP (8KW ONLY)

C-7D

ISUZU 4-LIGHT AC GAUGE PANEL ASSEMBLY (3 PHASE)

NO REQ’D PART NO DESCRIPTION

1 1 680509 240V 3 PHASE, LEFT FRONT QUARTER PANEL
2 4 330459 15 A MP DPST CIRCUIT BREAKER
3 1 330458 15 AMP SPST CIRCUIT BREAKER
4 18 041018 #6 - 32 X 1/4” PHILLIPS HEAD MACHINE SCREW
5 2 620560 BUSS BAR

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-7D2

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 43

C-7E

4-LIGHT AC GAUGE PANEL AND LSC 100

LIGHT SEQUENCE COMMANDER CONTROLLER PANEL ASSEMBLY

44 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

4-LIGHT AC GAUGE PANEL AND LSC 100

LIGHT SEQUENCE COMMANDER CONTROLLER PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680391 LSC 100 CONTROL PANEL ASSEMBLY (STANDARD)

680392 PANEL FOR ELECTRIC OR HYDRAULIC TOWERS (OPTIONAL)
2 1 650715 LSC 100 COVER BACK
3 2 041050 1/4 - 20 NC X 3/4 ROUND HEAD SCREW
4 2 047005 1/4” FLAT WASHER
5 2 044021 1/4” KEPS NUT
6 1 041070 1/4 - 20 NC X 3/4 MACHINE SCREW
7 3 046010 1/4 - 20 NC X 3/4 HEX BOLT

C-7F

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 45

C-8A

MANUAL WINCH AND TOWER SUPPORT ASSEMBLY

C-8A2

46 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

MANUAL WINCH AND TOWER SUPPORT ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 4 046050 5/16 -18 NC X 1 GRADE 5 BOLT
2 4 046110 3/8 - 16 NC X 1 GRADE 5 BOLT
3 1 680111* TOWER PIVOT WELDMENT
4 4 044031 5/16 - 18 NC KEPS NUT
5 4 044036 3/8 -16 NC KEPS NUT
6 1 046200 1/2 - 13 NC X 2 1/4 GRADE 5 BOLT
7 6 047010 5/16 FLAT WASHER
8 4 044021 1/4 - 20 NC KEPS NUT
9 1 047005 1/4 FLAT WASHER
10 1 352482 WINCH, PLATED 2500 LBS
11 1 320112 2 1/2 PULLEY W/BUSHING
12 1 044048 1/2 - 13 NC NYLON INSERT NUT
13 1 041050 1/4 - 20 NC X 3/4 SS TRUSS HEAD BOLT
14 1 630555* TOWER KICK OUT SPRING
15 2 045118 1/4” RIVET
16 1 650621 KICKOUT SPRING PAD
NS 1 352022 ONE PIECE WINCH HANDLE (BEFORE 2/2004)

C-8B

NO REQ’D PART NO DESCRIPTION

1 THREE PIECE WINCH HANDLE ASSEMBLY (AFTER 2/2004)

INCLUDES:
17 1 660144 DRIVE HUB
18 1 650470 WINCH HANDLE
19 1 680474 15/20 KW WINCH HANDLE EXTENSION TUBE
20 2 650108 14-20 NC x 1-3/4” GRADE 5 HEX BOLT
21 2 044023 1/4-20 NC NYLON INSERT NUT

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-8B2

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 47

C-8C

ELECTRIC WINCH, SLACK LIMIT SWITCH, AND TOWER SUPPORT

48 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ELECTRIC WINCH, SLACK LIMIT SWITCH, AND TOWER SUPPORT

NO REQ’D PART NO DESCRIPTION

1 2 046050 5/16 -18 NC X 1 GRADE 5 BOLT
2 7 046110 3/8 - 16 NC X 1 GRADE 5 BOLT
3 1 680111* TOWER PIVOT WELDMENT
4 4 044031 5/16 - 18 NC KEPS NUT
5 7 044036 3/8 -16 NC KEPS NUT
6 1 046200 1/2 - 13 NC X 2 1/4 GRADE 5 BOLT
7 6 047015 3/8 FLAT WASHER
8 1 630157 STRONG ARM ELECTRIC WINCH

352478 EMERGENCY WINCH HANDLE
9 1 680142* STRONG ARM WINCH COVER
10 4 041075 5/16 - 18 NC SELF TAPPING SCREW
11 1 320112 2 1/2 PULLEY W/BUSHING
12 1 044048 1/2 - 13 NC NYLON INSERT NUT
13 2 041007 #6 - 32 NC X 1 1/2 ROUND HEAD SCREW
14 2 047005 1/4 FLAT WASHER
15 1 466093 SLACK LIMIT SWITCH
16 1 352056* SLACK LIMIT SWITCH MOUNT BRACKET
17 2 047047 #6 FLAT WASHER
18 2 044004 #6 - 32 NC HEX NUT
19 1 352089* TOWER KICK OUT SPRING
20 2 047010 5/16 FLAT WASHER
21 1 090232 DECAL-CORRECT WINCH OPERATION
A.S.(NS) 1 352151 OPTIONAL WORKLIGHT
A.S.(NS) 1 352146 WORKLIGHT MOUNTING BRACKET

C-8D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 49

C-9A

FUEL TANK ASSEMBLY

50 GALLON FUEL TANK ASSEMBLY

C-9A2

70 GALLON FUEL TANK ASSEMBLY

50 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

FUEL TANK ASSEMBLY

50 GALLON FUEL TANK ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 340441 FUEL TANK FILLER CAP
2 1 340440 FUEL TANK, 50 GALLON
3 6 047007 1/4 X 1 1/4 FENDER WASHER
4 6 043050 1/4 INTERNAL TOOTH LOCK WASHER
5 6 046005 1/4 - 20 NC X 1/2 GRADE 5 BOLT

C-9B

70 GALLON FUEL TANK ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 100024 70 GALLON FUEL TANK
2 1 100380 FUEL TANK CAP 2.25” NECK BEFORE 1/08

1 100854 FUEL TANK CAP 4.3” NECK AFTER 1/08
3 1 100025 FUEL LEVEL GAUGE/SENDER
4 1 848967 GAUGE ADAPTER
5 1 340025 FUEL SUCTION TUBE ASSEMBLY
6 1 930151 90° 1/8 NPT X 5/16" HOSE FITTING
7 1 100358 3/8 NPT X 1/8 NPT REDUCING BUSHING
8 4 046120 3/8-16 X 1 1/2" GR 5 HEX BOLT
9 4 047010 5/16" PLATED FLAT WASHER
10 4 043065 3/8" SPLIT LOCK WASHER
11 2 ** 3/8" NPT PIPE PLUG

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-9B2

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 51

C-10A

RIGHT QUARTER PANEL ASSEMBLY

C-10C

240V REAR PANEL WITH DISCONNECT

52 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

RIGHT QUARTER PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680256* RIGHT QUARTER PANEL

680512* RIGHT QUARTER PANEL (After Sept. 2005)
2 2 041050 1/4 - 20 NC X 3/4 SCREW
3 1 041250 1/4 - 20 NC X 1 ROUND HEAD NYLON SCREW
4 1 630547 WINCH HANDLE NYLON BLOCK
5 5 044023 1/4 -20 NC NYLON INSERT NUT
6 2 041250 1/4 - 20 NC X 3/4 GRADE 5 BOLT
7 2 047008 1/4 STAINLESS STEEL FLAT WASHER

C-10B

240V REAR PANEL WITH DISCONNECT

NO REQ’D PART NO DESCRIPTION

1 1 352398 SAFETY SWITCH

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-10D

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 53

C-11A

KUBOTA ENGINE DC GAUGE PANEL ASSEMBLY

54 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

KUBOTA ENGINE DC GAUGE PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680123* KUBOTA DC GAUGE PANEL
2 1 041078 1/4 - 20 NC X 1/2 TRUSS HEAD SCREW
3 1 340413 VOLT METER
4 1 340014 HOUR METER, 12 VOLT
5 1 920474 IGNITION KEY (KUBOTA)
6 1 920475 KUBOTA KEY SWITCH W/2 KEYS
7 1 @@@ GLOW PLUG LAMP (KUBOTA)
8 1 @@@ GLOW LAMP TIMER (KUBOTA)
9 1 044021 1/4 - 20 NC KEPS NUT

@@@ = See local Kubota Dealer

C-11B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 55

C-11C

ISUZU ENGINE DC GAUGE PANEL ASSEMBLY

56 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ISUZU ENGINE DC GAUGE PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 CF ISUZU CONTROL BOX

922004 IGNITION SWITCH KIT ISUZU
340014 HOUR METER
800233 ISUZU CONTROL BOX COVER
921433 RESISTANCE CONTROL
921434 PILOT LAMP RED

921434 PILOT LAMP AMBER
2 6 047010 5/16 FLAT WASHER
3 3 046045 5/16-18 MC X 3/4 GRADE 5 BOLT
4 1 711028 7/8 GROMMET
5 3 046050 5/16-18 NC X 1 GRADE 5 BOLT
6 6 650260 2” O.D. X .451 I.D. WASHER
7 1 680266 ISUZU CONTROL BOX COVER
8 8 044033 5/16-18 NC NYLON INSERT NUT
9 2 310212 5/8 CUSHION CLAMP

CF = Contact Allmand for Further Info

C-11D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 57

C-12A

RIGHT ROOF PANEL ASSEMBLY

58 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

RIGHT ROOF PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680271* RIGHT ROOF PANEL (Isuzu 4LE)

680255* RIGHT ROOF PANEL (Kubota 2003T)
680327* RIGHT ROOF PANEL (Kubota 2203/1903)

680498* RIGHT ROOF PANEL (Hydraulic Tower)
2 1 680341 ROOF PANEL SHIM
3 11 041050 1/4 - 20 NC X 3/4 TRUSS HEAD SCREW
4 5 047009 1/4 FLAT WASHER
5 15 044023 ¼-20 NC NYLON INSERT NUT
6 4 041078 1/4 - 20 NC X 1/2TRUSS HEAD SCREW

C-12B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 59

C-12C

LEFT ROOF PANEL ASSEMBLY

60 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

LEFT ROOF PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680106* LEFT ROOF PANEL

652372* LEFT ROOF PANEL (Hydraulic Tower)
2 5 041078 1/4 - 20 NC X 1/2 TRUSS HEAD SCREW
3 5 044023 ¼-20 NC NYLON INSERT NUT

C-12D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 61

C-13A

RIGHT DOOR PANEL ASSEMBLY

C-13A2

RIGHT DOOR PANEL ASSEMBLY (SLAM LATCH MODEL)

62 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

RIGHT DOOR PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 13 044023 1/4 - 20 NC NYLON INSERT NUT
2 1 680258 DOOR HINGE
3 13 041047 1/4 - 20 NC X 3/4 SCREW
4 1 680109* RIGHT DOOR PANEL
NS 1 680114* LEFT DOOR PANEL
5 4 044016 #10 - 24 NC KEPS NUT
6 2 650132 LATCH CAM, W/SQUARE HEAD SET SCREW
7 4 041026 #10 - 24 NC X 3/4 FLAT HEAD SCREW
8 2 650131 LOCKING T-HANDLE
9 2 352057 TELESCOPIC PROP

C-13B

RIGHT DOOR PANEL ASSEMBLY(SLAM LATCH MODEL)

(After S/N 0023MXL04)

NO REQ’D PART NO DESCRIPTION

1 13 044023 1/4 - 20 NC NYLON INSERT NUT
2 1 680258 DOOR HINGE
3 13 041047 1/4 - 20 NC X 3/4 SCREW
4 1 680443* RIGHT SLAM LATCH DOOR PANEL
5 4 044016 #10 - 24 NC KEPS NUT
6 1 680459 SLAM LATCH
NS 1 680470 STRIKER
7 4 041026 #10 - 24 NC X 3/4 FLAT HEAD SCREW
8 2 352057 TELESCOPIC PROP
NS 680471 SLAM LATCH RETRO KIT

C-13B2

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 63

C-13C

LEFT DOOR PANEL ASSEMBLY

C-13C2

LEFT DOOR PANEL ASSEMBLY (SLAM LATCH MODEL)

64 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

LEFT DOOR PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 13 044023 1/4 - 20 NC NYLON INSERT NUT
2 1 352023 DOOR HINGE
3 13 041047 1/4 - 20 NC X 3/4 SCREW
4 1 680114* LEFT DOOR PANEL
5 2 044016 #10 - 24 NC KEPS NUT
6 1 650132 LATCH CAM
7 2 041026 #10 - 24 NC X 3/4 FLAT HEAD SCREW
8 1 650131 LOCKING T-HANDLE
9 1 352057 TELESCOPIC PROP

C-13D

LEFT DOOR PANEL ASSEMBLY(SLAM LATCH MODEL)
(After S/N 0023MXL04)

NO REQ’D PART NO DESCRIPTION

1 13 044023 1/4 - 20 NC NYLON INSERT NUT
2 1 680258 DOOR HINGE
3 13 041047 1/4 - 20 NC X 3/4 SCREW
4 1 680444* LEFT SLAM LATCH DOOR PANEL
5 4 044016 #10 - 24 NC KEPS NUT
6 1 680459 SLAM LATCH
NS 1 680470 STRIKER
7 4 041026 #10 - 24 NC X 3/4 FLAT HEAD SCREW
8 2 352057 TELESCOPIC PROP
NS 680471 SLAM LATCH RETRO KIT

C-13D2

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 65

C-14A

LEFT FRONT PANEL ASSEMBLY

66 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

LEFT FRONT PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680104-09 LEFT FRONT ABS PANEL (BLACK)

1 680441* LEFT FRONT PANEL (METAL)
2 13 045216 TINNERMAN FASTENER
3 13 041078 1/4 - 20 NC X 1/2” TRUSS HEAD SCREW

C-14B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 67

C-14C

RIGHT FRONT PANEL ASSEMBLY

68 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

RIGHT FRONT PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680103-09 RIGHT FRONT ABS PANEL (BLACK)

1 680440* RIGHT FRONT PANEL (METAL)
2 10 045216 TINNERMAN FASTENER
3 4 041050 1/4 - 20 NC X 3/4” TRUSS HEAD SCREW
4 3 044005 1/4” FLAT WASHER
5 3 044023 1/4 - 20 NC NYLON INSERT NUT
6 9 041078 1/4 - 20 NC X 3/4” TRUSS HEAD SCREW

C-14D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 69

C-15A

OUTRIGGERS AND REAR JACK MOUNT ASSEMBLY

C-15C

REAR TOWER SUPPORT ASSEMBLY

70 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

OUTRIGGERS AND REAR JACK MOUNT ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 2 330010 LONG JACK
2 330012 REPLACEMENT HANDLE
3 1 680113* LEFT/RIGHT OUTRIGGER
4 1 340058 GROUND ROD
5 2 041025 #10 - 24 NC X 1/2 SCREW
6 2 330481 GROUND ROD CLIP
7 3 330014 JACK SNAP RING 2 5/16 XT
8 2 044016 #10 - 24 NC KEPS NUT
9 1 SERIAL NUMBER PLATE
10 4 045108 BLIND RIVET
11 1 352072 SWIVEL MOUNT JACK WITH SIDE CRANK
12 4 041080 1/4 - 20 NC X 1 SCREW
13 1 680112* REAR JACK MOUNT WELDMENT
14 2 ** #4 CUSHION CLAMP
15 4 044023 1/4 - 20 NC NYLON INSERT NUT

C-15B

REAR TOWER SUPPORT ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680105 CORD HOLDER
2 1 680110 REAR TOWER SUPPORT WELDMENT

680540 REAR TOWER SUPPORT WELDMENT EXTENDED (optional)
3 1 330450 REAR TOWER SUPPORT PIN
4 1 045156 ROLL PIN, 1/4 X 2” PLATED
5 2 046055 BOLT, 5/16-18 X 1-1/4 GR 5
6 6 047010 5/16” FLAT WASHER
7 4 046050 5/16-18 X 1” HEX HEAD BOLT
8 6 044033 5/16-18 NYLON INSERT NUT
9 10 041050 1/4-20 X 3/4” TRUSS HEAD BOLT

C-15D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 71

C-16A

REAR OUTLET PANEL ASSEMBLY

C-16A2

REAR OUTLET PANEL ASSEMBLY

72 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

REAR OUTLET PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680277 OUTLET PANEL
2 1 353300 100 AMP 2 POLE BREAKER (20 KW)

1 353280 70 AMP 2 POLE BREAKER (15 KW)
3 8 044003 #8-32 NC KEPS NUT
4 2 650138 20 A MP CIRCUIT BREAKER
5 1 352175 50 AMP CIRCUIT BREAKER
6 1 350360 POWER DISTRIBUTION BLOCK
7 2 044021 1/4-20 NC KEPS NUT
8 3 330456 30 AMP DOUBLE POLE SWITCH
9 14 041013 #8-32 NC X 1/2 MACHINE SCREW
10 2 041080 1/4 - 20 NC X 1 TRUSS HEAD SCREW
NS 1 680367 75/100 CIRCUIT BREAKER HOLE COVER (NON-CSA ONLY)

C-16B

REAR OUTLET PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 2 330499 20 AMP GFCI RECEPTACLE
2 3 653102 240 VOLT TWISTLOCK RECEPTACLE
3 10 044003 #8-32 NC KEPS NUT
4 2 044021 1/4-20 NC KEPS NUT
5 10 041023 #8-32 NC X 1/2 ROUND HEAD SCREW
6 1 041053 1/4 - 20 NC X 1-3/4 TRUSS HEAD SCREW

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-16B2

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 73

C-16A3

REAR OUTLET PANEL ASSEMBLY (CANADIAN)

C-16A4

REAR OUTLET PANEL ASSEMBLY (CANADIAN)

74 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

REAR OUTLET PANEL ASSEMBLY (CANADIAN)

NO REQ’D PART NO DESCRIPTION

1 1 680442 OUTLET PANEL WITH 4-30 AMP RECEPTACLES
2 1 353301 90 AMP 2 POLE BREAKER (20 KW)

1 353280 70 AMP 2 POLE BREAKER (15 KW)
3 4 044003 #8-32 NC KEPS NUT
4 2 650138 20 AMP CIRCUIT BREAKER
6 1 350360 POWER DISTRIBUTION BLOCK
7 2 044021 1/4-20 NC KEPS NUT
8 4 330456 30 AMP DOUBLE POLE SWITCH
9 12 041013 #8-32 NC X 1/2 MACHINE SCREW
10 2 041080 1/4 - 20 NC X 1 TRUSS HEAD SCREW

C-16B3

REAR OUTLET PANEL ASSEMBLY (CANADIAN)

NO REQ’D PART NO DESCRIPTION

1 2 330499 20 AMP GFCI RECEPTACLE
2 4 653102 240 VOLT TWISTLOCK RECEPTACLE
3 12 044003 #8-32 NC KEPS NUT
4 2 044021 1/4-20 NC KEPS NUT
5 12 041023 #8-32 NC X 1/2 ROUND HEAD SCREW
6 1 041053 1/4 - 20 NC X 1-3/4 TRUSS HEAD SCREW

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

C-16B4

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 75

C-16A5

REAR OUTLET PANEL ASSEMBLY (3 PHASE 240 Volt)

C-16A6

REAR OUTLET PANEL ASSEMBLY (3 PHASE 240 Volt)

76 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

REAR OUTLET PANEL ASSEMBLY (3 PHASE 240 Volt)

NO REQ’D PART NO DESCRIPTION

1 1 680869 3 PHASE 240V REAR OUTLET PANEL
2 1 650138 20 A PUSH BUTTON CIRCUIT BREAKER
3 2 044021 1/4-20 NC PLATED KEPS NUT
4 1 041053 1/4 - 20 NC X 1-3/4 PHILLIPS TRUSS HEAD SCREW
5 3 330472 30 AMP SINGLE POLE SWITCH
6 1 680815 125V 30A OUTLET
7 1 022235 60A 3 POLE CIRCUIT BREAKER
8 1 043050 1/4” INTERNAL TOOTH LOCKWASHER
9 4 041018 #6-32 NC X 1/4” PHILLIPS HEAD MACHINE SCREW
10 8 041013 #8-32 NC X 1/2” MACHINE SCREW
11 10 044003 #8-32 NC KEPS NUT
12 2 041021 #10-24 NC X 1/2” ROUND HEAD MACHINE SCREW
13 4 044016 #10-24 NC PLATED KEPS NUT
14 1 022236 50 AMP 3 POLE CIRCUIT BREAKER
15 1 352397 SINGLE POLE POWER DISTRIBUTION BLOCK
16 1 330499 20A GFCI RECEPTACLE
17 1 BACKING NUT(INCLUDED WITH 650138)
18 1 PLASTIC NUT(INCLUDED WITH 650138)
19 2 041027 #10-24 NC X 3/4” PHILLIPS HEAD MACHINE SCREW

C-16B5

REAR OUTLET PANEL ASSEMBLY (3 PHASE 240 Volt)

NO REQ’D PART NO DESCRIPTION

1 1 680869 3 PHASE 240V REAR OUTLET PANEL
2 1 650138 20 A PUSH BUTTON CIRCUIT BREAKER
3 2 044021 1/4-20 NC PLATED KEPS NUT
4 1 041053 1/4 - 20 NC X 1-3/4 PHILLIPS TRUSS HEAD SCREW
5 3 330472 30 AMP SINGLE POLE SWITCH
6 1 680815 125V 30A OUTLET
7 1 022235 60A 3 POLE CIRCUIT BREAKER
8 1 043050 1/4” INTERNAL TOOTH LOCKWASHER
9 4 041018 #6-32 NC X 1/4” PHILLIPS HEAD MACHINE SCREW
10 8 041013 #8-32 NC X 1/2” MACHINE SCREW
11 10 044003 #8-32 NC KEPS NUT
12 2 041021 #10-24 NC X 1/2” ROUND HEAD MACHINE SCREW
13 4 044016 #10-24 NC PLATED KEPS NUT
14 1 022236 50 AMP 3 POLE CIRCUIT BREAKER
15 1 352397 SINGLE POLE POWER DISTRIBUTION BLOCK
16 1 330499 20A GFCI RECEPTACLE
17 1 BACKING NUT(INCLUDED WITH 650138)
18 1 PLASTIC NUT(INCLUDED WITH 650138)
19 2 041027 #10-24 NC X 3/4” PHILLIPS HEAD MACHINE SCREW

C-16B6

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 77

C-16A7

REAR OUTLET PANEL ASSEMBLY (3 PHASE 208 Volt)

78 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

REAR OUTLET PANEL ASSEMBLY (3 PHASE 208 Volt)

NO REQ’D PART NO DESCRIPTION

1 1 680568 3 PHASE 208V REAR OUTLET PANEL
2 1 022235 60A 3 POLE CIRCUIT BREAKER
3 1 022236 50 AMP 3 POLE CIRCUIT BREAKER
4 2 650138 20 A MP CIRCUIT BREAKER
5 2 BACKING NUT(INCLUDED WITH 650105)
6 2 PLASTIC NUT(INCLUDED WITH 650105)
7 4 330456 30A DPST CIRCUIT BREAKER
8 4 352397 POWER DISTRIBUTION BLOCK
9 2 330499 20 AMP 120V GFCI RECEPTACLE
10 4 653102 30A 125-250V GFCI OUTLET
11 1 041053 1/4 - 20 NC X 1-3/4” PHILLIPS TRUSS HEAD SCREW
12 2 044021 1/4-20 NC PLATED KEPS NUT
13 8 041018 #6-32 NC X 1/4” PHILLIPS HEAD MACHINE SCREW
14 16 041013 #8-32 NC X 1/2” MACHINE SCREW
15 16 044003 #8-32 NC KEPS NUT
16 4 #6-32 NC X 3/4” SCREW (SUPPLIED WITH GFCI)
17 1 043050 1/4” INTERNAL TOOTH LOCKWASHER
18 8 041021 #10-24 NC X 1/2” ROUND HEAD MACHINE SCREW
19 8 044016 #10-24 NC PLATED KEPS NUT

C-16B7

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 79

C-17A

REAR DOOR AND PANEL ASSEMBLY

80 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

REAR DOOR AND PANEL ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 680293* OUTLET DOOR PANEL
2 13 041050 1/4-20 NC X 3/4” TRUSS HEAD SCREW
3 1 650131 T HANDLE ASSEMBLY
4 2 041026 #10 - 24 NC X 3/4 FLAT HEAD SCREW
5 6 044016 #10 - 24 KEPS NUT
6 1 680360 50 AMP REAR OUTLET ASSEMBLY (CSA) (OPTIONAL)

352171 5 0 AMP REAR OUTLET ONLY (DOMESTIC) (OPTIONAL)

352171C 50 A MP REAR OUTLET ONLY (CSA) (OPTIONAL)
7 3 041027 #10 - 24 NC X 3/4 ROUND HEAD SCREW
8 1 041030 #10 - 24 NC X 1” ROUND HEAD SCREW
9 1 680511* SMALL OUTLET PANEL COVER
10 1 680278* LARGE OUTLET PANEL COVER
11 11 044021 1/4-20 NC KEPS NUT
12 1 353045 DOOR HINGE
NS 1 680454* 50 AMP OUTLET HOLE COVER PANEL

C-17B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 81

C-17C

LICENSE PLATE HOLDER ASSEMBLY

82 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

LICENSE PLATE HOLDER ASSEMBLY

NO REQ’D PART NO DESCRIPTION

1 1 032035 LICENSE PLATE HOLDER
2 4 041030 #10 - 24 NC X 1” MACHINE SCREW
3 4 022180 SPACER
4 4 044016 #10 - 24 KEPS NUT

C-17D

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 83

D-1A

DECAL PLACEMENT

84 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

DECAL PLACEMENT

NO REQ’D PART NO DESCRIPTION

1 1 090159 DECAL-WARNING COMBUSTIBLE GAS

D-1B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 85

D-2A

DECAL PLACEMENT

ML 20

86 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

DECAL PLACEMENT

NO REQ’D PART NO DESCRIPTION

1 1 090003 DECAL - DO NOT STAND
2 1 090139 DECAL - UNLATCHED/LATCHED
3 1 090269 DECAL - ALLMAND YELLOW TO ORANGE 11.75"
4 1 352026 DECAL - GRADATION STRIPE SET
5 2 090255 DECAL - MAXI-LITE
6 2 090256 DECAL - ALLMAND, YELLOW TO ORANGE
7 2 090493 DECAL - ML 20
NS 090492 DECAL - ML 15
8 2 090267 DECAL - XL
NS 1 090065 DECAL - ARCTIC SPECIAL
NS 1 090164 DECAL - WARNING NON-VERTICAL
NS 1 090161 DECAL - MOVING PART HAZARD

D-2B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 87

D-3A

DECAL PLACEMENT

ML 20

88 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

DECAL PLACEMENT

NO REQ’D PART NO DESCRIPTION

1 1 090162 DECAL - DANGER HAZARDOUS VOLTAGE
2 1 090160 DECAL - WARNING EXCESSIVE TOW SPEED
3 1 090133 DECAL - GROUND LUG
4 1 090003 DECAL - DO NOT STAND
5 2 090255 DECAL - MAXI-LITE
6 2 090493 DECAL - ML 20
NS 090492 DECAL - ML 15
7 2 090267 DECAL - XL
NS 2 090065 DECAL - ARCTIC SPECIAL
8 2 090256 ALLMAND, YELLOW TO ORANGE DECAL
9 1 352026 DECAL - GRADATION STRIPE SET

D-3B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 89

D-4A

DECAL PLACEMENT

90 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

DECAL PLACEMENT

NO REQ’D PART NO DESCRIPTION

1 1 090169 DECAL - LIGHTS 1,2,3,4 (4-LIGHT OPTION)
NS 1 090282 DECAL - LIGHTS 1,2,3,4 ,5,6 (6-LIGHT OPTION)
2 1 090084 DECAL - WARNING FAILURE TO TURN OFF LIGHTS
3 1 090261 DECAL - IGNITION START, ELECTRIC WINCH
4 1 090158 DECAL - WARNING OPERATORS MANUAL
5 1 090163 DECAL – DANGER ELECTRIC SHOCK
6 1 090034 DECAL-DIESEL

D-4B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 91

D-5A

DECAL PLACEMENT

92 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

DECAL PLACEMENT

NO REQ’D PART NO DESCRIPTION

1 1 090152 DECAL - NON-VERTICAL TOWER
2 1 090005 DECAL - CHECK FOR OVERHEAD OBSTRUCTIONS
3 1 090179 DECAL - PROPOSITION 65, DIESEL
4 1 090205 DECAL - CAUTION, RED LATCH (ELECTRIC WINCH)
5 1 090151 DECAL - OPERATING INSTRUCTIONS
6 1 090263 DECAL - WARNING, PULL PIN
7 1 090165 DECAL - DANGER, ELECTRIC SHOCK
8 1 090262 DECAL - PICTORIAL OPERATOR, ELECTRIC WINCH

090259 DECAL - PICTORIAL OPERATOR, MANUAL WINCH
9 1 090264 DECAL - LIFT INSTRUCTIONS

D-5B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 93

E-1A

KUBOTA V2003T and V2203

1

V2003T

1

V2203

94 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

KUBOTA V2003T and V2203

NO REQ’D PART NO DESCRIPTION

1 1 350365 OIL FILTER, V1903, V2203, V2003T ENGINES
NS 1 350366 FUEL FILTER, V1903, V2203, V2003T ENGINES
NS 1 081016 FUEL LINE (1/4" FUEL LINE 72")
NS 1 081005 RETURN LINE (NYLON HOSE 80")
NS 1 081018 FUEL LINE (5/16" FUEL LINE 14")
NS 1 081018 FUEL LINE (5/16" FUEL LINE 10")
NS 1 @@@ TOP RADIATOR HOSE
NS 1 @@@ BOTTOM RADIATOR HOSE
NS 1 340105 GROUND STRAP
NS 1 @@@ RADIATOR
NS 1 680826 HIGH TEMPERATURE SWITCH
NS 1 350367 AIR CLEANER ELEMENT ONLY
NS 1 @@@ AIR CLEANER/FILTER ELEMENT ASSEMBLY
NS 1 680237* ENGINE MOUNT BRACE (LEFT) (2203 AND 2003T)
NS 1 680238* ENGINE MOUNT BRACE (RIGHT) (2203 AND 2003T)
NS 1 340301 OIL PRESSURE SWITCH
NS 680139 FUEL SOLENOID, KUBOTA 4 CYL

@@@ = See local Kubota Dealer

E-1B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 95

E-2A

ISUZU 4LE1

3

2

3

1

96 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

ISUZU 4LE1

NO REQ’D PART NO DESCRIPTION

1 1 @@@@ HIGH TEMPERATURE SWITCH 205° (2 PRONG)

680334 HIGH TEMPERATURE SWITCH 230° (3 PRONG)
2 1 @@@@ OIL DRAIN PLUG
3 1 680275 ISUZU 4L31 ENGINE ONLY (COMPLETE)
NS 1 @@@@ AIR CLEANER DUST CAP
NS 1 @@@@ AIR CLEANER
NS 1 @@@@ AIR INTAKE HOSE
NS 1 @@@@ OIL PRESSURE SWITCH
NS 1 @@@@ UPPER RADIATOR HOSE
NS 1 @@@@ RADIATOR
NS 52" 081005 NYLON RETURN LINE
NS 20" 081016 1/4 FUEL LINE
NS 1 @@@@ MUFFLER GASKET
NS 1 680331 AIR CLEANER ELEMENT (PRIMARY)
NS 1 680332 AIR CLEANER ELEMENT (SECONDARY)
NS 1 650221 OIL FILTER
NS 1 650220 FUEL FILTER

E-2B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

@@@@ = See local ISUZU Dealer

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 97

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

E-3A

Isuzu 4LE Extended Dipstick

98 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE

NO REQ’D PART NO DESCRIPTION

Isuzu 4LE Extended Dipstick

1 1 100606 ISUZU EXTENDED DIPSTICK TUBE
2 1 100605 ISUZU EXTENDED DIPSTICK
3 1 100340 ISUZU 4LE EXTENDED DIPSTICK BRACKET
4 1 022016 # 6 CUSHION CLAMP, 1/4" HOLE
5 1 041078 1/4-20 x 1/2" PLATED PHILIPS TRUSS HEAD SCREw
6 1 047009 1/4" SS FLAT WASHER
7 1 044023 NUT 1/4-20 NYLOC HEX PLATED
8 2 100647 6MM - 1.25 X 20MM HEX SCREW
9 2 043020 1/4" PLATED SPLIT LOCK WASHER
10 2 042027 M8 - 1.25 x 16mm HEX BOLT
11 2 047005 1/4" PLATED FLAT WASHER
12 3 043055 5/16" PLATED SPLIT LOCK WASHER
13 1 ~ 8MM - 1.25 HEX NUT

14 1 680275 ISUZU 4LE ENGINE

E-3B

LEGEND: NS= Not Shown * Use these codes to designate color needed:

** =Purchase locally 01-White 02-Gloss Black 03-Gray

04-Allmand Yellow 05-Orange 06-Allmand Gold
09-Flat Black 10-High temp Black 11-Red

MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE 99

F-1A

ELECTRICAL DIAGRAMS

KUBOTA ENGINE/GENERATOR SET

100 MAXI-LITE ML 15/ML 20 SERIES P ARTS REFERENCE
