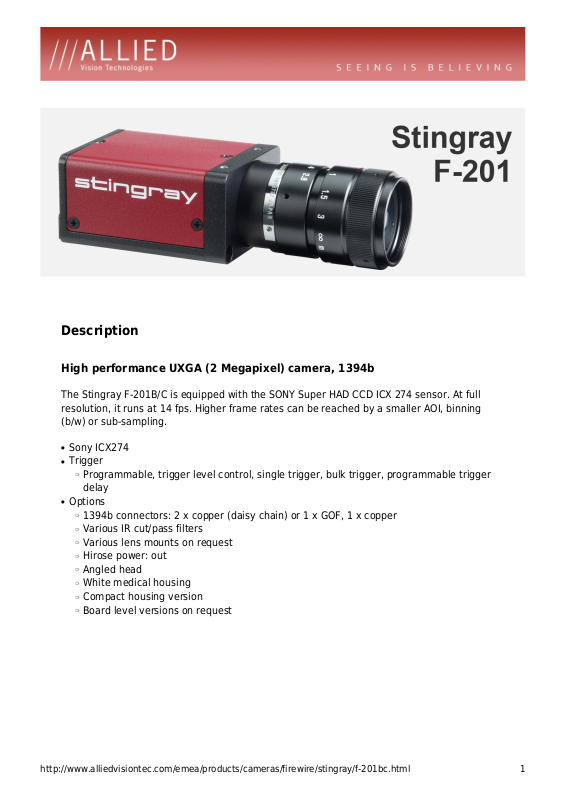

Page 1
Description

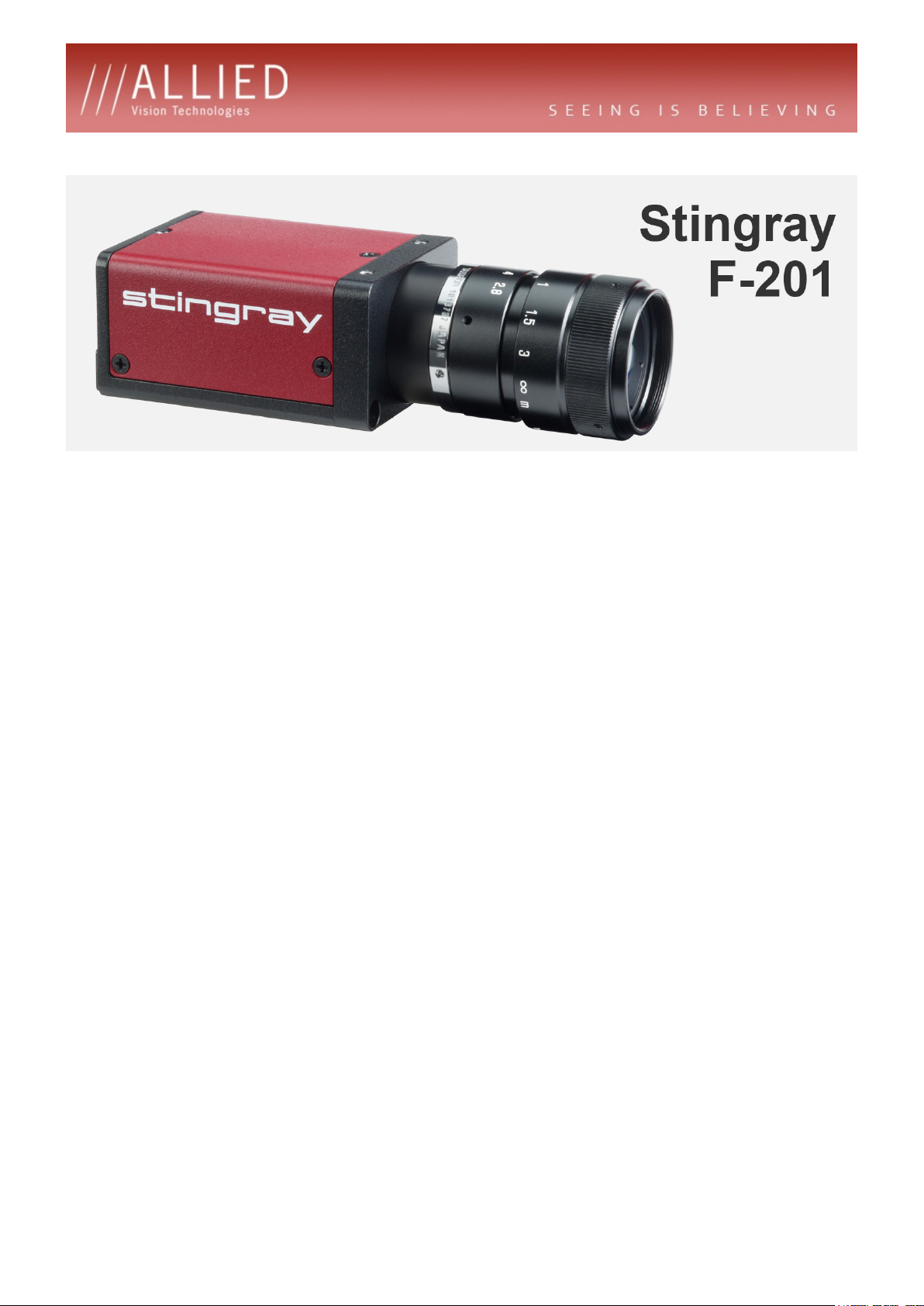

High performance UXGA (2 Megapixel) camera, 1394b
The Stingray F-201B/C is equipped with the SONY Super HAD CCD ICX 274 sensor. At full
resolution, it runs at 14 fps. Higher frame rates can be reached by a smaller AOI, binning
(b/w) or sub-sampling.
●
Sony ICX274
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
1394b connectors: 2 x copper (daisy chain) or 1 x GOF, 1 x copper
❍
Various IR cut/pass filters
❍
Various lens mounts on request
❍
Hirose power: out
❍
Angled head
❍
White medical housing
❍
Compact housing version
❍
Board level versions on request
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-201bc.html 1
Page 2
Specifications
Stingray F-201
Interface IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution 1624 x 1234
Sensor Sony ICX274
Sensor type CCD Progressive
Sensor size Type 1/1.8
Cell size 4.4 µm
Lens mount C
Max frame rate at full resolution 14 fps
A/D 14 bit
On-board FIFO 32 MB
Output
Bit depth 8-14 bit
Mono modes Mono8, Mono12, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <4 W
Mass 92 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
72.9 x 44 x 29 mm including connectors, w/o tripod and lens
Download Stingray technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-201bc.html 2

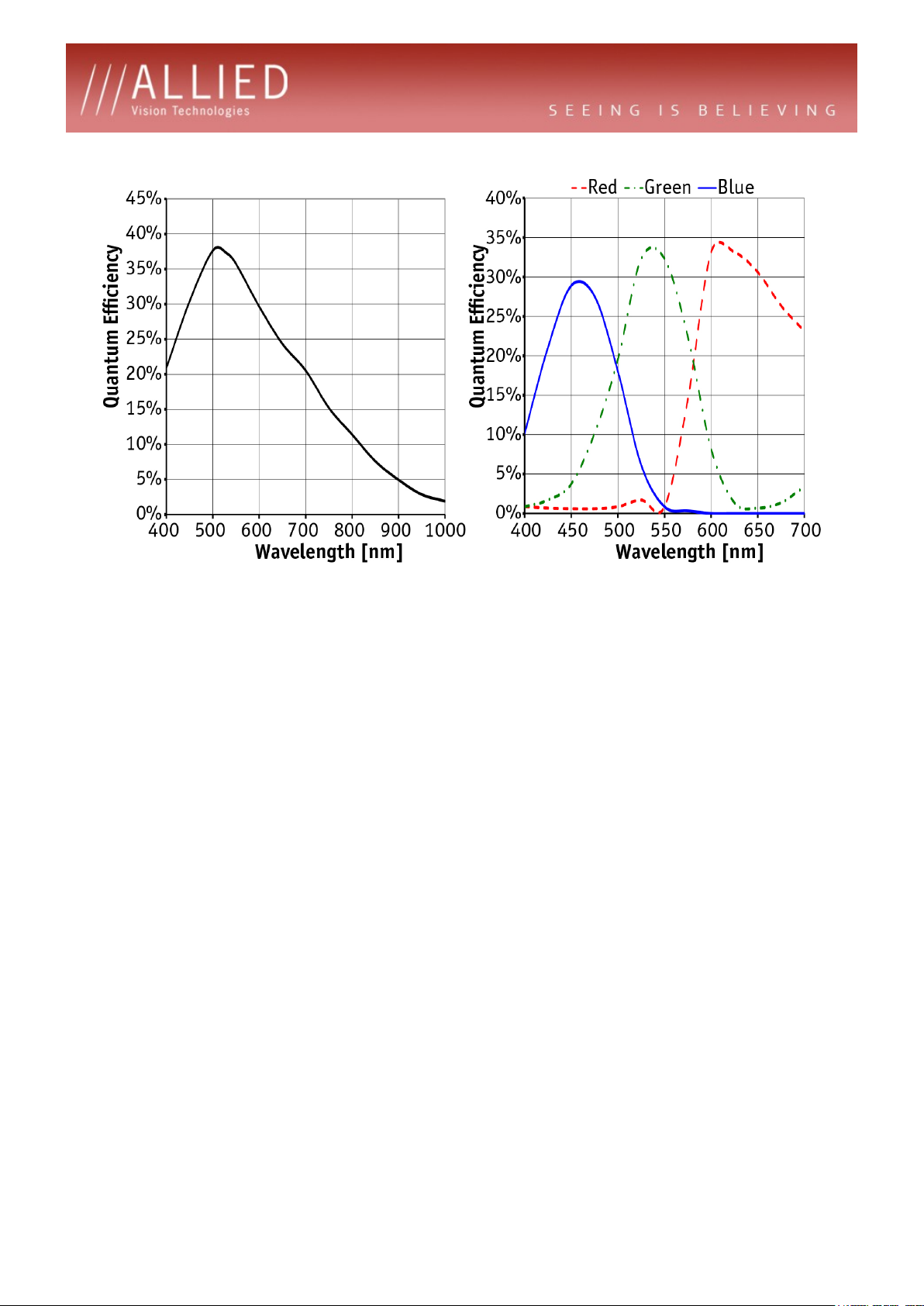

Page 3
Smart features
Stingray cameras include numerous real-time image pre-processing functions. All below
mentioned functions are performed by the FPGA inside the camera – with no additional CPU
load and thus an inexpensive host computer.
●
AOI (true partial scan), separate AOI for auto features
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24.4 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 48 µs - 67 s
●
Color correction
●
Shading correction
●
High SNR mode (up to 24 dB better signal-to-noise ratio)
●
Local color anti-aliasing
●
Sub-sampling, 2x – 8x binning
●
Low noise binning mode
●
Defect pixel correction
●
Sequence mode (changes the camera settings on the fly)
●
Image mirror
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-201bc.html 3
Page 4
●
Deferred image transport
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
The Technical Manual of the Stingray contains detailed descriptions of all functions.
Applications
The Stingray is a high performance UXGA (2 Megapixel) 1394b camera with excellent image
quality. Amongst others, this camera is suitable for:
●
Industrial inspection and automation
●
Logistics
●
Science and research
●
Intelligent traffic systems
●
Healthcare and medical (white housing available)
●
Multimedia, entertainment and sports
●
... and many more
Additionally, it is ideally suited for:
●
Demanding OEM camera applications (board level versions with separate sensor board
available on request)
●
Daisy chaining (two copper connectors)
●
Long cables - 400 meters and more without additional repeaters (glass optical fiber version:
Stingray F-201B/C fiber)
Application Case Studies:
●
Packaging Inspector
Industrial inspection: Advanced machine vision system ensures 100% quality of food
packaging using 53 digital cameras from Allied Vision Technologies.
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-201bc.html 4
