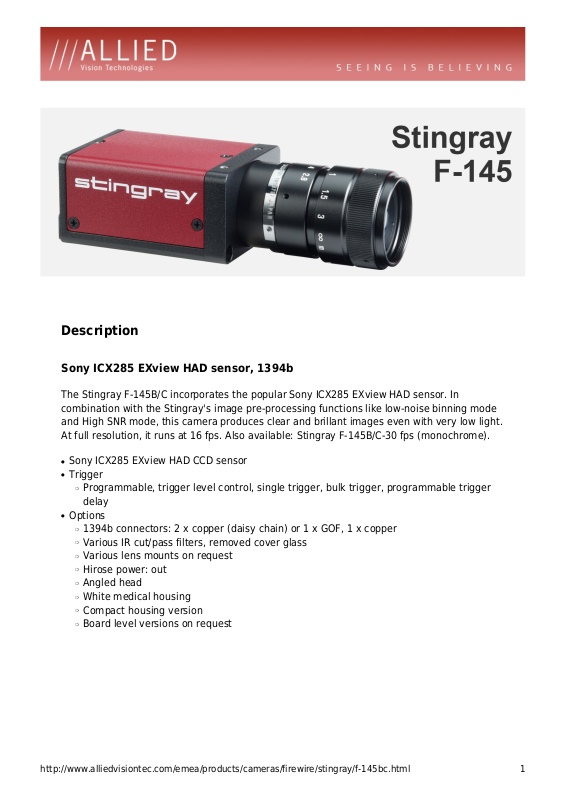

Description
Sony ICX285 EXview HAD sensor, 1394b
The Stingray F-145B/C incorporates the popular Sony ICX285 EXview HAD sensor. In
combination with the Stingray's image pre-processing functions like low-noise binning mode
and High SNR mode, this camera produces clear and brillant images even with very low light.
At full resolution, it runs at 16 fps. Also available: Stingray F-145B/C-30 fps (monochrome).
●
Sony ICX285 EXview HAD CCD sensor
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
1394b connectors: 2 x copper (daisy chain) or 1 x GOF, 1 x copper
❍
Various IR cut/pass filters, removed cover glass
❍
Various lens mounts on request
❍
Hirose power: out
❍
Angled head
❍
White medical housing
❍
Compact housing version
❍
Board level versions on request
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-145bc.html 1
Page 2
Specifications
Stingray F-145
Interface IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution 1388 x 1038
Sensor Sony ICX285
Sensor type CCD Progressive
Sensor size Type 2/3
Cell size 6.45 µm
Lens mount C
Max frame rate at full resolution 16 fps
A/D 14 bit
On-board FIFO 32 MB
Output
Bit depth 8-14 bit
Mono modes Mono8, Mono12, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <4 W
Mass 92 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
72.9 x 44 x 29 mm including connectors, w/o tripod and lens
Max frame rate for monochrome version: 30 fps
Download Stingray technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-145bc.html 2
Page 3
Smart features
Stingray cameras include numerous real-time image pre-processing functions. All below
mentioned functions are performed by the FPGA inside the camera – with no additional CPU
load and thus an inexpensive host computer.
●
AOI (true partial scan), separate AOI for auto features
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24.4 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 74 µs - 67 s
●
Color correction
●
Shading correction
●
High SNR mode (up to 24 dB better signal-to-noise ratio)
●
Local color anti-aliasing
●
Sub-sampling, 2x – 8x binning (b/w)
●
Low noise binning mode
●
Defect pixel correction
●
Sequence mode (changes the camera settings on the fly)
●
Image mirror
●
Deferred image transport
http://www.alliedvisiontec.com/emea/products/cameras/firewire/stingray/f-145bc.html 3
Page 4
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
The Technical Manual of the Stingray contains detailed descriptions of all functions.
Applications
Thanks to the ExView HAD Sony ICX285 sensor and especially the High SNR mode, defect
pixel correction and low-noise binning mode, Stingray F-145B/C cameras are the perfect
choice for low-light applications in:
●
Industrial inspection and automation
●
Logistics
●
Science and research
●
Healthcare and medical (light grey housing available)
●
Solar cell inspection
●
LCD panel inspection
●
Multimedia and entertainment
●
ITS (Intelligent traffic solutions)
●
... and many more
Additionally, it is ideally suited for:
●
Demanding OEM camera applications (board level versions with separate sensor board
available on request)
●
Daisy chaining (two copper connectors)
●
Long cables - 400 meters and more without additional repeaters (fiber version)
